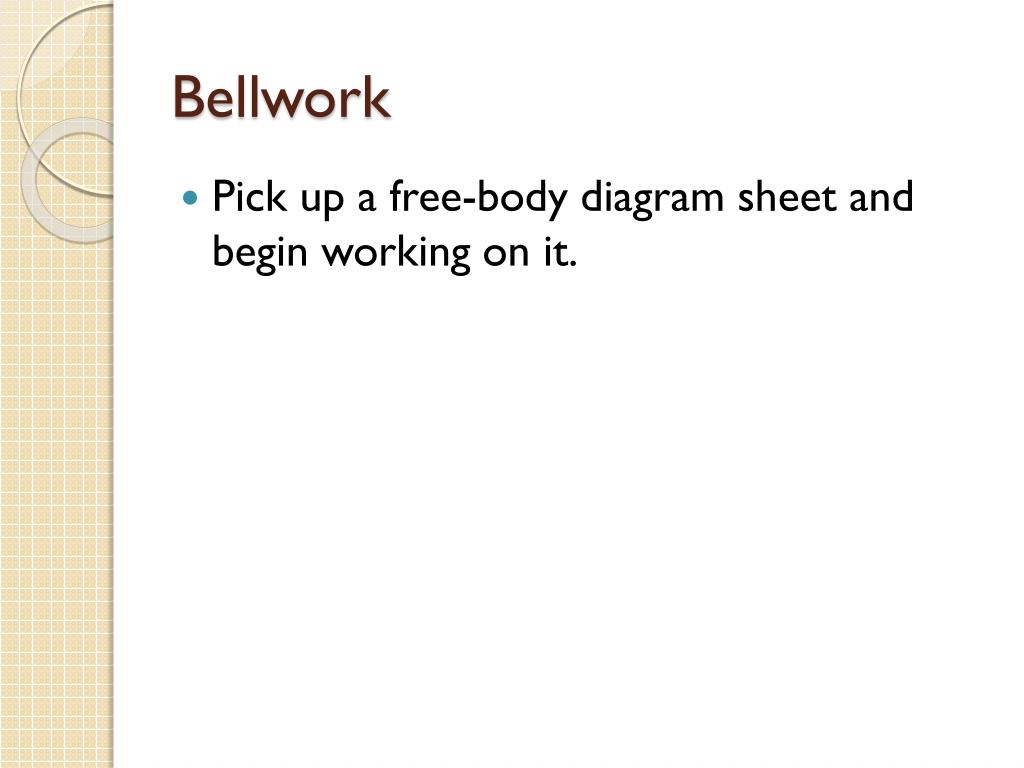

  1. Bellwork • Pick up a free-body diagram sheet and begin working on it.

  2. October 21, 2009 • SWBAT state and calculate weight • SWBAT solve for coefficients of static and kinetic friction Catalyst • Hang on to worksheets from yesterday

  3. Weight & Friction

  4. Weight & Friction Weight – the mass and acceleration of an object due to gravity

  5. Weight & Friction Weight – the mass and acceleration of an object due to gravity creates weight.  aka - Fg

  6. Weight & Friction Fg = mg Force of Gravity = mass x gravity

  7. Weight & Friction Fg = mg An object with a mass of 9kg has what weight or Fg?

  8. Weight & Friction Fg = mg An object with a mass of 9kg has what weight or Fg? Fg = (9)(9.81)

  9. Weight & Friction Fg = mg An object with a mass of 9kg has what weight or Fg? Fg = 88.3N

  10. Weight & Friction What force is resisting the box?

  11. Weight & Friction What force is resisting the box?

  12. Weight & Friction This is called the Normal Force (Fn)

  13. Weight & Friction Normal Force (Fn) – The upward force equal to the downward Fg exerted by a surface.

  14. Moving a Refrigerator • Draw a free body diagram for the following situation. • A man pushes against a 85 kg refrigerator with 50 N of force but it doesn’t go anywhere.

  15. Weight & Friction • Friction (Ff) – The force that opposes the relative motion of two surfaces in contact • Friction is proportional to the Fn and depends on the surfaces in contact.

  16. Weight & Friction • Static friction (Fs) = the resistive force that keeps something from moving when at rest • Static means not moving • Fs = -Fapplied • Fs = μsFn where μs is the coefficient of static friction (it has no units)

  17. Moving the Fridge • Draw a free body diagram for the following situation. • A man pushes against a 85 kg refrigerator with 50 N of force but it doesn’t go anywhere • What is the coefficient of static friction between the floor and the fridge?

  18. Kinetic Friction • Objects also experience friction while they are moving • For moving object, friction: • Points opposite the direction of motion • Is parallel to the surface • The equation is Fk=μkFn where μk is the coefficient of kinetic friction (also no units)

  19. Weight & Friction • Question. Think about pushing a box full of books across the floor. Is it harder to push before or after it starts moving? • So would you expect the coefficient of static or kinetic friction to be a greater value? (indicating more Friction)

  20. Weight & Friction • A 24kg crate initially at rest on a horizontal floor requires a 75N horizontal force to set it in motion. Find the coefficient of static friction between the crate and the floor. • Figure out a plan • Try to solve without putting the numbers in first. • µs = .32

  21. Weight & Friction • a 91kg refrigerator is placed on a ramp. The refrigerator begins to slide when the ramp is raised to an angle of 34˚. What is the coefficient of static friction • Figure out a plan • Try to solve without putting the numbers in first. • µ = .67

  22. Weight & Friction • A student moves a box of books by attaching a rope to the box and pulling with a force of 90.0N at an angle of 30.0˚. The box of books has a mass of 20.0kg, and a coefficient of kinetic friction between the bottom of the box and the sidewalk is .50. Find the acceleration of the box. • Steps (how are we going to find our answer?) • Draw diagram • Find Fn using ( ΣFy = 0) • Calculate the force of kinetic friction (Fk = µkFn) • Use Newton’s 2nd Law on the horizontal axis to find acceleration (ΣFx = max) • a = .12m/s2 to the right

  23. Group Practice Problem! • Two students are sliding a 225kg sofa at a constant speed across a wood floor. One student pulls with a force of 225N at an angle of 13° above the horizontal. The other student pushes with a force of 250N at an angle of 23° below the horizontal. What is the coefficient of kinetic friction between the sofa and the floor? • Steps (how are we going to find our answer?) • Draw diagram • Find Fk using ( ΣFy = 0) • Calculate the coefficient of kinetic friction (Fk = µkFn) • μk = .20

  24. Pg 145; #1, 2, 3a, 3b Pg 147; #1, 3, 4 Practice Work

  25. Weight & Friction A 24kg crate initially at rest on a horizontal floor requires a 75N horizontal force to set it in motion. Find the coefficient of static friction between the crate and the floor

  26. Weight & Friction Ff = μFn A block sliding (μ = .57) on a surface has a normal force of 13N, what is the friction force? Ff = (.57)(13)

  27. Weight & Friction Ff = μFn A block sliding (μ = .57) on a surface has a normal force of 13N, what is the friction force? Ff = 7.4N

  28. Weight & Friction Ff = μFn A block sliding (μ = .1) on a surface has a friction force of 8N, what is the normal force?

  29. Weight & Friction Ff = μFn A block sliding (μ = .1) on a surface has a friction force of 8N, what is the normal force? 8 = (.1)(Fn)

  30. Weight & Friction Ff = μFn A block sliding (μ = .1) on a surface has a friction force of 8N, what is the normal force? Fn = 80N

  31. Weight & Friction Ff = μFn A 30 kg block sliding (μ = .2) on a surface has what friction force?

  32. Weight & Friction Ff = μFn A 30 kg block sliding (μ = .2) on a surface has what friction force?

  33. Weight & Friction Ff = μFn A 30 kg block sliding (μ = .2) on a surface has what friction force? Fg = mg

  34. Weight & Friction Ff = μFn A 30 kg block sliding (μ = .2) on a surface has what friction force? Fg = 30(9.81)

  35. Weight & Friction Ff = μFn A 30 kg block sliding (μ = .2) on a surface has what friction force? Fg = 294.3N

  36. Weight & Friction Ff = μFn A 30 kg block sliding (μ = .2) on a surface has what friction force? Fg = 294.3N Fg = Fn

  37. Weight & Friction Ff = μFn A 30 kg block sliding (μ = .2) on a surface has what friction force? Fn = 294.3N

  38. Weight & Friction Ff = μFn A 30 kg block sliding (μ = .2) on a surface has what friction force? Fn = 294.3N Ff = (.2)(294.3)

  39. Weight & Friction Ff = μFn A 30 kg block sliding (μ = .2) on a surface has what friction force? Fn = 294.3N Ff = 58.9N

  40. Weight & Friction What net force is being on the box below?

  41. Weight & Friction What net force is being on the box below? 222N

  42. Weight & Friction If a 22N force is being applied to a 33kg block sliding (μ = .03) on a surface, what is the net force?

  43. Weight & Friction Fg = mg If a 22N force is being applied to a 33kg block sliding (μ = .03) on a surface, what is the net force? Fg = 33(9.81)

  44. Weight & Friction Fg = mg If a 22N force is being applied to a 33kg block sliding (μ = .03) on a surface, what is the net force? Fg = 323.7N

  45. Weight & Friction Fg = mg If a 22N force is being applied to a 33kg block sliding (μ = .03) on a surface, what is the net force? Fg = 323.7N = Fn

  46. Weight & Friction Ff = μFn If a 22N force is being applied to a 33kg block sliding (μ = .03) on a surface, what is the net force? Ff = (.03)(323.7)

  47. Weight & Friction Ff = μFn If a 22N force is being applied to a 33kg block sliding (μ = .03) on a surface, what is the net force? Ff = 9.7N

  48. Weight & Friction Ff = μFn If a 22N force is being applied to a 33kg block sliding (μ = .03) on a surface, what is the net force? Fnet = 22 - 9.7

  49. Weight & Friction Ff = μFn If a 22N force is being applied to a 33kg block sliding (μ = .03) on a surface, what is the net force? Fnet = 22 - 9.7 = 12.3

  50. Weight & Friction Fnet = ma Take it a step further, how fast is the block accelerating?
