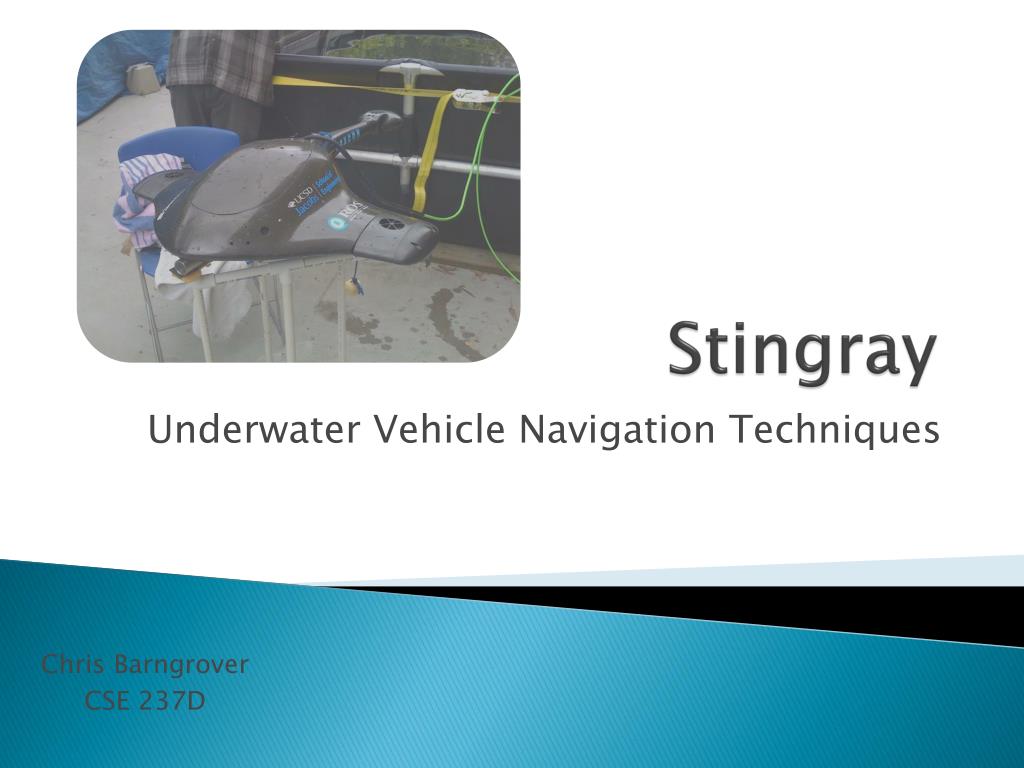

  1. Stingray Underwater Vehicle Navigation Techniques Chris Barngrover CSE 237D

  2. Unmanned Vehicle Navigation • Most funding goes to UAVs followed by UGVs • Lots of UUV applications (e.g. Moorea) • GPS is easiest way to know location, but this fails underwater • Need to use other techniques

  3. Navigation Techniques • Dead Reckoning • Inertial Navigation System (INS) • Doppler Velocity Log (DVL) • Acoustic Techniques • Long Baseline (LBL) • Ultra-short Baseline (USBL) • Geophysical (a priori maps) • Computer Vision

  4. Stingray • Microstrain 3DM-GX1 INS • SSI Technologies Pressure Sensor • 2 Remote Ocean System CE-X-18 Underwater Cameras • OpenCV Library

  5. Quarter Goals • Convert pressure sensor data to depth • Develop module that subscribes to INS, depth, and vision data • Develop a Kalman filter to create position estimation • Use vision techniques to rectify position estimation

  6. Midway Accomplishments • Incorporated Planner Module • Developed LPS Module • Researched pressure to depth conversion • Researched Kalman filter techniques

  7. Further Accomplishments • Depth Conversion Function • Basic Kalman Filter • Ground up development – Stalled • OpenCV Libraray - Success

  8. Depth Conversion • SSI Technologies Pressure Sensor • Take depth measurements at

  9. Depth Conversion • Variables: • Average Function: • Mode Function: • Amalgamation:

  10. Kalman Filter • Created a kalman library • init_kalman() • close_kalman() • kalman_update( time, status ) • kalman_get_location( &loc ) • Manages the CvKalman class from OpenCV

  11. Kalman Filter • State Equation: • : state vector • : transition matrix - relates state vectors • : control matrix – relates control to state • : control vector • : noise vector (k represents current time)

  12. Kalman Filter • State Equation:

  13. Kalman Filter • Measurement Equation: • : measurement vector • : relates state to measurement • : state vector • : noise vector (k represents current time)

  14. Kalman Filter • Measurement Equation:

  15. Kalman Filter

  16. Future Work • Continue Kalman Filter library • Add control elements – • Use angle and rotation angle to fix accelerations • Add velocity sensor for better results • Consider measured covariance matrices • Use vision to rectify location • Incorporate acoustic pinger triangulation • Other related work • Build standard course with dimensions • Develop visual tool

  17. Questions
