  1. All IP Live ProductionUpdate Peter Chavechavep@cisco.com ArchitectEncoding and Streaming BU

  2. NAB (Apr 2013) • SMPTE (Sep 2013) • Cisco Media Summit(Nov 2013) • EBU Voices and Choices (Nov 2013) • HPA Tech Retreat (Feb 2014) • VidTrans(Feb 2014) Agenda

  3. NABApril 2013 Production Contribution POC DEMO ROSA VSM V10 V10 V20 V20 Ixia Background Traffic Generator Nexus 5548 Nexus 5548 DCM Video GW DCM Video GW HD-SDI Monitor HD-SDI Monitor • Video capture and playback • Graphics insertion • Other (TBD)

  4. NABApril 2013

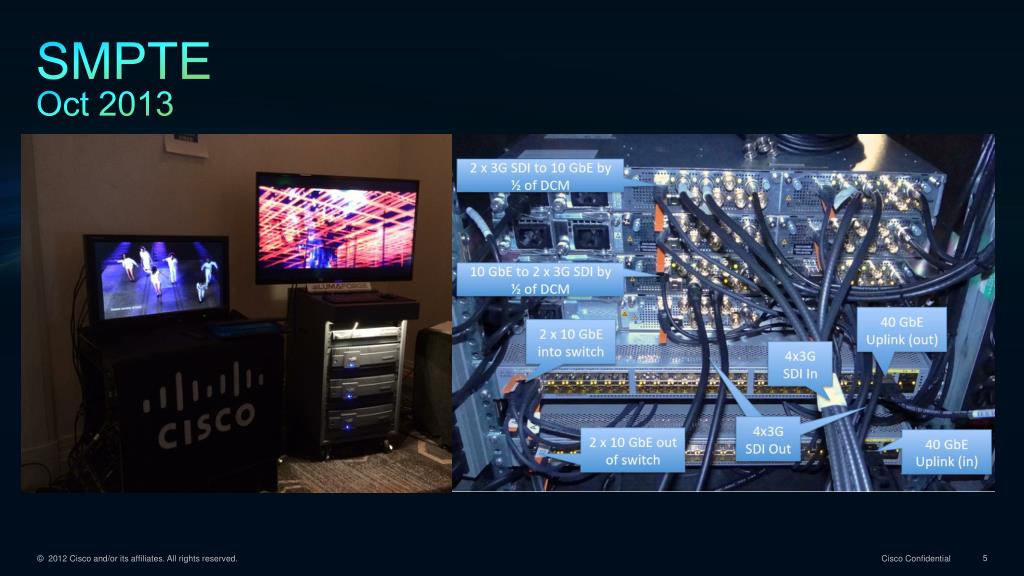

  5. SMPTEOct 2013

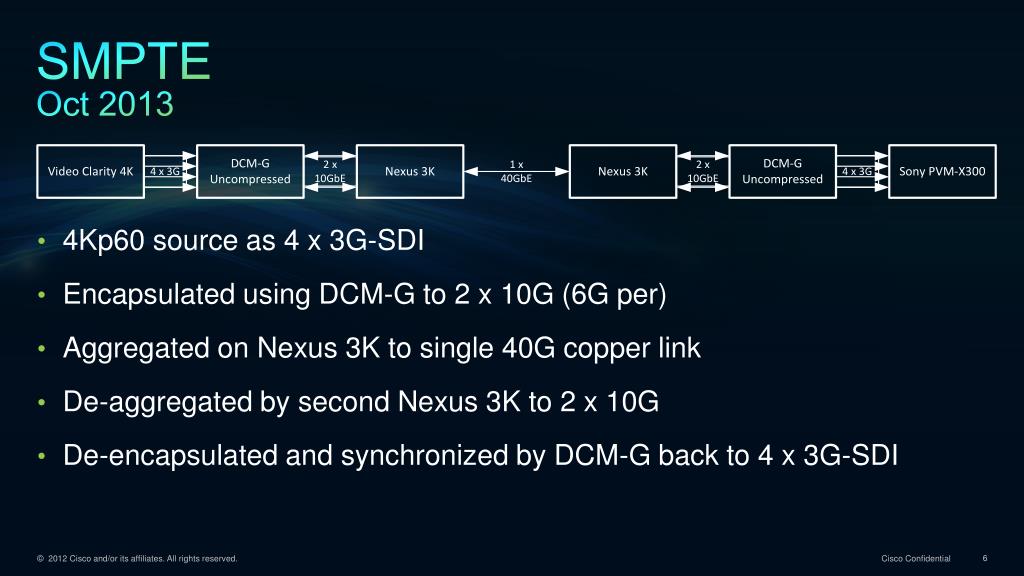

  6. SMPTEOct 2013 • 4Kp60 source as 4 x 3G-SDI • Encapsulated using DCM-G to 2 x 10G (6G per) • Aggregated on Nexus 3K to single 40G copper link • De-aggregated by second Nexus 3K to 2 x 10G • De-encapsulated and synchronized by DCM-G back to 4 x 3G-SDI

  7. Cisco Media Summit Nov 13 • Same setup as SMPTE • Using F55 as live source • X300 as display

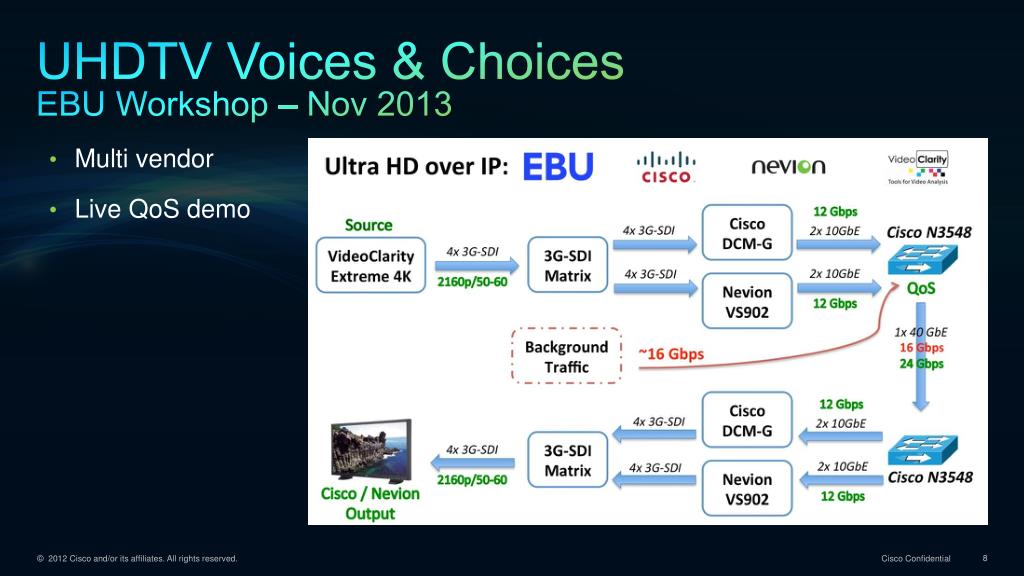

  8. UHDTV Voices & ChoicesEBU Workshop – Nov 2013 • Multi vendor • LiveQoS demo

  9. UHDTV Voices & ChoicesEBU Workshop – Nov 2013

  10. HPA Tech RetreatFeb 14 • 20G traffic using off the shelf hardware over SMPTE-Fiber • Note: Enough for 1 x 4Kp60 + 2 x 1080p60 and still have 2G of data - bidirectional • Extensible to 80G possible using 40G BiDi today by adding aggregation switch

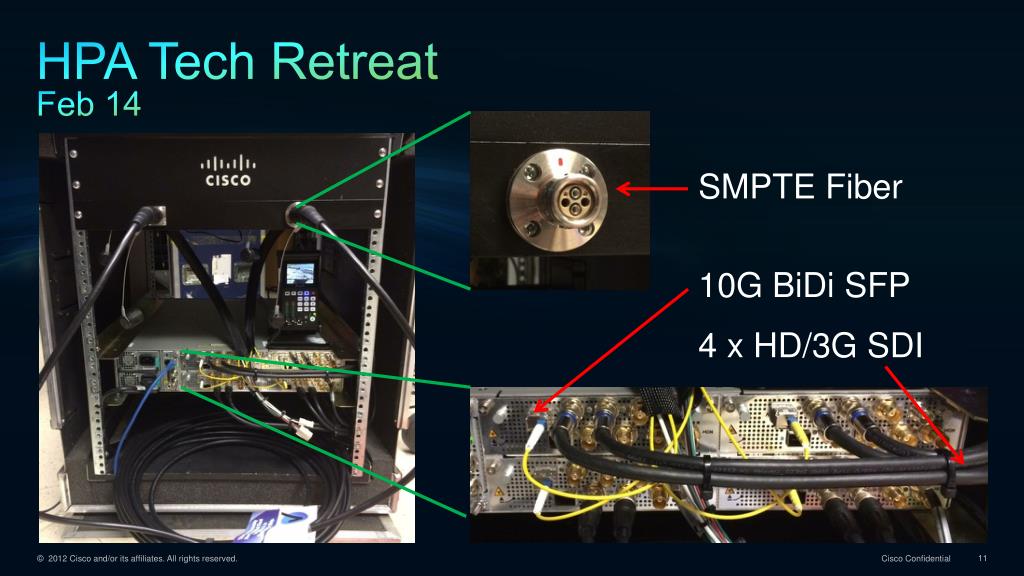

  11. HPA Tech RetreatFeb 14 SMPTE Fiber 10G BiDi SFP 4 x HD/3G SDI

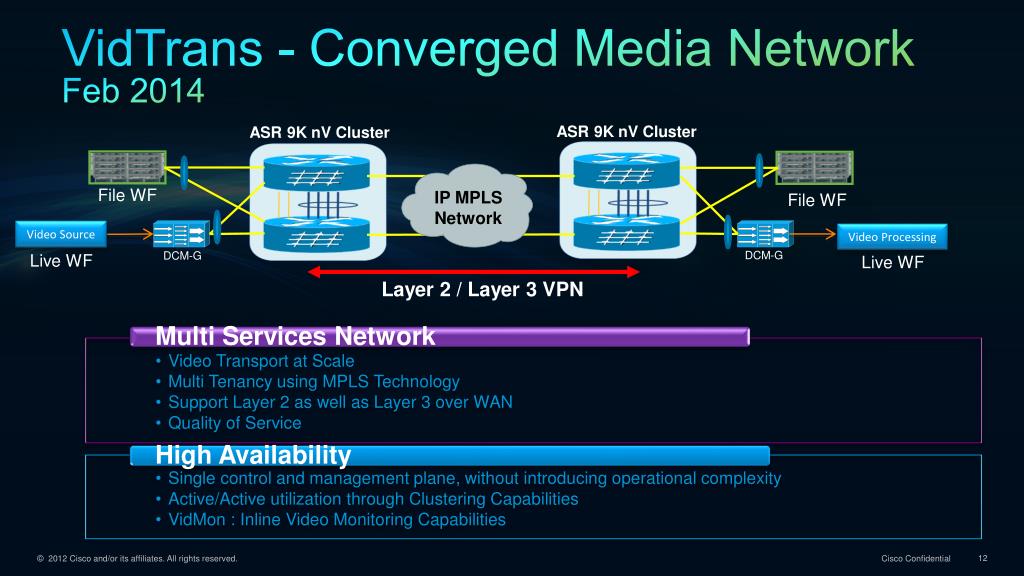

  12. VidTrans - Converged Media NetworkFeb 2014 ASR 9KnV Cluster ASR 9KnV Cluster File WF IP MPLS Network File WF Video Source Video Processing DCM-G DCM-G Live WF Live WF Layer 2 / Layer 3 VPN
