  1. UNIT-e RoadmapTechnology Day - November 2011

  2. Where were we in 2006? • VB 6 Applications • Database Manager • Managers/Proformas • Office Builder • RG • Internet Builder (COM) • Online Services (COM)

  3. Why change? • Productivity • Skills • Security • Support • From Microsoft and 3rd parties • Performance • Deployment • Fashion?

  4. Where are we now? • VB 6 Applications • Database Manager • Managers/Proformas • Office Builder • RG • Internet Builder (COM) • Online Services (COM) • Online Services (.NET) • Information Interface • Internet Builder (.NET) • Office Builder & Tools for Office • RG.NET • Information Interface (Web Client) • Local Windows Install

  5. VB6 Code in Nov 2011

  6. Size of UNIT-e in .NET in 2011

  7. And next year? • VB 6 Applications • Database Manager • Managers/Proformas • Office Builder • Online Services (.NET) • Resource Manger .NET • ILR • Information Interface • Internet Builder (.NET) • Tools for Office • RG.NET • Information Interface (Web Client) • Local Windows Install

  8. Shape of UNIT-e in 4.20 • 40%* reduction in file size of business classes • Improves load time • Better resource management • 25%* improvement in delete performance • 10% to 300%* improvement insert performance • Dependant on scenario, data and some additional code changes • 70% reduction in start up queries in Information Interface • Remove lookup queries against none protected fields • 60% reduction in size of IIWC pages • Smaller DMST scripts • Quicker Loading *These are specific functional measurements and do not translate directly to application performance.

  9. Size of UNIT-e business classes over versions

  10. Start up time of VQMT Diary over VPN (Wireless)

  11. So some progress… But is that enough?

  12. II & VB6 Interop • We know the Interop into VB6 is too slow • Debtor Balance, Invoices etc. • We know there are gaps • Extended Apps / SFS • We are moving tools into .NET • RM & Day View • ILR • Exams • We are looking performance • Local Cache • Optimised queries • Code review

  13. Cloud & Mobile & iOS & Android & Metro etc! But more things change!

  14. Validation • New convention on scripting • Built for Web Client • Added to II Forms in 2012 • Code based rules in DMST • Vary rules by rights • Shared validation across II applications • Users can modify with PE licence

  15. Validation Demo Demo

  16. User Interface • We need to appeal to current and new users • More approachable • More attractive • More accessible • We need to look modern • New UI controls and look and feel not restricted by licence • We need better reports presentation • SharePoint isn’t for everyone • Columbus/Internet Builder is showing it’s age • Users still want some control over their portals

  17. UI RefreshBrian Mann – Product Specialist

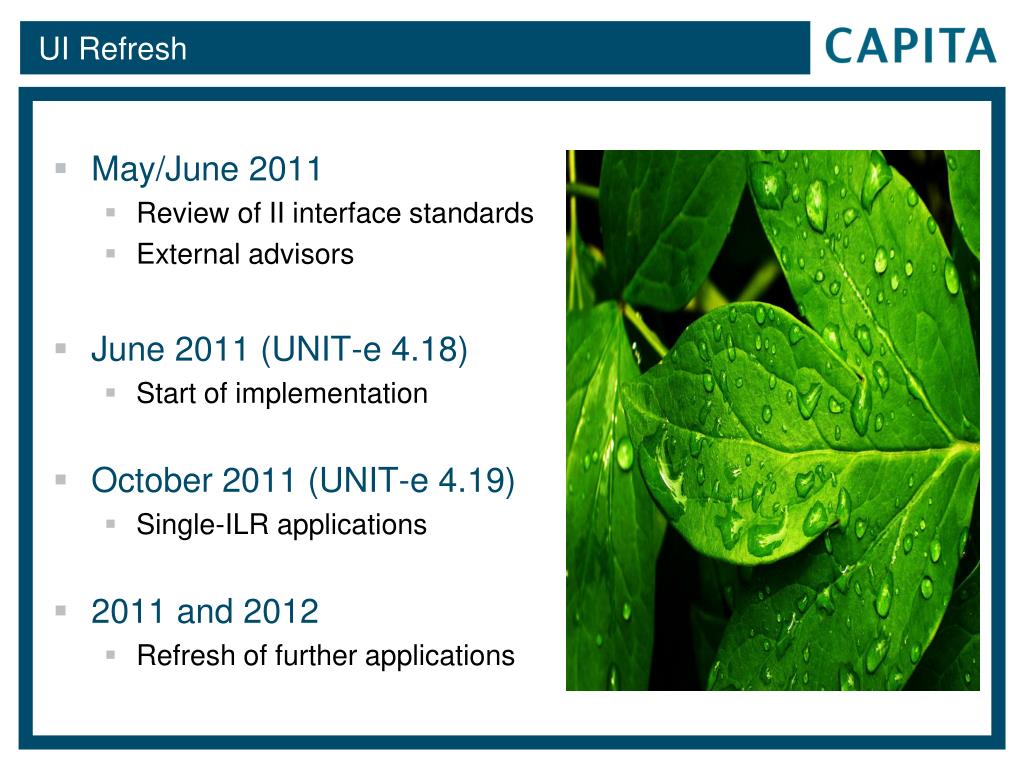

  18. UI Refresh • May/June 2011 • Review of II interface standards • External advisors • June 2011 (UNIT-e 4.18) • Start of implementation • October 2011 (UNIT-e 4.19) • Single-ILR applications • 2011 and 2012 • Refresh of further applications

  19. From Grey to Colour … plus a lot more • Ribbon menu • Images • Collapsible group boxes • Dockable panels • Form size management • Fixed field sizes • Use of Flow Layout Panel • II SE Linear applications • Replacement for Proformas

  20. Old Style

  21. New Style

  22. Higher Resolution Screen

  23. Linear Applications

  24. Colours, Fonts, Ribbon

  25. Images

  26. Images on Tabs - 1

  27. Images on Tabs - 2

  28. Image Folder

  29. Collapsible Group Boxes - 1 Collapsible group boxes

  30. Collapsible Group Boxes - 2

  31. Tool Buttons - 1

  32. Tool Buttons - 2

  33. Dockable Panels - 1

  34. Dockable Panels - 2

  35. Form Size Management At runtime: Application size ‘last used’ remembered Positioning of any ‘splits’ remembered

  36. Fixed Field Sizes

  37. Flow Layout Panel

  38. UNIT-e Roadmap – Part 2Technology Day - November 2011

  39. Where do we want to be? • VB 6 Applications • Database Manager • Managers/Proformas • Office Builder • RG • Internet Builder (COM) • Online Services (COM) • Online Services (.NET) • Information Interface • Internet Builder (.NET) • Office Builder & Tools for Office • RG.NET • Information Interface (Web Client) • Local Install

  40. Cloud & Mobile & iOS & Android & Metro etc! But that is “product” change, what about environmental and commercial change?

  41. Cloud & Mobile & iOS & Android & Metro etc! • Spending cuts • Reduce costs • Increased efficiency • Mergers & Shared Services • iPad & iPhone • Android • Windows Phone & Metro • Blackberry • Cloud • Expectations!

  42. Cloud & Mobile & iOS & Android & Metro etc! How do we respond?

  43. Strategy “One tool, any host, any device, any location”

  44. How do you do that? • Native Apps • Performance • UI • Offline • Expensive • Which platforms do you support? • Commission from store providers • Web Apps • Limited UIs but improving quickly • Easy deployment • Wide support • Use existing frameworks • Offline not practical at present • Still need custom behaviour for some devices

  45. What’s a Web Application? Web Sites Large numbers of users Often anonymous access Change UI to match other sites Security & performance drivers Off site Many devices UNIT-e Forms Apps Known users Data entry and workflow driven tasks On site Windows

  46. What is a Web Application? Web Sites Large numbers of users Often anonymous access Change UI to match other sites Security & performance drivers Off site Many devices UNIT-e Forms Apps Known users Data entry and workflow driven tasks On site Windows • Web Apps • Remote workers • New Devices • New People

  47. The UNIT-e Web Apps Stack • Web Client • Run time for Capita & customer II Web Apps • Authentication& authorisation • Rendering • Business functions • Integration with UOS & UIB • Support for desktop & mobile browsers • Web Apps • Specific II forms and tools for the browser • Launch Pad, Mark book etc. but also now mobile • Web Edition • Design environment • Familiar II tools • Support for web and mobile specific controls

  48. UNIT-e Information Interface – Web Applications

  49. Building a Web App in Information Interface Web Edition
