* Bluetooth Evaluation Kit

* Bluetooth Evaluation Kit. * MD-5XR : Bluetooth DSP Module - BC05 Multi-Media chip * Supported Profiles. - HFP (Handsfree Profile) - A2DP(Advanced Audio Distribution Profile) Sink & Source - SPP (Serial Port Profile). 동판 적층형 Pattern ANT. * Install. Install Power : 5V 1A

russ
Télécharger la présentation

* Bluetooth Evaluation Kit

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

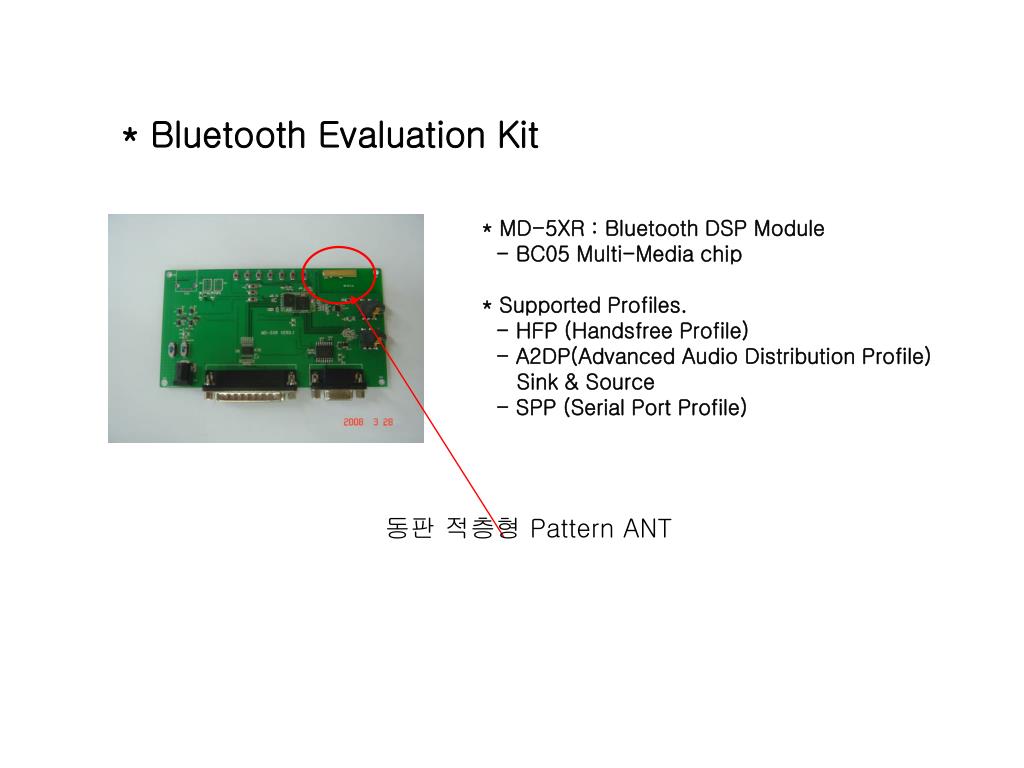

  1. * Bluetooth Evaluation Kit * MD-5XR : Bluetooth DSP Module - BC05 Multi-Media chip * Supported Profiles. - HFP (Handsfree Profile) - A2DP(Advanced Audio Distribution Profile) Sink & Source - SPP (Serial Port Profile) 동판 적층형 Pattern ANT

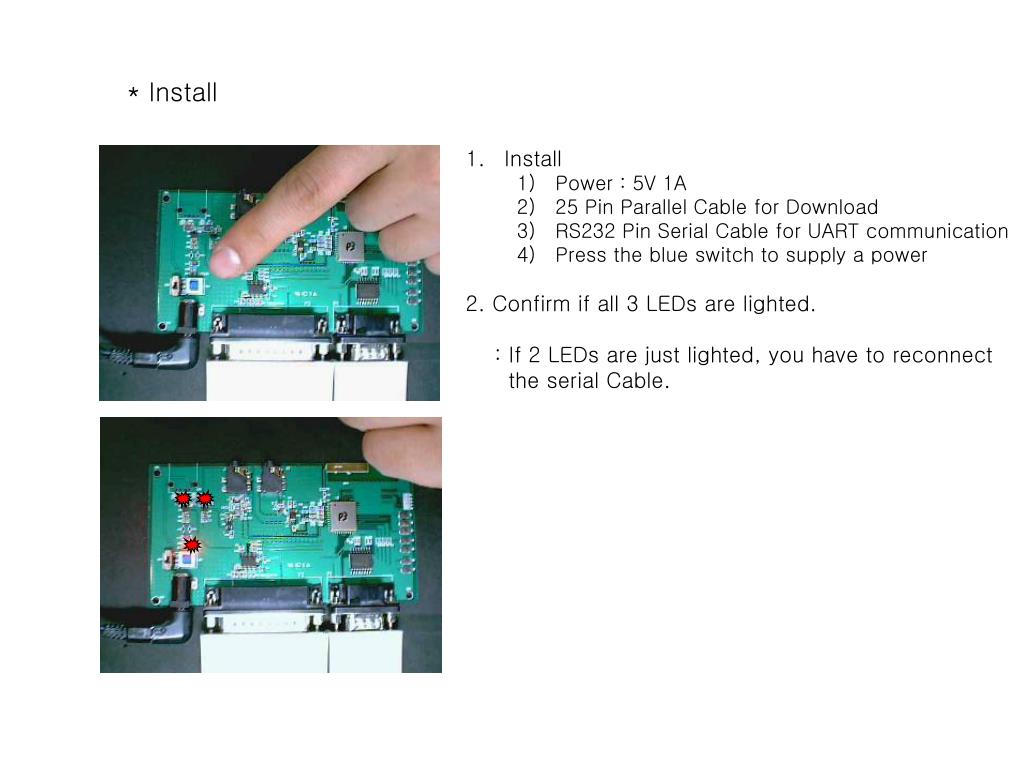

  2. * Install • Install • Power : 5V 1A • 25 Pin Parallel Cable for Download • RS232 Pin Serial Cable for UART communication • Press the blue switch to supply a power • 2. Confirm if all 3 LEDs are lighted. • : If 2 LEDs are just lighted, you have to reconnect • the serial Cable.

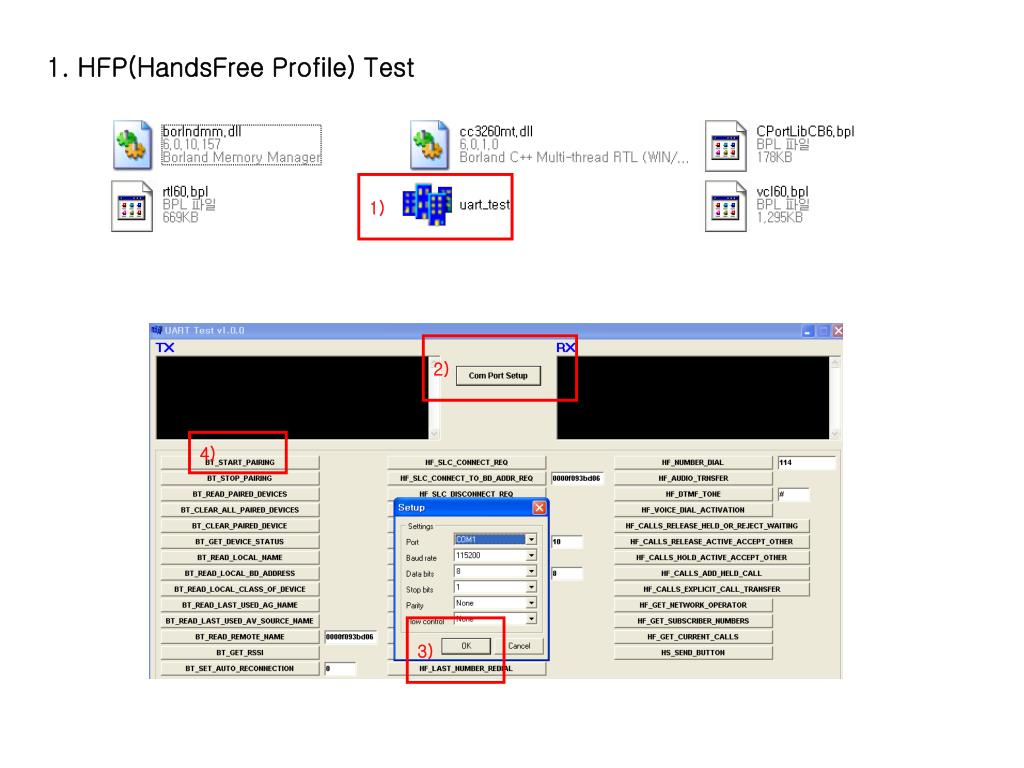

  3. 1. HFP(HandsFree Profile) Test 1) 2) 4) 3)

  4. 2. A2DP(Advanced Audio Distribution Profile) - A/V Sink Test 1)

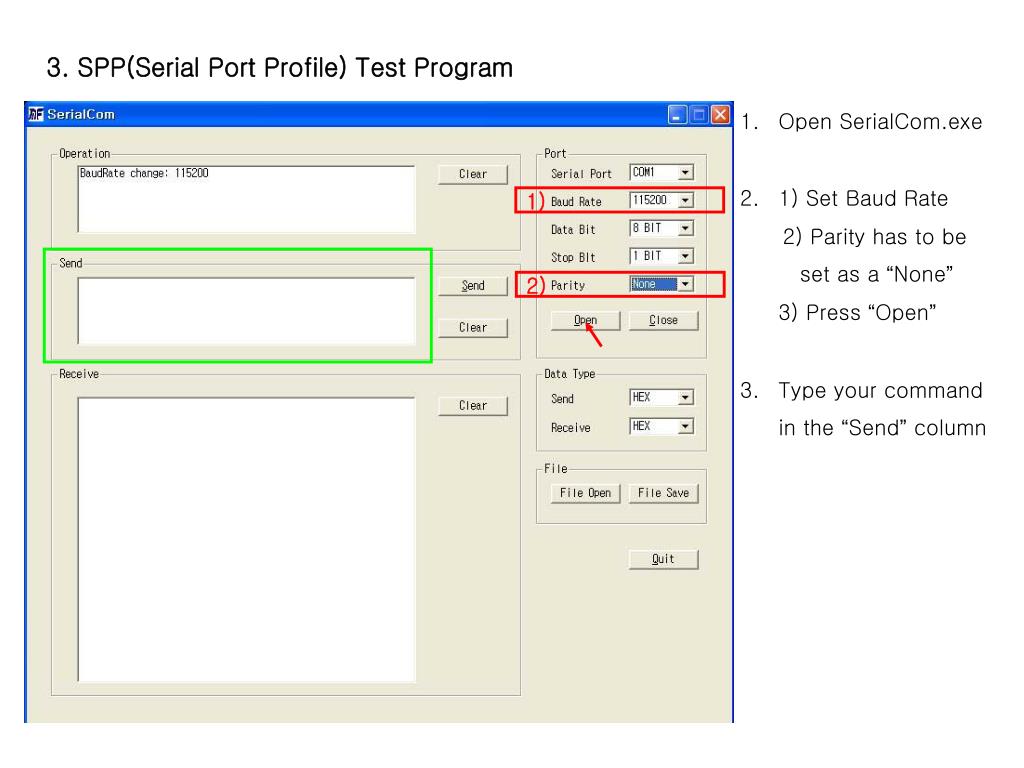

  5. 1) 2) 3. SPP(Serial Port Profile) Test Program • Open SerialCom.exe • 1) Set Baud Rate • 2) Parity has to be • set as a “None” • 3) Press “Open” • Type your command • in the “Send” column
