Packet Data Roaming in IS-835

1. Packet Data Roamingin IS-835 Raymond Hsu rhsu@qualcomm.com May 8, 2002

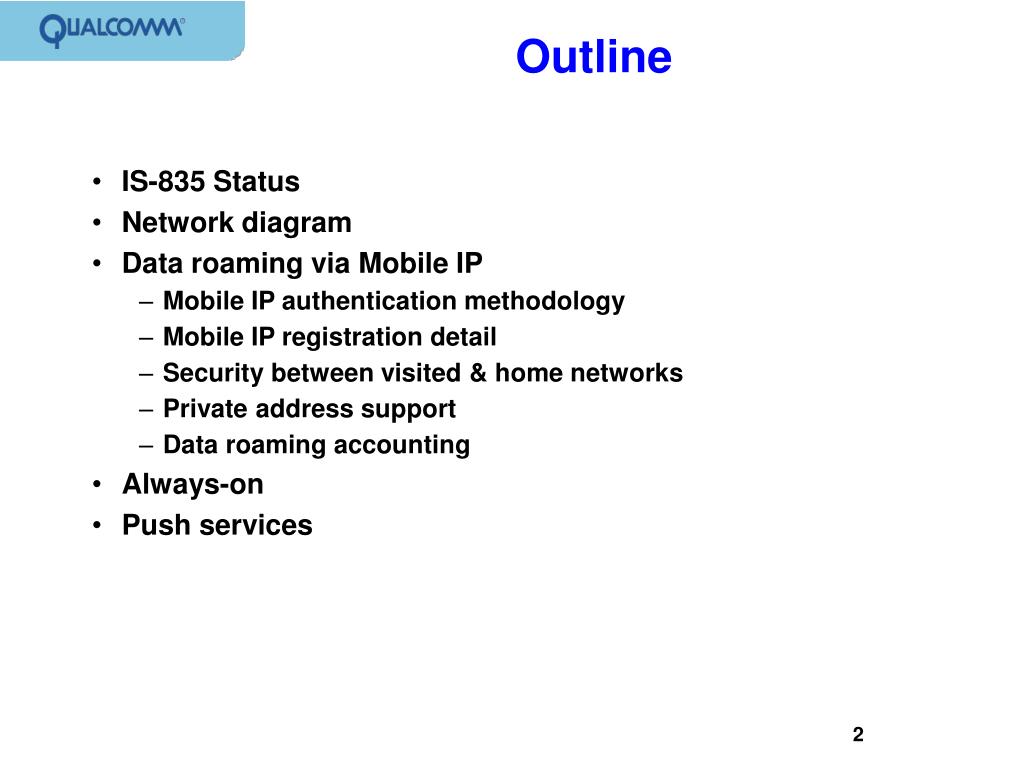

2. Outline • IS-835 Status • Network diagram • Data roaming via Mobile IP • Mobile IP authentication methodology • Mobile IP registration detail • Security between visited & home networks • Private address support • Data roaming accounting • Always-on • Push services

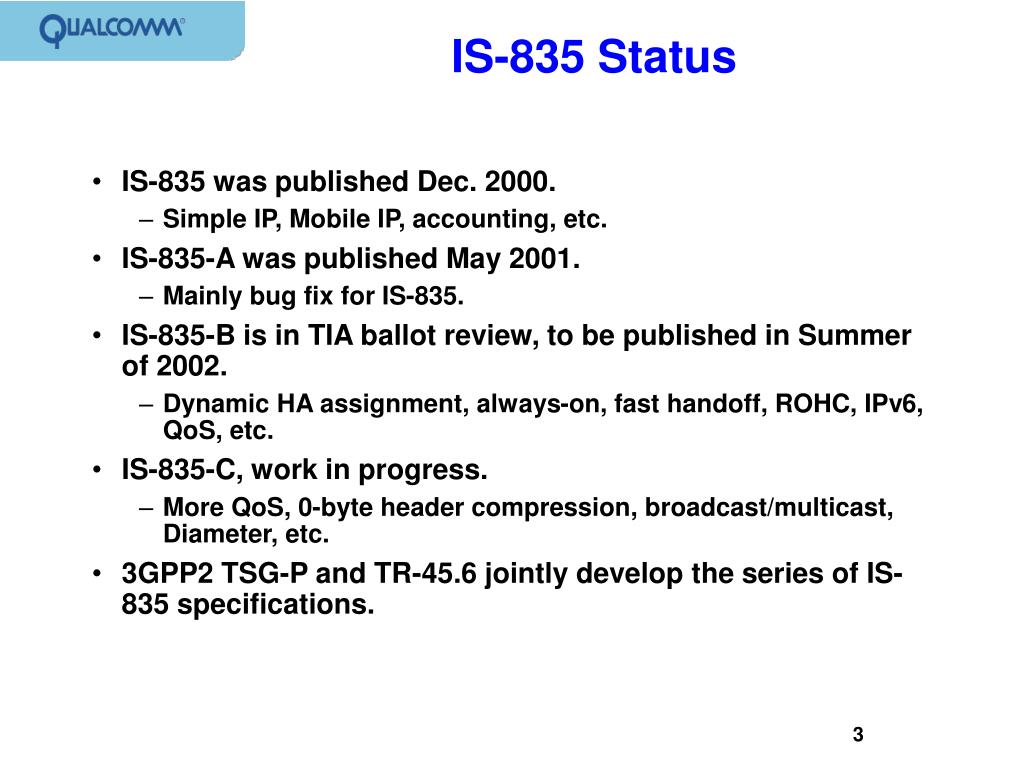

3. IS-835 Status • IS-835 was published Dec. 2000. • Simple IP, Mobile IP, accounting, etc. • IS-835-A was published May 2001. • Mainly bug fix for IS-835. • IS-835-B is in TIA ballot review, to be published in Summer of 2002. • Dynamic HA assignment, always-on, fast handoff, ROHC, IPv6, QoS, etc. • IS-835-C, work in progress. • More QoS, 0-byte header compression, broadcast/multicast, Diameter, etc. • 3GPP2 TSG-P and TR-45.6 jointly develop the series of IS-835 specifications.

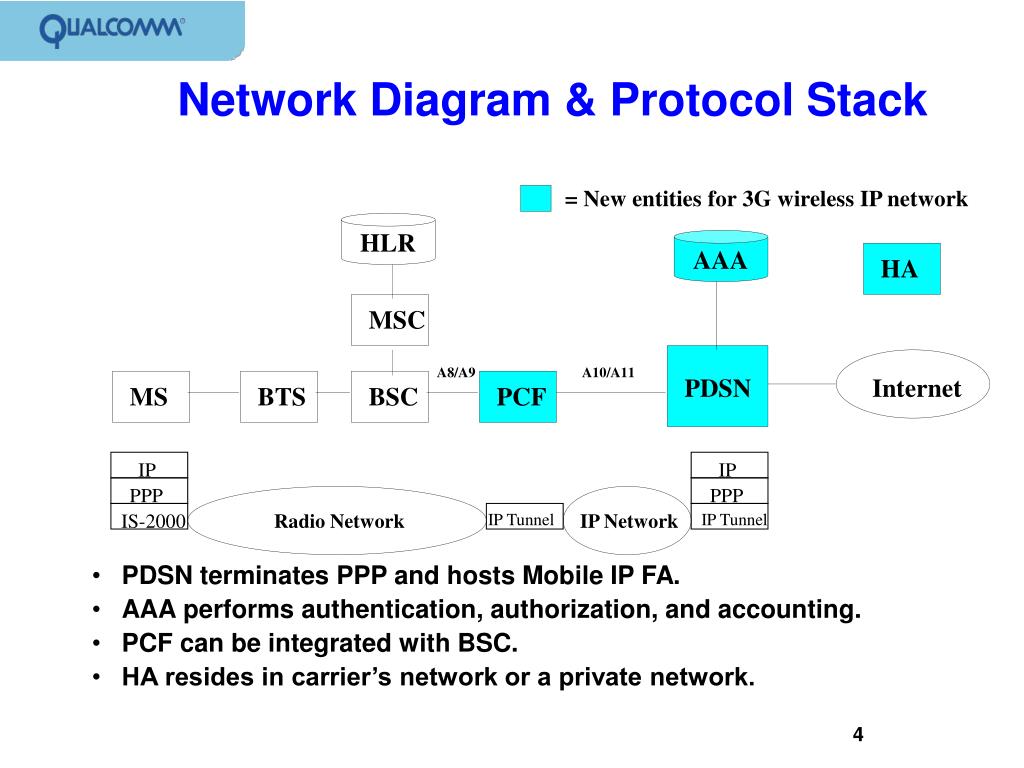

4. Network Diagram & Protocol Stack • PDSN terminates PPP and hosts Mobile IP FA. • AAA performs authentication, authorization, and accounting. • PCF can be integrated with BSC. • HA resides in carrier’s network or a private network. = New entities for 3G wireless IP network HLR AAA HA MSC A8/A9 A10/A11 PDSN Internet MS BTS BSC PCF IP IP PPP PPP IS-2000 Radio Network IP Tunnel IP Network IP Tunnel

5. Data Roaming via Mobile IP Home network access from a visited carrier via Mobile IP: • MS registers and is authenticated via ANSI-41. • MS originates the packet data service (SO 33) and is allocated with resource (traffic channel, A8/A10 connections). • MS establishes a PPP session with PDSN in visited network. • MS performs Mobile IP registration with HA in home network. • Packets are protected between PDSN and HA.

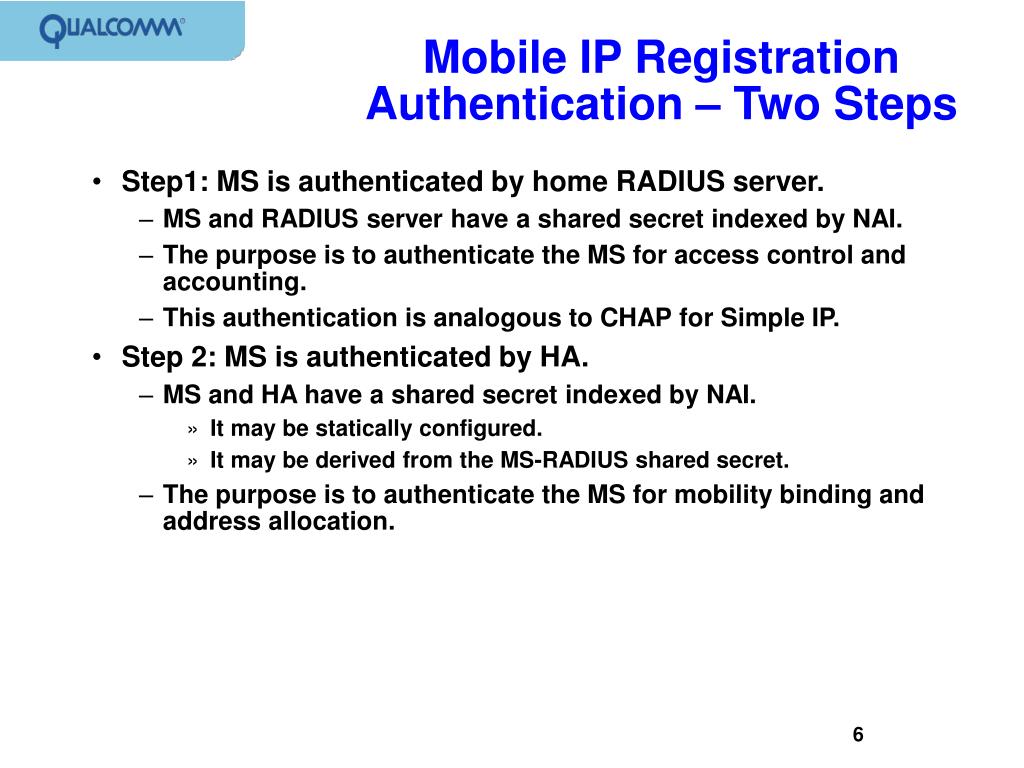

6. Mobile IP Registration Authentication – Two Steps • Step1: MS is authenticated by home RADIUS server. • MS and RADIUS server have a shared secret indexed by NAI. • The purpose is to authenticate the MS for access control and accounting. • This authentication is analogous to CHAP for Simple IP. • Step 2: MS is authenticated by HA. • MS and HA have a shared secret indexed by NAI. • It may be statically configured. • It may be derived from the MS-RADIUS shared secret. • The purpose is to authenticate the MS for mobility binding and address allocation.

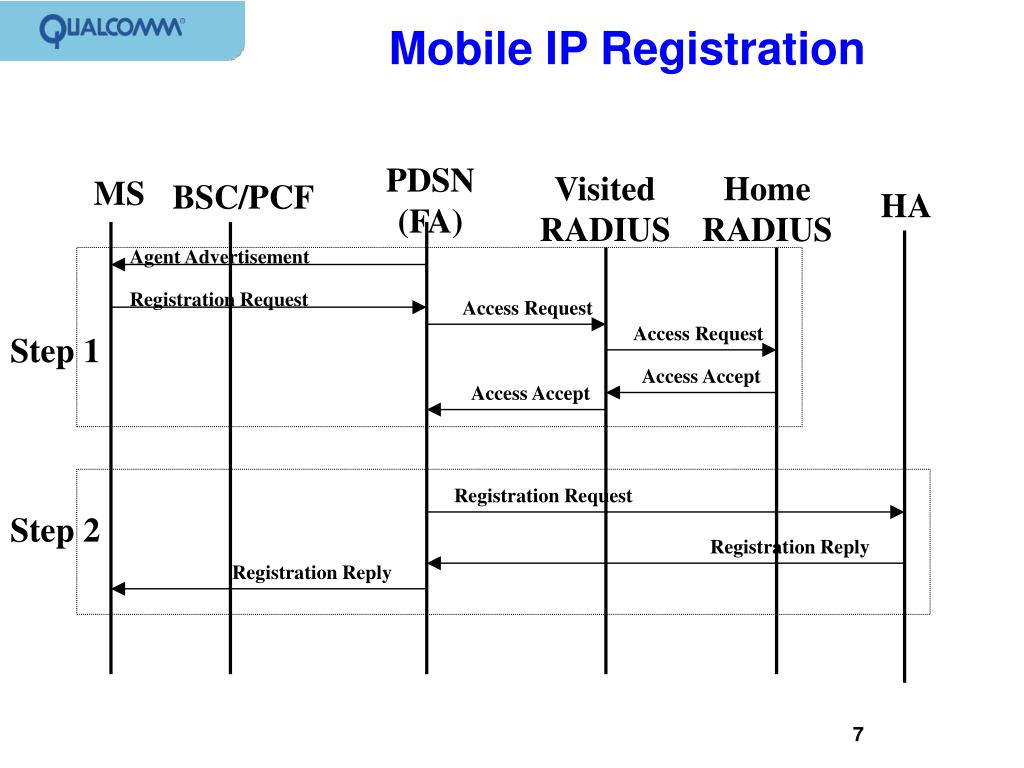

7. Mobile IP Registration PDSN (FA) Visited RADIUS Home RADIUS MS BSC/PCF HA Agent Advertisement Registration Request Access Request Access Request Step 1 Access Accept Access Accept Registration Request Step 2 Registration Reply Registration Reply

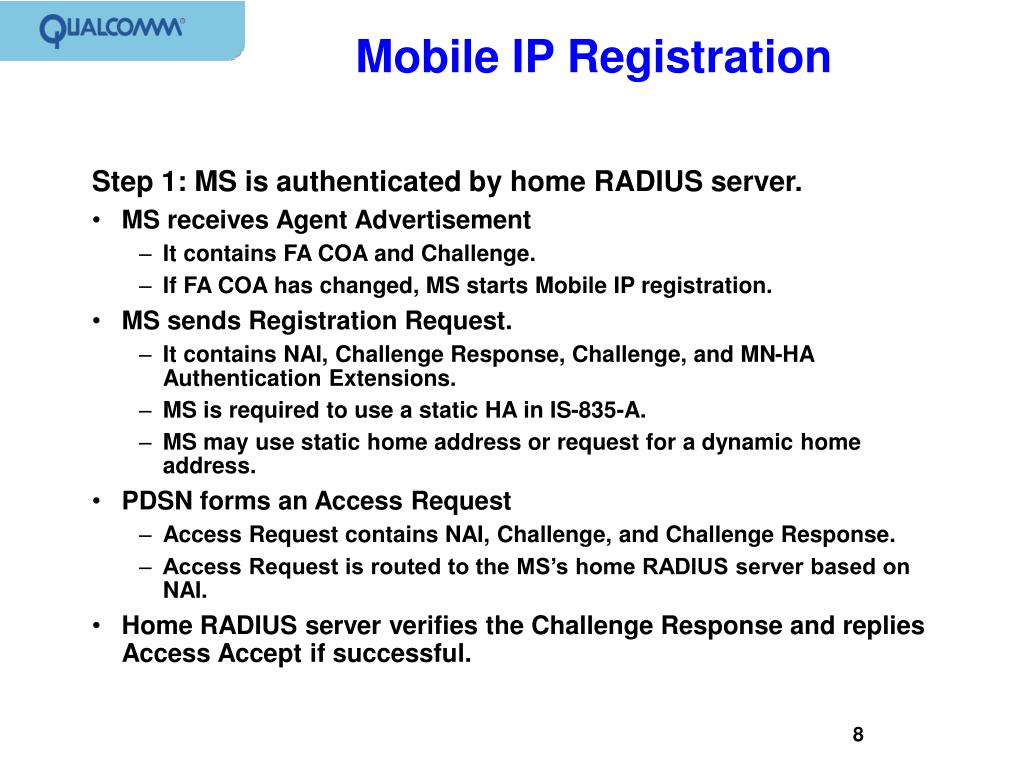

8. Mobile IP Registration Step 1: MS is authenticated by home RADIUS server. • MS receives Agent Advertisement • It contains FA COA and Challenge. • If FA COA has changed, MS starts Mobile IP registration. • MS sends Registration Request. • It contains NAI, Challenge Response, Challenge, and MN-HA Authentication Extensions. • MS is required to use a static HA in IS-835-A. • MS may use static home address or request for a dynamic home address. • PDSN forms an Access Request • Access Request contains NAI, Challenge, and Challenge Response. • Access Request is routed to the MS’s home RADIUS server based on NAI. • Home RADIUS server verifies the Challenge Response and replies Access Accept if successful.

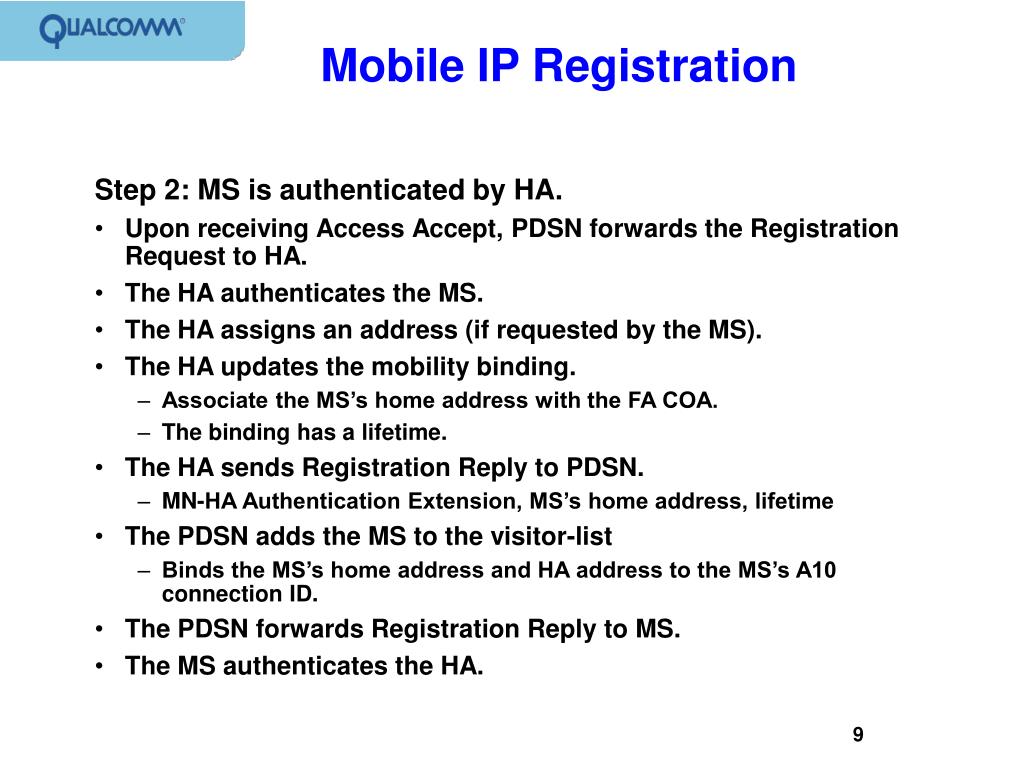

9. Mobile IP Registration Step 2: MS is authenticated by HA. • Upon receiving Access Accept, PDSN forwards the Registration Request to HA. • The HA authenticates the MS. • The HA assigns an address (if requested by the MS). • The HA updates the mobility binding. • Associate the MS’s home address with the FA COA. • The binding has a lifetime. • The HA sends Registration Reply to PDSN. • MN-HA Authentication Extension, MS’s home address, lifetime • The PDSN adds the MS to the visitor-list • Binds the MS’s home address and HA address to the MS’s A10 connection ID. • The PDSN forwards Registration Reply to MS. • The MS authenticates the HA.

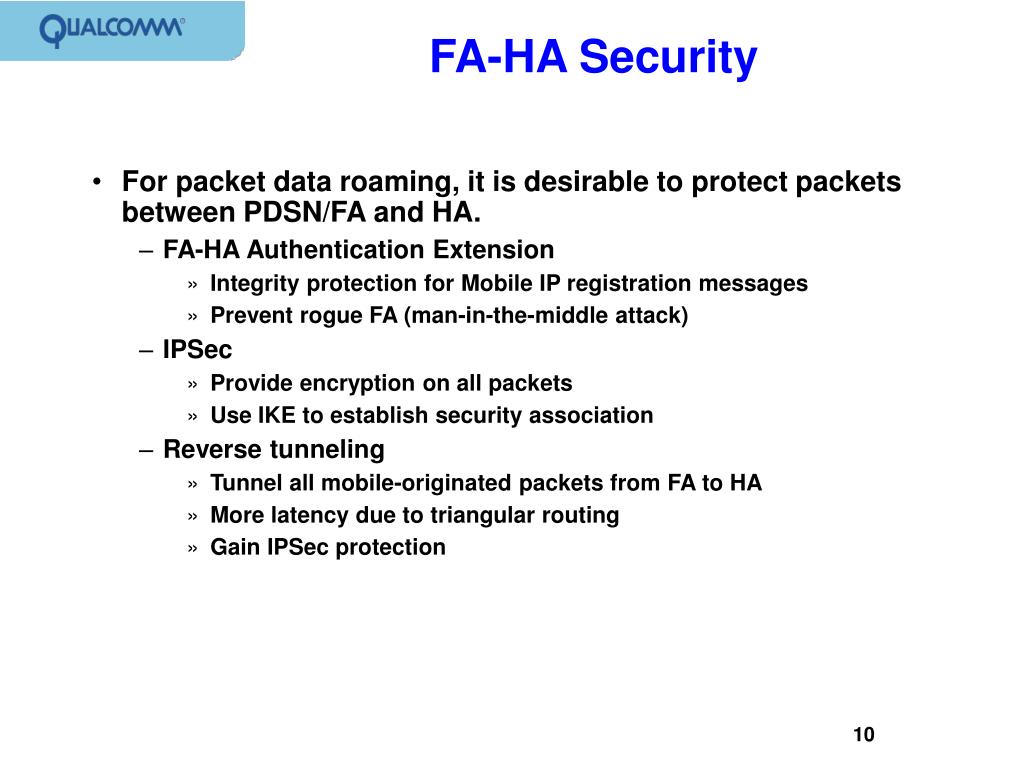

10. FA-HA Security • For packet data roaming, it is desirable to protect packets between PDSN/FA and HA. • FA-HA Authentication Extension • Integrity protection for Mobile IP registration messages • Prevent rogue FA (man-in-the-middle attack) • IPSec • Provide encryption on all packets • Use IKE to establish security association • Reverse tunneling • Tunnel all mobile-originated packets from FA to HA • More latency due to triangular routing • Gain IPSec protection

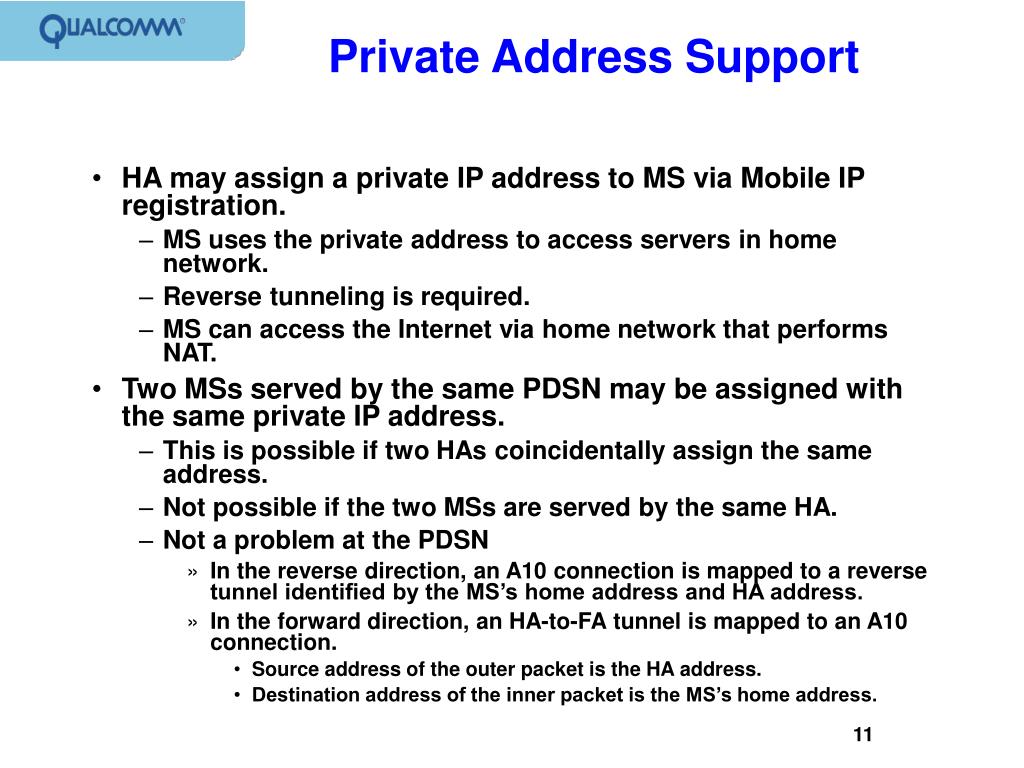

11. Private Address Support • HA may assign a private IP address to MS via Mobile IP registration. • MS uses the private address to access servers in home network. • Reverse tunneling is required. • MS can access the Internet via home network that performs NAT. • Two MSs served by the same PDSN may be assigned with the same private IP address. • This is possible if two HAs coincidentally assign the same address. • Not possible if the two MSs are served by the same HA. • Not a problem at the PDSN • In the reverse direction, an A10 connection is mapped to a reverse tunnel identified by the MS’s home address and HA address. • In the forward direction, an HA-to-FA tunnel is mapped to an A10 connection. • Source address of the outer packet is the HA address. • Destination address of the inner packet is the MS’s home address.

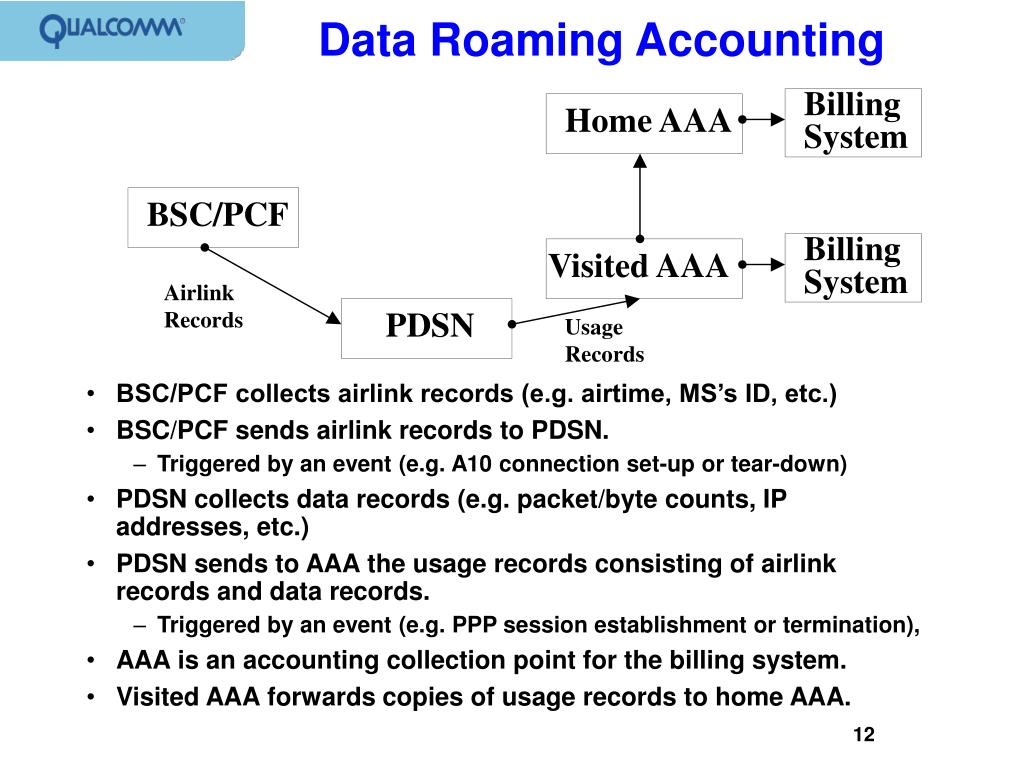

12. Data Roaming Accounting Billing System Home AAA • BSC/PCF collects airlink records (e.g. airtime, MS’s ID, etc.) • BSC/PCF sends airlink records to PDSN. • Triggered by an event (e.g. A10 connection set-up or tear-down) • PDSN collects data records (e.g. packet/byte counts, IP addresses, etc.) • PDSN sends to AAA the usage records consisting of airlink records and data records. • Triggered by an event (e.g. PPP session establishment or termination), • AAA is an accounting collection point for the billing system. • Visited AAA forwards copies of usage records to home AAA. BSC/PCF Billing System Visited AAA Airlink Records PDSN Usage Records

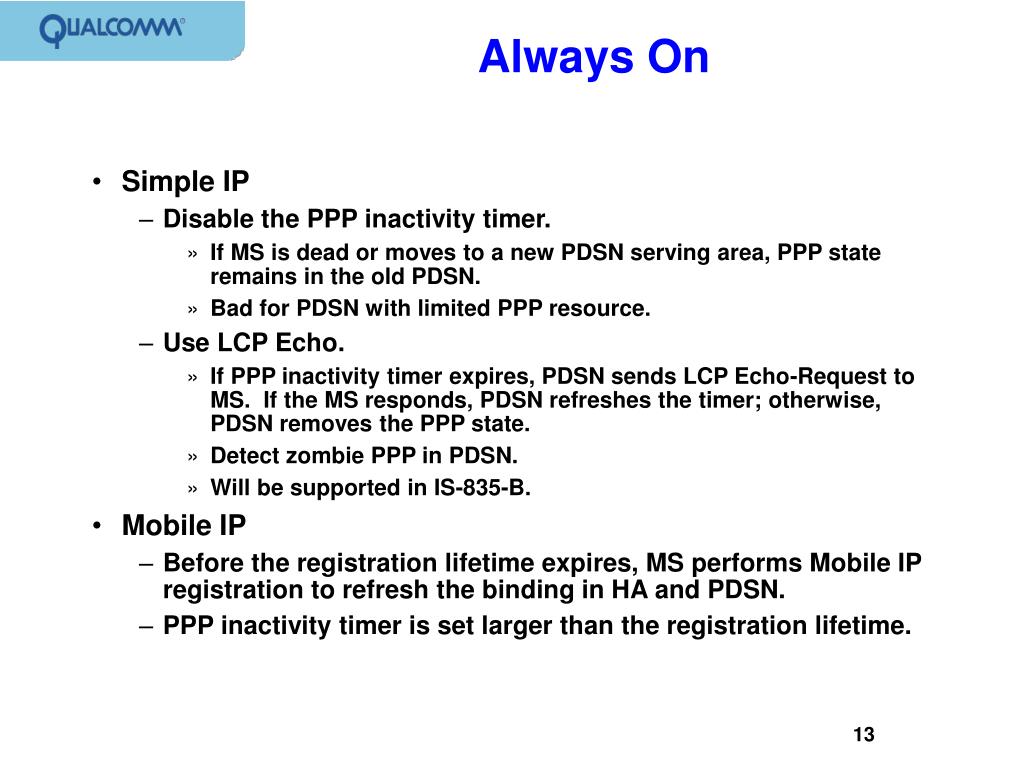

13. Always On • Simple IP • Disable the PPP inactivity timer. • If MS is dead or moves to a new PDSN serving area, PPP state remains in the old PDSN. • Bad for PDSN with limited PPP resource. • Use LCP Echo. • If PPP inactivity timer expires, PDSN sends LCP Echo-Request to MS. If the MS responds, PDSN refreshes the timer; otherwise, PDSN removes the PPP state. • Detect zombie PPP in PDSN. • Will be supported in IS-835-B. • Mobile IP • Before the registration lifetime expires, MS performs Mobile IP registration to refresh the binding in HA and PDSN. • PPP inactivity timer is set larger than the registration lifetime.

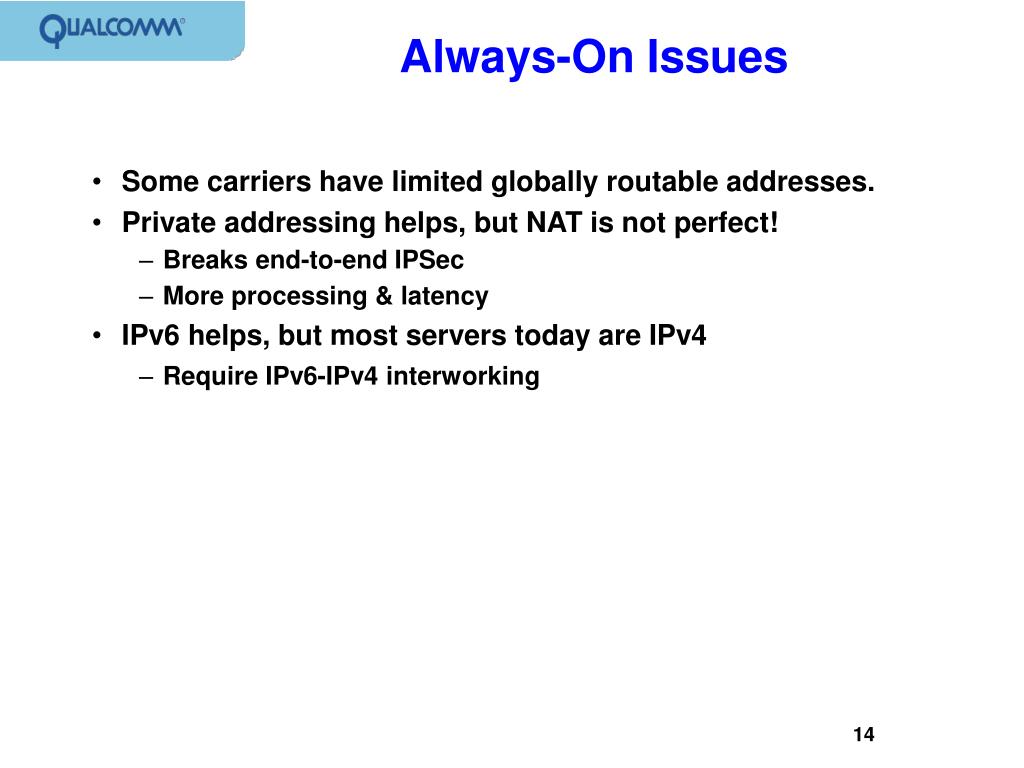

14. Always-On Issues • Some carriers have limited globally routable addresses. • Private addressing helps, but NAT is not perfect! • Breaks end-to-end IPSec • More processing & latency • IPv6 helps, but most servers today are IPv4 • Require IPv6-IPv4 interworking

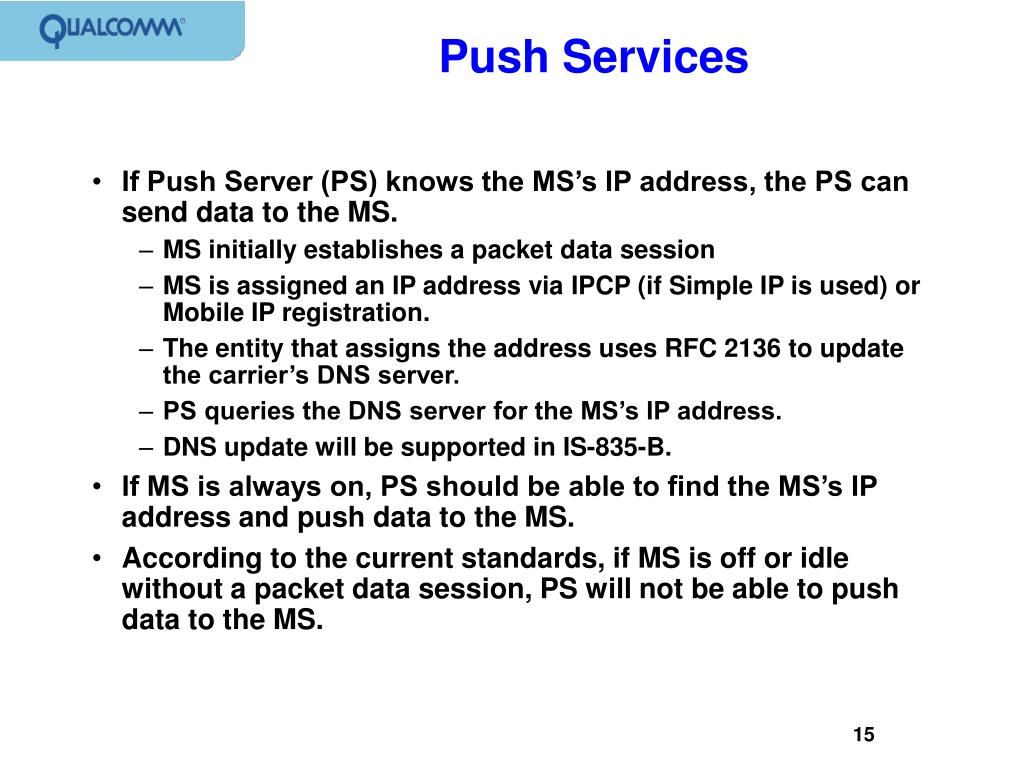

15. Push Services • If Push Server (PS) knows the MS’s IP address, the PS can send data to the MS. • MS initially establishes a packet data session • MS is assigned an IP address via IPCP (if Simple IP is used) or Mobile IP registration. • The entity that assigns the address uses RFC 2136 to update the carrier’s DNS server. • PS queries the DNS server for the MS’s IP address. • DNS update will be supported in IS-835-B. • If MS is always on, PS should be able to find the MS’s IP address and push data to the MS. • According to the current standards, if MS is off or idle without a packet data session, PS will not be able to push data to the MS.
