  1. 5-1

  2. “ …The world is full of obvious things which nobody by any chance ever observes.” - Sherlock Holmes, The Hound of the Baskervilles Sir Arthur Conan Doyle 5-2

  3. 5-3

  4. 5-4

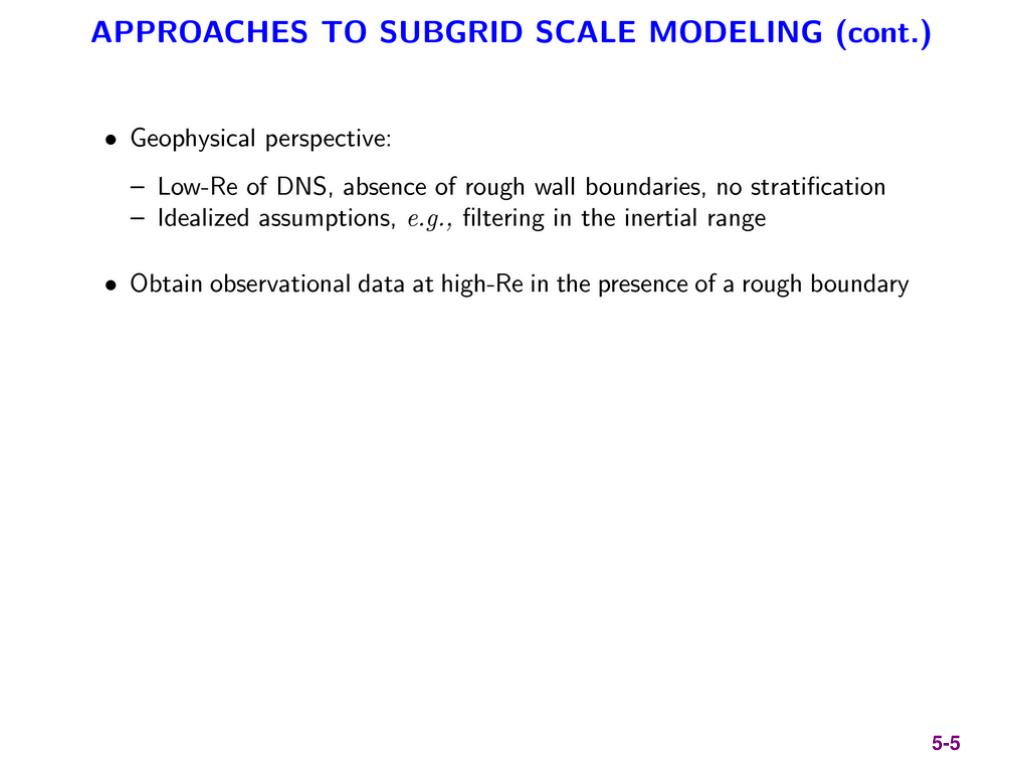

  5. 5-5

  6. 5-6

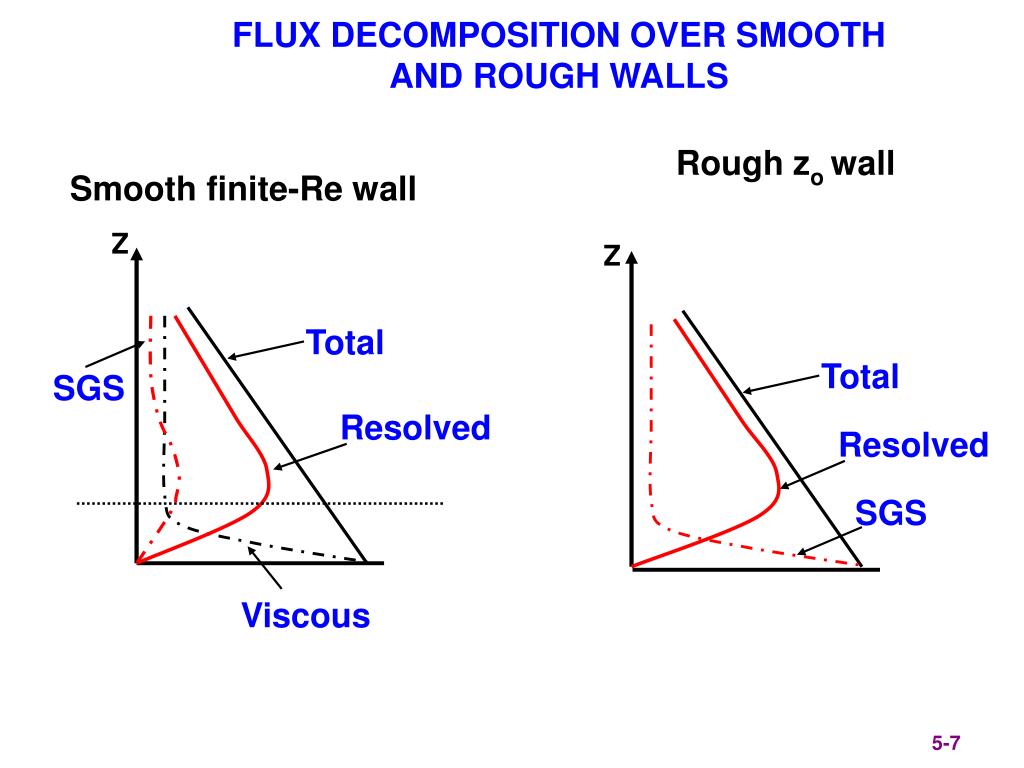

  7. FLUX DECOMPOSITION OVER SMOOTH AND ROUGH WALLS Rough zo wall Smooth finite-Re wall Z Z Total Total SGS Resolved Resolved SGS Viscous 5-7

  8. 5-8

  9. 5-9

  10. zs = 6.90m, dys = 6.70m zd = 3.45m, dyd = 3.35m ARRAY-1 5-10

  11. ARRAY-2 zs = 8.66m, dys = 4.33m zd = 4.33m, dyd = 2.17m 5-11

  12. ARRAY-3 zd = 8.66m, dyd = 2.17m zs = 4.33m, dys = 1.08m 5-12

  13. ARRAY-4 zs = 5.15m dys = 0.63m zd = 4.15m dyd = 0.50m 5-13

  14. 5-14

  15. Note Lij is resolved and can be written as a Taylor series expansion 5-15

  16. U 5-16

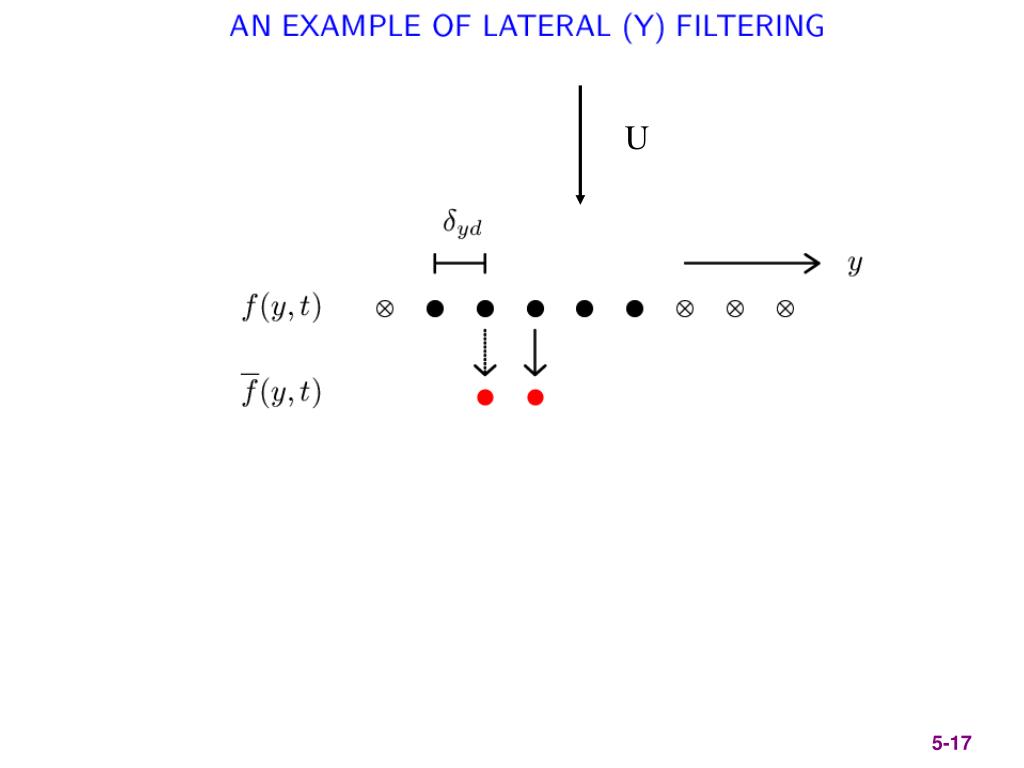

  17. U 5-17

  18. U 5-18

  19. 5-19

  20. 5-20

  21. 5-21

  22. 5-22

  23. First gridpoint off the surface 5-23

  24. Sonic array U 5-24

  25. 5-25

  26. 5-26

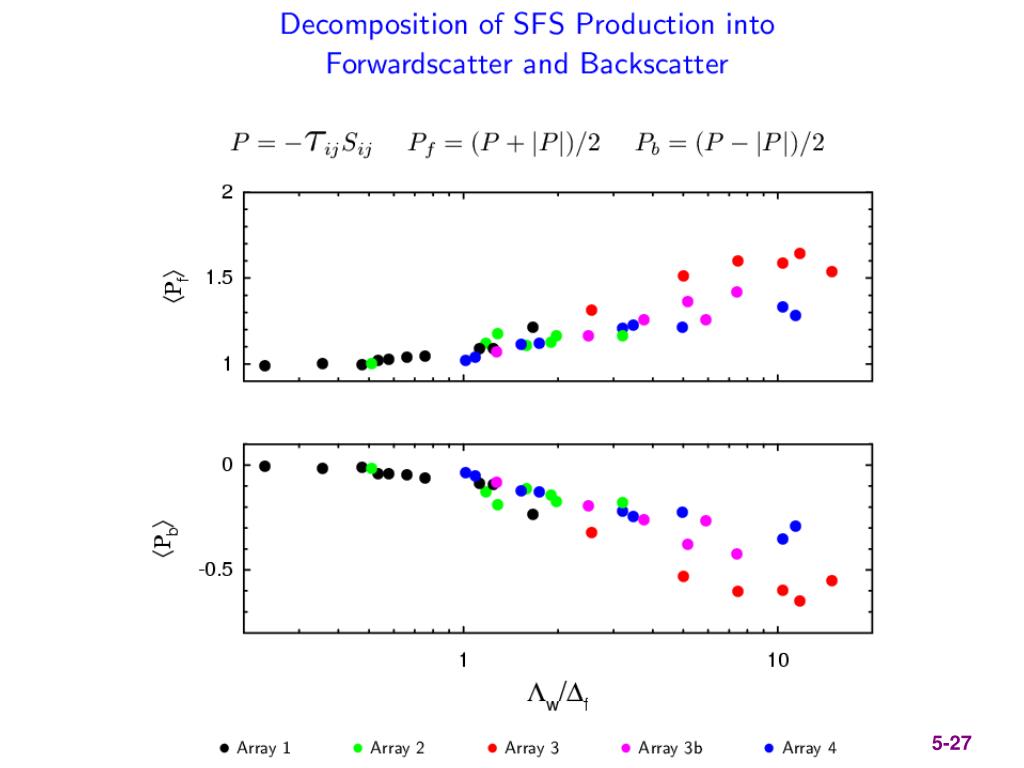

  27. 5-27

  28. 5-28

  29. 5-29

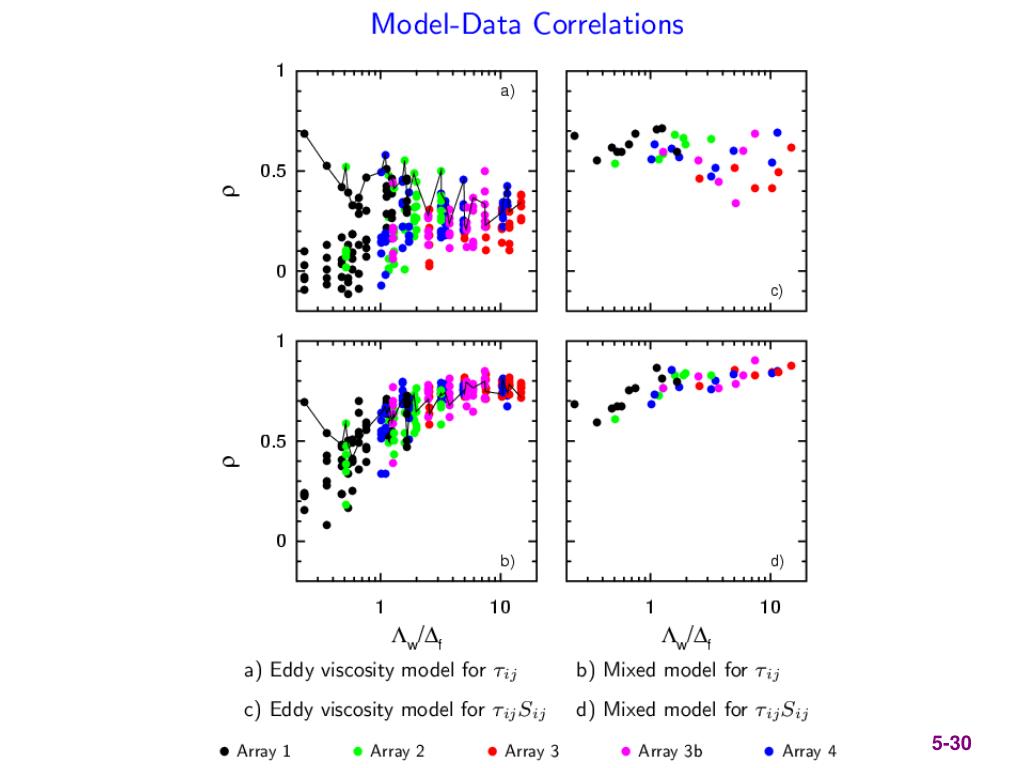

  30. 5-30

  31. 5-32

  32. OCEAN HORIZONTAL ARRAY TURBULENCE STUDY 5-31
