Addressing End-Point Problems: DMP vs. EEMD Approaches

DESCRIPTION

This document explores the challenges of end-point problems in data extraction methods, specifically the Dual-mode Predictive (DMP) and Ensemble Empirical Mode Decomposition (EEMD) techniques. It highlights that DMP experiences more severe end-point issues than EEMD. The document outlines essential steps for parameter adjustments and specific tests for ensuring optimal behavior of both methods. It provides an intuitive example with a noisy time series, clarifying how to effectively resolve end-point problems and enhance data extraction accuracy through careful parameter management.

1 / 16

Télécharger la présentation

Addressing End-Point Problems: DMP vs. EEMD Approaches

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Solving End-point problem

  2. Method • DMP have more serious end-point problem then EEMD • Test extraction should be performed to ensure the behavior of DMP and EEMD modes • Observe the range of EEMD that may combine with DMP • Adjust COMB(6) and COMB(7) to the desired range • Observe whether the end-point problem is serious

  3. Cont. • In case it is serious, we need to adjust 3 set of EJME parameters: • Critical Amplitude(COMB(5)) and • Critical correlation(COMB(4)) • The plateau function(COMB(2)) (COMB(3))

  4. How to set those parameters • Open ejme.m • Increase COMB(2) and decrease COMB(3) • compress the domain of plateau function • Decrease COMB(4) and COMB(5) to enhance combination • Alter COMB(6) and COMB(7) according to trial eemd • Note that COMB(2)-(5) should not be varied too much

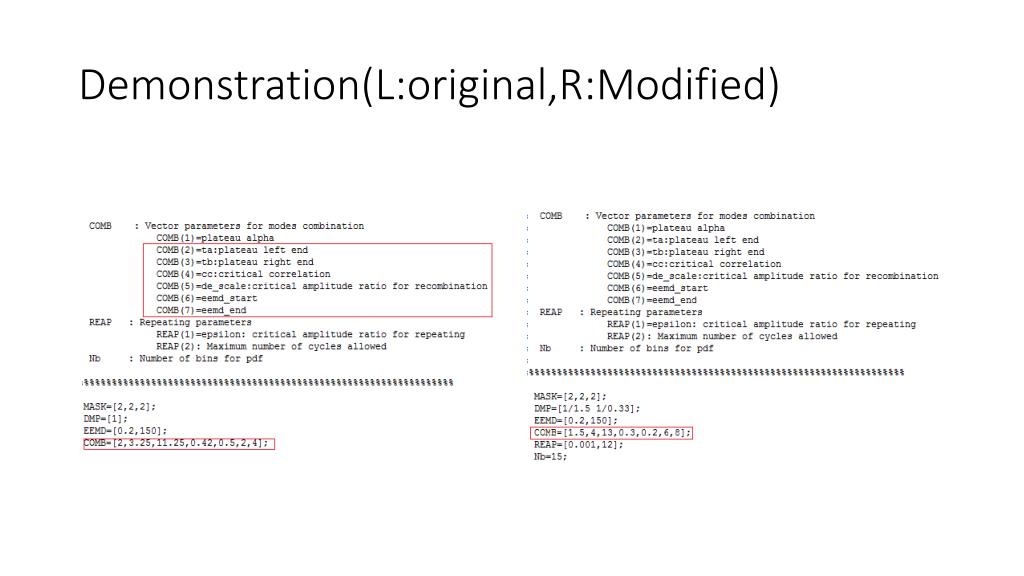

  5. Demonstration(L:original,R:Modified)

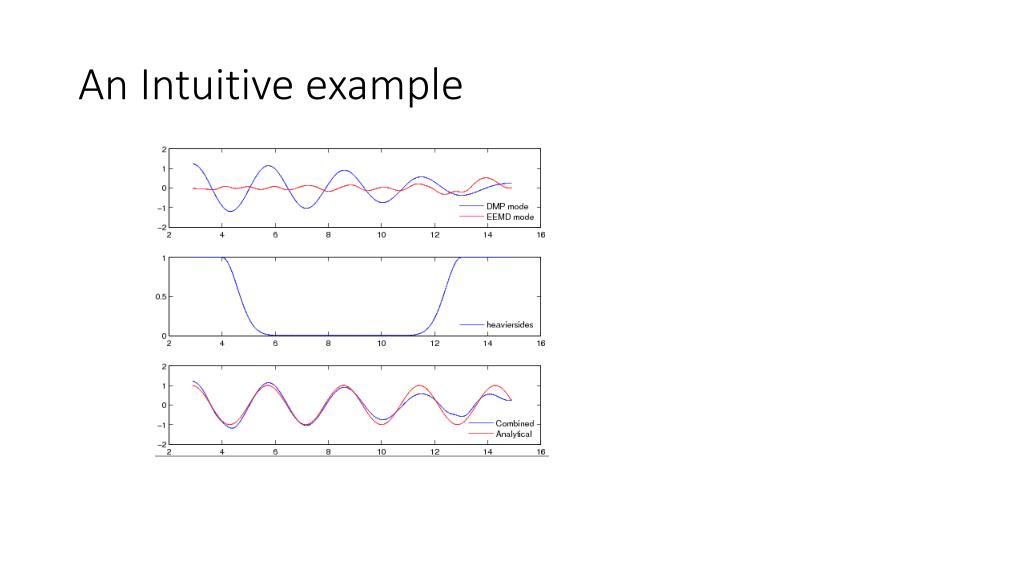

  6. An Intuitive example

  7. Full Example • Noised time series that has • a trend term, • two sinusoidal components • a white noise term

  8. FFT Spectrum • 2 peaks • We extract f=1.5 first

  9. End-Point Problem • End point problem is a nuisance at the right end • DMP has 1 less peak than expected

  10. 2nd Extraction • Pick f=3.5

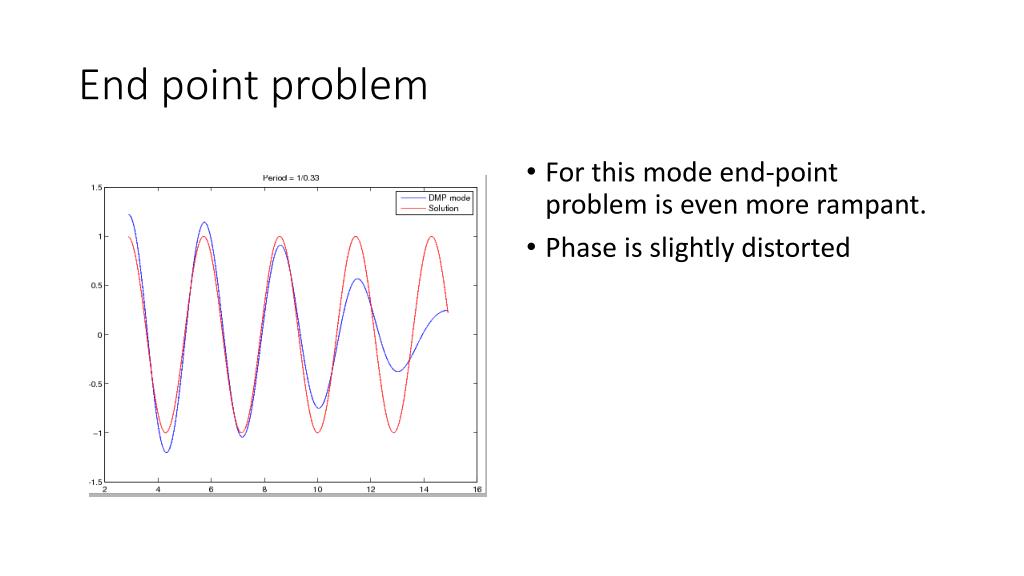

  11. End point problem • For this mode end-point problem is even more rampant. • Phase is slightly distorted

  12. EEMD modes

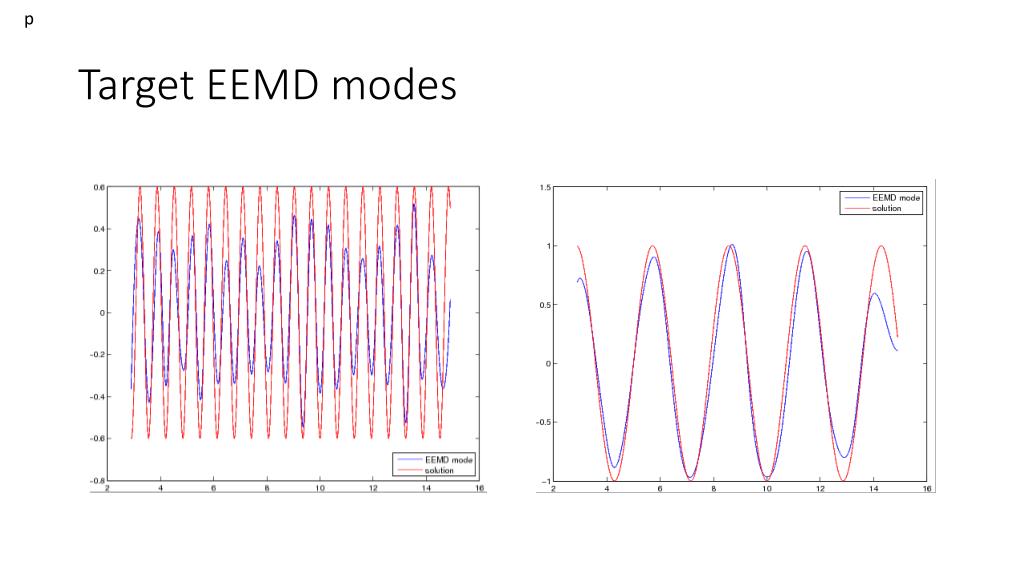

  13. p Target EEMD modes

  14. An Intuitive example(Revisited)

  15. EJME Result

  16. Comparison • IMF3 looks a lot better • slight improvement on IMF2 • This demonstrates how to save DMP from end-point problem
