  1. Lighting Control Solutions for Staefa Control System

  2. Benefits of Lighting Control • Excellent Return on Investment (R.O.I.) for owner by reducing electric utility bill by up to 10-40% • Lowers operating costs and minimizes lamp on time • Time between lamp replacements can be increased • Monitoring of lighting usage provides information to optimize operations which improves bottom line • Paybacks typically range from 1-4 years depending on each facilities operation and lighting load • Reduced electrical consumption can lower air pollution • Reduces cooling load caused by unneeded use of lights

  3. Lighting Control Savings • Pick your local $/kWh rate and move horizontally to the column with your anticipated hours saved per day. The intersection of the two is the payback.Note-Based on 32 relay TRIATEK panel, 277V,16 amps/relay, 8 hours labor at $65/hour.

  4. Lighting Control by Function (Retail/Department Stores) Escalators/Elevators = Accent lights = Sales lights = Pre open lights

  5. Lighting Control by Area Offices/Educational/Industrial Zone 3 Acct’g Zone 1 Admin Zone 2 Sales Zone 8 R & D Zone 4 office Zone 9 Common Zone 7 Mkt’g Zone 6 Engineering Zone 5 Customer Service

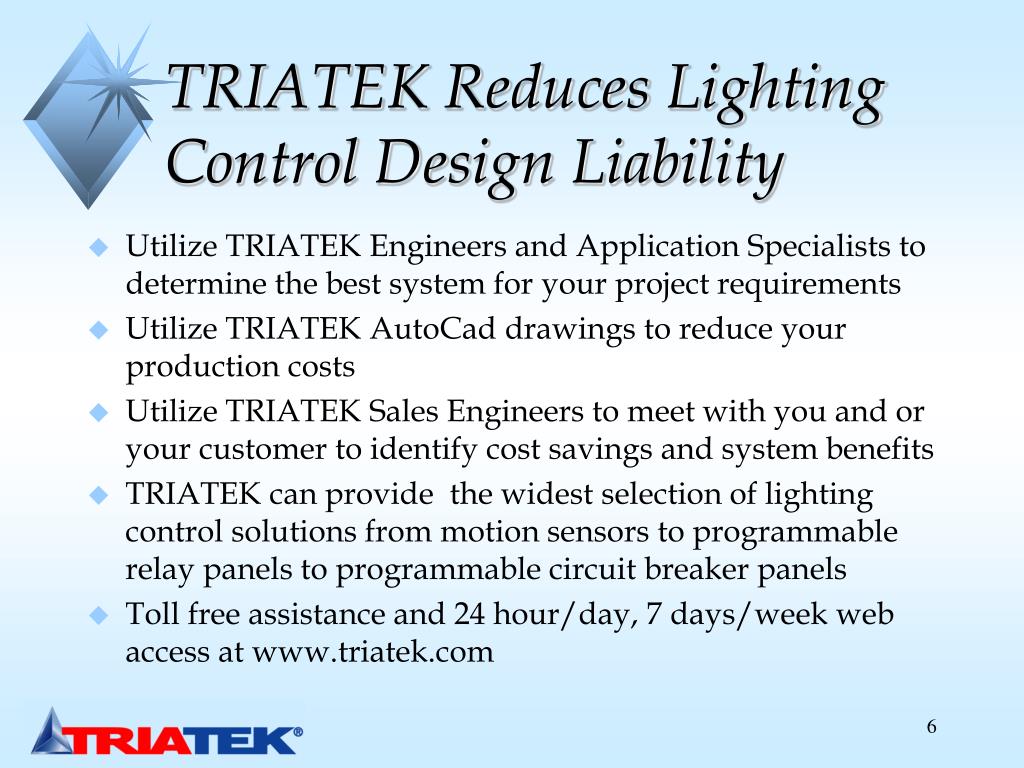

  6. TRIATEK Reduces Lighting Control Design Liability • Utilize TRIATEK Engineers and Application Specialists to determine the best system for your project requirements • Utilize TRIATEK AutoCad drawings to reduce your production costs • Utilize TRIATEK Sales Engineers to meet with you and or your customer to identify cost savings and system benefits • TRIATEK can provide the widest selection of lighting control solutions from motion sensors to programmable relay panels to programmable circuit breaker panels • Toll free assistance and 24 hour/day, 7 days/week web access at www.triatek.com

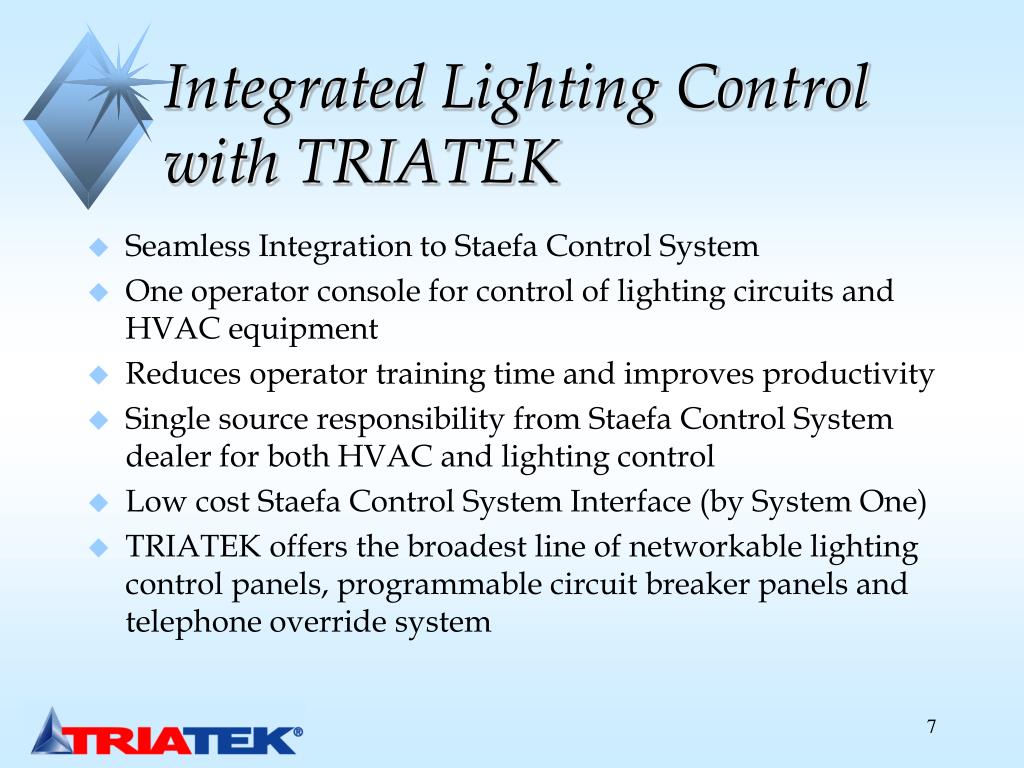

  7. Integrated Lighting Control with TRIATEK • Seamless Integration to Staefa Control System • One operator console for control of lighting circuits and HVAC equipment • Reduces operator training time and improves productivity • Single source responsibility from Staefa Control System dealer for both HVAC and lighting control • Low cost Staefa Control System Interface (by System One) • TRIATEK offers the broadest line of networkable lighting control panels, programmable circuit breaker panels and telephone override system

  8. TRIATEK Adds Value toStaefa Control System Staefa MS1800 Workstation Staefa Network 2-wire TRIATEK Telephone Override Network 2-wire TRIATEK Lighting Control Network System One TRIATEK Telephone Interface System One TRIATEK Lighting Interface TRIATEK Telephone Override System TRIATEK Lighting Control Panels Users can call from the telephone on their desk to override lighting and HVAC

  9. TRIATEK Programmable Circuit Breaker Panel • Over current protection with on/off control in one panel • Provides circuit breaker status • Multiple panel sizes • Main Lug or Main Breaker configurations • Copper bus interiors (better than aluminum) • Multiple circuit breaker panels (up to 60 circuits) can be controlled with one RCS Controller • New construction or retrofit • Model: RCS-1000 Series

  10. Cutaway view of Remote Control Circuit Breaker Switching Mechanism Overcurrent Protection Positive Feedback Contacts Trip Lever Status Window

  11. TRIATEK RCS-1000 Programmable CircuitBreaker Panel Lighting circuits 277 Volt, 20A loads -Fan coil units -Unit ventilators -Exhaust fans High Voltage Section Motion Sensors TRIATEK Low Voltage Section Override Switches

  12. RCS-1000 Controller Factory Mounted to Panelboard TRIATEK RCS-1000 Remote Control Circuit Breakers TRIATEK RCS-1000 Controller

  13. RCS-1000 Controller Remote Mounted to Panelboard TRIATEK RCS-1000 Controller controls up to 60 Remote Control Circuit Breakers Control wires from TRIATEK RCS-1000 Controller to Remote Control Circuit Breakers can be up to 50 feet away

  14. RCS-1000 Lowers Installed Cost By Controlling Multiple Panels in Electrical Room Control wires from TRIATEK RCS-1000 Controller to Remote Control Circuit Breakers can be up to 50 feet away TRIATEK RCS-1000 Controller

  15. RCS-1000 Lowers Installed Cost By Controlling Panels in other Electrical Rooms RCS-1000 Remote Control Circuit Breakers on floor above RCS-1000 Controller RCS-1000 Controller can control up to 60 Remote Control Circuit Breakers. This example controls lighting on floor above and below. To RCS-1000 Remote Control Circuit Breakers on floor below

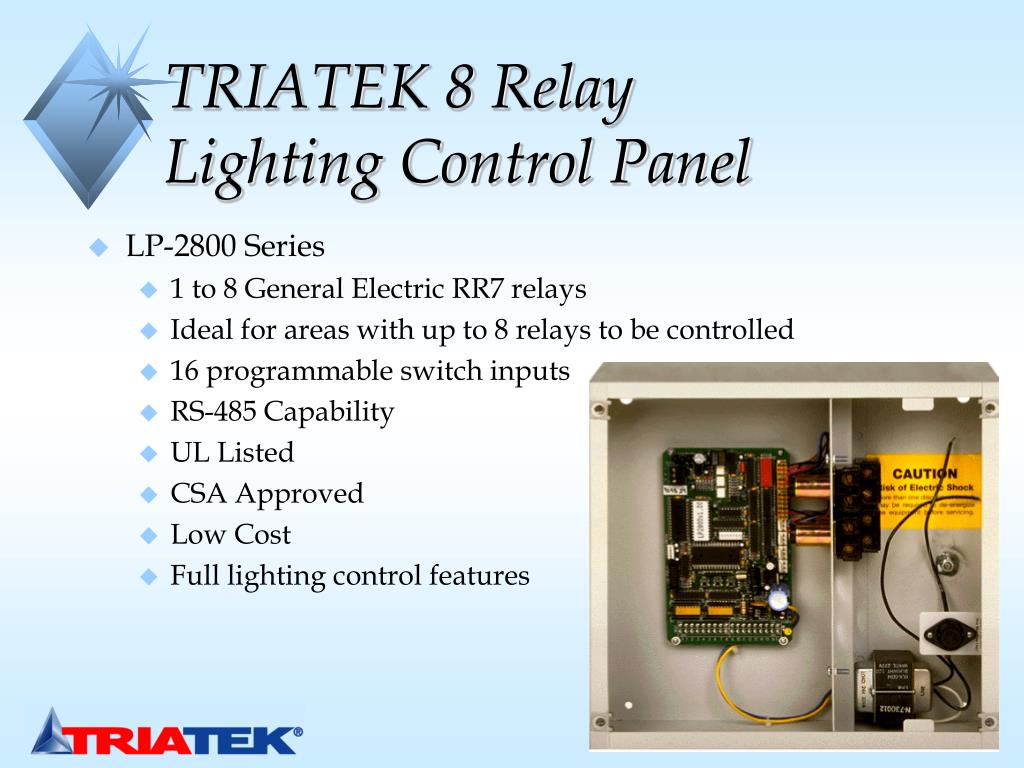

  16. TRIATEK 8 Relay Lighting Control Panel • LP-2800 Series • 1 to 8 General Electric RR7 relays • Ideal for areas with up to 8 relays to be controlled • 16 programmable switch inputs • RS-485 Capability • UL Listed • CSA Approved • Low Cost • Full lighting control features

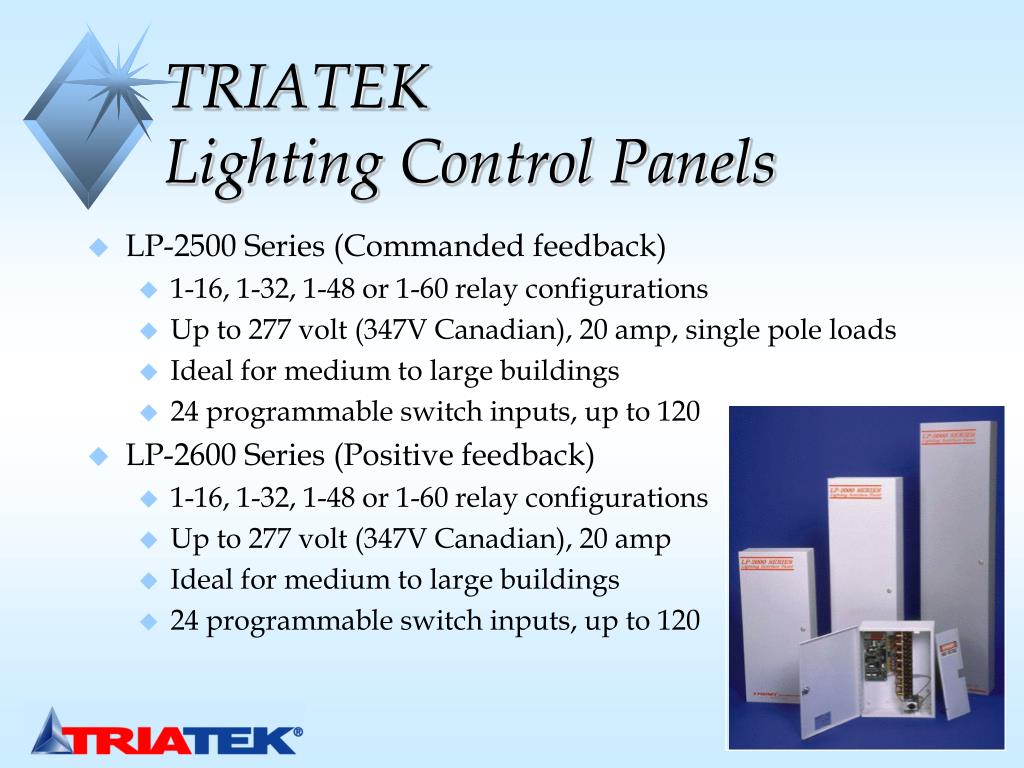

  17. TRIATEK Lighting Control Panels • LP-2500 Series (Commanded feedback) • 1-16, 1-32, 1-48 or 1-60 relay configurations • Up to 277 volt (347V Canadian), 20 amp, single pole loads • Ideal for medium to large buildings • 24 programmable switch inputs, up to 120 • LP-2600 Series (Positive feedback) • 1-16, 1-32, 1-48 or 1-60 relay configurations • Up to 277 volt (347V Canadian), 20 amp • Ideal for medium to large buildings • 24 programmable switch inputs, up to 120

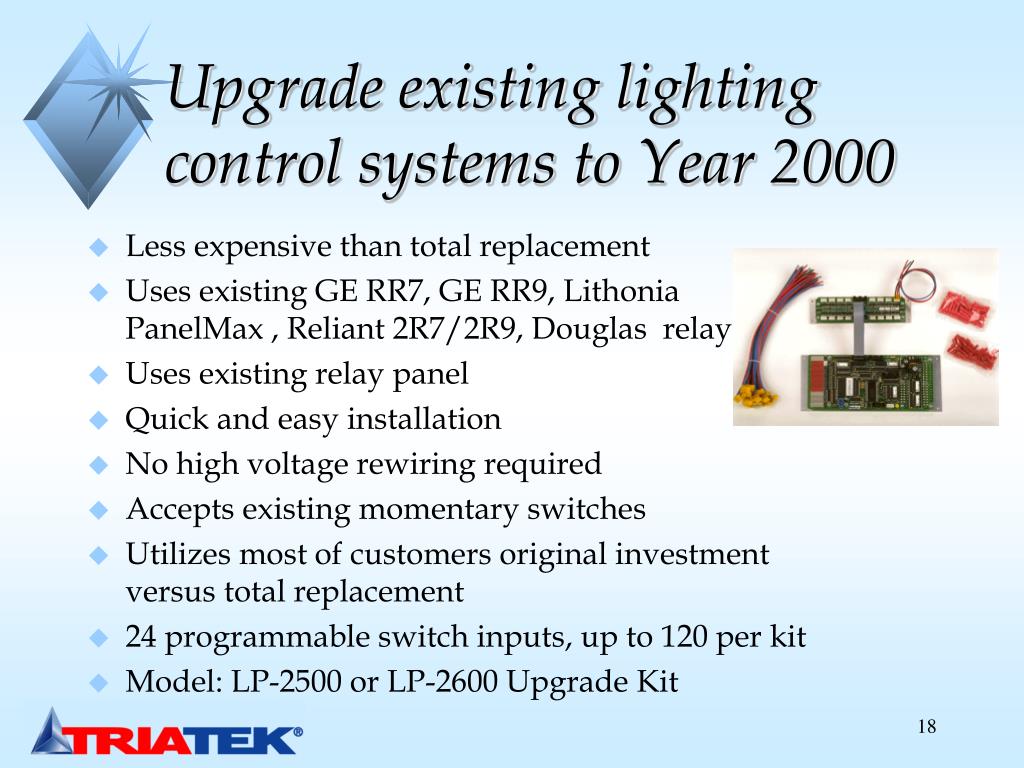

  18. Upgrade existing lighting control systems to Year 2000 • Less expensive than total replacement • Uses existing GE RR7, GE RR9, Lithonia PanelMax , Reliant 2R7/2R9, Douglas relays • Uses existing relay panel • Quick and easy installation • No high voltage rewiring required • Accepts existing momentary switches • Utilizes most of customers original investment versus total replacement • 24 programmable switch inputs, up to 120 per kit • Model: LP-2500 or LP-2600 Upgrade Kit

  19. TRIATEK’s Conversion Kit to Retrofit Low Voltage switching Color Coded Harness Matches existing relay Butt Splices Relay Interface Board Switch Inputs TRIATEK Lighting Controller

  20. Lighting system before TRIATEK Installation Existing Tub to be used Existing HV wiring to be used Existing Relays to be used Existing Relays to be used Existing Transformer to be used Existing Switch wires to be used Controller to be replaced

  21. TRIATEK Conversion Kit After Installation Existing HV wiring TRIATEK Controller replaced old Controller Existing GE Relays TRIATEK Relay Interface Boards TRIATEK GE relay wiring harnesses

  22. TRIATEK’s LP-PK Software for Easy Set-Up “Soft-wiring” of relays to lighting zones just point and click to include a relay Easy to use TRIATEK software for lighting panel set-up

  23. Override Lighting from any touch-tone Telephone • Users can override lighting and HVAC from touch-tone telephone • Easy to understand human voice prompts • User ID can be password protected • Override from any Touch-tone phone • Hassle free override of users area any time • No need to schedule after hours use with Building Automation Operator • UL Listed, FCC part 68 approved • Handles up to 8,191 users and passwords • Model: TI-4500 Series

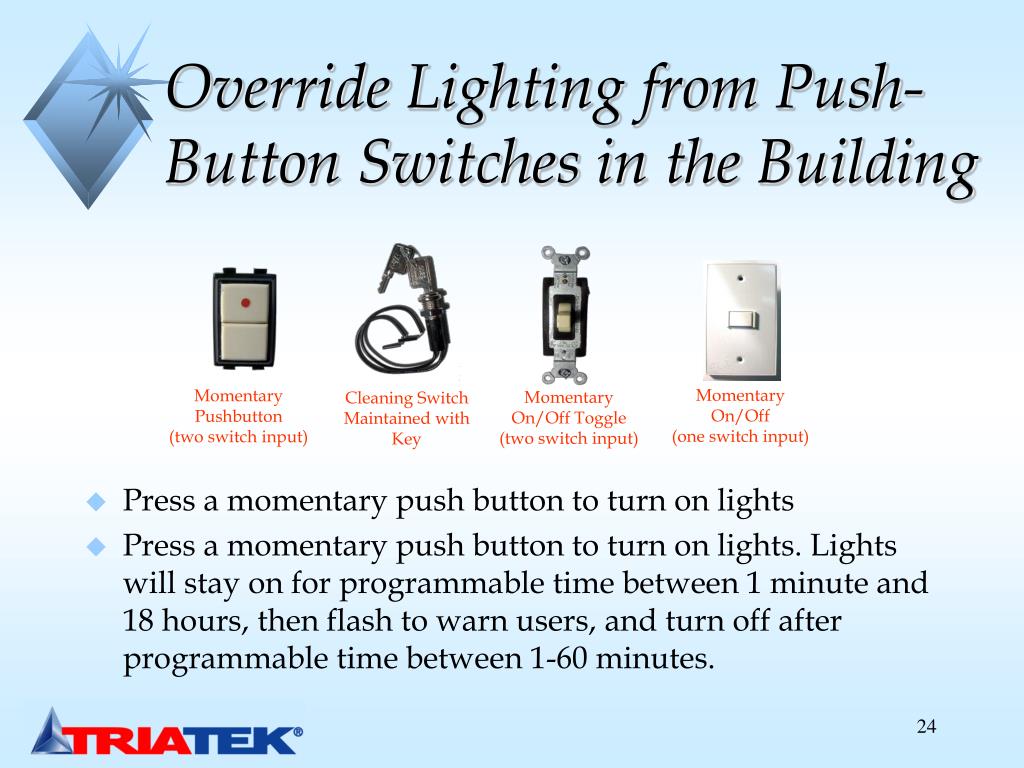

  24. Override Lighting from Push- Button Switches in the Building • Press a momentary push button to turn on lights • Press a momentary push button to turn on lights. Lights will stay on for programmable time between 1 minute and 18 hours, then flash to warn users, and turn off after programmable time between 1-60 minutes. Momentary On/Off (one switch input) Momentary Pushbutton (two switch input) Momentary On/Off Toggle (two switch input) Cleaning Switch Maintained with Key

  25. Override Lighting from Push- Button Switches in the Building • Users can press a momentary push button to turn off lights • Users can press a momentary push button to turn on lights and push again to turn off lights • Maintained switch from Motion/Occupancy sensor can turn on and off lights • Users can press a momentary push button to turn on or off 1/3, 2/3 or 3/3 of lamps in lighting fixture

  26. TRIATEK’s Light Level Sensors for Daylight Harvesting Indoor Outdoor Skylight Atrium

  27. TRIATEK Motion Sensors Ceiling Mount

  28. TRIATEK GeneralLighting Control Features • Year 2000 Compliant • Can switch up to 277V, 20A loads • UL Listed, CSA approved, Approved by New York City • Programmable switch inputs for override of lighting • Programmable switch input polarity • LED’s indicate zone and relay status • Programmable grouping of relays into zones • Flash Warning Option • Programmable “On-Time After Flash”

  29. TRIATEK GeneralLighting Control Features • Multi-Level Lighting • Interfaces to Motion an Occupancy Sensors • EPROM and EEPROM self diagnostics • Rugged construction • Modular design for easy expansion • Powered by 120 or 277 volts AC, field selectable • Seamless Integration to most Building Automation Systems

  30. Hewlett-Packard Martin Marietta Motorola US West Sears Department Stores J.C. Penney World HQ Dept. of Transportation, CT Dept. of Transportation, WA Levi Strauss General Services Administration Nissan U.S. Department of Energy Jack Kent Cooke Stadium-Washington Redskins Comiskey Park-Chicago White Sox Ericsson Stadium-Carolina Panthers AAA Automobile Club Merck Pharmaceutical State of Tennessee Bloomingdale’s Macy’s Department Stores Smith Barney Warner Brothers others available on request TRIATEK Lighting Control Installations

  31. TRIATEK Lighting Control Support Services • Product Specification Sheets for submittals • Consultant Specifying Guide • Pricing Guide • AutoCad drawing templates • Lighting Schedule templates • Installation and Application Guides • System Design Service • Internet web site - www.triatek.com
