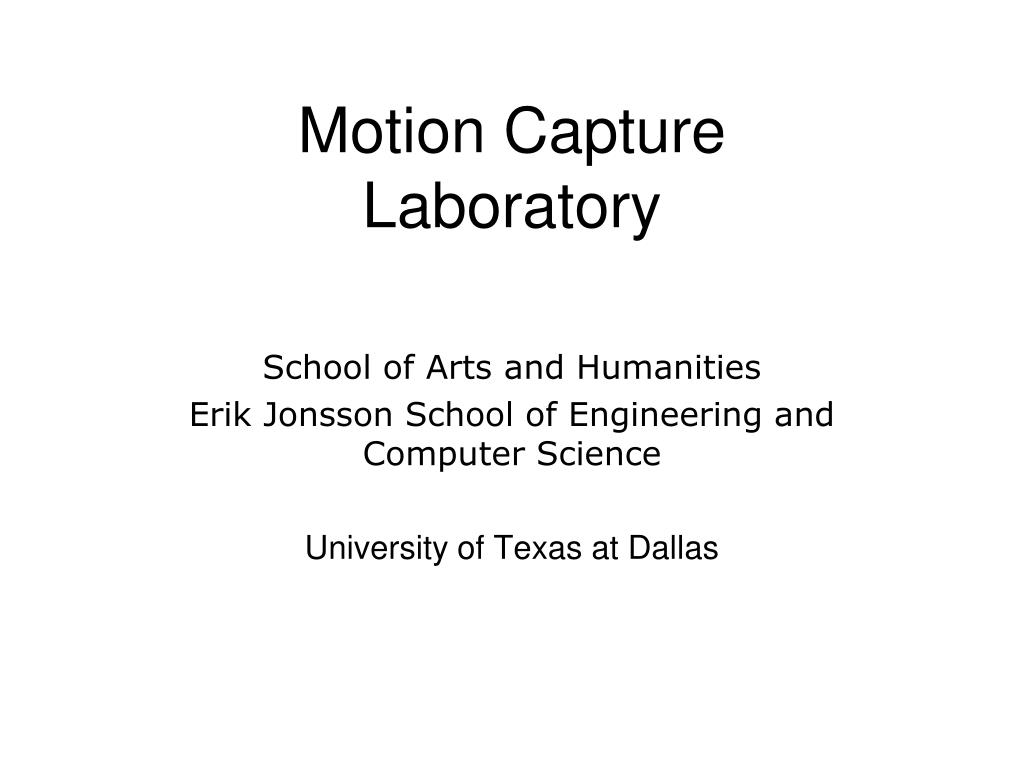

  1. Motion Capture Laboratory School of Arts and Humanities Erik Jonsson School of Engineering and Computer Science University of Texas at Dallas

  2. What is Mocap? • Motion capture (mocap) is sampling and recording motion of humans, animals, and inanimate objects as 3D data. • The data can be used to study motion or to give an illusion of life to 3D computer models.

  3. Applications • Entertainment • Medicine • Arts / Education • Science / Engineering

  4. Entertainment: Live Action Films • Computer generated characters in live action films.

  5. Entertainment: 3D computer animations • Characters in computer animated files (e.g. Avatar, Polar Express, Monster House)

  6. Entertainment: Video Games • Video games by Electronic Arts, Gremlin, id, RARE, Square, Konami, Namco, and others, (e.g. Enemy Territory)

  7. Medicine • Medicine (e.g., gait analysis, rehabilitation) • Sports medicine (e.g. injury prevention,performance analyses, performance enhancement) Gait Analysis Service

  8. Arts / Education • Dance and theatrical performances • Archiving (e.g., Marcel Marceau) OSU/ACCAD

  9. Science / Engineering • Computer Science (e.g., human motion database, indexing, recognitions) • Engineering (e.g., Biped robot developments) • Ergonomic product design • Military (e.g., field exercises, virtual instructors, and role-playing games)

  10. Mocap animation • Motion capture animation is different from keyframe animation in terms of how motion is created. • Same principles apply to mocap animation & keyframe animation! • A combination of motion capture animation and keyframe animation is often used.

  11. Keyframe animation • A keyframe is a drawing of a key moment in an animated sequence, where the motion is at its extreme. • Inbetweens fill the gaps between keyframes. • Every motion is created by animators.

  12. Advantages of mocap animation • Faster to create (only if an established production pipeline exists.) • Secondary motions and all the subtle motions are captured -> more realism. • Physical interactions between performers and props can be captured.

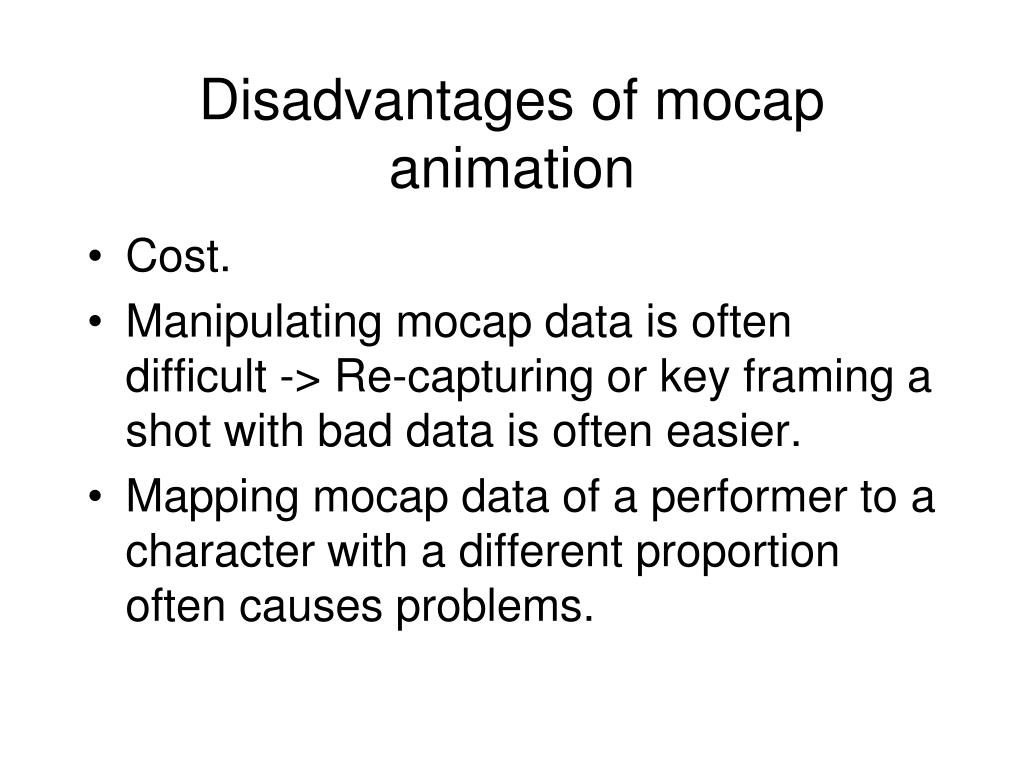

  13. Disadvantages of mocap animation • Cost. • Manipulating mocap data is often difficult -> Re-capturing or key framing a shot with bad data is often easier. • Mapping mocap data of a performer to a character with a different proportion often causes problems.

  14. Types of mocap equipment • Magnetic systems • Mechanical systems • Optical systems

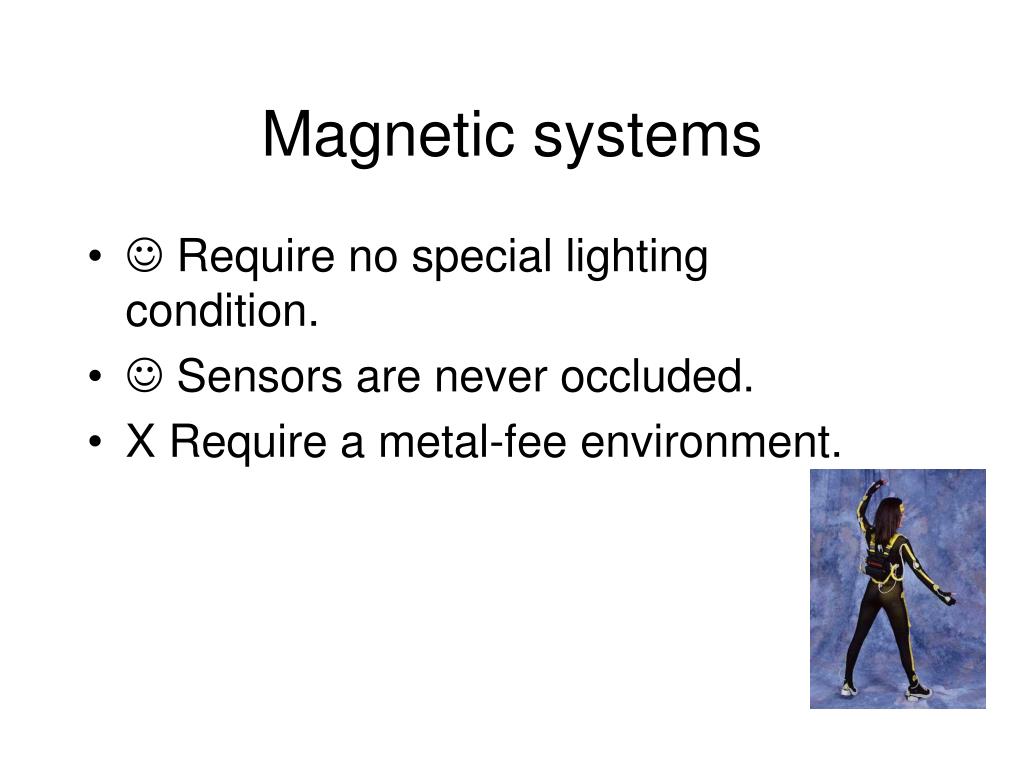

  15. Magnetic systems • Utilize sensors placed on the body to measure the magnetic field generated by a transmitter source.

  16. Magnetic systems •  Require no special lighting condition. •  Sensors are never occluded. • X Require a metal-fee environment.

  17. Mechanical systems • Exoskeleton with angle sensors.

  18. Mechanical systems •  Measure joint angles (no marker ID problems). •  Sensors are never occluded. • X Breakable! • X Configuration of sensors is fixed. • X Constrains on joints.

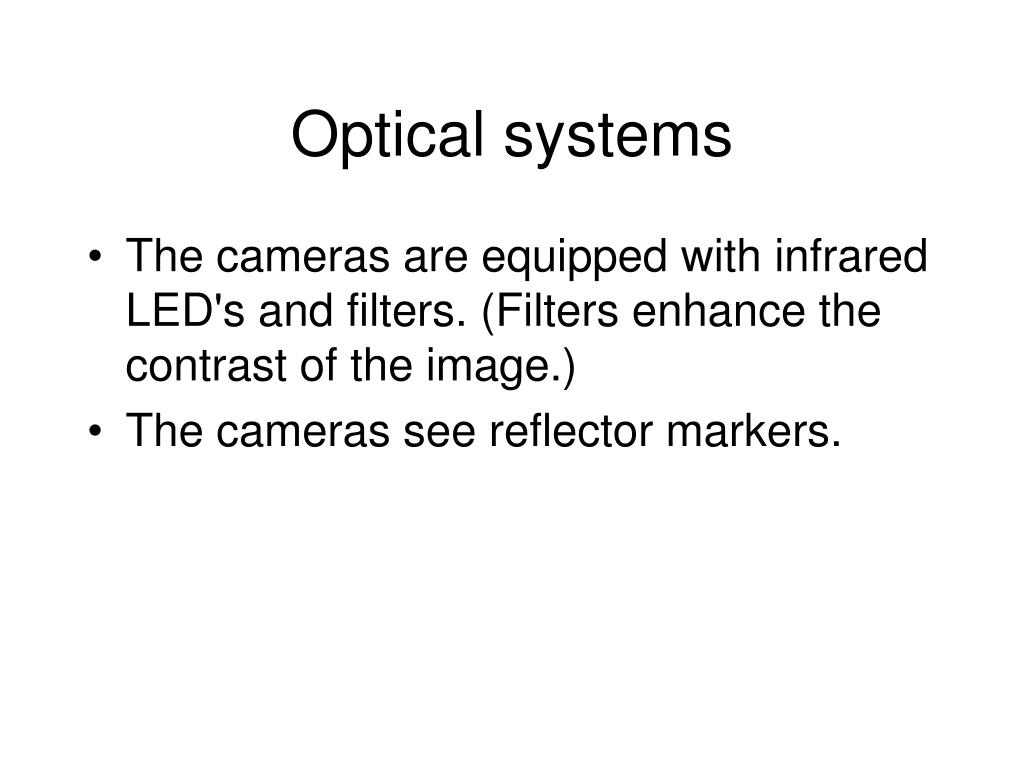

  19. Optical systems • The cameras are equipped with infrared LED's and filters. (Filters enhance the contrast of the image.) • The cameras see reflector markers.

  20. Optical systems •  Higher sampling rate. •  Larger capture space. • X Markers are sometimes occluded -> marker ID problems. • X Provide only positional data -> joint angles need to be computed.

  21. Mocap system at UTD • Vicon optical system - Best system in Academia! • 8 high-speed MX 13 (up to 1000 fps) and 8 high-resolution MX 40 (4 million pixels) cameras. • Capture up to 5 performers at once.

  22. Mocap system at UTD • Vicon optical system - Best system in Academia! • 8 high-speed MX 13 (up to 1000 fps) and 8 high-resolution MX 40 (4 million pixels) cameras. • Capture up to 5 performers at once.

  23. Production pipeline overview • Calibrate the system. • Fit a generic skeleton to the subject’s proportion (subject calibration). • Capture shots & reconstruct 3D trajectories using the calibrated subject. • Link the subject specific skeleton to a CG character’s skeleton and edit motion (in MotionBuilder). • Add skin to the CG character, edit motion, and render (in Maya).Pipeline flow chart & Detailed pipeline
