Measuring Instrument 1. Vernier Caliper 2. Micrometer Screw gauge

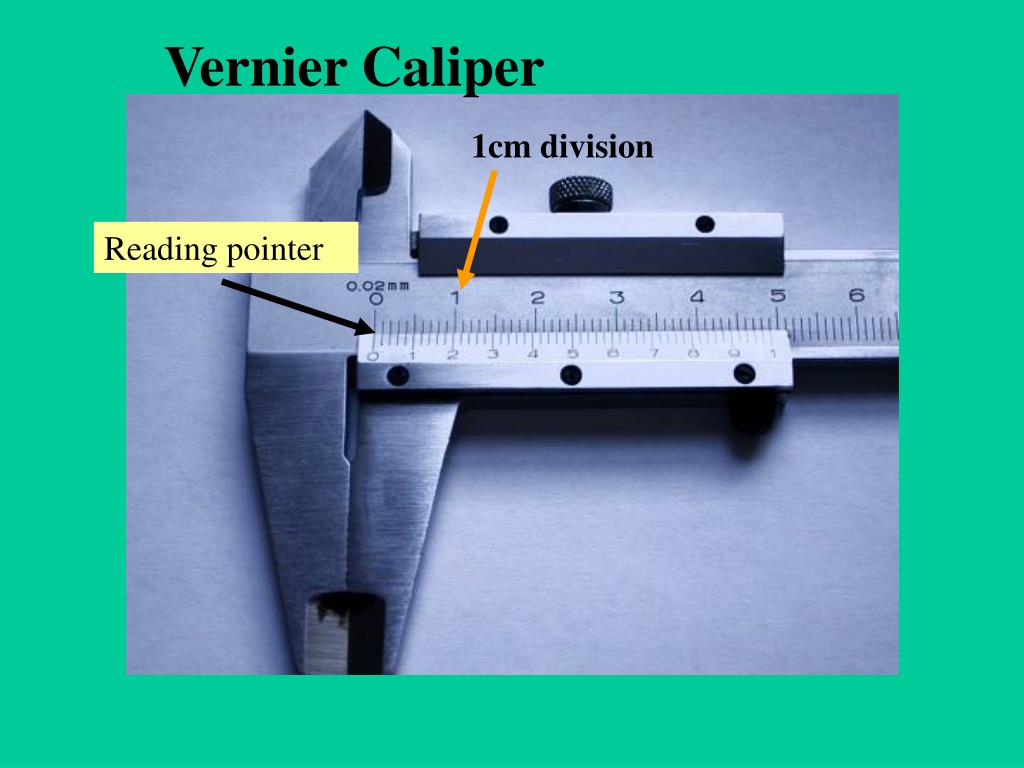

1cm division Reading pointer Vernier Caliper
Reading pointer 2 lines coincide What is the reading of the vernier caliper? The reading is 7.72 mm .
1.0 mm 1/100 mm per division Pointer Reading 1.14mm 0.5 mm Micrometer screw gauge
50 divisions per turn Add 0.5mm to the reading Reading: 1.29mm + 0.5 mm = 1.79 mm
The End
