Pre-Qualification Status Update for Modules M-O-040 and M-O-044 at Glasgow

Last Thursday, we pre-qualified two modules: M-O-040 and M-O-044. The timetable for qualification includes completed visual inspections and confirmation scans. This week, we will bond and test the first qualification module, followed by bonding the second module after full electrical validation of the first. Perl scripts are currently running for data archiving, and CGI scripts for web access require edits for M-O-040. Detailed input data includes noise measurements, average gains, and variations in thresholds for both modules across different conditions.

salene
Télécharger la présentation

Pre-Qualification Status Update for Modules M-O-040 and M-O-044 at Glasgow

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Status at Glasgow

  2. Pre-qualification • Last Thursday pre-qualified • 2 modules M-O-040 and M-O-044 • Time table to qualification • Visual Inspection and conformation scans done on both • This week bond and test 1st qualification module • 2nd module bond after 1st module fully electrically • Perl scripts • running for data archiving • Cgi script for Web access to be edited

  3. M-O-40 • 19 band channels warm (35C) • 23 band channels cold (11C) • 23C • Average input noise: Link0 = 1387e, Link1 = 1353e, Module = 1370e; • Average gain, Link0 = 53.6 mV/fC, Link1 = 55.6 mV/fC, Module = 54.6 mV/fC; • Average threshold variation (for TrimRange 0), Link0 = 1.48 mV, Link1 = 1.71 mV • Noise Occupancy, Link0 = 1.08x 10-5, Link1 = 4.43x 10-6, Module = 7.63x 10-6 • Average front-end input noise from Noise Occupancy, Link0 = 1416e, Link1 = 1369e, Module = 1393;

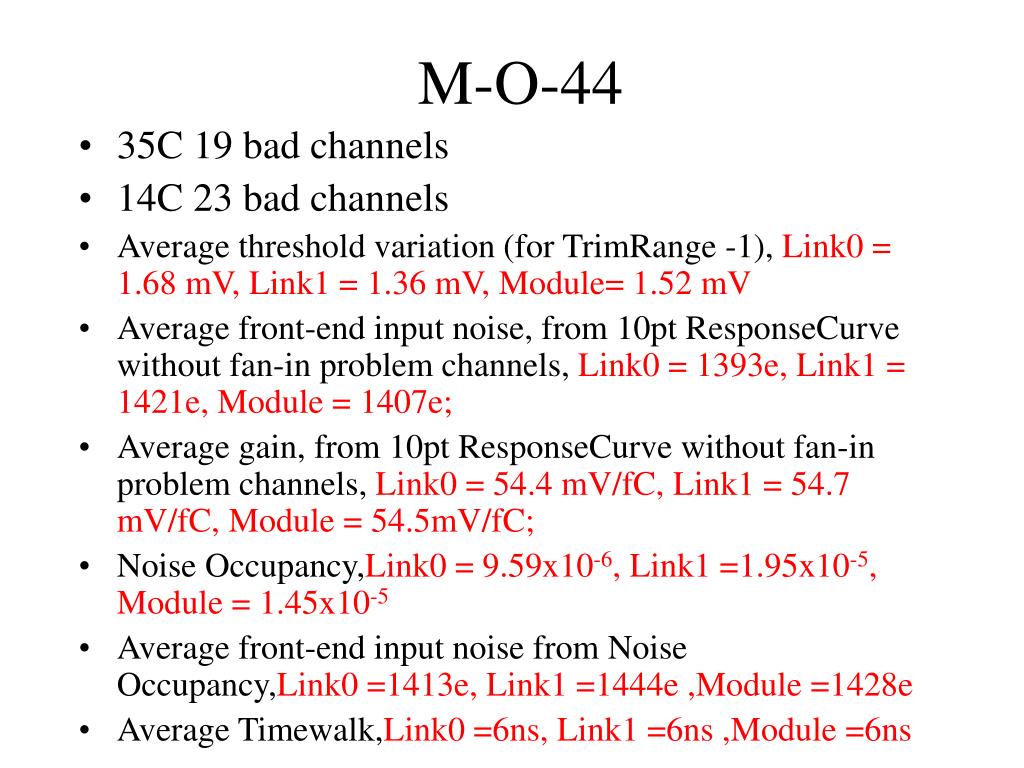

  4. M-O-44 • 35C 19 bad channels • 14C 23 bad channels • Average threshold variation (for TrimRange -1), Link0 = 1.68 mV, Link1 = 1.36 mV, Module= 1.52 mV • Average front-end input noise, from 10pt ResponseCurve without fan-in problem channels, Link0 = 1393e, Link1 = 1421e, Module = 1407e; • Average gain, from 10pt ResponseCurve without fan-in problem channels, Link0 = 54.4 mV/fC, Link1 = 54.7 mV/fC, Module = 54.5mV/fC; • Noise Occupancy,Link0 = 9.59x10-6, Link1 =1.95x10-5, Module = 1.45x10-5 • Average front-end input noise from Noise Occupancy,Link0 =1413e, Link1 =1444e ,Module =1428e • Average Timewalk,Link0 =6ns, Link1 =6ns ,Module =6ns

  5. NO M-O-040 - cold

  6. NO M-O-40 warm

  7. NO M-O-44 cold

  8. IV M-O-044 24C

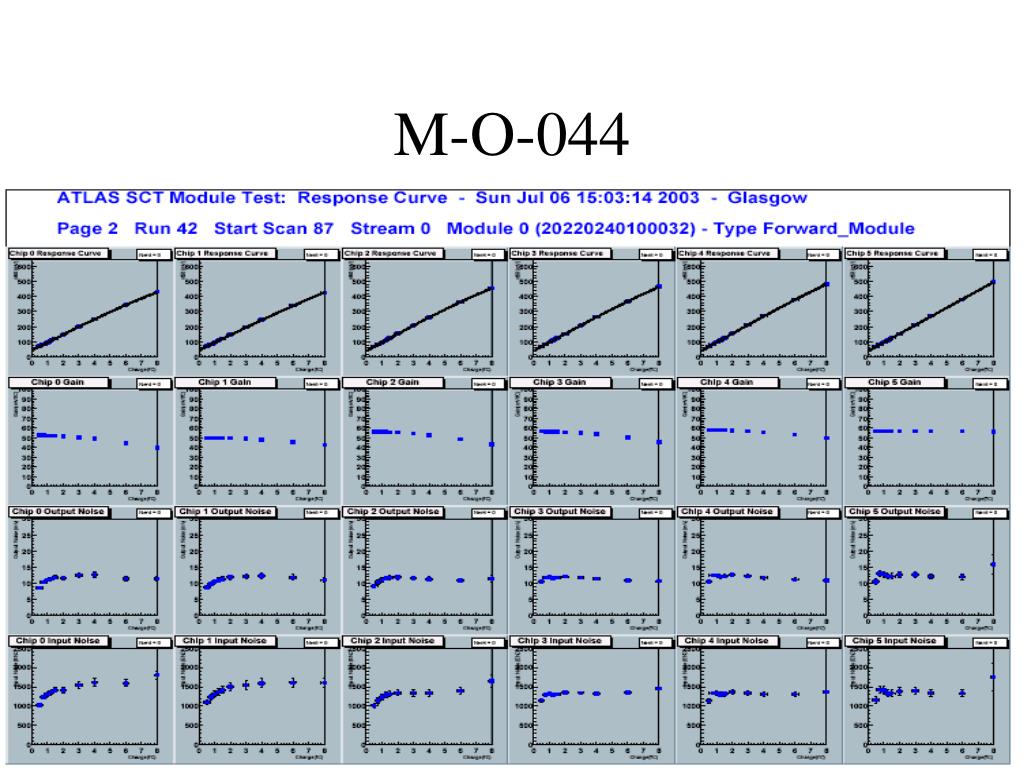

  9. M-O-044

  10. M-O-044
