  1. Pass Transistor Logic

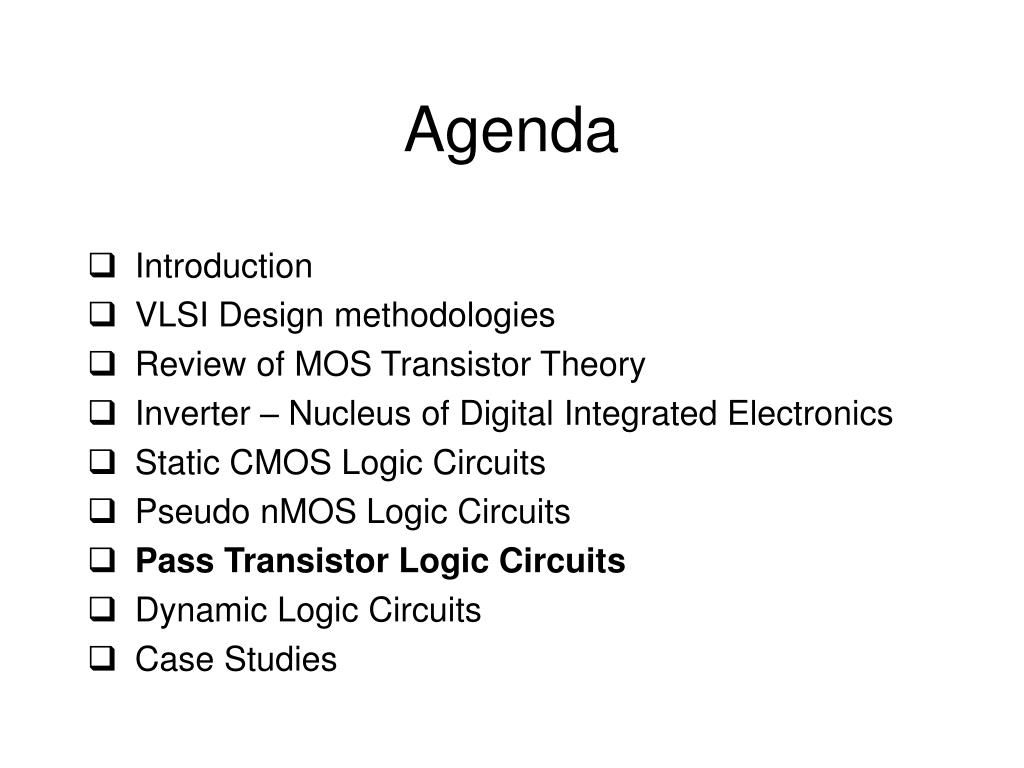

  2. Agenda • Introduction • VLSI Design methodologies • Review of MOS Transistor Theory • Inverter – Nucleus of Digital Integrated Electronics • Static CMOS Logic Circuits • Pseudo nMOS Logic Circuits • Pass Transistor Logic Circuits • Dynamic Logic Circuits • Case Studies

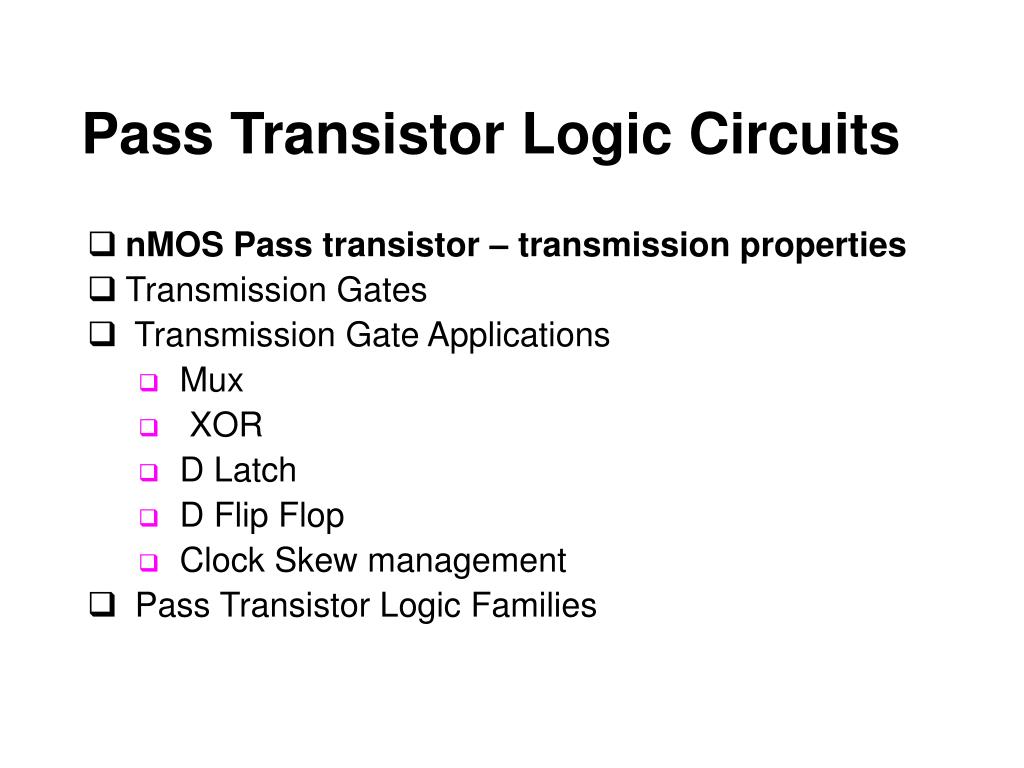

  3. Pass Transistor Logic Circuits • nMOS Pass transistor – transmission properties • Transmission Gates • Transmission Gate Applications • Mux • XOR • D Latch • D Flip Flop • Clock Skew management • Pass Transistor Logic Families

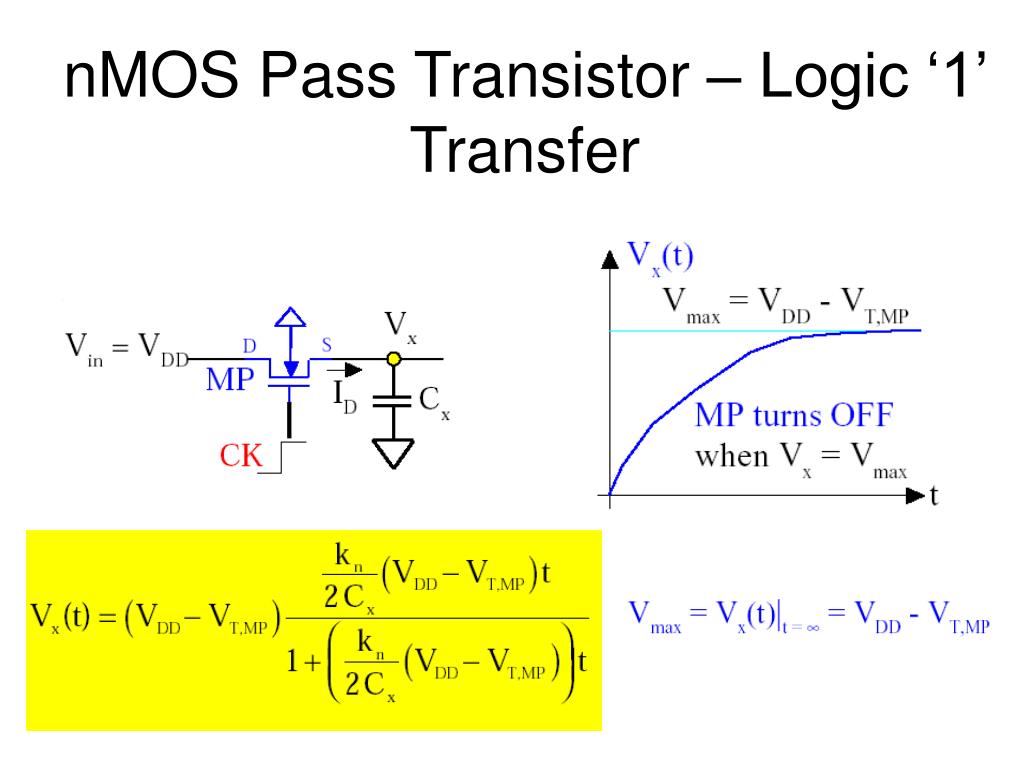

  4. nMOS Pass Transistor – Logic ‘1’ Transfer

  5. nMOS Pass Transistor – Logic ‘0’ Transfer

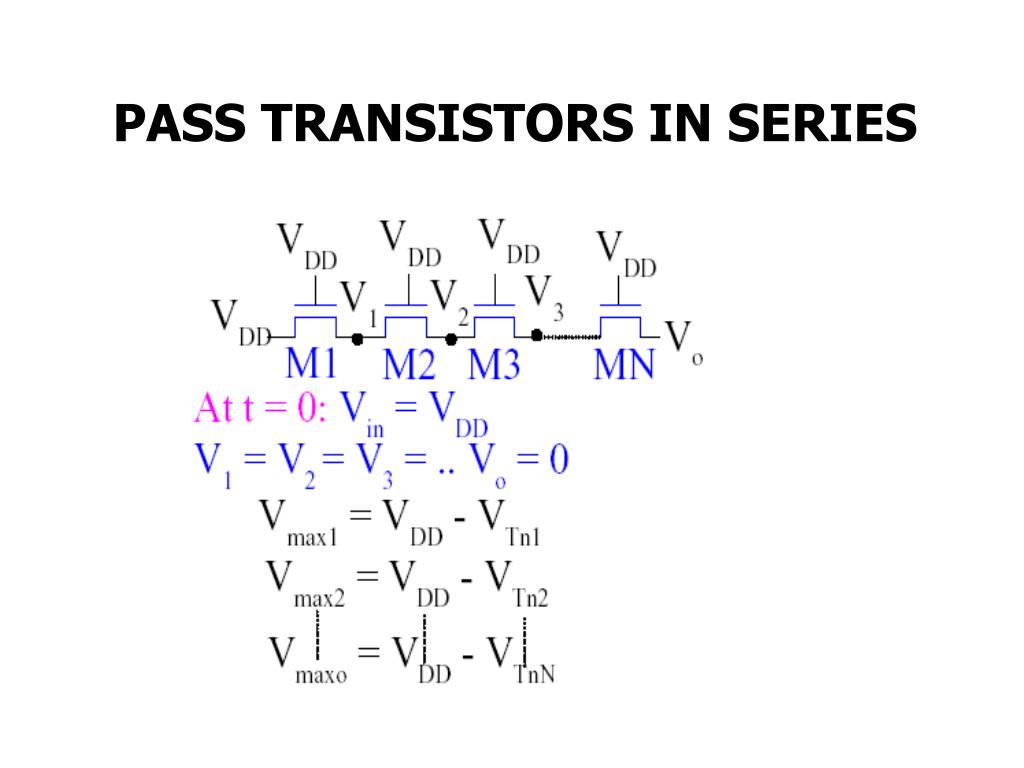

  6. PASS TRANSISTORS IN SERIES

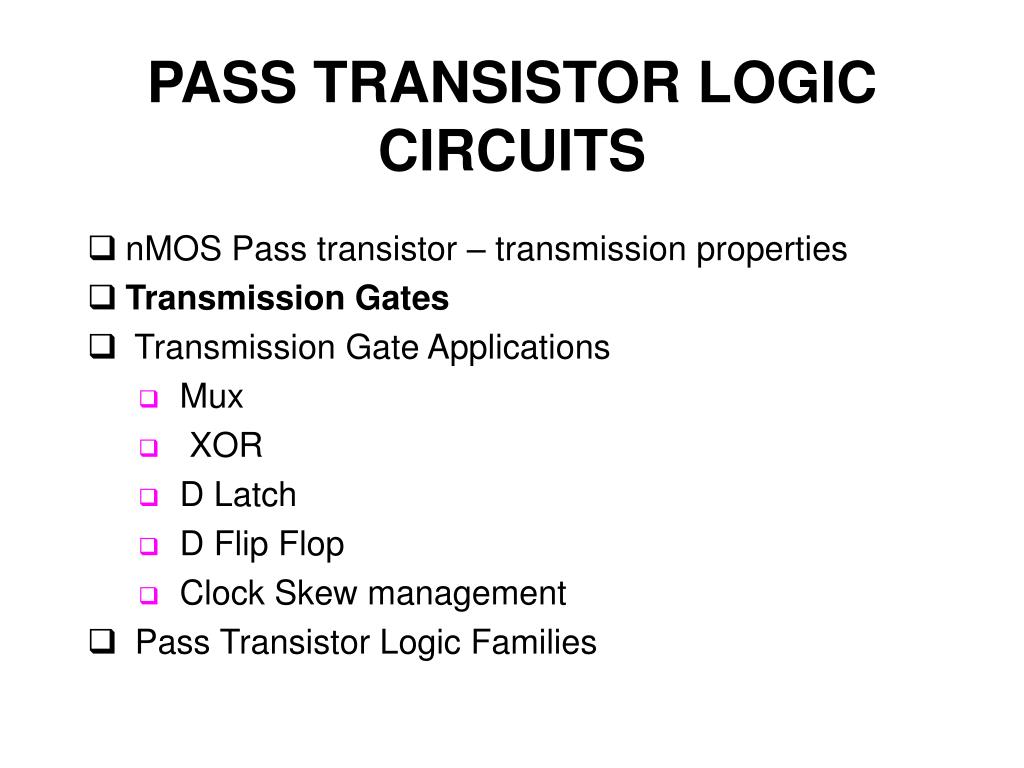

  7. PASS TRANSISTOR LOGIC CIRCUITS • nMOS Pass transistor – transmission properties • Transmission Gates • Transmission Gate Applications • Mux • XOR • D Latch • D Flip Flop • Clock Skew management • Pass Transistor Logic Families

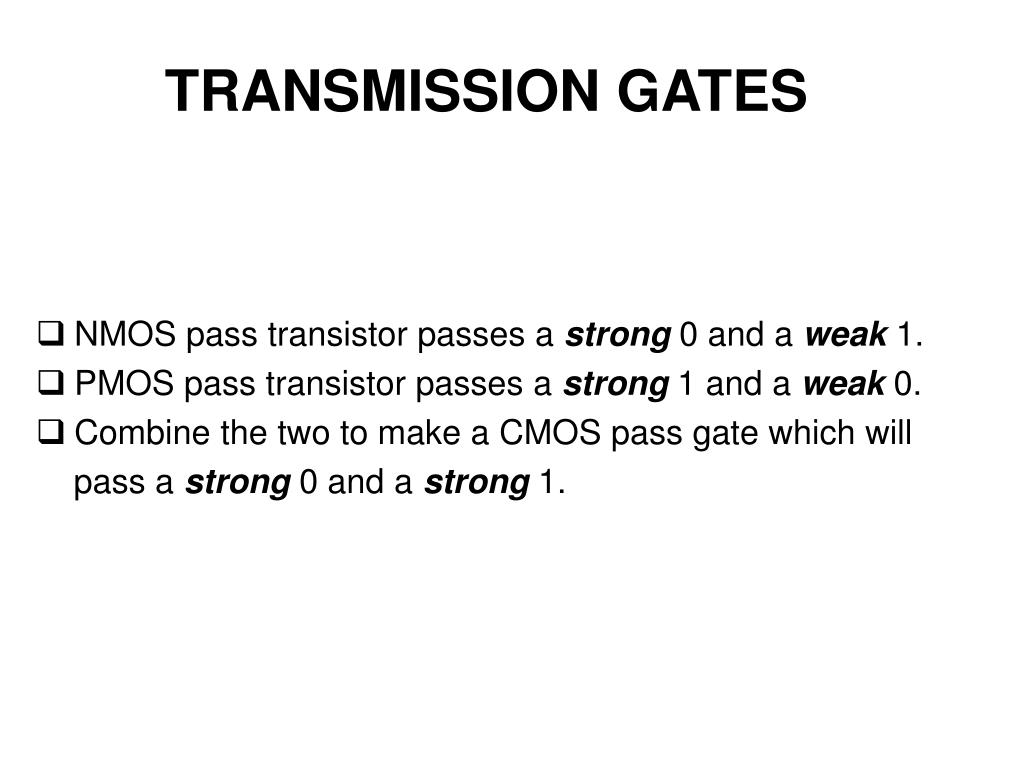

  8. TRANSMISSION GATES • NMOS pass transistor passes a strong 0 and a weak 1. • PMOS pass transistor passes a strong 1 and a weak 0. • Combine the two to make a CMOS pass gate which will pass a strong 0 and a strong 1.

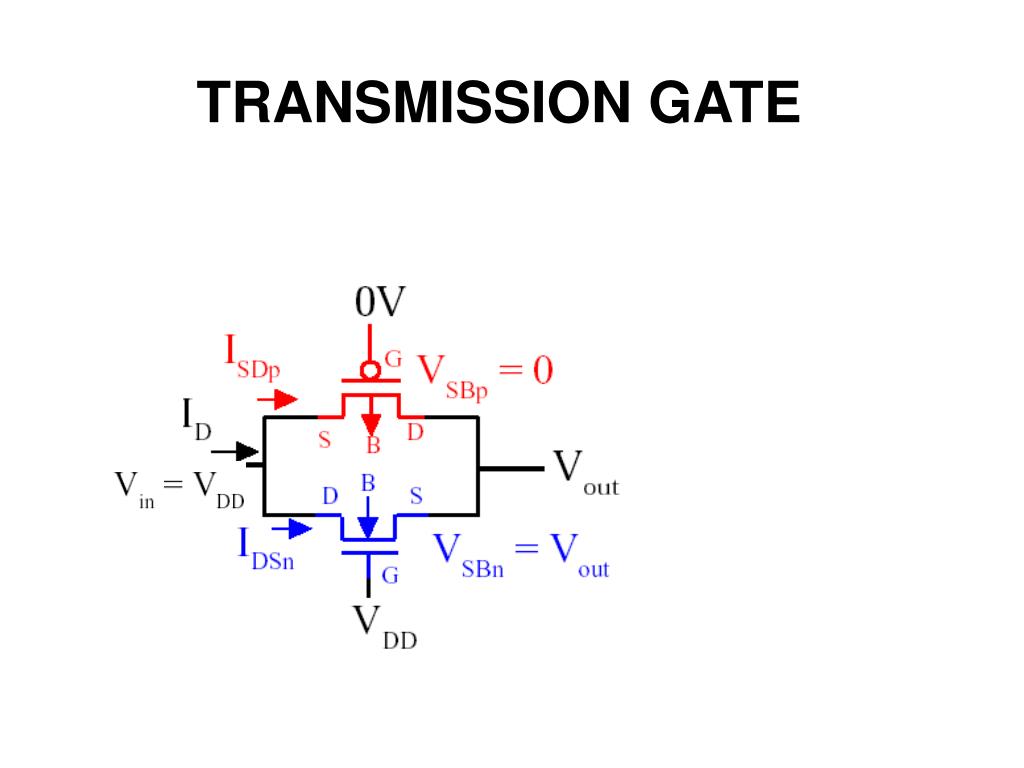

  9. TRANSMISSION GATE

  10. PROBLEMS WITH TRANSMISSION GATES • No isolation between the input and output. • Output progressively deteriorates as it passes through various stages. However designs get simplified.

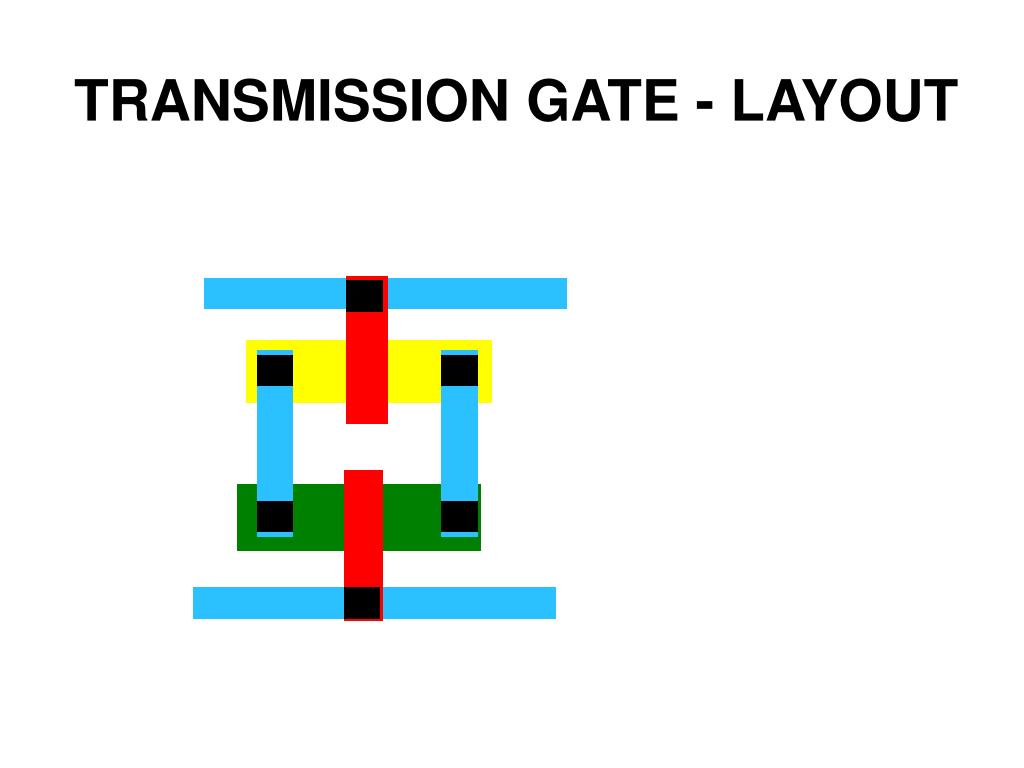

  11. TRANSMISSION GATE - LAYOUT

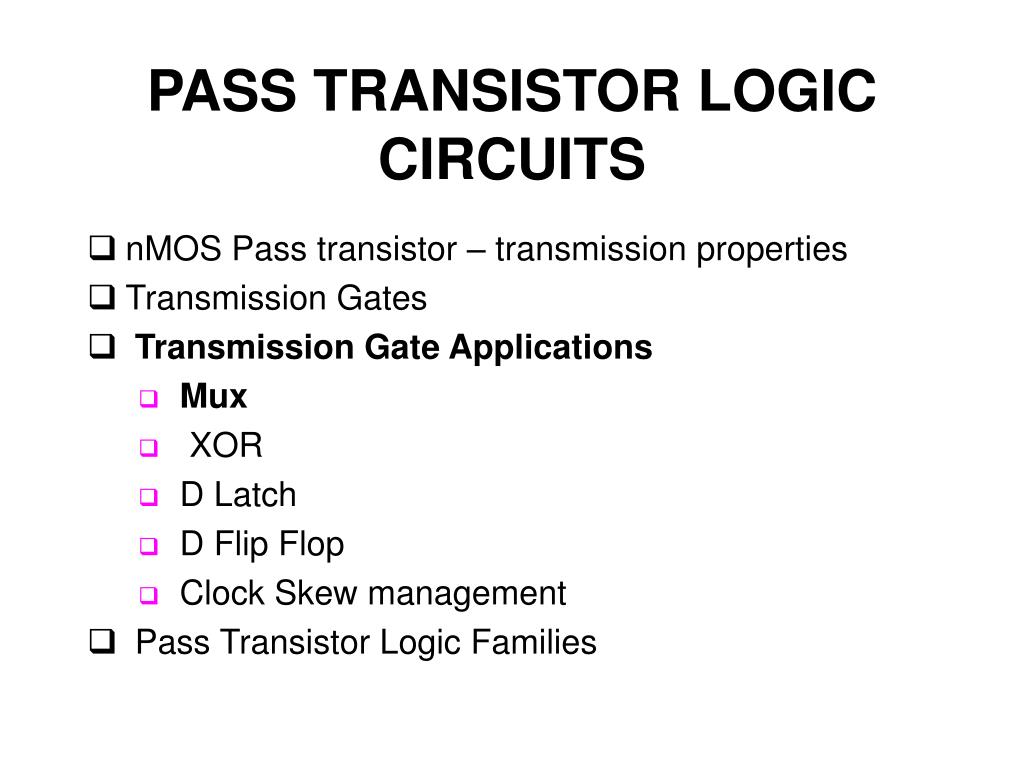

  12. PASS TRANSISTOR LOGIC CIRCUITS • nMOS Pass transistor – transmission properties • Transmission Gates • Transmission Gate Applications • Mux • XOR • D Latch • D Flip Flop • Clock Skew management • Pass Transistor Logic Families

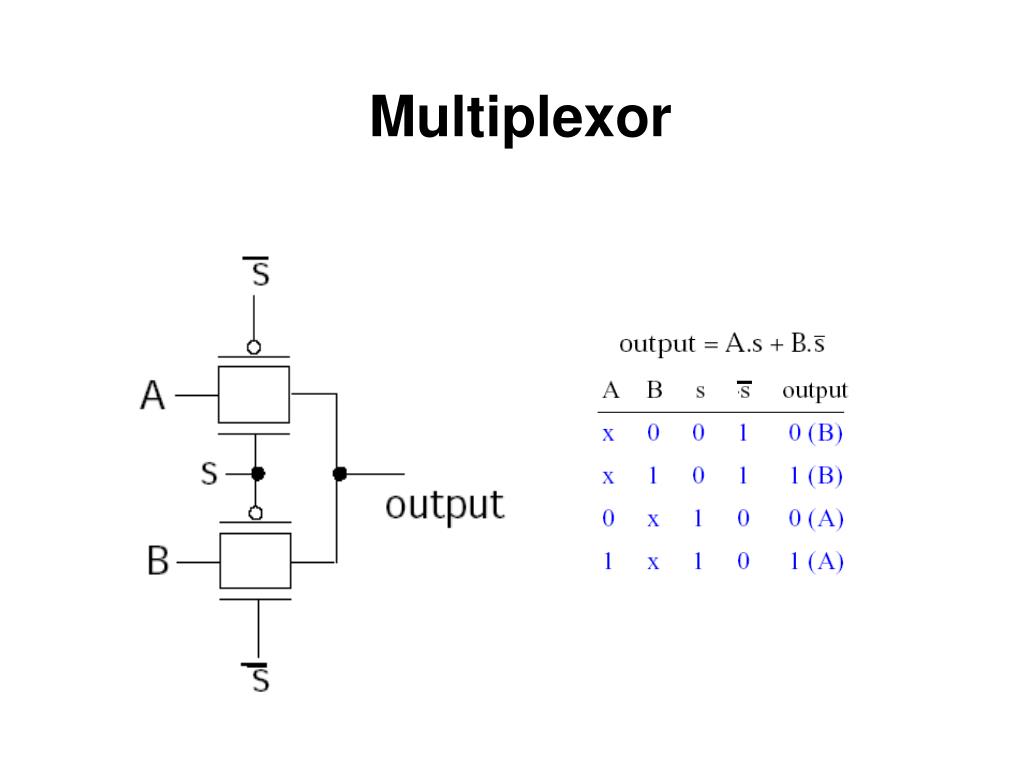

  13. Multiplexor

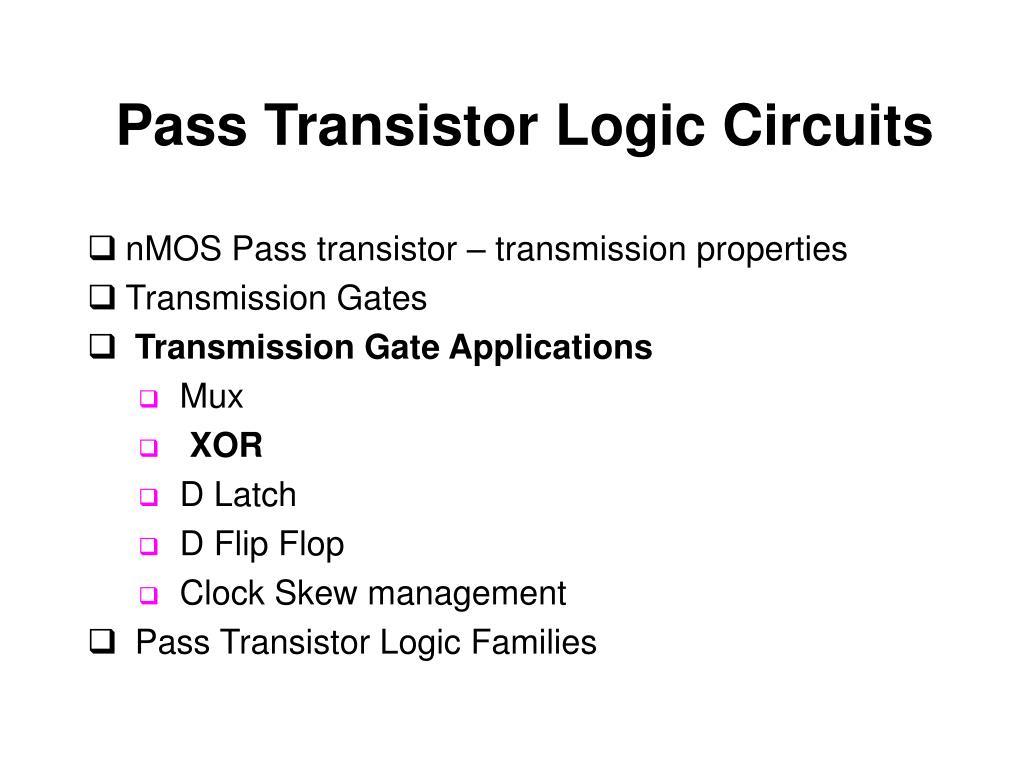

  14. Pass Transistor Logic Circuits • nMOS Pass transistor – transmission properties • Transmission Gates • Transmission Gate Applications • Mux • XOR • D Latch • D Flip Flop • Clock Skew management • Pass Transistor Logic Families

  15. XOR gate

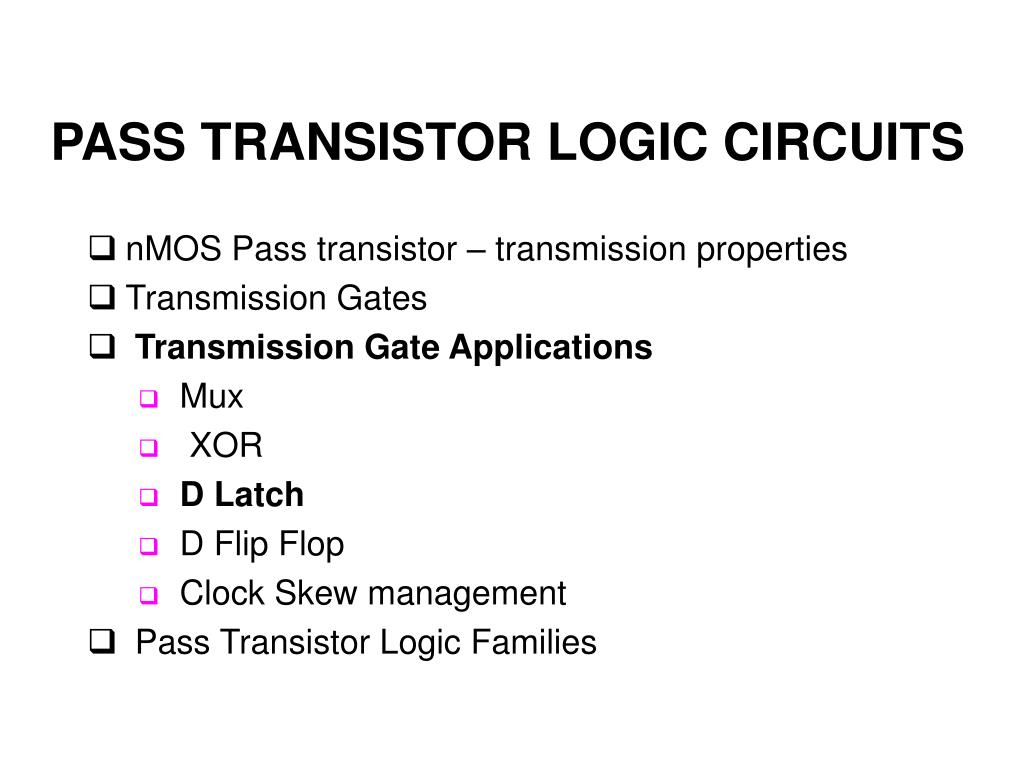

  16. PASS TRANSISTOR LOGIC CIRCUITS • nMOS Pass transistor – transmission properties • Transmission Gates • Transmission Gate Applications • Mux • XOR • D Latch • D Flip Flop • Clock Skew management • Pass Transistor Logic Families

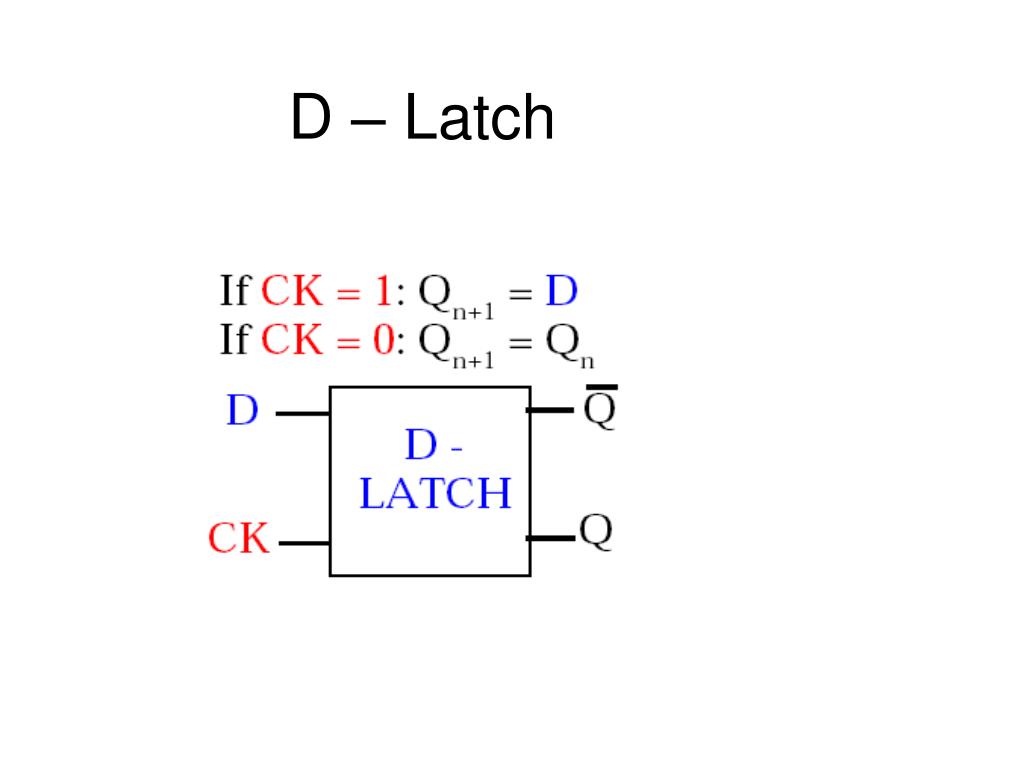

  17. D – Latch

  18. TIMING ISSUES

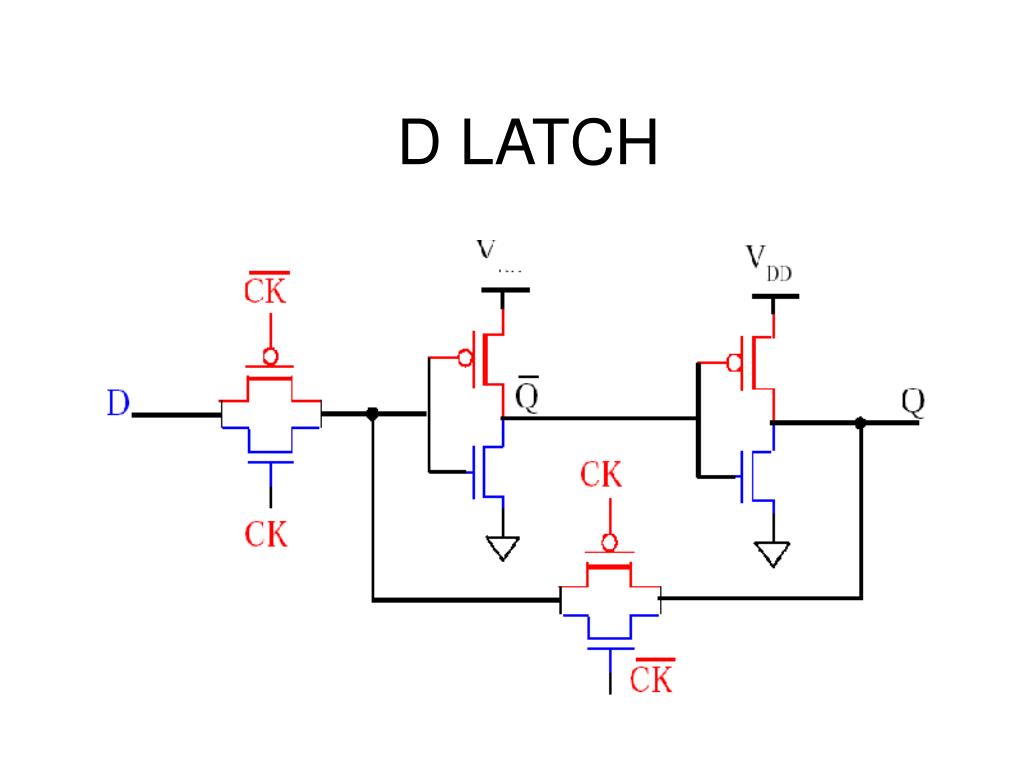

  19. D LATCH

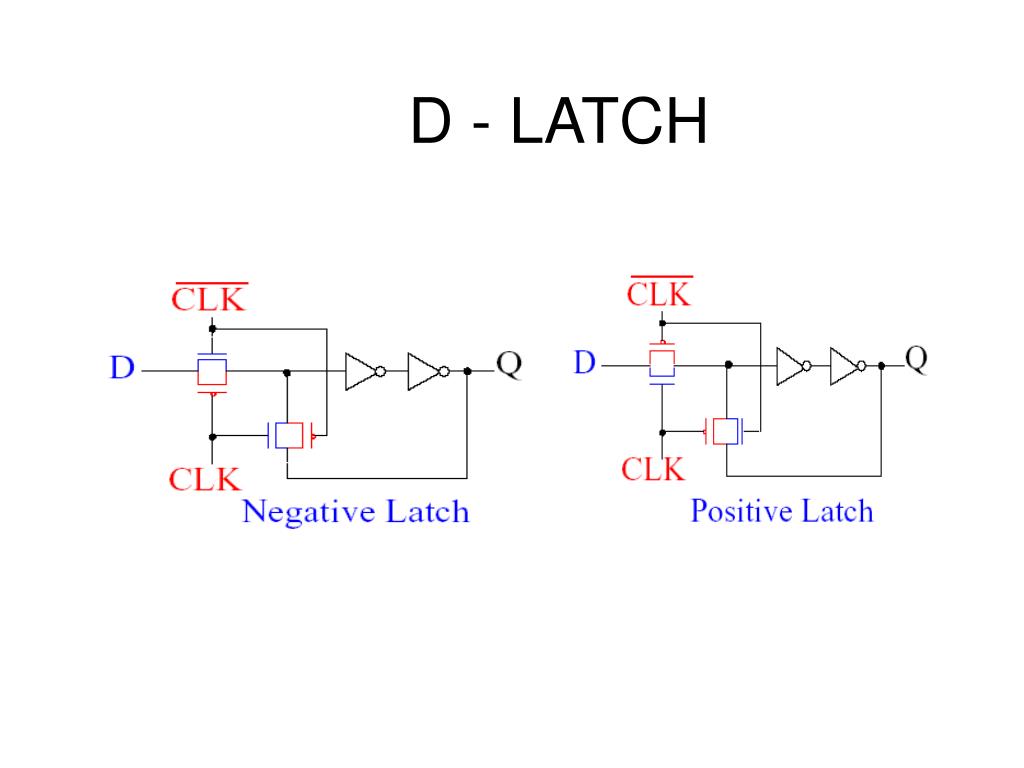

  20. D - LATCH

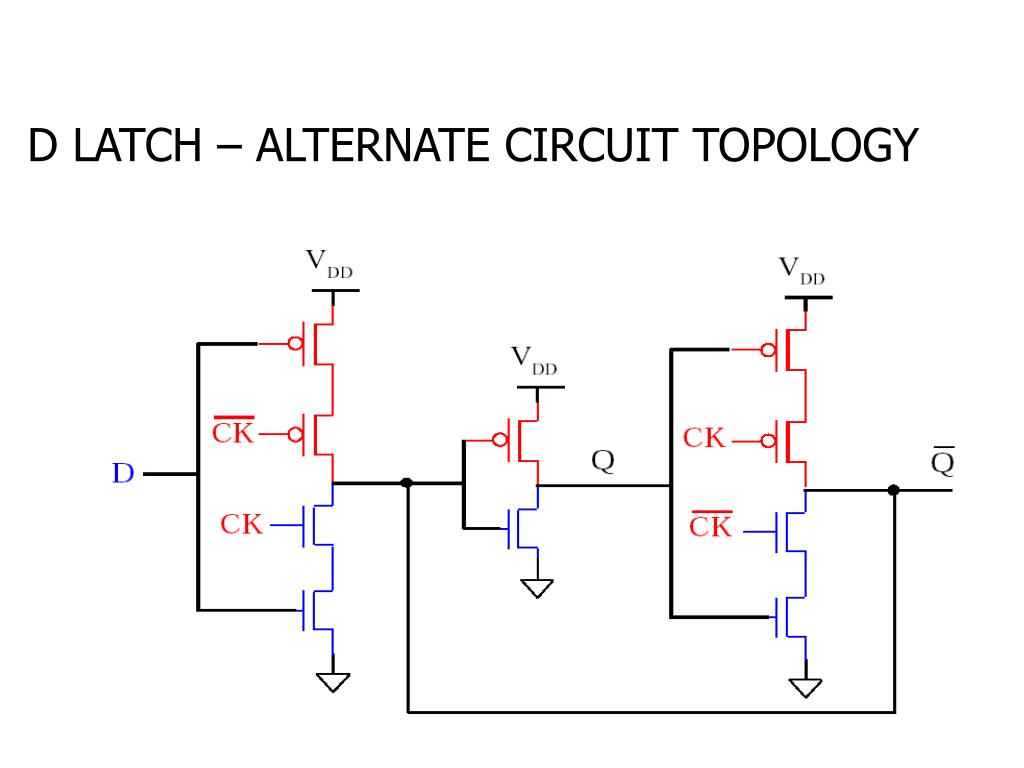

  21. D LATCH – ALTERNATE CIRCUIT TOPOLOGY

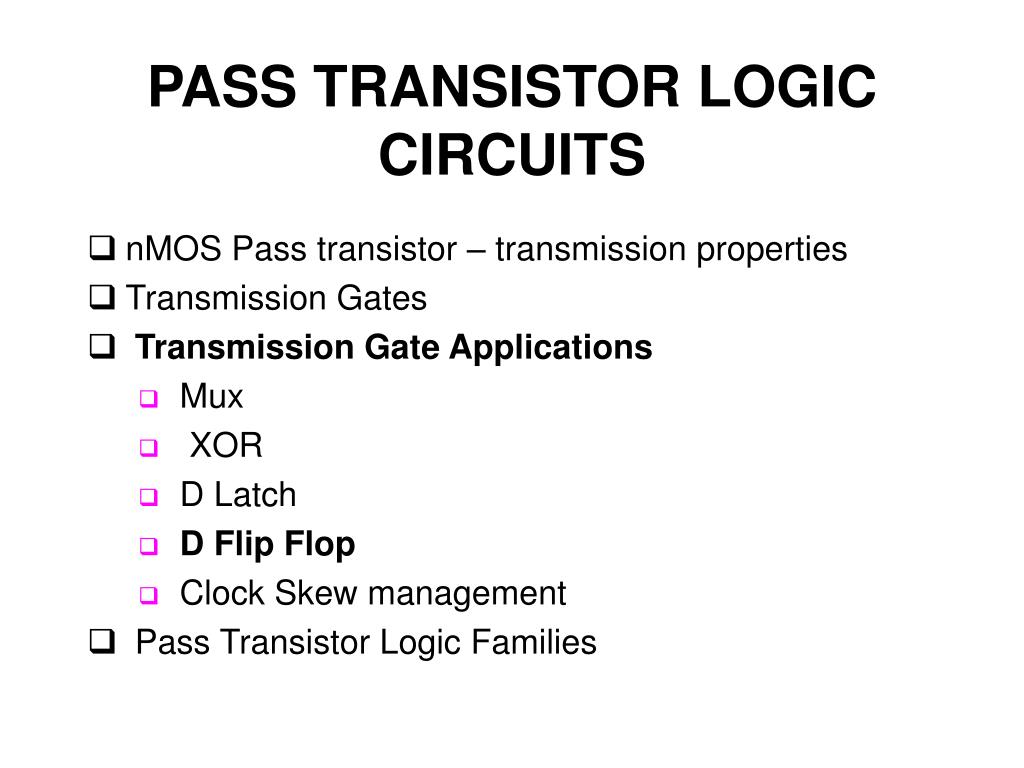

  22. PASS TRANSISTOR LOGIC CIRCUITS • nMOS Pass transistor – transmission properties • Transmission Gates • Transmission Gate Applications • Mux • XOR • D Latch • D Flip Flop • Clock Skew management • Pass Transistor Logic Families

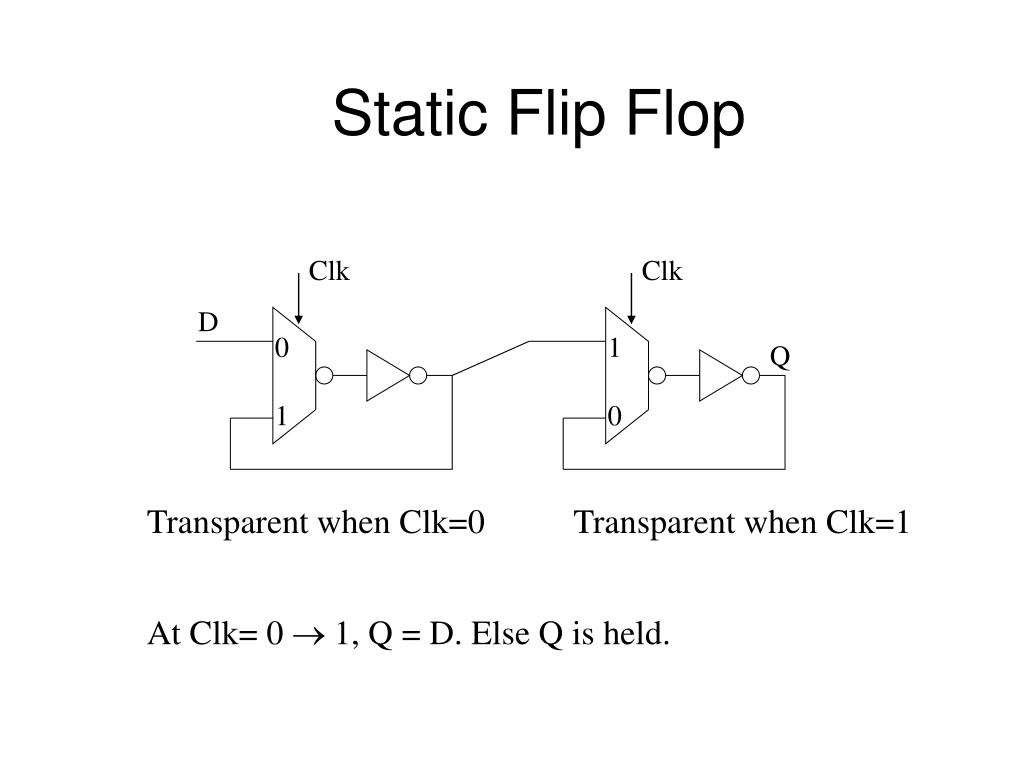

  23. Static Flip Flop Clk Clk D 0 1 Q 1 0 Transparent when Clk=0 Transparent when Clk=1 At Clk= 0  1, Q = D. Else Q is held.

  24. D Flip Flop – Circuit Diagram

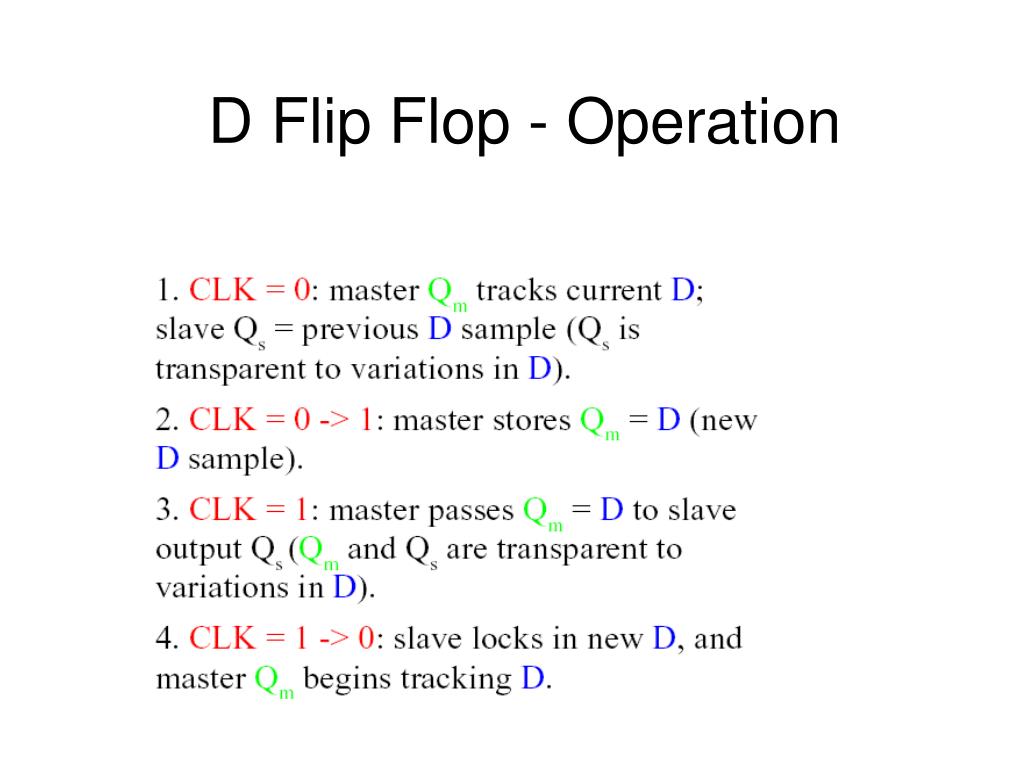

  25. D Flip Flop - Operation

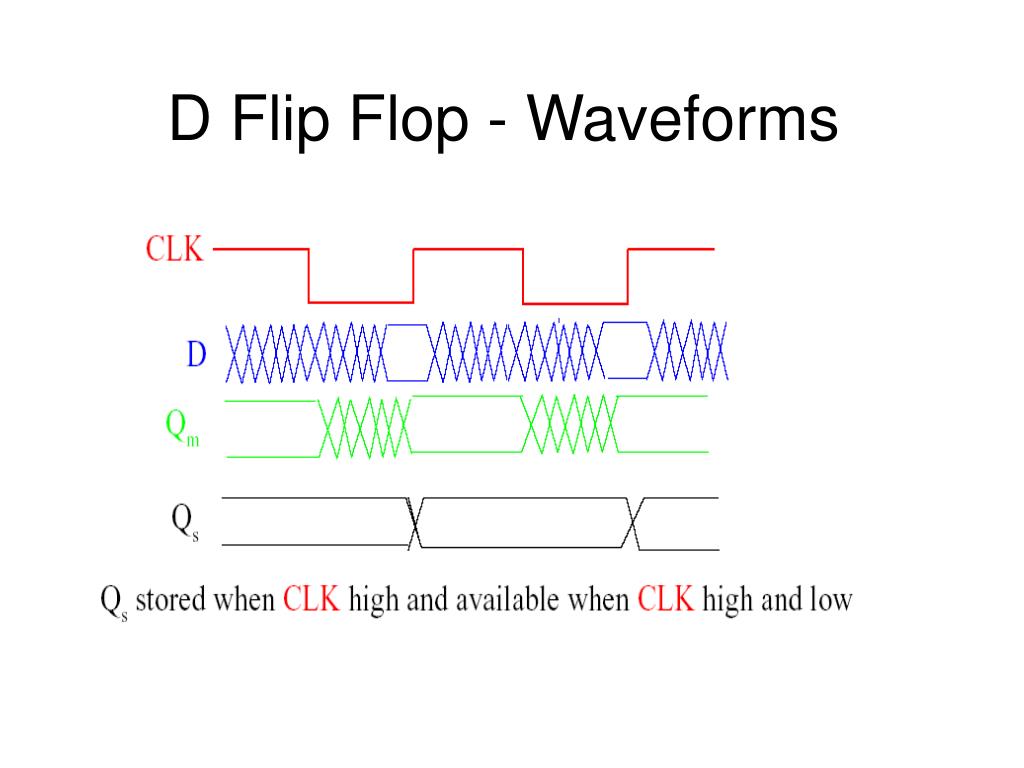

  26. D Flip Flop - Waveforms

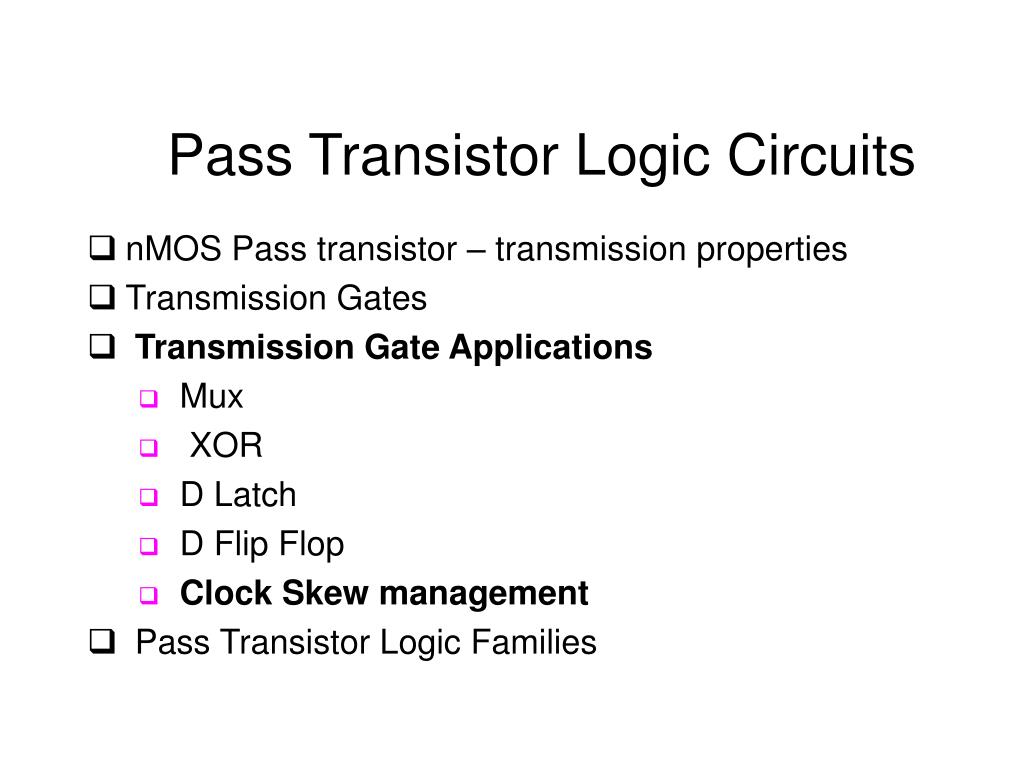

  27. Pass Transistor Logic Circuits • nMOS Pass transistor – transmission properties • Transmission Gates • Transmission Gate Applications • Mux • XOR • D Latch • D Flip Flop • Clock Skew management • Pass Transistor Logic Families

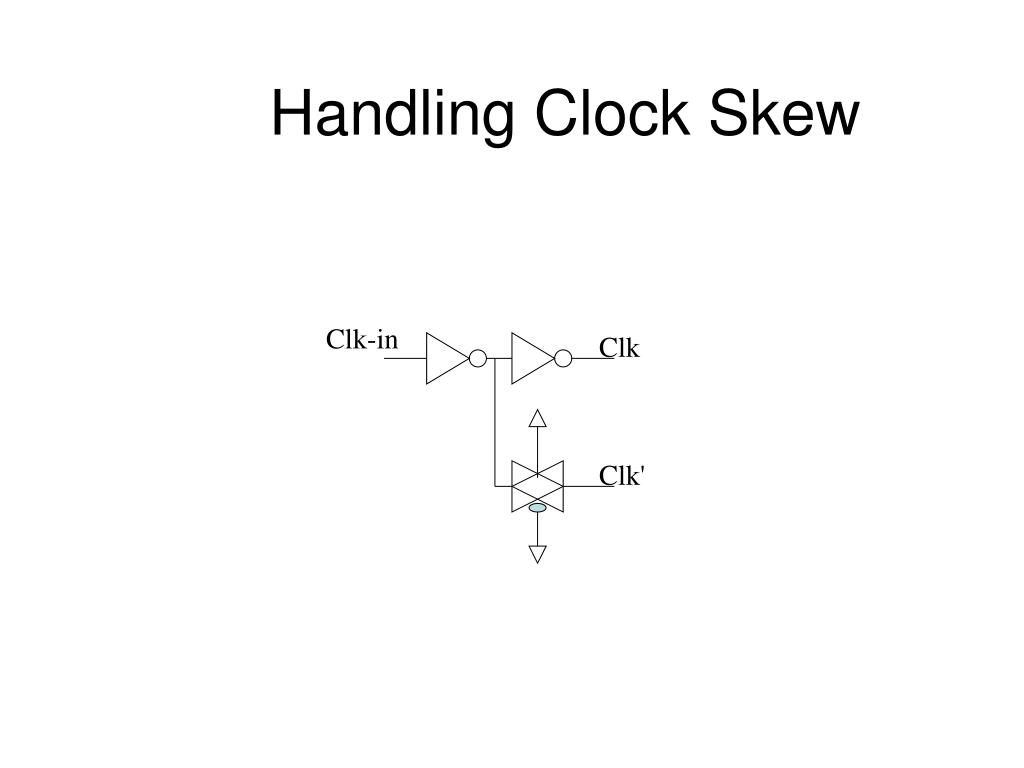

  28. Handling Clock Skew Clk-in Clk Clk'

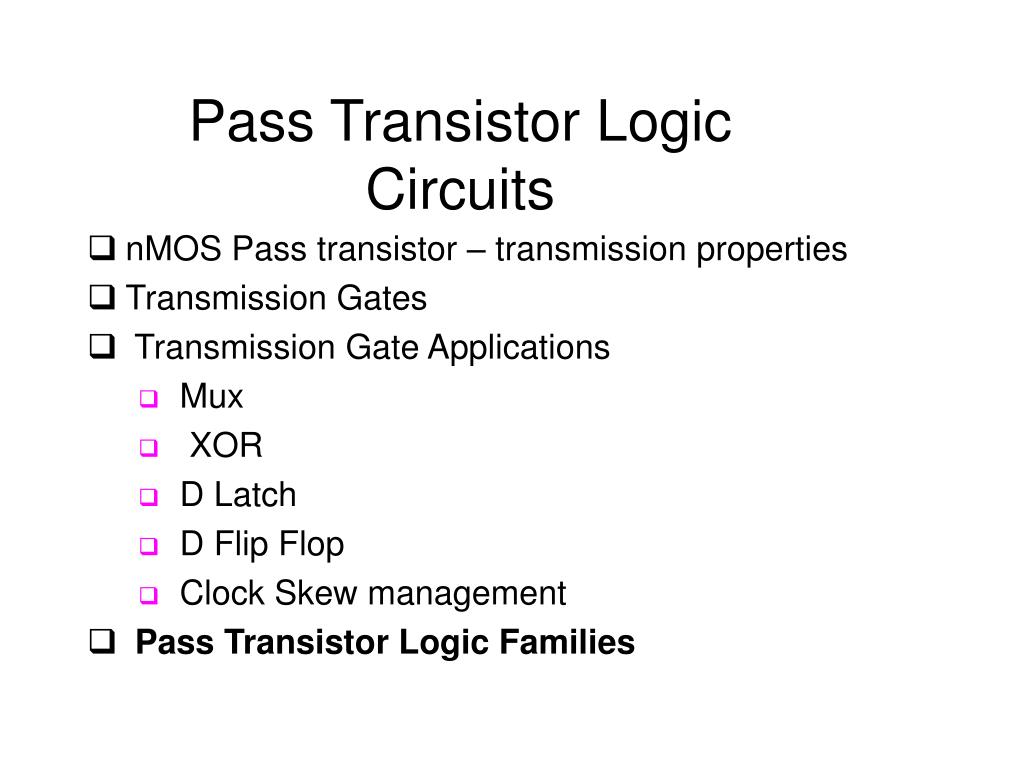

  29. Pass Transistor Logic Circuits • nMOS Pass transistor – transmission properties • Transmission Gates • Transmission Gate Applications • Mux • XOR • D Latch • D Flip Flop • Clock Skew management • Pass Transistor Logic Families

  30. Pass Transistor Logic Families • Complementary Pass Transistor Logic Family • Dual Pass Transistor Logic Family • Swing Restored Pass Transistor Logic Family

  31. Problems • Design 4 to 1 multiplexor using transmission-gates. • Implement an XOR gate using minimum number of transistors. • Implement a full adder using transmission gates.

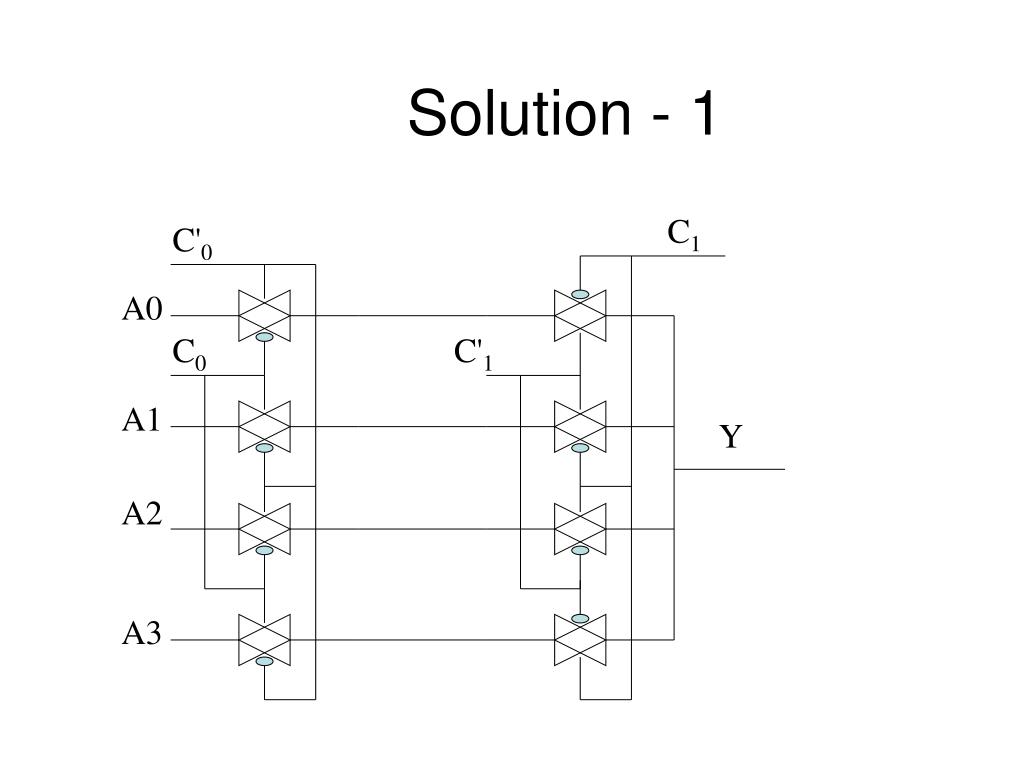

  32. Solution - 1 C1 C'0 A0 C0 C'1 A1 Y A2 A3

  33. Solution - 2 C'0 A0 C0 C'1 A1 C1 Y A2 A3

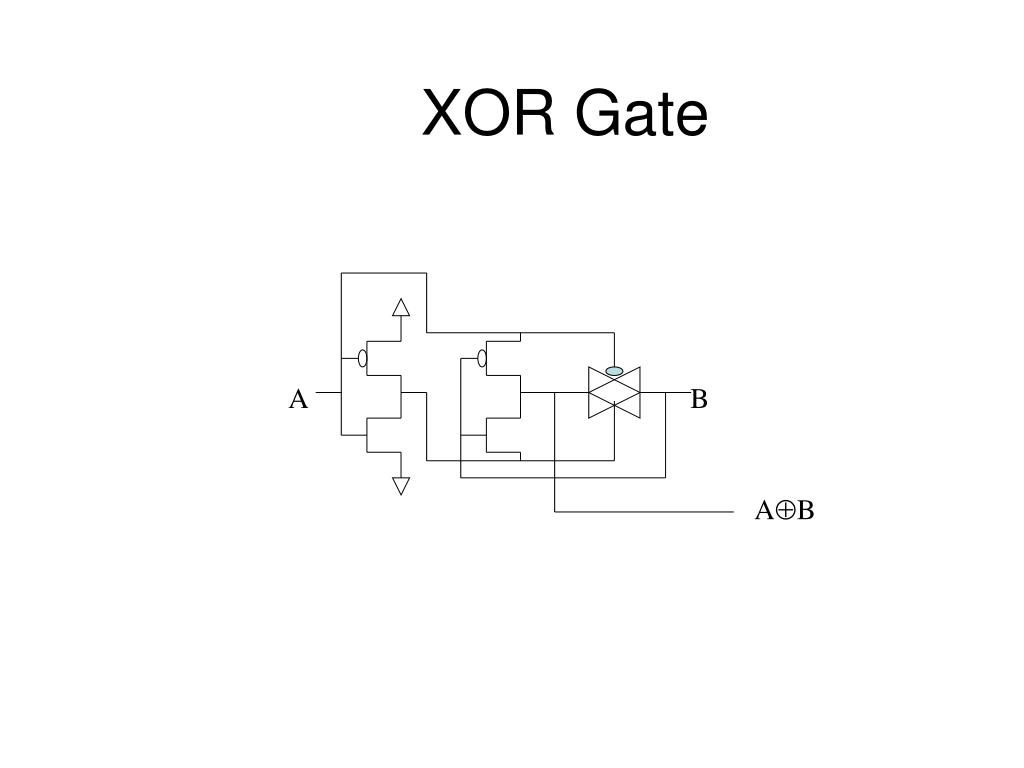

  34. XOR Gate A B AB
