  1. BAD DESIGN PROJECT Cabinet in Dorm Presented by: Yiran Jiang

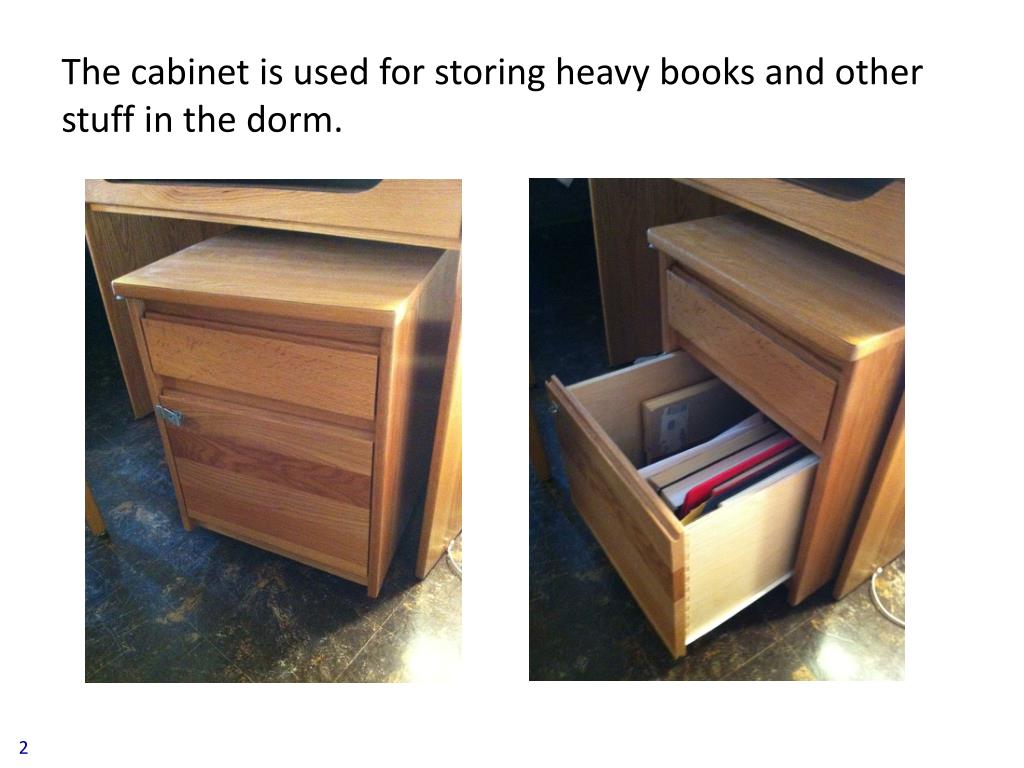

  2. The cabinet is used for storing heavy books and other stuff in the dorm. 2

  3. When the bottom drawer is too heavy, it falls down and the cabinet leans forward and the upper drawer falls down. 3

  4. The weight that the lower drawer can hold is only 11 pounds.

  5. There are four wheels at the bottom of the cabinet so that it can move around freely.

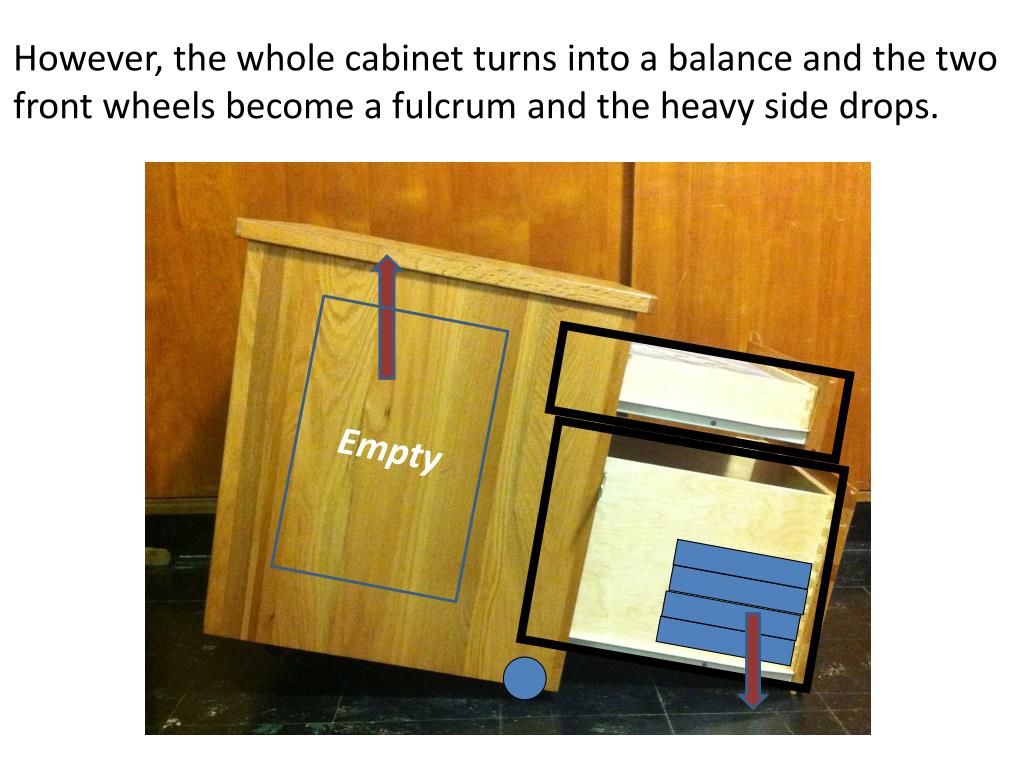

  6. However, the whole cabinet turns into a balance and the two front wheels become a fulcrum and the heavy side drops. Empty

  7. In order to improve this design, two more wheels can be added to the front of the bottom drawer.

  8. Reference • All the pictures are taken by myself.
