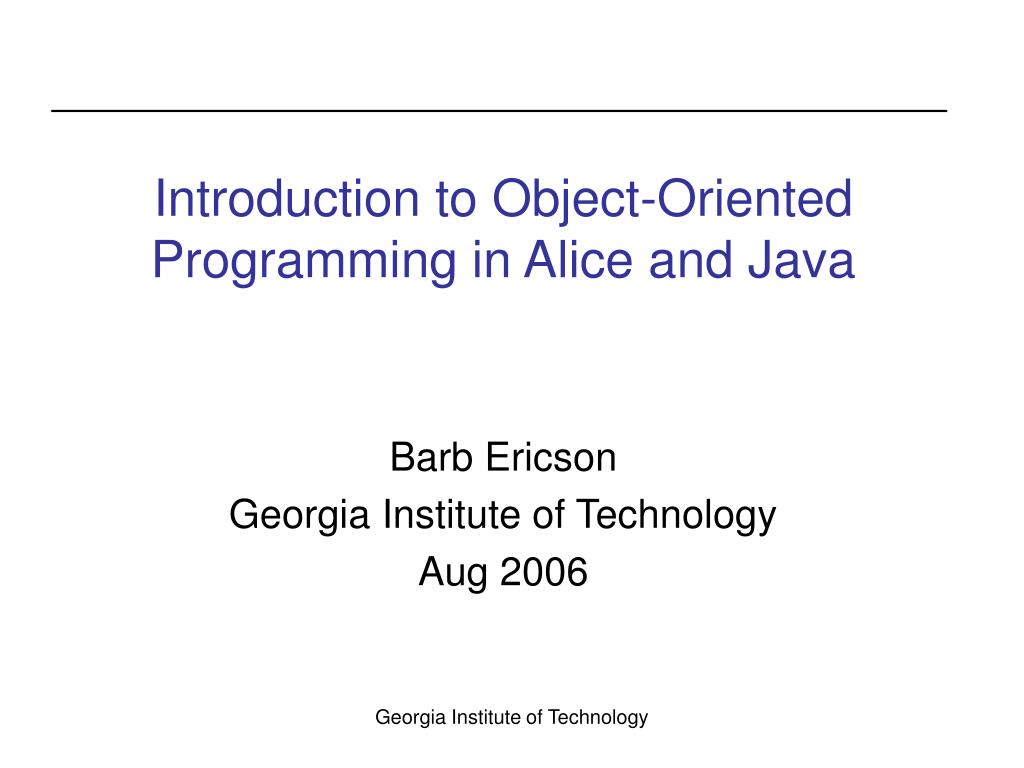

  1. Introduction to Object-Oriented Programming in Alice and Java Barb Ericson Georgia Institute of Technology Aug 2006 Georgia Institute of Technology

  2. Learning Goals • To introduce computation as simulation • To introduce Alice • To talk about the history of using turtles to teach programming • To show how to create objects in Alice • To show how to invoke methods on objects in Alice • To show how to add classes to the classpath in DrJava • To create objects in Java • To invoke methods on objects in Java Georgia Institute of Technology

  3. Computers as Simulators • “The computer is the Proteus of machines. Its essence is its universality, its power to simulate. Because it can take on a thousand forms and serve a thousand functions, it can appeal to a thousand tastes.” Seymour Papert in Mindstorms Georgia Institute of Technology

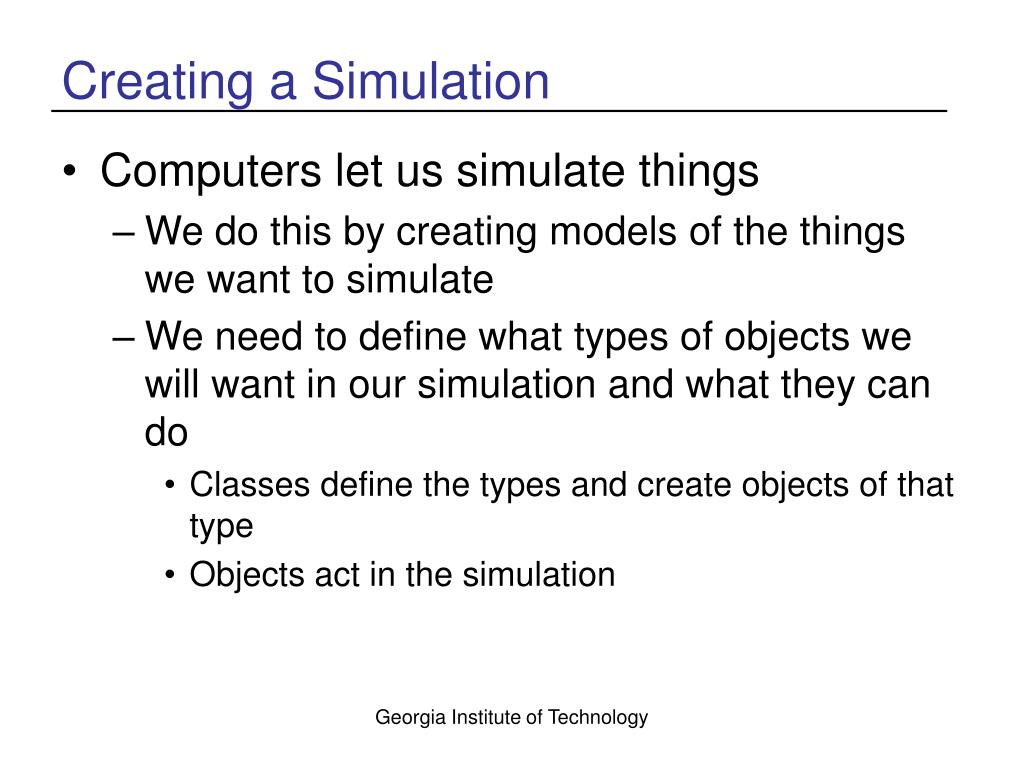

  4. Creating a Simulation • Computers let us simulate things • We do this by creating models of the things we want to simulate • We need to define what types of objects we will want in our simulation and what they can do • Classes define the types and create objects of that type • Objects act in the simulation Georgia Institute of Technology

  5. Running a Simulation • How many objects does it take to get a person fed at a restaurant? • Pick people to be the customer, greeter/seater, waiter, chef, and cashier and have them role play • What data does each of these people need to do their job? • What do they need to know how to do? • What other objects do you talk about? • How about simulating going to a dentist? • Or to the movies? Georgia Institute of Technology

  6. Introduction to Alice • Free development environment • From Carnegie Mellon University • Available from http://www.alice.org • Used to create • 3D movies • 3D games Georgia Institute of Technology

  7. Getting Started • Install Alice • Copy folder from CD • Start Alice • Double Click on Icon (Alice.exe) • Wait for Alice to start • Can take a few minutes Georgia Institute of Technology

  8. Pick a World • Click on the Examples tab • And click on a world to open it • You might need to scroll down to see this world Georgia Institute of Technology

  9. Playing the Movie • To play a saved movie • Click the Play button • The movie or game will start to play in a separate window • Click on target to play this movie • Most example worlds will just start to play Georgia Institute of Technology

  10. Create Your Own Movie • Click on File • Then New World • Click on a template • Background and ground type Georgia Institute of Technology

  11. Add Objects To the World • Click the Add Objects button • Select a category from the Local Gallery • Select Local Gallery to get back from a category • To the list of categories Georgia Institute of Technology

  12. Add Objects to the World • Click on the item to select it • Click on the Class description • Click Add Instance to world Button • Or drag the object from the class description and drop it into position in the world Georgia Institute of Technology

  13. Position an Object in the World • Once the object is in the world • You can move it by • Dragging it with the mouse • Or using the mouse controls • Click the Undo button to undo the last action Georgia Institute of Technology

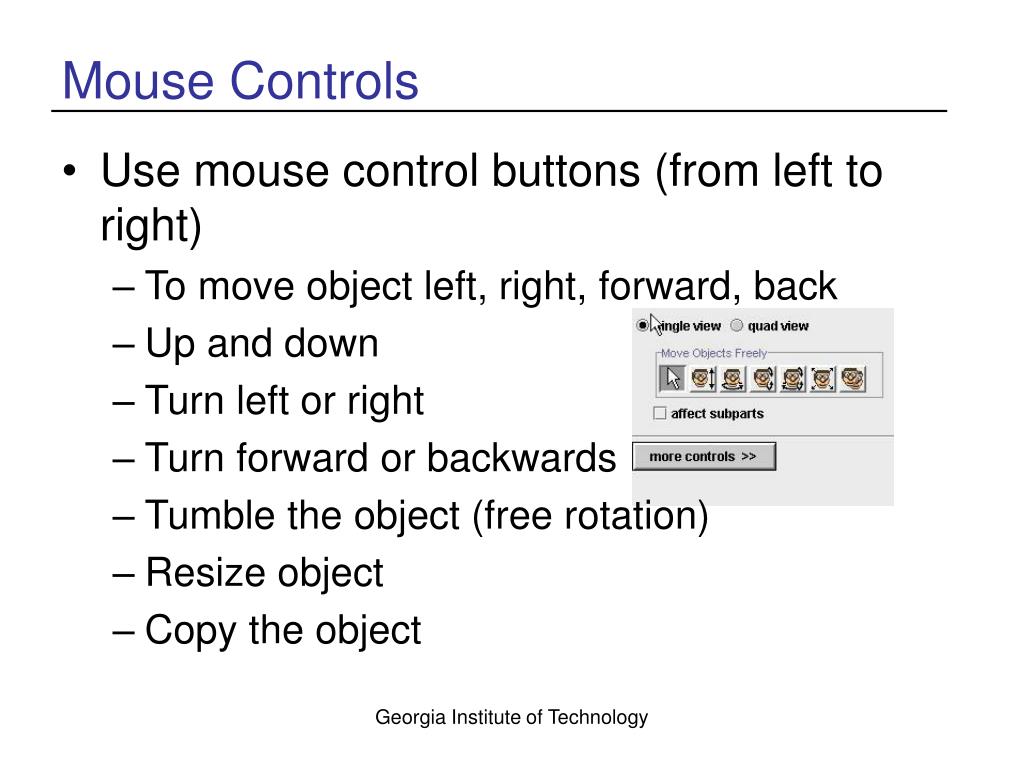

  14. Mouse Controls • Use mouse control buttons (from left to right) • To move object left, right, forward, back • Up and down • Turn left or right • Turn forward or backwards • Tumble the object (free rotation) • Resize object • Copy the object Georgia Institute of Technology

  15. Create More Objects • You can use the copy object mouse control • Or add another instance to the world • Click on the Class • Click on the Add instance to world button • Or drag another object from the class description Georgia Institute of Technology

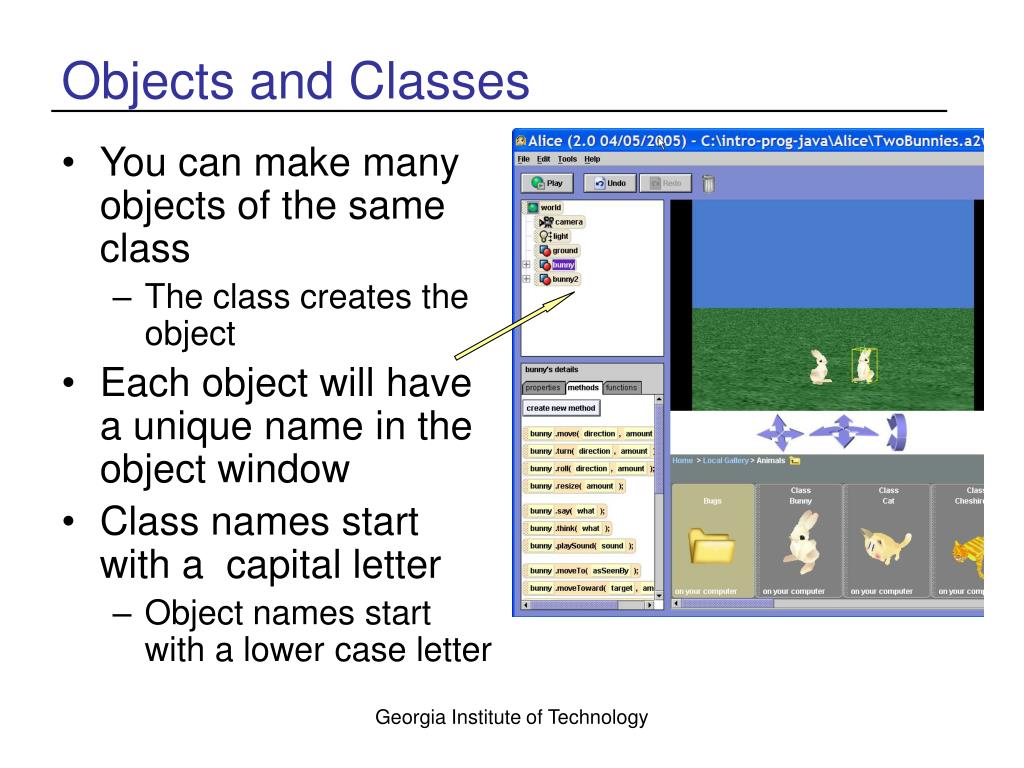

  16. Objects and Classes • You can make many objects of the same class • The class creates the object • Each object will have a unique name in the object window • Class names start with a capital letter • Object names start with a lower case letter Georgia Institute of Technology

  17. Telling Objects To Do Things • Click the Done button to stop adding objects • Click on a reference to an object in the object window to select it • Click on the Methods tab to see what it can do Georgia Institute of Technology

  18. Messages to Objects • In object-oriented programming we send messages to objects • Ask them to do a method • Drag a method from the left to the middle window (world - my first method) Georgia Institute of Technology

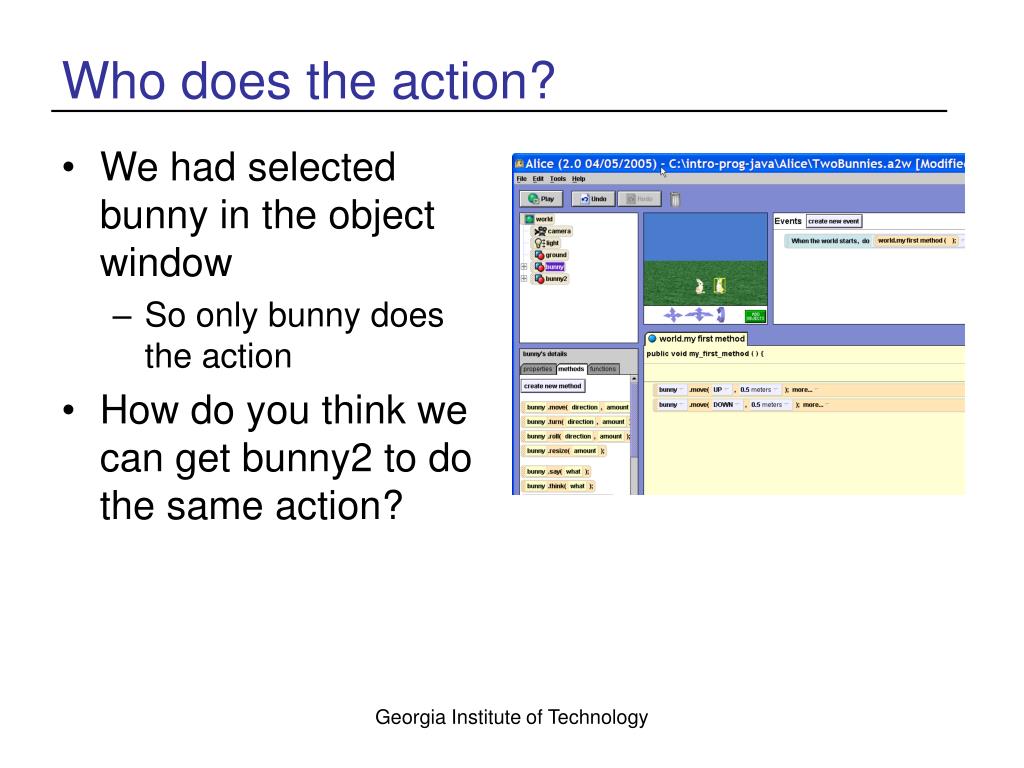

  19. Who does the action? • We had selected bunny in the object window • So only bunny does the action • How do you think we can get bunny2 to do the same action? Georgia Institute of Technology

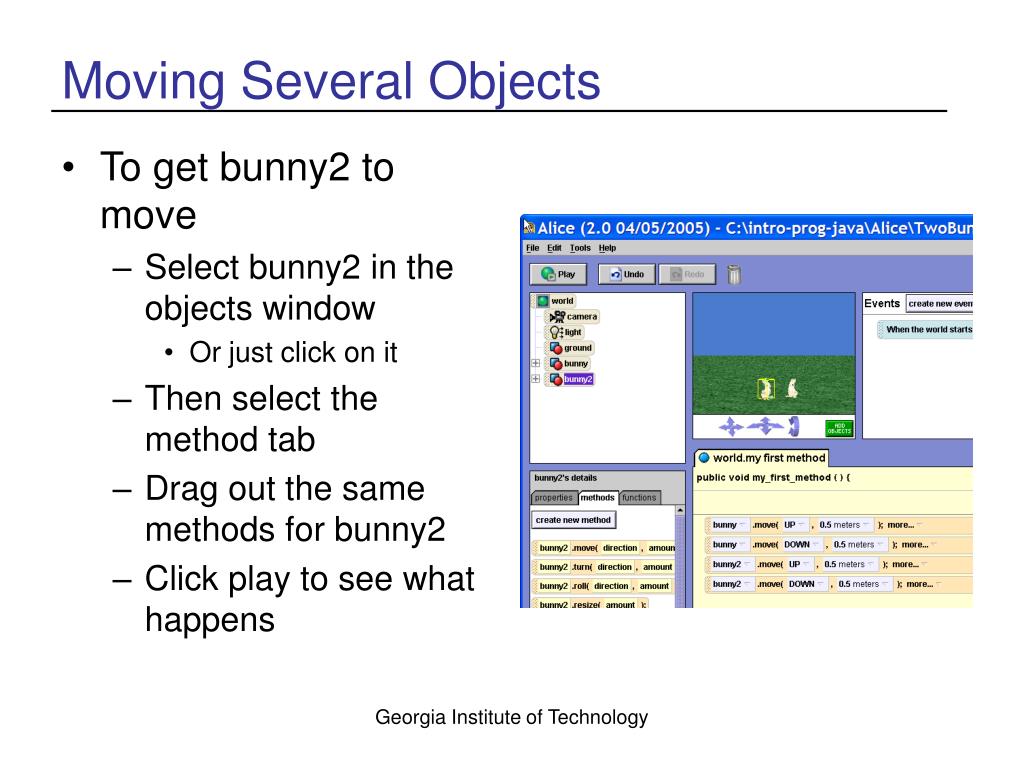

  20. Moving Several Objects • To get bunny2 to move • Select bunny2 in the objects window • Or just click on it • Then select the method tab • Drag out the same methods for bunny2 • Click play to see what happens Georgia Institute of Technology

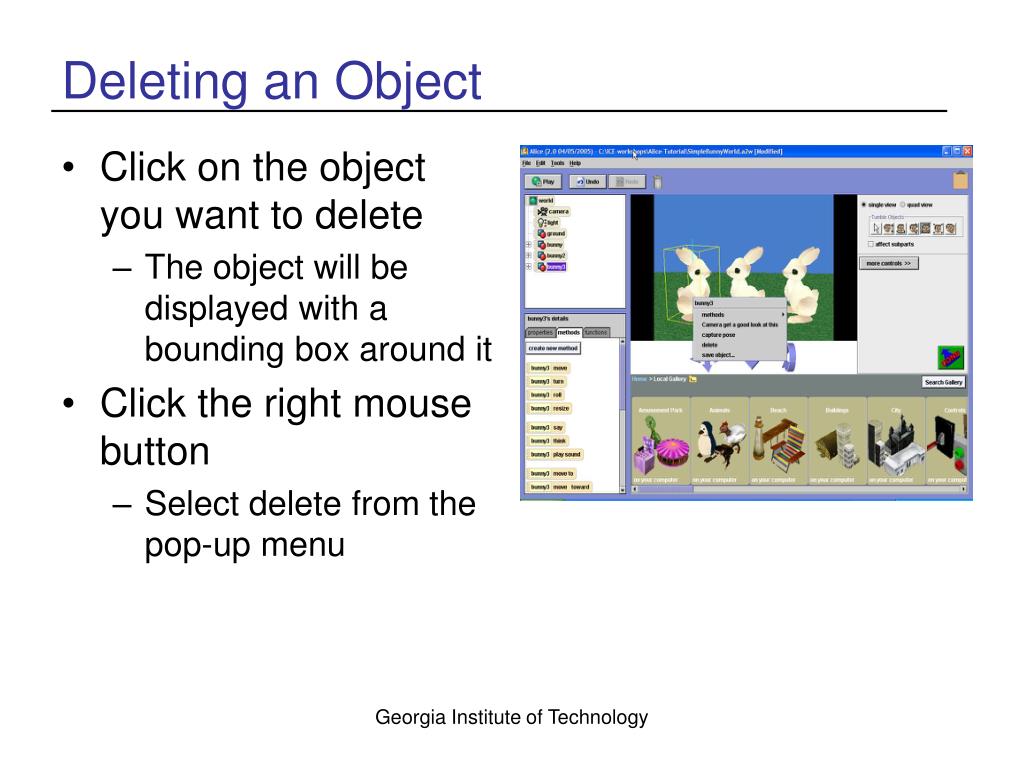

  21. Deleting an Object • Click on the object you want to delete • The object will be displayed with a bounding box around it • Click the right mouse button • Select delete from the pop-up menu Georgia Institute of Technology

  22. Using Turtles in Java • We will work with Turtles in a World in Java • We have to define what we mean by a Turtle to the computer • We do this by writing a Turtle class definition • Turtle.java • We compile it to convert it into something the computer can understand • Bytes codes for a virtual machine • Turtle.class Georgia Institute of Technology

  23. History of Turtles • Seymour Papert at MIT in the 60s • By teaching the computer to do something the kids are thinking about thinking • Develop problem solving skills • Learn by constructing and debugging something • Learn by making mistakes and fixing them Georgia Institute of Technology

  24. Using Turtles • The Turtle Class was is part of several classes created at Georgia Tech • As part of an undergraduate class • Add bookClasses to your classpath to use these classes Georgia Institute of Technology

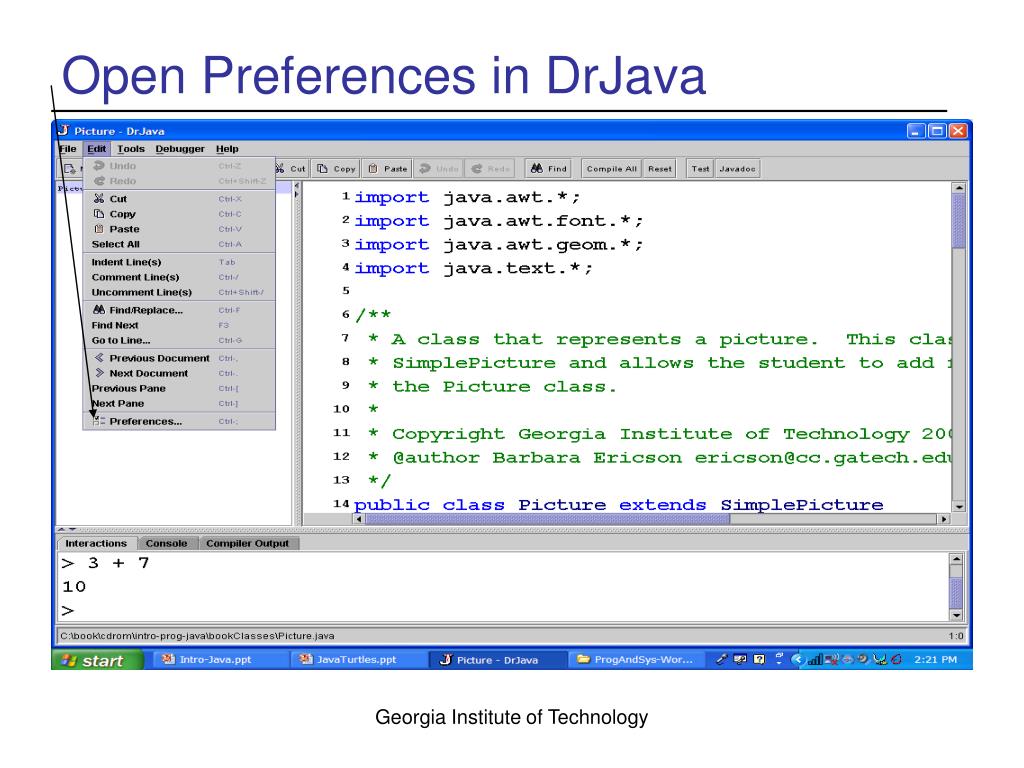

  25. Open Preferences in DrJava Georgia Institute of Technology

  26. Adding Book Classes to Classpath Add bookClasses directory Click on Add Georgia Institute of Technology

  27. Creating Objects • To create objects we ask the object that defines the class to create it • Each object keeps a reference to the class that created it • The class is like a cookie cutter • It knows how much space each object needs (shape) • Many objects can be created from the class World Object 1 World Object 2 World: Class Georgia Institute of Technology

  28. Class as Object Factory • A class is like a factory that creates objects of that class • We ask a class to create an object by using the keyword: newClassName • We can also ask the class to initialize the object • And pass data to help initialize it Georgia Institute of Technology

  29. Creating Objects in Java • In Java to create an object of a class you use new Class(value, value, …); • Our Turtle objects live in a World object • We must create a World object first • Try typing the following in the interactions pane: new World(); Georgia Institute of Technology

  30. Creating Objects • If you just do • new World(); • You will create a new World object and it will display • But you will not have any way to refer to it again • Once you close the window the object can be garbage collected • The memory can be reused • We need a way to refer to the new object • to be able to work with it again Georgia Institute of Technology

  31. Naming is Important • If you get a new pet one of the first things you do is name it • Gives you a way to refer to the new pet without saying • Please take that dog we got yesterday for a walk. • Please take Fifi for a walk. • In programming we name things we want to refer to again • Gives us a way to work with them • Like the World object • In programming this is called declaring a variable Georgia Institute of Technology

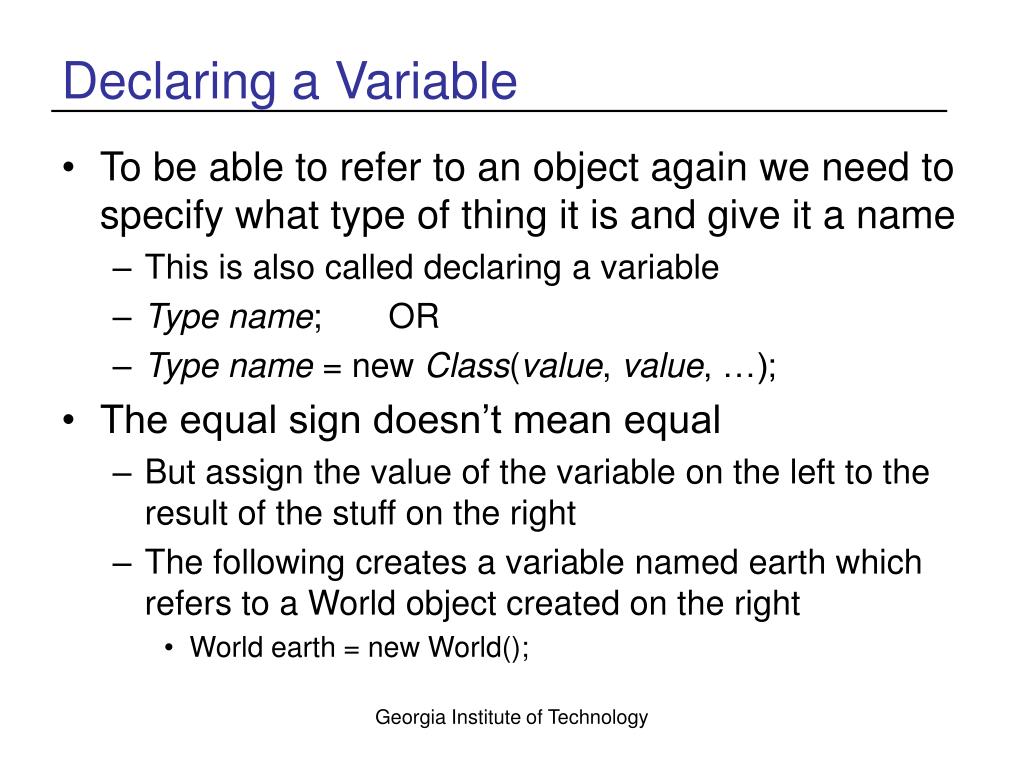

  32. Declaring a Variable • To be able to refer to an object again we need to specify what type of thing it is and give it a name • This is also called declaring a variable • Type name; OR • Typename = new Class(value, value, …); • The equal sign doesn’t mean equal • But assign the value of the variable on the left to the result of the stuff on the right • The following creates a variable named earth which refers to a World object created on the right • World earth = new World(); Georgia Institute of Technology

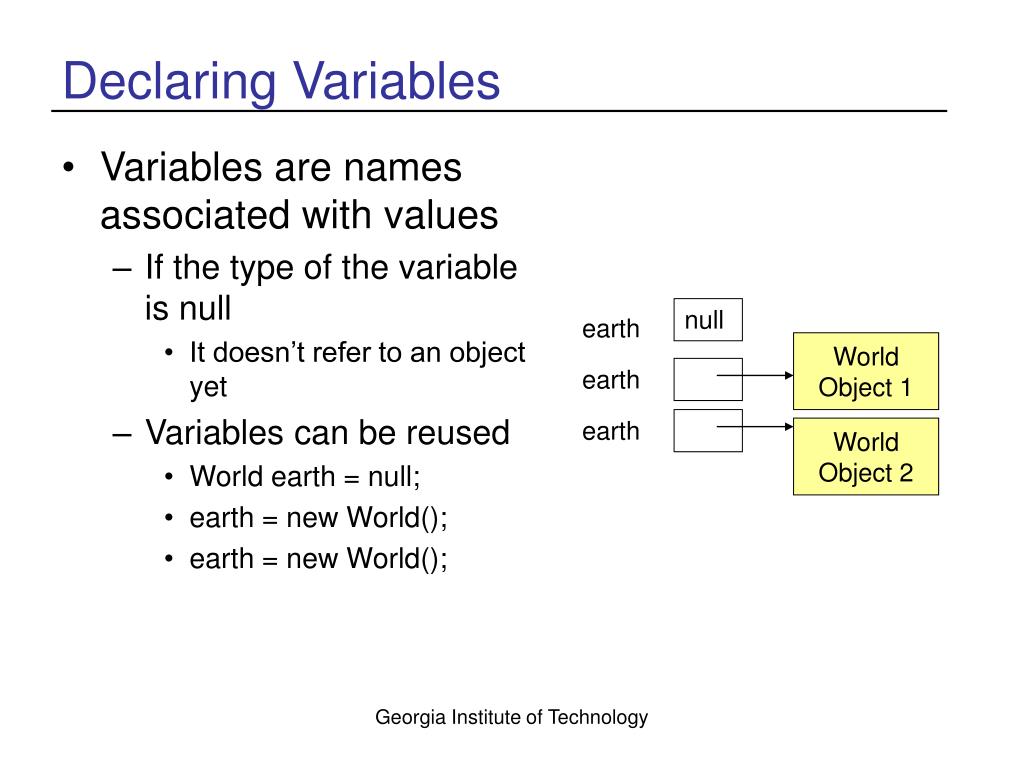

  33. Declaring Variables • Variables are names associated with values • If the type of the variable is null • It doesn’t refer to an object yet • Variables can be reused • World earth = null; • earth = new World(); • earth = new World(); null earth World Object 1 earth earth World Object 2 Georgia Institute of Technology

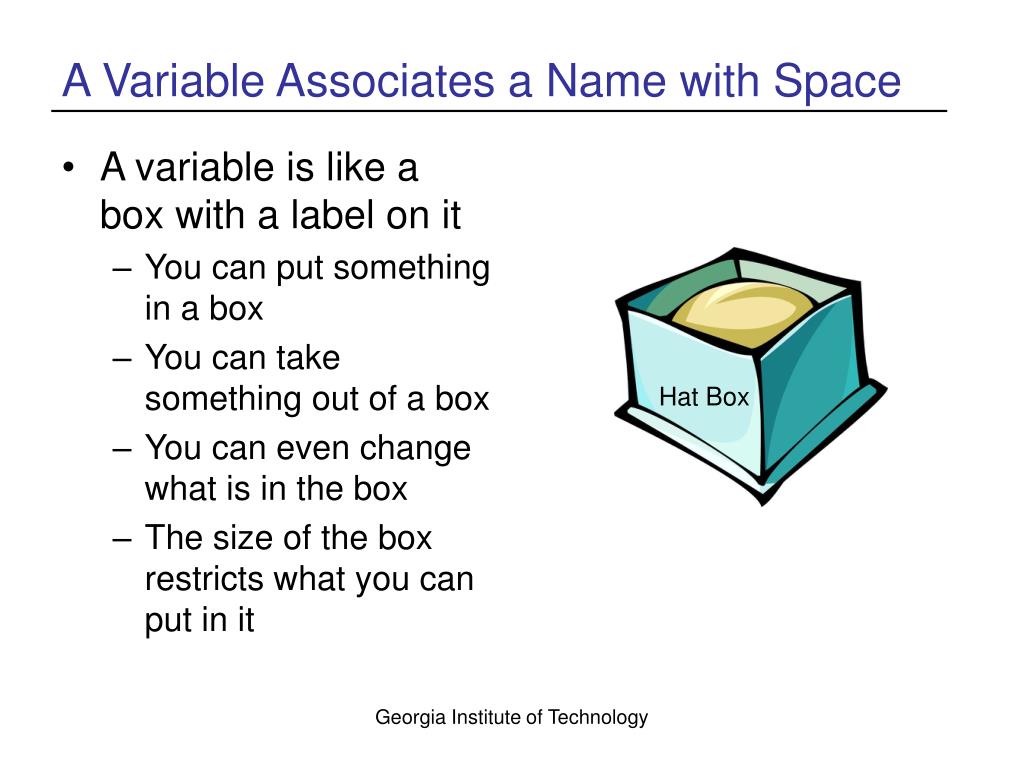

  34. A Variable Associates a Name with Space • A variable is like a box with a label on it • You can put something in a box • You can take something out of a box • You can even change what is in the box • The size of the box restricts what you can put in it Hat Box Georgia Institute of Technology

  35. Limits on Declaring Variables • You can't declare two variables with the same name! > World earth = new World(); > World earth = new World(); Error: Redefinition of 'earth' • You can change what an object variable refers to > World earth = new World(); > earth = new World(); Georgia Institute of Technology

  36. Declaring Variables and Creating Objects • You can declare a variable and assign it to refer to a new object in one statement • World earth1 = new World(); • Turtle tommy = new Turtle(earth1); Declaration of variables Creating the objects Georgia Institute of Technology

  37. Turtle Basics • The world starts off with a size of 640 by 480 • With no turtles World earth1 = new World(); • The turtle starts off facing north and in the center of the world by default • You must pass a World object when you create the Turtle object • Or you will get an error: java.lang.NoSuchMethodException: Turtle constructor Turtle tommy = new Turtle(earth1); Georgia Institute of Technology

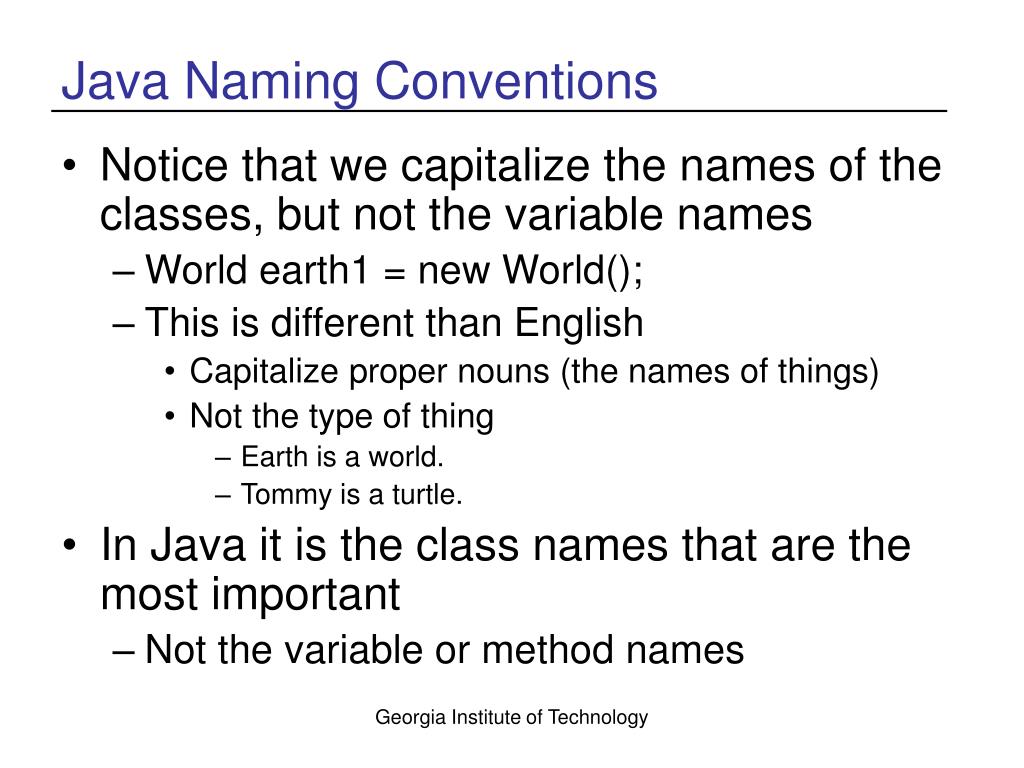

  38. Java Naming Conventions • Notice that we capitalize the names of the classes, but not the variable names • World earth1 = new World(); • This is different than English • Capitalize proper nouns (the names of things) • Not the type of thing • Earth is a world. • Tommy is a turtle. • In Java it is the class names that are the most important • Not the variable or method names Georgia Institute of Technology

  39. Creating Several Objects • You can create several World objects World mars = new World(); • You can create several Turtle objects Turtle shar = new Turtle(mars); Turtle jen = new Turtle(mars); • One turtle is on top of the other Georgia Institute of Technology

  40. Moving a Turtle • Turtles can move forward jen.forward(); • The default is to move by • 100 steps (pixels) • You can also tell the turtle how far to move shar.forward(50); Georgia Institute of Technology

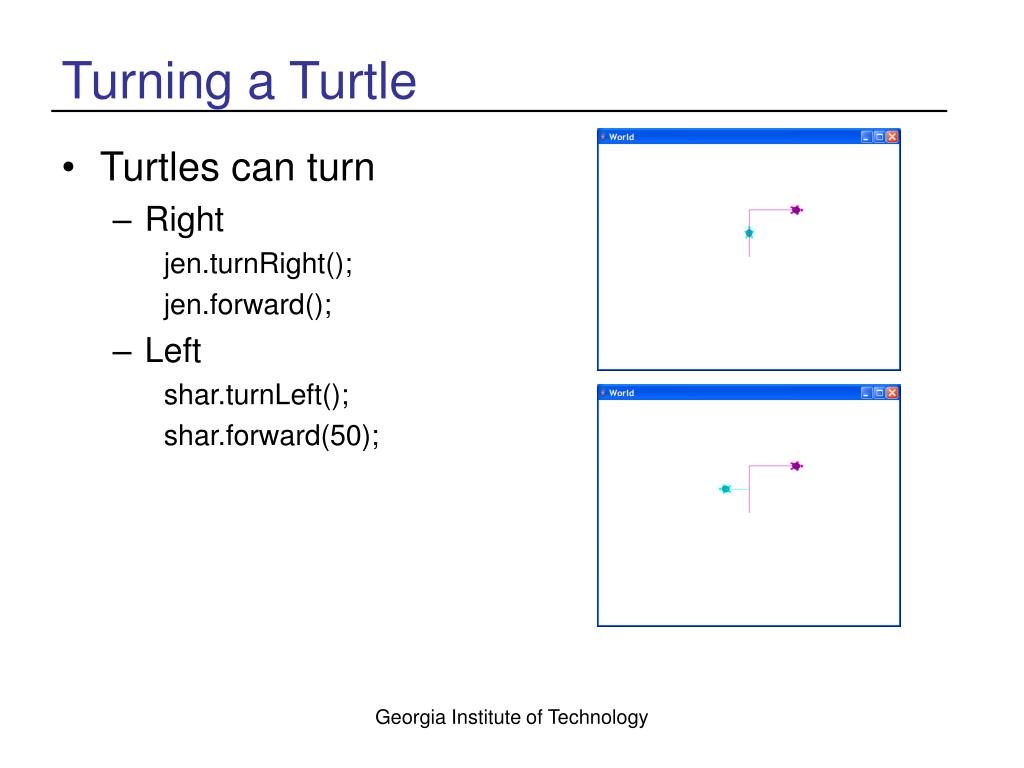

  41. Turning a Turtle • Turtles can turn • Right jen.turnRight(); jen.forward(); • Left shar.turnLeft(); shar.forward(50); Georgia Institute of Technology

  42. Turning a Turtle • Turtles can turn by a specified amount • A positive number turns the turtle the right jen.turn(90); jen.forward(100); • A negative number turns the turtle to the left shar.turn(-90); shar.forward(70); Georgia Institute of Technology

  43. The Pen • Each turtle has a pen • The default is to have the pen down to leave a trail • You can pick it up: turtle1.penUp(); turtle1.turn(-90); turtle1.forward(70); • You can put it down again: turtle1.penDown(); turtle1.forward(100); Georgia Institute of Technology

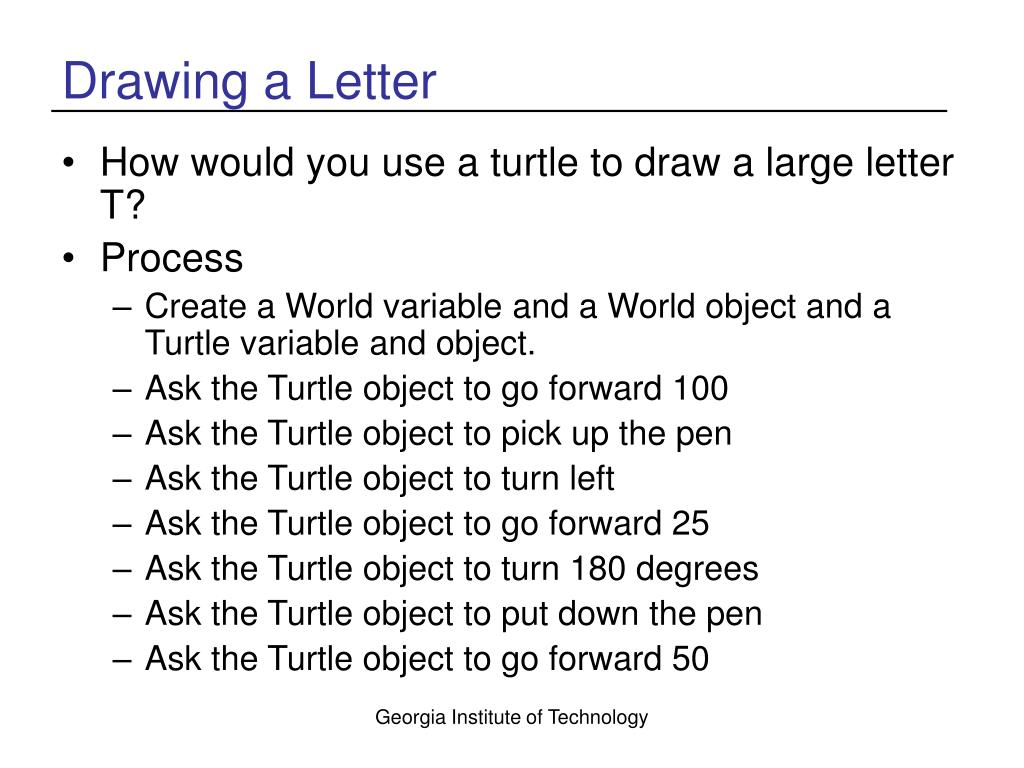

  44. Drawing a Letter • How would you use a turtle to draw a large letter T? • Process • Create a World variable and a World object and a Turtle variable and object. • Ask the Turtle object to go forward 100 • Ask the Turtle object to pick up the pen • Ask the Turtle object to turn left • Ask the Turtle object to go forward 25 • Ask the Turtle object to turn 180 degrees • Ask the Turtle object to put down the pen • Ask the Turtle object to go forward 50 Georgia Institute of Technology

  45. Drawing a T World world1 = new World(); Turtle turtle1 = new Turtle(world1); turtle1.forward(100); turtle1.penUp(); turtle1.turnLeft(); turtle1.forward(25); turtle1.turn(180); turtle1.penDown(); turtle1.forward(50); Georgia Institute of Technology

  46. Moving to a Location 639 X • A turtle can move to a particular location turtle1.penUp(); turtle1.moveTo(500,20); • Coordinates are given as x and y values • X starts at 0 on the left and increases horizontally to the right • Y starts at 0 at the top of the window and increases to the bottom • A new turtle starts out at 320,240 by default Y 479 Georgia Institute of Technology

  47. Challenge • Create a World object • Don’t forget to declare a variable to hold a reference to it • Create a turtle object • Don’t forget to declare a variable to hold a reference to it • Use the turtle to draw a • Rectangle (but, not a square) • Diamond • Hexagon • Use the up arrow to reuse previous commands Georgia Institute of Technology

  48. Setting the Pen Width • You can change the width of the trail the pen leaves World world1 = new World(); Turtle turtle1 = new Turtle(world1); turtle1.setPenWidth(5); turtle1.forward(100); Georgia Institute of Technology

  49. Setting the Pen Color • Use setPenColor to set the color of the pen turtle1.setPenColor(java.awt.Color.RED); • There are several predefined colors • In the package java.awt • A package is a group of related classes • In the class Color • To use them you can use the full name • java.awt.Color.RED Georgia Institute of Technology

  50. Setting Colors • You can change the pen color turtle.setPenColor(java.awt.Color.RED); • You can change the turtle color turtle1.setColor(java.awt.Color.BLUE); • You can change the turtle’s body color turtle1.setBodyColor(java.awt.Color.CYAN); • You can change the turtle’s shell color turtle1.setShellColor(java.awt.Color.RED); Georgia Institute of Technology
