nQPS layout for bus-bar protection

nQPS layout for bus-bar protection. Basic nQPS layout for a LHC half-cell. nQPS layout for bus-bars. nQPS layout covers all bus-bar segments in circuits RB, RQD and RQF Layout follows the description in the circuits database

samuel-simmons
Télécharger la présentation

nQPS layout for bus-bar protection

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

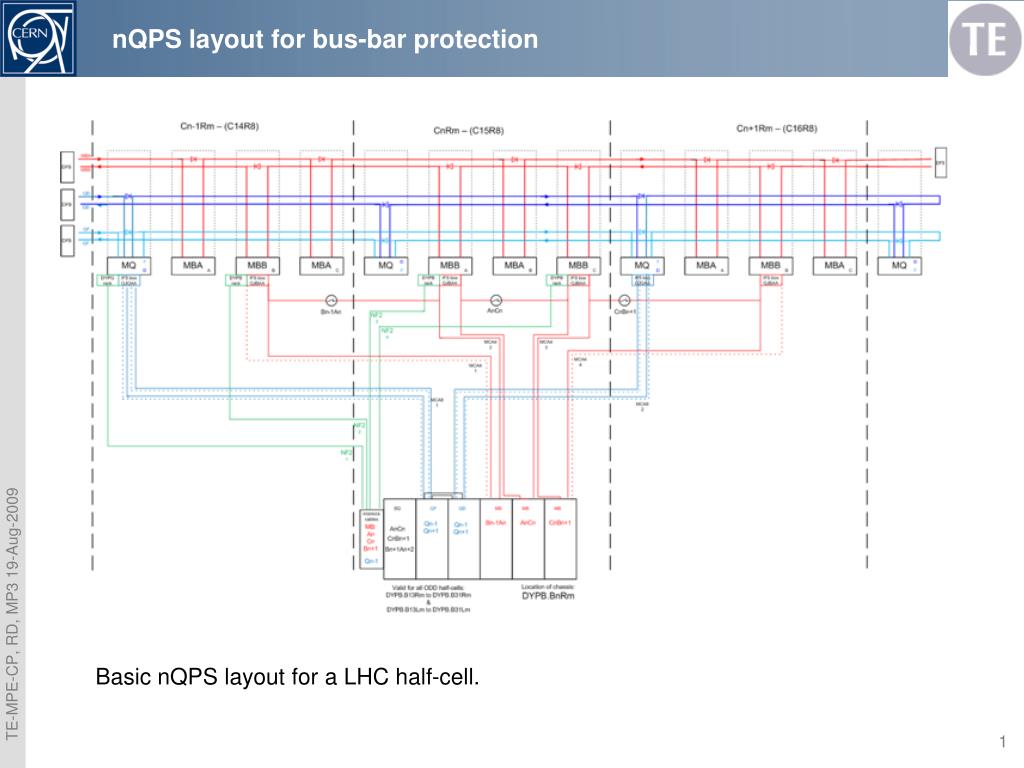

  1. nQPS layout for bus-bar protection Basic nQPS layout for a LHC half-cell.

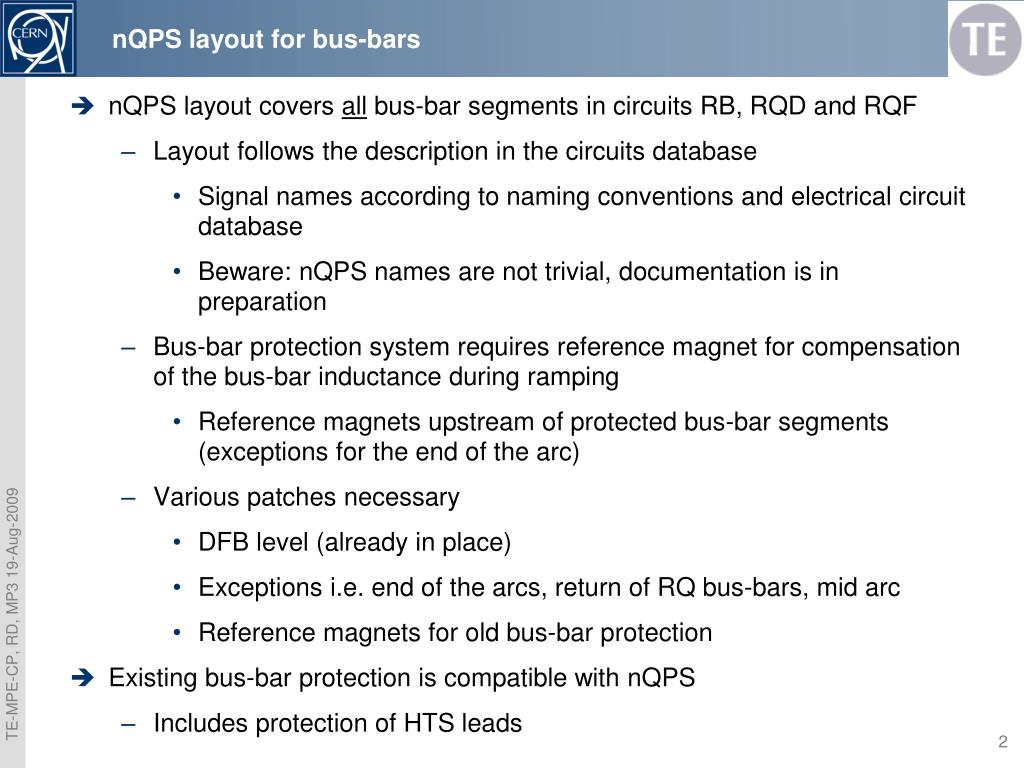

  2. nQPS layout for bus-bars • nQPS layout covers all bus-bar segments in circuits RB, RQD and RQF • Layout follows the description in the circuits database • Signal names according to naming conventions and electrical circuit database • Beware: nQPS names are not trivial, documentation is in preparation • Bus-bar protection system requires reference magnet for compensation of the bus-bar inductance during ramping • Reference magnets upstream of protected bus-bar segments (exceptions for the end of the arc) • Various patches necessary • DFB level (already in place) • Exceptions i.e. end of the arcs, return of RQ bus-bars, mid arc • Reference magnets for old bus-bar protection • Existing bus-bar protection is compatible with nQPS • Includes protection of HTS leads

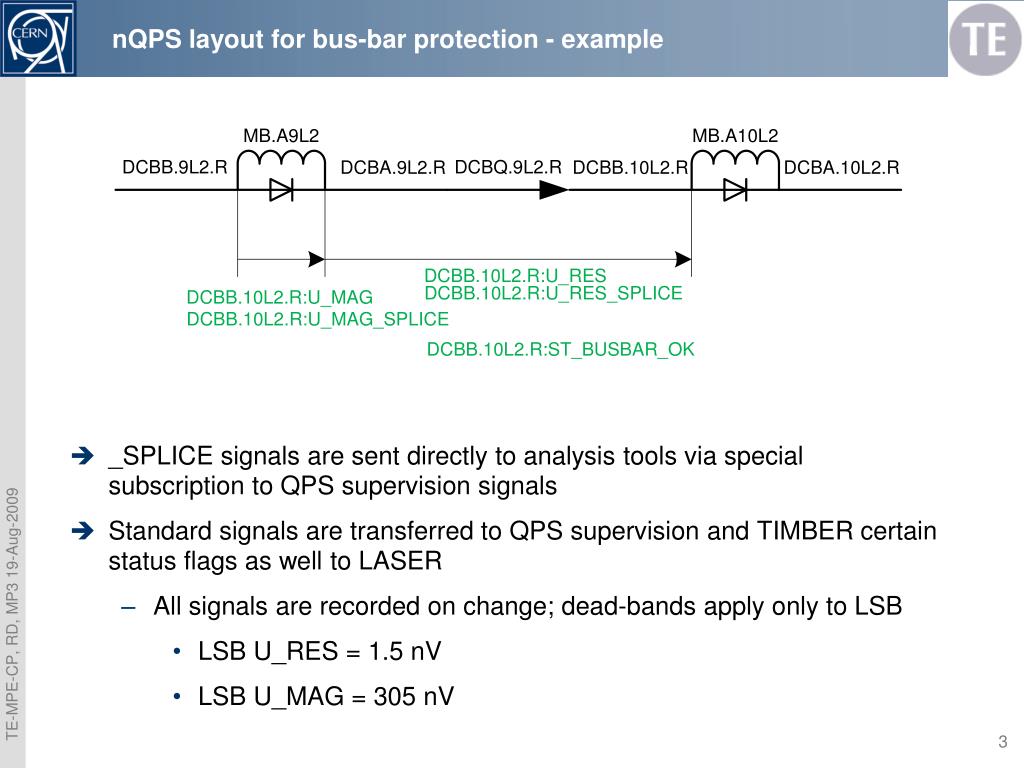

  3. nQPS layout for bus-bar protection - example • _SPLICE signals are sent directly to analysis tools via special subscription to QPS supervision signals • Standard signals are transferred to QPS supervision and TIMBER certain status flags as well to LASER • All signals are recorded on change; dead-bands apply only to LSB • LSB U_RES = 1.5 nV • LSB U_MAG = 305 nV
