Dynamic Programming in Parsing: CKY and Earley Algorithms

This lecture focuses on parsing techniques, specifically CKY and Earley algorithms, as outlined in Jurafsky and Martin's "Speech and Language Processing." We explore the principles of dynamic programming to avoid repeated computations, enabling efficient parsing of context-free grammars. The CKY algorithm is designed for binary grammars and uses a table to structure derivations, while the Earley algorithm extends to broader grammar forms. We'll discuss the binarization of grammars and the systematic filling of parsing tables to enhance parsing efficiency.

sanaa
Télécharger la présentation

Dynamic Programming in Parsing: CKY and Earley Algorithms

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Sentence Parsing Parsing 3 Dynamic Programming

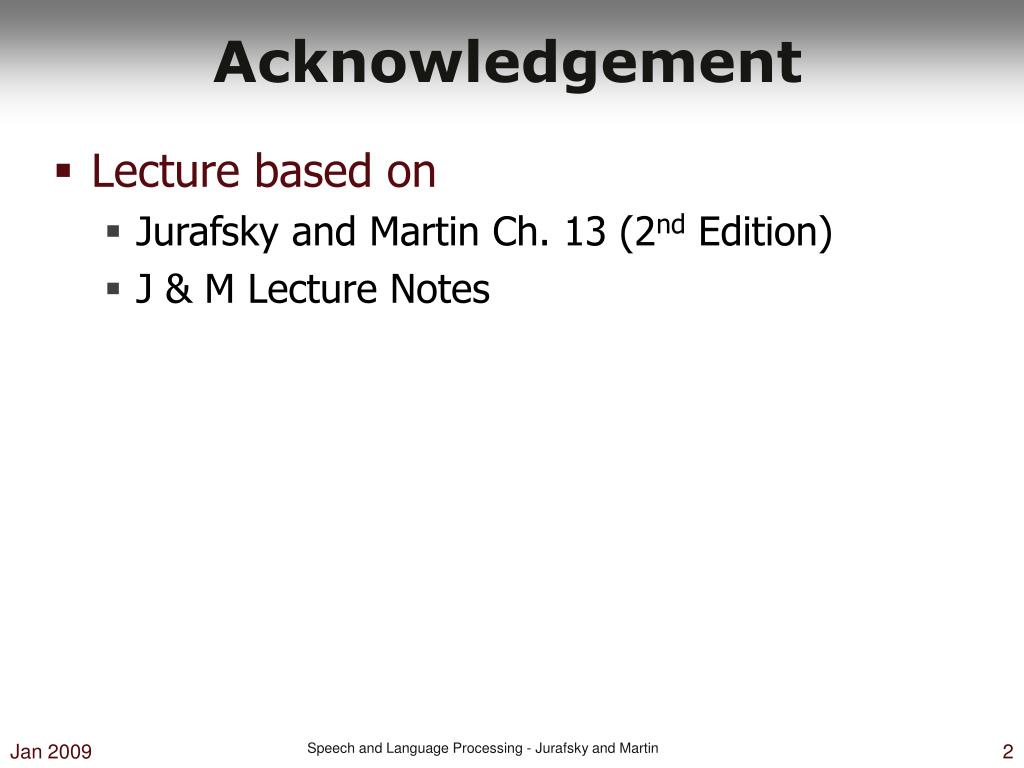

  2. Acknowledgement • Lecture based on • Jurafsky and Martin Ch. 13 (2nd Edition) • J & M Lecture Notes Speech and Language Processing - Jurafsky and Martin

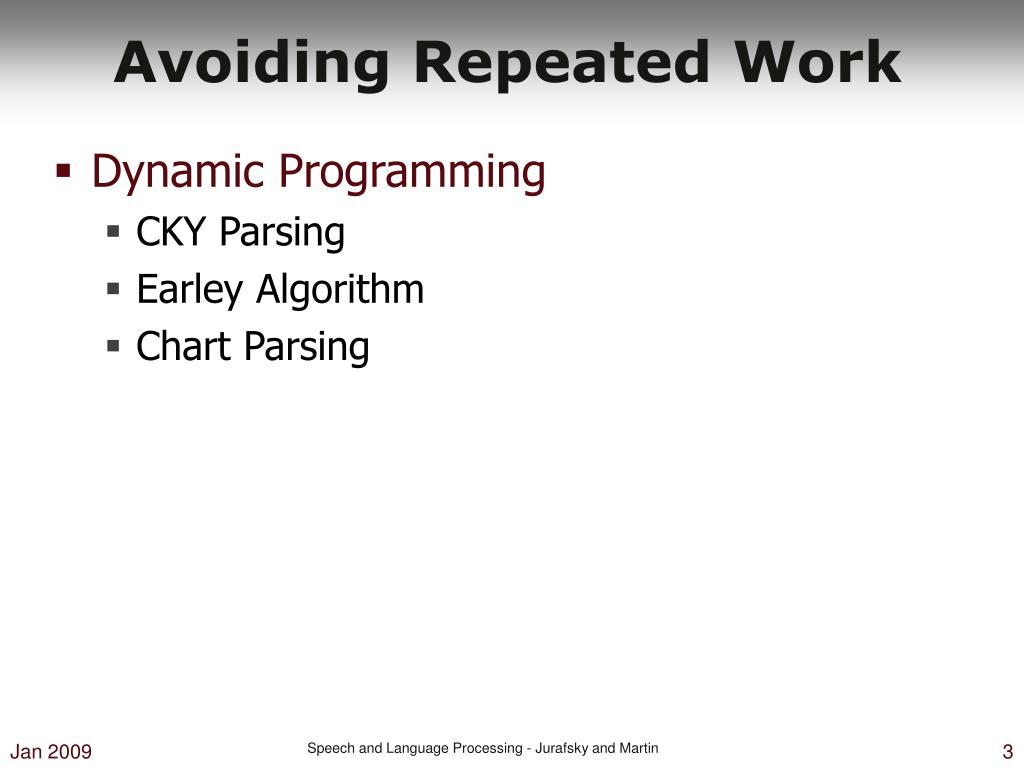

  3. Avoiding Repeated Work • Dynamic Programming • CKY Parsing • Earley Algorithm • Chart Parsing Speech and Language Processing - Jurafsky and Martin

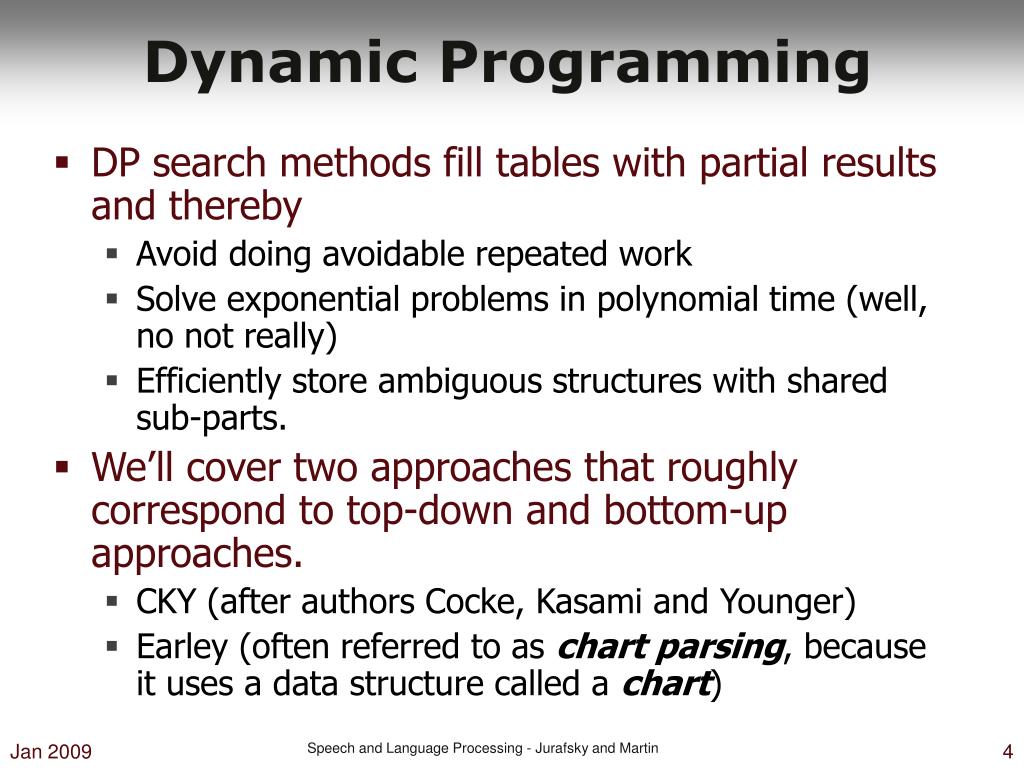

  4. Dynamic Programming • DP search methods fill tables with partial results and thereby • Avoid doing avoidable repeated work • Solve exponential problems in polynomial time (well, no not really) • Efficiently store ambiguous structures with shared sub-parts. • We’ll cover two approaches that roughly correspond to top-down and bottom-up approaches. • CKY (after authors Cocke, Kasami and Younger) • Earley (often referred to as chart parsing, because it uses a data structure called a chart) Speech and Language Processing - Jurafsky and Martin

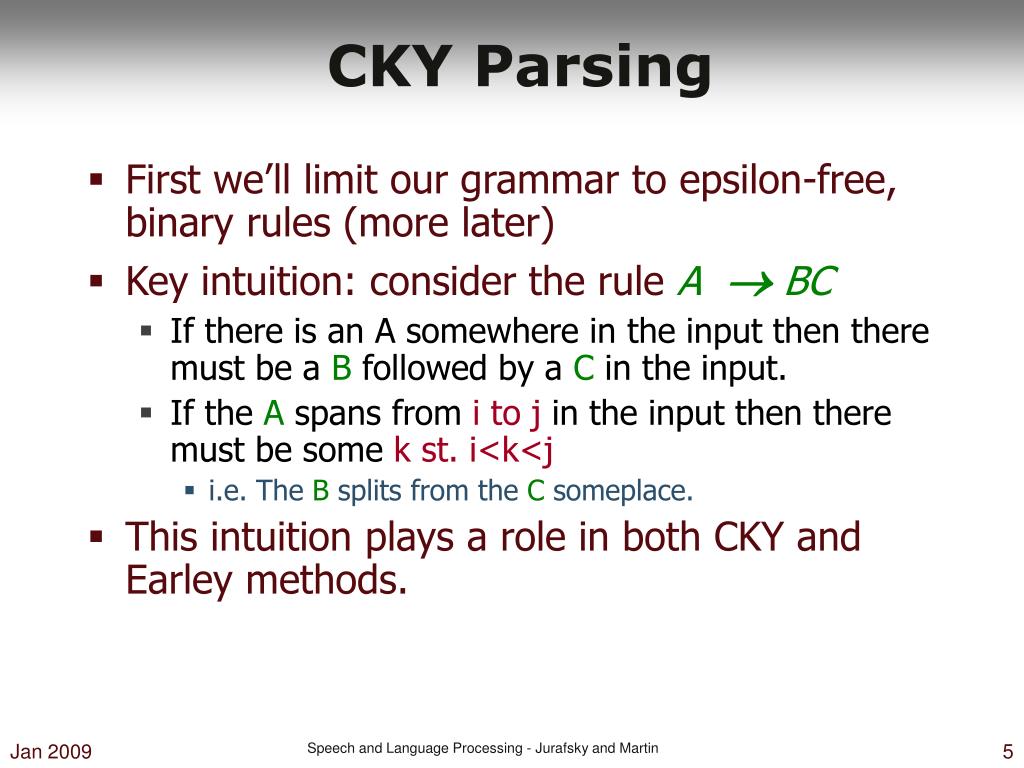

  5. CKY Parsing • First we’ll limit our grammar to epsilon-free, binary rules (more later) • Key intuition: consider the rule A BC • If there is an A somewhere in the input then there must be a B followed by a C in the input. • If the A spans from i to j in the input then there must be some k st. i<k<j • i.e. The B splits from the C someplace. • This intuition plays a role in both CKY and Earley methods. Speech and Language Processing - Jurafsky and Martin

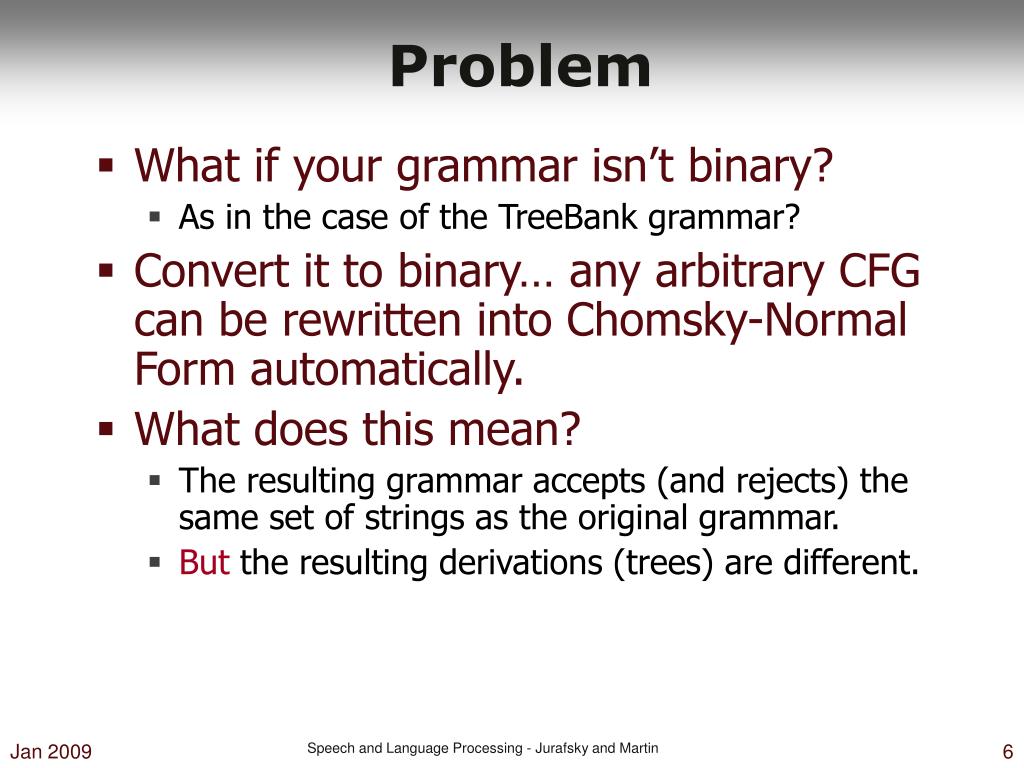

  6. Problem • What if your grammar isn’t binary? • As in the case of the TreeBank grammar? • Convert it to binary… any arbitrary CFG can be rewritten into Chomsky-Normal Form automatically. • What does this mean? • The resulting grammar accepts (and rejects) the same set of strings as the original grammar. • But the resulting derivations (trees) are different. Speech and Language Processing - Jurafsky and Martin

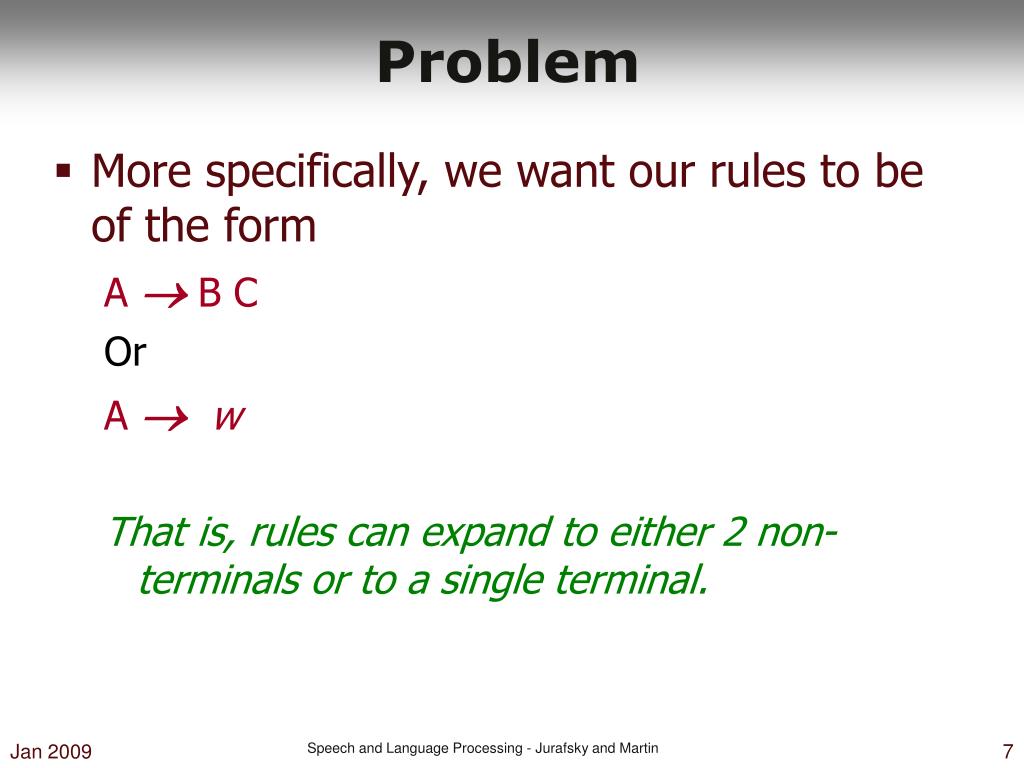

  7. Problem • More specifically, we want our rules to be of the form A  B C Or A w That is, rules can expand to either 2 non-terminals or to a single terminal. Speech and Language Processing - Jurafsky and Martin

  8. Binarization Intuition • Eliminate chains of unit productions. • Introduce new intermediate non-terminals into the grammar that distribute rules with length > 2 over several rules. • So… S  A B C turns into S  X C and X  A B Where X is a symbol that doesn’t occur anywhere else in the the grammar. Speech and Language Processing - Jurafsky and Martin

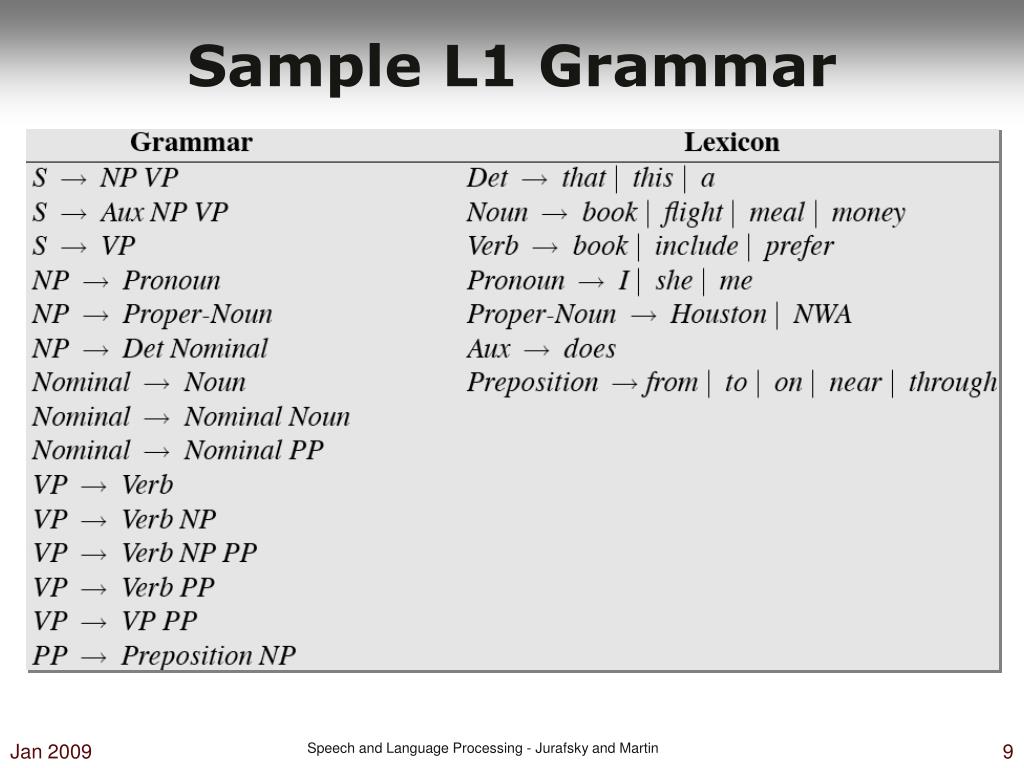

  9. Sample L1 Grammar Speech and Language Processing - Jurafsky and Martin

  10. CNF Conversion Speech and Language Processing - Jurafsky and Martin

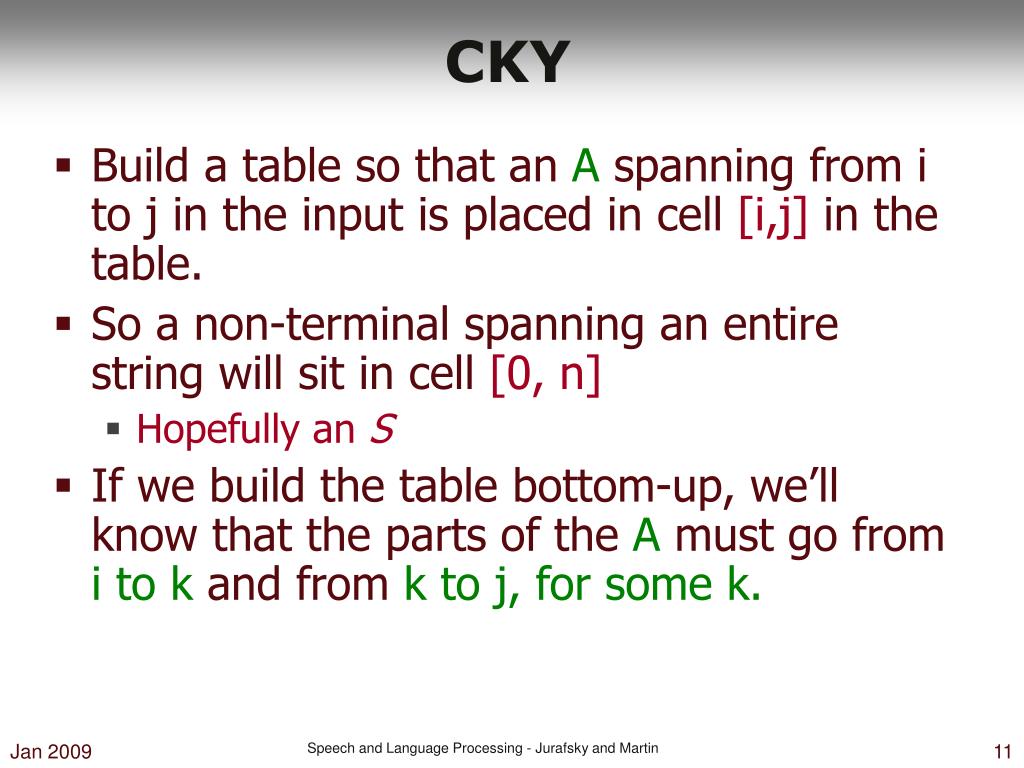

  11. CKY • Build a table so that an A spanning from i to j in the input is placed in cell [i,j] in the table. • So a non-terminal spanning an entire string will sit in cell [0, n] • Hopefully an S • If we build the table bottom-up, we’ll know that the parts of the A must go from i to k and from k to j, for some k. Speech and Language Processing - Jurafsky and Martin

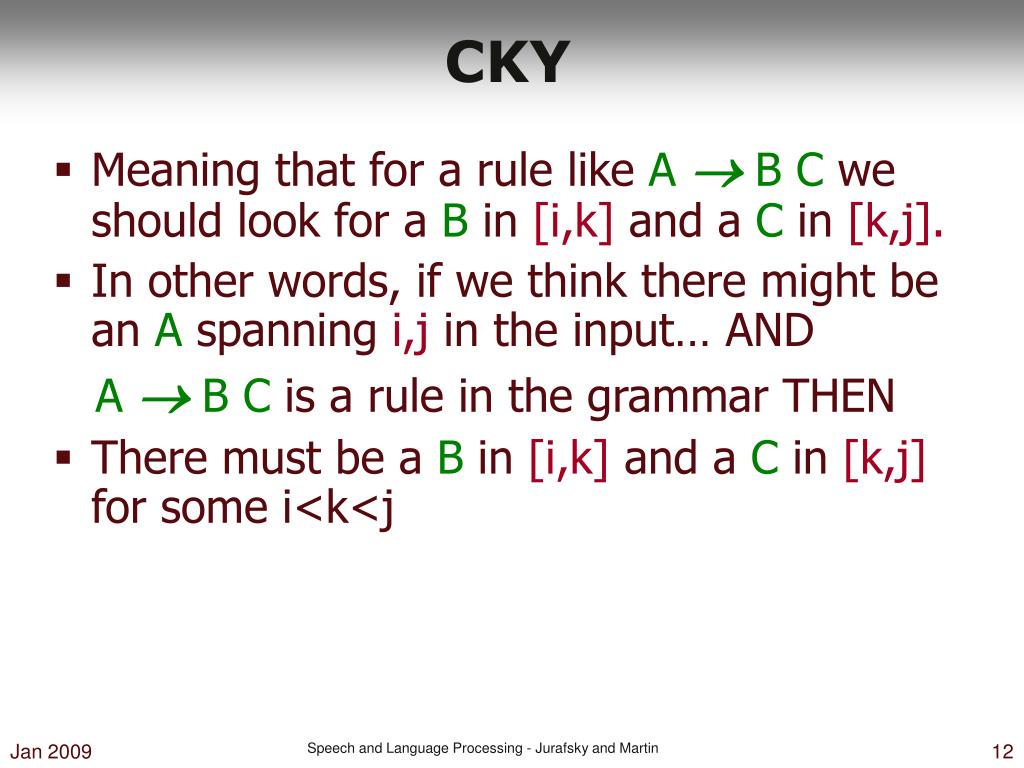

  12. CKY • Meaning that for a rule like A B C we should look for a B in [i,k] and a C in [k,j]. • In other words, if we think there might be an A spanning i,j in the input… AND A B C is a rule in the grammar THEN • There must be a B in [i,k] and a C in [k,j] for some i<k<j Speech and Language Processing - Jurafsky and Martin

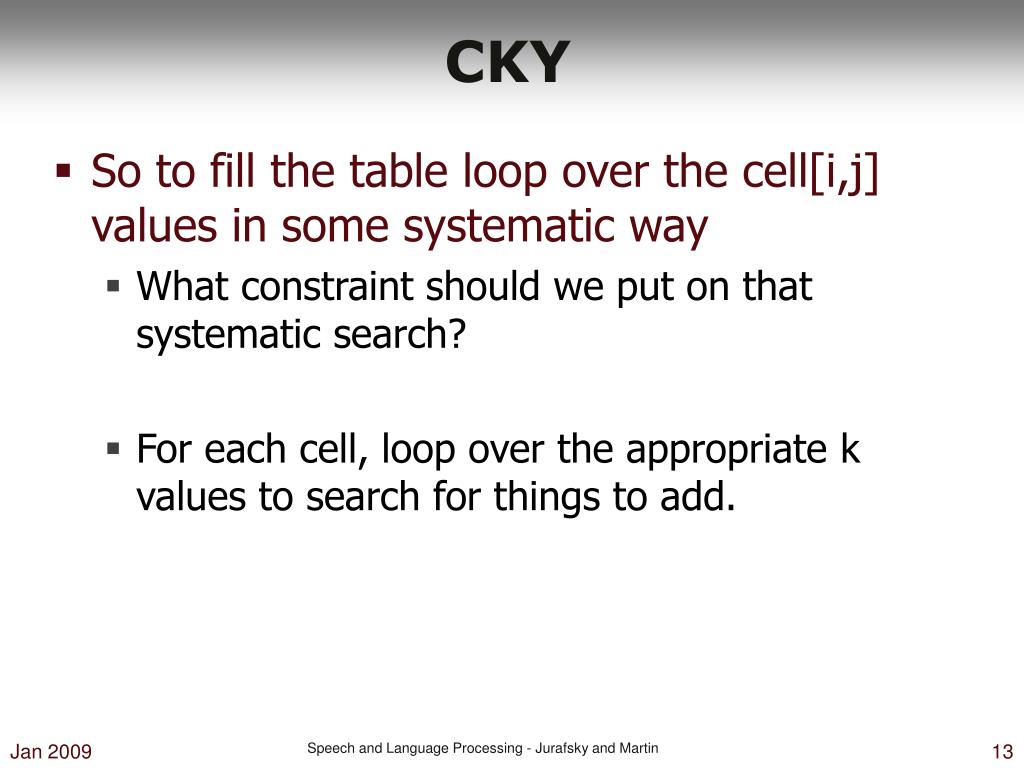

  13. CKY • So to fill the table loop over the cell[i,j] values in some systematic way • What constraint should we put on that systematic search? • For each cell, loop over the appropriate k values to search for things to add. Speech and Language Processing - Jurafsky and Martin

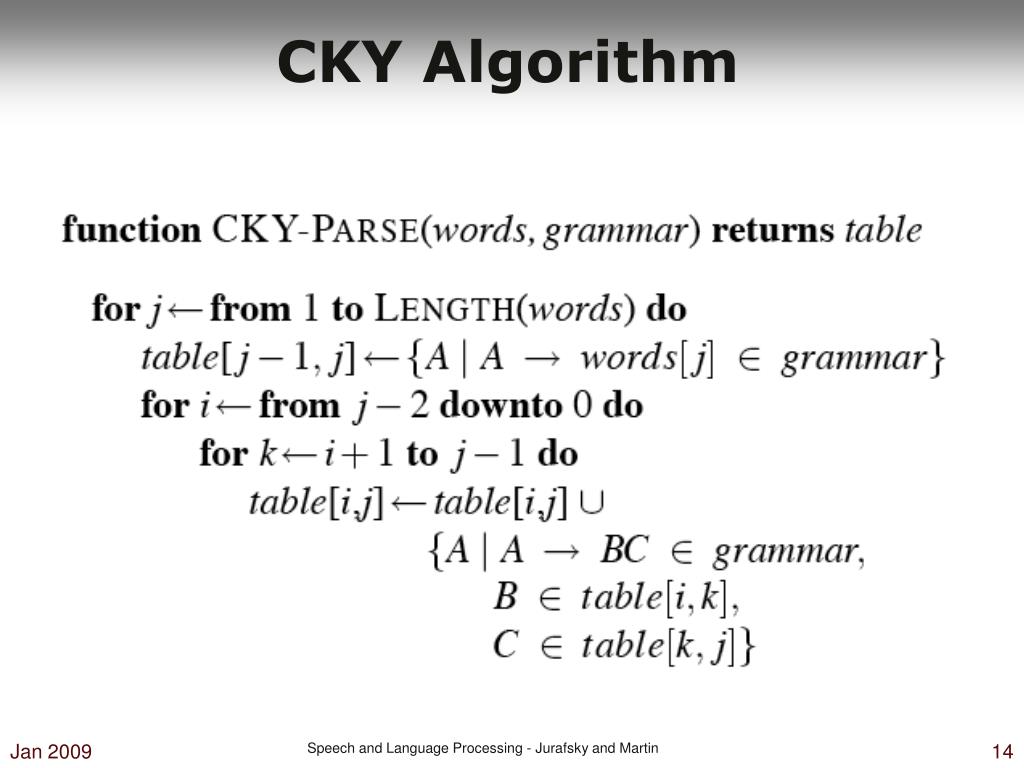

  14. CKY Algorithm Speech and Language Processing - Jurafsky and Martin

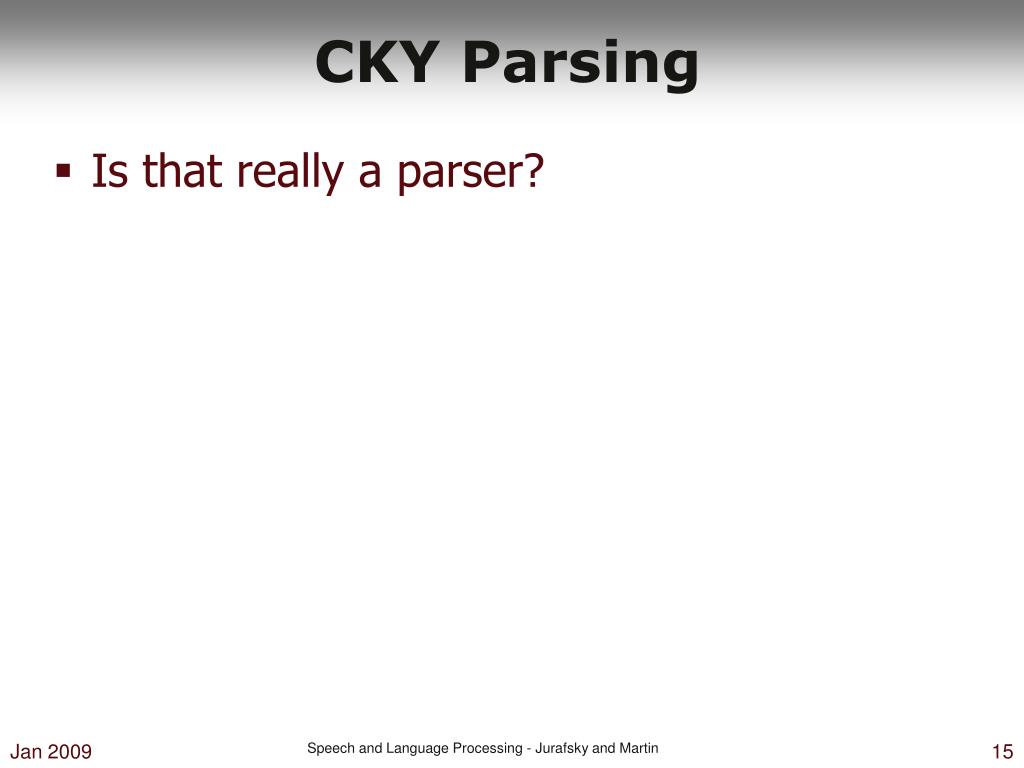

  15. CKY Parsing • Is that really a parser? Speech and Language Processing - Jurafsky and Martin

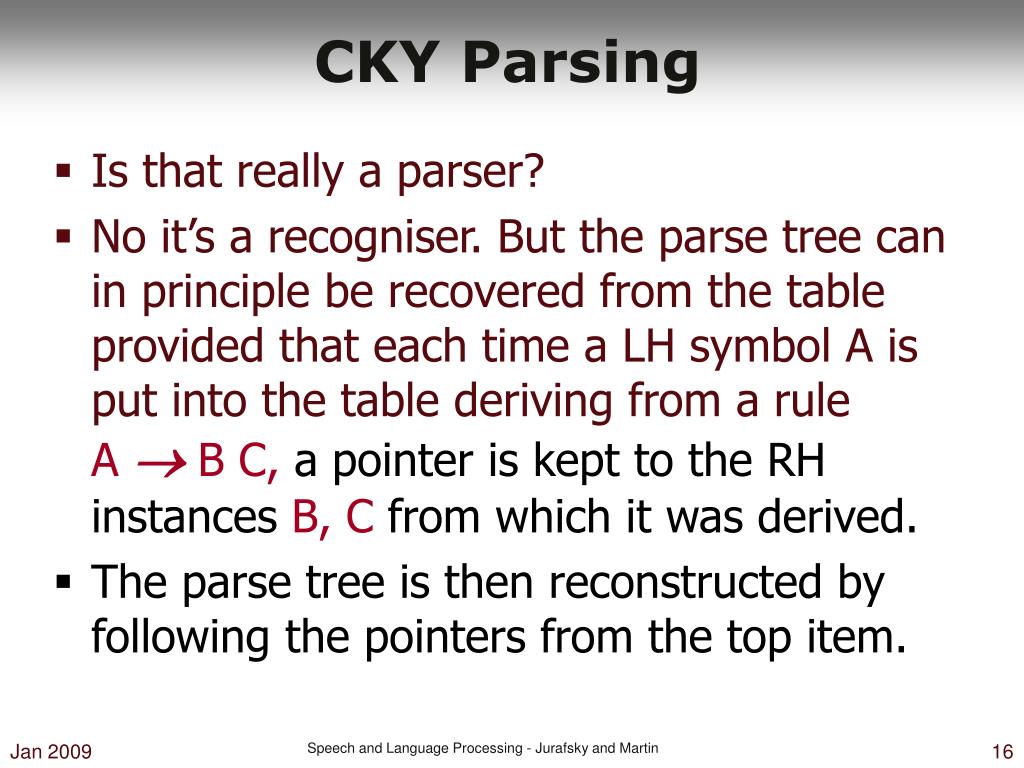

  16. CKY Parsing • Is that really a parser? • No it’s a recogniser. But the parse tree can in principle be recovered from the table provided that each time a LH symbol A is put into the table deriving from a rule A  B C, a pointer is kept to the RH instances B, C from which it was derived. • The parse tree is then reconstructed by following the pointers from the top item. Speech and Language Processing - Jurafsky and Martin

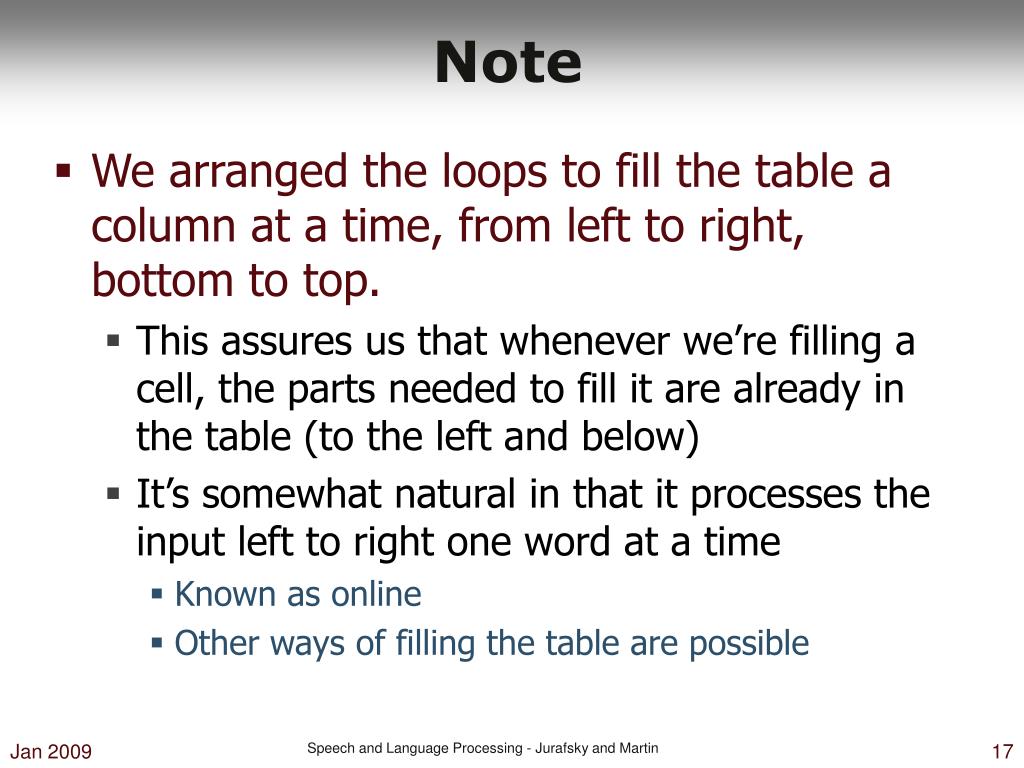

  17. Note • We arranged the loops to fill the table a column at a time, from left to right, bottom to top. • This assures us that whenever we’re filling a cell, the parts needed to fill it are already in the table (to the left and below) • It’s somewhat natural in that it processes the input left to right one word at a time • Known as online • Other ways of filling the table are possible Speech and Language Processing - Jurafsky and Martin

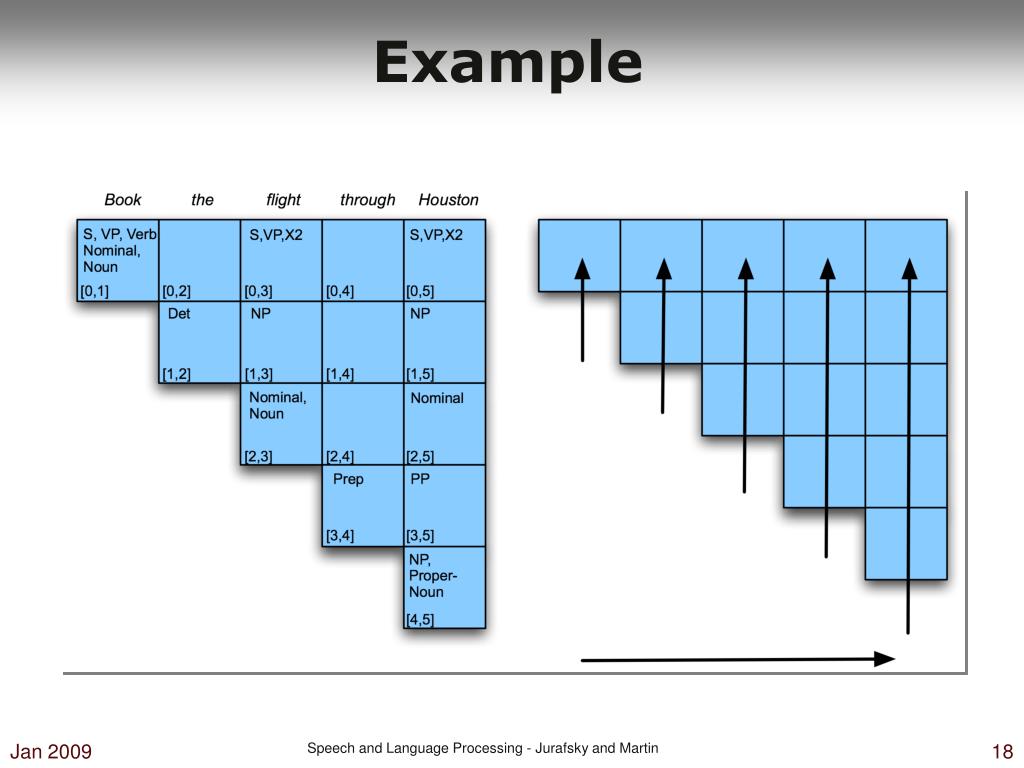

  18. Example Speech and Language Processing - Jurafsky and Martin

  19. Example Filling column 5 Speech and Language Processing - Jurafsky and Martin

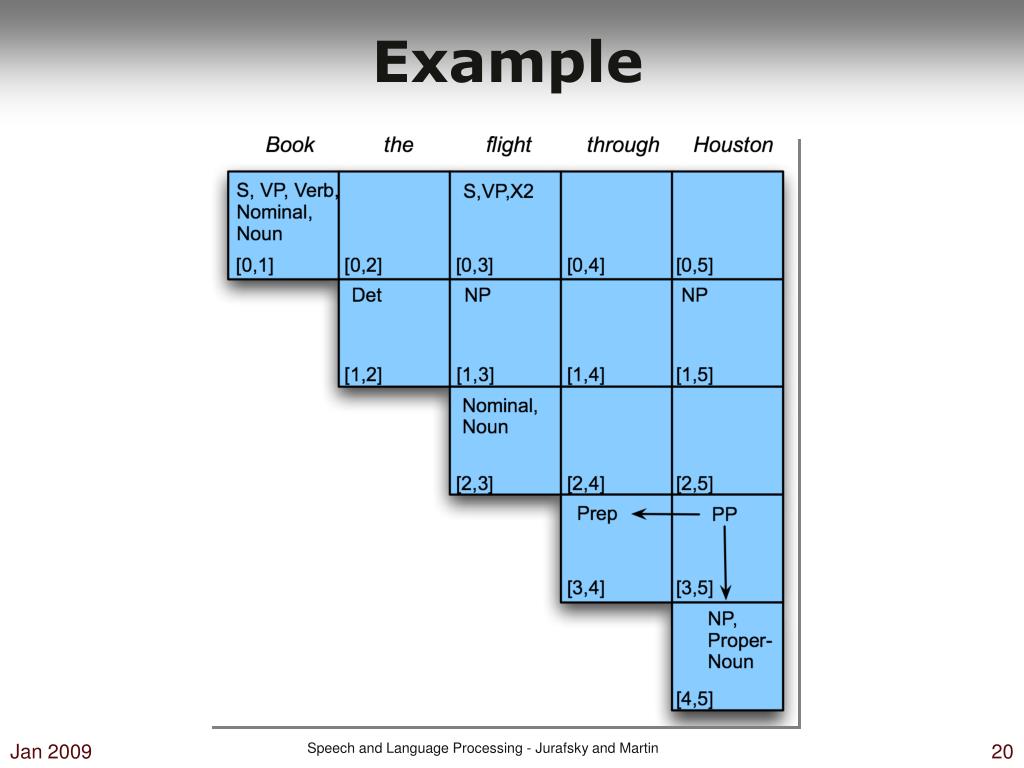

  20. Example Speech and Language Processing - Jurafsky and Martin

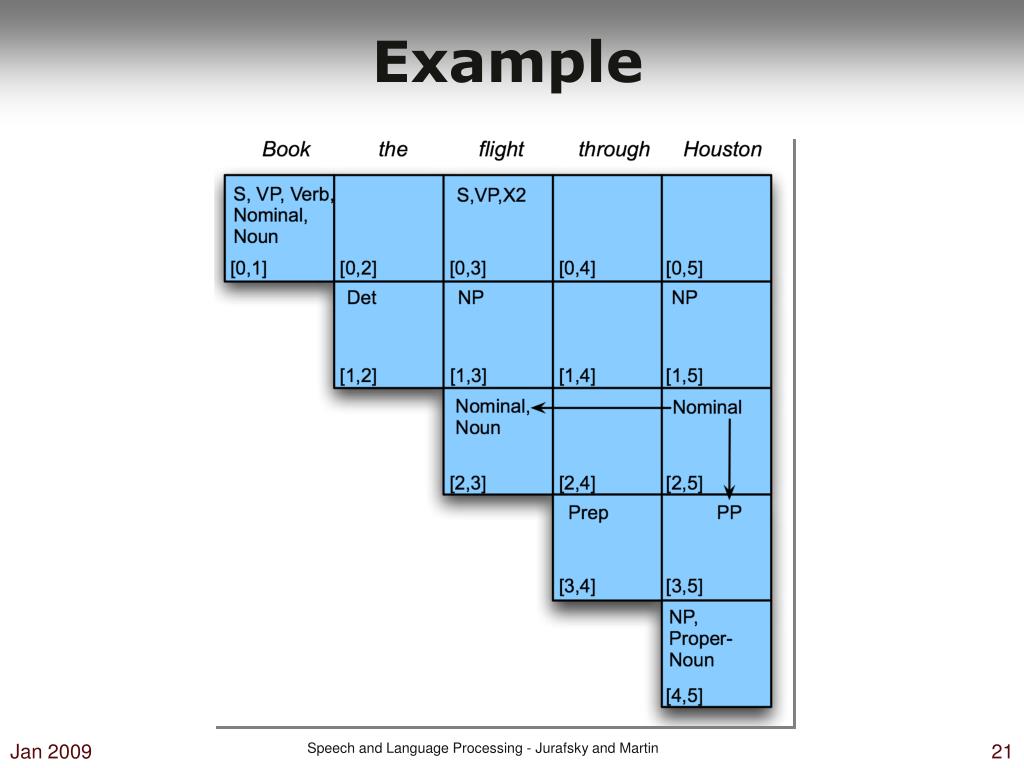

  21. Example Speech and Language Processing - Jurafsky and Martin

  22. Example Speech and Language Processing - Jurafsky and Martin

  23. Example Speech and Language Processing - Jurafsky and Martin

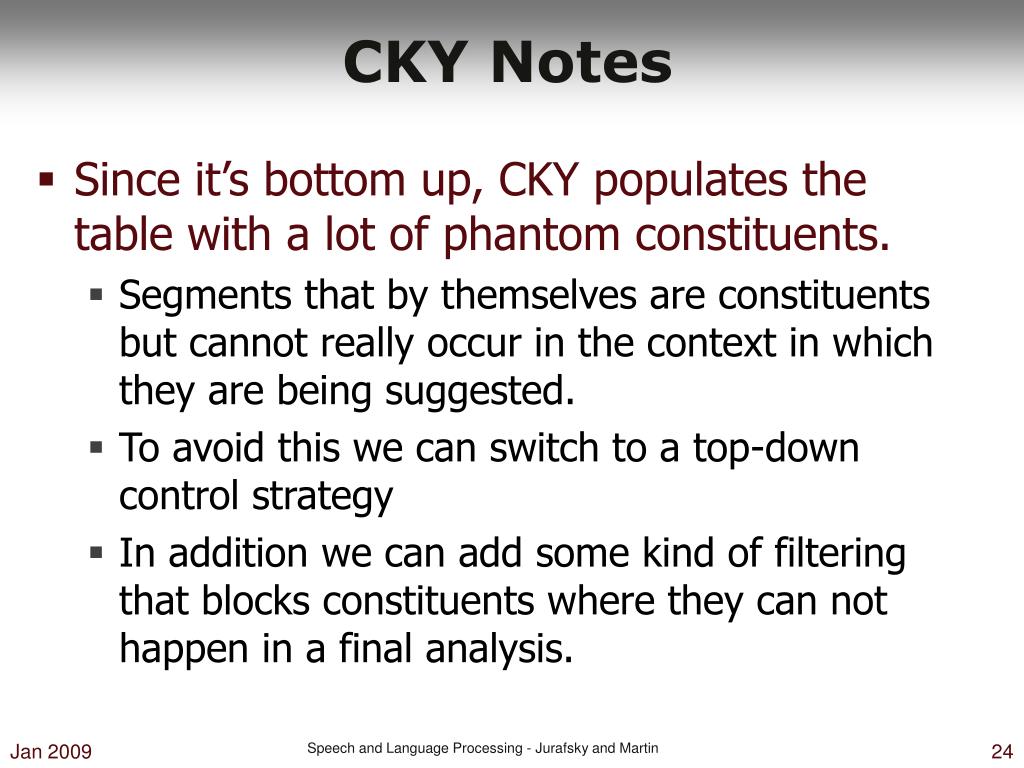

  24. CKY Notes • Since it’s bottom up, CKY populates the table with a lot of phantom constituents. • Segments that by themselves are constituents but cannot really occur in the context in which they are being suggested. • To avoid this we can switch to a top-down control strategy • In addition we can add some kind of filtering that blocks constituents where they can not happen in a final analysis. Speech and Language Processing - Jurafsky and Martin

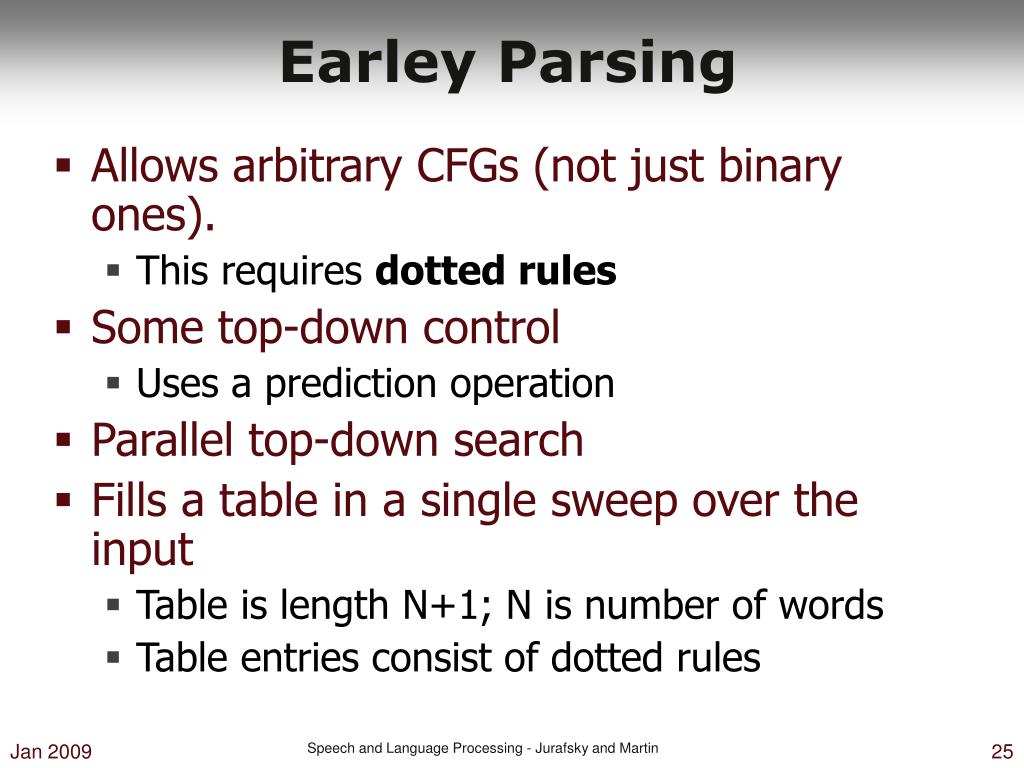

  25. Earley Parsing • Allows arbitrary CFGs (not just binary ones). • This requires dotted rules • Some top-down control • Uses a prediction operation • Parallel top-down search • Fills a table in a single sweep over the input • Table is length N+1; N is number of words • Table entries consist of dotted rules Speech and Language Processing - Jurafsky and Martin

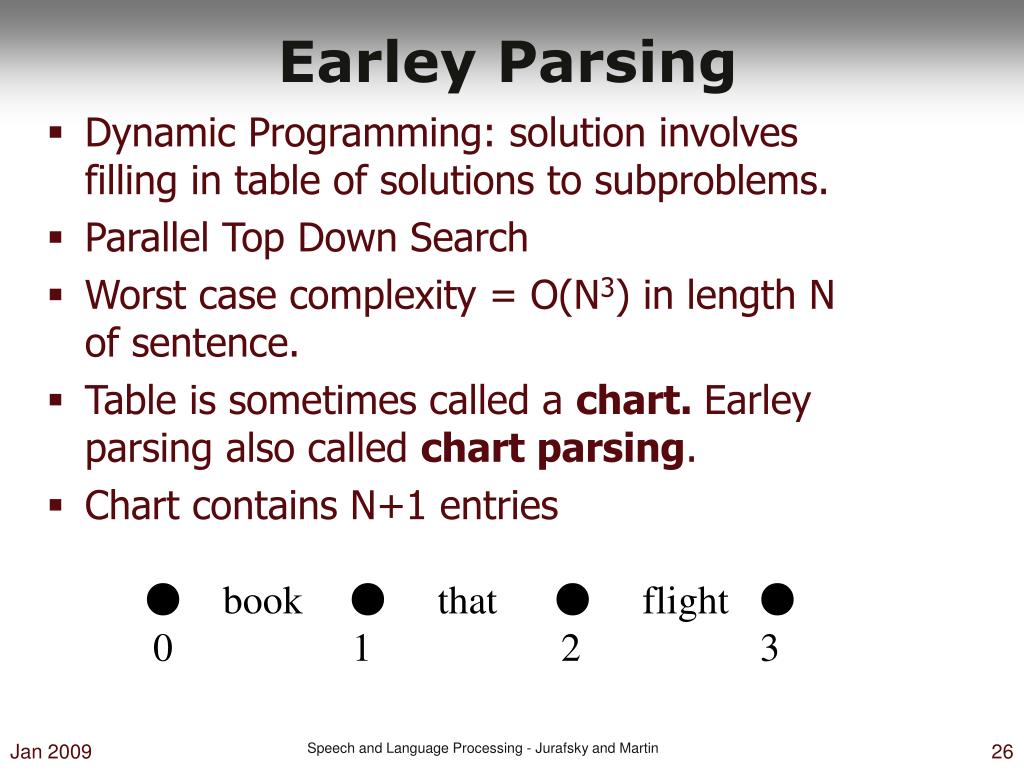

  26. Earley Parsing • Dynamic Programming: solution involves filling in table of solutions to subproblems. • Parallel Top Down Search • Worst case complexity = O(N3) in length N of sentence. • Table is sometimes called a chart. Earley parsing also called chart parsing. • Chart contains N+1 entries ● book ● that ● flight ● 0 1 2 3 Speech and Language Processing - Jurafsky and Martin

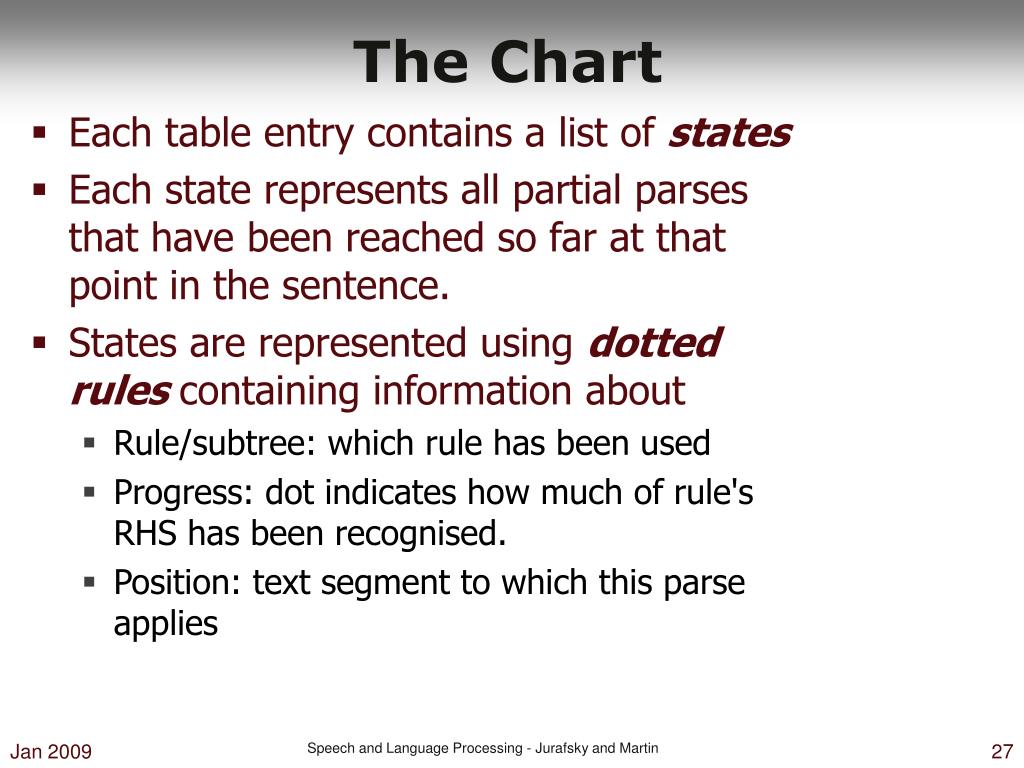

  27. The Chart • Each table entry contains a list of states • Each state represents all partial parses that have been reached so far at that point in the sentence. • States are represented using dotted rules containing information about • Rule/subtree: which rule has been used • Progress: dot indicates how much of rule's RHS has been recognised. • Position: text segment to which this parse applies Speech and Language Processing - Jurafsky and Martin

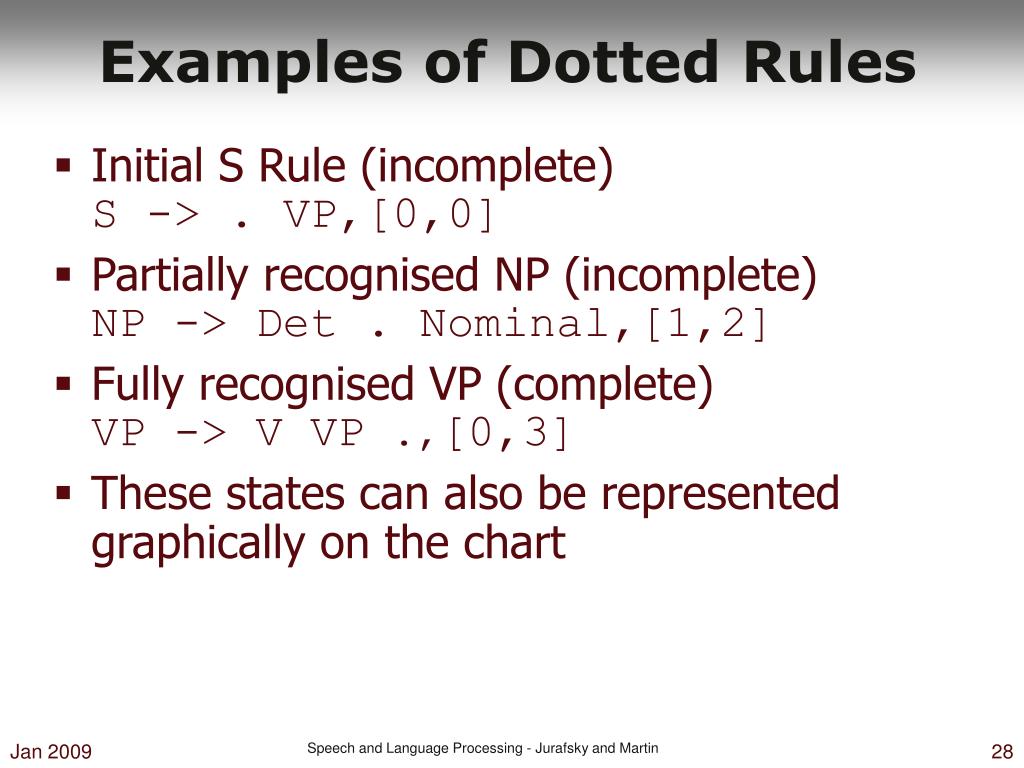

  28. Examples of Dotted Rules • Initial S Rule (incomplete) S -> . VP,[0,0] • Partially recognised NP (incomplete) NP -> Det . Nominal,[1,2] • Fully recognised VP (complete)VP -> V VP .,[0,3] • These states can also be represented graphically on the chart Speech and Language Processing - Jurafsky and Martin

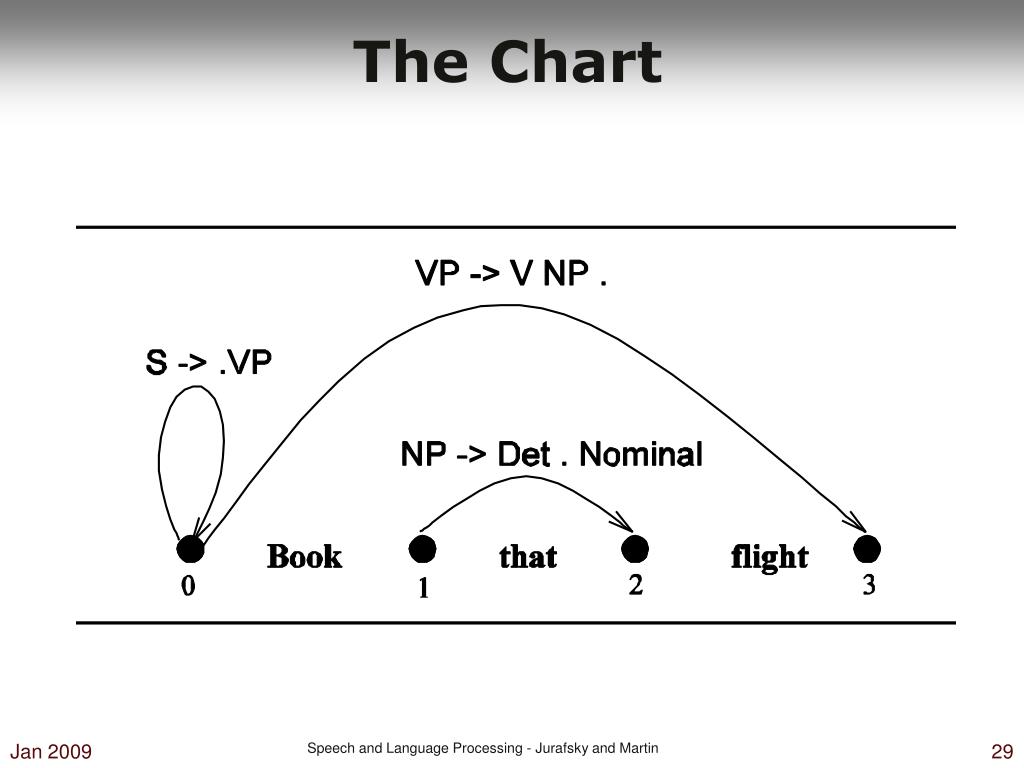

  29. The Chart Speech and Language Processing - Jurafsky and Martin

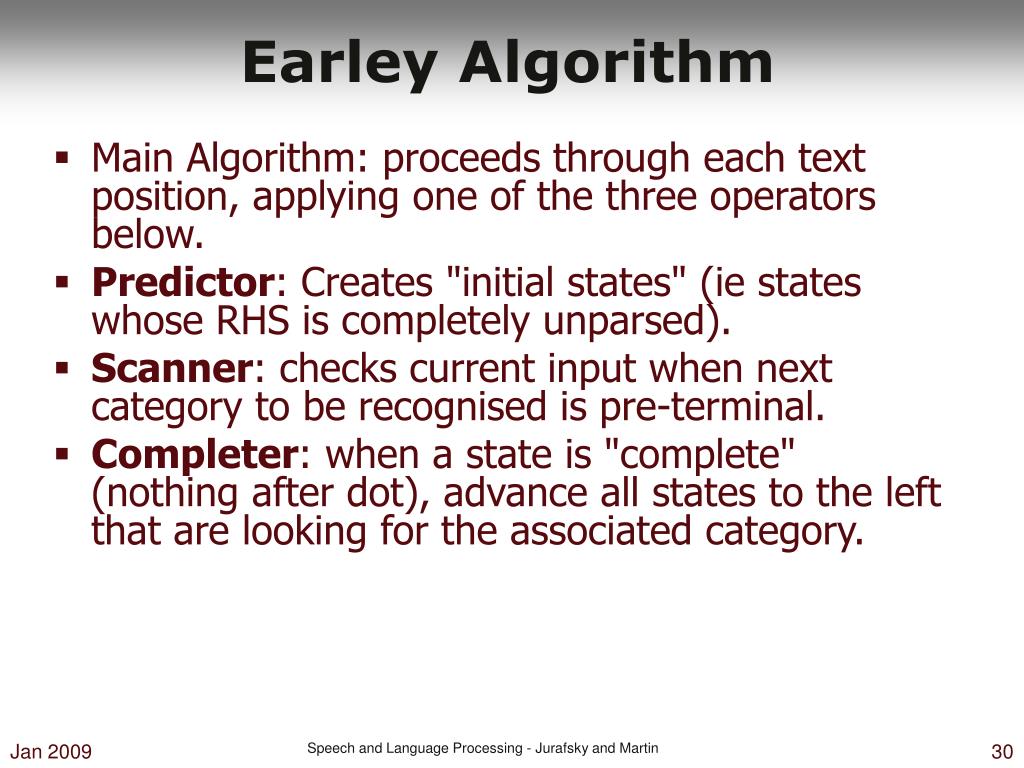

  30. Earley Algorithm • Main Algorithm: proceeds through each text position, applying one of the three operators below. • Predictor: Creates "initial states" (ie states whose RHS is completely unparsed). • Scanner: checks current input when next category to be recognised is pre-terminal. • Completer: when a state is "complete" (nothing after dot), advance all states to the left that are looking for the associated category. Speech and Language Processing - Jurafsky and Martin

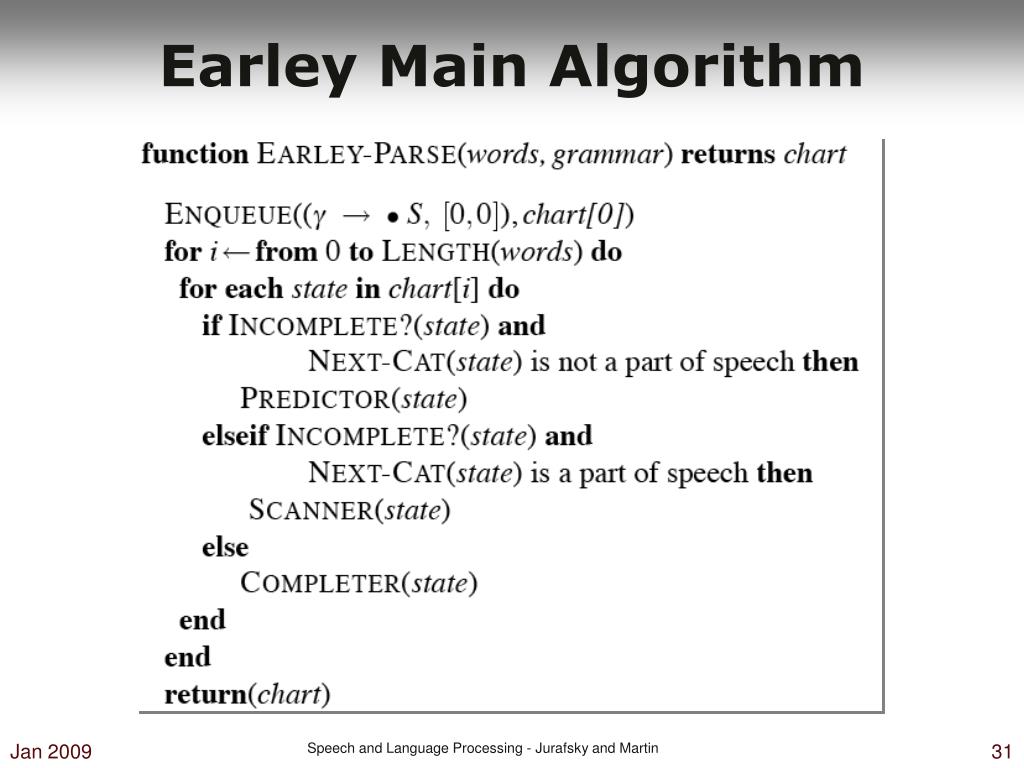

  31. Earley Main Algorithm Speech and Language Processing - Jurafsky and Martin

  32. Earley Sub Functions Speech and Language Processing - Jurafsky and Martin

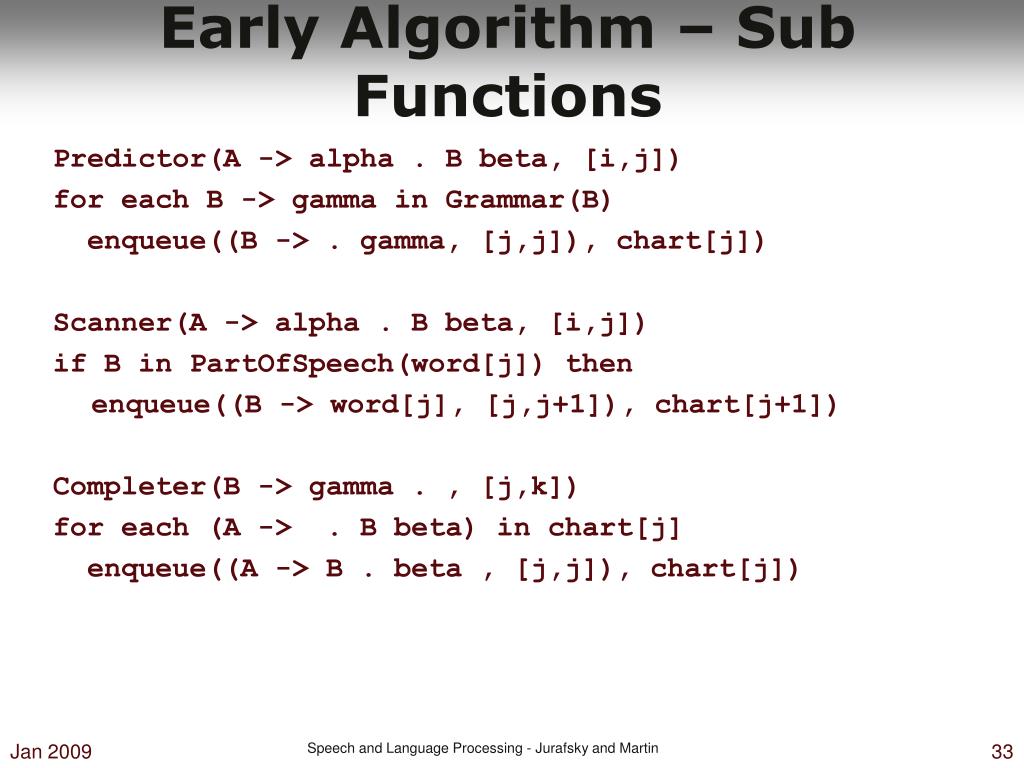

  33. Early Algorithm – Sub Functions Predictor(A -> alpha . B beta, [i,j]) for each B -> gamma in Grammar(B) enqueue((B -> . gamma, [j,j]), chart[j]) Scanner(A -> alpha . B beta, [i,j]) if B in PartOfSpeech(word[j]) then enqueue((B -> word[j], [j,j+1]), chart[j+1]) Completer(B -> gamma . , [j,k]) for each (A -> . B beta) in chart[j] enqueue((A -> B . beta , [j,j]), chart[j]) Speech and Language Processing - Jurafsky and Martin

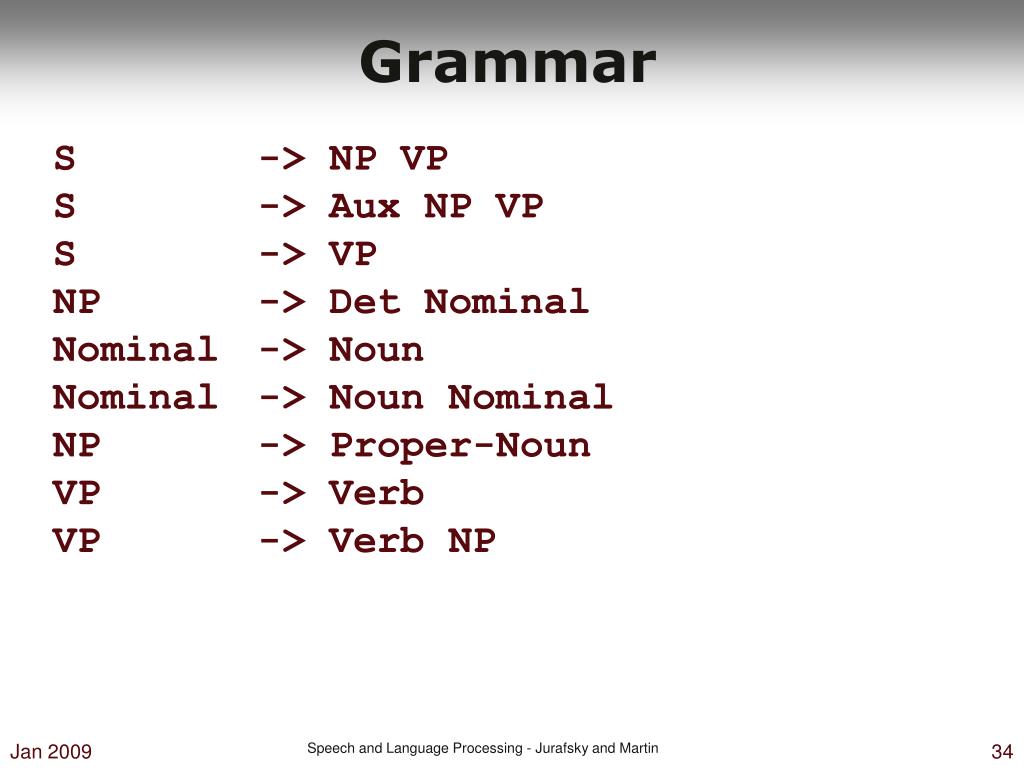

  34. Grammar S -> NP VP S -> Aux NP VP S -> VP NP -> Det Nominal Nominal -> Noun Nominal -> Noun Nominal NP -> Proper-Noun VP -> Verb VP -> Verb NP Speech and Language Processing - Jurafsky and Martin

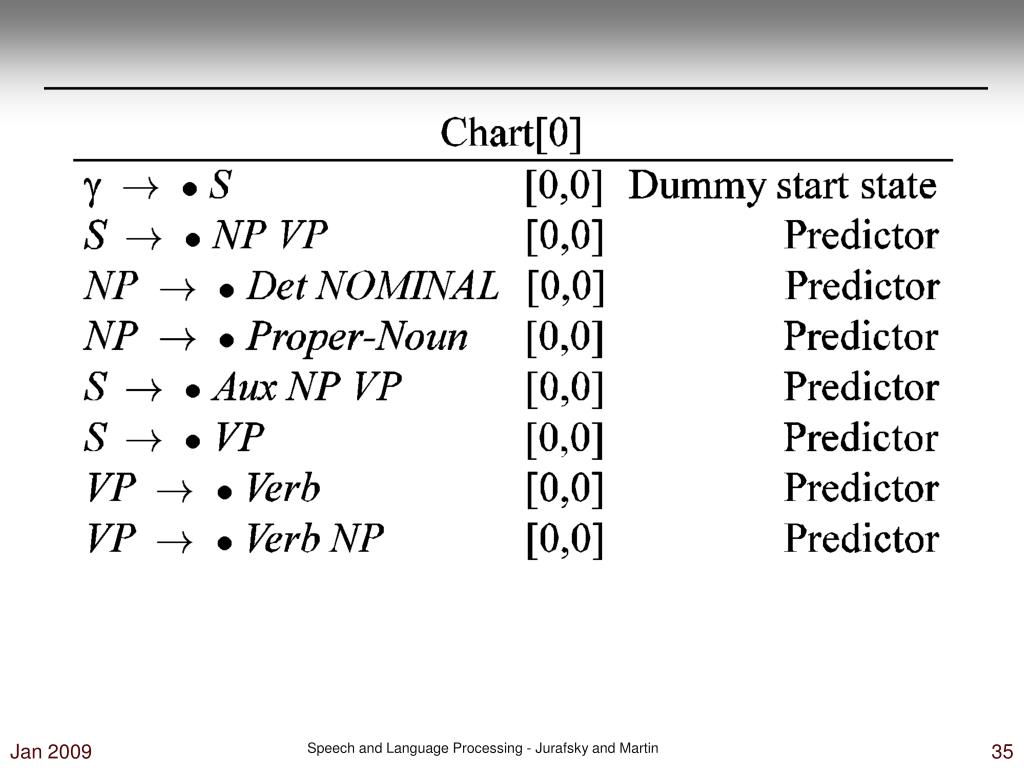

  35. Speech and Language Processing - Jurafsky and Martin

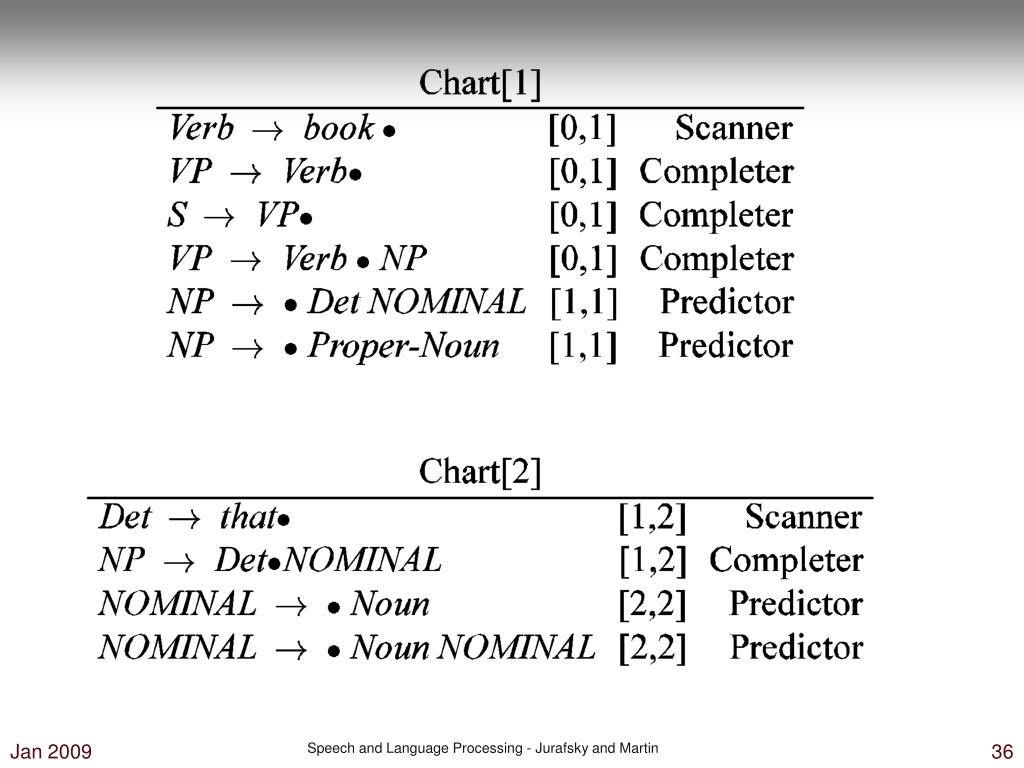

  36. Speech and Language Processing - Jurafsky and Martin

  37. fl Speech and Language Processing - Jurafsky and Martin

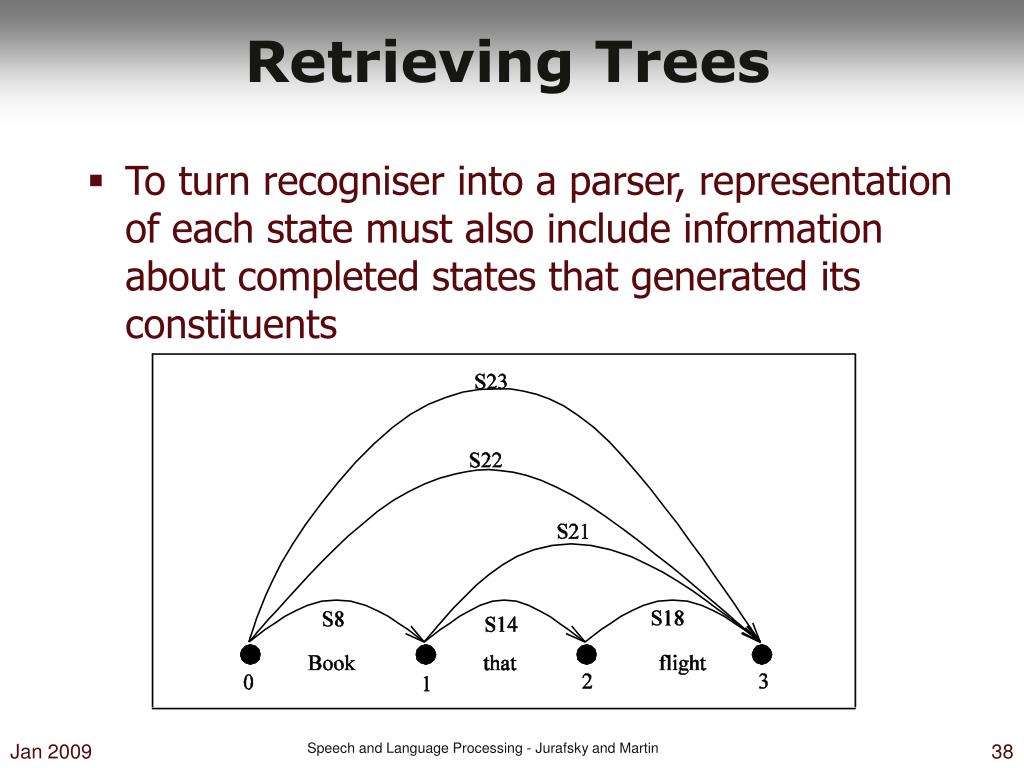

  38. Retrieving Trees • To turn recogniser into a parser, representation of each state must also include information about completed states that generated its constituents Speech and Language Processing - Jurafsky and Martin

  39. Speech and Language Processing - Jurafsky and Martin

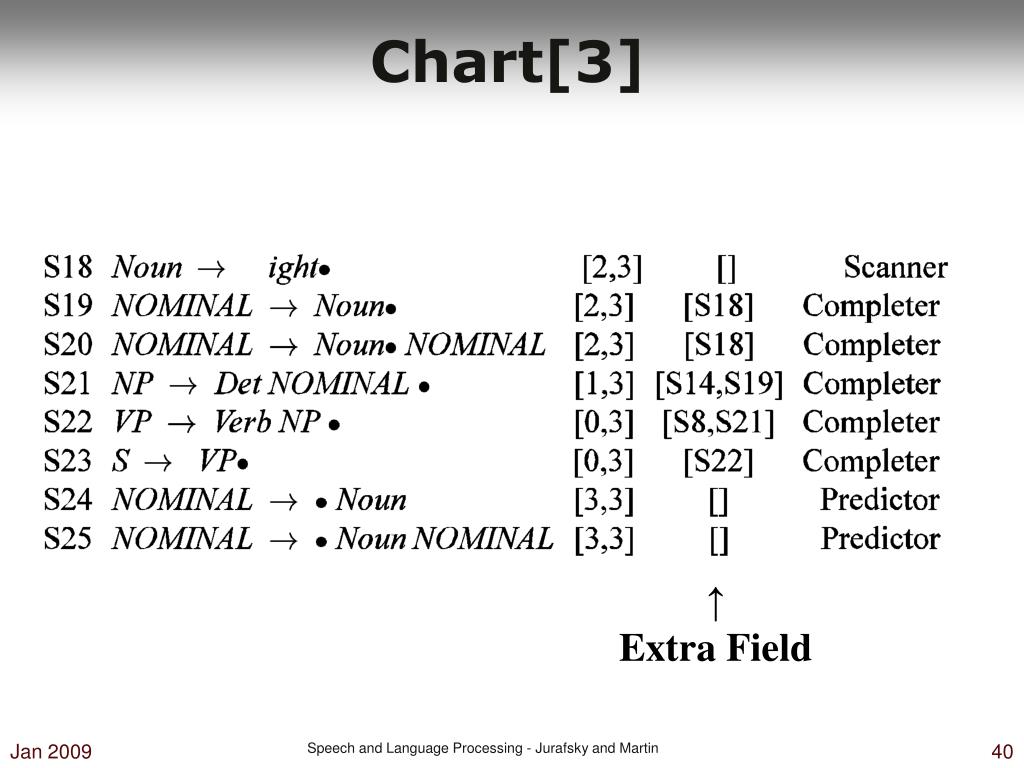

  40. Chart[3] ↑Extra Field Speech and Language Processing - Jurafsky and Martin

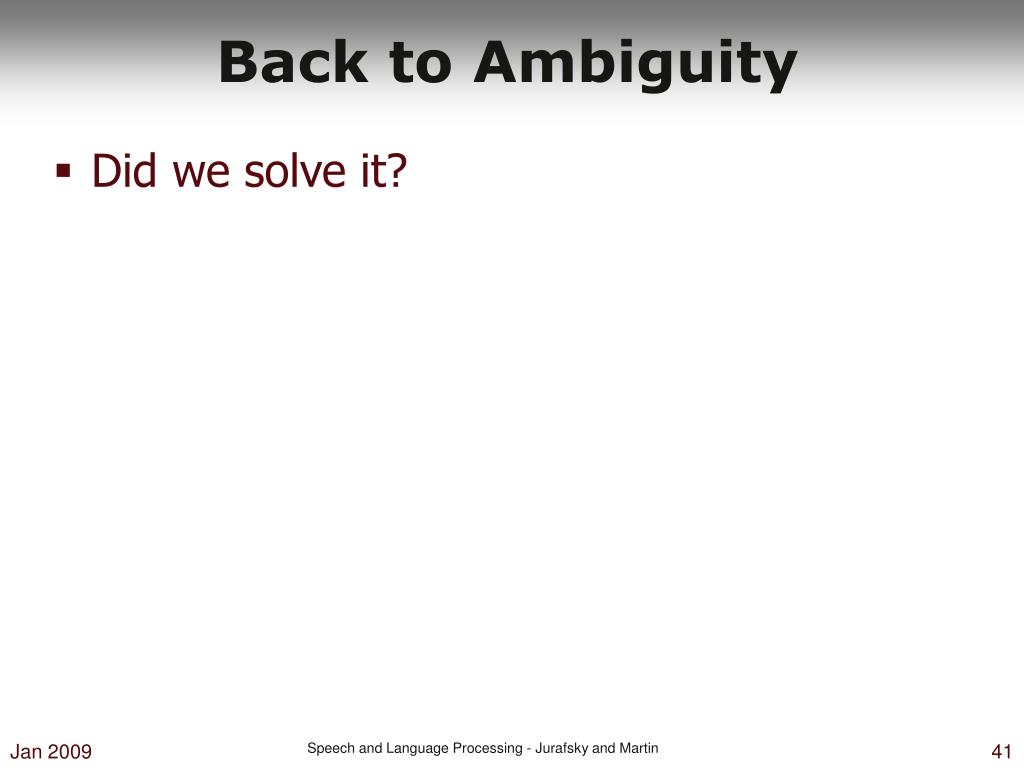

  41. Back to Ambiguity • Did we solve it? Speech and Language Processing - Jurafsky and Martin

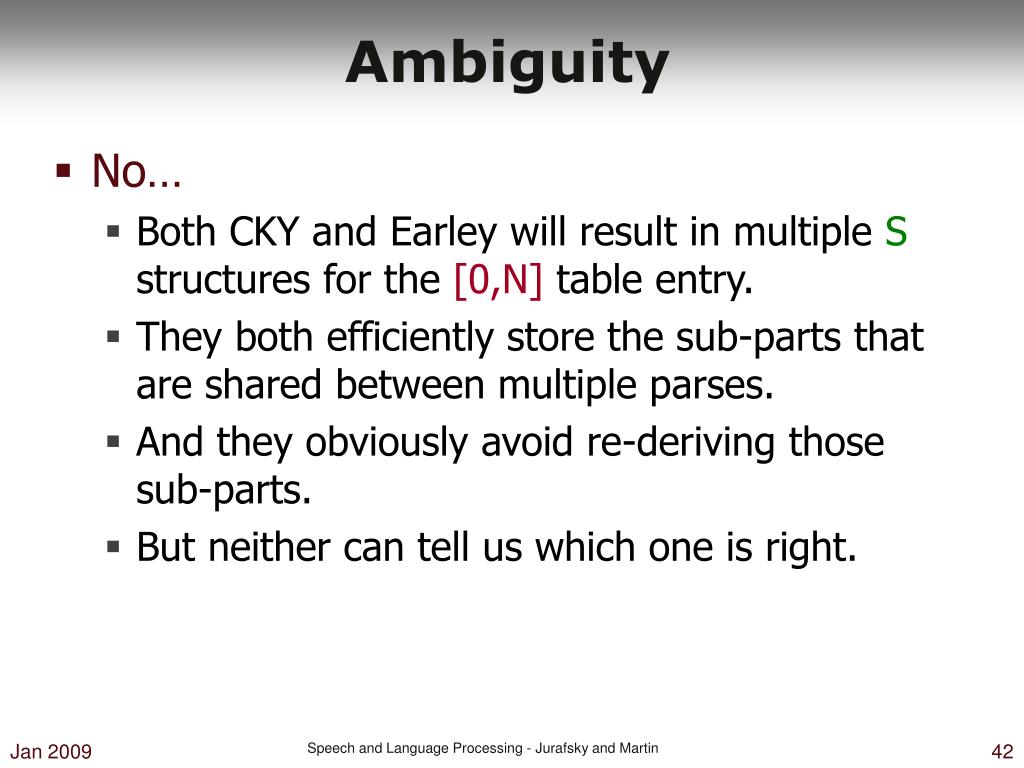

  42. Ambiguity • No… • Both CKY and Earley will result in multiple S structures for the [0,N] table entry. • They both efficiently store the sub-parts that are shared between multiple parses. • And they obviously avoid re-deriving those sub-parts. • But neither can tell us which one is right. Speech and Language Processing - Jurafsky and Martin
