Lecture 3a Naming Soil Horizons

Lecture 3a Naming Soil Horizons. Soil horizons (layers in the soil) are named so differences between soils can be identified. Naming soil horizons takes practice. When soil scientists are describing a soil they will discuss a lot about what they are seeing and how it should be named.

Télécharger la présentation

Lecture 3a Naming Soil Horizons

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Lecture 3aNaming Soil Horizons • Soil horizons (layers in the soil) are named so differences between soils can be identified. • Naming soil horizons takes practice

  2. When soil scientists are describing a soil they will discuss a lot about what they are seeing and how it should be named. • And what they are not seeing and what it should not be called ?

  3. Soil Judging • Students wanting more practice at naming soil horizons should take Soil 4511 and try out for the Soil Judging Team Students that participate in the “Soil Judging” contest get more practice with different soils from the region. (MN, SD, ND,MO,IA,KS,NE. • The contest this fall is in Nebraska near North Platte. Contest in Kansas 2006 2007 UM Soils Team in the Team Pit No. 1 in southwest Iowa: Left to right Meryl Larson, Erin Andrews, Nick Reep, and Nick Saumweber

  4. Organic Horizons • O - horizon - organic material (no mineral materials) 1) forest litter 2) organic soil or peat soils, or muck • Oi - undecomposed (fibris) • Oe - moderate decomp. (hemis) • Oa - decomposed (sapric)

  5. Organic Soil Profile This trenching machine is digging through the Oe horizon of an organic soil. Trenches needed to remove water so the peat will dry before harvest.

  6. Organic Soil Horizons in a forest litter Oi Oe

  7. Processes of Mineral Soil Horizon Formation • A. Additions - H2O, organic matter,air, soil particles, salt • B. Losses - H2O, organic matter, CO2 , nutrients by plant removal • C. Transformations - Changes to soil structure, development of clay minerals, weathering of minerals to elements, chemical Rx • D. Translocations - movement from one horizon to another of O.M. Clay, Water, Iron, & Nutrients in colloidal size, (very small particles) clay films on peds are evidence of this translocation = clay (film) coating

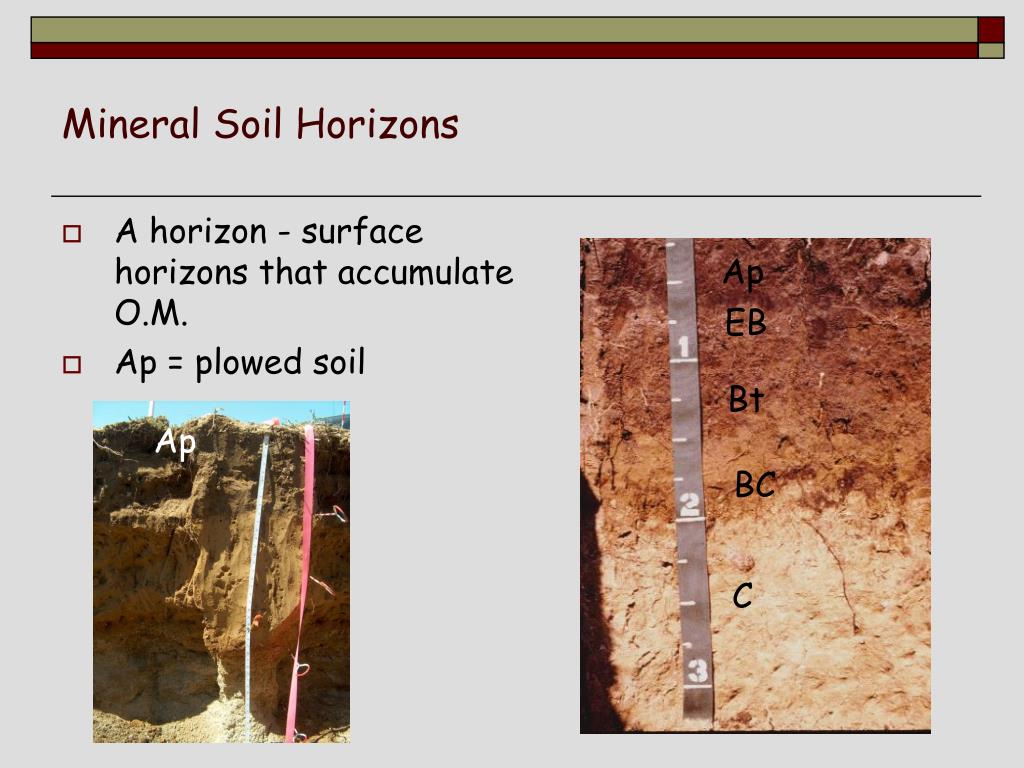

  8. Mineral Soil Horizons • A horizon - surface horizons that accumulate O.M. • Ap = plowed soil Ap EB Bt Ap BC C

  9. E Horizons • E - (formerly A2) - Translocation out - Zone of Eluviations - Leaching out • lighter in color than horizons above or below A E E/B Bt BC C

  10. B Horizons- two kinds: • a) Translocation in - below an A, E, or O with an accumulation of clay, iron, humus (O.M. decomposed.) or carbonates (CaCO3) zones of illuviation • b) or alteration of the original parent material, development of color or structure - Bw Bt

  11. C Horizons • C - little affected by pedogenic processes and lack properties of O-A-B-E- or is the Parent Material Solum = A + B C horizon

  12. Rock Horizons • R = hard rock • Cr = Soft Rock

  13. Subscripts - all B horizons have a subscript, most transition horizons do not.* = Important for MN • * a - sapric - organic soils - well decomposed • * b - buried soil horizon • d - dense - geogenic soil material (compacted by glacier) • * e - hemic - mod. decomp. - organic soil • f - frozen soil - permanently frozen, permafrost • * g - gleyed soil - gray color due to low O2 - reduction of Fe • * h - accumulation of humus - O.M. other than in the A or O horizons • * i - fibric - organic - non-decomposed • * k - accumulation of calcium carbonate (CaCO3) • * m - cementation - hard - indurated

  14. Subscripts cont. • n - sodium accumulation • * p - plowing - only used with A • q - silica accumulation - very weathered or old soil • * r - soft rock - used with C or Cr • * s - sesquioxides (1.502) (Fe2O3) accumulation of Fe and Al - red color • *ss – slickensides present –shiny surface on ped face caused from soil rubbing against soil • * t - clay accumulation - clay films • * w - color or structure development (Bw) • x - Fragipan - hard, dense layer that developed with time • y - gypsum accumulation (CaSO4) • z - salts more soluble than gypsum (KCL - NaCl - NaSO4)

  15. Transition Horizons • AB - Like A - some of B • BA - Like B - some of A • AE AC BC • E/B - Both E and B particles are present - • “B & E” used for soils with Lamellae - thin bands of accumulating clay and iron in sandy soils

  16. Lithologic Discontinuity • A • Bw1 • Bw2 • 2C • L.D. isdesignated by number in front of horizon = more than one parent material 2 parent materials Loamy Mantle Outwash

  17. Practice at naming horizons – Soil from Badlands of North Dakota---Texture of horizons 1,2,3,4 = loam---Note Carbonates in horizon 3 DYAD – Name 4 horizons Using one transition horizon • --- • --- • --- • ---

  18. Sandy soil from Northeast MinnesotaTexture of Horizon 1,2,3,4 = Sand

  19. Goodhue County Soil, Southwest of Redwing Mn.Texture of horizon 1 & 2 = Silt Loam, Hrz 5 = Silty ClayHrz. 4 = Cobbly loam, Hrz. 5 = Loam • A • E • Bt • 2BC • 2C

  20. This is not soil. It is a "rock outcrop" The End This is not soil. It is "dune land"
