  1. Continuity Communications Working Group Status Report Mr. Roy Roebuck Chief Architect Continuity Communications Enterprise Architecture Program Office July 7, 2005

  2. September 11th Illustrated that the Federal Executive Branch (FEB) does not have the ability to quickly access and share information, collaborate among senior leaders, and make informed decisions. Enduring Constitutional Government Coordination Council (ECG CC) Report Review of the FEB’s COOP, COG, and ECG preparedness ECG CC Report Tasks include: Complete an evaluation of government-wide COOP communications capabilities Establish Minimum Communications Requirements for the Federal Executive Branch Create a Continuity Communications Enterprise Architecture (CC EA) to ensure execution of FEB Mission Essential Functions under all circumstances Tasked to the National Communications Systems (NCS) Committee of Principals (COP) Established the Continuity Communications Working Group (CCWG) ASD NII – Chair FEMA – Co-Chair Established the CC EA Program Office CCWG Terms of Reference (TOR) assigned tasking through August 2005 Background…

  3. Department A Department B Department C Key Questions, Initial Round… PMEF 5 PMEF 6 PMEF 1 PMEF 2 PMEF 3 • Basic Communications • Telephone • Fax • No VTC • No E-Mail • Etc…. • Basic Communications • Telephone • Fax • E-Mail • Etc…. PMEF 4 • Key Questions • Can the D&A Priority Mission Essential Functions (PMEF) be performed at a COOP site? • Can information about PMEFs be shared to support a common • operational picture and collaborative planning by senior • leadership? • What are the Minimum COOP Communications Capabilities? • What communications support execution of PMEFs • Do systems used to execute PMEFs use common standards? U.S. Government • Basic Communications • Telephone • Fax • SVTS…. • Etc…. PMEF 7 PMEF 8

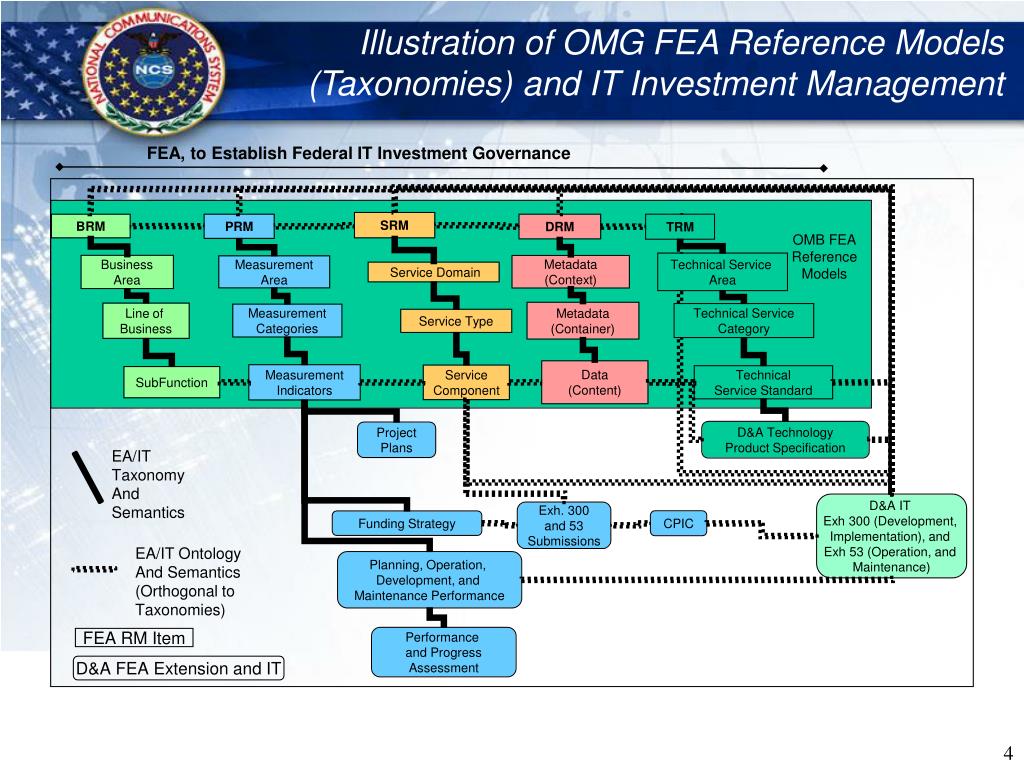

  4. Illustration of OMG FEA Reference Models (Taxonomies) and IT Investment Management FEA, to Establish Federal IT Investment Governance

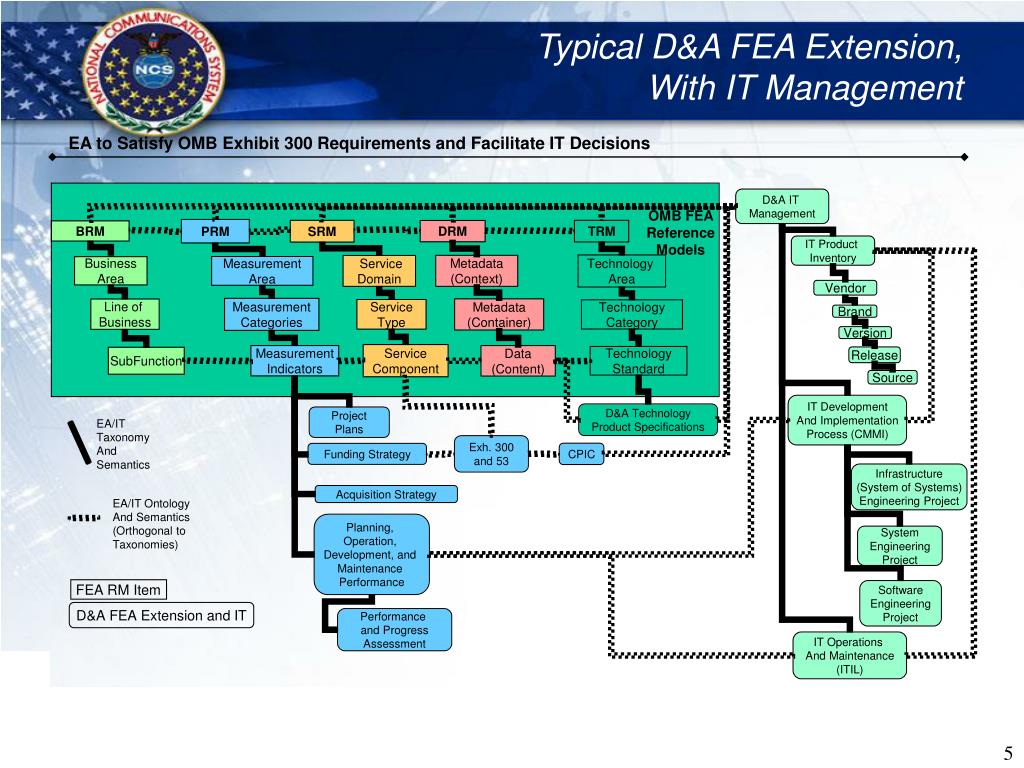

  5. Typical D&A FEA Extension, With IT Management EA to Satisfy OMB Exhibit 300 Requirements and Facilitate IT Decisions

  6. CC EA OMB FEA 5. TRM (Technology Catalog and Qualifying Products) 1. BRM (Assigned Functional Missions + Assumed Supporting Functions) 3. SRM (Best Practice, Re-usable Processes) 6.5.1 D&A Physical IT 6.5.1.1 D&A Systems 6.5.1.2 D&A Infrastructure 4. DRM (Metadata) 2 and 7. PRM (Strategic Mgmt, Ops & Invest. Strategies, Priorities) CC EA Requires Further Extension Of The OMB FEA

  7. CC EA Has An Extended OMB FEA Structure Enterprise Architecture Service Oriented Architecture (SOA) Enterprise Service Bus (ESB) 1. NEF/PMEF Service (e.g., Loosely Coupled, NetCentric) Capability Implementation Capability Process Improvement and Solution Design Operational Capability (Primary and Alternate Sites, Primary and Alternate Providers) 1. BRM (Assigned Functional Missions + Assumed Supporting Functions) 1.1 Policy 1.2 Assignment 1.3. Strategic Management 5. TRM (Technology Catalog of Standards and Qualifying Products) 6. Required Mission Resources over their life cycle. 6.1 People 6.2 Intelligence 6.2.1 Functional Intelligence 6.2.2 CC Intelligence 6.3 Funds 6.4 Skills 6.4.1 CC Skills 6.5 Materiel 6.5.1 Physical IT 6.5.1.1 Systems 6.5.1.1.1 CC Systems 6.5.1.2 Infrastructure 6.5.1.2.1 CC Infrastructure 6.5.2 Goods 6.6 Facilities 6.6.1 CC Facilities 6.7 Services 6.7.1 CC Services 6.8 etc. 3. SRM (Best Practice, Re-usable Processes) 4. DRM (Metadata and Data) 1. OU Assigned Functional Responsibility 2. PRM (Strategic Mgmt, Ops & Invest. Strategies, Priorities) 7. PRM (Portfolios, Budgets) Normal and CC Capability Business Case and Budget 1. Parent Organization of OU Schema and Data Largely or Wholly Present in FEA 6. Organization Unit (OU) Assigned The Asset Schema and/or Data Added by CC EA 1. Location of OU (Physical and Virtual)

  8. EA as Whole-Enterprise System Analysis, Requirement Analysis, and Operational Model CCEA FEA Extension (Data Structure, i.e., Metaschema) (FYO5 Plan)

  9. CC EA Framework Model Leverage BRM Leverage PRM Leverage SRM Leverage DRM/TRM

  10. Questions? Contact for Technical Questions Roy Roebuck roy.roebuck@commitent.com 703-598-2351

  11. CC EA Supports NEF and PMEFLife Cycle Management, Including CC 5. D&A PMEF and CC Intelligence Refinement 4. NEF/PMEF Operation Management CC EA Spiral Life Cycle Enterprise Operations and CC 3. CC EA For Resource Distribution and Access Provisioning 1. D&A PMEF Intelligence Inventory (CC Portion of D&A EA Framework/Ontology and PMEF EA Content) Enterprise Intelligence 2. CC EA for Merged FEB NEF/PMEF Intelligence Structure and Operational Knowledge (Mapping of D&A EA Frameworks and EA Content to CC EA Integrating Framework, i.e., Upper Ontology)

  12. CC EA Four Layer Model
