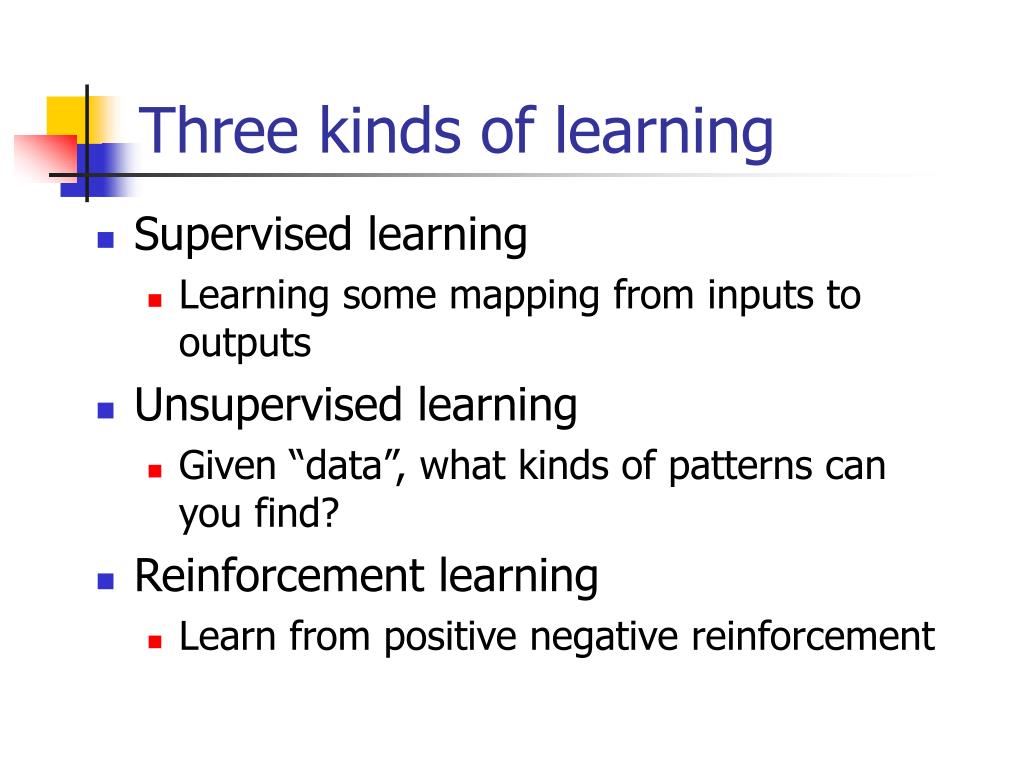

Three kinds of learning • Supervised learning • Learning some mapping from inputs to outputs • Unsupervised learning • Given “data”, what kinds of patterns can you find? • Reinforcement learning • Learn from positive negative reinforcement

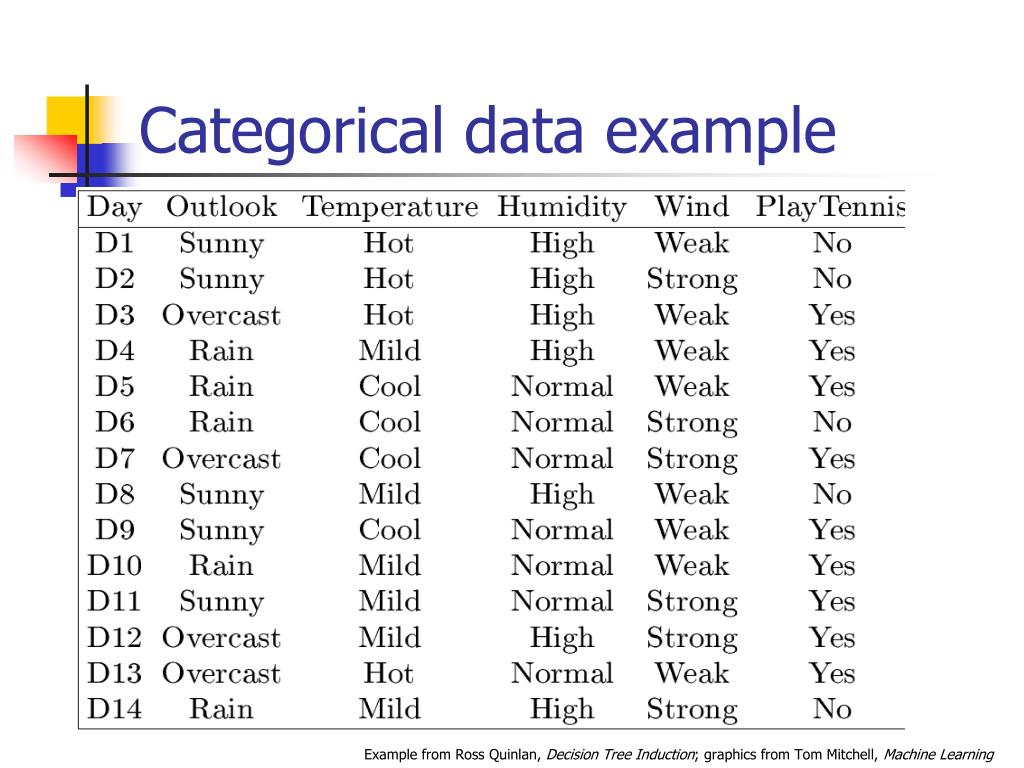

Categorical data example Example from Ross Quinlan, Decision Tree Induction; graphics from Tom Mitchell, Machine Learning

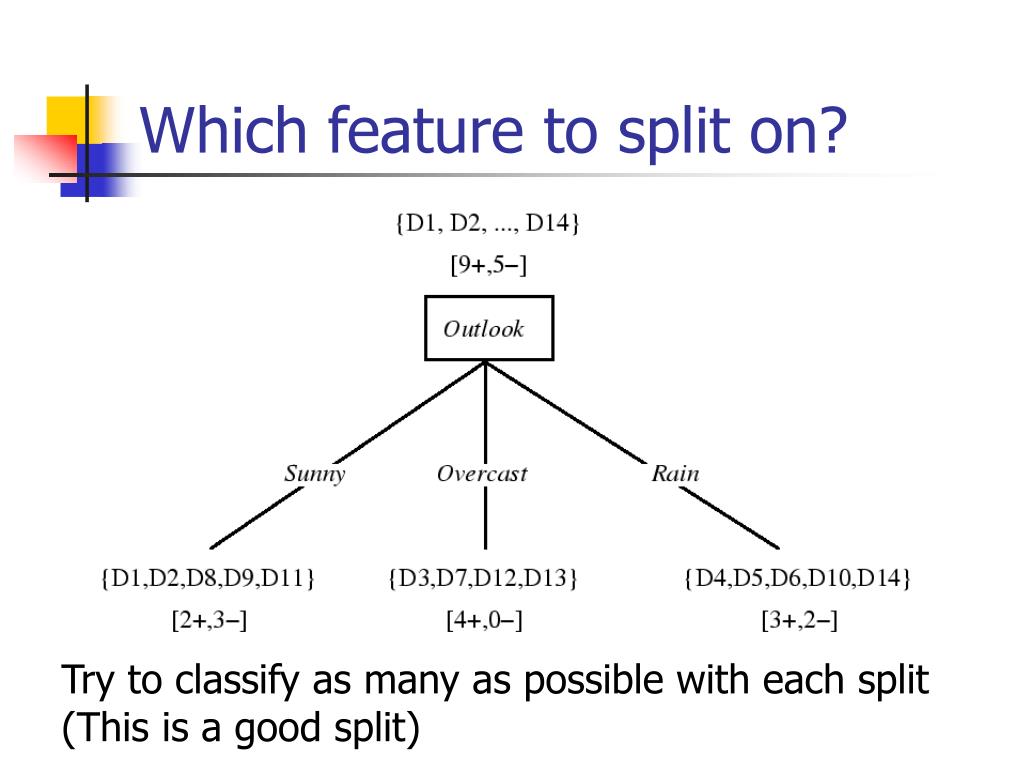

Which feature to split on? Try to classify as many as possible with each split (This is a good split)

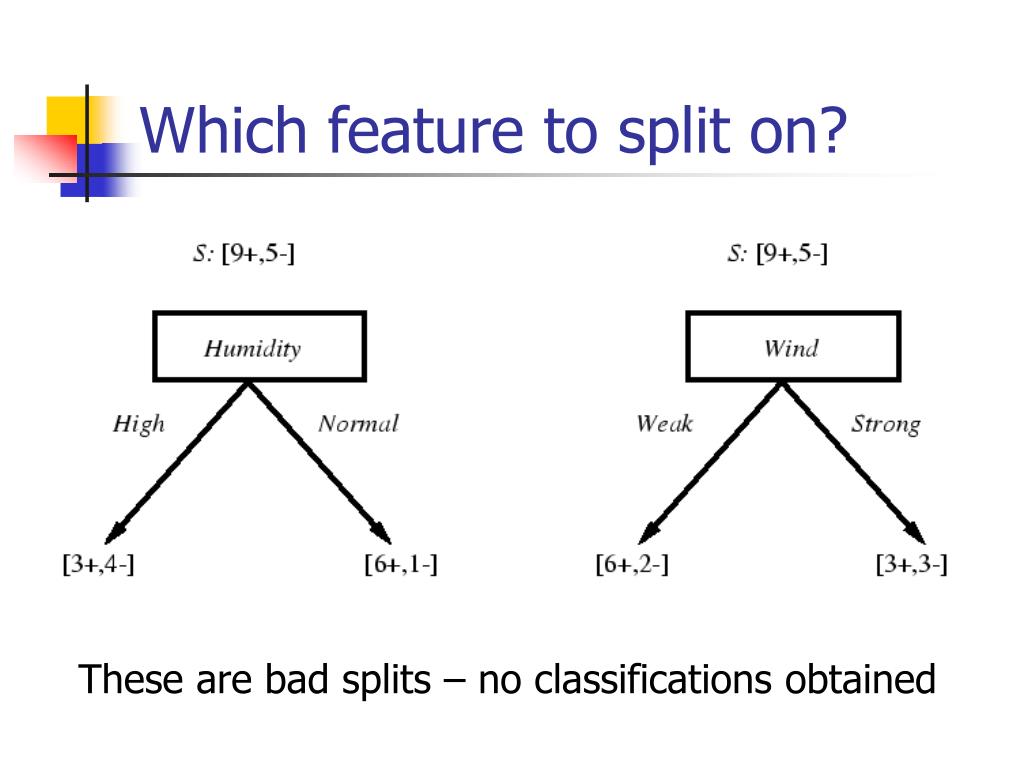

Which feature to split on? These are bad splits – no classifications obtained
Decision Tree Algorithm Framework • Use splitting criterion to decide on best attribute to split • Each child is new decision tree – recurse with parent feature removed • If all data points in child node are same class, classify node as that class • If no attributes left, classify by majority rule • If no data points left, no such example seen: classify as majority class from entire dataset
How do we know which splits are good? • Want nodes as “pure” as possible • How do we quantify “randomness” of a node? Want • All elements +: “randomness” = 0 • All elements –: “randomness” = 0 • Half +, half -: “randomness” = 1 • Draw plot • What should “randomness” function look like?
Typical solution: Entropy • pp = proportion of + examples • pn = proportion of – examples • A collection with low entropy is good.

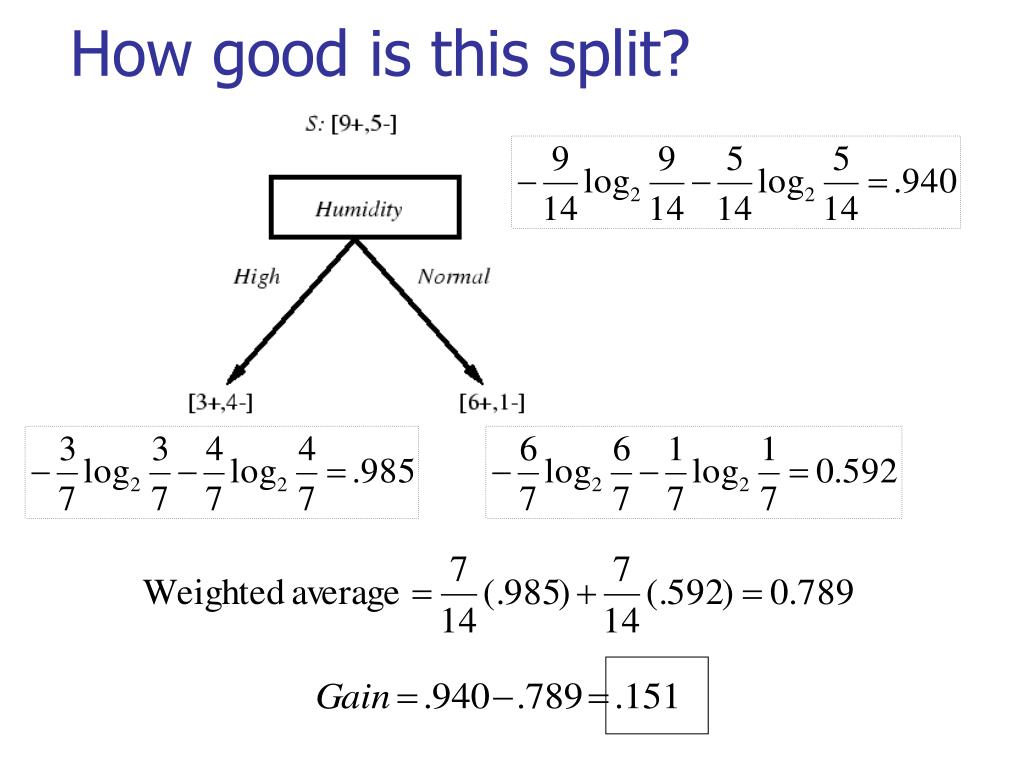

ID3 Criterion • Split on feature with most information gain. • Gain = entropy in original node – weighted sum of entropy in child nodes
The big picture • Start with root • Find attribute to split on with most gain • Recurse
Assessment • How do I know how well my decision tree works? • Training set: data that you use to build decision tree • Test set: data that you did not use for training that you use to assess the quality of decision tree

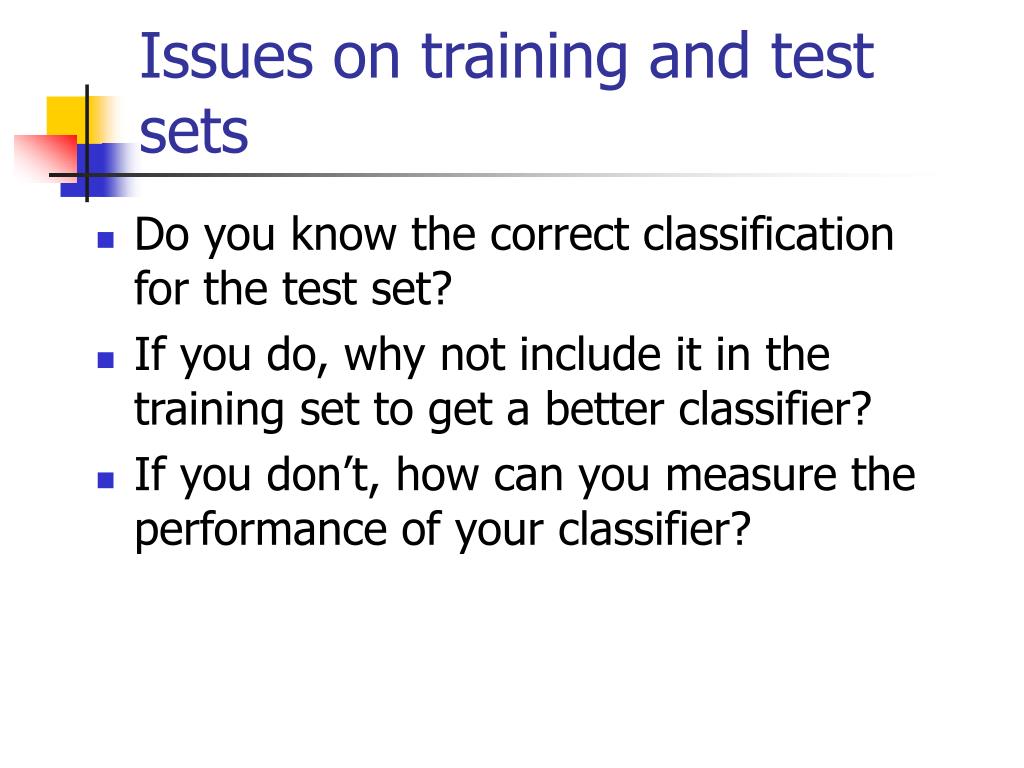

Issues on training and test sets • Do you know the correct classification for the test set? • If you do, why not include it in the training set to get a better classifier? • If you don’t, how can you measure the performance of your classifier?

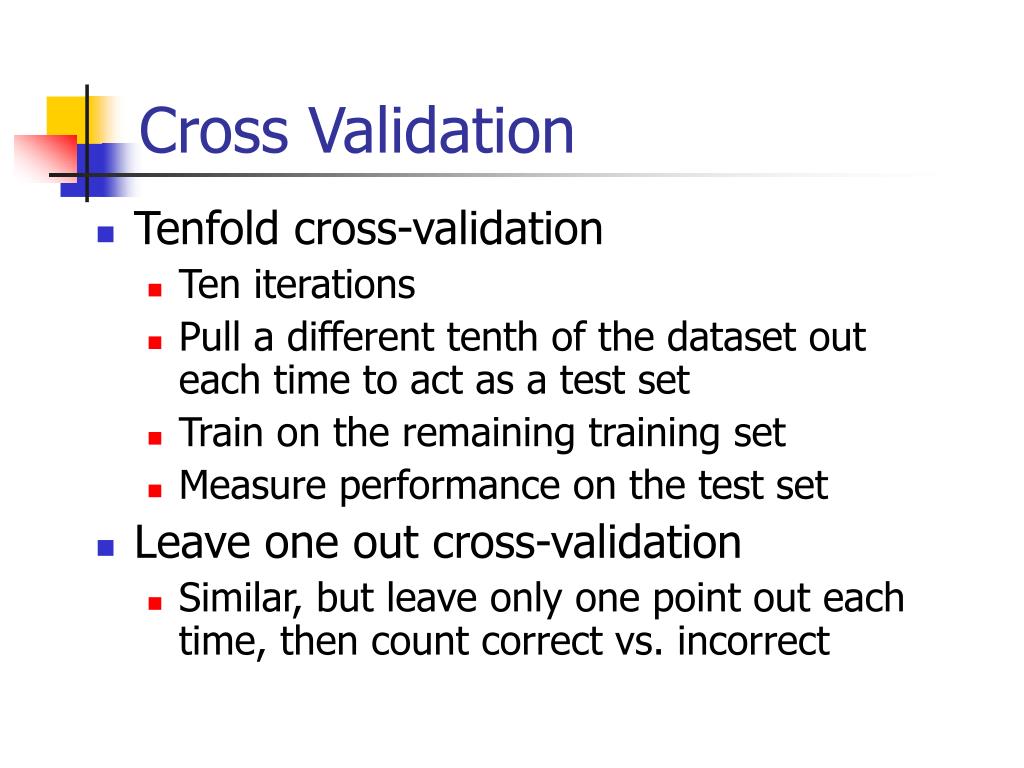

Cross Validation • Tenfold cross-validation • Ten iterations • Pull a different tenth of the dataset out each time to act as a test set • Train on the remaining training set • Measure performance on the test set • Leave one out cross-validation • Similar, but leave only one point out each time, then count correct vs. incorrect
Noise and Overfitting • Can we always obtain a decision tree that is consistent with the data? • Do we always want a decision tree that is consistent with the data? • Example: Predict Carleton students who become CEOs • Features: state/country of origin, GPA letter, major, age, high school GPA, junior high GPA, ... • What happens with only a few features? • What happens with many features?
Overfitting • Fitting a classifier “too closely” to the data • finding patterns that aren’t really there • Prevented in decision trees by pruning • When building trees, stop recursion on irrelevant attributes • Do statistical tests at node to determine if should continue or not

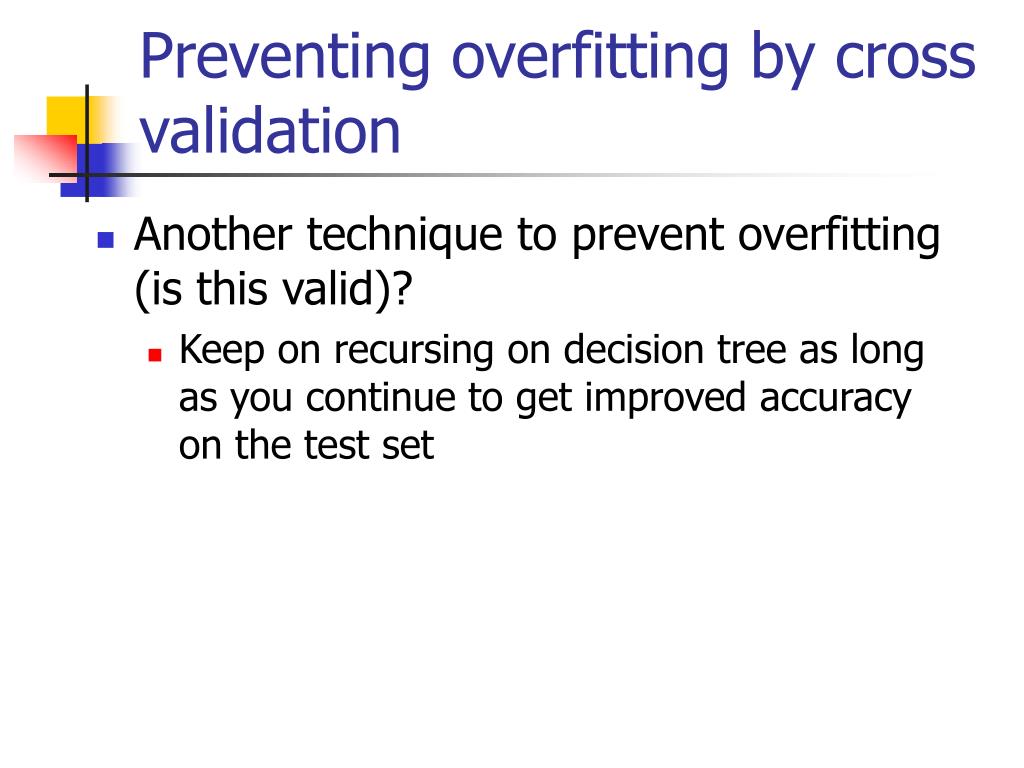

Preventing overfitting by cross validation • Another technique to prevent overfitting (is this valid)? • Keep on recursing on decision tree as long as you continue to get improved accuracy on the test set
Ensemble Methods • Many “weak” learners, when combined together, can perform more strongly than any one by itself • Bagging & Boosting: many different learners, voting on which classification • Multiple algorithms, or different features, or both
Bagging / Boosting • Bagging: vote to determine answer • Run one algorithm on random subsets of data to obtain multiple classifiers • Boosting: weighted vote to determine answer • Each iteration, weight more heavily data that learner got wrong • What does it mean to “weight more heavily” for k-nn? For decision trees? • AdaBoost is recent (1997) and has become popular, fast
Chapter 20 up next • Moving on to Chapter 20: statistical learning methods • Skipping to: will revisit earlier topics (perhaps) near end of course • 20.5: Neural Networks • 20.6: Support vector machines
