  1. Combinational Design,Part 3: Functional Blocks Chapter 3 (Sections 6, 7, 8, 9)

  2. Topics • Rudimentary Logic Functions: Value fixing, Transferring, and Inverting • Common Logic Functions • Decoders • Encoders • Multiplexers

  3. Table 3-3 Value Fixing, Transferring, Inverting • 4 possible functions of one variable • constants (0,1) • Transfer • Invert

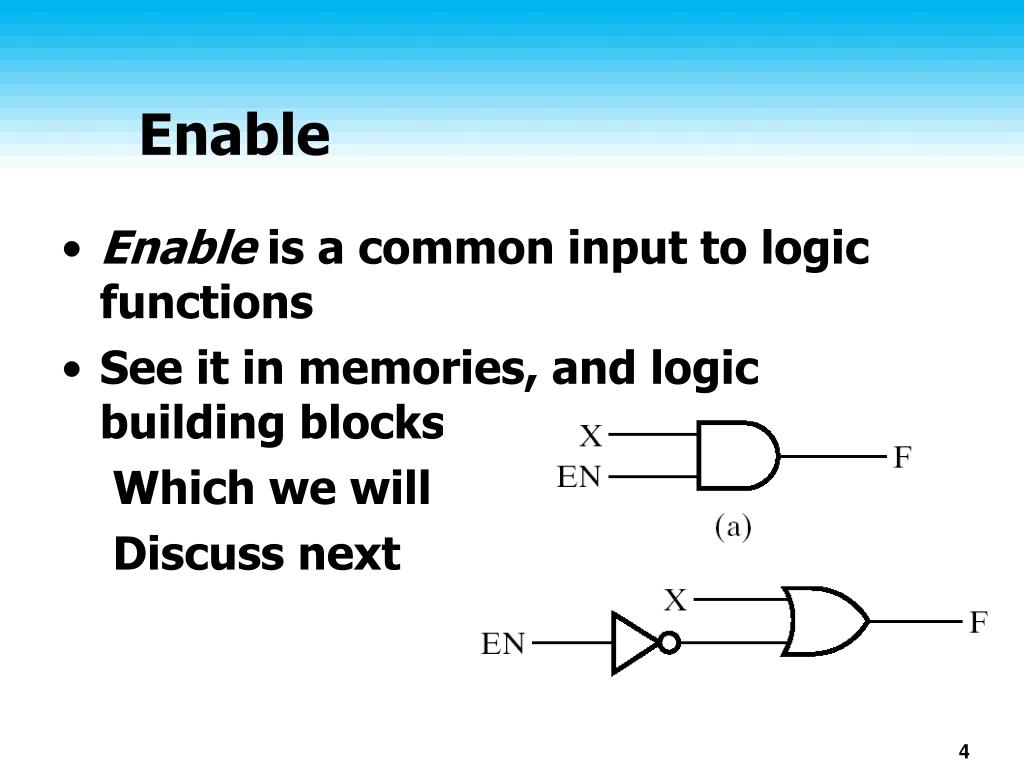

  4. Enable • Enable is a common input to logic functions • See it in memories, and logic building blocks Which we will Discuss next

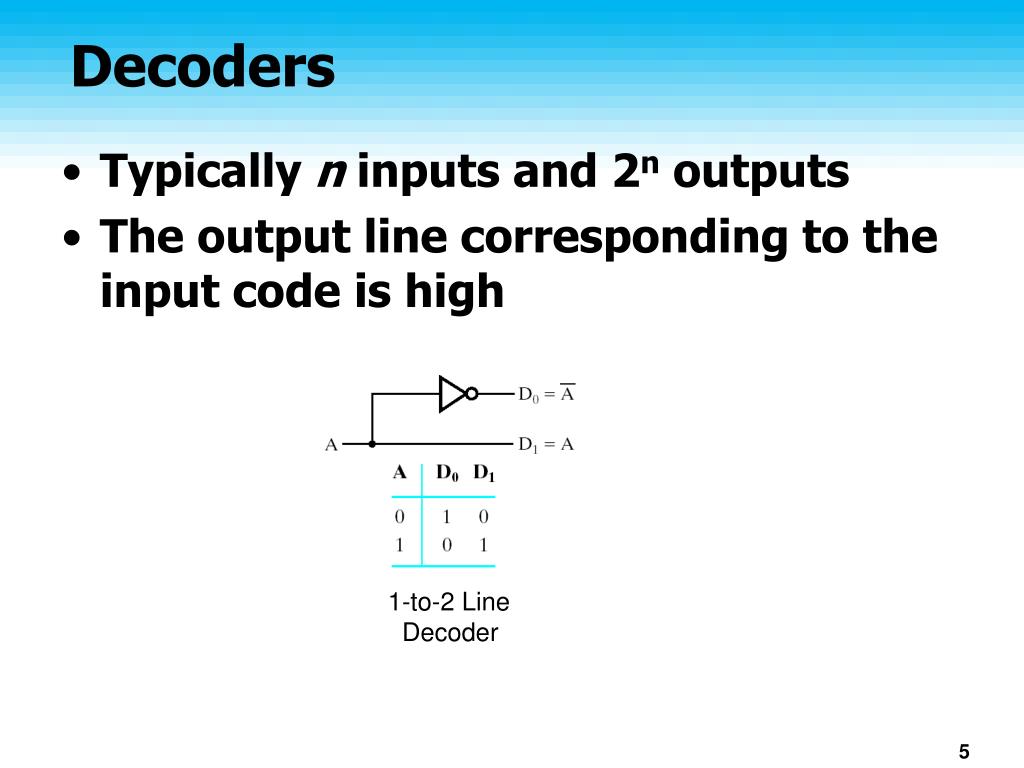

  5. 1-to-2 Line Decoder Decoders • Typically n inputs and 2n outputs • The output line corresponding to the input code is high

  6. Decoder Examples = = = • Note that the 2-4-line made up of 2 1-to-2- line decoders and 4 AND gates. = • 2-to-4-Line Decoder A 0 A A D D D D 1 0 0 1 2 3 A 1 0 0 1 0 0 0 D A A 0 1 0 0 1 0 1 0 0 1 0 0 0 1 0 D A A 1 1 0 0 0 1 1 1 0 (a) D A A 2 1 0 D A A 3 1 0 (b)

  7. 2-to-4 Decoder with Enable

  8. Truth Table, 3-to-8 Decoder • Notice the outputs are minterms

  9. Multi-Level 3-to-8 Decoder Level 1 3-to-8 Line decoder Level 2 2-to-4 Line decoder using Level 3: 1-to-2 Line decoder Build 3-to-8 Line decoder using level 2 & level 1 decoders with 8 2-input AND gates

  10. Enable Used for Expansion

  11. …. = C0B0 B0, B1, B2, …, B7 D7= C0B7 … D8= C1B0 D15= C1B7 C0, C1, C2, …, C7 = C7B7 Multi-Level 6-to-64 Decoder …. ...

  12. Uses for Decoders • Binary number might serve to select some operation • Computer operation codes are encoded • Decoder lines might select add operation, or subtract operation, or multiply operation, etc. • Memory address lines

  13. Variations • At right • Enable not • Inverted outputs

  14. Combinational Logic Implementation ExampleUsing a Decoder and OR Gates + + + + + + • Implement the following 3 odd parity functions of the 4 variables (A7, A6, A5, A4)P1 = A7 A5 A4P2 = A7 A6 A4P4 = A7 A6 A5

  15. Combinational Logic Implementation Example Using a Decoder and OR Gates + + + + + + • Implement the following set of odd parity functions of (A7, A6, A5, A4)P1 = A7 A5 A4P2 = A7 A6 A4P4 = A7 A6 A5 • Finding sum ofminterms expressions P1 = Sm(1,2,5,6,8,11,12,15)P2 = Sm(1,3,4,6,8,10,13,15)P4 = Sm(2,3,4,5,8,9,14,15)

  16. Decoder and OR Gates Example P1 A7 A6 A5 A4 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 + + + + + + P2 P4 • Implement the following set of odd parity functions of (A7, A6, A5, A4)P1 = A7 A5 A4P2 = A7 A6 A4P4 = A7 A6 A5 • Finding sum ofminterms expressions P1 = Sm(1,2,5,6,8,11,12,15)P2 = Sm(1,3,4,6,8,10,13,15)P4 = Sm(2,3,4,5,8,9,14,15) • Find circuit

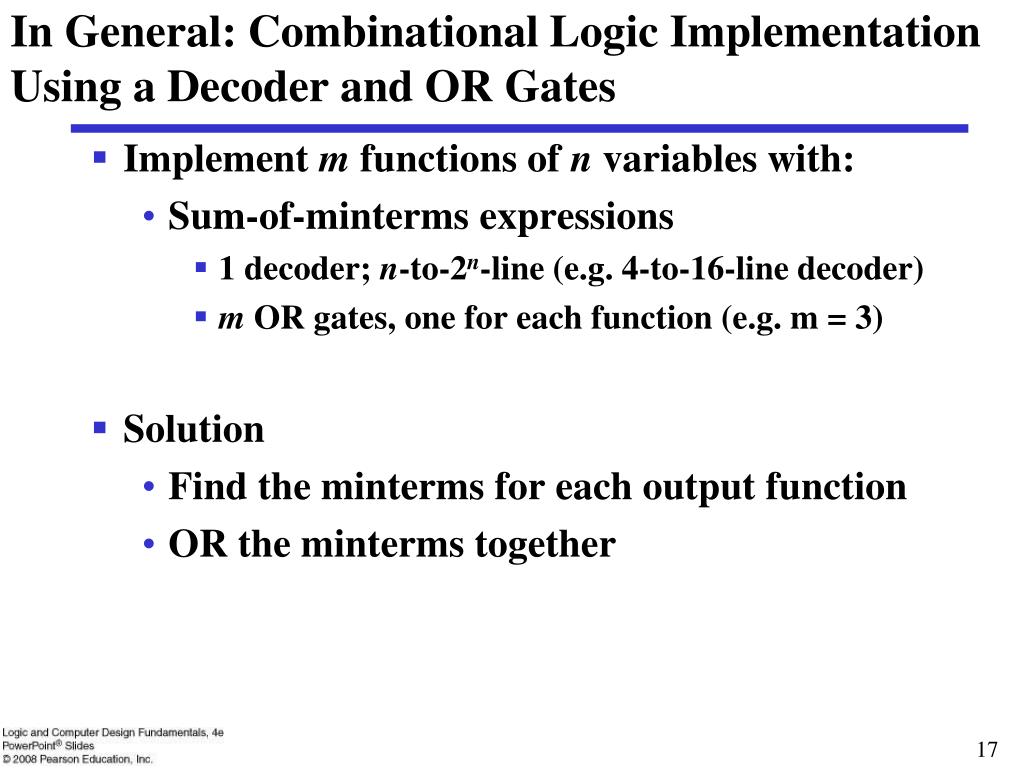

  17. In General: Combinational Logic Implementation Using a Decoder and OR Gates • Implement m functions of n variables with: • Sum-of-minterms expressions • 1 decoder; n-to-2n-line (e.g. 4-to-16-line decoder) • mOR gates, one for each function (e.g. m = 3) • Solution • Find the minterms for each output function • OR the minterms together

  18. Encoder • Encoder is the opposite of decoder • 2n inputs • or less – 10 inputs in “Decimal to BCD” encoder: I0, I1, I2, I3, …, I9 • n outputs • 4 output lines “Decimal to BCD”encoder

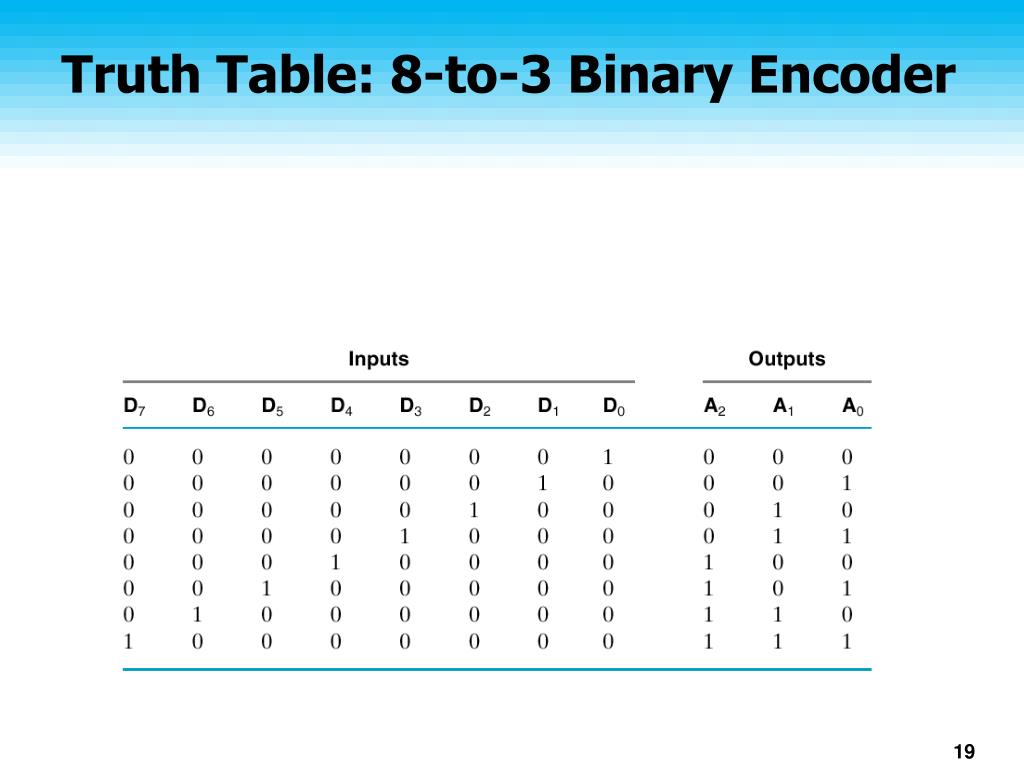

  19. Truth Table: 8-to-3 Binary Encoder

  20. Inputs are Minterms • Can OR the minterms appropriately to get each of the outputs A0, A1, A2 • Example: A0 = D1 + D3 + D5 + D7

  21. Generating Outputs using OR of Minterms • A0 = D1 + D3 + D5 + D7 • A1 = D2 + D3 + D6 + D7 • A2 = D4 + D5 + D6 + D7

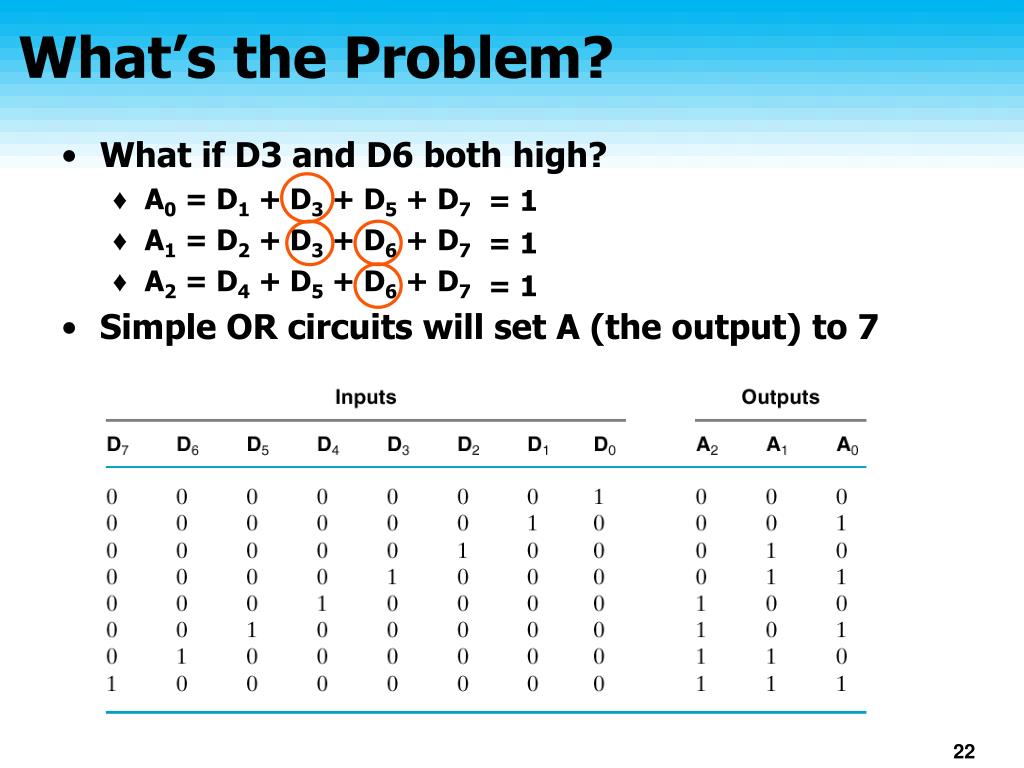

  22. What’s the Problem? = 1 • What if D3 and D6 both high? • A0 = D1 + D3 + D5 + D7 • A1 = D2 + D3 + D6 + D7 • A2 = D4 + D5 + D6 + D7 • Simple OR circuits will set A (the output) to 7 = 1 = 1

  23. Priority Encoder • if more than one input is true, produce the code of the input with highest priority • i.e. Largest number, usually • Note “don’t cares” What if all inputs are zero?

  24. Need Another Output • A “Valid” output

  25. Hide Hide Figure 3-24 Figure 4-12 Logic Diagram of a 4-Input Priority Encoder Valid is OR of inputs Hide

  26. K Map for A0 • X on an input means the circuit must generate the specified output value for both input possibilities: 0, 1 • A0 = D3 + D1 D2’ • A1 = D2+ D3

  27. A0 = D3 + D1 D2’ A1 = D2 + D3 V = D1+ D2 + D3 Figure 3-24 Figure 4-12 Logic Diagram of a 4-Input Priority Encoder Circuit of Priority Encoder

  28. Data Selector (2 to 1 Multiplexer) I0 Y I1 s Multiplexers Example: Two Input Multiplexer • If s = 0, Y = I0 , else Y = I1

  29. Two Input Mux

  30. Two Input Mux

  31. Multiplexers: • A multiplexer selectsinformation from aninput line and directs the information to anoutput line • A typical multiplexer has • nselection control inputs (Sn - 1, … S0) • 2n information data inputs (I2n- 1, … I0) • one output Y

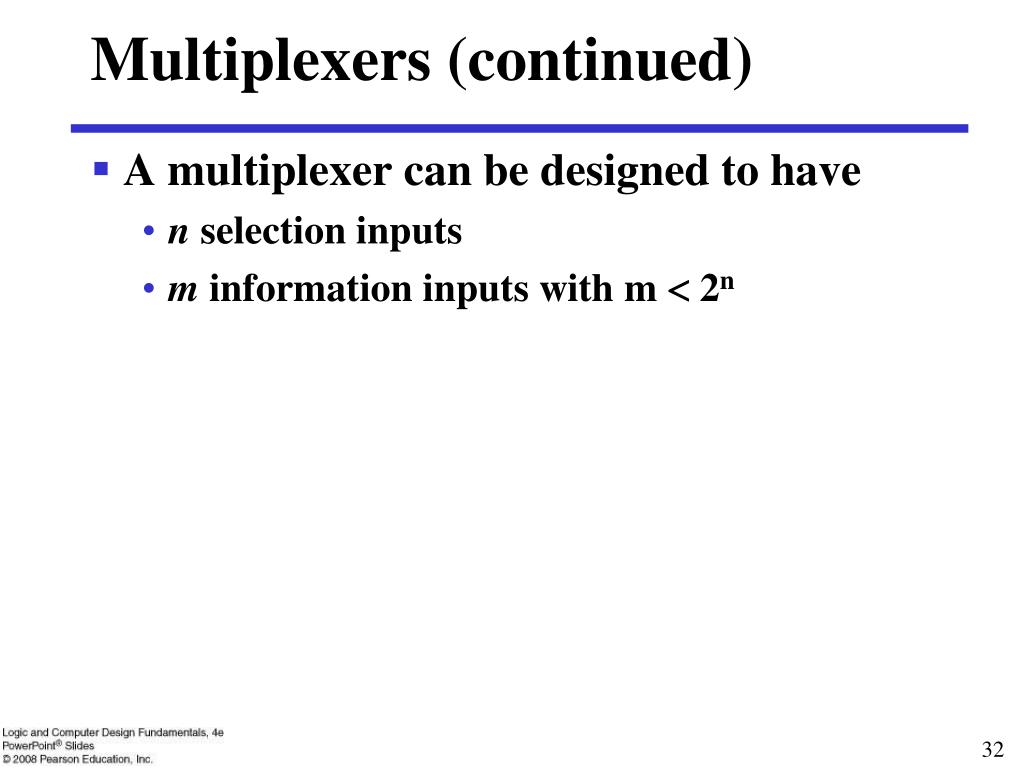

  32. Multiplexers (continued) • A multiplexer can be designed to have • n selection inputs • m information inputs with m < 2n

  33. I0 I1 I2 I3 I0 I1 I2 I3 4-to-1-Line Multiplexer A Single Bit 4-to-1 Line Multiplexer

  34. A Single Bit 4-to-1 Line Multiplexer(cont.) Logic is a Decoder Plus4 X 2-Input AND gates feeding an OR gate

  35. Quad 2-to-1 Mux • Select 1 of 2 sets of lines: A & B; • Practical use: Select a whole 64-bit data bus from one of two sources each set has 4 lines

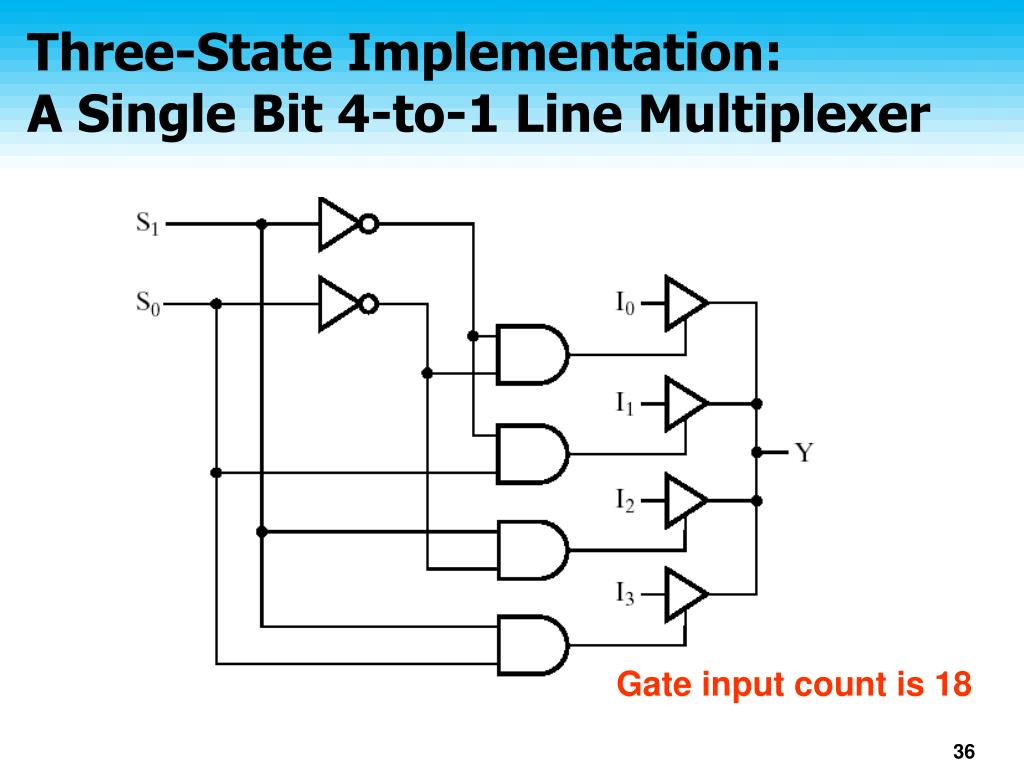

  36. Gate input count is 18 Three-State Implementation:A Single Bit 4-to-1 Line Multiplexer

  37. Binary Tree StyleThree-State Implementation:A Single Bit 4-to-1 Line Multiplexer Gate input count is 14

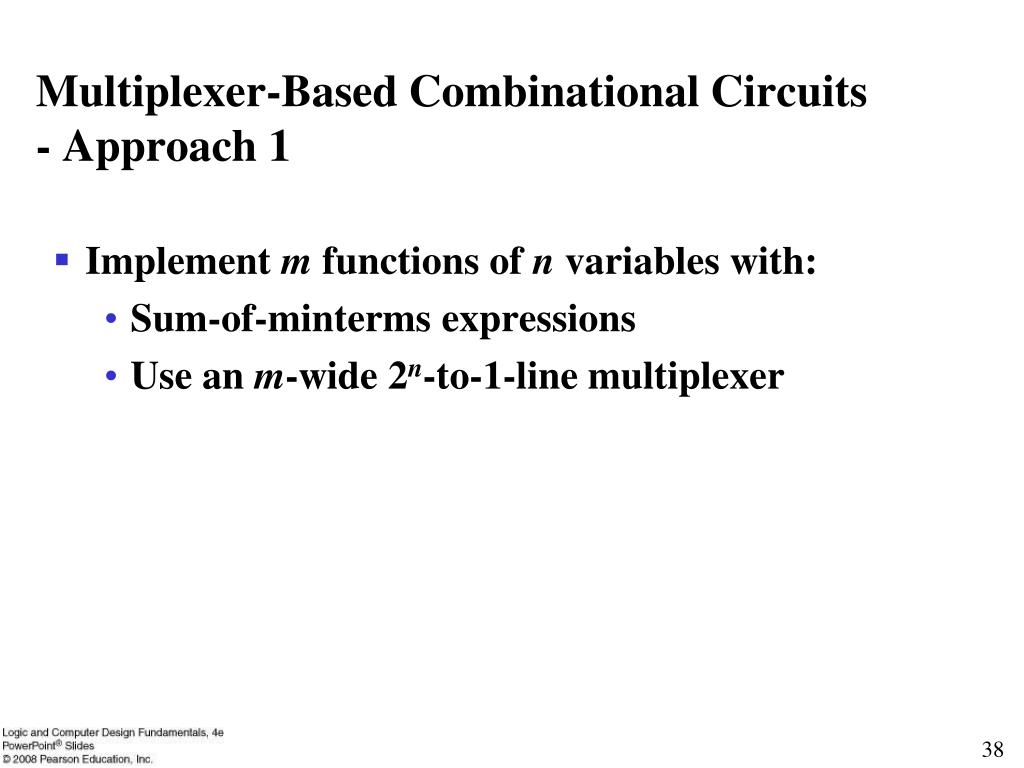

  38. Multiplexer-Based Combinational Circuits- Approach 1 • Implement m functions of n variables with: • Sum-of-minterms expressions • Use an m-wide 2n-to-1-line multiplexer

  39. Example: Gray to Binary Code Converter Gray Binary A B C x y z 0 0 0 0 0 0 1 0 0 0 0 1 1 1 0 0 1 0 0 1 0 0 1 1 0 1 1 1 0 0 1 1 1 1 0 1 1 0 1 1 1 0 0 0 1 1 1 1 • Design a circuit to convert a 3-bit Gray code to a binary code • The formulation givesthe truth table on theright • It is obvious from thistable that X = C, howeverY and Z are more complex

  40. Gray to Binary (continued) • Rearrange the table sothat the input combinationsare in counting order • x = C; functions y and z can be implemented usinga dual 8-to-1-line multiplexers as follows: • connect A, B, and C to the multiplexer select inputs: S2, S1, S0 • place y and z on the two multiplexer outputs • apply their respective truth table values to the inputs

  41. Gray to Binary (continued) 0 0 D10 D00 1 D11 D01 1 1 D12 D02 1 0 D13 D03 0 D14 1 0 D04 Out Z Y Out 0 1 D15 D05 0 1 D16 D06 1 D17 0 D07 A S2 A S2 8-to-1 8-to-1 S1 B S1 B MUX MUX S0 S0 C C

  42. Implementation of any m functions of n variables using an m-wide 2n-to-1 multiplexer: Approach 1 • Find the truth table for the functions • In the order they appear in the truth table: • Apply the function input variables to the multiplexer selection control inputs Sn - 1, … , S0 • Label the outputs of the multiplexer with the output functions • Value-fix the information inputs of the multiplexer using the values from the truth table (for don’t cares, apply either 0 or 1)

  43. Combinational Logic Implementation- Multiplexer Approach 2 • Implement any m functions of n + 1 variables by using: • An m-wide 2n-to-1-line multiplexer • A single inverter

  44. Example: Gray to Binary Code Converter Gray Binary A B C x y z 0 0 0 0 0 0 1 0 0 0 0 1 1 1 0 0 1 0 0 1 0 0 1 1 0 1 1 1 0 0 1 1 1 1 0 1 1 0 1 1 1 0 0 0 1 1 1 1 • Implement the 3 functions: x, y, z of 2 (A, B) + 1 (C) variables by using: • An 3-wide 22-to-1-line multiplexer • A single inverter

  45. Gray to Binary (continued) F = C F = C F = C F = C F = C F = C F = C F = C • Rearrange the table so that the input combinations are in counting order • pair rows • find rudimentary functions

  46. Gray to Binary (continued) C C D10 D00 D11 C C C C C D01 C D12 Y Out Z D02 Out C C D13 D03 4-to-1 4-to-1 A A S1 S1 MUX MUX S0 S0 B B • Assign the variables & functions to the multiplexer inputs/outputs • Note that this approach (Approach 2) reduces the cost by almost half compared to Approach 1.

  47. Combinational Logic Implementation- Multiplexer Approach 2 C C • Implement any m functions of n + 1 variables by using: • An m-wide 2n-to-1-line multiplexer • A single inverter • Design: • Find the truth table for the functions. • Based on the values of the first n variables, separate the truth table rows into pairs • If the n+1 variable is C, then the set of rudimentary functions defined on C is S = (0, 1, C, ) • For each pair of rows of the truth table and output, choose the correct rudimentary function, F(C) of the variable C from the set S • Using the first n variables as the index, value-fix the information inputs to the multiplexer with the corresponding rudimentary functions • Use the inverter to generate the rudimentary function

  48. 1-to-4-Line Demultiplexer Demultiplexer • Takes one input • Out to one of 2n possible outputs

  49. Demux is a Decoder with an Enable

  50. A Demux Using NAND Gates:A Decoder with an Enable
