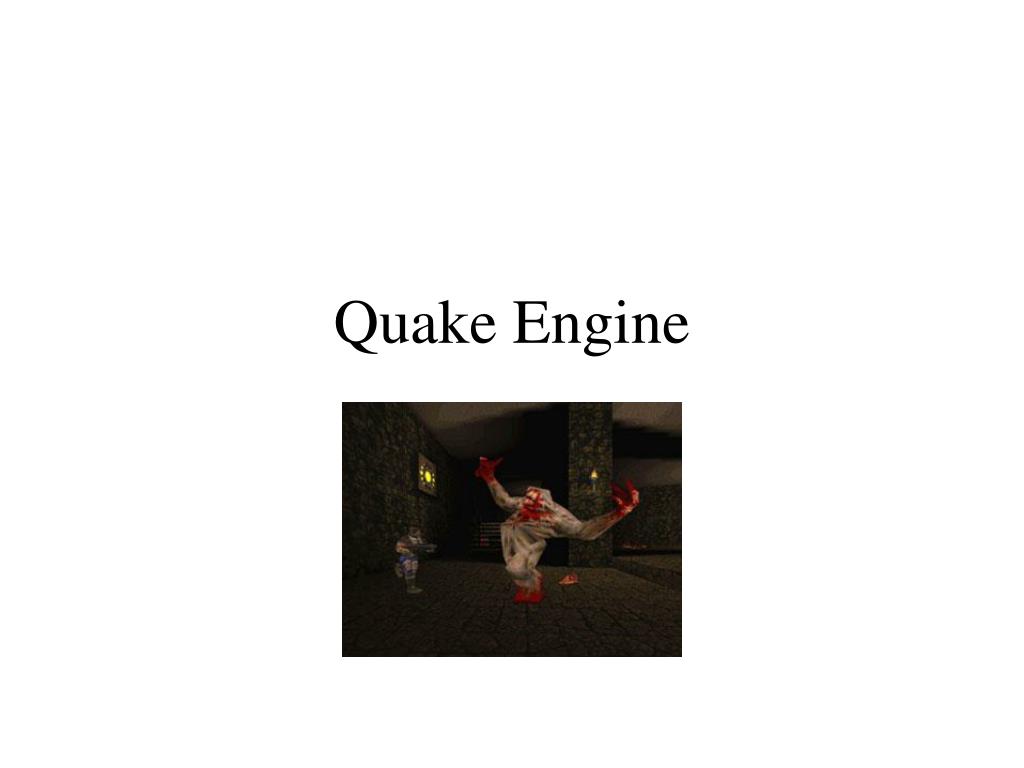

  1. Quake Engine

  2. THE QUAKE ENGINE IS OLD (relatively) • Made in 1996 to power the game of the same name. • id’s follow up to the immensely popular “DOOM” • Made the transition from DOOM’s psuedo-3D (2.5D?) to levels and models actually rendered in 3D with polygons

  3. Graphics in the 90’s • Developers were faced with severe hardware limitations when tasked with making a 3D game that would run well on the average 90’s Home computer. • Solution: Pre-processing, getting rid of any and all superfluous polygons, and other loopholes.

  4. Binary Space Partitioning Tree • The world is divided into convex subspaces. • If a node is not inside the viewing frustum, then neither are it’s descendants. • The problem is obscured polygons inside the frustum. • Painter’s Algorithm: BAD FOR GAMES.

  5. Potentially Visible Set • Rather than have an algorithm determine what is visible during valuable rendering time, the developers decided to just attach to each leaf in the BSP tree, a list of every other leaf visible from that one. • Naturally, this method does not work for moving objects.

  6. Moving Objects • Moving objects in a BSP tree are a pain to keep track of and there are extra polygons produced when the model is between subspaces. • First, the non-moving world is produced with its BSP tree and its Z values are stored in a Z-Buffer. Then the moving objects are drawn using Z-Buffering to determine which are visible

  7. Getting Rid of More Things • Distant objects are indistinguishable blobs anyway. Why waste rendering time? • “Subdivision Rasterization” • The difference is not noticeable until close distances so most objects use this method

  8. Lighting • Smooth shading is bad for large polygons. • During pre-processing, lightmaps are made for polygons by casting light from close sources. • During runtime, textures are applied to polygons and are lit according to the pre-made maps.

  9. Lighting Models • Smooth Shading is fine for moving models. • The intensity of ambient light is determined by the lightmap on the floor. • Constant light vector

  10. Sources • “Ramblings in Realtime” by Michael Abrash. • Images Obtained from Wikipedia, a Google image search, and the aforementioned article.
