DINGMANS CREEK LET’S VEGETATE THE MEGA-SLIDE SITE

DINGMANS CREEK DELAWARE WATER GAP NATIONAL RECREATION AREA NATIONAL PARK SERVICE STREAM DAMAGED DURING BIG RAIN IN JUNE 2005 3 PROJECTS VEGETATED July 22-24, 2008. DINGMANS CREEK LET’S VEGETATE THE MEGA-SLIDE SITE. THE PLAN.

sari
Télécharger la présentation

DINGMANS CREEK LET’S VEGETATE THE MEGA-SLIDE SITE

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. DINGMANS CREEK DELAWARE WATER GAP NATIONAL RECREATION AREA NATIONAL PARK SERVICE STREAM DAMAGED DURING BIG RAIN IN JUNE 20053 PROJECTS VEGETATED July 22-24, 2008

  2. DINGMANS CREEKLET’S VEGETATE THE MEGA-SLIDE SITE

  3. THE PLAN • For approximately 400 ft Dingmans Creek had been flowing against the left valley wall (estimated height 100 ft). The amount of fine sediment delivered to the stream was monumental. • This project is designed to increase roughness on the left bank floodplain using Large Woody Debris (LWD) & vegetation. This increased roughness would decrease the likelihood of the stream jumping back (avulsion) into the former channel. • Plantings of 20+ species of trees & shrubs on both banks will result in a continuous riparian corridor on both sides of the stream & will increase bank stability.

  4. DINGMANS CREEKMEGA-SLIDE SITEPRE-PLANTING PHOTOS by DAVE DERRICK JULY 23, 2008

  5. THE LEFT OVERBANK(MEGA-SLIDE SIDE)

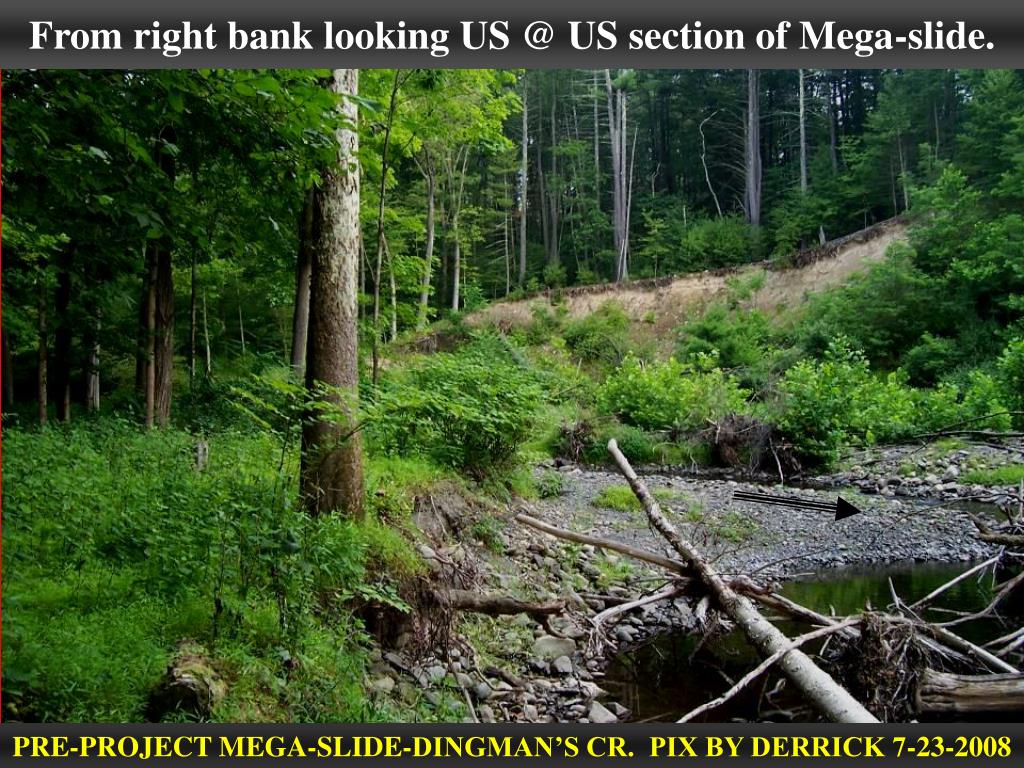

  6. From right bank looking US @ US section of Mega-slide. PRE-PROJECT MEGA-SLIDE-DINGMAN’S CR. PIX BY DERRICK 7-23-2008

  7. Looking US @ a vegetated section of the Mega-slide, worth imitating. Note wood jam at bend in stream (foreground) PRE-PROJECT MEGA-SLIDE-DINGMAN’S CR. PIX BY DERRICK 7-23-2008

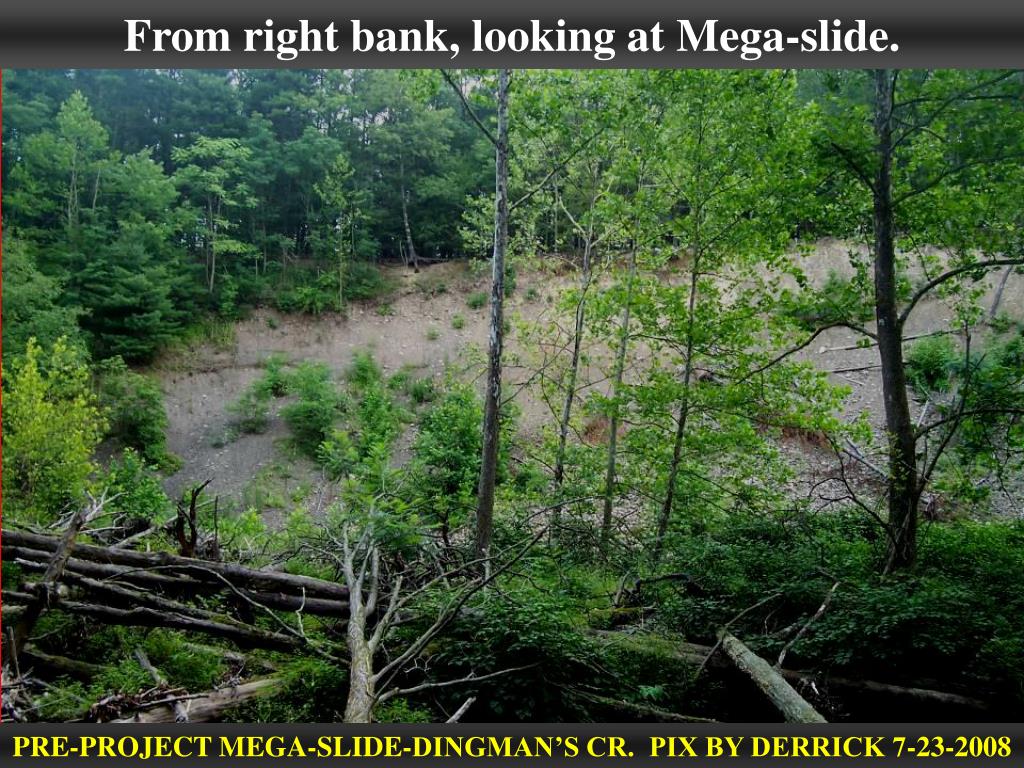

  8. From right bank, looking at Mega-slide. PRE-PROJECT MEGA-SLIDE-DINGMAN’S CR. PIX BY DERRICK 7-23-2008

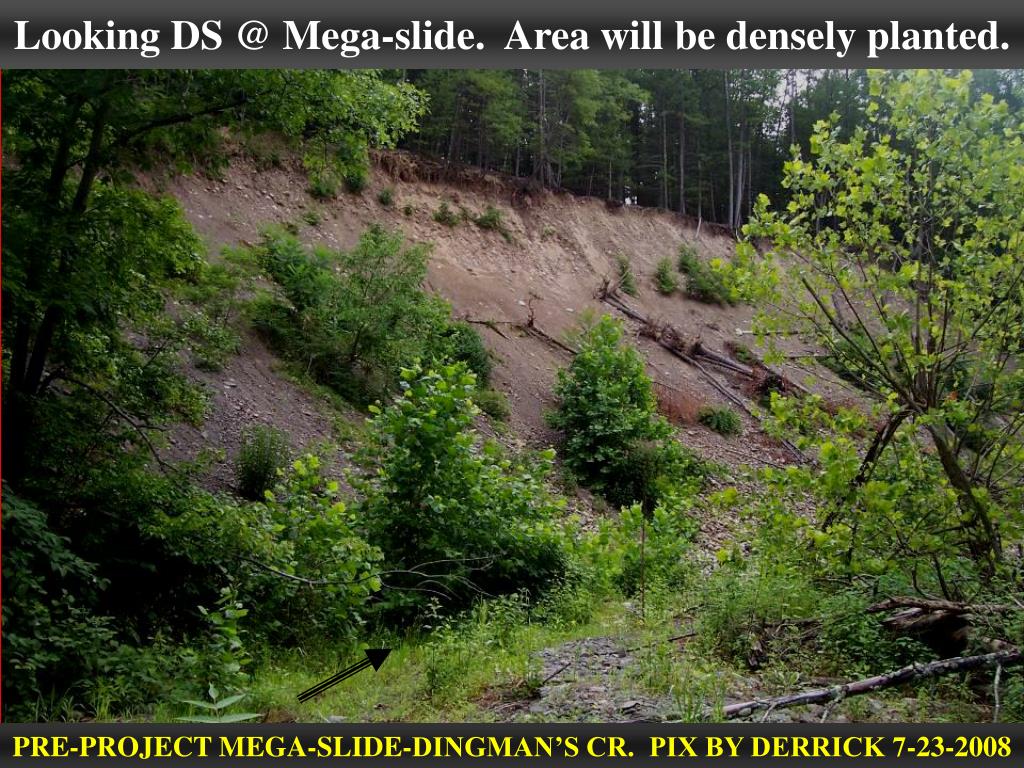

  9. Looking DS @ Mega-slide. Area will be densely planted. PRE-PROJECT MEGA-SLIDE-DINGMAN’S CR. PIX BY DERRICK 7-23-2008

  10. We will attempt to shade out & out-compete invasive exotics with native plantings. Japanese Knotweed shown here. PRE-PROJECT MEGA-SLIDE-DINGMAN’S CR. PIX BY DERRICK 7-23-2008

  11. Looking US at US end of left overbank. Many plants providing roughness. PRE-PROJECT MEGA-SLIDE-DINGMAN’S CR. PIX BY DERRICK 7-23-2008

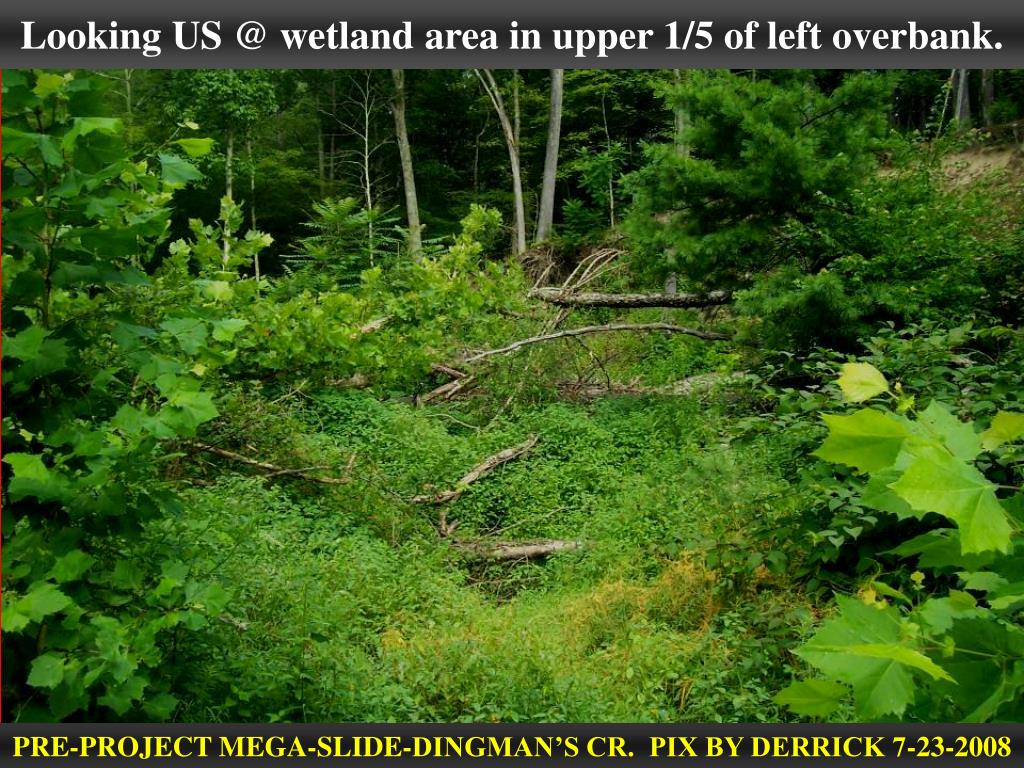

  12. Looking US @ wetland area in upper 1/5 of left overbank. PRE-PROJECT MEGA-SLIDE-DINGMAN’S CR. PIX BY DERRICK 7-23-2008

  13. During high flow stream is aimed straight at the Mega-slide. PRE-PROJECT MEGA-SLIDE-DINGMAN’S CR. PIX BY DERRICK 7-23-2008

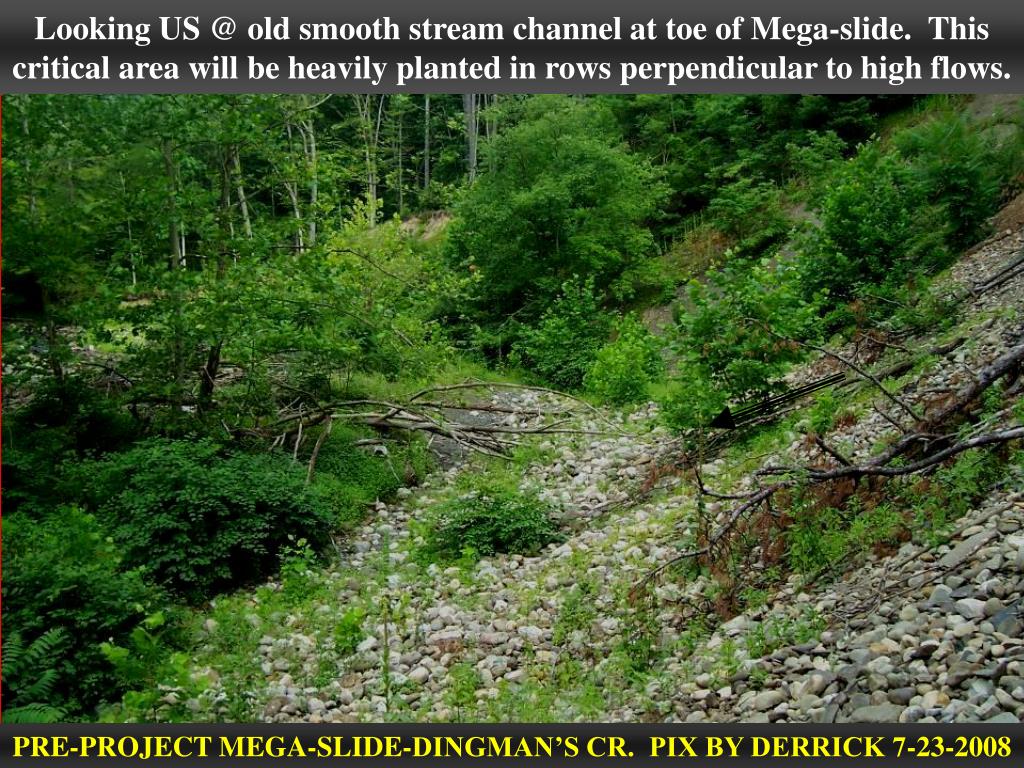

  14. Looking US @ old smooth stream channel at toe of Mega-slide. This critical area will be heavily planted in rows perpendicular to high flows. PRE-PROJECT MEGA-SLIDE-DINGMAN’S CR. PIX BY DERRICK 7-23-2008

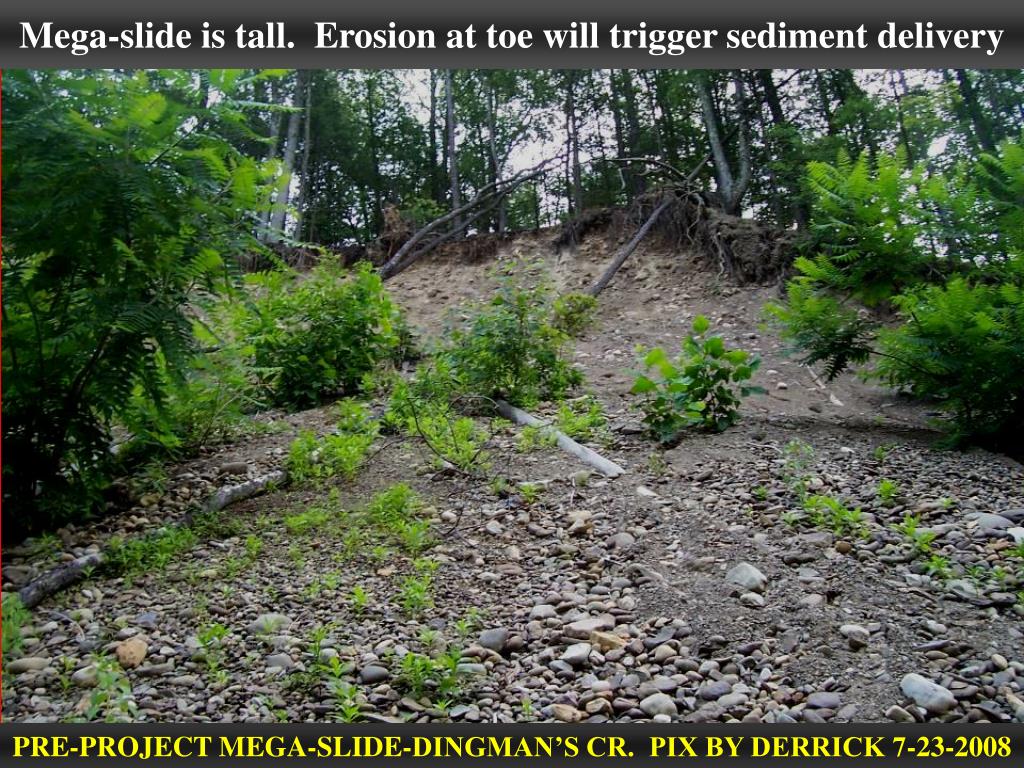

  15. Mega-slide is tall. Erosion at toe will trigger sediment delivery PRE-PROJECT MEGA-SLIDE-DINGMAN’S CR. PIX BY DERRICK 7-23-2008

  16. THE STREAM

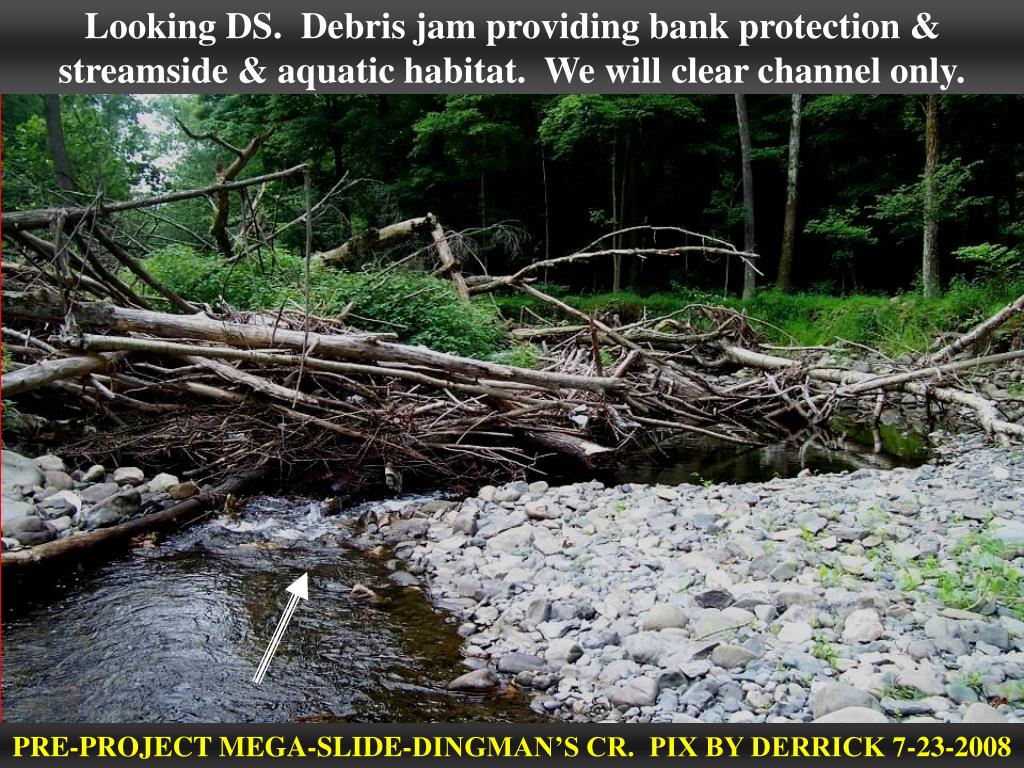

  17. Looking DS. Debris jam providing bank protection & streamside & aquatic habitat. We will clear channel only. PRE-PROJECT MEGA-SLIDE-DINGMAN’S CR. PIX BY DERRICK 7-23-2008

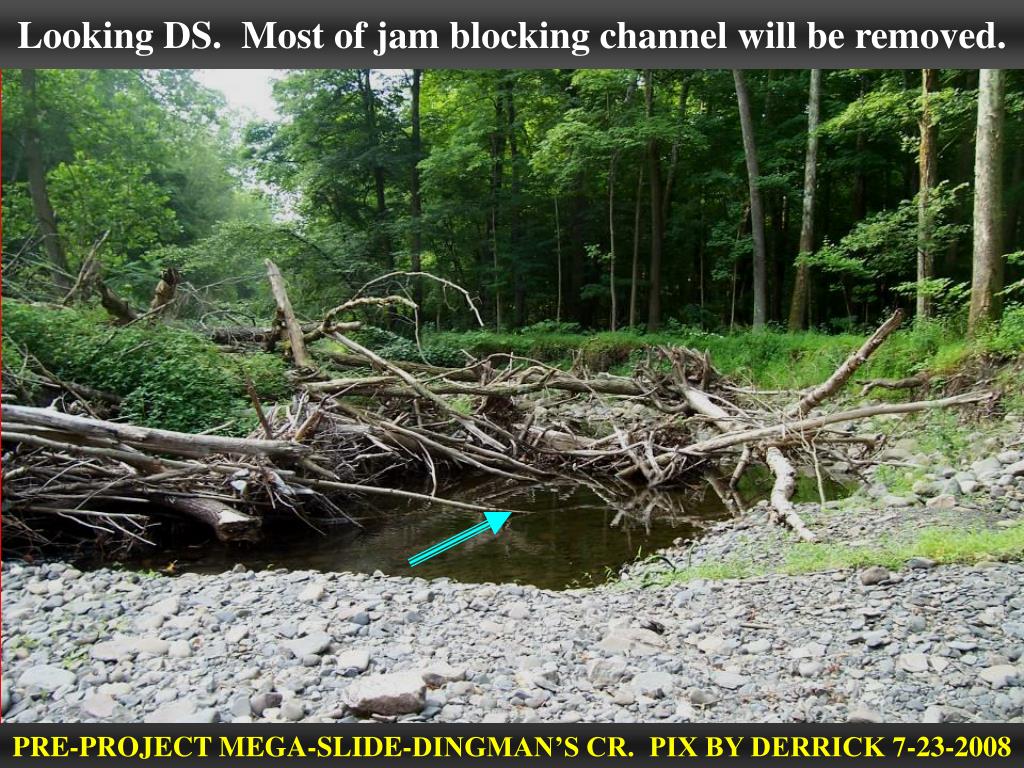

  18. Looking DS. Most of jam blocking channel will be removed. PRE-PROJECT MEGA-SLIDE-DINGMAN’S CR. PIX BY DERRICK 7-23-2008

  19. CONSTRUCTION PHOTOS OF DESNAGGING, & ROUGHENING OVERBANK WITH WOODby Dave Derrick, July 22, 2008

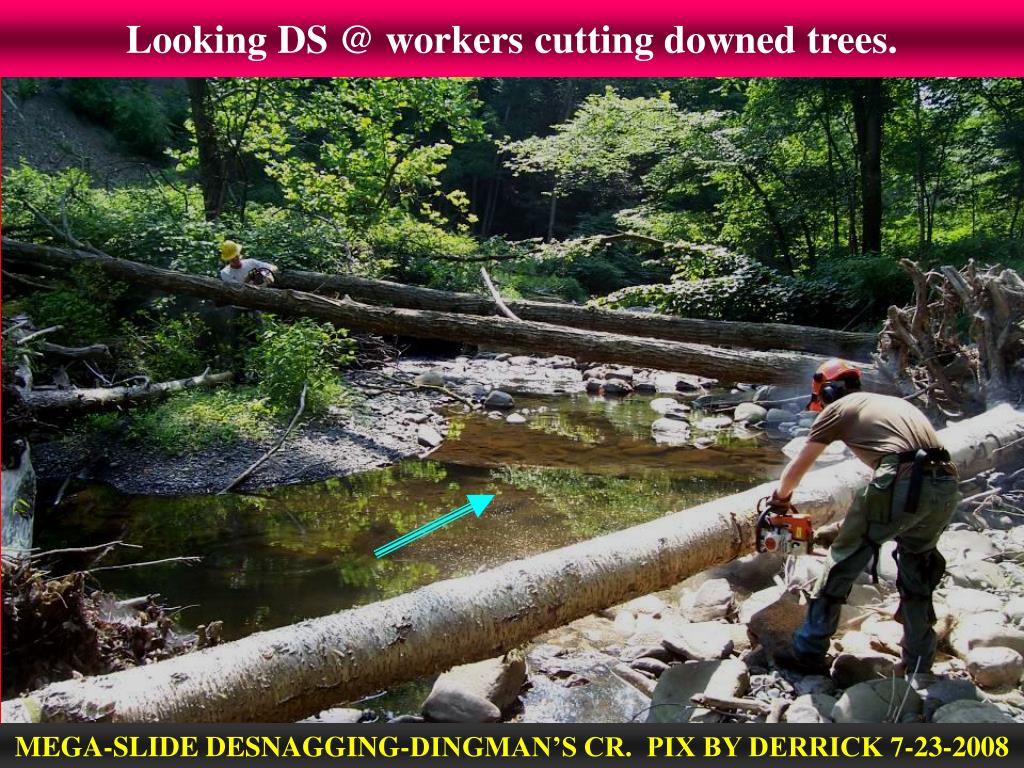

  20. Looking DS @ workers cutting downed trees. MEGA-SLIDE DESNAGGING-DINGMAN’S CR. PIX BY DERRICK 7-23-2008

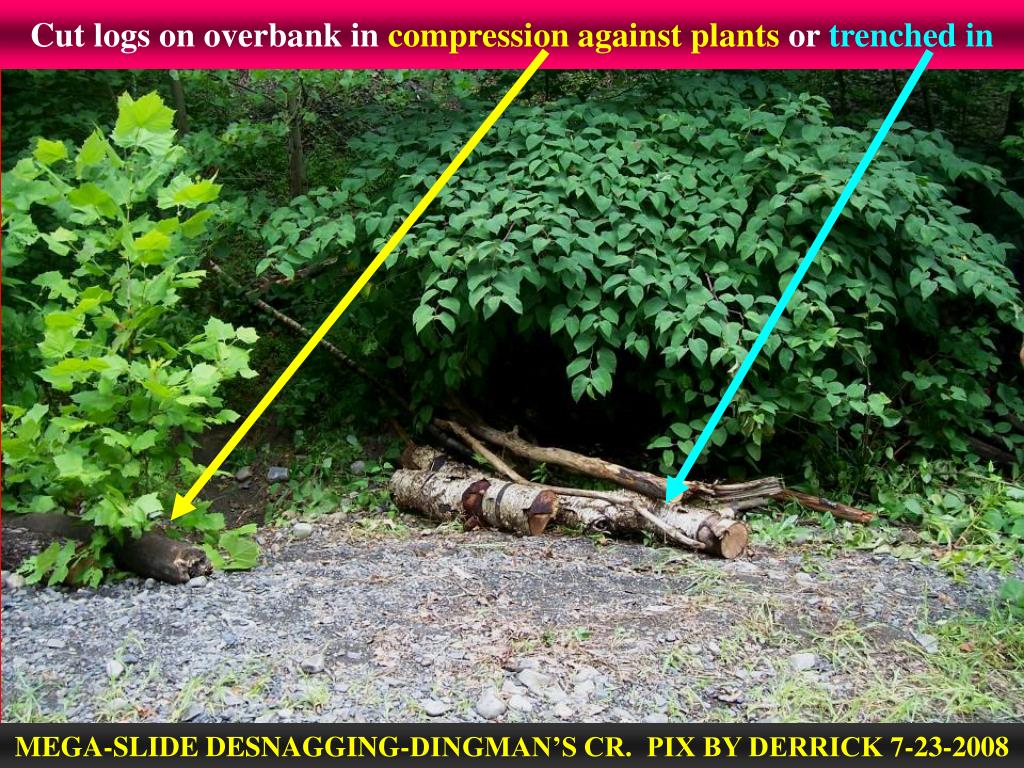

  21. Cut logs on overbank in compression against plants or trenched in MEGA-SLIDE DESNAGGING-DINGMAN’S CR. PIX BY DERRICK 7-23-2008

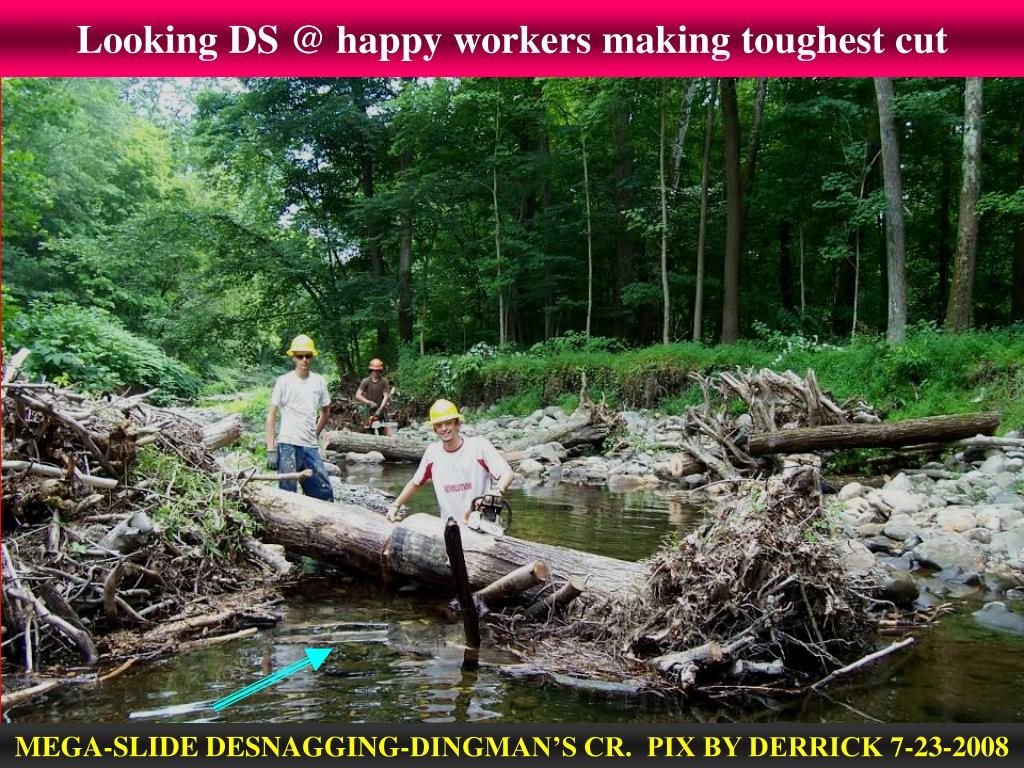

  22. Looking DS @ happy workers making toughest cut MEGA-SLIDE DESNAGGING-DINGMAN’S CR. PIX BY DERRICK 7-23-2008

  23. Large logs were cut into short pieces & dropped into stream MEGA-SLIDE DESNAGGING-DINGMAN’S CR. PIX BY DERRICK 7-23-2008

  24. Looking DS @ workers keying existing jam (that we wanted to remove but could not) into right bank MEGA-SLIDE DESNAGGING-DINGMAN’S CR. PIX BY DERRICK 7-23-2008

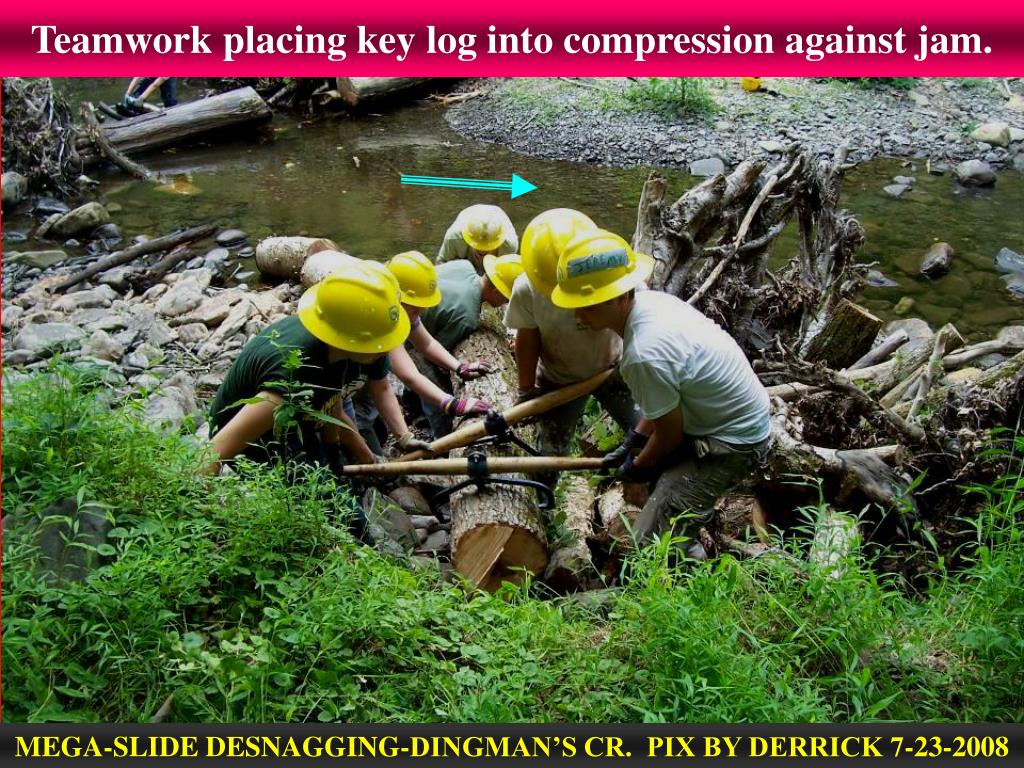

  25. Teamwork placing key log into compression against jam. MEGA-SLIDE DESNAGGING-DINGMAN’S CR. PIX BY DERRICK 7-23-2008

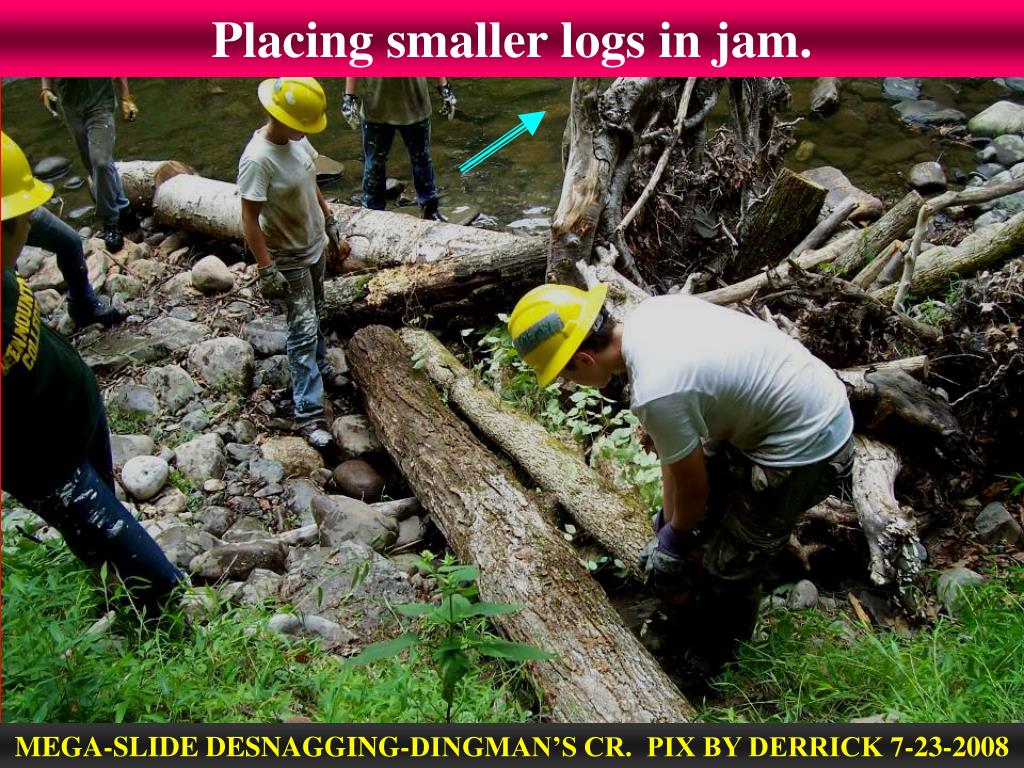

  26. Placing smaller logs in jam. MEGA-SLIDE DESNAGGING-DINGMAN’S CR. PIX BY DERRICK 7-23-2008

  27. Looking DS @ workers on jam. Rocks deposited US & to right of jam show jam was acting as a log vane. MEGA-SLIDE DESNAGGING-DINGMAN’S CR. PIX BY DERRICK 7-23-2008

  28. 2 DAYS (& 3 INCHES OF RAIN) AFTER LOG JAM KEYED INPhotos by DerrickJULY 24, 2008

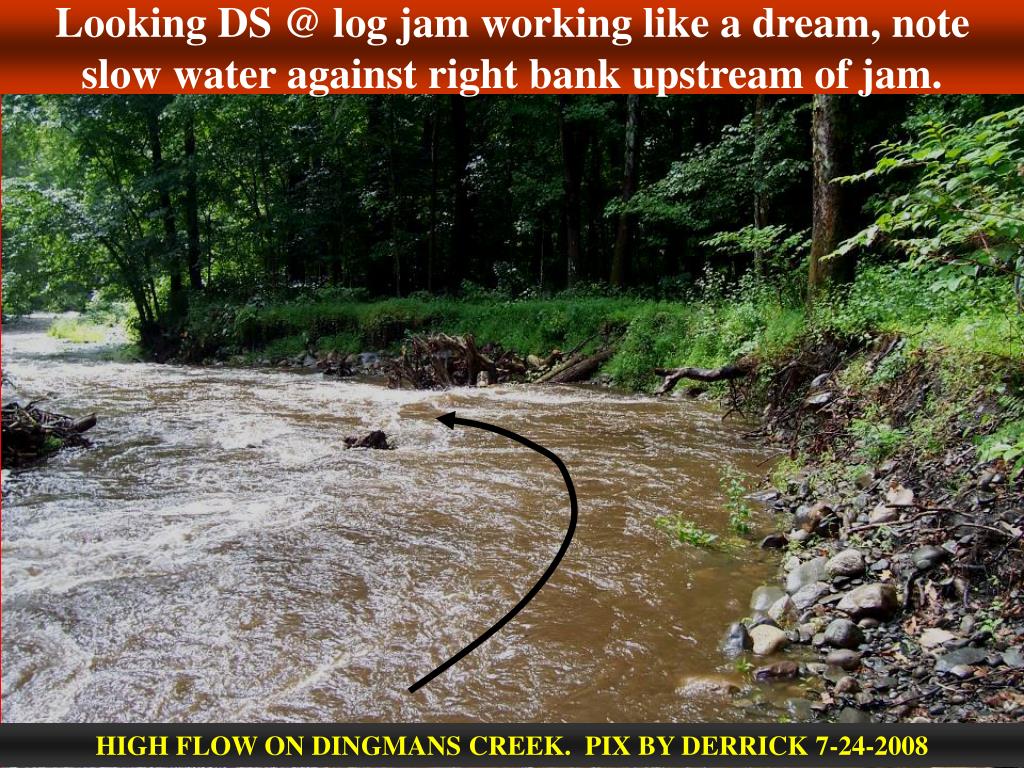

  29. Looking DS @ log jam working like a dream, note slow water against right bank upstream of jam. HIGH FLOW ON DINGMANS CREEK. PIX BY DERRICK 7-24-2008

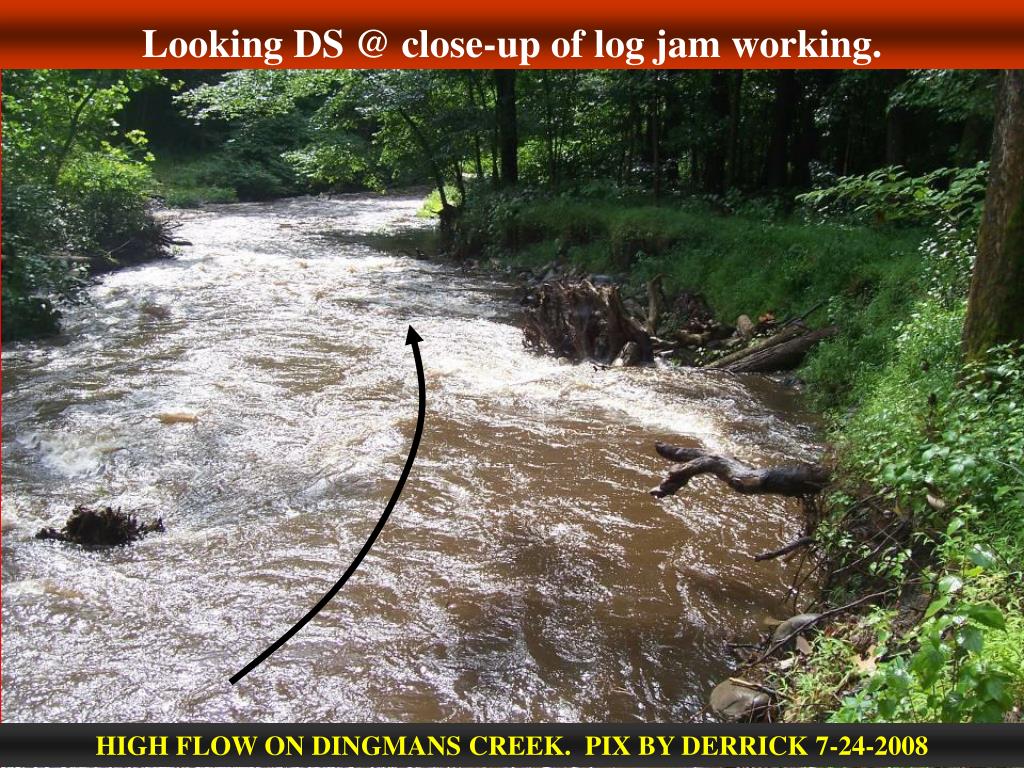

  30. Looking DS @ close-up of log jam working. HIGH FLOW ON DINGMANS CREEK. PIX BY DERRICK 7-24-2008

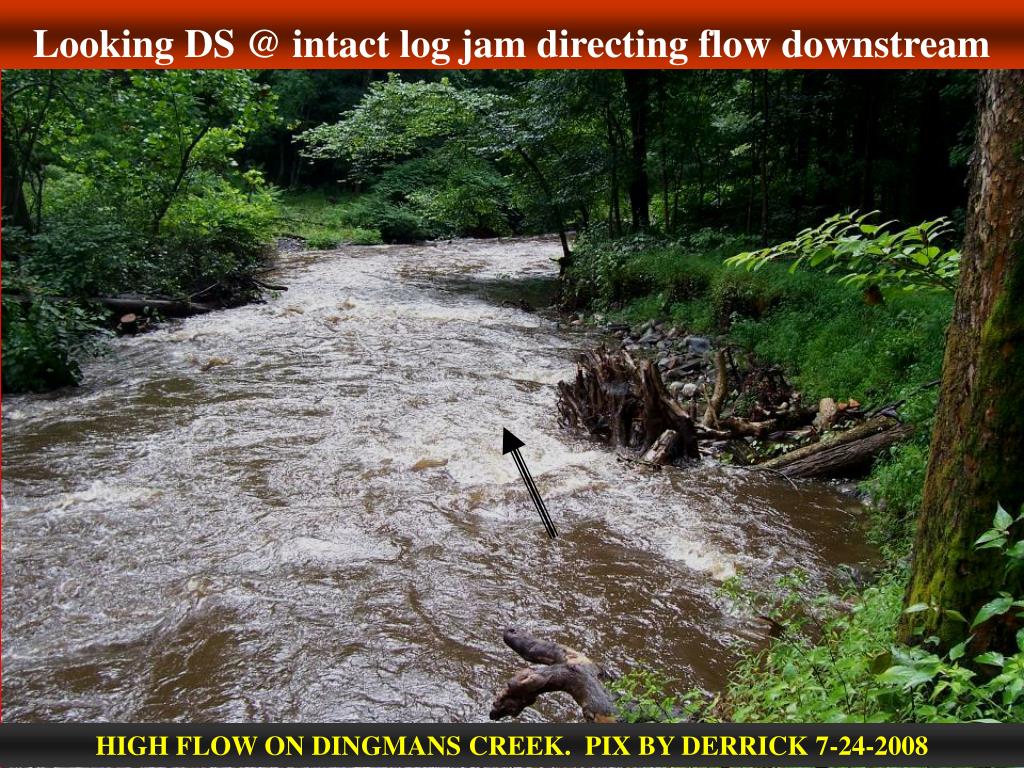

  31. Looking DS @ intact log jam directing flow downstream HIGH FLOW ON DINGMANS CREEK. PIX BY DERRICK 7-24-2008

  32. CONSTRUCTION PHOTOS OF PLANTING BOTH BANKS & THE LEFT FLOODPLAIN BENCH OF DINGMANS CREEK @ THE MEGA-SLIDEby Dave Derrick, July 25, 2008

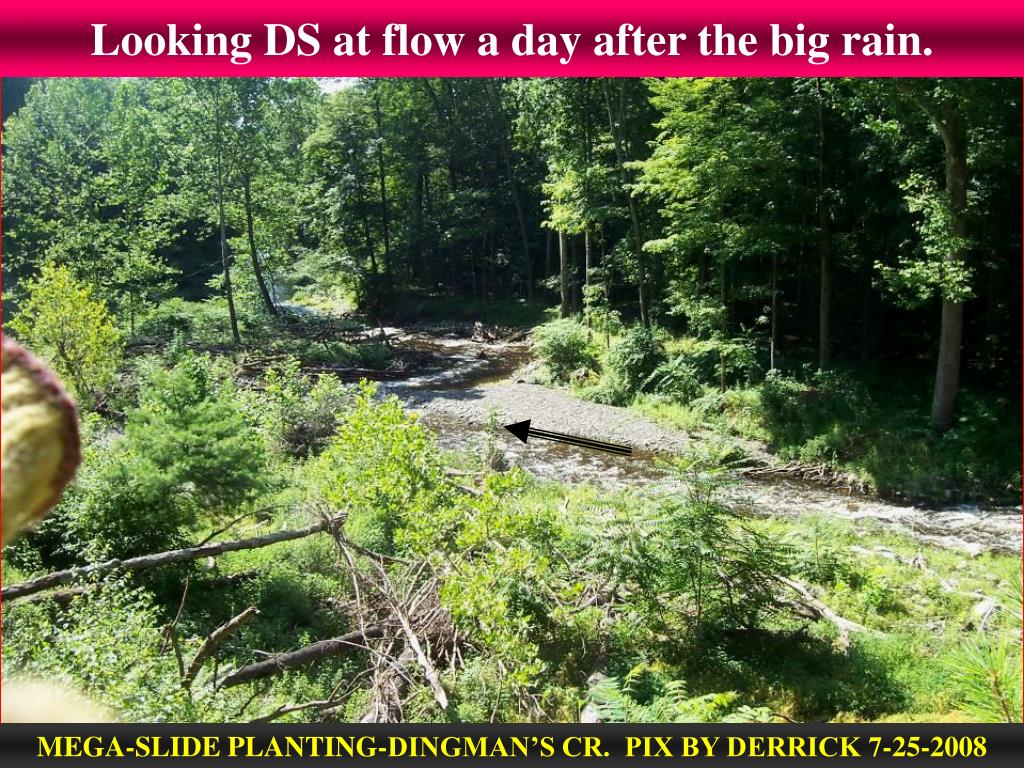

  33. Looking DS at flow a day after the big rain. MEGA-SLIDE PLANTING-DINGMAN’S CR. PIX BY DERRICK 7-25-2008

  34. Crew busy planting the right bank. MEGA-SLIDE PLANTING-DINGMAN’S CR. PIX BY DERRICK 7-25-2008

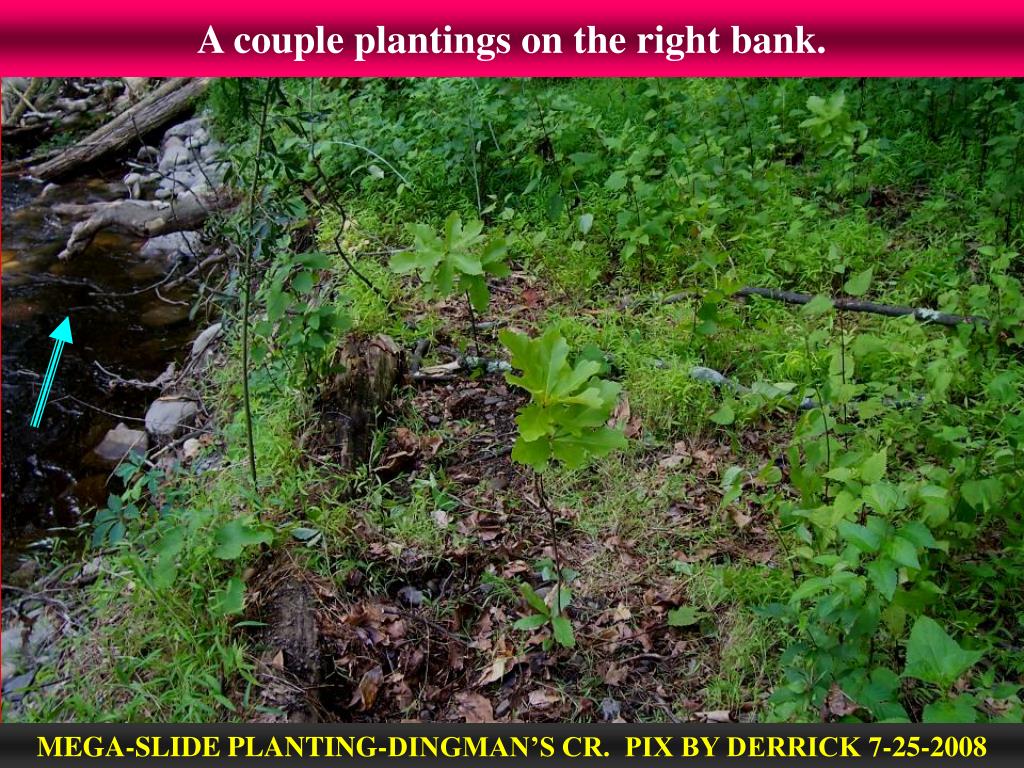

  35. A couple plantings on the right bank. MEGA-SLIDE PLANTING-DINGMAN’S CR. PIX BY DERRICK 7-25-2008

  36. Still could not cross the stream so plants had to be transported on public roads to the top of the hill above the Mega-slide. MEGA-SLIDE PLANTING-DINGMAN’S CR. PIX BY DERRICK 7-25-2008

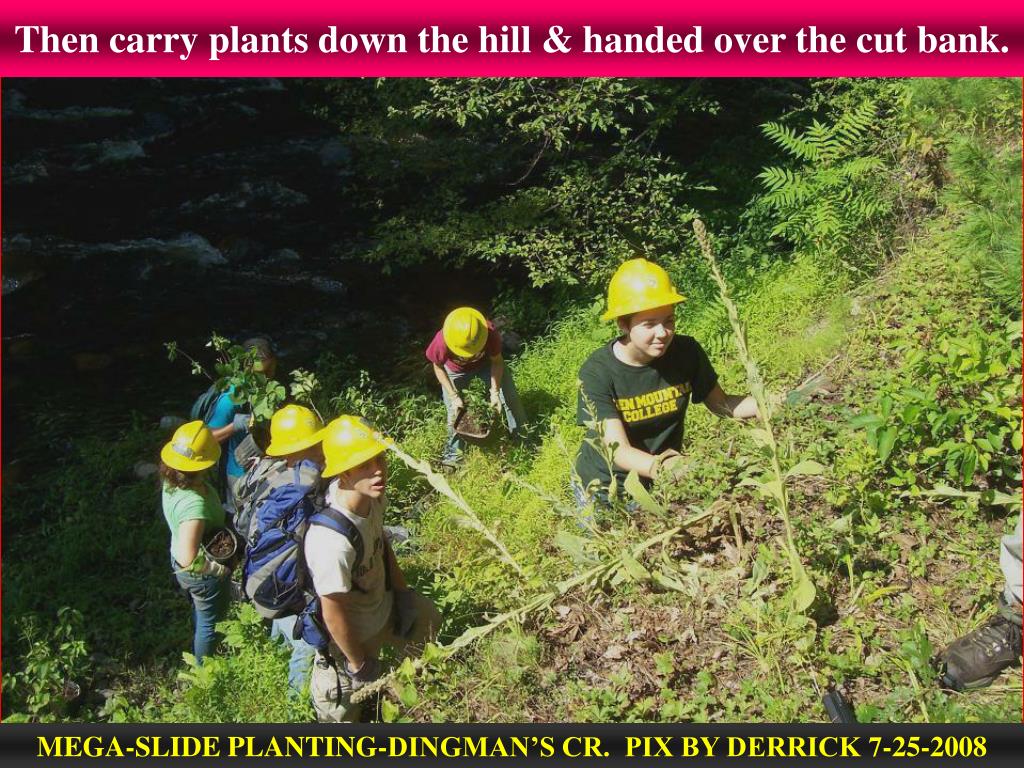

  37. Then carry plants down the hill & handed over the cut bank. MEGA-SLIDE PLANTING-DINGMAN’S CR. PIX BY DERRICK 7-25-2008

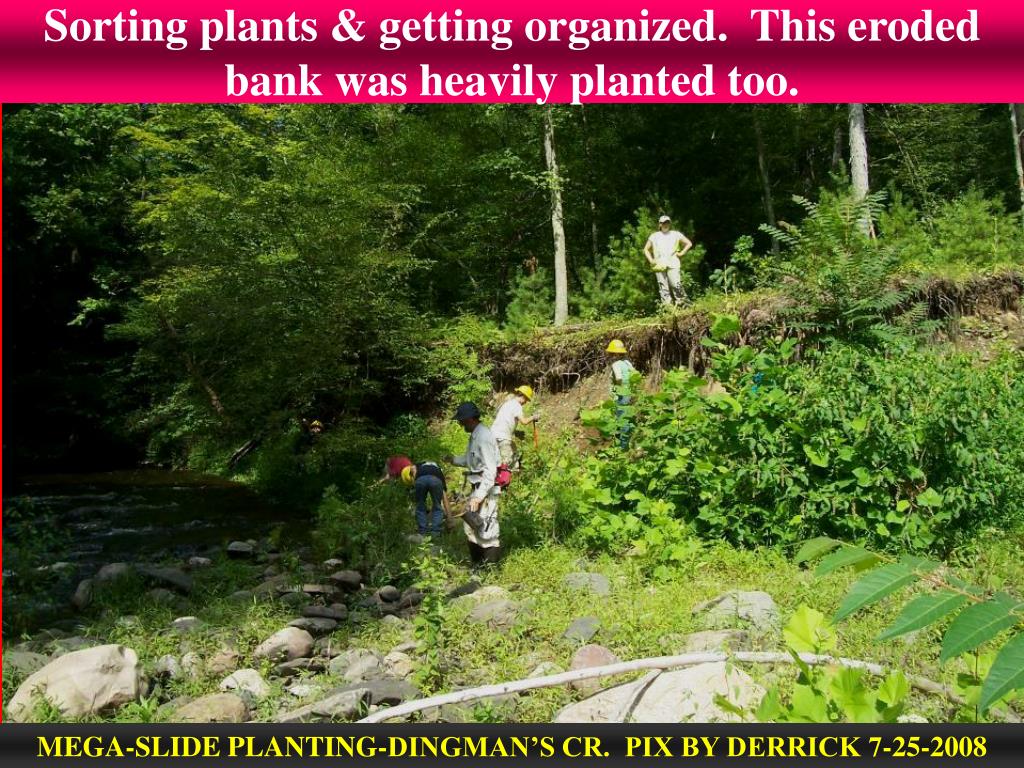

  38. Sorting plants & getting organized. This eroded bank was heavily planted too. MEGA-SLIDE PLANTING-DINGMAN’S CR. PIX BY DERRICK 7-25-2008

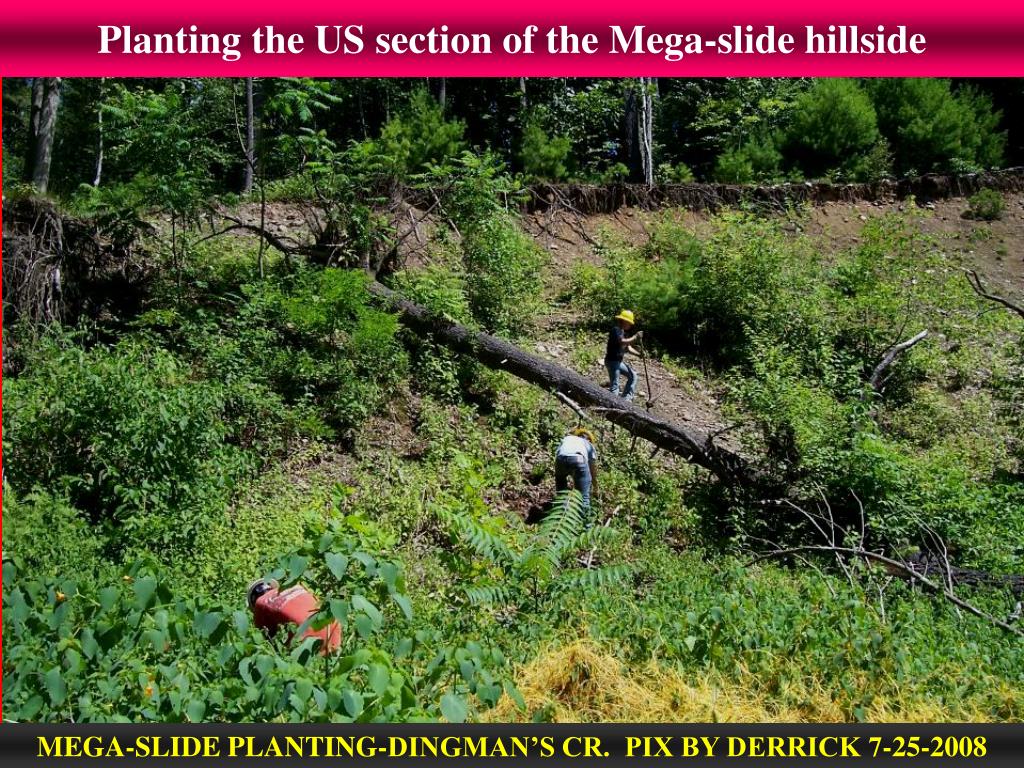

  39. Planting the US section of the Mega-slide hillside MEGA-SLIDE PLANTING-DINGMAN’S CR. PIX BY DERRICK 7-25-2008

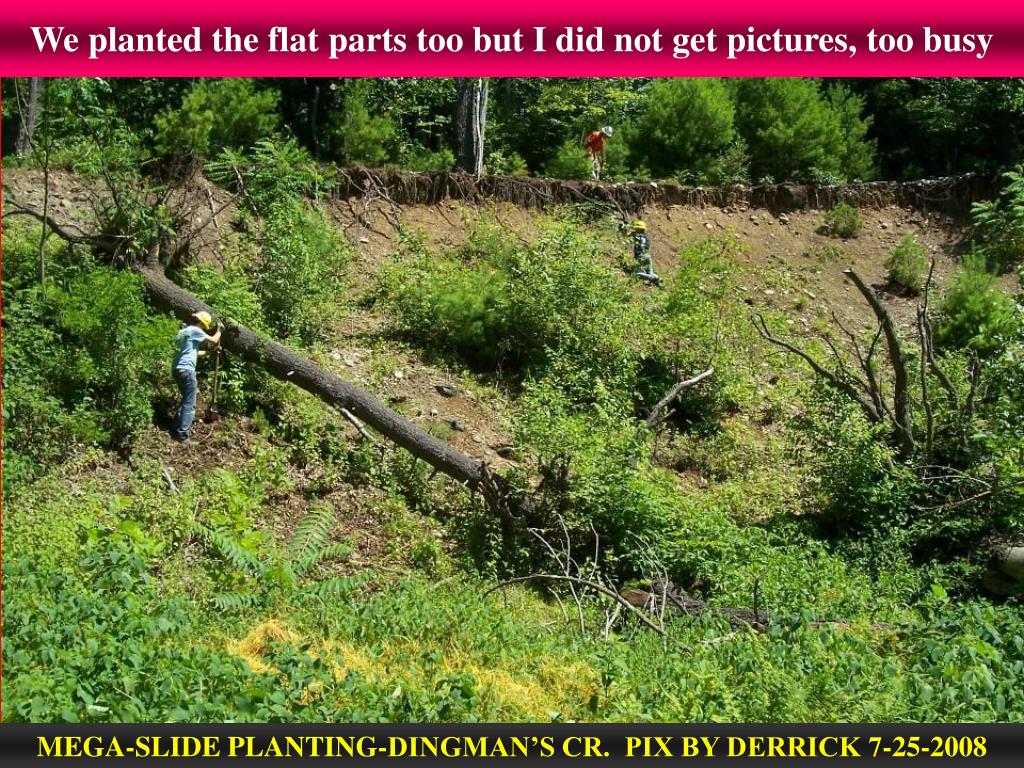

  40. We planted the flat parts too but I did not get pictures, too busy MEGA-SLIDE PLANTING-DINGMAN’S CR. PIX BY DERRICK 7-25-2008

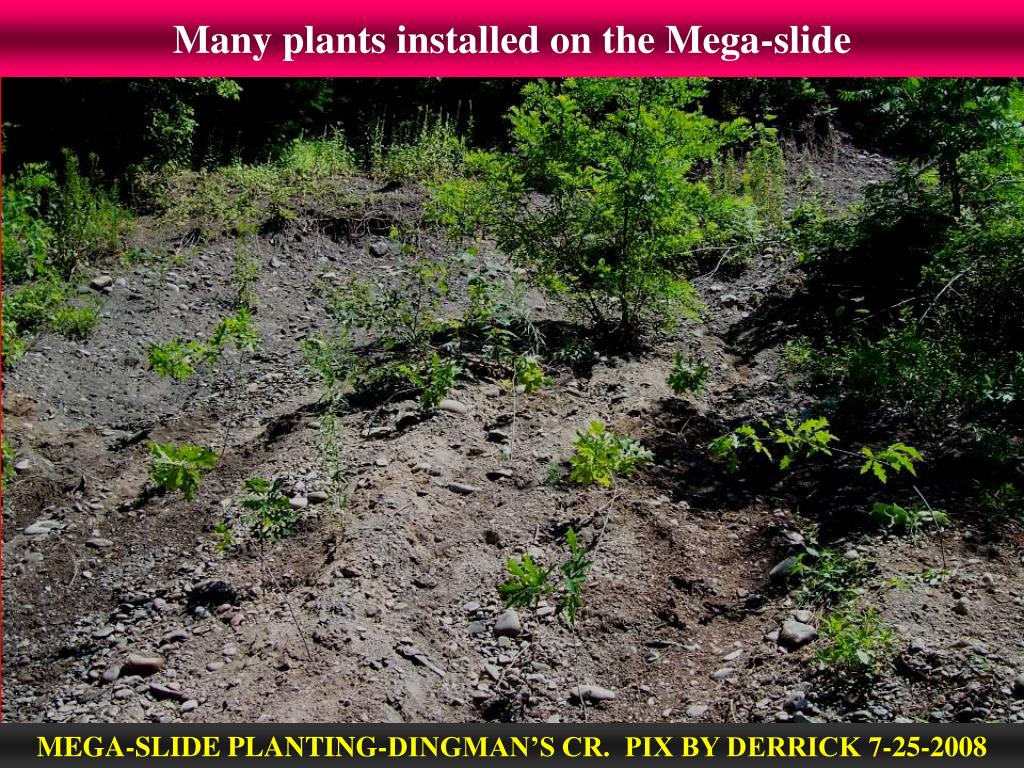

  41. Many plants installed on the Mega-slide MEGA-SLIDE PLANTING-DINGMAN’S CR. PIX BY DERRICK 7-25-2008

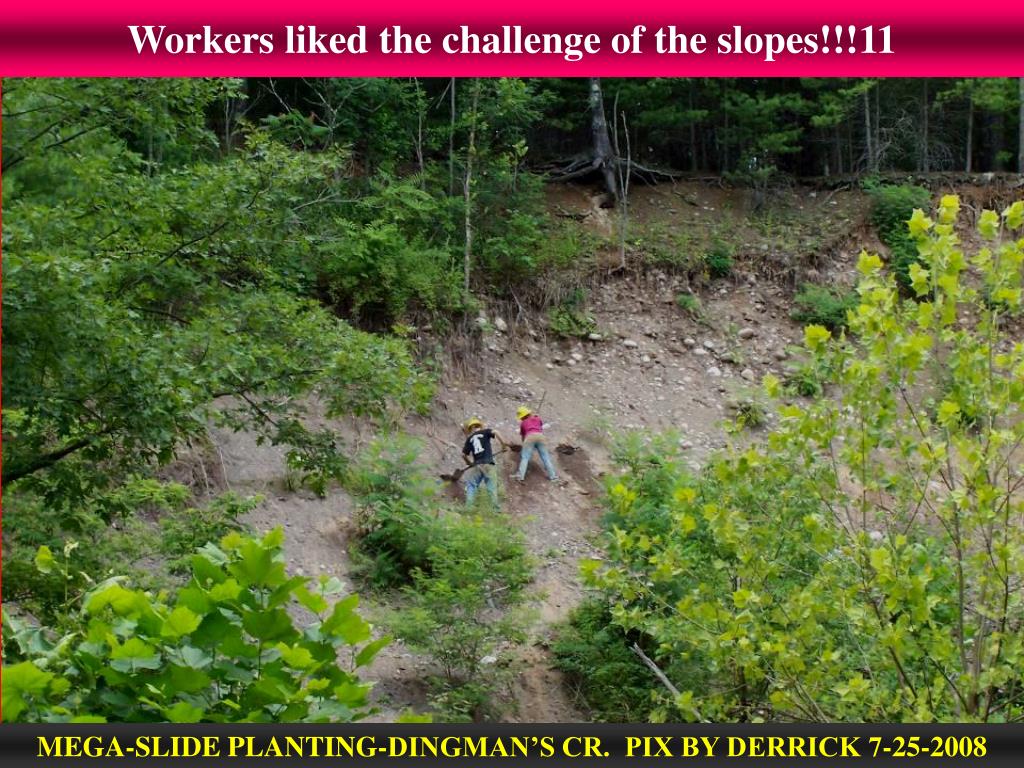

  42. Workers liked the challenge of the slopes!!!11 MEGA-SLIDE PLANTING-DINGMAN’S CR. PIX BY DERRICK 7-25-2008

  43. Some workers were hard to see. DS section of Mega-slide here MEGA-SLIDE PLANTING-DINGMAN’S CR. PIX BY DERRICK 7-25-2008

  44. DINGMANS CREEK ONE DAY AFTER THE THREE INCH RAIN EVENT

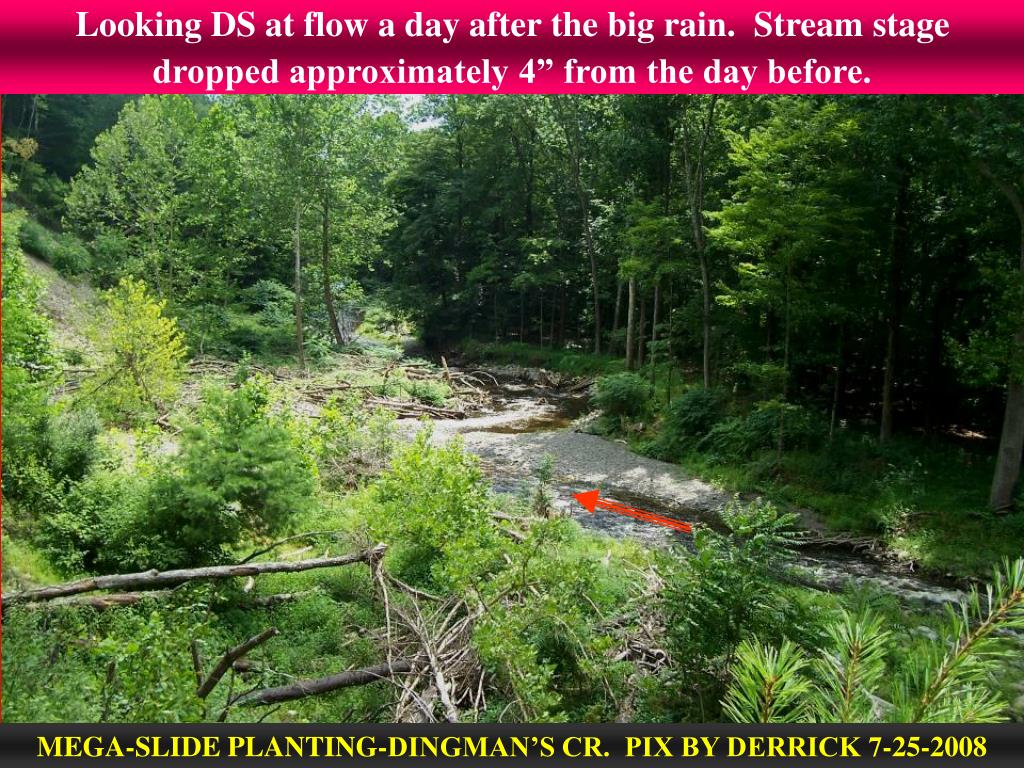

  45. Looking DS at flow a day after the big rain. Stream stage dropped approximately 4” from the day before. MEGA-SLIDE PLANTING-DINGMAN’S CR. PIX BY DERRICK 7-25-2008

  46. Looking DS at flow impact into log jam. MEGA-SLIDE PLANTING-DINGMAN’S CR. PIX BY DERRICK 7-25-2008

  47. Looking DS at good sinuous stream pattern. MEGA-SLIDE PLANTING-DINGMAN’S CR. PIX BY DERRICK 7-25-2008

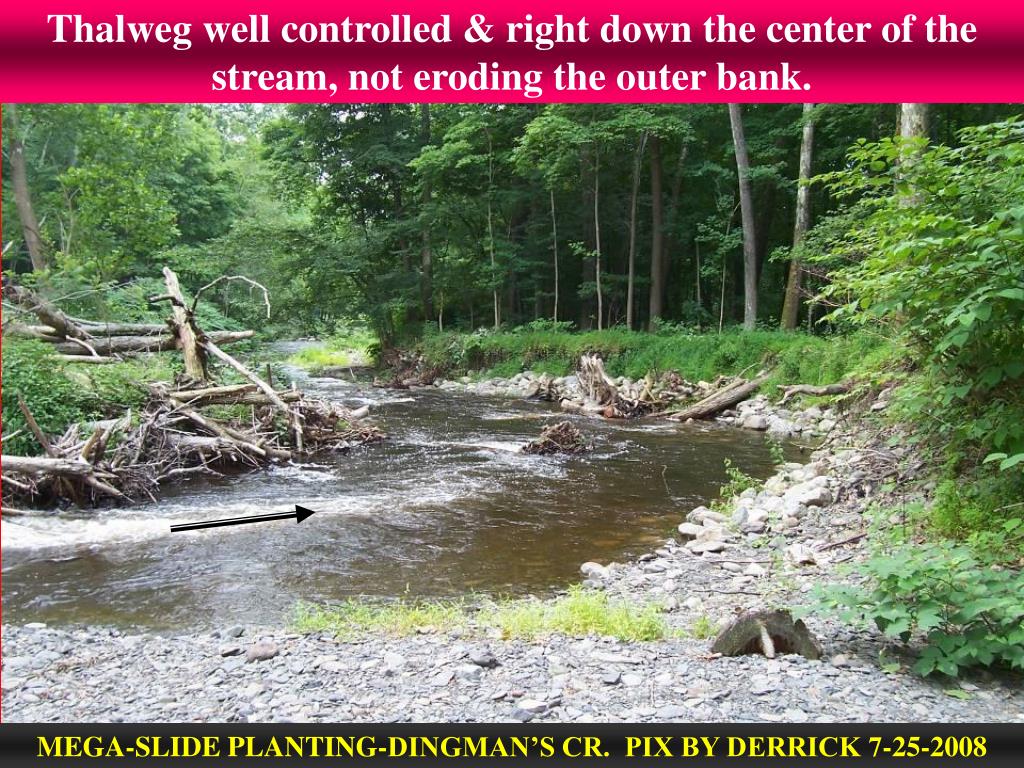

  48. Thalweg well controlled & right down the center of the stream, not eroding the outer bank. MEGA-SLIDE PLANTING-DINGMAN’S CR. PIX BY DERRICK 7-25-2008

  49. Besides bringing the equipment trailer & working all day, Linda Peterson, NRCS Clinton, NJ, also brought a watermelon!! MEGA-SLIDE PLANTING-DINGMAN’S CR. PIX BY DERRICK 7-25-2008
