New Satellite Energy and Water Balance and Water Cycle Products for the Study of Interactions between Atmospheric Hydrology and the ERB T. S. L’Ecuyer ( tristan@atmos.colostate.edu ) , G. L. Stephens ( stephens@atmos.colostate.edu ) , and Z. Luo ( luo@sci.ccny.cuny.edu ). SCSMEX Region.

sarila
Télécharger la présentation

Project status:

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

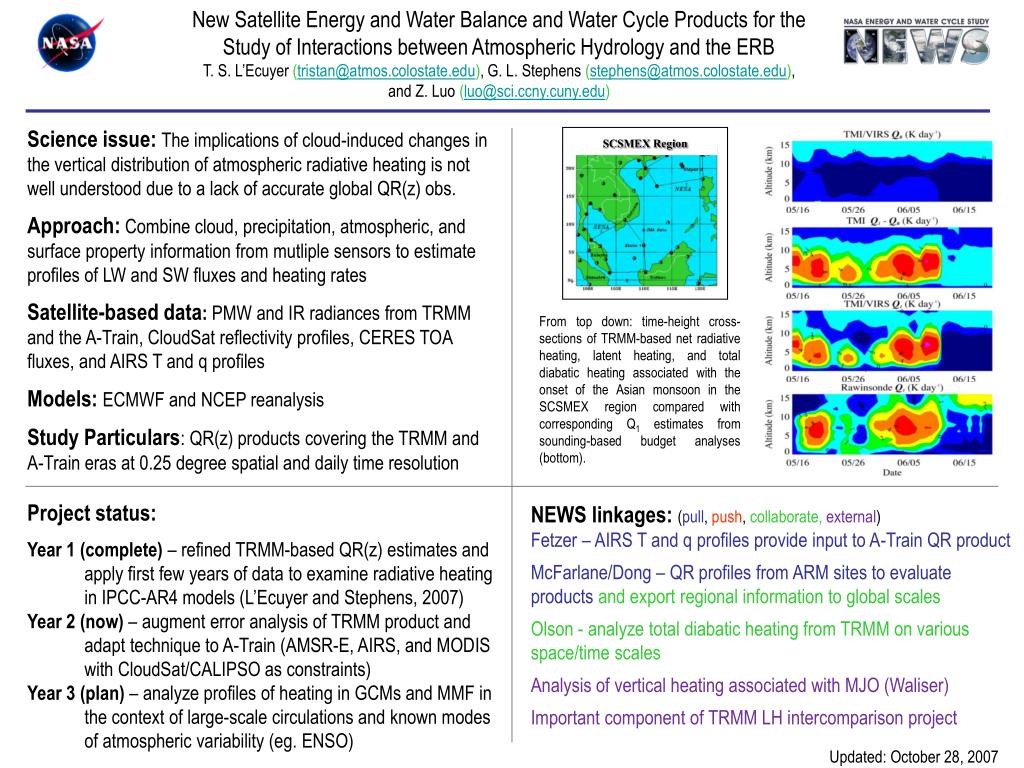

  1. New Satellite Energy and Water Balance and Water Cycle Products for the Study of Interactions between Atmospheric Hydrology and the ERB T. S. L’Ecuyer (tristan@atmos.colostate.edu), G. L. Stephens (stephens@atmos.colostate.edu), and Z. Luo (luo@sci.ccny.cuny.edu) SCSMEX Region Science issue:The implications of cloud-induced changes in the vertical distribution of atmospheric radiative heating is not well understood due to a lack of accurate global QR(z) obs. Approach: Combine cloud, precipitation, atmospheric, and surface property information from mutliple sensors to estimate profiles of LW and SW fluxes and heating rates Satellite-based data: PMW and IR radiances from TRMM and the A-Train, CloudSat reflectivity profiles, CERES TOA fluxes, and AIRS T and q profiles Models: ECMWF and NCEP reanalysis Study Particulars: QR(z) products covering the TRMM and A-Train eras at 0.25 degree spatial and daily time resolution From top down: time-height cross-sections of TRMM-based net radiative heating, latent heating, and total diabatic heating associated with the onset of the Asian monsoon in the SCSMEX region compared with corresponding Q1 estimates from sounding-based budget analyses (bottom). Project status: Year 1 (complete) – refined TRMM-based QR(z) estimates and apply first few years of data to examine radiative heating in IPCC-AR4 models (L’Ecuyer and Stephens, 2007) Year 2 (now) – augment error analysis of TRMM product and adapt technique to A-Train (AMSR-E, AIRS, and MODIS with CloudSat/CALIPSO as constraints) Year 3 (plan) – analyze profiles of heating in GCMs and MMF in the context of large-scale circulations and known modes of atmospheric variability (eg. ENSO) NEWS linkages: (pull, push, collaborate, external) Fetzer – AIRS T and q profiles provide input to A-Train QR product McFarlane/Dong – QR profiles from ARM sites to evaluate products and export regional information to global scales Olson - analyze total diabatic heating from TRMM on various space/time scales Analysis of vertical heating associated with MJO (Waliser) Important component of TRMM LH intercomparison project Updated: October 28, 2007
