  1. TM A Presentation on Distributed Video System by BLAZE www.blazeautomation.com

  2. Presentation Overview • Brief on Video Distribution System • Features of Blaze’s Video Distribution System • Layout of Blaze’s Video Distribution System • Application areas • Components of Blaze’s Video Distribution system • Hardware and Software Components available • Conclusions www.blazeautomation.com

  3. Brief on Video Distribution System • Multi Zone Video System provides total control of video in different zones which is very easy to use, cost effective and provides viewing pleasure to the users. • Imagine travelling room to room enjoying your favorite video program. Multi Zone Video system is designed to do just that: video playback in every room. • Each zone video can be simultaneously viewed and controlled from the control panel provided with a single touch. www.blazeautomation.com

  4. Brief on Video Distribution System • Users can watch different video in different zones according to their wish. • Audio/Video equipment is located at the core location and connected together using a control system. Making it easy to enjoy and control your entertainment through the application in the control panel. www.blazeautomation.com

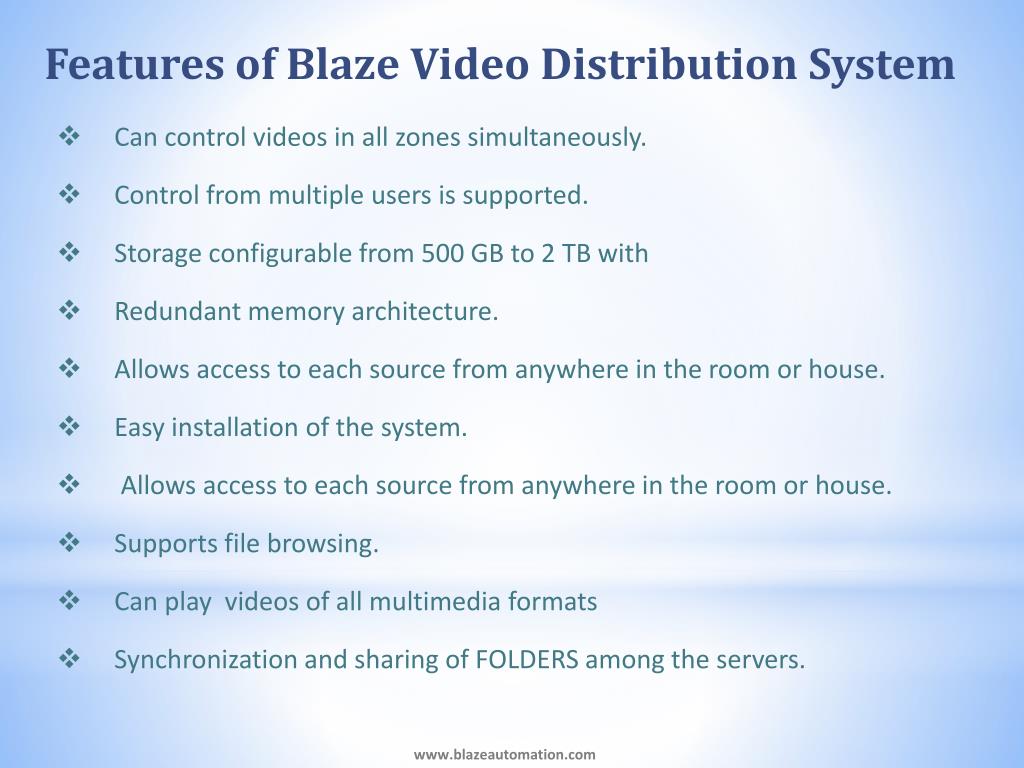

  5. Features of Blaze Video Distribution System • Can control videos in all zones simultaneously. • Control from multiple users is supported. • Storage configurable from 500 GB to 2 TB with • Redundant memory architecture. • Allows access to each source from anywhere in the room or house. • Easy installation of the system. • Allows access to each source from anywhere in the room or house. • Supports file browsing. • Can play videos of all multimedia formats • Synchronization and sharing of FOLDERS among the servers. www.blazeautomation.com

  6. Features of Blaze Video Distribution System • Supported formats: • Video Formats: • MPEG-1, MPEG-2, H.263, MPEG-4 SP and ASP, MPEG-4 AVC (H.264), HuffYUV, Indeo, MJPEG, RealVideo, RMVB, Sorenson, WMV, Cinepak . • Container Formats: • AVI, MPEG, WMV, ASF, FLV, MKV/MKA (Matroska), QuickTime, MP4, M4A, AAC, NUT, Ogg, OGM, RealMedia RAM/RM/RV/RA/RMVB, 3gp, VIVO, PVA, NUV, NSV, NSA, FLI, FLC, DVR-MS and WTV. www.blazeautomation.com

  7. Features of Blaze Video Distribution System • Distribution of video sources in different zones with in very small intervals of time. www.blazeautomation.com

  8. High Level Architecture BLAZE Video Distribution Server Zone 1 Zone 1 Video Server Zone 2 Video Server Zone 3 Zone 2 www.blazeautomation.com

  9. Components of Blaze’s Video Distribution System • Hardware : 1. Video Distribution Server 2. Video Servers in different zones 3. Display(TV or projector) device connected to video servers in all zones. 4. Touch Panels to control the videos. • Software : 1. IPAD/ IPhone application as User Interface 2. Server configuration settings set in all video servers. 3. Synchronization application running in Video Streaming Server. www.blazeautomation.com

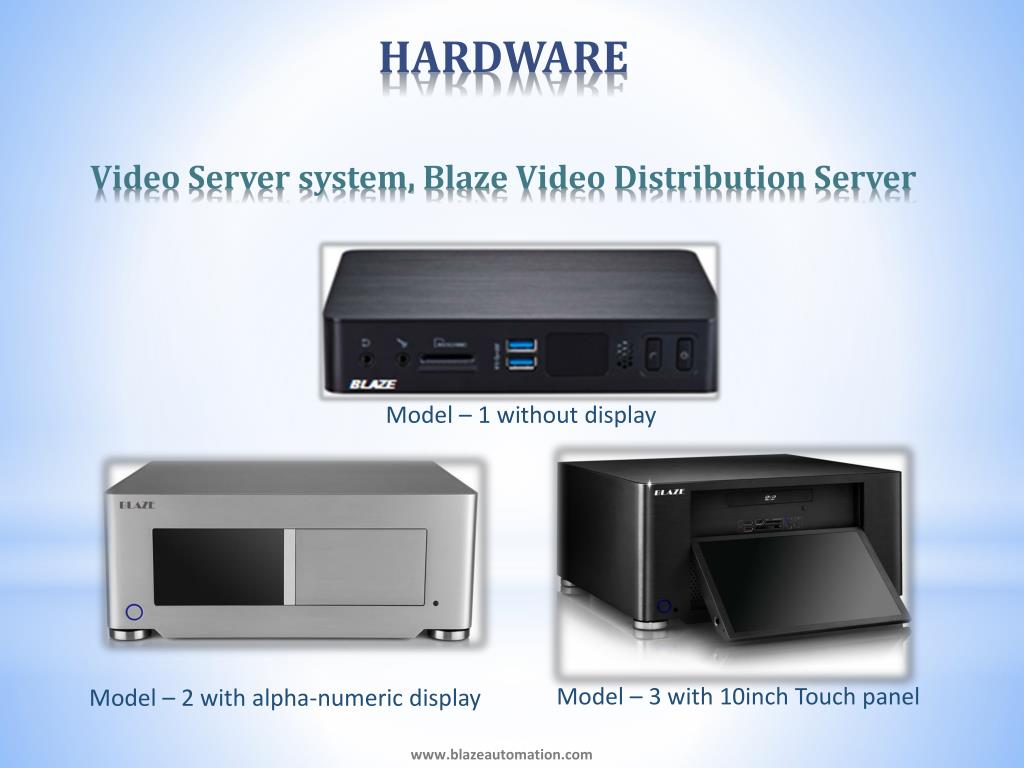

  10. Model – 1 without display HARDWAREVideo Server system, Blaze Video Distribution Server Model – 3 with 10inch Touch panel Model – 2 with alpha-numeric display www.blazeautomation.com

  11. HARDWARE - Display Device • Display device is connected through HDMI cable to the server system.

  12. Ipad Application Features • User interface to control all zones • Controls for navigation, volume change, play, pause, stop, forward, backward, previous, next, selecting source, OSD and aspect. • Switching of zones. • Customizable user interface with the number of video zones. • Blaze client application to add or delete videos. • Synchronization of videos in different servers. www.blazeautomation.com

  13. IPAD applicationUser Interface www.blazeautomation.com

  14. Active BLAZE Applications in APPLE Store BLAZE Multi Room Audio controller ( 4 / 8 / 12 Zones) Advanced Home Automation Application Pioneer Blu-Ray Remote control APP Rotel Preprocessor and Power Amplifier controller BLAZE Home Theatre control system Home Theatre control system Application

  15. www.blazeautomation.com
