1 / 36

Capabilities of Machine Vision Libraries

Capabilities of Machine Vision Libraries. Nasim Sajadi. Outline. What is Machine Vision. Aim : Simulate human vision ability Action: Analyse image information Requirement: Hardware , Software, and Cameras Combination of mathematics computer science artificial intelligence (AI)

sauda
Télécharger la présentation

Capabilities of Machine Vision Libraries

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

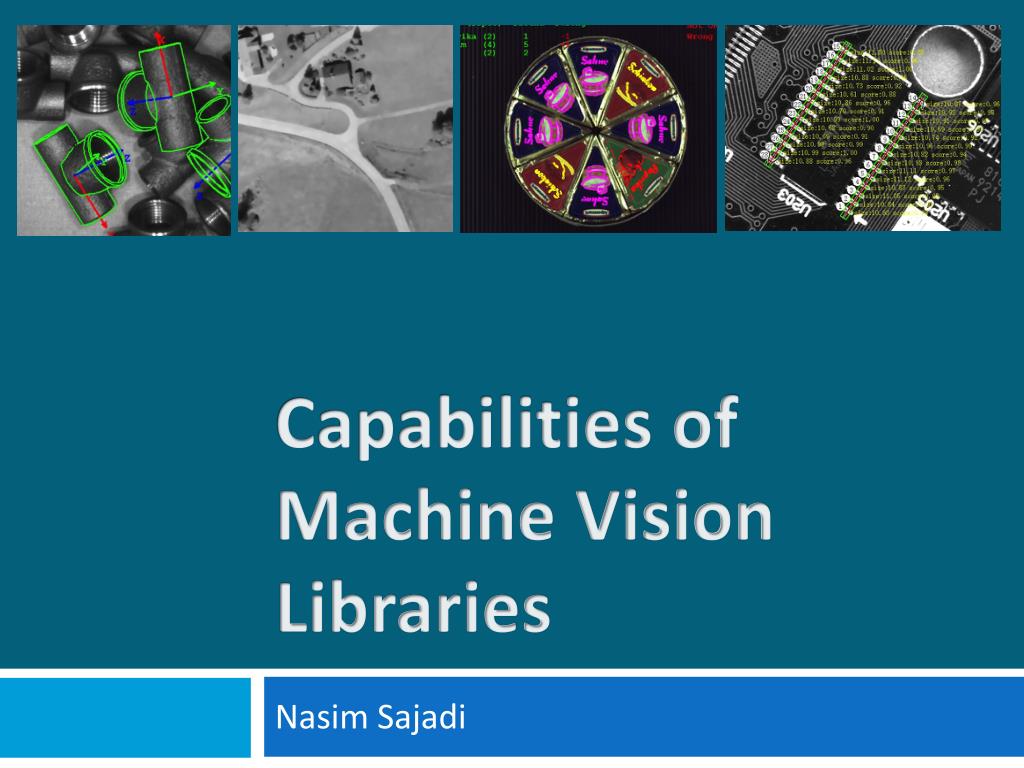

  1. Capabilities of Machine Vision Libraries NasimSajadi

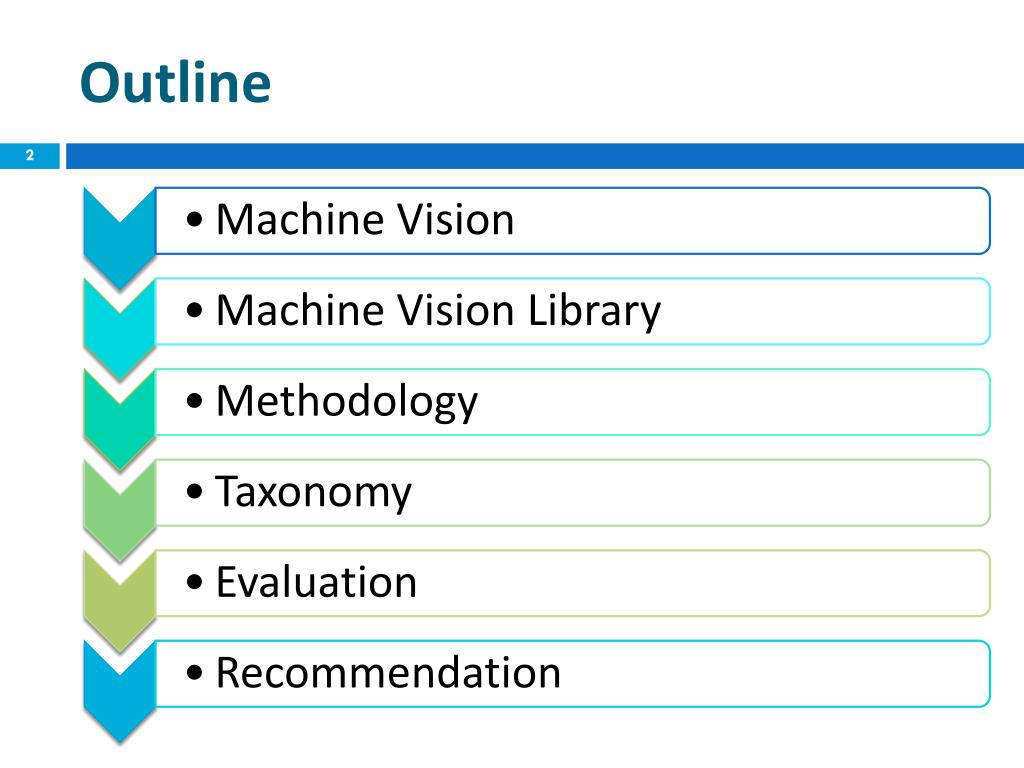

  2. Outline

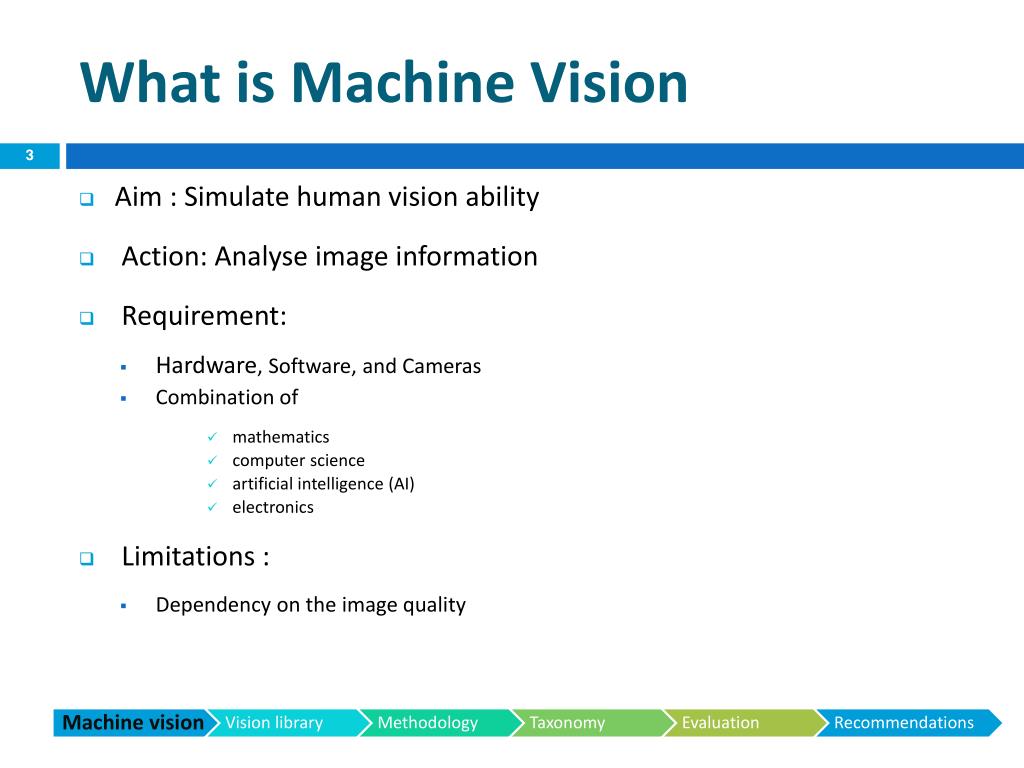

  3. What is Machine Vision • Aim : Simulate human vision ability • Action: Analyse image information • Requirement: • Hardware, Software, and Cameras • Combination of • mathematics • computer science • artificial intelligence (AI) • electronics • Limitations : • Dependency on the image quality

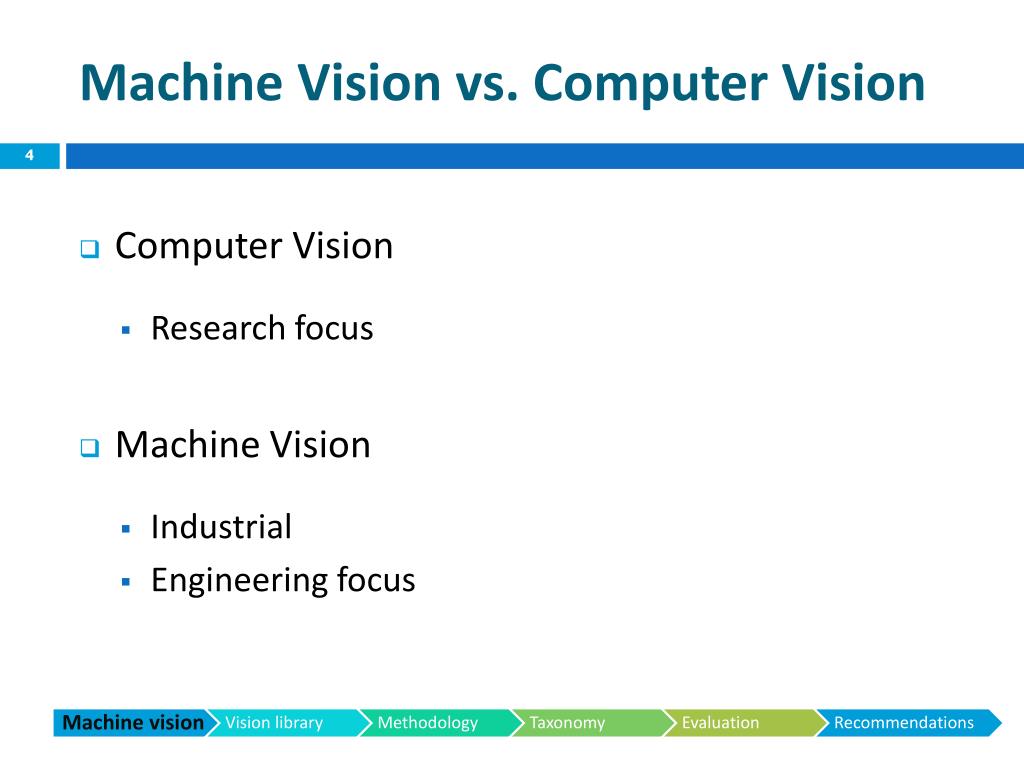

  4. Machine Vision vs. Computer Vision • Computer Vision • Research focus • Machine Vision • Industrial • Engineering focus

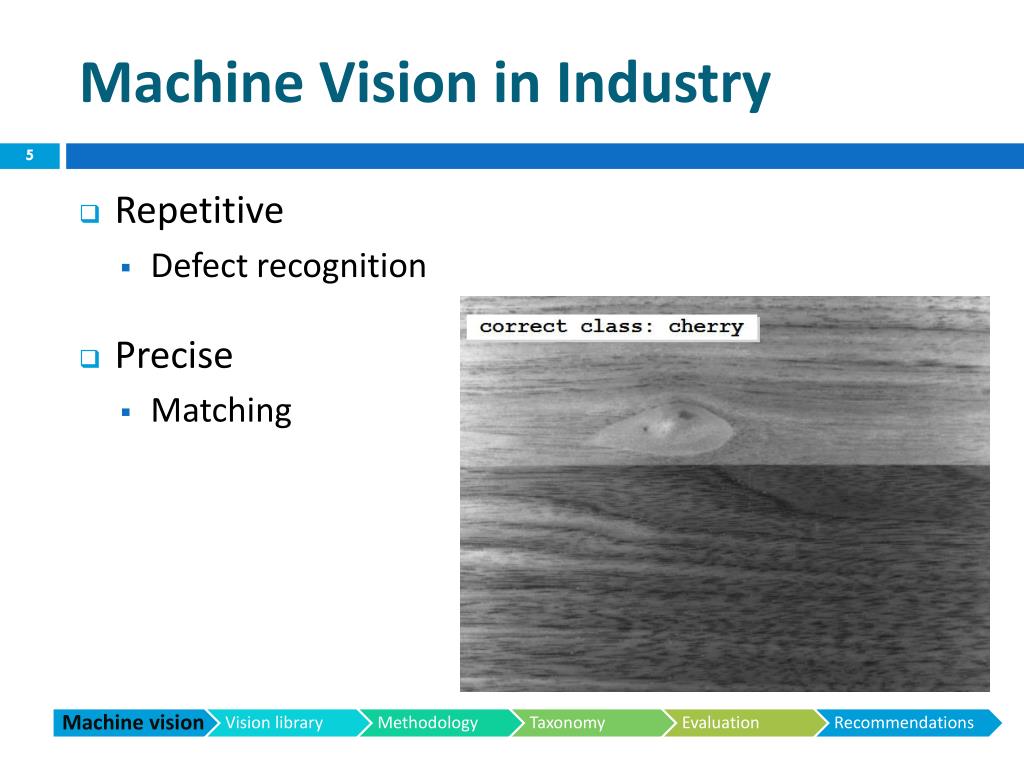

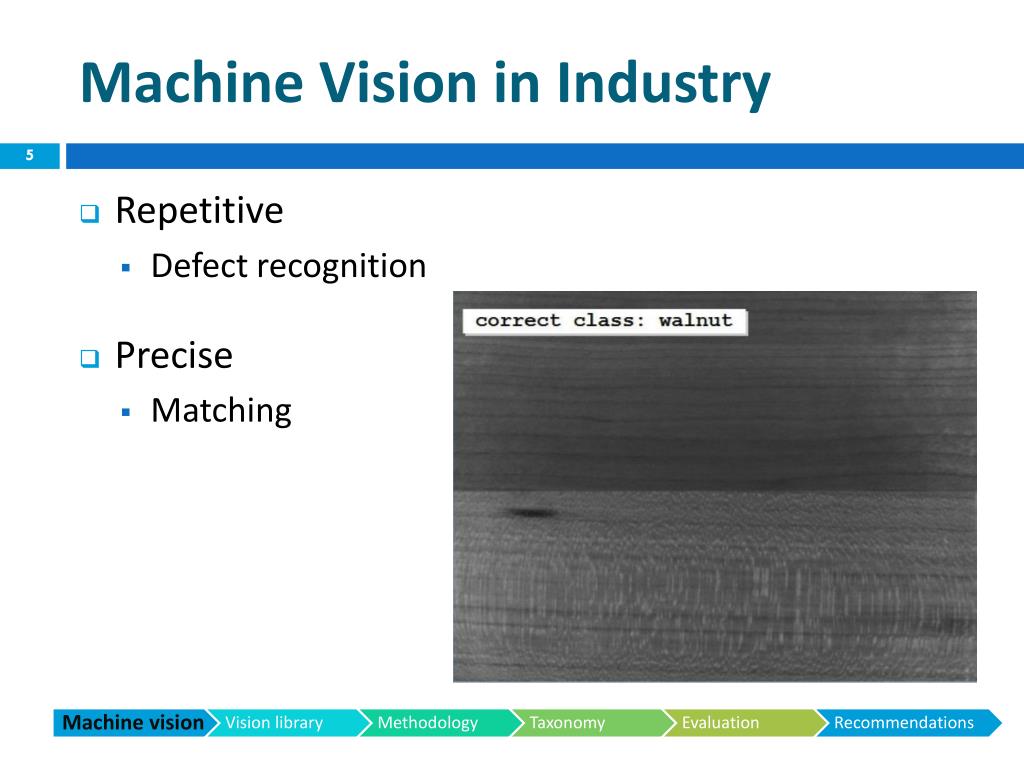

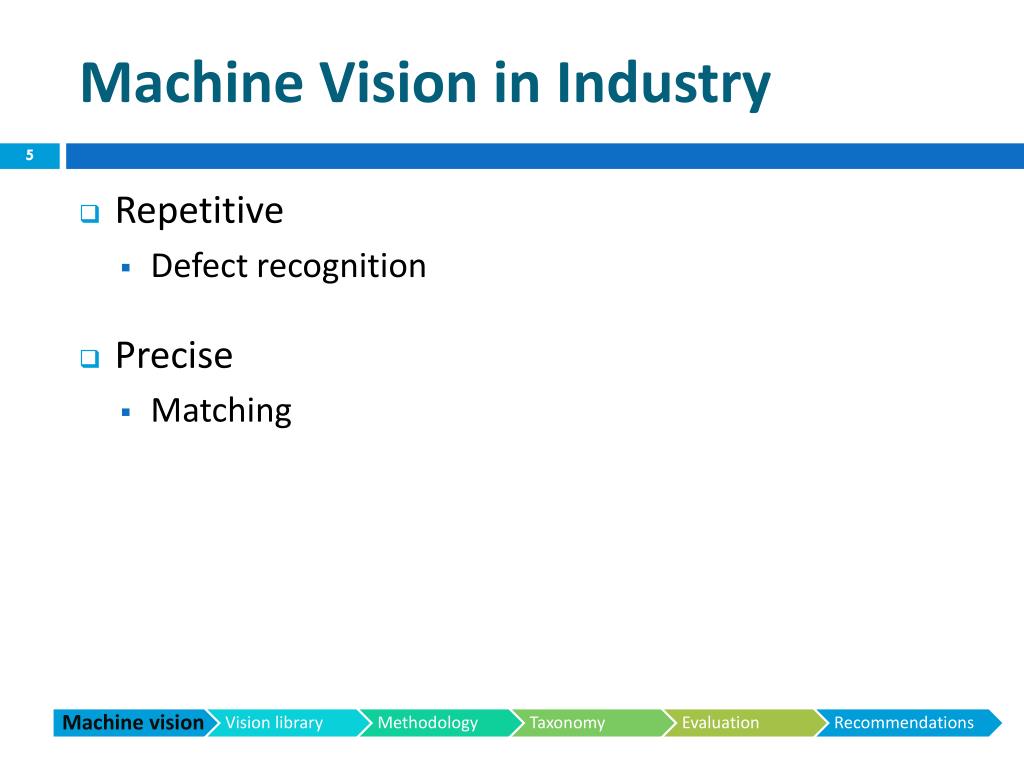

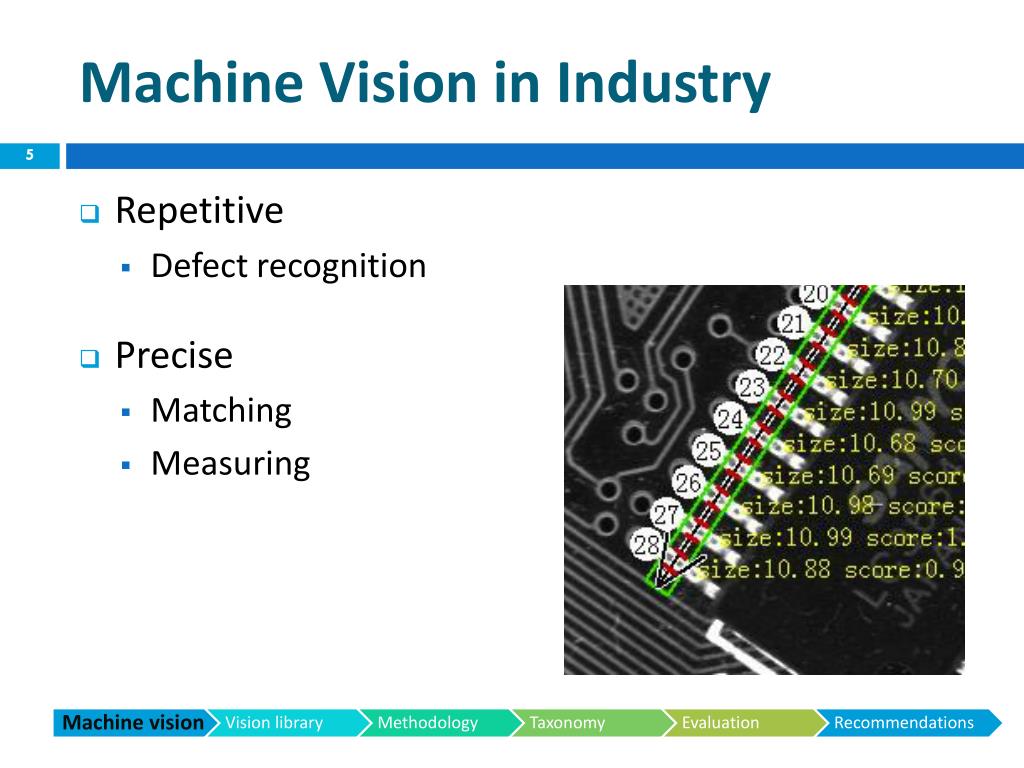

  5. Machine Vision in Industry • Repetitive • Defect recognition

  6. Machine Vision in Industry • Repetitive • Defect recognition

  7. Machine Vision in Industry • Repetitive • Defect recognition • Precise • Matching

  8. Machine Vision in Industry • Repetitive • Defect recognition • Precise • Matching

  9. Machine Vision in Industry • Repetitive • Defect recognition • Precise • Matching

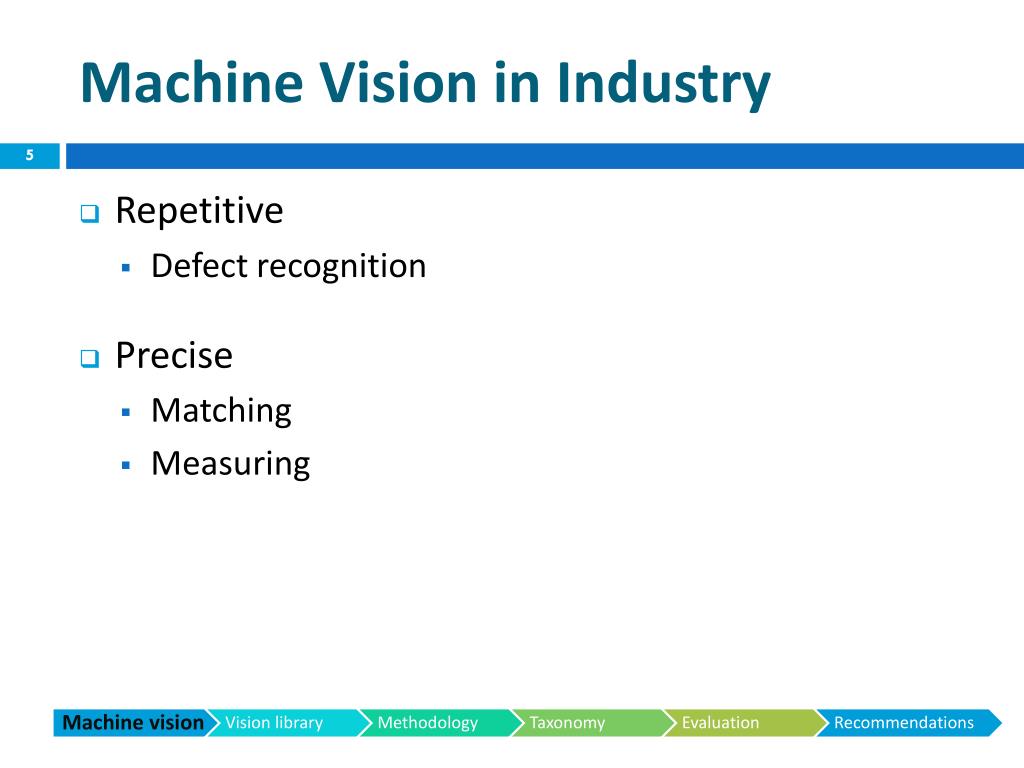

  10. Machine Vision in Industry • Repetitive • Defect recognition • Precise • Matching • Measuring

  11. Machine Vision in Industry • Repetitive • Defect recognition • Precise • Matching • Measuring

  12. Machine Vision in Industry • Repetitive • Defect recognition • Precise • Matching • Measuring

  13. Machine Vision in Industry • Repetitive • Defect recognition • Precise • Matching • Measuring • Continues • Monitoring

  14. Machine Vision in Industry • Repetitive • Defect recognition • Precise • Matching • Measuring • Continues • Monitoring

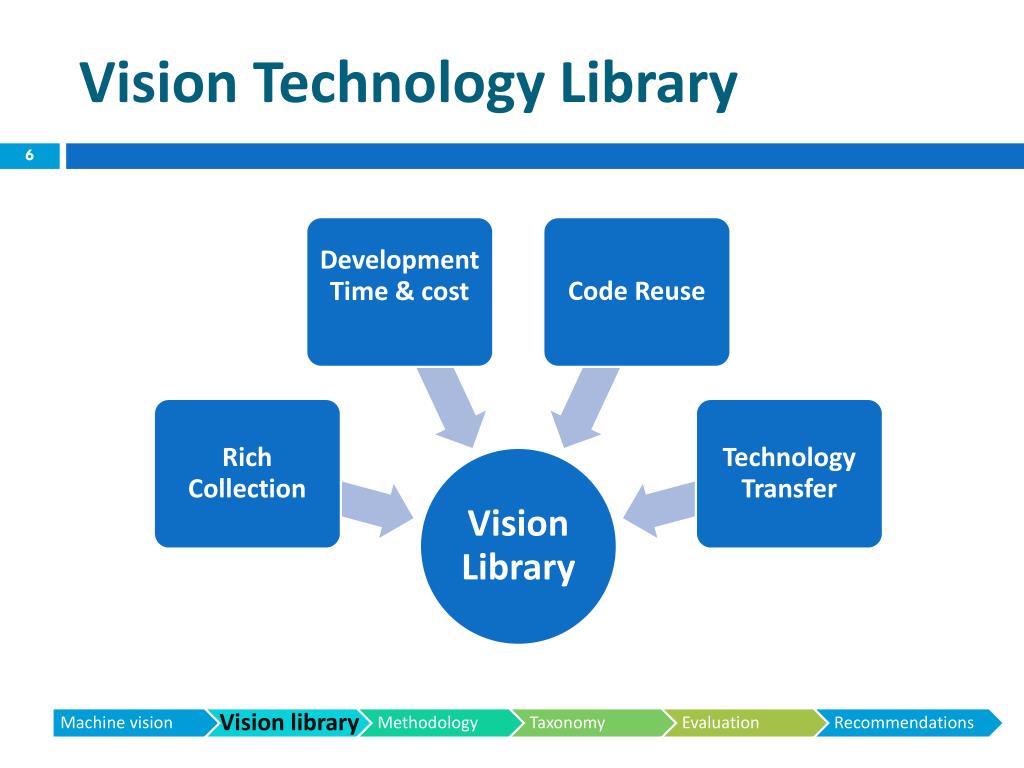

  15. Vision Technology Library

  16. HALCON • Machine Vision • MVTec Software GmbH • Comprehensive • Operators in C++, C, C#, Visual Basic and Delphi • HALCON IDE: HDevelop and HDevEngine

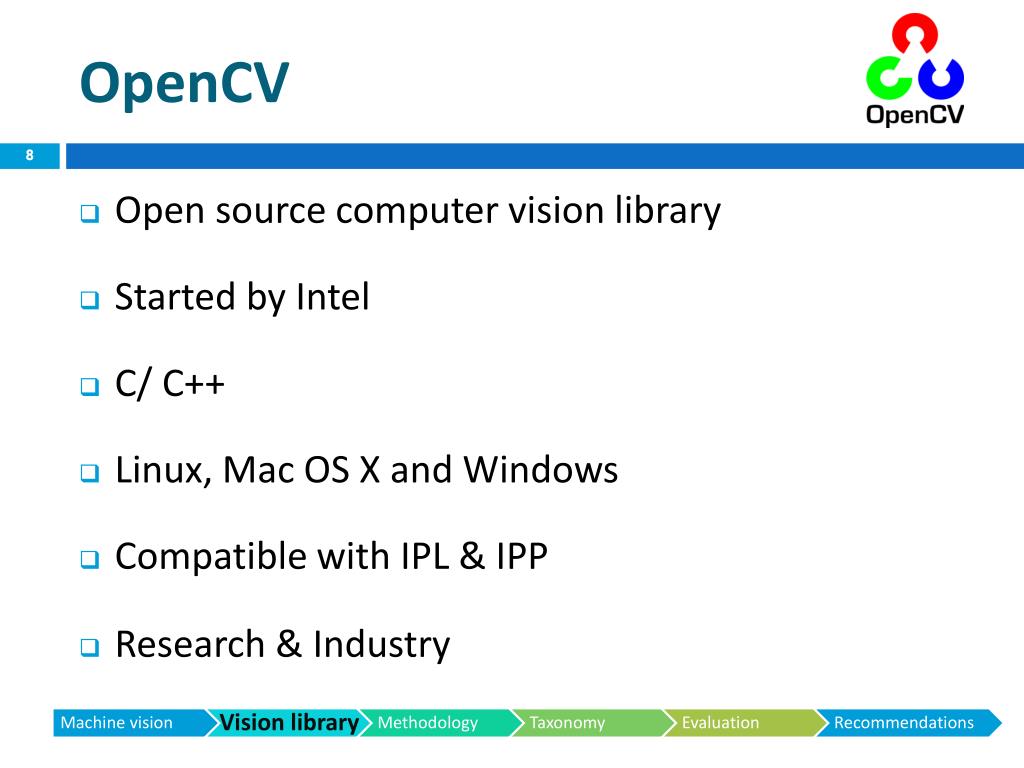

  17. OpenCV • Open source computer vision library me • Started by Intel • C/ C++ • Linux, Mac OS X and Windows ksk • Compatible with IPL & IPP • Research & Industry

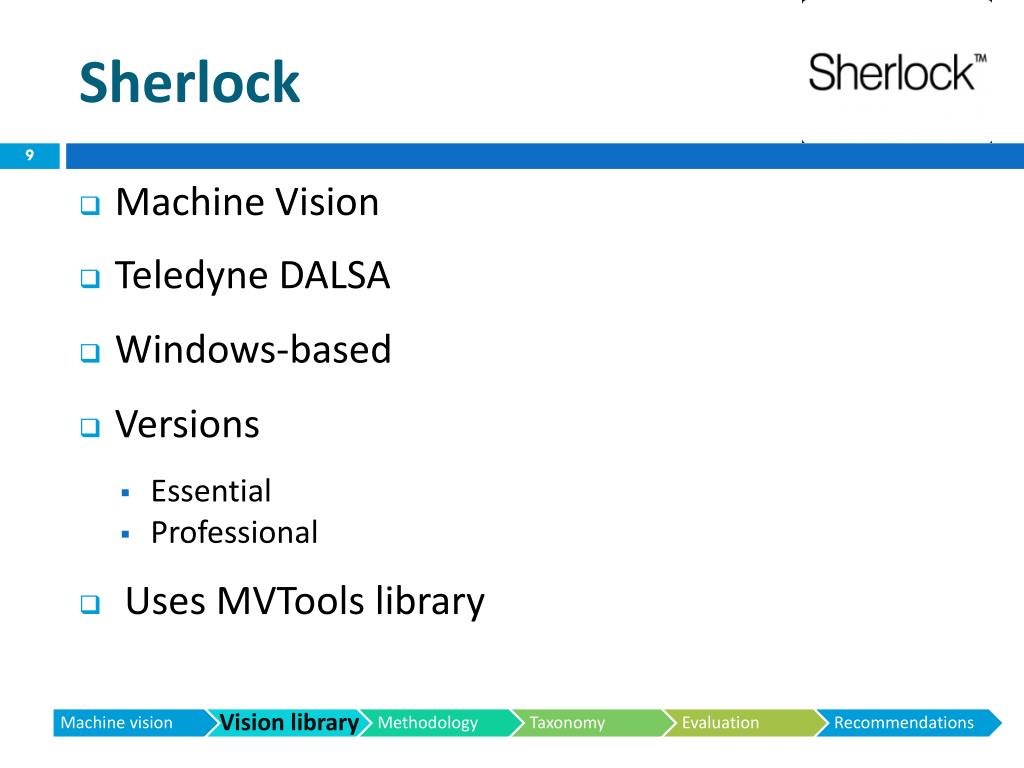

  18. Sherlock • Machine Vision • Teledyne DALSA • Windows-based • Versions • Essential • Professional • Uses MVTools library

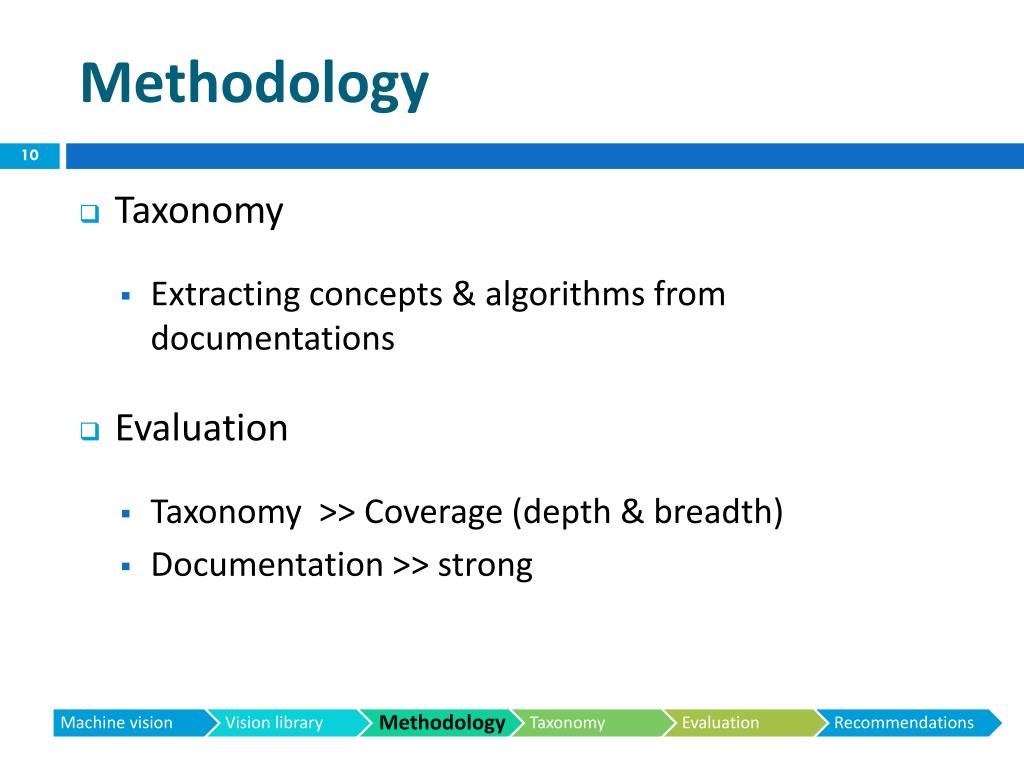

  19. Methodology • Taxonomy • Extracting concepts & algorithms from documentations • Evaluation • Taxonomy >> Coverage (depth & breadth) • Documentation >> strong

  20. Good Taxonomy • Good Taxonomy is • Comprehensive • simple • easy to understand and apply

  21. Taxonomy

  22. Taxonomy

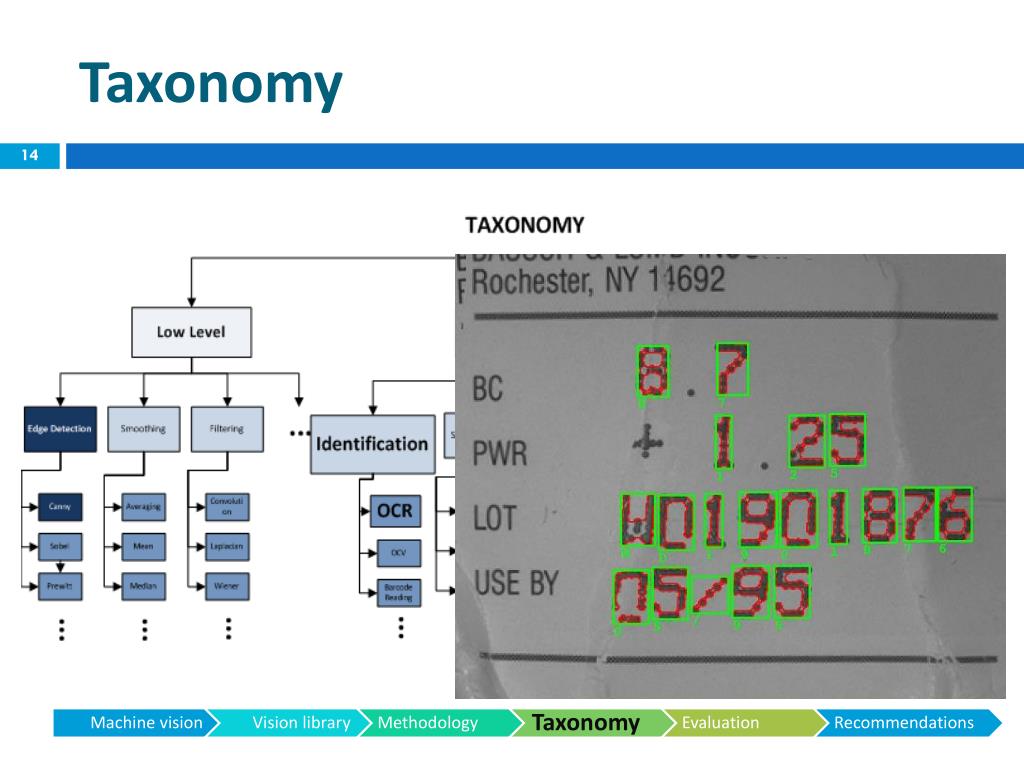

  23. Taxonomy

  24. Taxonomy

  25. Taxonomy

  26. Taxonomy

  27. Taxonomy

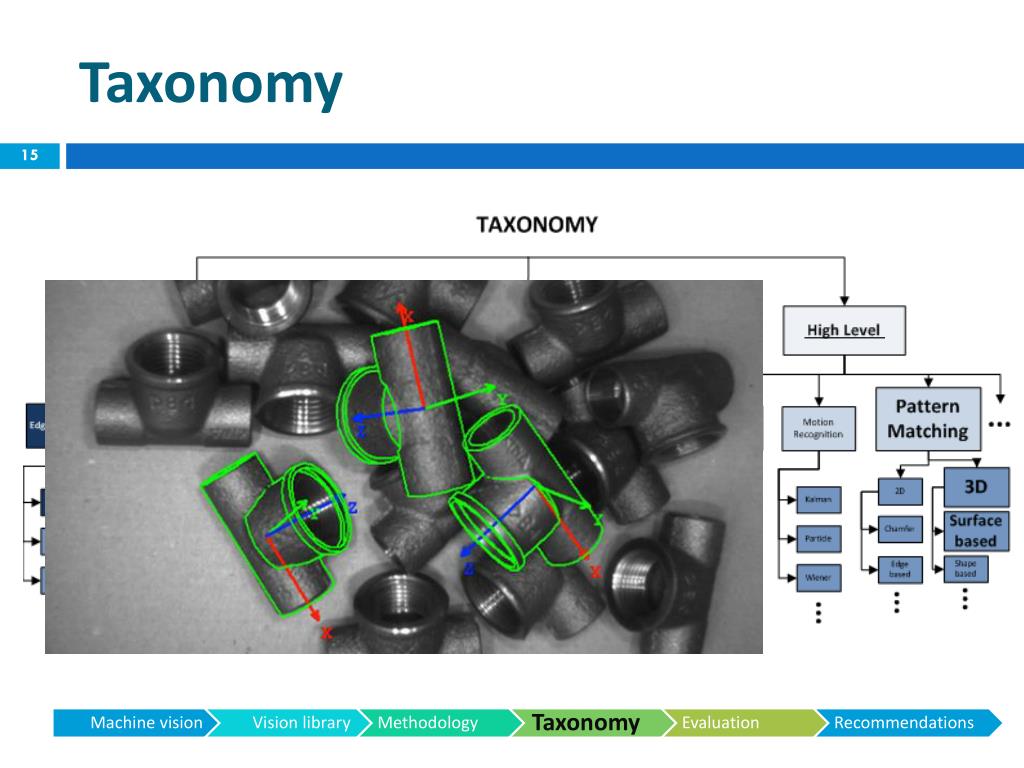

  28. Taxonomy

  29. Taxonomy

  30. Coverage of Algorithms (Low Level)

  31. Coverage of Algorithms (Intermediate Level)

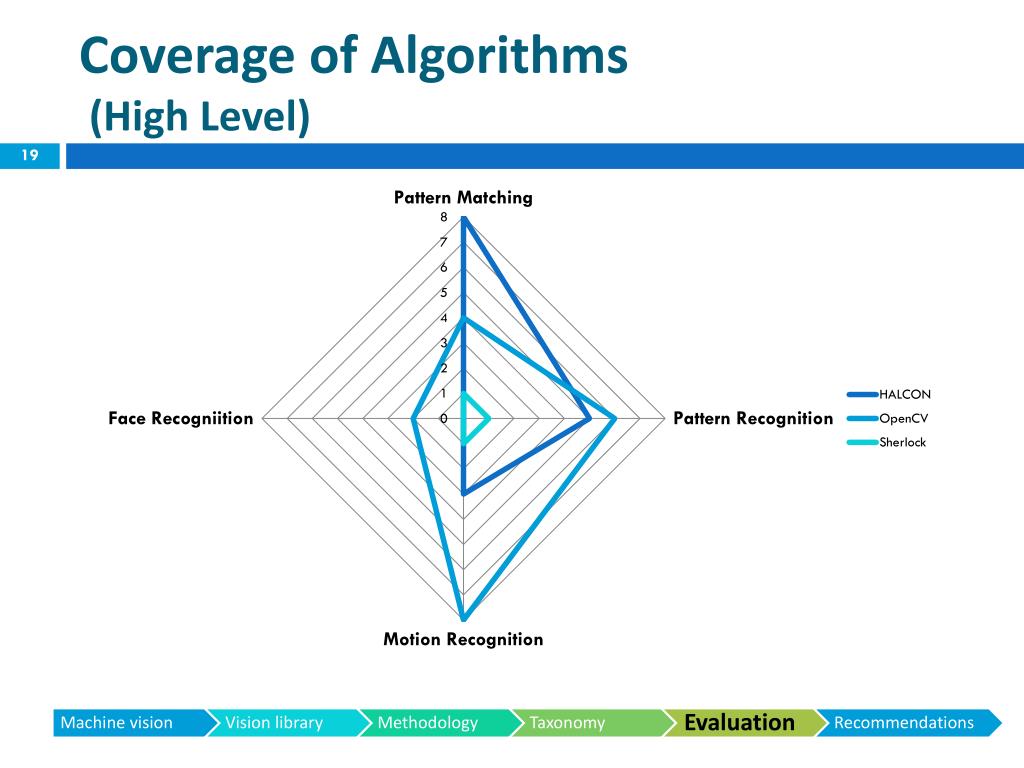

  32. Coverage of Algorithms (High Level)

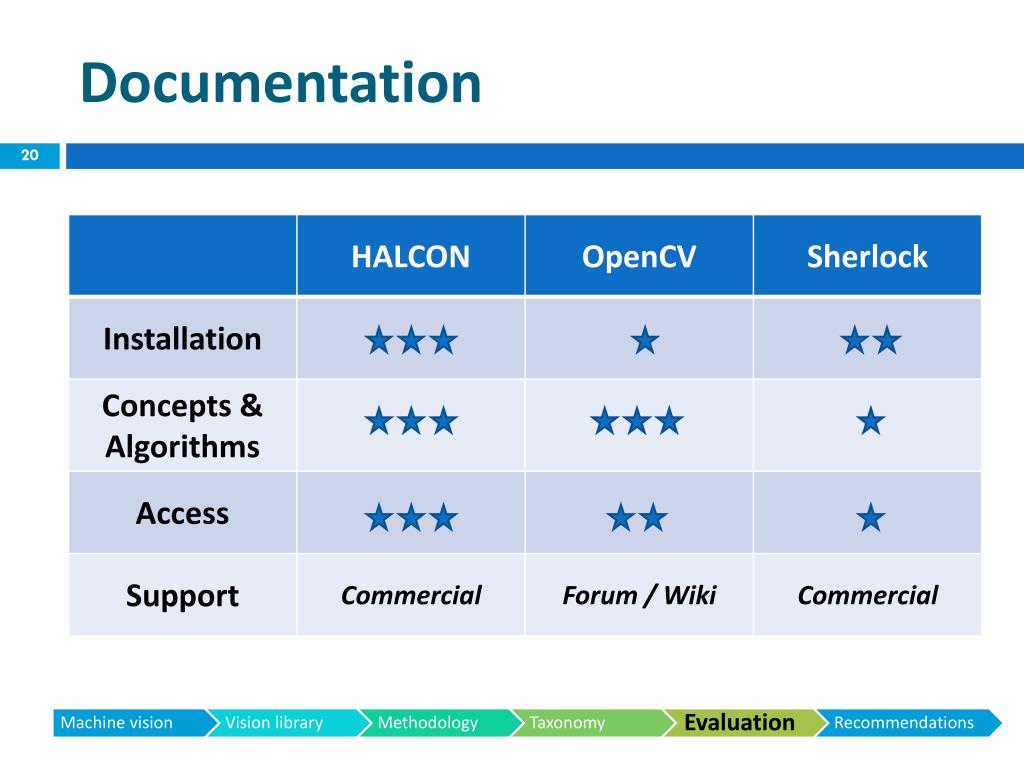

  33. Documentation

  34. Recommendations

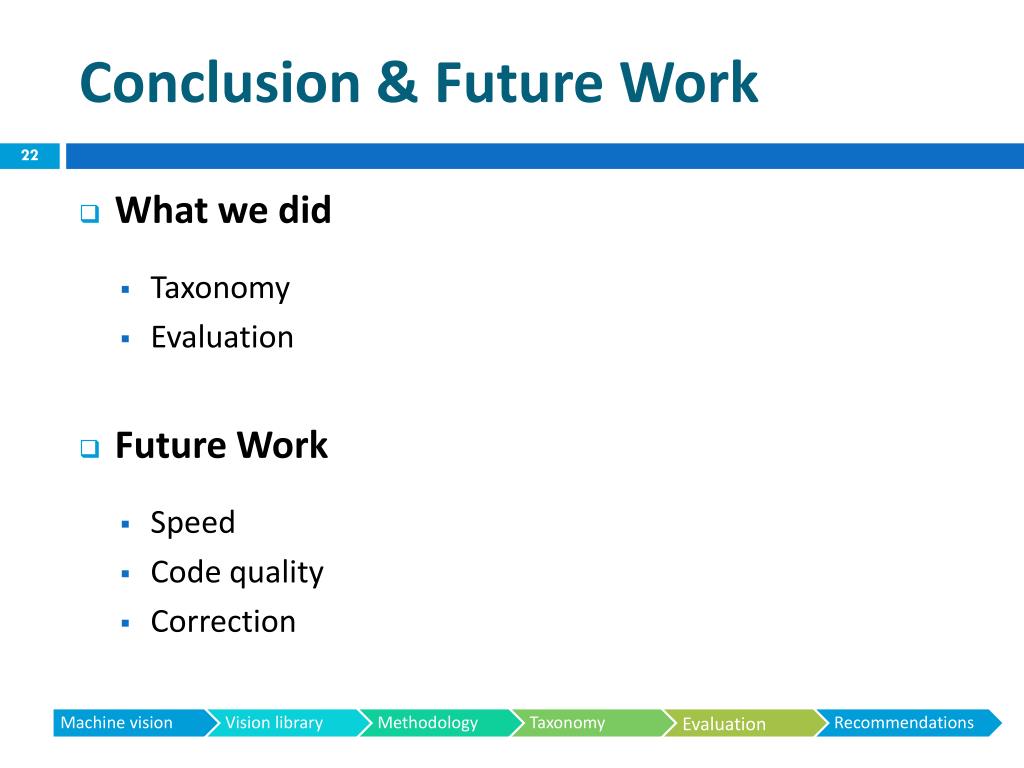

  35. Conclusion & Future Work • What we did • Taxonomy • Evaluation • Future Work • Speed • Code quality • Correction

  36. Questions??

More Related
