  1. 범주학습의 feedback유형과 두뇌 활성화의 차이 강은주1, 이지현1, 안신혜 1, 김성일2 1강원대학교 심리학과, 2고려대학교 교육학과

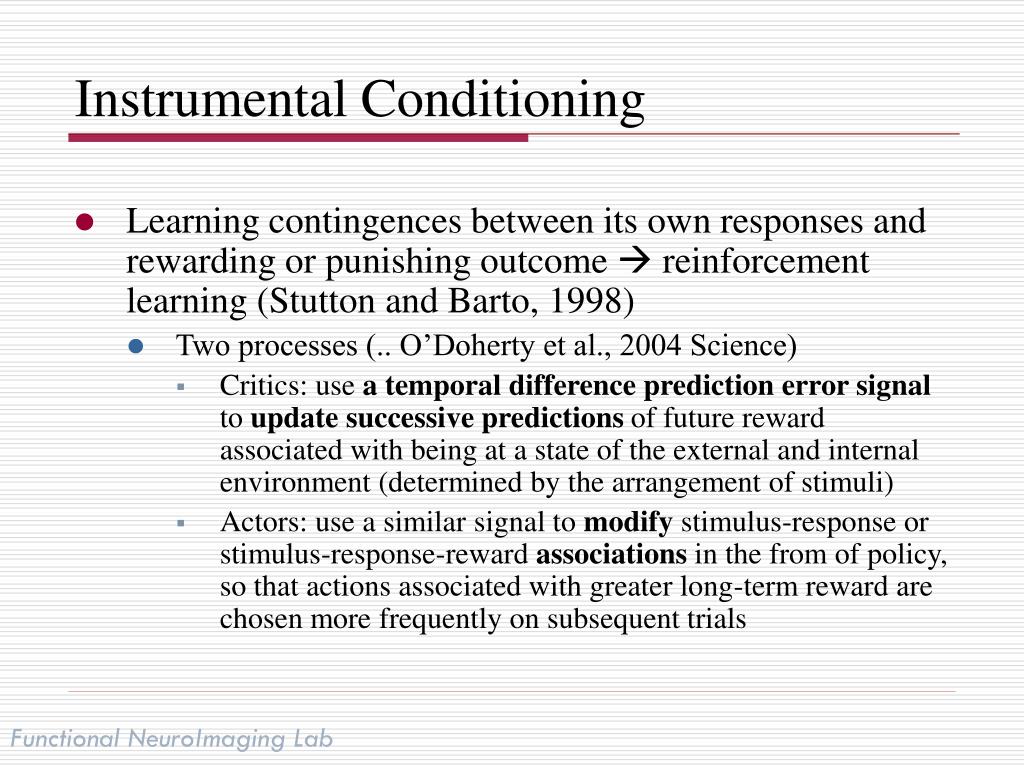

  2. Instrumental Conditioning • Learning contingences between its own responses and rewarding or punishing outcome  reinforcement learning (Stutton and Barto, 1998) • Two processes (.. O’Doherty et al., 2004 Science) • Critics: use a temporal difference prediction error signal to update successive predictions of future reward associated with being at a state of the external and internal environment (determined by the arrangement of stimuli) • Actors: use a similar signal to modify stimulus-response or stimulus-response-reward associations in the from of policy, so that actions associated with greater long-term reward are chosen more frequently on subsequent trials Functional NeuroImaging Lab

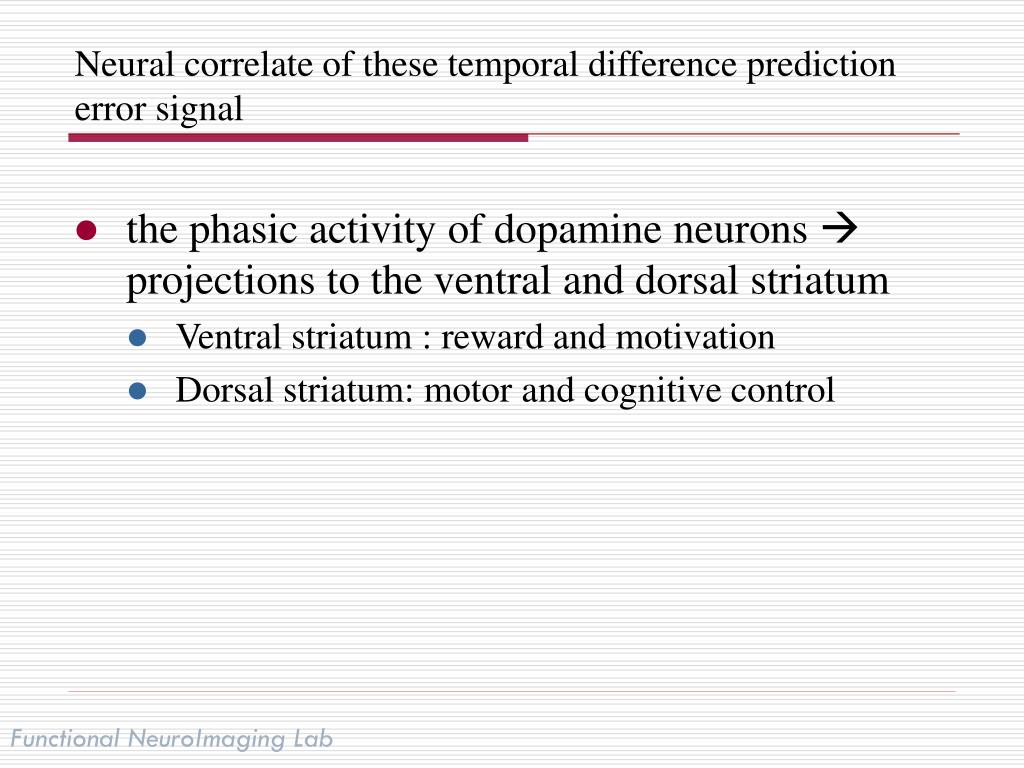

  3. Neural correlate of these temporal difference prediction error signal • the phasic activity of dopamine neurons  projections to the ventral and dorsal striatum • Ventral striatum : reward and motivation • Dorsal striatum: motor and cognitive control Functional NeuroImaging Lab

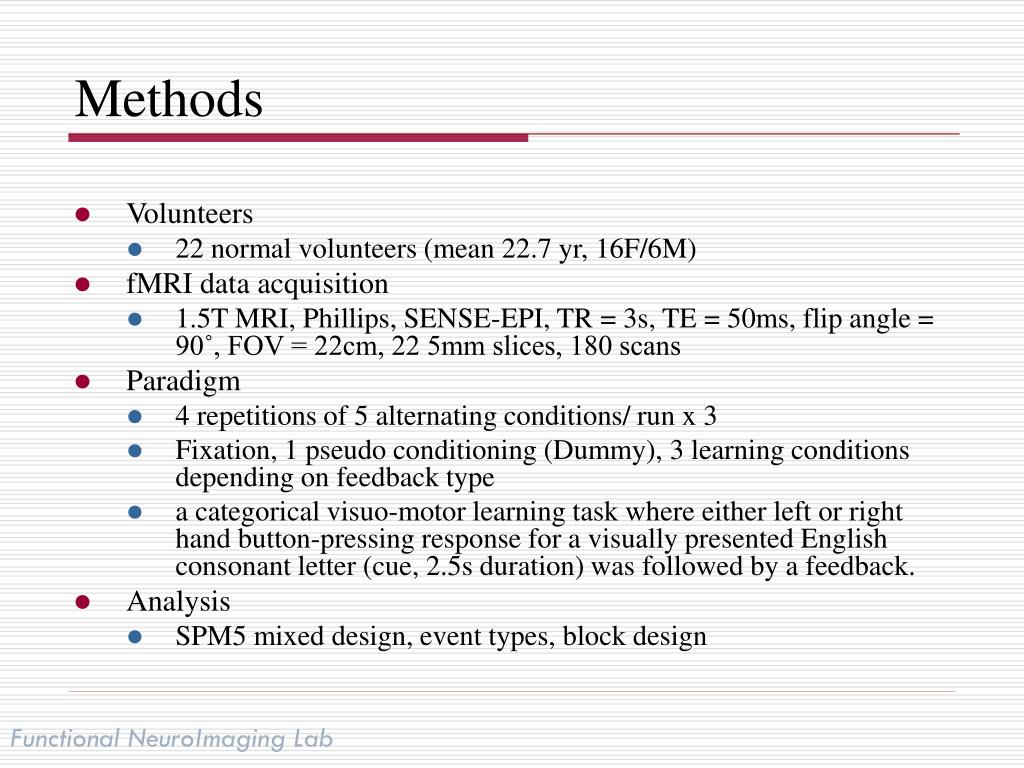

  4. Methods • Volunteers • 22 normal volunteers (mean 22.7 yr, 16F/6M) • fMRI data acquisition • 1.5T MRI, Phillips, SENSE-EPI, TR = 3s, TE = 50ms, flip angle = 90˚, FOV = 22cm, 22 5mm slices, 180 scans • Paradigm • 4 repetitions of 5 alternating conditions/ run x 3 • Fixation, 1 pseudo conditioning (Dummy), 3 learning conditions depending on feedback type • a categorical visuo-motor learning task where either left or right hand button-pressing response for a visually presented English consonant letter (cue, 2.5s duration) was followed by a feedback. • Analysis • SPM5 mixed design, event types, block design Functional NeuroImaging Lab

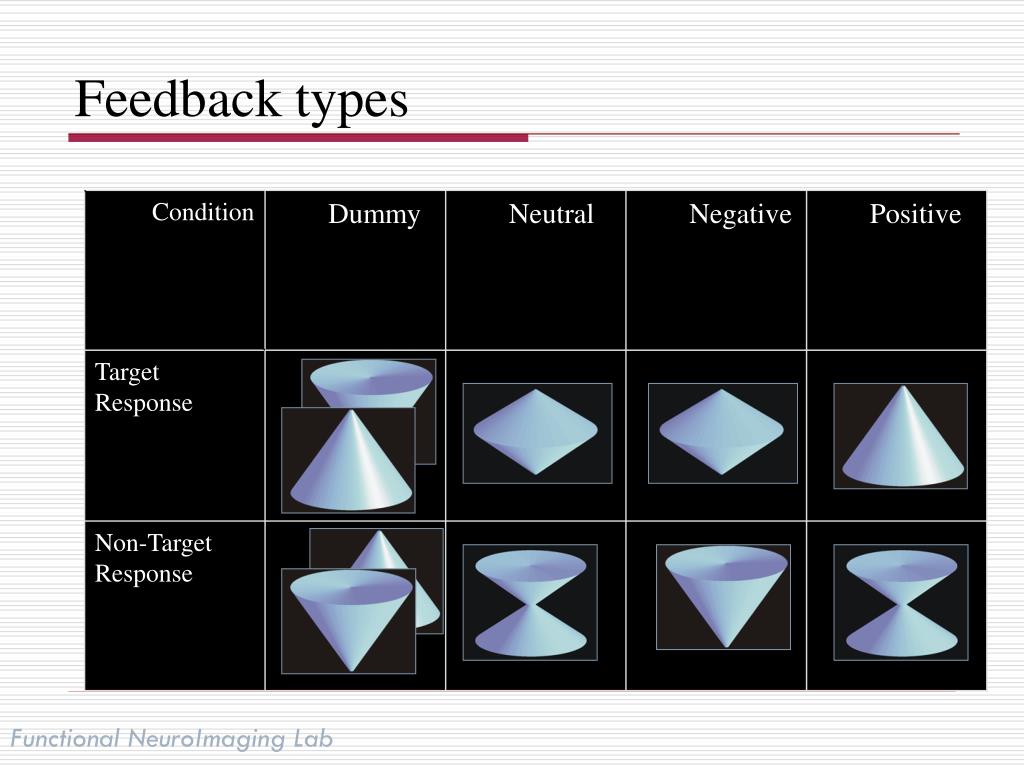

  5. Feedback types Functional NeuroImaging Lab

  6. Feedback Type and Correct Response Condition x Session P<.001 Functional NeuroImaging Lab

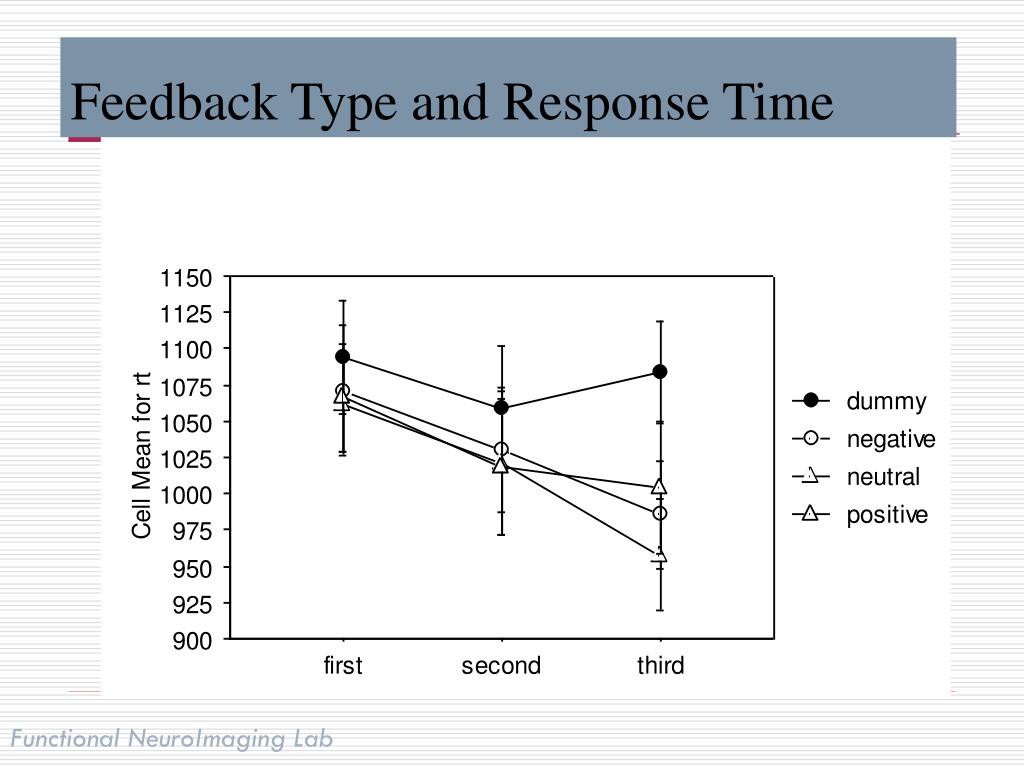

  7. Feedback Type and Response Time Functional NeuroImaging Lab

  8. Dummy Neutral Negative Positive

  9. Learning. = dummy > Fixation Medial Superior PFC region MNI = -6, 28, 46 (BA8) uP<.0001, Caudate Body MNI = -4,-16,24 uP<.0001, Parietal region MNI = 32, -62, 42, DLPFC MNI = 30, 6, 62 uP<.0001, Functional NeuroImaging Lab

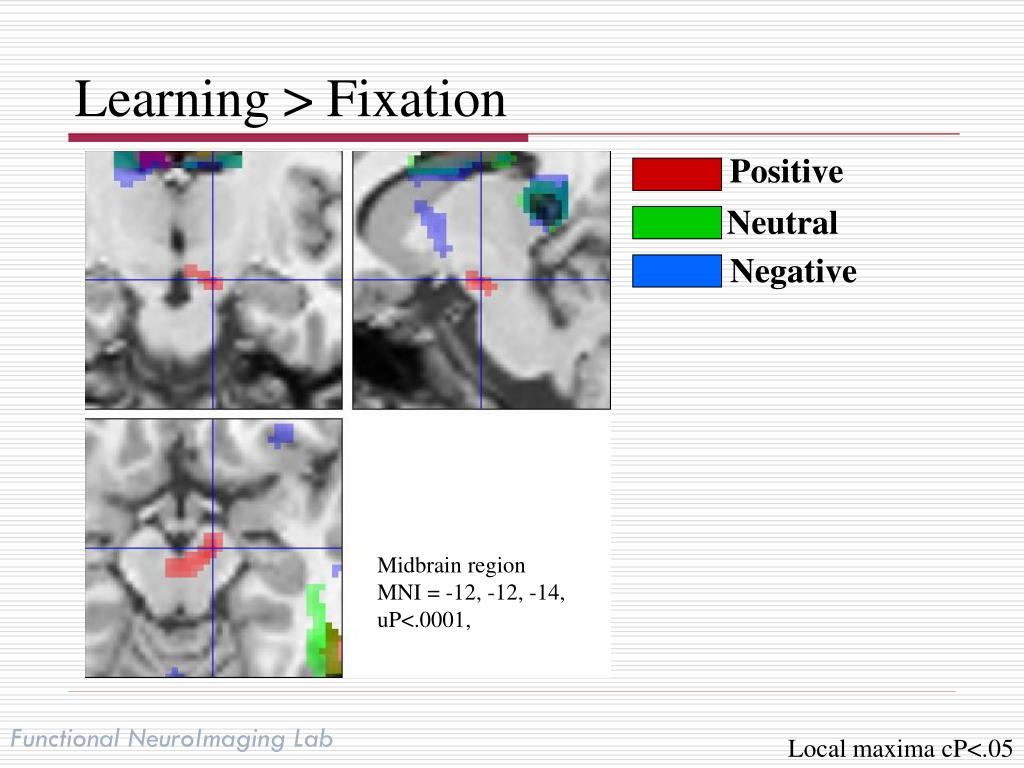

  10. Learning > Fixation Positive Neutral Negative Midbrain region MNI = -12, -12, -14, uP<.0001, Functional NeuroImaging Lab Local maxima cP<.05

  11. Learning > Dummy L Left Posterior Hippocampus MNI = -34, -44, -2 uP<.0001 Dorsal Hypothalamus MNI = -2, 0, -8, uP<.0001

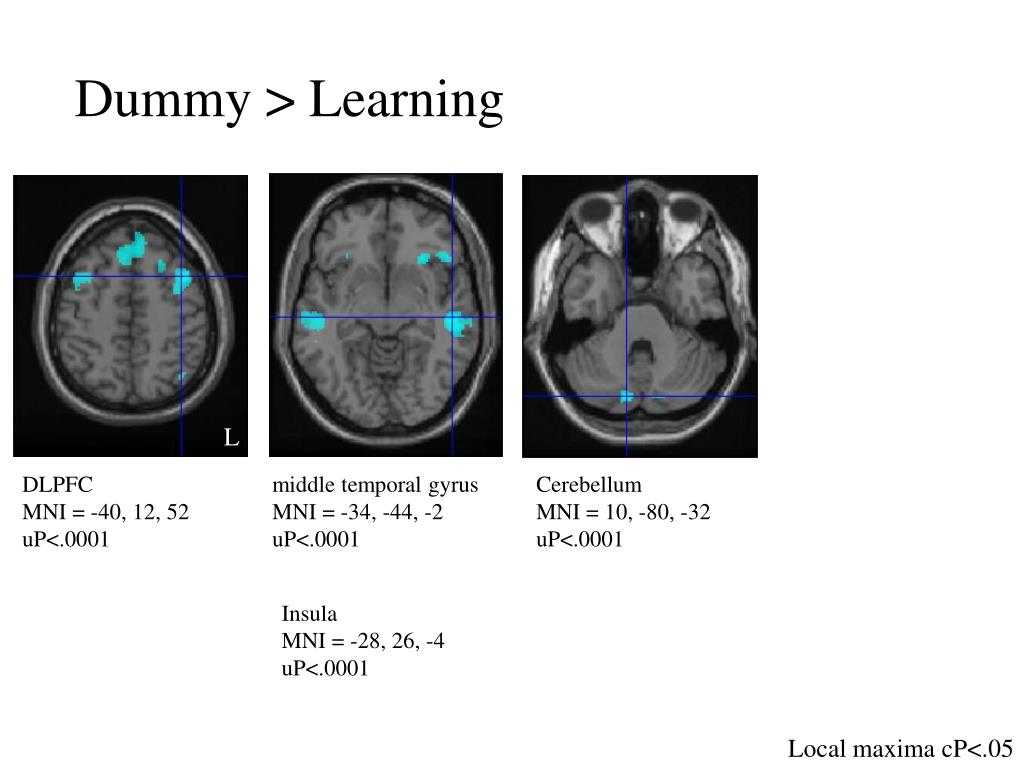

  12. Dummy > Learning L L DLPFC MNI = -40, 12, 52 uP<.0001 middle temporal gyrus MNI = -34, -44, -2 uP<.0001 Cerebellum MNI = 10, -80, -32 uP<.0001 Insula MNI = -28, 26, -4 uP<.0001 Local maxima cP<.05

  13. Hit > Miss R Putamen MNI = -28, 4, 4 N.Acc MNI = -16, 12, -12 uP<.001 Functional NeuroImaging Lab

  14. Hit Miss R uP<.0001 Functional NeuroImaging Lab

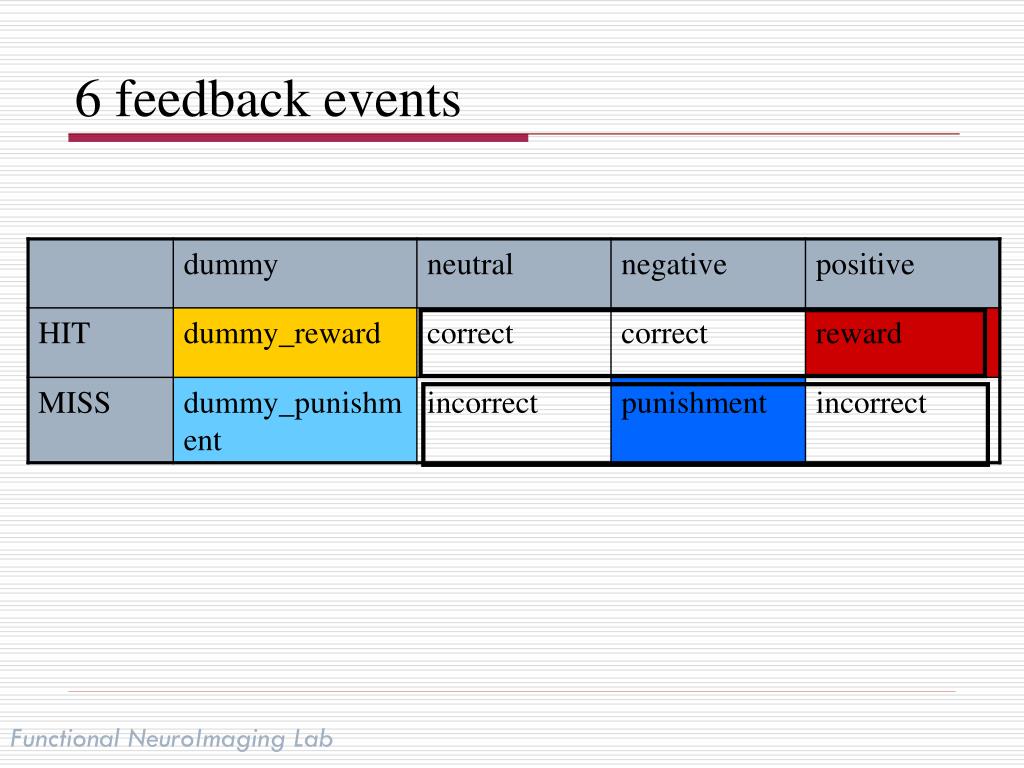

  15. 6 feedback events Functional NeuroImaging Lab

  16. Reward > Punishment Ventral Striatum/N.Acc MNI = 10, 16, -6 cP<.05 Functional NeuroImaging Lab

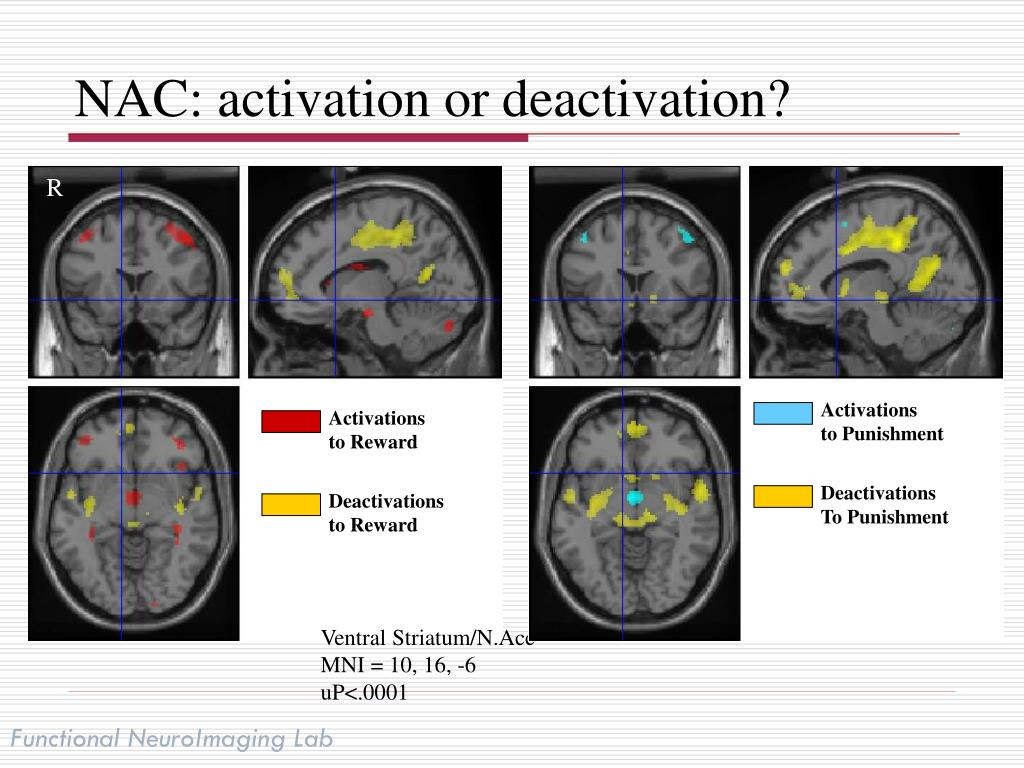

  17. NAC: activation or deactivation? R Activations to Punishment Activations to Reward Deactivations To Punishment Deactivations to Reward Ventral Striatum/N.Acc MNI = 10, 16, -6 uP<.0001 Functional NeuroImaging Lab

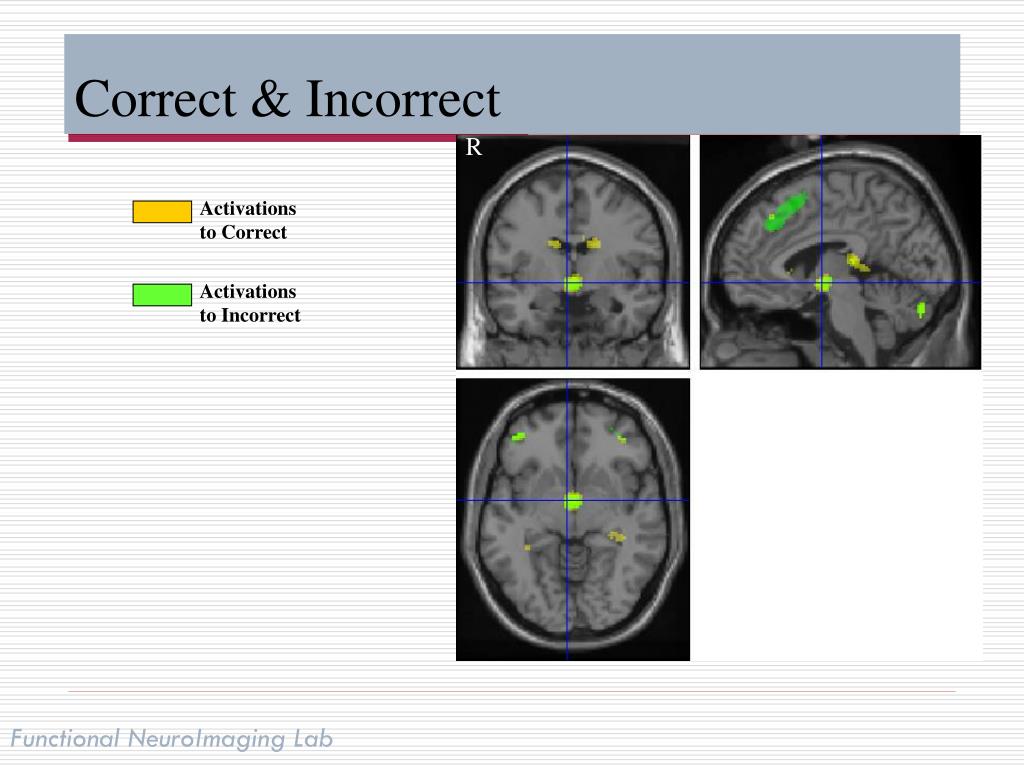

  18. Correct & Incorrect R Activationsto Correct Activations to Incorrect Functional NeuroImaging Lab

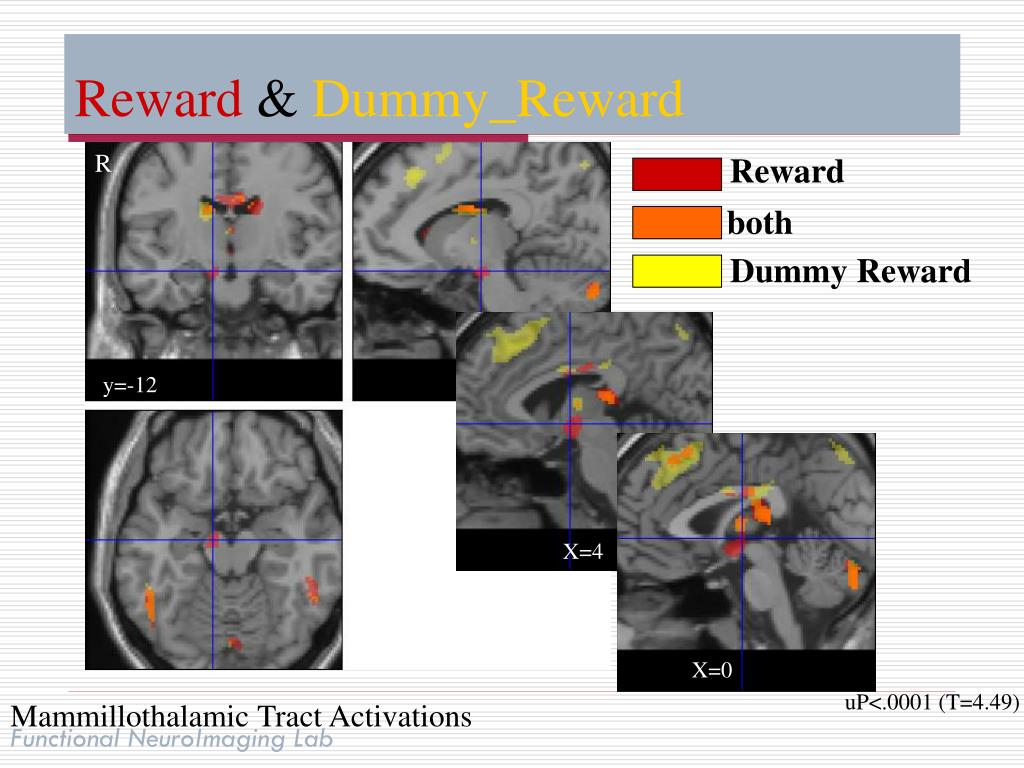

  19. Reward & Dummy_Reward R Reward both Dummy Reward y=-12 X=4 X=0 uP<.0001 (T=4.49) Mammillothalamic Tract Activations Functional NeuroImaging Lab

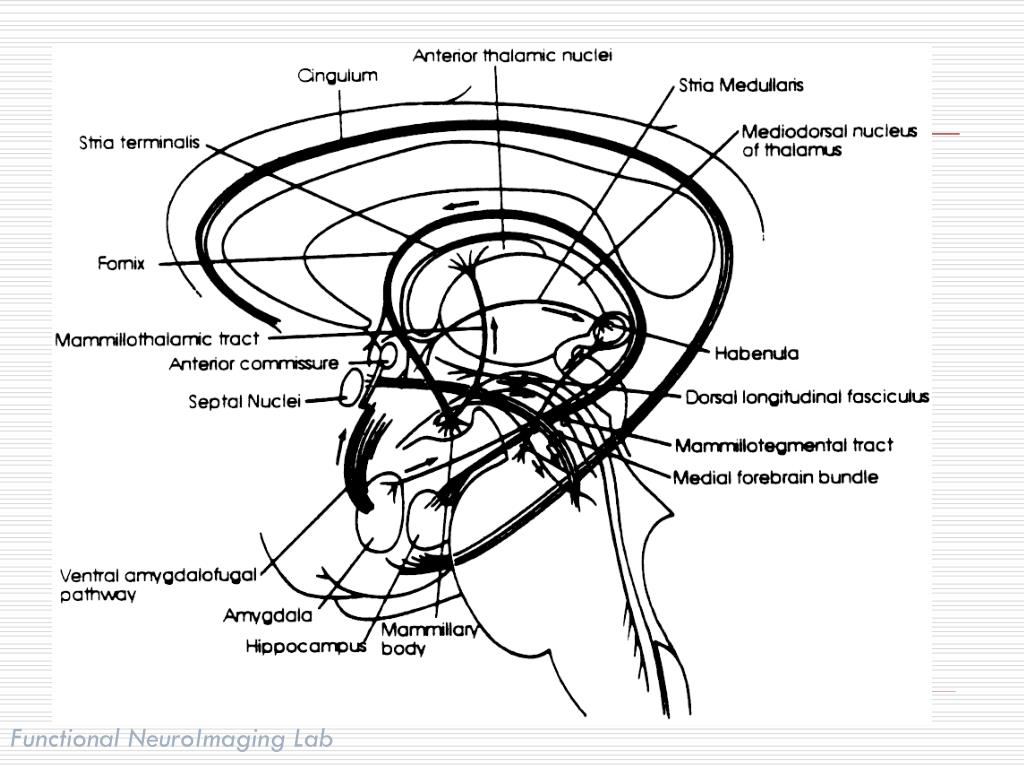

  20. Functional NeuroImaging Lab

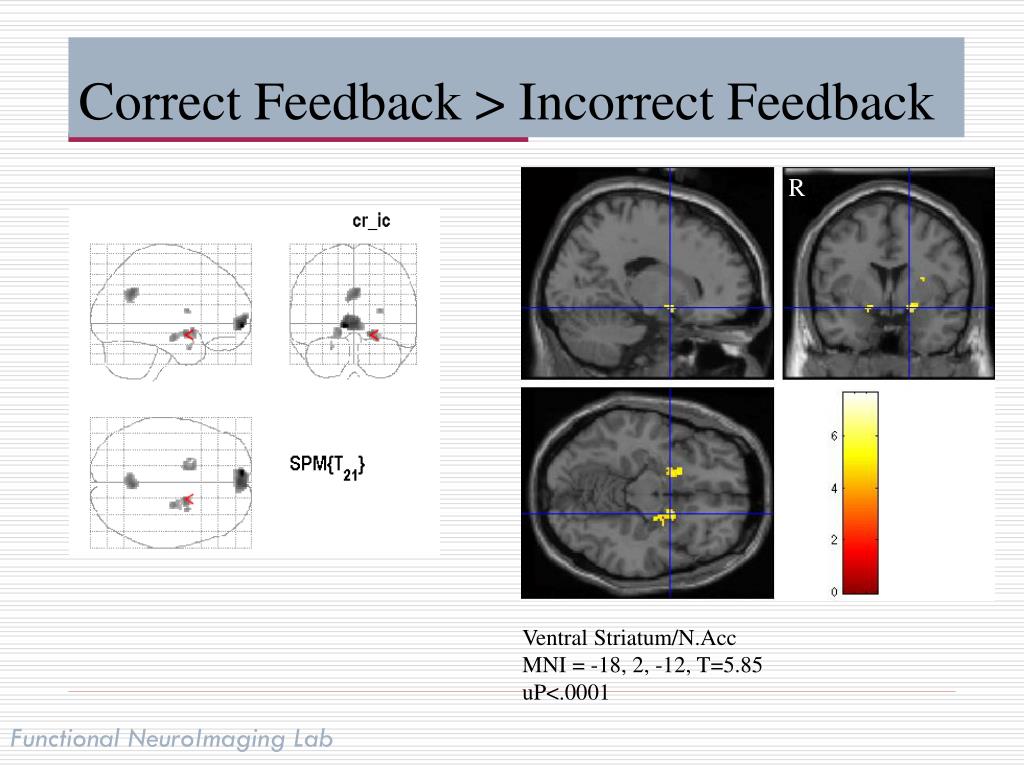

  21. Correct Feedback> Incorrect Feedback R Ventral Striatum/N.Acc MNI = -18, 2, -12, T=5.85 uP<.0001 Functional NeuroImaging Lab

  22. Positive Feedback> Negative Feedback R Ventral Striatum MNI = 10, 14, -6, T=8.08 Posterior Cingulate MNI = 2,-44,32, T=7.67 N.Acc MNI = -22, 4, -12, T=12.17 Positive Feedback Negative Feedback Positive > Negative cP<.05 Functional NeuroImaging Lab

  23. Limbic corticostrial loop and relationship with other cortex Functional NeuroImaging Lab Cardinal et al., 2002

  24. Conclusions • Circuits for instrumental learning • Conditioning vs. Pseudo-Learning • P. Hippocampus, dorsal hypothalamus • Dorsal striatum vs. ventral striatum • Feedback events  N.Acc/Ventral striatum, Hypothalamus, Parietal Cortex, DLPFC, Posterior Hippocampus • Individual Difference • VTA only for reward learning Functional NeuroImaging Lab

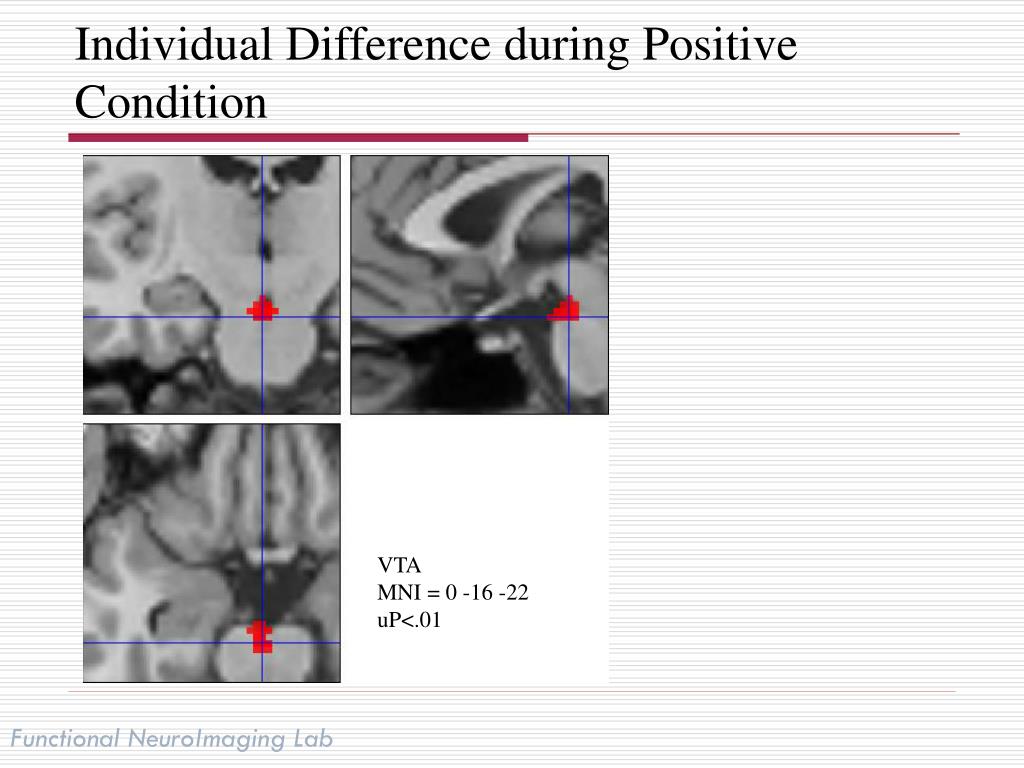

  25. Individual Difference during Positive Condition VTA MNI = 0 -16 -22 uP<.01 Functional NeuroImaging Lab
