  1. Air France KLM Private Cloud Annabel Destaing / February 19, 2013

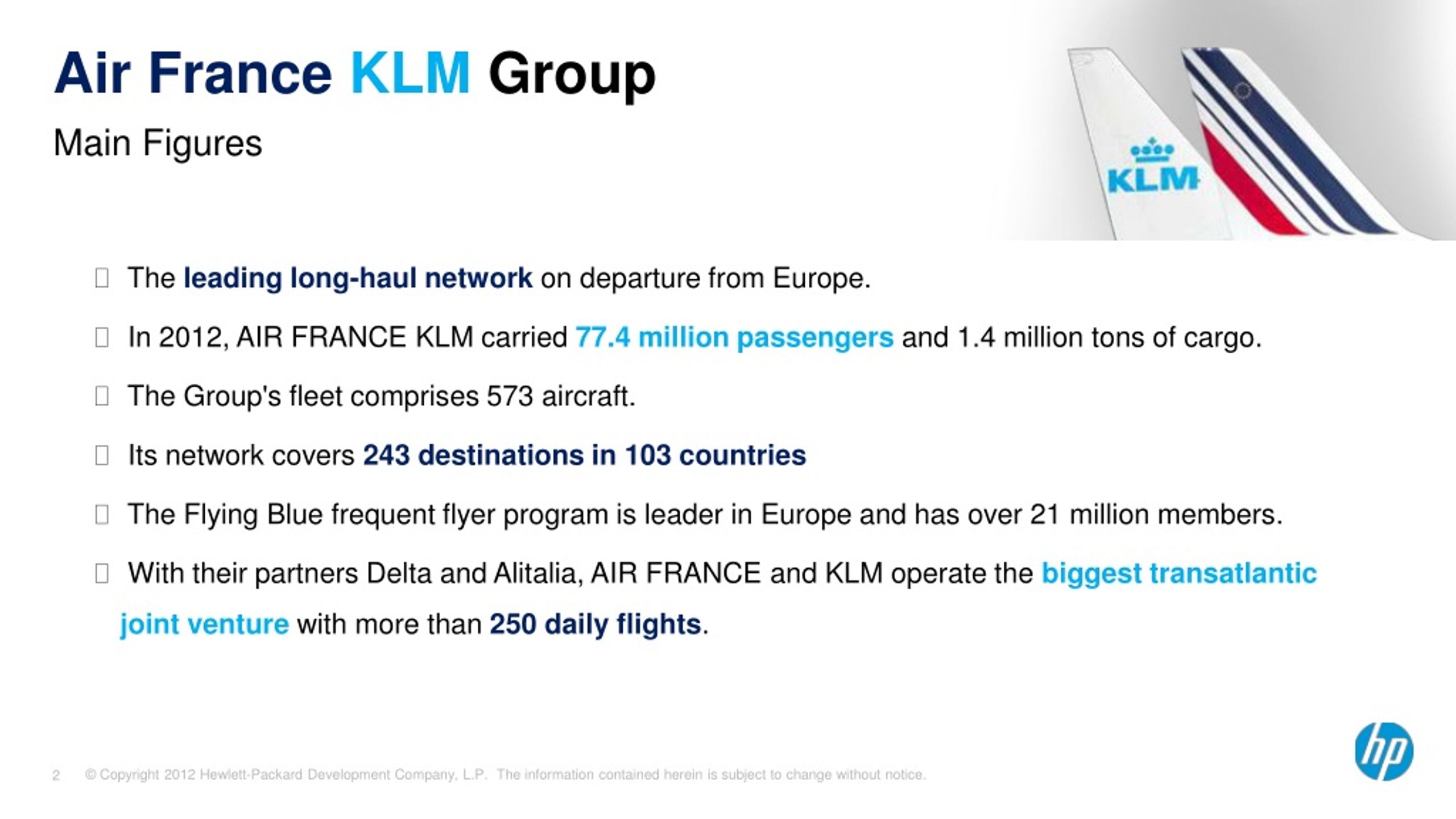

  2. Air FranceKLM Group Main Figures • The leading long-haul network on departure from Europe. • In 2012, AIR FRANCE KLM carried 77.4 million passengers and 1.4 million tons of cargo. • The Group's fleet comprises 573 aircraft. • Its network covers 243 destinations in 103 countries • The Flying Blue frequent flyer program is leader in Europe and has over 21 million members. • With their partners Delta and Alitalia, AIR FRANCE and KLM operate the biggest transatlantic joint venture with more than 250 daily flights.

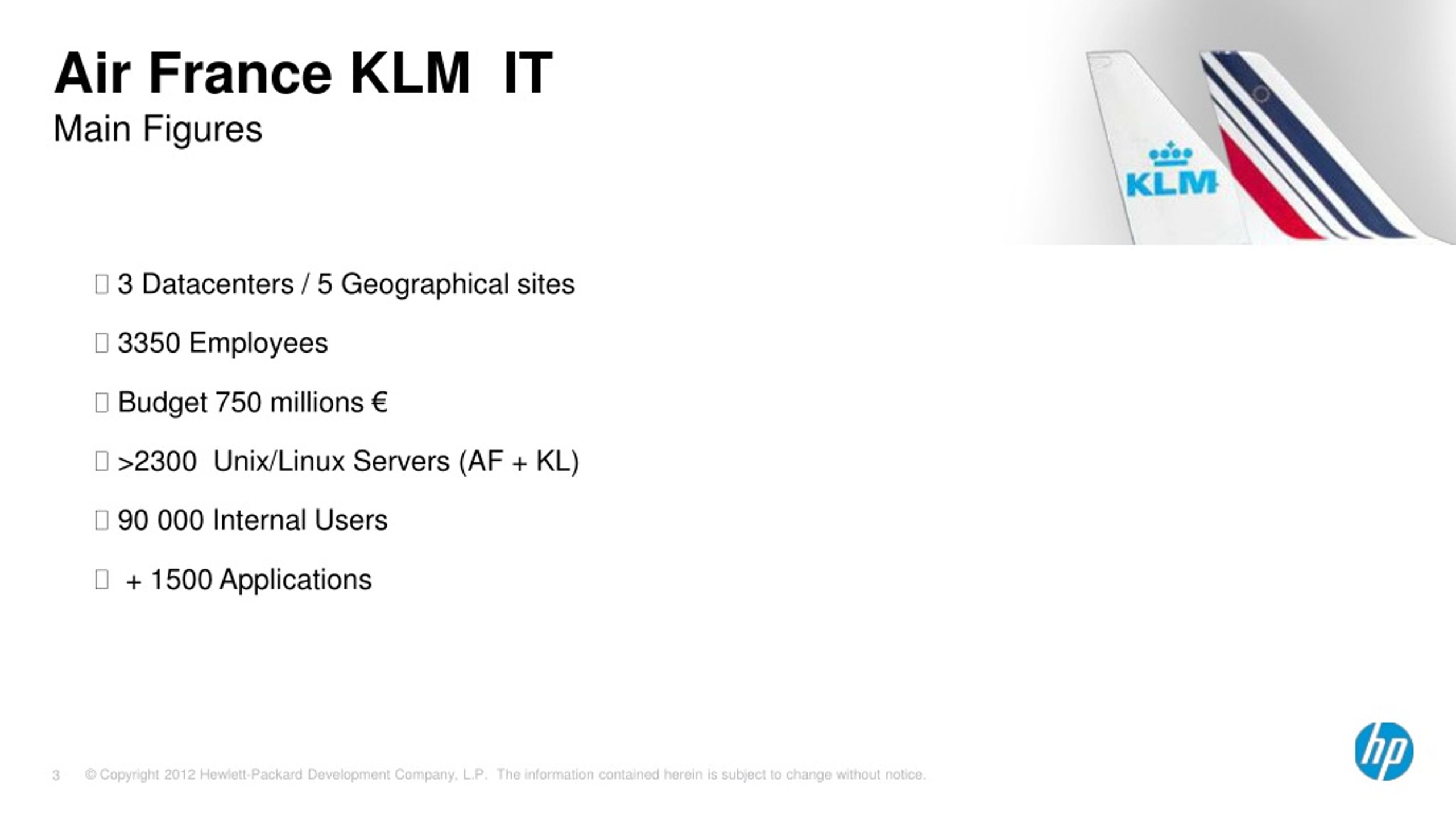

  3. Air France KLM IT Main Figures • 3 Datacenters / 5 Geographical sites • 3350 Employees • Budget 750 millions € • >2300 Unix/Linux Servers (AF + KL) • 90 000 Internal Users • + 1500 Applications

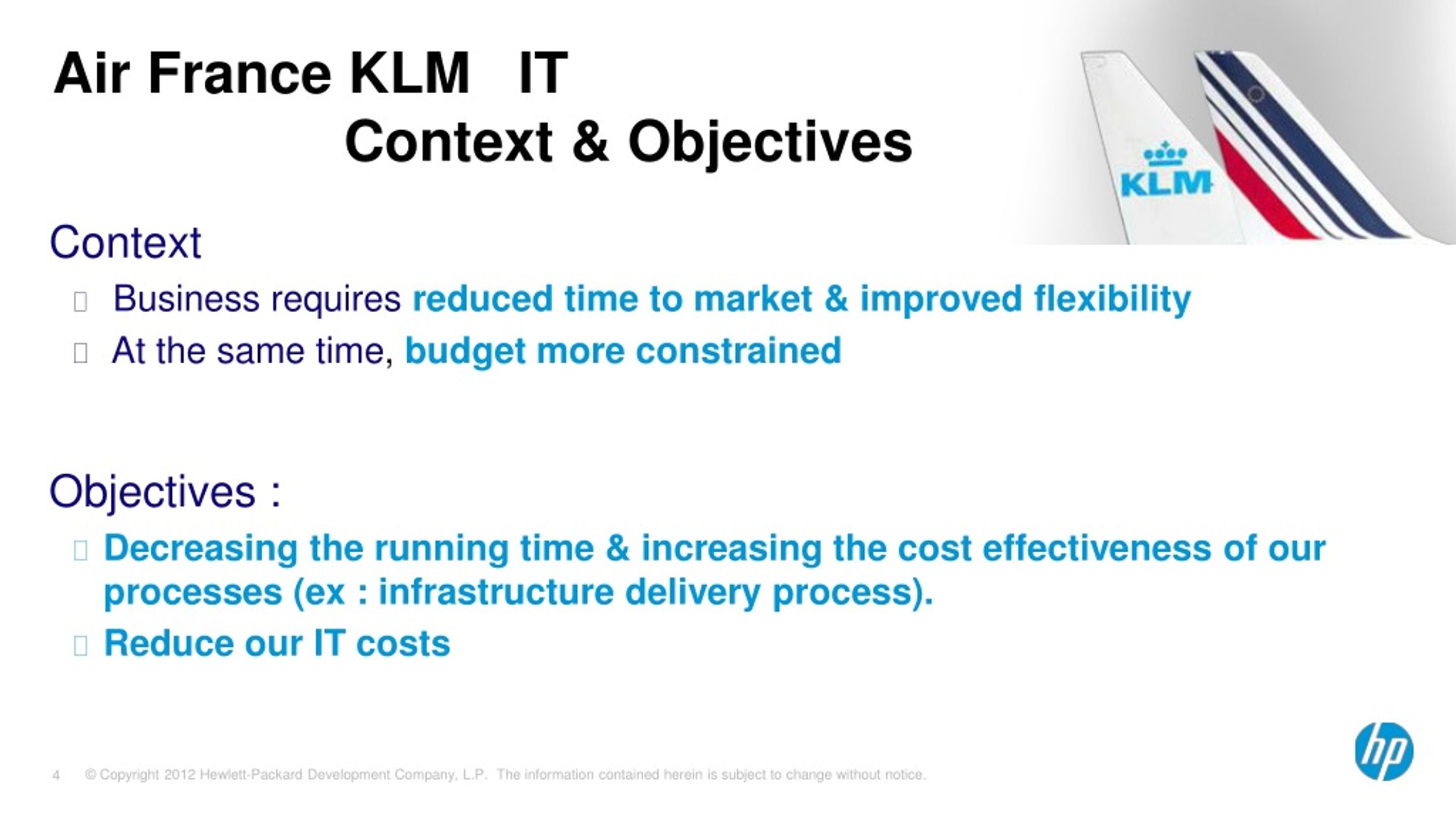

  4. Air France KLM IT Context & Objectives Context Business requiresreduced time to market & improved flexibility At the same time, budget more constrained Objectives : Decreasing the running time & increasing the cost effectiveness of our processes (ex : infrastructure delivery process). Reduce our IT costs

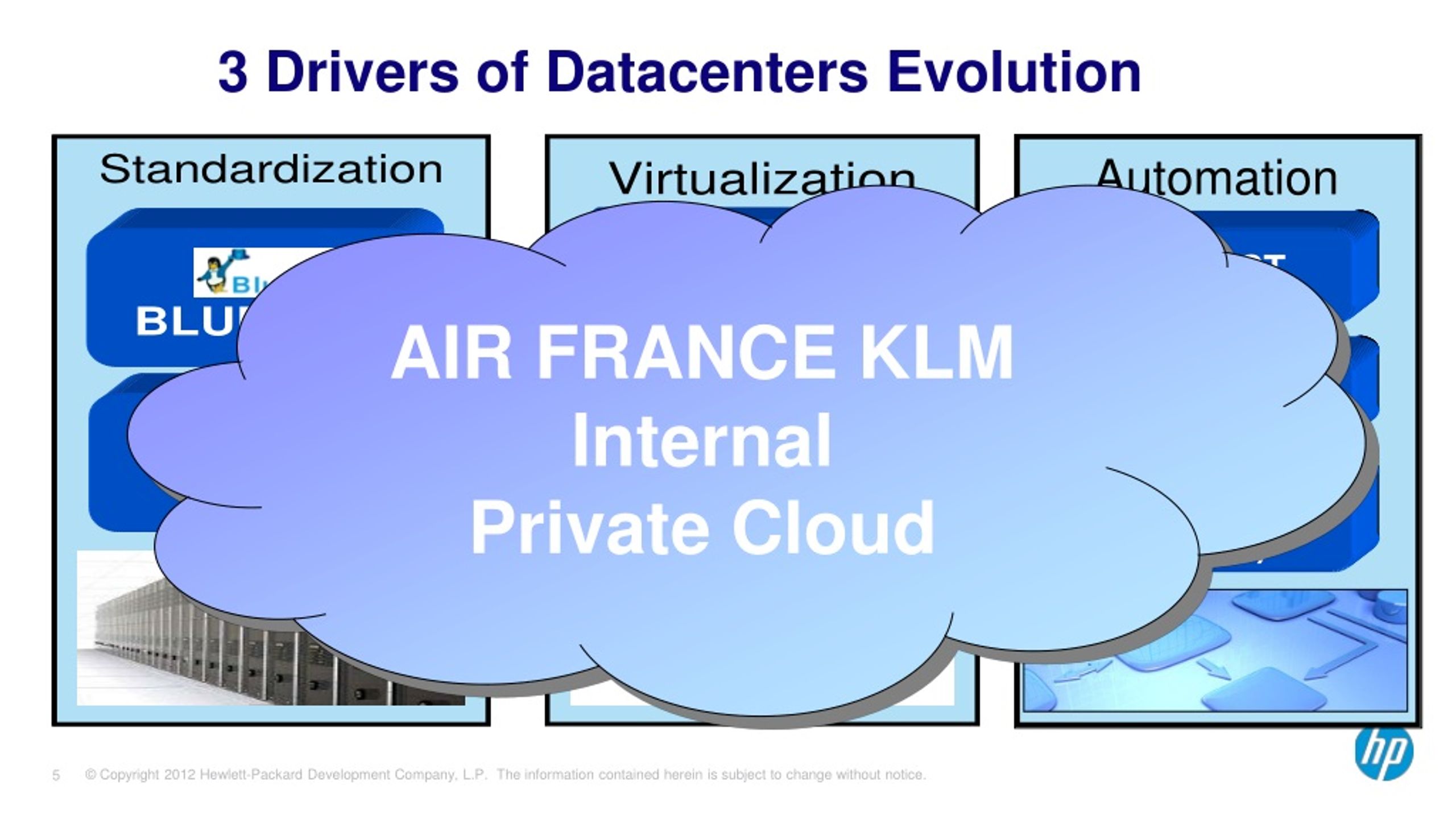

  5. AUTOMATION Automation AUTOINST AUTOINST Private Cloud (IaaS) AUTOINST - Private cloud APPROVIZ (PaaS) APPROVIZ 02 3 Drivers of Datacenters Evolution AIR FRANCE KLM Internal Private Cloud

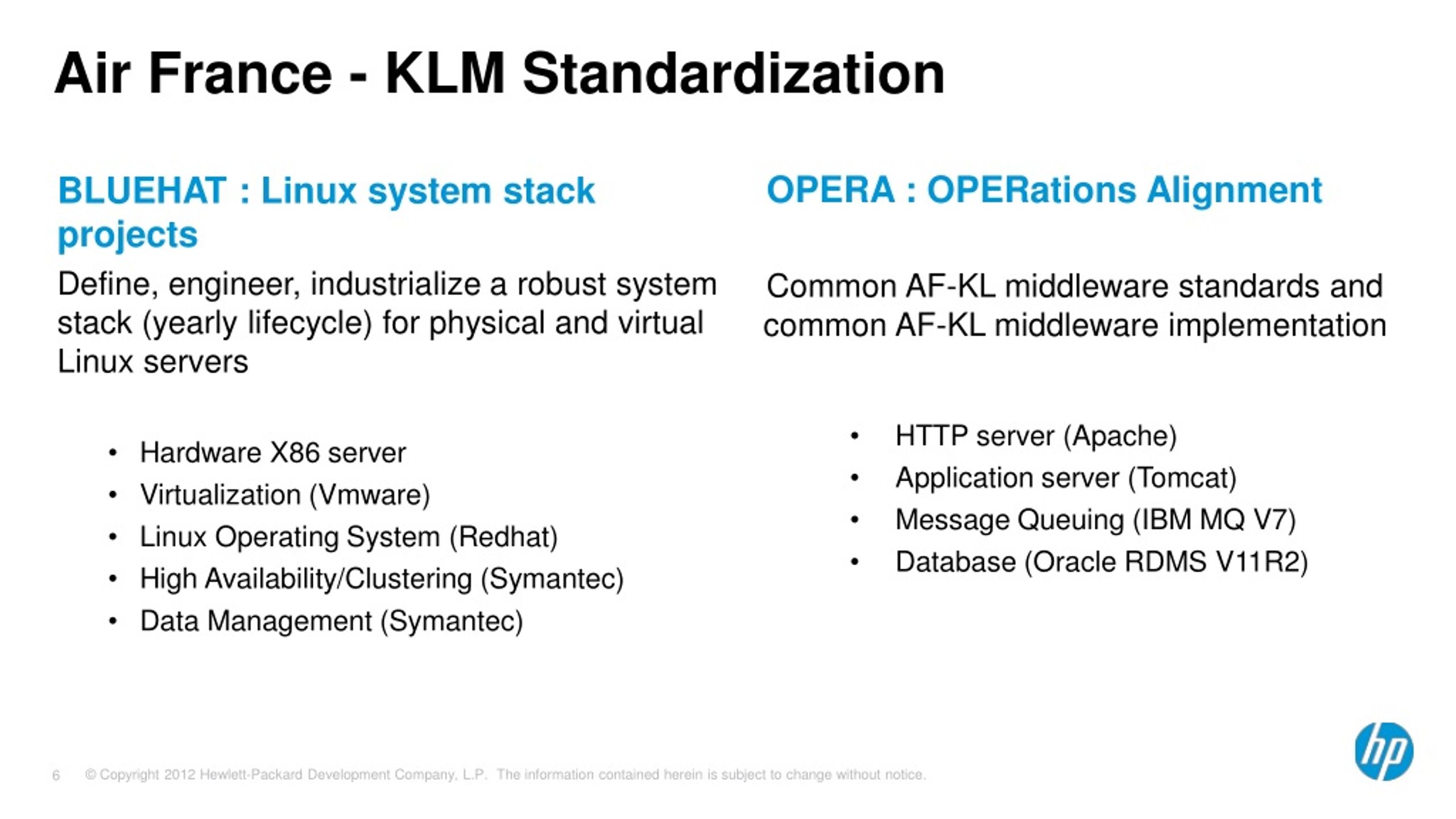

  6. Air France - KLM Standardization • OPERA : OPERations Alignment • Common AF-KL middleware standards and common AF-KL middleware implementation • HTTP server (Apache) • Application server (Tomcat) • Message Queuing (IBM MQ V7) • Database (Oracle RDMS V11R2) • BLUEHAT : Linux system stack projects • Define, engineer, industrialize a robust system stack (yearly lifecycle) for physical and virtual Linux servers • Hardware X86 server • Virtualization (Vmware) • Linux Operating System (Redhat) • High Availability/Clustering (Symantec) • Data Management (Symantec)

  7. Air France - KLM Virtualization (Deployment) • VIOLIN : (Linux servers virtualization) • WAVE : (Windows servers virtualization • Operate virtual servers as physical ones. • Virtualization is the preferred target platform (new servers) • Aggressive projects to virtualize existing Linux and Windows servers

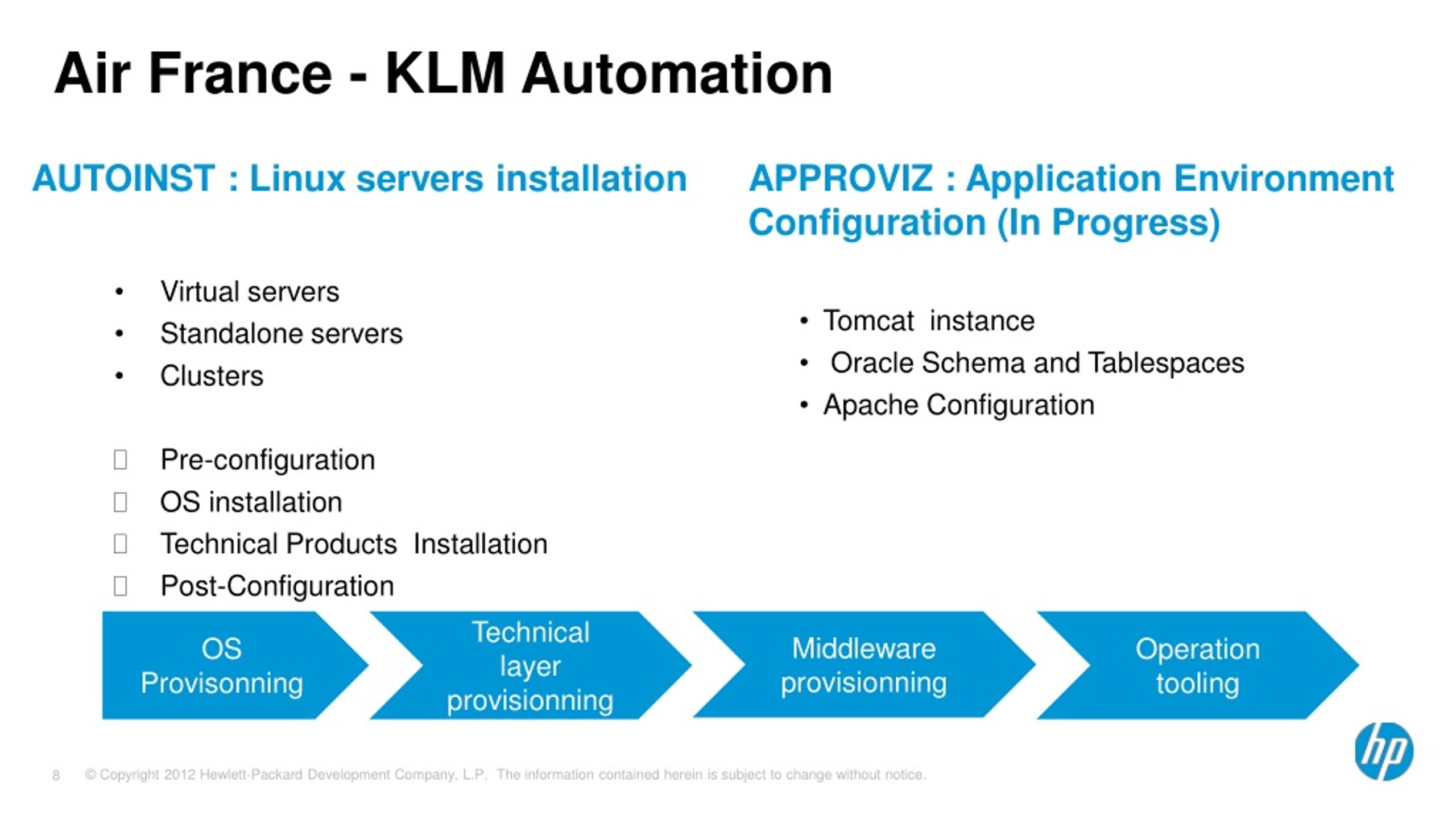

  8. Air France - KLM Automation AUTOINST : Linux servers installation • Virtual servers • Standalone servers • Clusters • Pre-configuration • OS installation • TechnicalProducts Installation • Post-Configuration • APPROVIZ : Application Environment Configuration (In Progress) • Tomcat instance • Oracle Schema and Tablespaces • Apache Configuration OS Provisonning Technical layer provisionning Middleware provisionning Operationtooling

  9. AUTOINST : Linux servers Automatic Installation HP Operations Orchestration Air France KLM Home Made GUI Air France KLM Home Made GUI VMWareVSphere HP Server Automation Server Request Pre-configuration OS installation Products Installation Post-configuration Server Delivery AF KLM Configuration Database

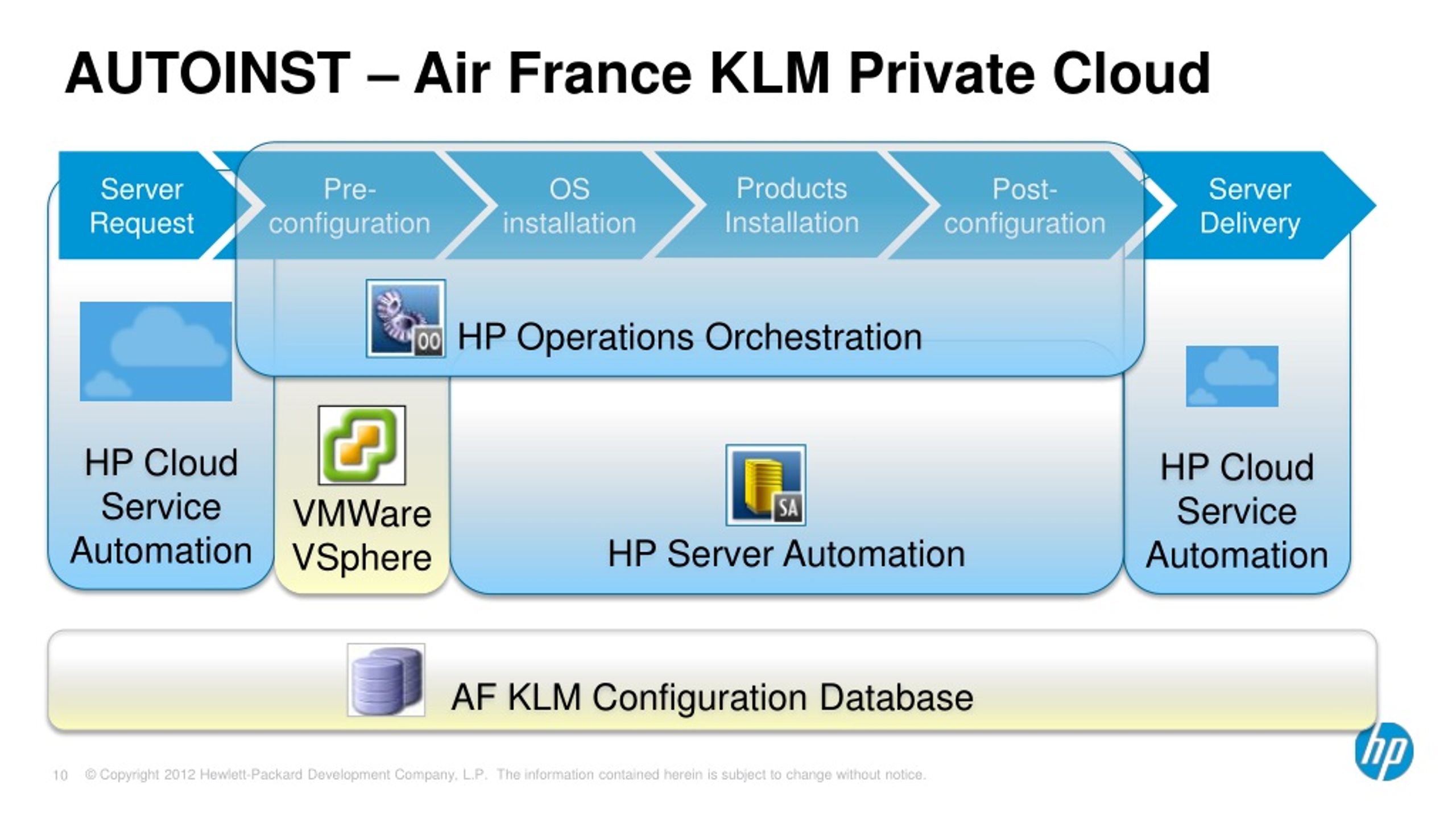

  10. AUTOINST – Air France KLM Private Cloud HP Operations Orchestration HP Cloud Service Automation HP Cloud Service Automation VMWareVSphere HP Server Automation Server Request Pre-configuration OS installation Products Installation Post-configuration Server Delivery AF KLM Configuration Database

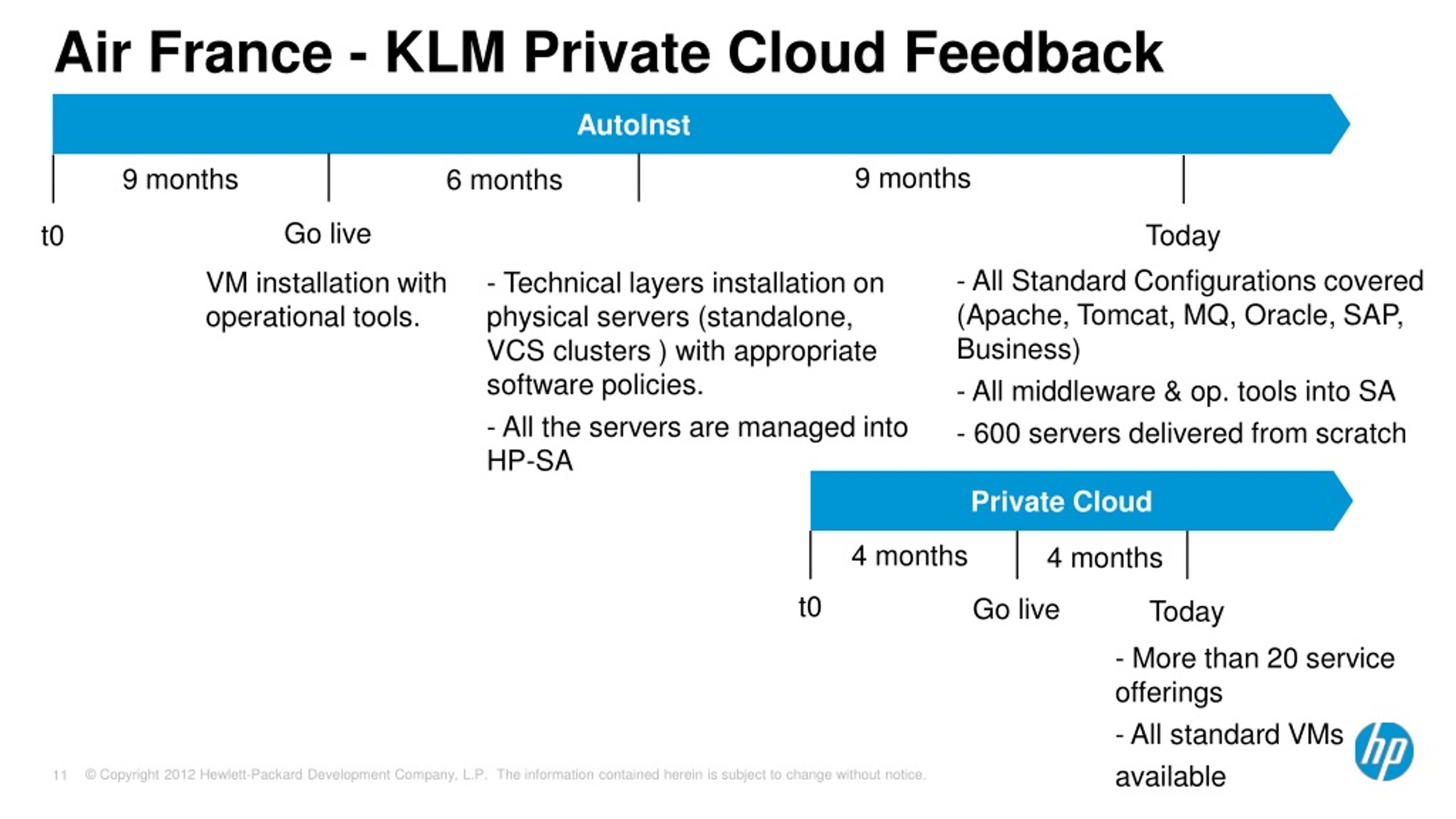

  11. Air France - KLM Private Cloud Feedback AutoInst 9 months 9 months 6 months Go live t0 Today • - All Standard Configurations covered (Apache, Tomcat, MQ, Oracle, SAP, Business) • - All middleware & op. toolsinto SA • - 600 servers deliveredfrom scratch VM installation with operational tools. - Technical layers installation on physical servers (standalone, VCS clusters ) with appropriate software policies. - All the servers are managed into HP-SA Private Cloud 4 months 4 months t0 Go live Today • - More than 20 service offerings • - All standard VMs • available

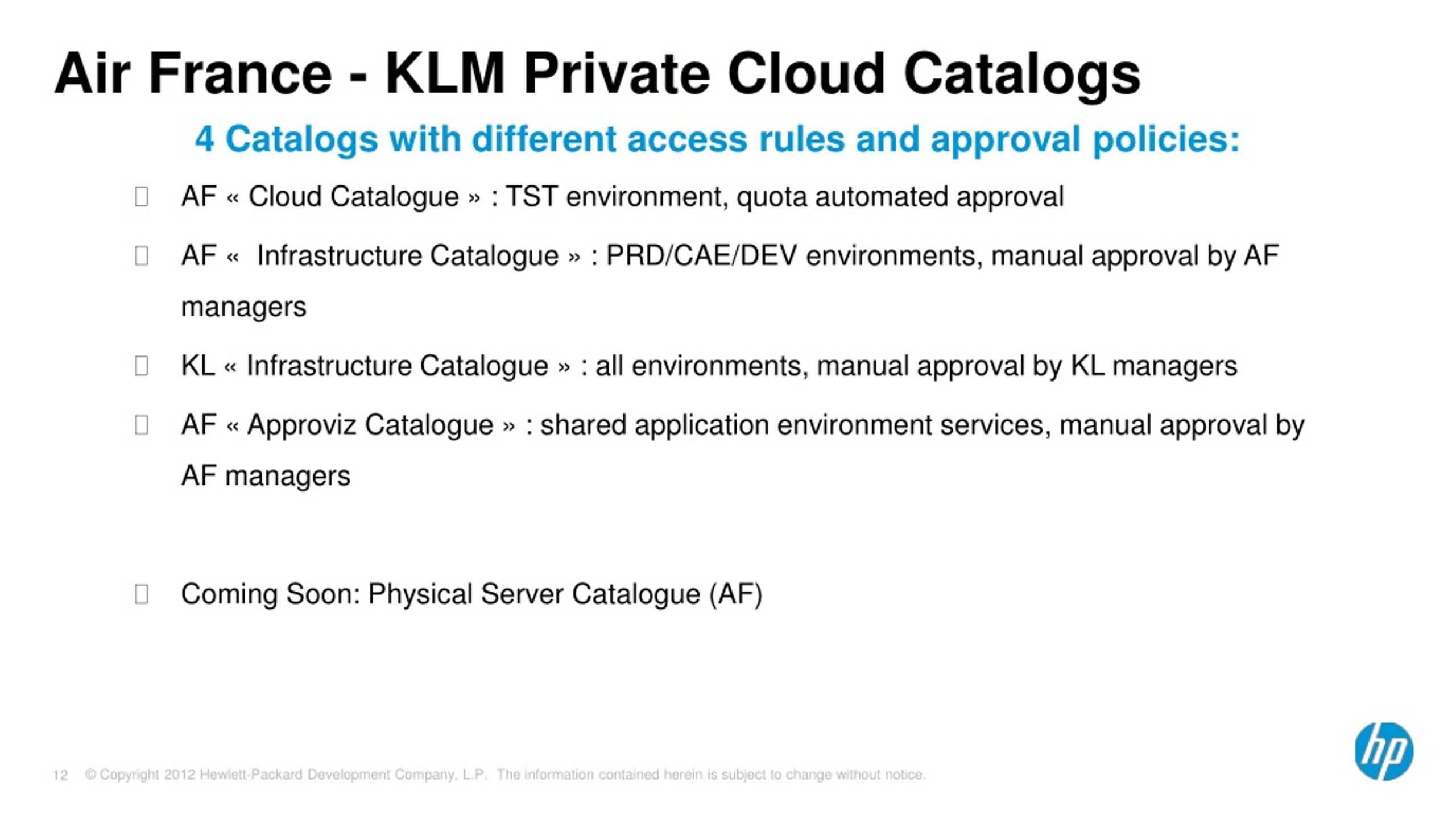

  12. Air France - KLM Private Cloud Catalogs 4 Catalogs with different access rules and approval policies: • AF « Cloud Catalogue » : TST environment, quota automated approval • AF «  Infrastructure Catalogue » : PRD/CAE/DEV environments, manual approval by AF managers • KL « Infrastructure Catalogue » : all environments, manual approval by KL managers • AF « Approviz Catalogue » : shared application environment services, manual approval by AF managers • Coming Soon: Physical Server Catalogue (AF)

  13. Delivery time improvement: • Several Weeks => 1Hourfor VM • Workload gain • 85% workload gain (Estimated ROI based on 50%) • Quality improvement of delivered servers (the number of additional requests to align the deliverables to the needs decreased over 90%) • LCM workload gain • Process simplification and alignment between datacentres • (common repository, common deployment tools, common implementation) After Before Server request AUTOINST Server delivery AUTOMATION Average time ~ 1hour Average time ~ 6 weeks Air France - KLM Private Cloud Benefits

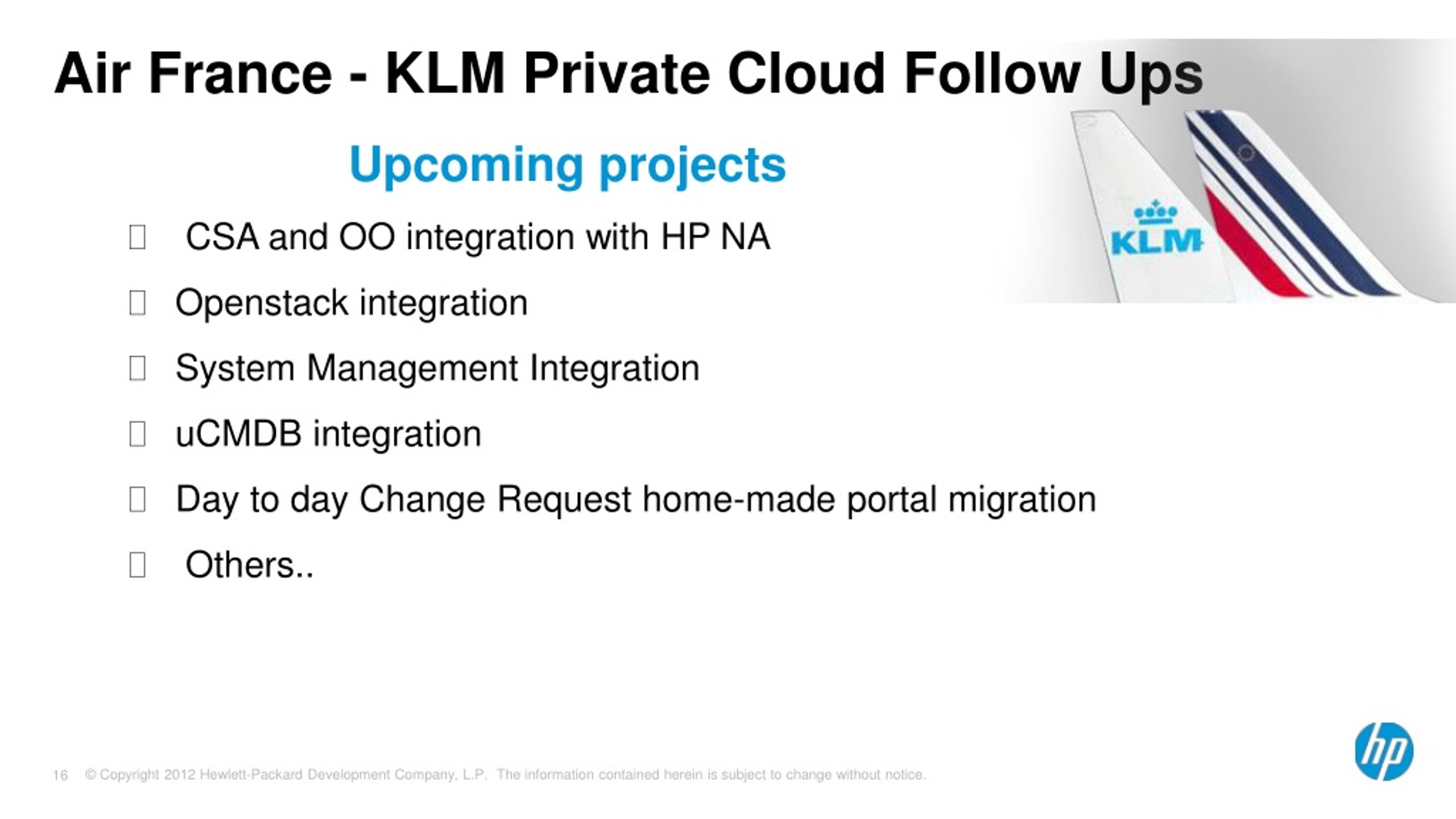

  14. Air France - KLM Private Cloud Follow Ups Upcoming projects • CSA and OO integration with HP NA • Openstack integration • System Management Integration • uCMDBintegration • Day to day Change Request home-made portal migration • Others..

  15. Thank you
