Advanced Copper Wire Recycling Machines for Efficient Metal Processing

Discover our range of advanced copper wire recycling machines, including the QY-400B, QY-400A, QY-600C, QY-600A, and QY-1200A models. These machines are designed for efficient copper separation with a high purity rate and low environmental impact. Featuring unique structures, high process capacity, and low power consumption, our production lines guarantee the complete separation of metal and non-metal materials with minimal dust emissions. Suitable for various wire sizes, our machines ensure easy installation and operation, making it effortless to enhance your recycling capabilities.

scot
Télécharger la présentation

Advanced Copper Wire Recycling Machines for Efficient Metal Processing

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Address:NO.8,A District Cangxi Industrial Park Of Fengjiang Luqiao Taizhou Zhejiang ,China    Zip Code: 318000 Mobile:86+13456668080 (Danlinna) Tel:+86-576-82671238Fax:+86-0576-82683088E_mail:zjqiyi@163.com  danlinna_qy@qq.com Website: www.zjqiyi.comwww.83509292.com

  2. Copper wire recycling machine QY-400B QY-400A QY-600C QY-600A QY-1200A Wire stripping machine hand-type 002-1 002-2 002-3 Sharpener QY-800 Catalogue(main product)

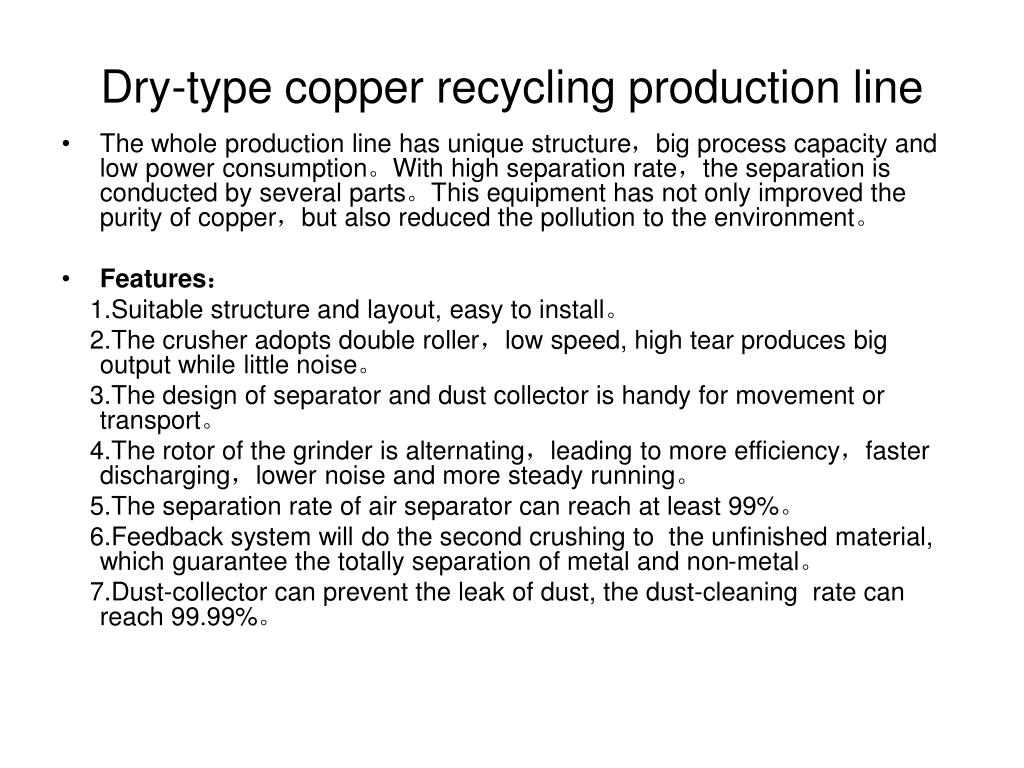

  3. Dry-type copper recycling production line • The whole production line has unique structure，big process capacity and low power consumption。With high separation rate，the separation is conducted by several parts。This equipment has not only improved the purity of copper，but also reduced the pollution to the environment。 • Features： 1.Suitable structure and layout, easy to install。 2.The crusher adopts double roller，low speed, high tear produces big output while little noise。 3.The design of separator and dust collector is handy for movement or transport。 4.The rotor of the grinder is alternating，leading to more efficiency，faster discharging，lower noise and more steady running。 5.The separation rate of air separator can reach at least 99%。 6.Feedback system will do the second crushing to  the unfinished material, which guarantee the totally separation of metal and non-metal。 7.Dust-collector can prevent the leak of dust, the dust-cleaning  rate can reach 99.99%。

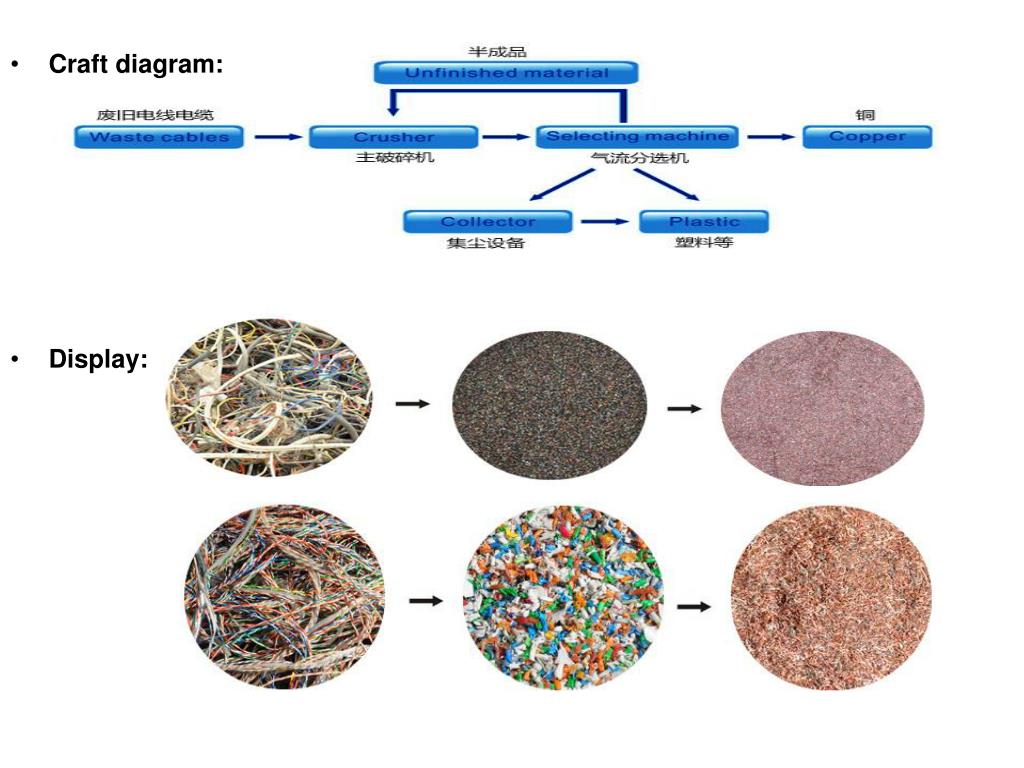

  4. Craft diagram: Display:

  5. QY-400B • Video: http://vodcdn.video.taobao.com/player/ugc/tb_ugc_pieces_core_player_loader.swf?version=1.0.20130628&vid=10494953&uid=1005182162&p=1&t=1&rid=http%3A%2F%2Fwww.zjqiyi.com%2Fechanpin2.asp%3Ff_id%3D881&random=6666

  6. QY-400A Videro : http://vodcdn.video.taobao.com/player/ugc/tb_ugc_pieces_core_player_loader.swf?version=1.0.20130628&vid=10496086&uid=1005182162&p=1&t=1&rid=http%3A%2F%2Fwww.zjqiyi.com%2Fechanpin2.asp%3Ff_id%3D874&random=6666

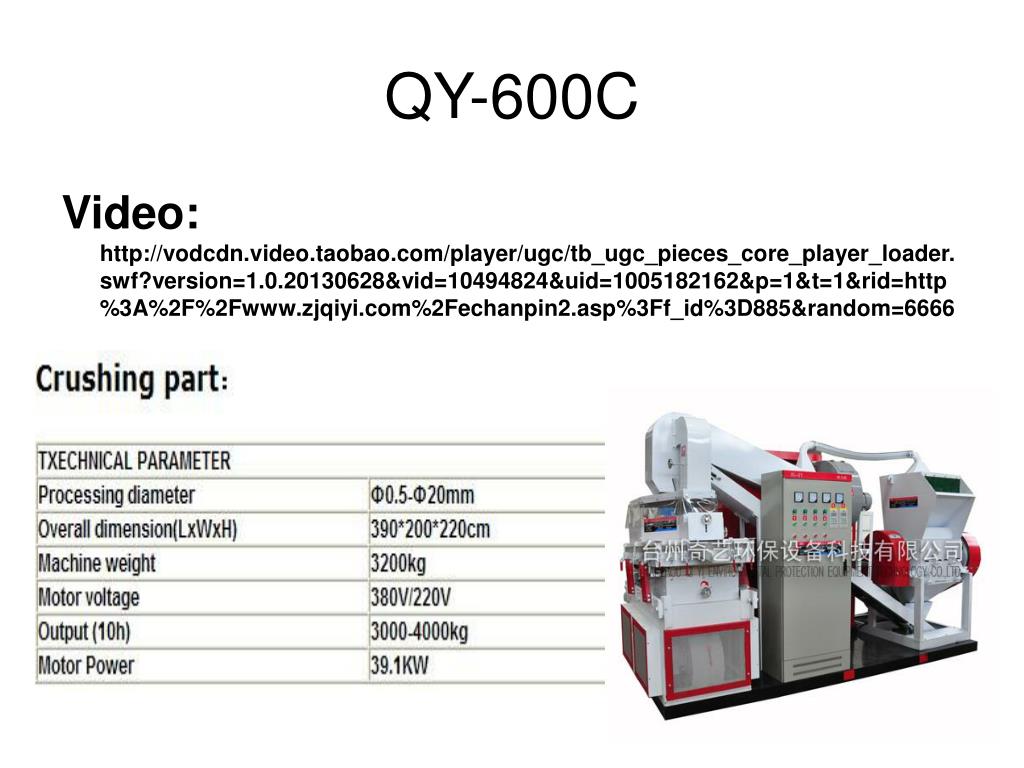

  7. QY-600C Video: http://vodcdn.video.taobao.com/player/ugc/tb_ugc_pieces_core_player_loader.swf?version=1.0.20130628&vid=10494824&uid=1005182162&p=1&t=1&rid=http%3A%2F%2Fwww.zjqiyi.com%2Fechanpin2.asp%3Ff_id%3D885&random=6666

  8. QY-600A

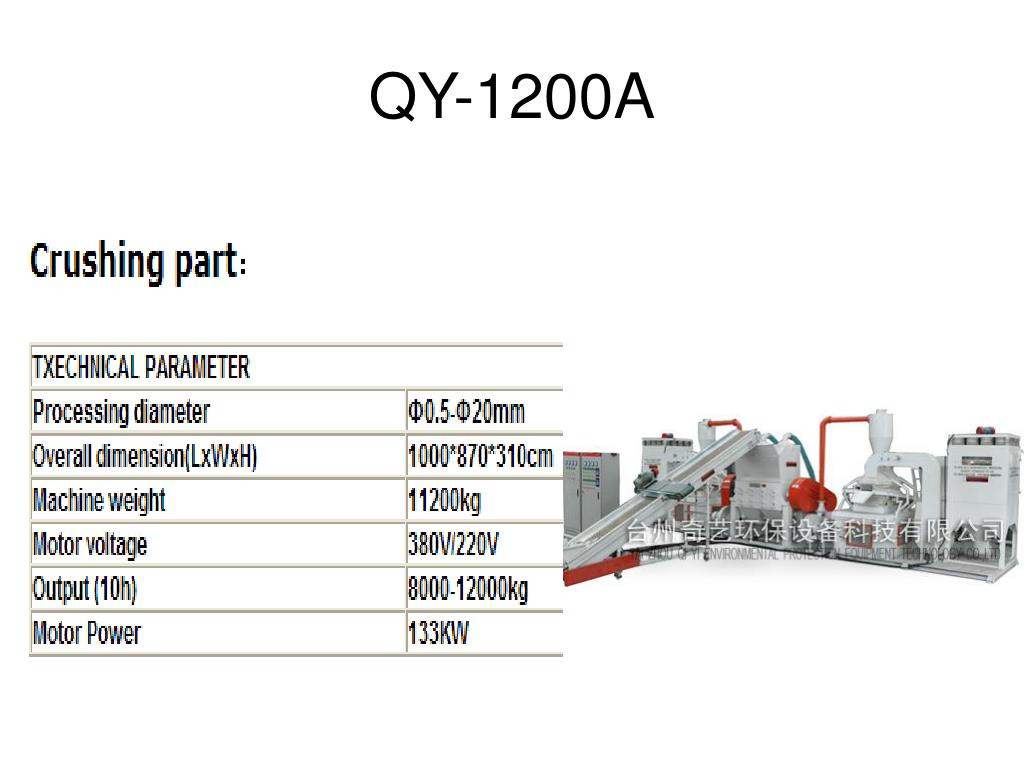

  9. QY-1200A

  10. hand-type • (technical parameter) • Diameter Range of Cables Stripped: 1.5-20mmsize:54*15.5*29.5cmWeight: 22kgOutput(10h): 50-150kg/Day

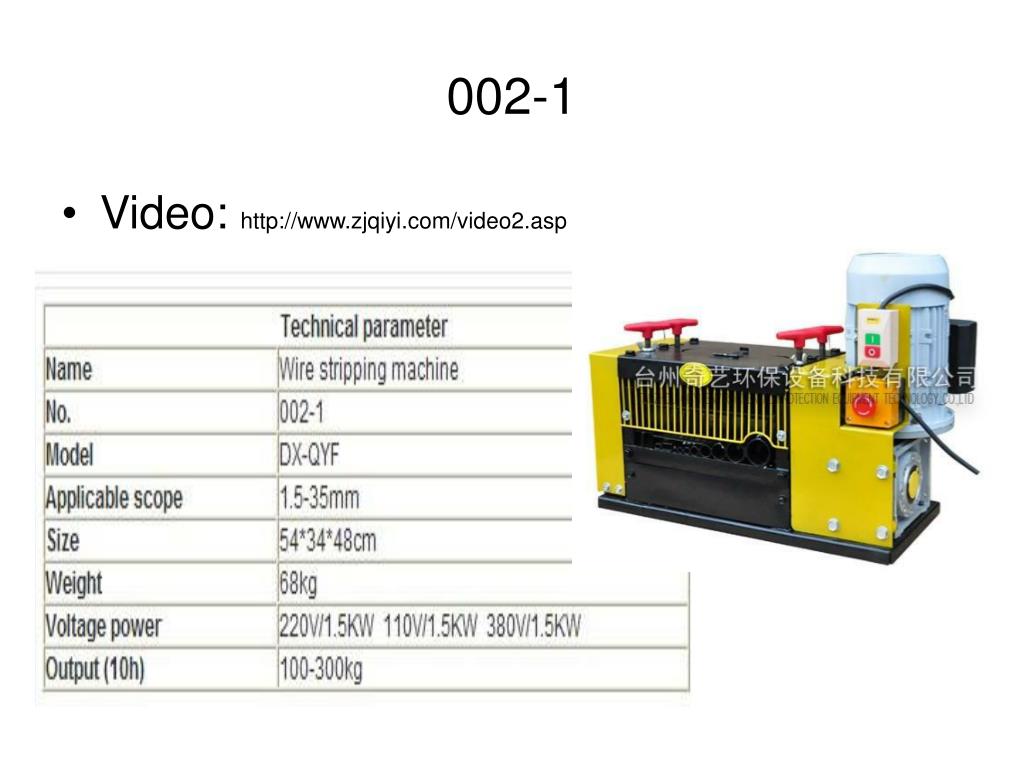

  11. 002-1 • Video: http://www.zjqiyi.com/video2.asp

  12. 002-2 • (technical parameter) • Diameter Range of Cables Stripped: 1.5-38mmsize:63*37*48cmWeight: 77kgVoltage power:220V/1.5KW;380V/1.5KW;110V/1.5KWOutput(10h): 200-500kg/Day

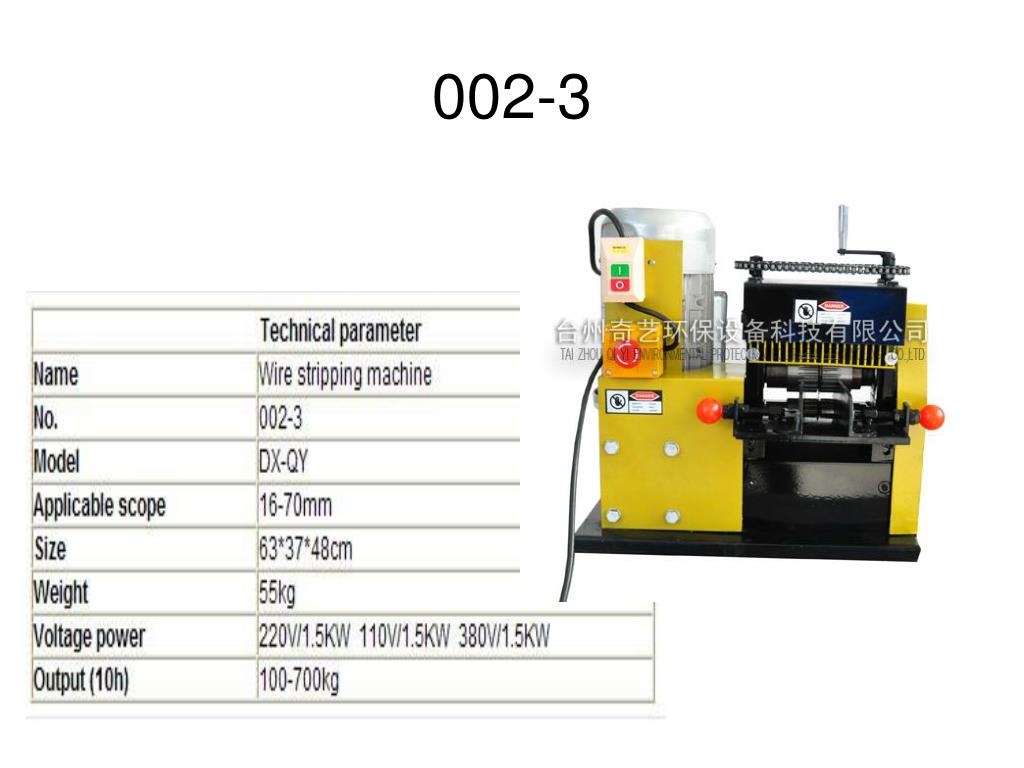

  13. 002-3

  14. Sharpener QY-800 • Model:   QY-800      (Technical Parameter) • Working Range:   0 - 800mm • Moving Motor:  90YSJ-4  GS60 • Size of the grinding wheel:   BW150*95*12Working angle:  0 -180 degrees Celsius • Moving speed:  2.82m*min • Grinding wheel motor:  Y90M2-2B3 /2.2kw   2830r/min • Overall dimension:  130*80*145cm • Weight:   260kg

  15. WELCOME TO CONTACT US
