Longest common subsequence

Longest common subsequence. Definition 1: Given a sequence X=x 1 x 2 ...x m , another sequence Z=z 1 z 2 ...z k is a subsequence of X if there exists a strictly increasing sequence i 1 i 2 ...i k of indices of X such that for all j=1,2,...k, we have x ij =z j .

scot
Télécharger la présentation

Longest common subsequence

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Longest common subsequence • Definition 1: Given a sequence X=x1x2...xm, another sequence Z=z1z2...zk is a subsequence of X if there exists a strictly increasing sequence i1i2...ik of indices of X such that for all j=1,2,...k, we have xij=zj. • Example 1: If X=abcdefg, Z=abdg is a subsequence of X. X=abcdefg,Z=ab d g chapter25

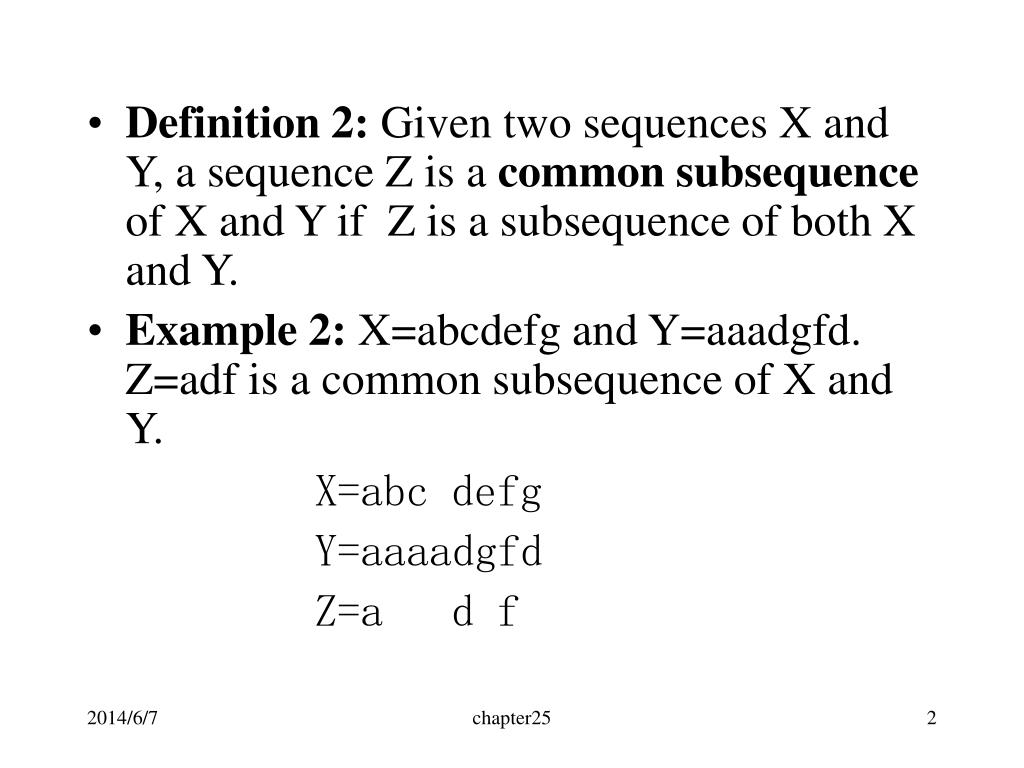

  2. Definition 2: Given two sequences X and Y, a sequence Z is a common subsequence of X and Y if Z is a subsequence of both X and Y. • Example 2: X=abcdefg and Y=aaadgfd. Z=adf is a common subsequence of X and Y. X=abc defg Y=aaaadgfd Z=a d f chapter25

  3. Definition 3: A longest common subsequence of X and Y is a common subsequence of X and Y with the longest length. (The length of a sequence is the number of letters in the seuqence.) • Longest common subsequence may not be unique. • Example: abcd acbd Both acd and abd are LCS. chapter25

  4. Longest common subsequence problem • Input: Two sequences X=x1x2...xm, and Y=y1y2...yn. • Output:a longest common subsequence of X and Y. • A brute-force approach Suppose that mn. Try all subsequence of X (There are 2m subsequence of X), test if such a subsequence is also a subsequence of Y, and select the one with the longest length. chapter25

  5. LCS: Applications • Compare two versions of source code for the same program. • Unix command: diff for compare text files. chapter25

  6. Charactering a longest common subsequence • Theorem (Optimal substructure of an LCS) • Let X=x1x2...xm, and Y=y1y2...yn be two sequences, and • Z=z1z2...zk be any LCS of X and Y. • 1. If xm=yn, then zk=xm=yn and Z[1..k-1] is an LCS of X[1..m-1] and Y[1..n-1]. • 2. If xmyn, then zkxm implies that Z is an LCS of X[1..m-1] and Y. • 2. If xmyn, then zkyn implies that Z is an LCS of X and Y[1..n-1]. chapter25

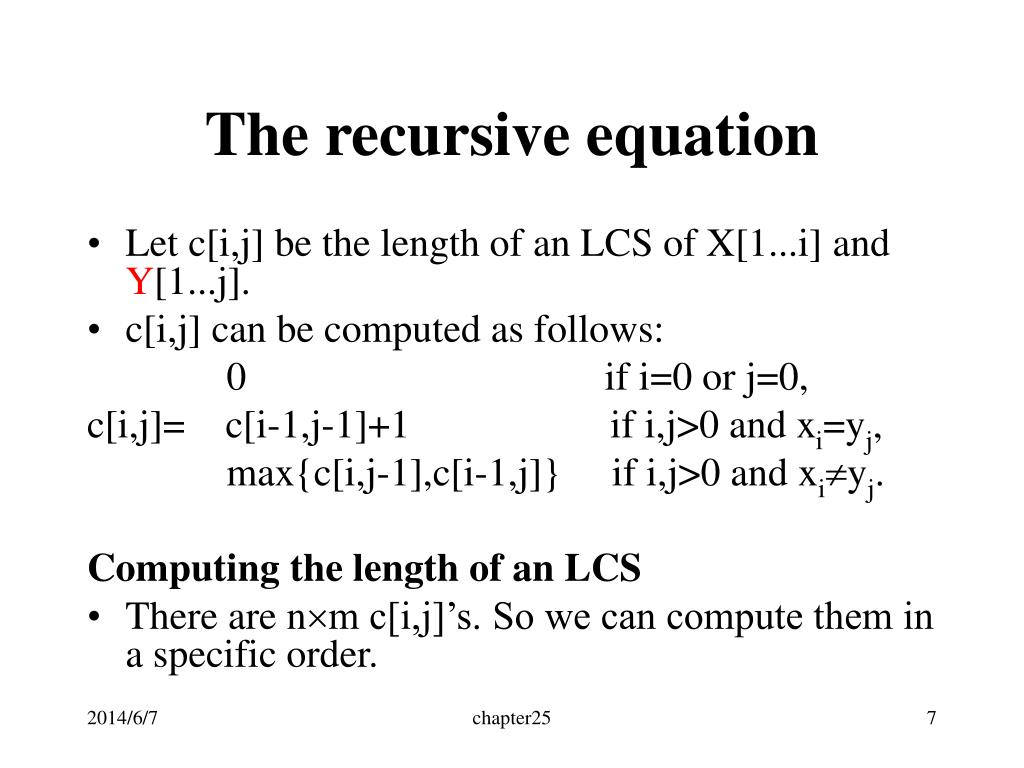

  7. The recursive equation • Let c[i,j] be the length of an LCS of X[1...i] and Y[1...j]. • c[i,j] can be computed as follows: 0 if i=0 or j=0, c[i,j]= c[i-1,j-1]+1 if i,j>0 and xi=yj, max{c[i,j-1],c[i-1,j]} if i,j>0 and xiyj. Computing the length of an LCS • There are nm c[i,j]’s. So we can compute them in a specific order. chapter25

  8. The algorithm to compute an LCS • 1. for i=1 to m do • 2. c[i,0]=0; • 3. for j=0 to n do • 4. c[0,j]=0; • 5. for i=1 to m do • 6. for j=1 to n do • 7. { • 8. if x[I] ==y[j] then • 9. c[i,j]=c[i-1,j-1]+1; • 10 b[i,j]=1; • 11. elseif c[i-1,j]>=c[i,j-1] then • 12. c[i,j]=c[i-1,j] • 13. b[i,j]=2; • 14. else c[i,j]=c[i,j-1] • 15. b[i,j]=3; • 14 } • b[i,j] stores the directions. 1—diagnal, 2-up, 3-forward. chapter25

  9. Example 1: X=BDCABA and Y=ABCBDAB. chapter25

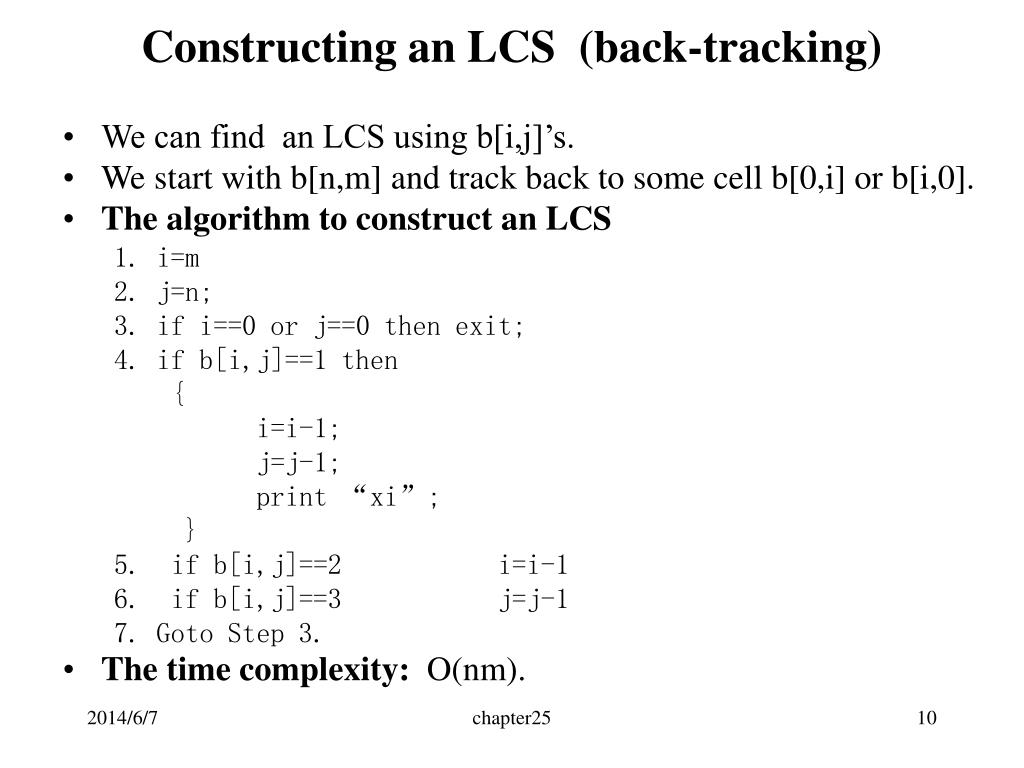

  10. Constructing an LCS (back-tracking) • We can find an LCS using b[i,j]’s. • We start with b[n,m] and track back to some cell b[0,i] or b[i,0]. • The algorithm to construct an LCS 1. i=m 2. j=n; 3. if i==0 or j==0 then exit; 4. if b[i,j]==1 then { i=i-1; j=j-1; print “xi”; } 5. if b[i,j]==2 i=i-1 6. if b[i,j]==3 j=j-1 7. Goto Step 3. • The time complexity: O(nm). chapter25

  11. Shortest common supersequence • Definition:Let X and Y be two sequences. A sequence Z is a supersequence of X and Y if both X and Y are subsequence of Z. • Shortest common supersequence problem: Input: Two sequences X and Y. Output: a shortest common supersequence of X and Y. • Example: X=abc and Y=abb. Both abbc and abcb are the shortest common supersequences for X and Y. chapter25

  12. Recursive Equation: • Let c[i,j] be the length of an LCS of X[1...i] and X[1...j]. • c[i,j] can be computed as follows: j if i=0 i if j=0, c[i,j]= c[i-1,j-1]+1 if i,j>0 and xi=yj, min{c[i,j-1]+1,c[i-1,j]+1} if i,j>0 and xiyj. chapter25

  13. chapter25

  14. Assignment 3: (Due week 13, Monday at 7: 30 pm) Question1: Write a program to compute the SCS for two sequences. Use s1=abcdabbcabddabcd and s2=abbcabbdacbdadbc as the test input. Backtracking is required, i.e. the program MUST output the shortest common super-sequence, Not just the length of SCS. Question 2. Write a program to calculate the maximum degree of a node in a undirected graph. (1) Use an adjacency matrix to store the graph; (2) Use a adjacency list to store the graph. (3) give the time complexity of the two programs. Which one is better? Why? You can use the graph in slide 22 as the test input. chapter25

  15. Part-H1Graphs 1843 ORD SFO 802 1743 337 1233 LAX DFW chapter25

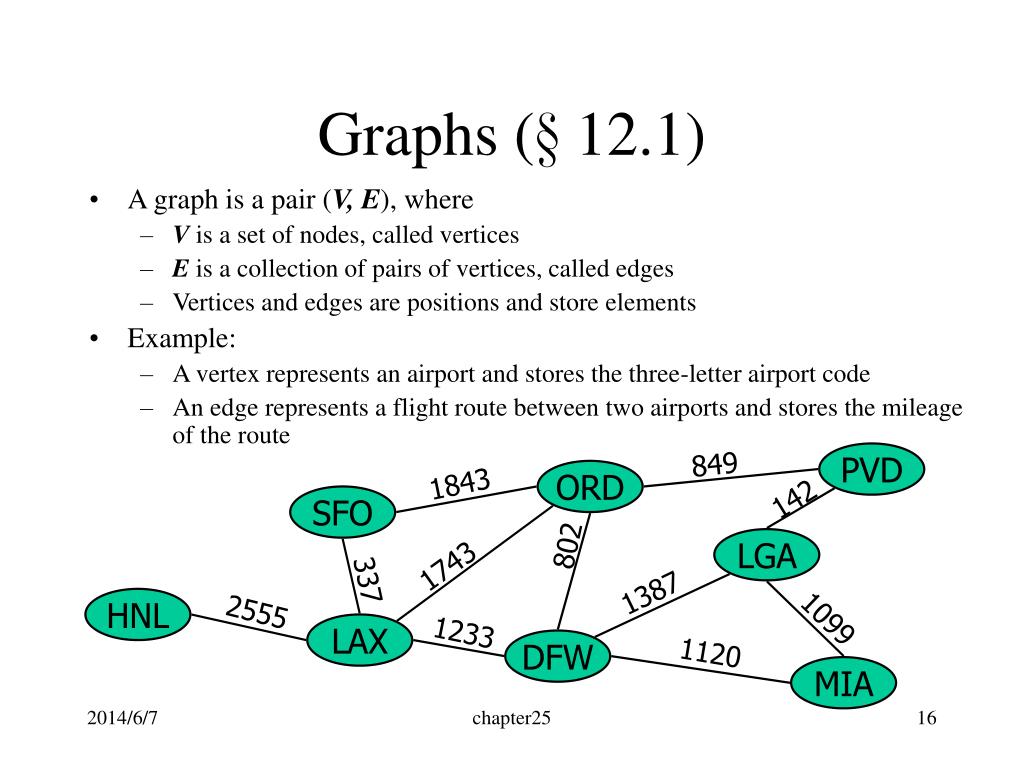

  16. A graph is a pair (V, E), where V is a set of nodes, called vertices E is a collection of pairs of vertices, called edges Vertices and edges are positions and store elements Example: A vertex represents an airport and stores the three-letter airport code An edge represents a flight route between two airports and stores the mileage of the route Graphs (§ 12.1) 849 PVD 1843 ORD 142 SFO 802 LGA 1743 337 1387 HNL 2555 1099 1233 LAX 1120 DFW MIA chapter25

  17. Edge Types • Directed edge • ordered pair of vertices (u,v) • first vertex u is the origin • second vertex v is the destination • e.g., a flight • Undirected edge • unordered pair of vertices (u,v) • e.g., a flight route • Directed graph • all the edges are directed • e.g., route network • Undirected graph • all the edges are undirected • e.g., flight network flight AA 1206 ORD PVD 849 miles ORD PVD chapter25

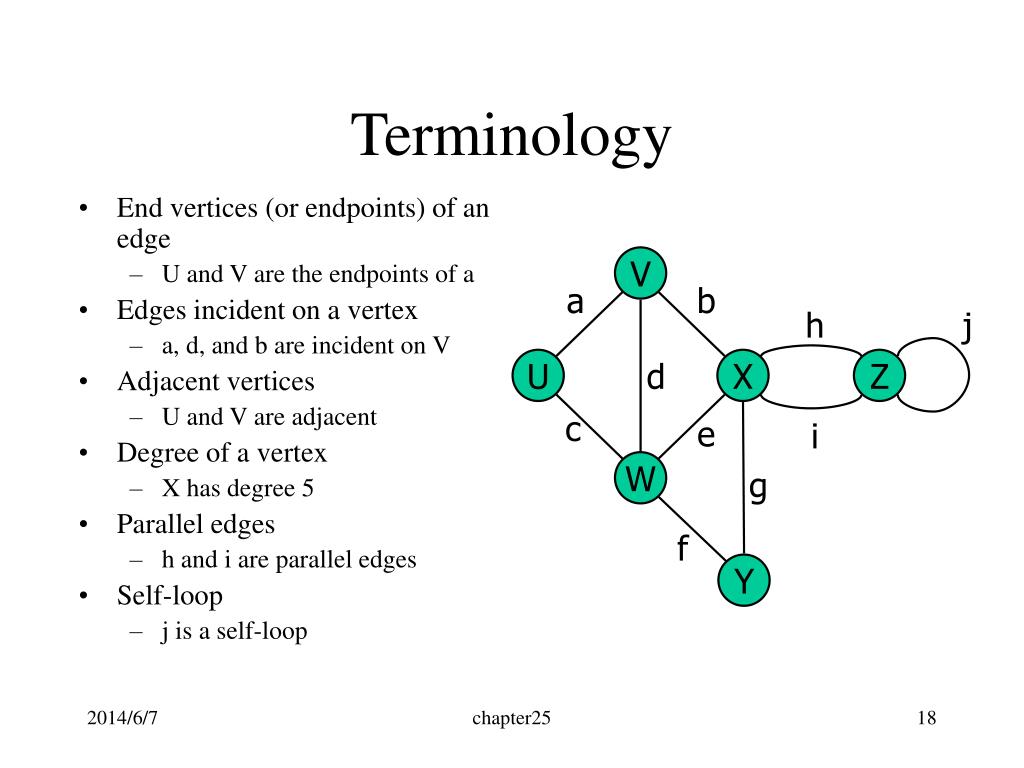

  18. V a b h j U d X Z c e i W g f Y Terminology • End vertices (or endpoints) of an edge • U and V are the endpoints of a • Edges incident on a vertex • a, d, and b are incident on V • Adjacent vertices • U and V are adjacent • Degree of a vertex • X has degree 5 • Parallel edges • h and i are parallel edges • Self-loop • j is a self-loop chapter25

  19. Terminology (cont.) • Path • sequence of alternating vertices and edges • begins with a vertex • ends with a vertex • each edge is preceded and followed by its endpoints • Simple path • path such that all its vertices and edges are distinct • Examples • P1=(V,b,X,h,Z) is a simple path • P2=(U,c,W,e,X,g,Y,f,W,d,V) is a path that is not simple V b a P1 d U X Z P2 h c e W g f Y chapter25

  20. Terminology (cont.) • Cycle • circular sequence of alternating vertices and edges • each edge is preceded and followed by its endpoints • Simple cycle • cycle such that all its vertices and edges are distinct • Examples • C1=(V,b,X,g,Y,f,W,c,U,a,) is a simple cycle • C2=(U,c,W,e,X,g,Y,f,W,d,V,a,) is a cycle that is not simple V a b d U X Z C2 h e C1 c W g f Y chapter25

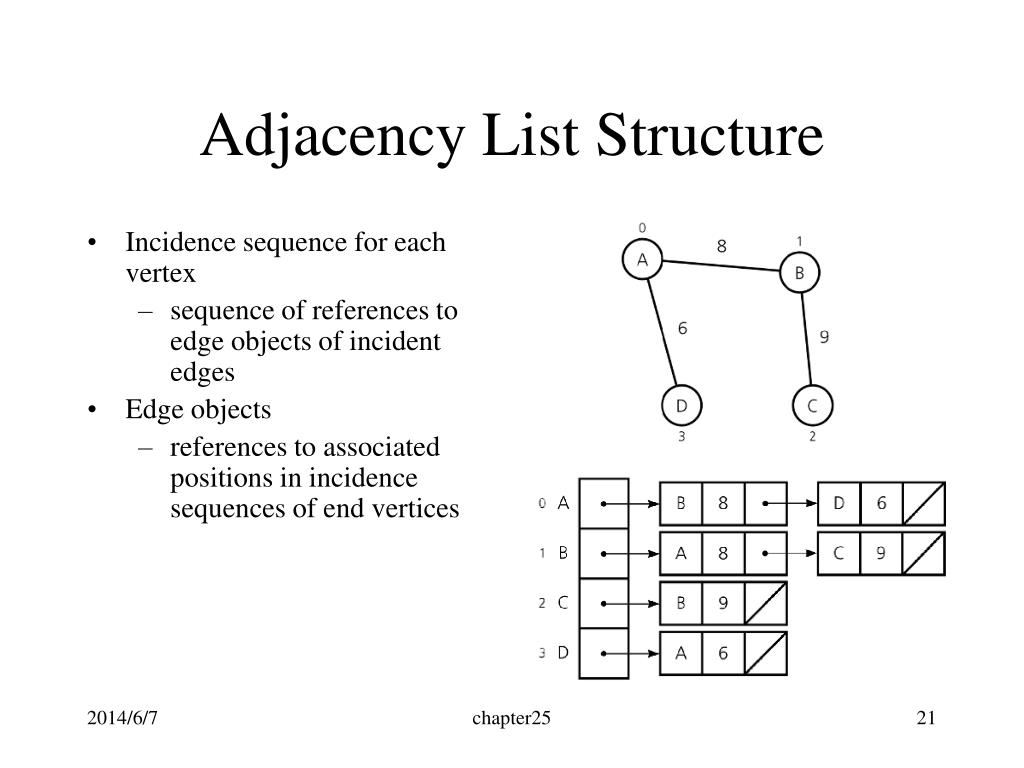

  21. Adjacency List Structure • Incidence sequence for each vertex • sequence of references to edge objects of incident edges • Edge objects • references to associated positions in incidence sequences of end vertices chapter25

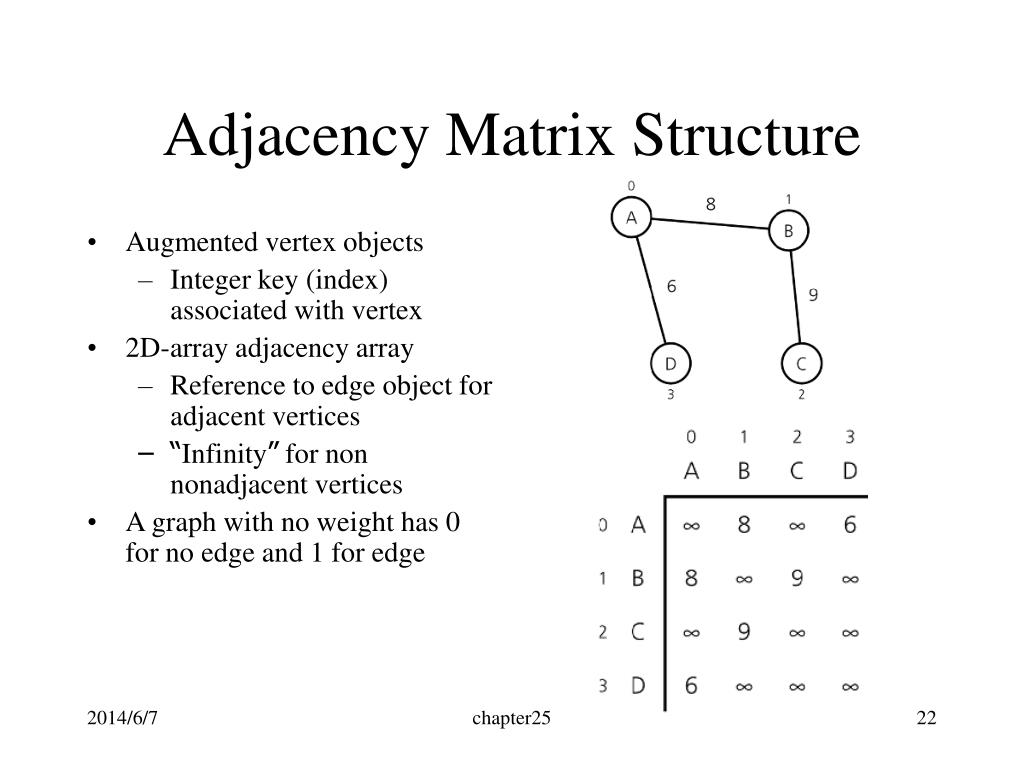

  22. Adjacency Matrix Structure • Augmented vertex objects • Integer key (index) associated with vertex • 2D-array adjacency array • Reference to edge object for adjacent vertices • “Infinity” for non nonadjacent vertices • A graph with no weight has 0 for no edge and 1 for edge chapter25

  23. A B D E C Part-H2Depth-First Search chapter25

  24. Depth-first search (DFS) is a general technique for traversing a graph A DFS traversal of a graph G Visits all the vertices and edges of G Determines whether G is connected Computes the connected components of G Computes a spanning forest of G DFS on a graph with n vertices and m edges takes O(n + m ) time DFS can be further extended to solve other graph problems Find and report a path between two given vertices Find a cycle in the graph Depth-First Search (§ 12.3.1) chapter25

  25. DFS Algorithm • The algorithm uses a mechanism for setting and getting “labels” of vertices and edges AlgorithmDFS(G, v) Inputgraph G and a start vertex v of G Outputlabeling of the edges of G in the connected component of v as discovery edges and back edges setLabel(v, VISITED) for all e  G.incidentEdges(v) ifgetLabel(e) = UNEXPLORED w opposite(v,e) if getLabel(w) = UNEXPLORED setLabel(e, DISCOVERY) DFS(G, w) else setLabel(e, BACK) AlgorithmDFS(G) Inputgraph G Outputlabeling of the edges of G as discovery edges and back edges for all u  G.vertices() setLabel(u, UNEXPLORED) for all e  G.edges() setLabel(e, UNEXPLORED) for all v  G.vertices() ifgetLabel(v) = UNEXPLORED DFS(G, v) chapter25

  26. A B D E C A A B D E B D E C C Example unexplored vertex A visited vertex A unexplored edge discovery edge back edge chapter25

  27. A A A B D E B D E B D E C C C A B D E C Example (cont.) chapter25

  28. DFS and Maze Traversal • The DFS algorithm is similar to a classic strategy for exploring a maze • We mark each intersection, corner and dead end (vertex) visited • We mark each corridor (edge ) traversed • We keep track of the path back to the entrance (start vertex) by means of a rope (recursion stack) chapter25

  29. Setting/getting a vertex/edge label takes O(1) time Each vertex is labeled twice once as UNEXPLORED once as VISITED Each edge is labeled twice once as UNEXPLORED once as DISCOVERY or BACK Method incidentEdges is called once for each vertex DFS runs in O(n + m) time provided the graph is represented by the adjacency list structure Recall that Sv deg(v)= 2m Analysis of DFS chapter25
