  1. RAD hardening Input connector RAD-hard cable Standard cable Output connector Half of dual HV supply or quarter of quad HV supply w breakout Ion Pump: RAD area Ion Pump: non-RAD area

  2. Notes • The Standard cable is the long cable from the rack-mounted HV supply to the area near the ion pump; it is plenum rated. • Where RAD-hard is not a requirement, the short segment is not used; alternatively, a full length RAD-hard cable can be used.

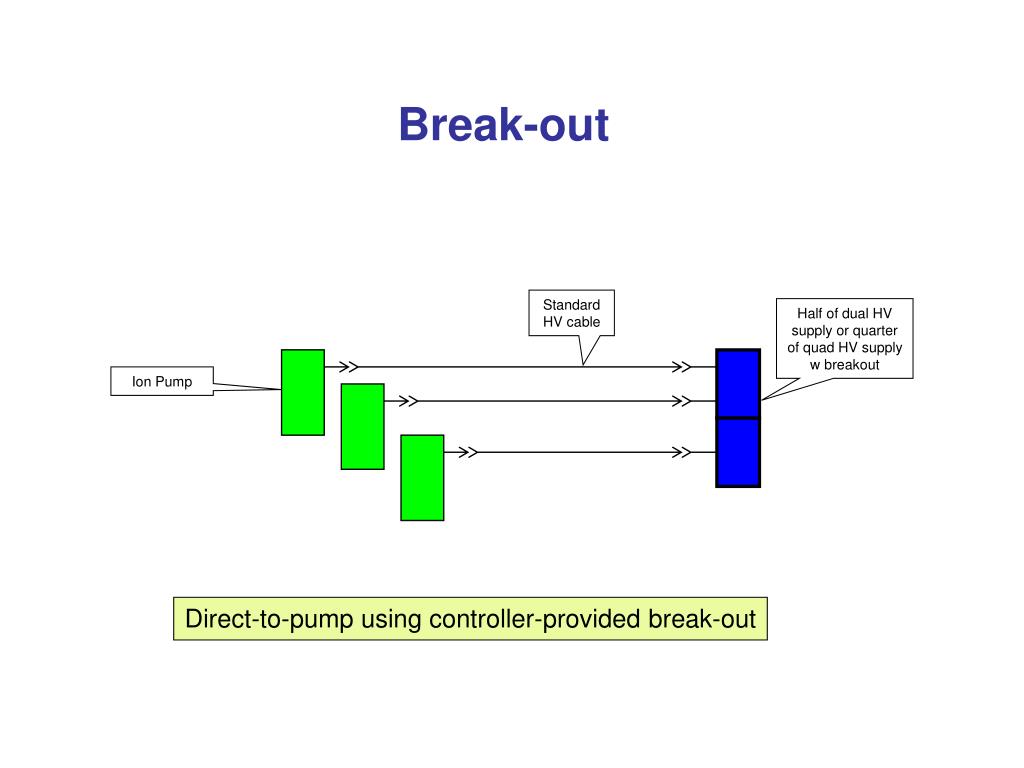

  3. Break-out Standard HV cable Half of dual HV supply or quarter of quad HV supply w breakout Ion Pump Direct-to-pump using controller-provided break-out

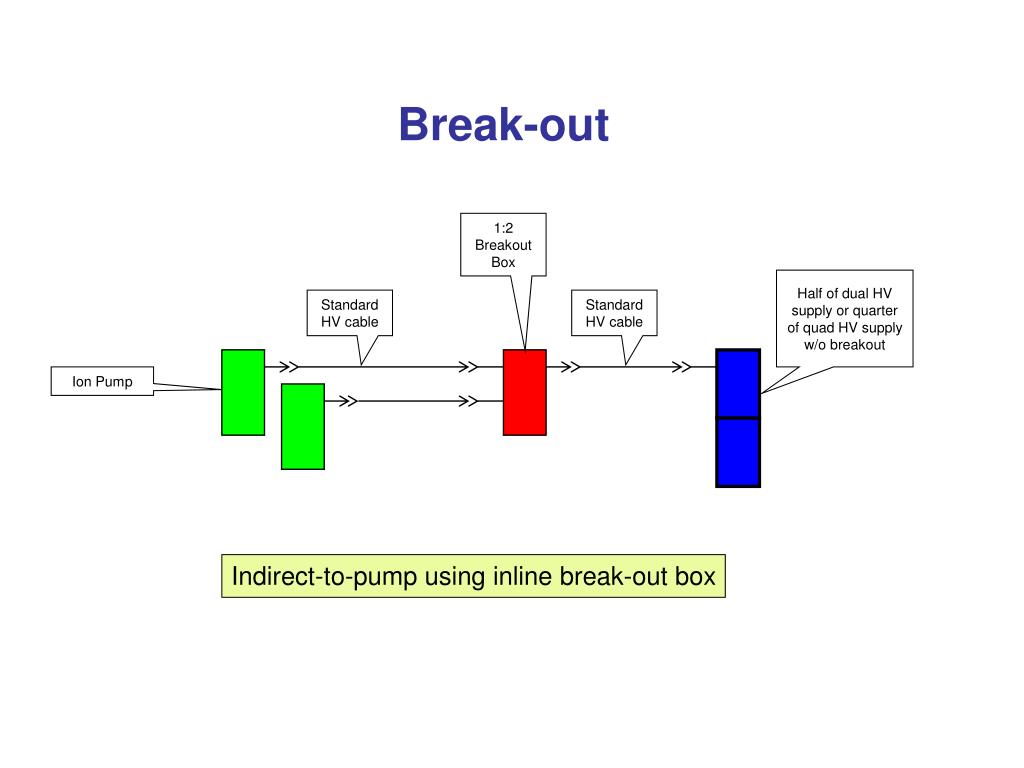

  4. Break-out 1:2 Breakout Box Half of dual HV supply or quarter of quad HV supply w/o breakout Standard HV cable Standard HV cable Ion Pump Indirect-to-pump using inline break-out box
