Presentation Transcript

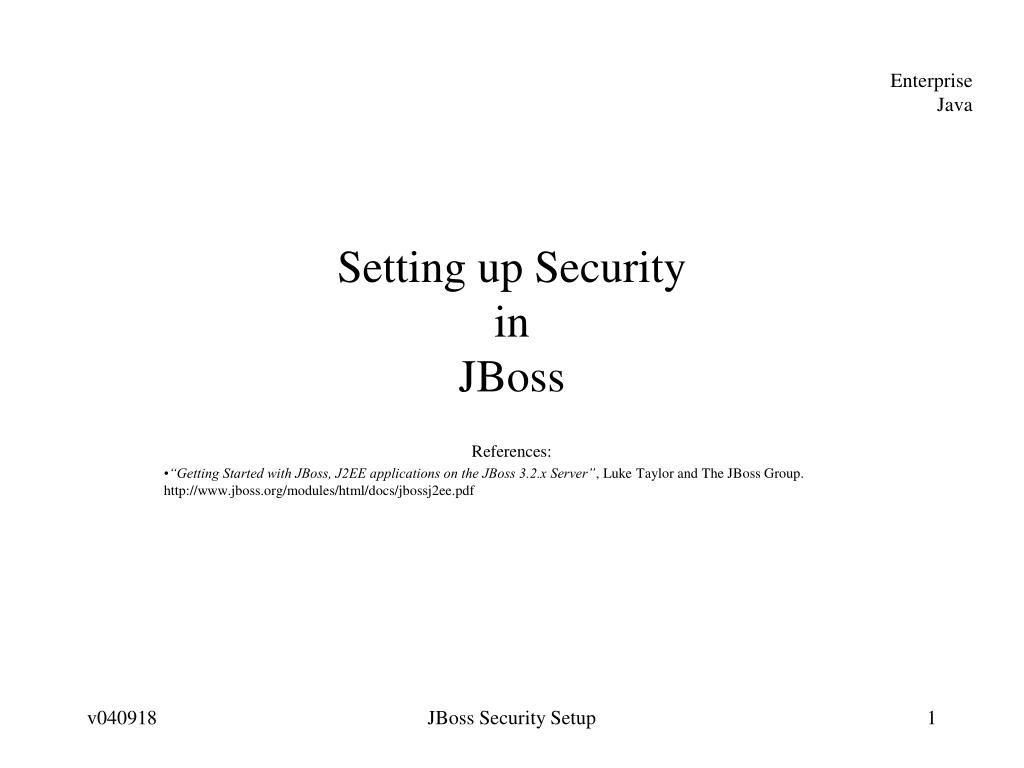

  1. Setting up Securityin JBoss References: “Getting Started with JBoss, J2EE applications on the JBoss 3.2.x Server”, Luke Taylor and The JBoss Group. http://www.jboss.org/modules/html/docs/jbossj2ee.pdf JBoss Security Setup

  2. Security Domains (a.k.a Realms) • Implement security policy within the application server • Based on JAAS • See JBoss JAAS How To • http://prdownloads.sourceforge.net/jboss/jaashowto-32x.zip?download • Referenced by DataSources, Web Applications, EJBs, etc. • Centralizes the management/implementation of security within the application server • Security domain name mapped to login modules within $JBOSS_SERVER/conf/login-config.xml JBoss Security Setup

  3. Example Reference in DataSource //based on $JBOSS_SERVER/deploy/hsqldb_ds.xml <datasources> <local-tx-datasource> <jndi-name>DefaultDS</jndi-name> <connection-url> jdbc:hsqldb:${jboss.server.data.dir}${/}hypersonic${/}localDB </connection-url> <driver-class>org.hsqldb.jdbcDriver</driver-class> <security-domain>HsqlDbRealm</security-domain> </local-tx-datasource> </datasources> JBoss Security Setup

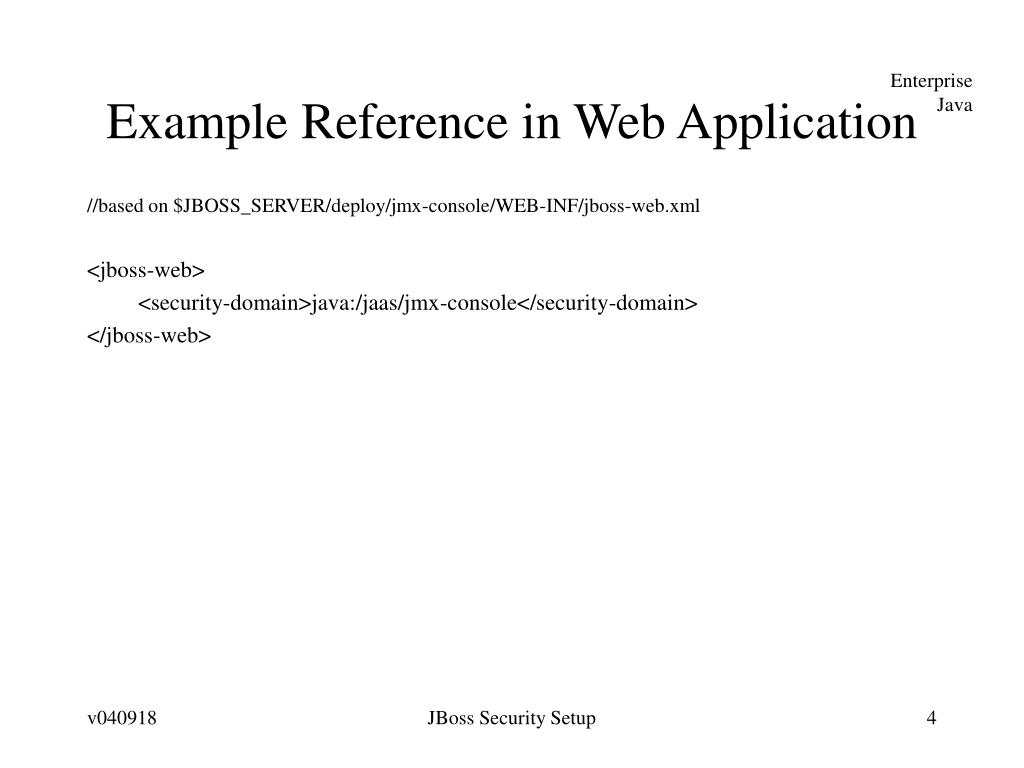

  4. Example Reference in Web Application //based on $JBOSS_SERVER/deploy/jmx-console/WEB-INF/jboss-web.xml <jboss-web> <security-domain>java:/jaas/jmx-console</security-domain> </jboss-web> JBoss Security Setup

  5. Example Reference in EJB // $EJB/META-INF/jboss.xml <jboss> <security-domain>java:/some-domain</security-domain> </jboss> JBoss Security Setup

  6. $JBOSS_SERVER/conf/login-config.xml <policy> <application-policy name = “name"> <authentication> <login-module code = "LoginModule Implementation Class" flag = “satisfaction requirement"> <module-option name = “name">value</module-option> </login-module> … </authentication> </application-policy> … </policy> used as security-domain name a Java implementation class states level of requirement for passing of policy to grant access module-specific options JBoss Security Setup

  7. $JBOSS_SERVER/conf/login-config.xml • application-policy • name defines security-domain • missing application-policies are mapped to “other” application-policy at bottom of login-config.xml file • authentication • contains one or more login modules • login module • specifies a JAAS implementation to authenticate user • flags • required: module must succeed for user to be authenticated JBoss Security Setup

  8. Login Modules • ConfiguredIdentityModule • sets the user identity to a constant value • UsersRolesLoginModule • uses two property files to authenticate user and assign roles JBoss Security Setup

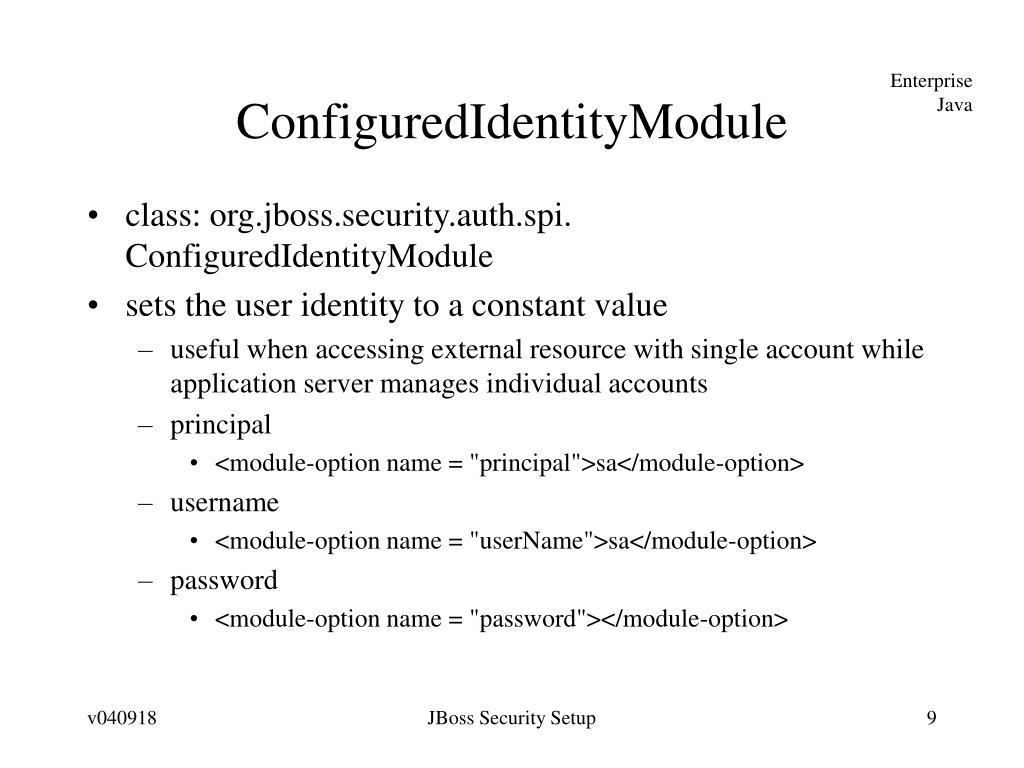

  9. ConfiguredIdentityModule • class: org.jboss.security.auth.spi. ConfiguredIdentityModule • sets the user identity to a constant value • useful when accessing external resource with single account while application server manages individual accounts • principal • <module-option name = "principal">sa</module-option> • username • <module-option name = "userName">sa</module-option> • password • <module-option name = "password"></module-option> JBoss Security Setup

  10. UsersRolesLoginModule • class: org.jboss.security.auth.spi.UsersRolesLoginModule • uses two property files to authenticate user and assign roles • users.properties – contains user logins and plain text passwords • user1=password1 • user2=password2 • roles.properties – contains mapping of user login to roles • user1=role1,role2 • user2=role1 • Files located in classpath • can be within EAR for applications • Names can be customized with module-options • <module-option name="usersProperties">jmx-console-users.properties</module-option> • <module-option name="rolesProperties">jmx-console-roles.properties</module-option> JBoss Security Setup
