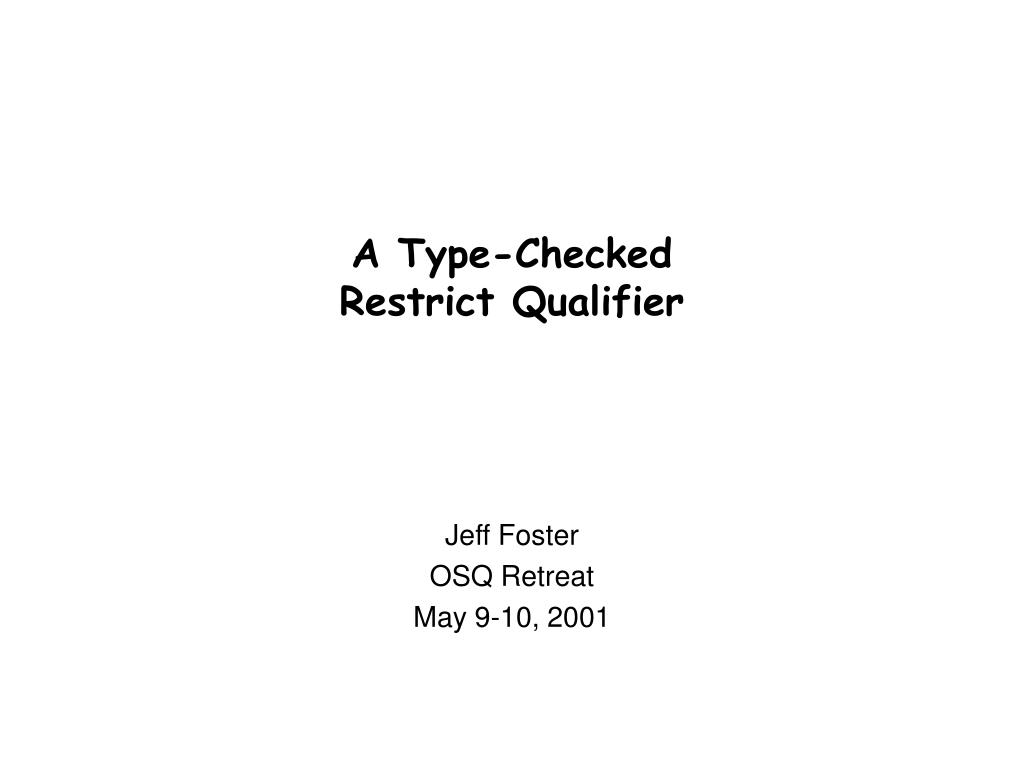

A Type-CheckedRestrict Qualifier Jeff Foster OSQ Retreat May 9-10, 2001
Introduction • Aliasing: A long-standing problem • Pointers are hard to analyze ...*p = 3 ... what is updated? • We need to know for • compilers (optimization) • software analysis tools (OSQ) Jeff Foster, OSQ Retreat, May 9-10, 2001
Alias Analysis • Research: Fully-automatic alias analysis • Type systems • All aliases have same type • Points-to analysis • e1 = e2 e1 points to whatever e2 points to • Results • Type systems work well • May-alias analysis scales to big programs • Usefulness of results? Jeff Foster, OSQ Retreat, May 9-10, 2001
Too Important for Compiler • C, C++, Java, ML, etc. • The compiler discovers all aliasing • FORTRAN • The compiler can assume non-aliasing • C99 • Have the user help the compiler Jeff Foster, OSQ Retreat, May 9-10, 2001
Restrict • C99 Standard int *restrict p = ...; • Let p point to object o • Within p’s scope, all access to o are through p void f(int n, int *restrict p, int *restrict q) { while (n-- > 0) *p++ = *q++; // no aliasing } [ex. from C99 standard] Jeff Foster, OSQ Retreat, May 9-10, 2001
This Work • C99 does not check restrict • Low-level definition of safe use of restrict • Goals of this work • Semantics for restrict • Type system for safe restrict • Soundness proof Jeff Foster, OSQ Retreat, May 9-10, 2001
Examples { int *restrict p = ...; { int *restrict r = p; ...*r... // valid ...*p... // invalid } } { int *restrict p = q; ...*p... // valid ...*q... // invalid } { int *restrict p = ...; int *r = p; ...*r... // valid } Jeff Foster, OSQ Retreat, May 9-10, 2001
Source Language • Lambda-calculus with restrict e ::= x | n | ref e | *e | e1 := e2 | \x.e | e1 e2 | restrict x = e1 in e2 • restrict x = e1 in e2 • x is in scope only within e2 • x is a pointer • x is initialized to e1 • within e2, only x can be used to access *x Jeff Foster, OSQ Retreat, May 9-10, 2001
loc’ fresh [loc’ S’(loc) ] [x loc’] S restrict x = e1 in e2 Big-Step Semantics S e loc; S’ locdom(S’) S *e S’(loc); S’ S e1 loc; S’ , loc error S’ e2 v; S’’ [loc’ error, loc S’’(loc’)] v; S’’ Jeff Foster, OSQ Retreat, May 9-10, 2001
Type System • Type and Effect system t ::= a base type | refr(t) pointer to abstract loc r | t1Lt2 function with effect L L ::= Ø no effect | r access to location r | L1 L2 effect union | L - r effect difference Jeff Foster, OSQ Retreat, May 9-10, 2001
A e : refr(t); L A *e : t; L r A e1 : t1Lt2; L1 A e2 : t1; L2 A e1 e2 : t2; L1 L2 L Type Rules • A e : t; L • In environment A, expression e has type t • evaluating e has effect L Jeff Foster, OSQ Retreat, May 9-10, 2001
Restrict Rule A e1 : refr(t); L1 A restrict x = e1 in e2 : A[x refr’(t)] e2 : t2; L2 r L2 r’A, t, t2 rr’ t2; L1 (L2 - r’) r Jeff Foster, OSQ Retreat, May 9-10, 2001
Soundness • Theorem: If Ø e : t; L, then S e r; S’ where r is not error • Proof: Show subject-reduction property Jeff Foster, OSQ Retreat, May 9-10, 2001
Type Inference • Given program, compute types, locs, effects • Naive algorithm obvious • Add effect variables ranging over L • Perform type inference, ignore , constraints • Check , at end • Polynomial-time algorithm • Efficiency in practice? • Future work: polymorphic recursion • The constraints make things interesting Jeff Foster, OSQ Retreat, May 9-10, 2001
Applications: Optimization • C99: Restrict used for optimizations • Can treat restricted pointer like stack location (whose address isn’t taken) • Optimizations sound with checked restrict • Type system not complete • C99 standard allows hard-to-check uses of restrict • Dead code that access restricted locations allowed • Strange use of restrict in data structures • Multiple restrict pointers into same array allowed Jeff Foster, OSQ Retreat, May 9-10, 2001
Application: Flow-Sensitive Type Qualifiers • Apply Alias Types, Vault techniques to type qualifiers for flow-sensitivity • Problem: Elements of data structures FILE a[...]; spin_lock(a[i]); ... spin_unlock(a[i]); • Goal: Avoid dependent type systems Jeff Foster, OSQ Retreat, May 9-10, 2001
Applications: Strong-Update • Two rules for assignment foo(x) { ... *x = e ...} • If |PTSet(x)| = 1 [[*x]] = [[e]] • If |PTSet(x)| > 1 [[*x]] = [[*x]] [[e]] • Standard Alias Analysis • Points-to sets only grow • Once |PTSet(x)| > 1, lose precision Jeff Foster, OSQ Retreat, May 9-10, 2001
Applications: Strong-Update (2) • Restrict recovers singleton points-to sets foo(int *restrict x) { ... } • Can assume |PTSet(x)| = 1 at beginning of foo • Other aliases of *x cannot be used in foo • Can recover even from complicated aliasing foo(a->b[c].d->f->g[h->i]) Jeff Foster, OSQ Retreat, May 9-10, 2001
Summary • Alias analysis too important to leave to the compiler • Restrict tells compiler where to assume non-aliasing • Use of restrict can be type checked • Type and effect system • Soundness proof uses standard subject-reduction Jeff Foster, OSQ Retreat, May 9-10, 2001
