Chapter 9.1 - Temperature

selah avatar
selah
21 diapositives · 348 Views · Oct 07, 2014

This chapter explores the concept of temperature, beginning with its definition as the average kinetic energy of particles in a substance. It explains how thermometers function, their types, and how they measure temperature through the principles of expansion or contraction of materials. The chapter delves into the three main temperature scales—Fahrenheit, Celsius, and Kelvin—outlining their history and usage. Additionally, it covers conversion methods between these scales and introduces the concept of heat as energy transfer due to temperature differences, highlighting the potential for burns from extreme temperatures.

Chapter 9.1 - Temperature - slide 1
01 / 21Chapter 9.1 - Temperature
1 / 17

Télécharger la présentation

Chapter 9.1 - Temperature
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Chapter 9.1 - Temperature

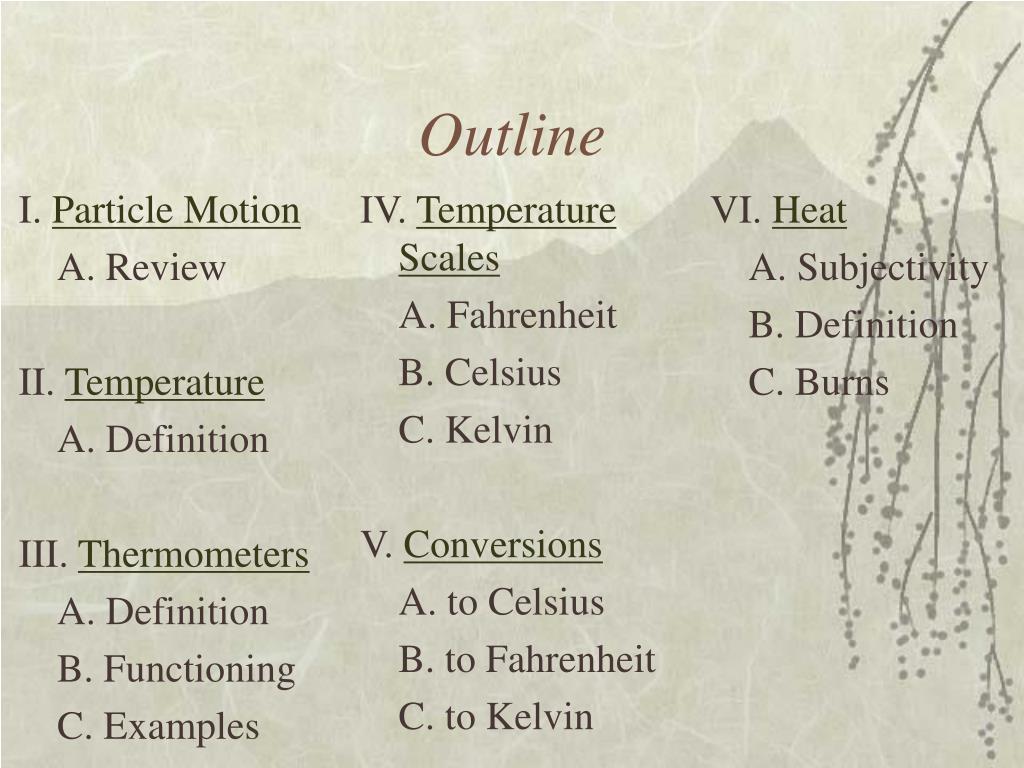

  2. I. Particle Motion A. Review II. Temperature A. Definition III. Thermometers A. Definition B. Functioning C. Examples IV. Temperature Scales A. Fahrenheit B. Celsius C. Kelvin V. Conversions A. to Celsius B. to Fahrenheit C. to Kelvin Outline VI. Heat A. Subjectivity B. Definition C. Burns

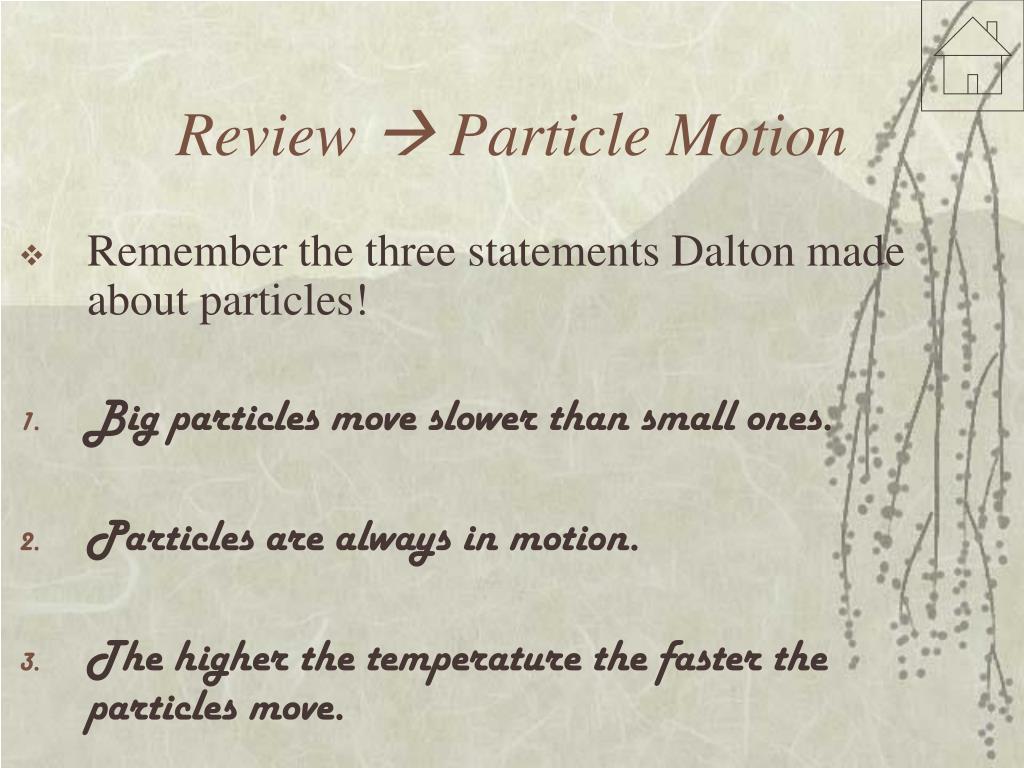

  3. Review  Particle Motion • Remember the three statements Dalton made about particles! • Big particles move slower than small ones. • Particles are always in motion. • The higher the temperature the faster the particles move.

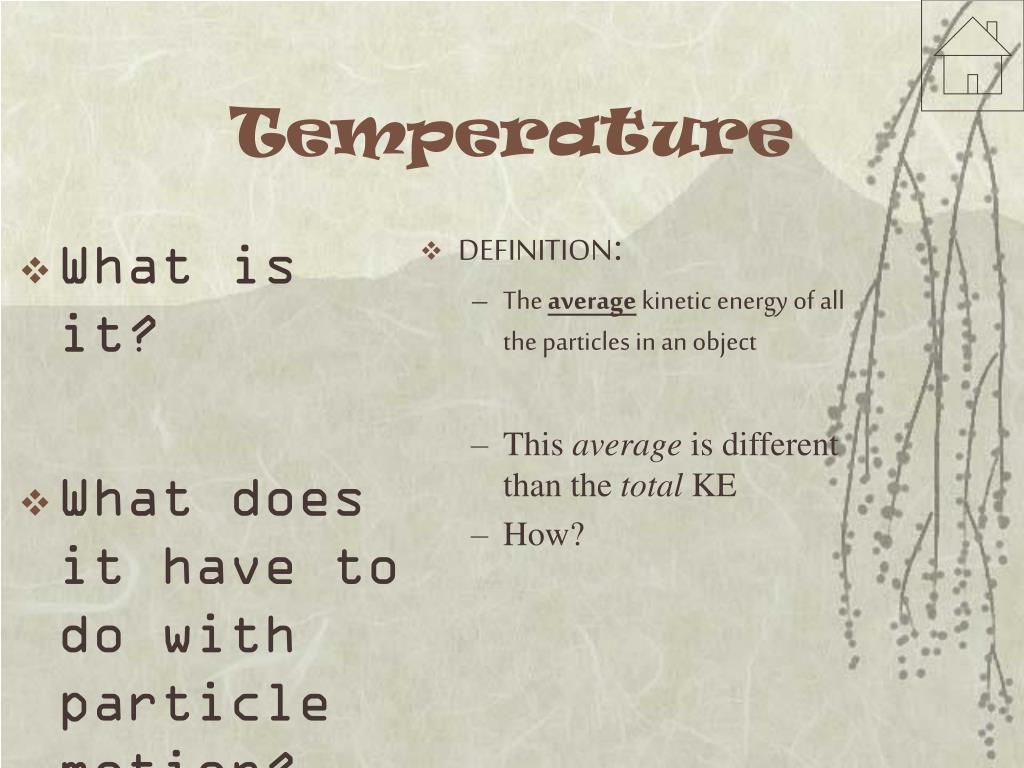

  4. What is it? What does it have to do with particle motion? DEFINITION: The average kinetic energy of all the particles in an object This average is different than the total KE How? Temperature

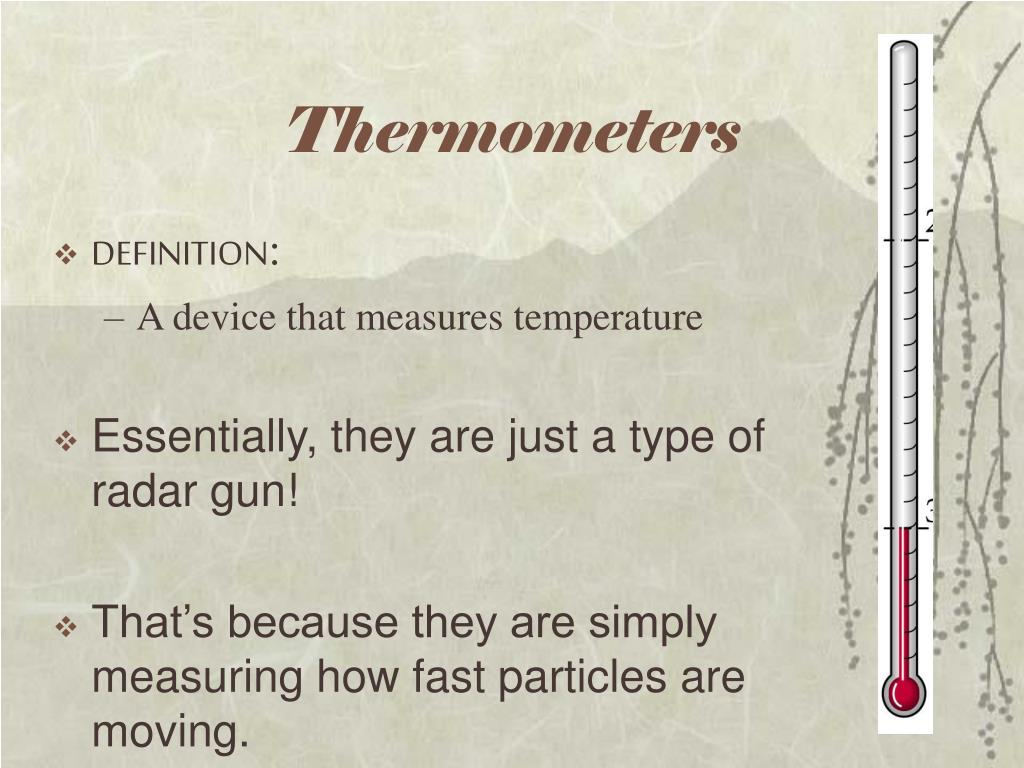

  5. Thermometers • DEFINITION: • A device that measures temperature • Essentially, they are just a type of radar gun! • That’s because they are simply measuring how fast particles are moving.

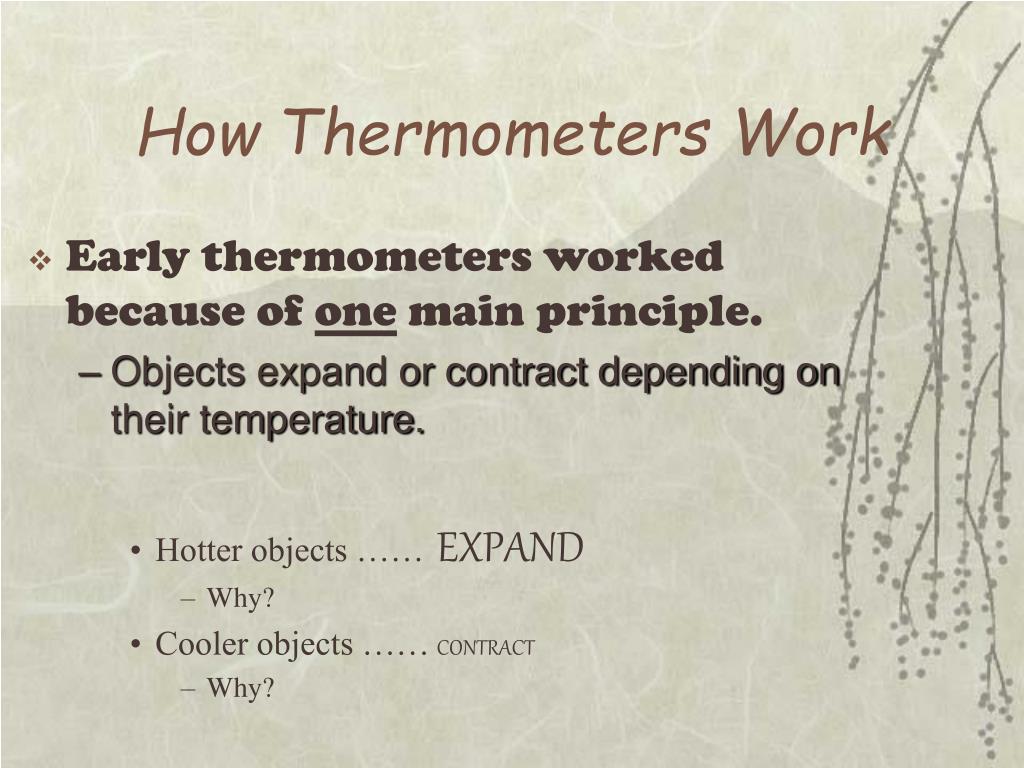

  6. How Thermometers Work • Early thermometers worked because of one main principle. • Objects expand or contract depending on their temperature. • Hotter objects …… EXPAND • Why? • Cooler objects …… CONTRACT • Why?

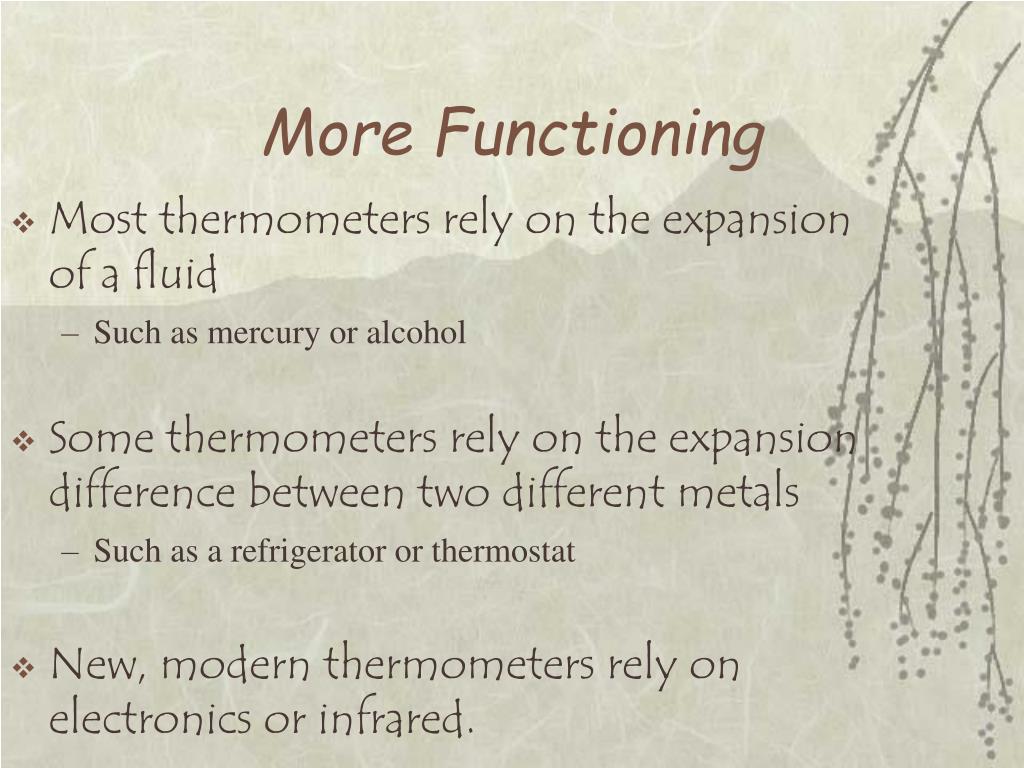

  7. More Functioning • Most thermometers rely on the expansion of a fluid • Such as mercury or alcohol • Some thermometers rely on the expansion difference between two different metals • Such as a refrigerator or thermostat • New, modern thermometers rely on electronics or infrared.

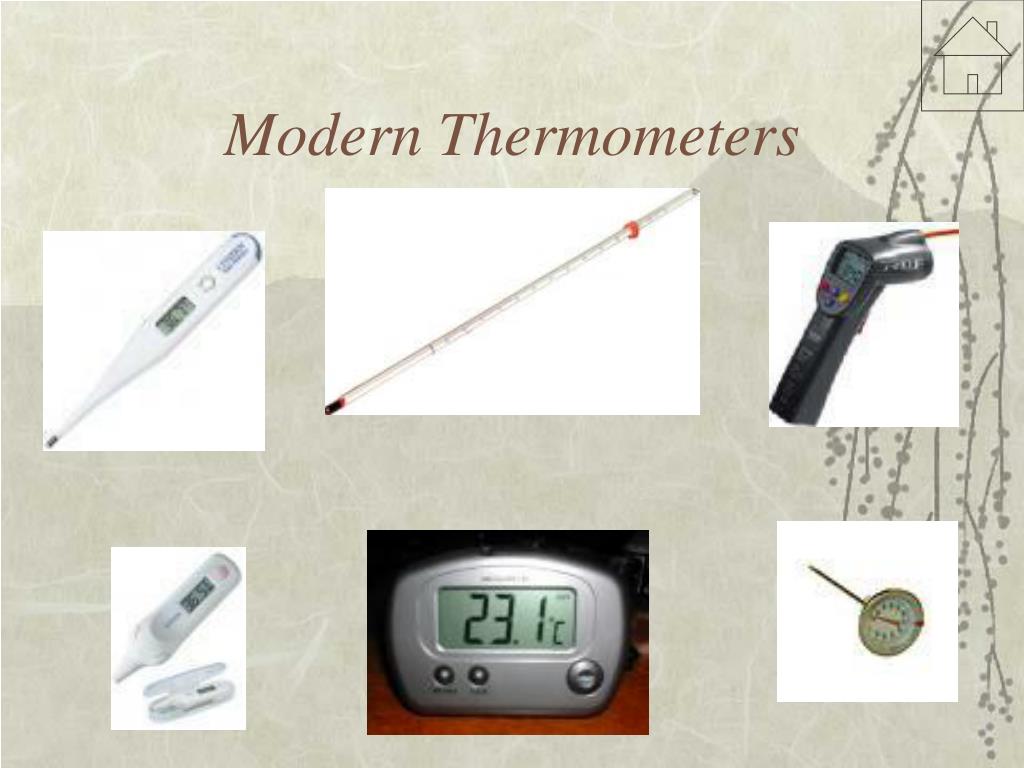

  8. Modern Thermometers

  9. Temperature Scales • A thermometer is worthless unless it is calibrated. • Many people came up with scales to use. • The first thermometer is credited to Galileo in 1526. • Three main temperature scales are being used currently today.

  10. FAHRENHEIT SCALE • Created by Gabriel Fahrenheit • (1686-1736) GERMAN • Scale is based on body temperature and a salt water mixture • Everyday use only in the U.S. and Jamaica. • Had to be corrected over the years to the familiar 32° freezing and 212° boiling for water. • And a body temperature of 98.6°

  11. CELSIUS SCALE • Created by Anders Celsius • (1701-1744) SWEDISH • Scale was based on the freezing and boiling of water. • This is the metric unit for temperature. • Gives us the O° freezing and 100° boiling points

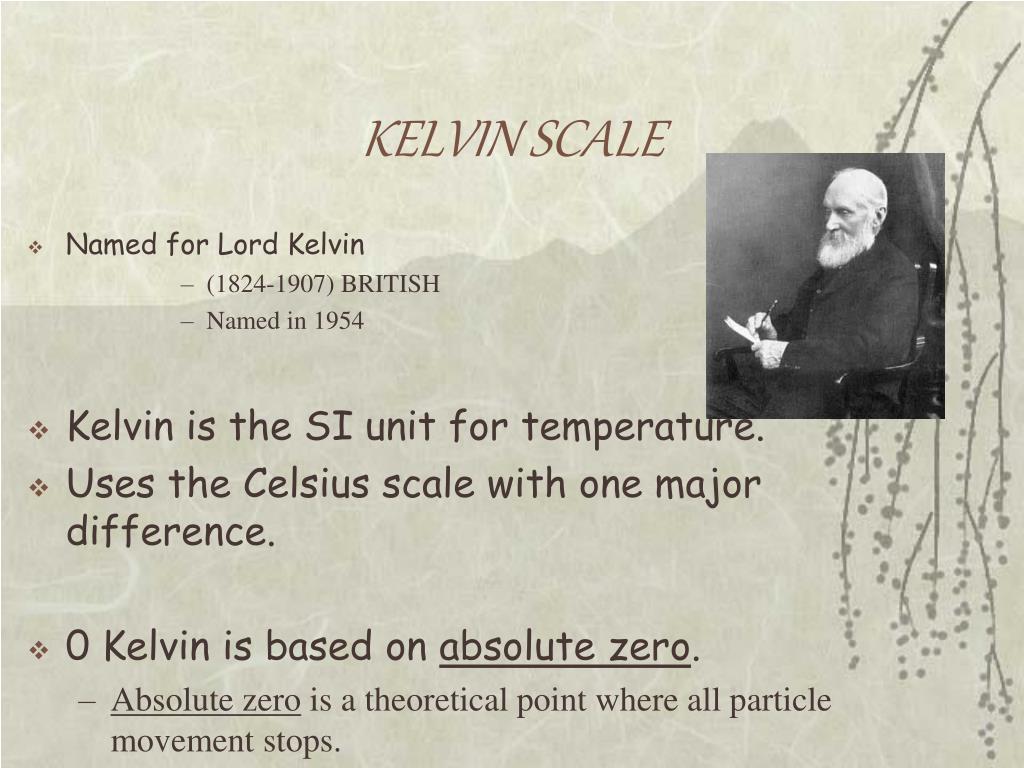

  12. KELVIN SCALE • Named for Lord Kelvin • (1824-1907) BRITISH • Named in 1954 • Kelvin is the SI unit for temperature. • Uses the Celsius scale with one major difference. • 0 Kelvin is based on absolute zero. • Absolute zero is a theoretical point where all particle movement stops.

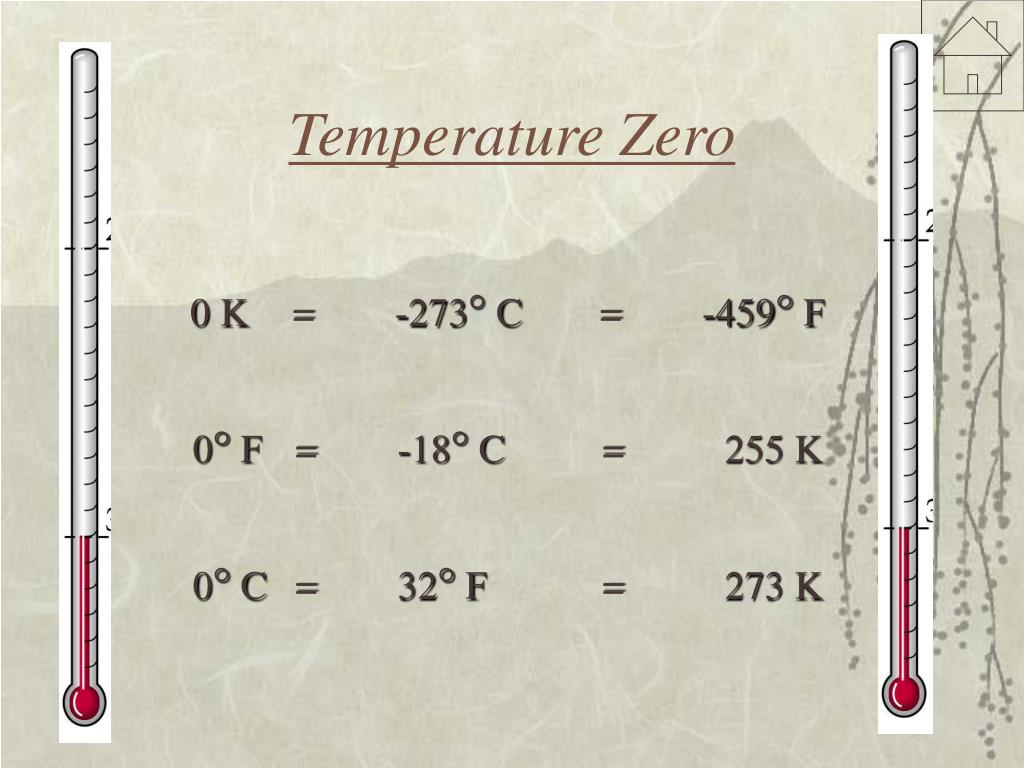

  13. Temperature Zero 0 K = -273° C = -459° F 0° F = -18° C = 255 K 0° C = 32° F = 273 K

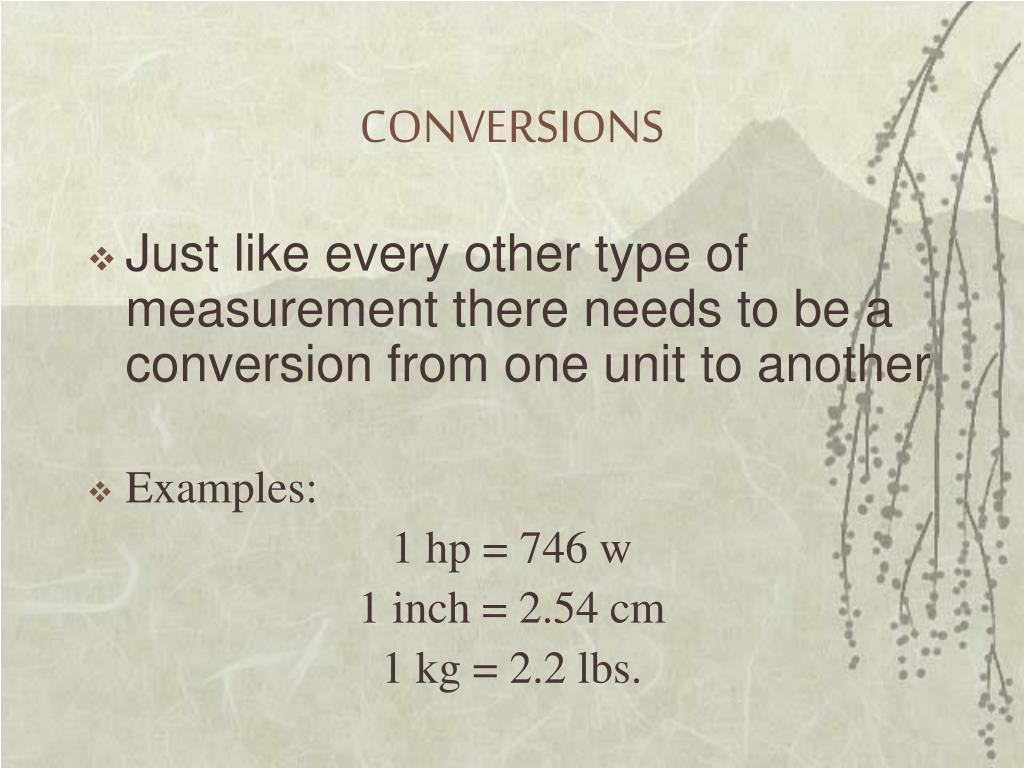

  14. CONVERSIONS • Just like every other type of measurement there needs to be a conversion from one unit to another • Examples: 1 hp = 746 w 1 inch = 2.54 cm 1 kg = 2.2 lbs.

  15. Conversions to celsius • From Fahrenheit t = 5/9 (TF – 32.0) • From Kelvin t = T - 273

  16. Conversions to Fahrenheit • From Celsius TF = 9/5 t + 32.0 • From Kelvin Convert into Celsius then Fahrenheit

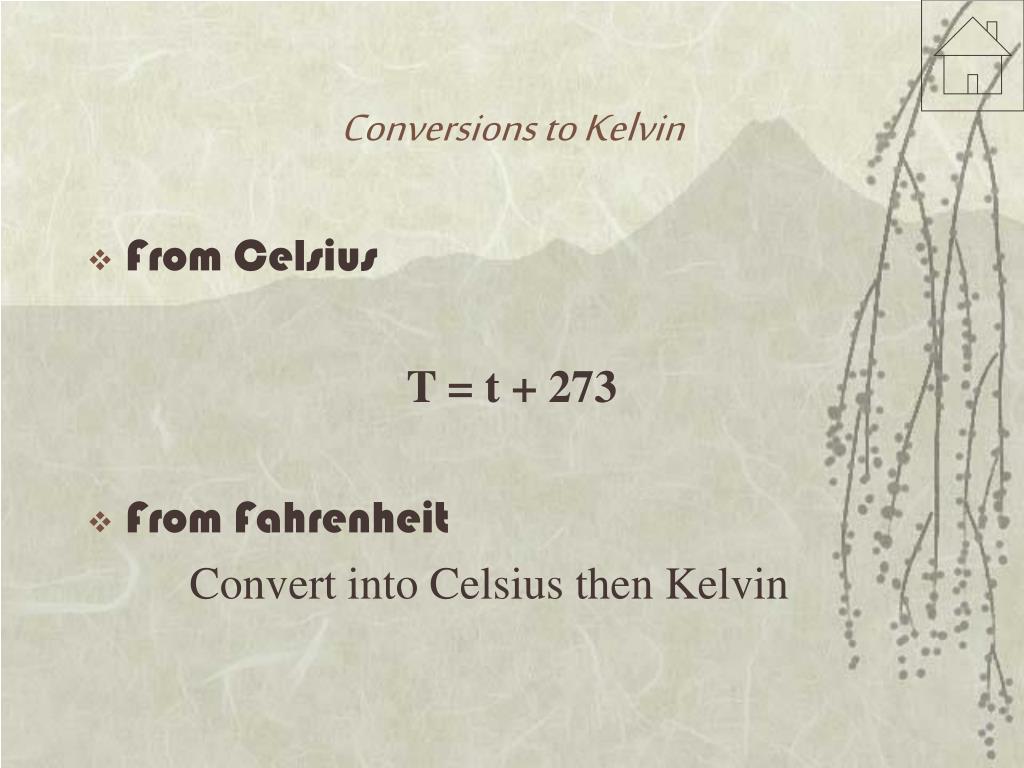

  17. Conversions to Kelvin • From Celsius T = t + 273 • From Fahrenheit Convert into Celsius then Kelvin

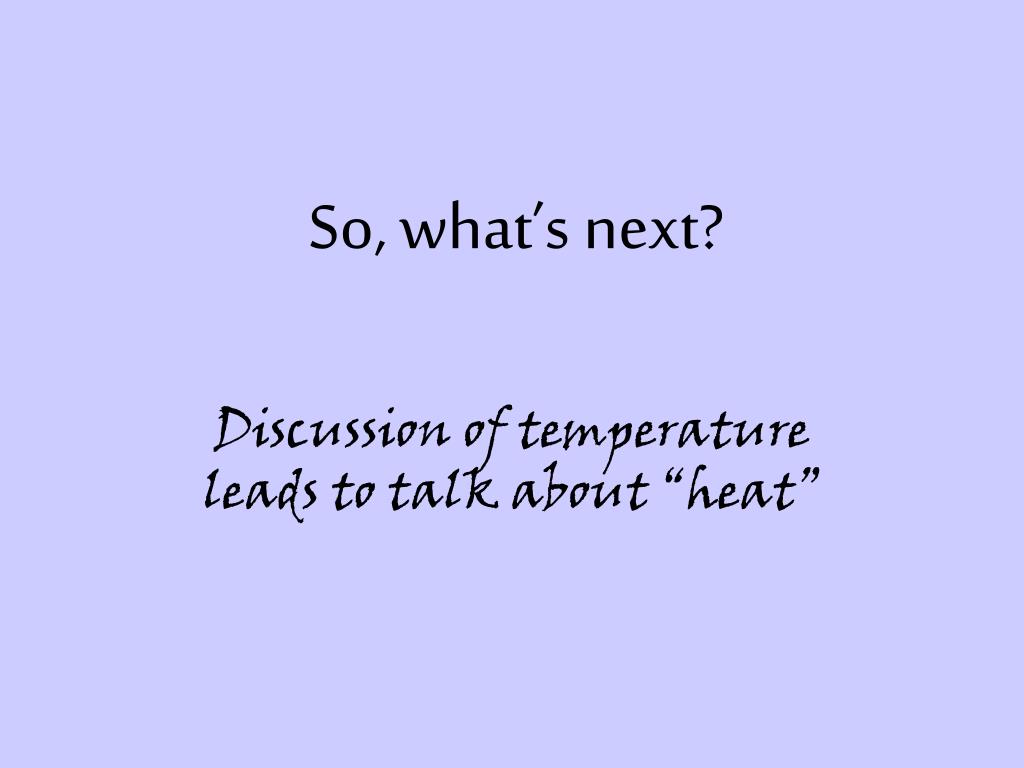

  18. So, what’s next? Discussion of temperature leads to talk about “heat”

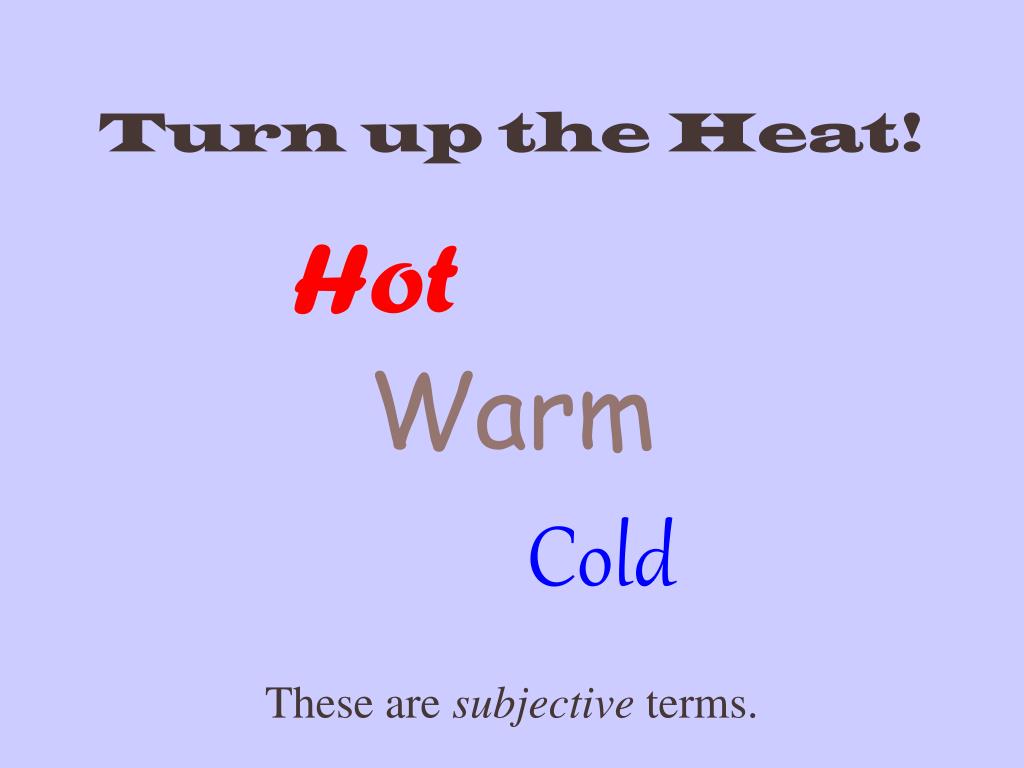

  19. Turn up the Heat! Hot Warm Cold These are subjective terms.

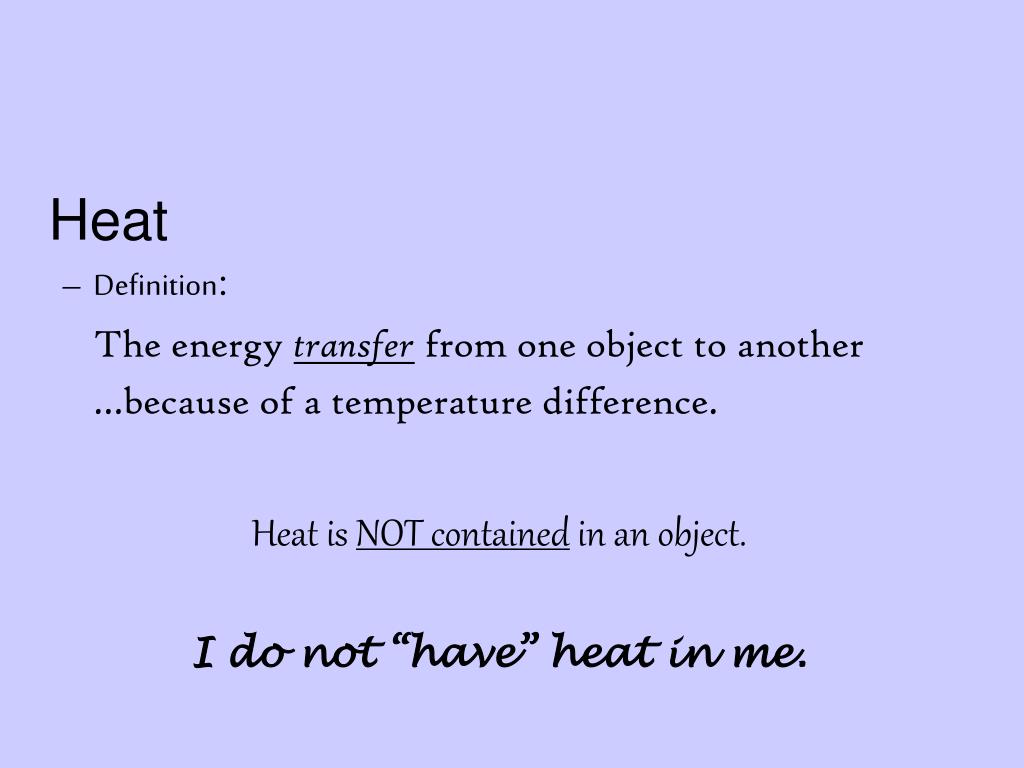

  20. Heat • Definition: The energy transfer from one object to another …because of a temperature difference. Heat is NOT contained in an object. I do not “have” heat in me.

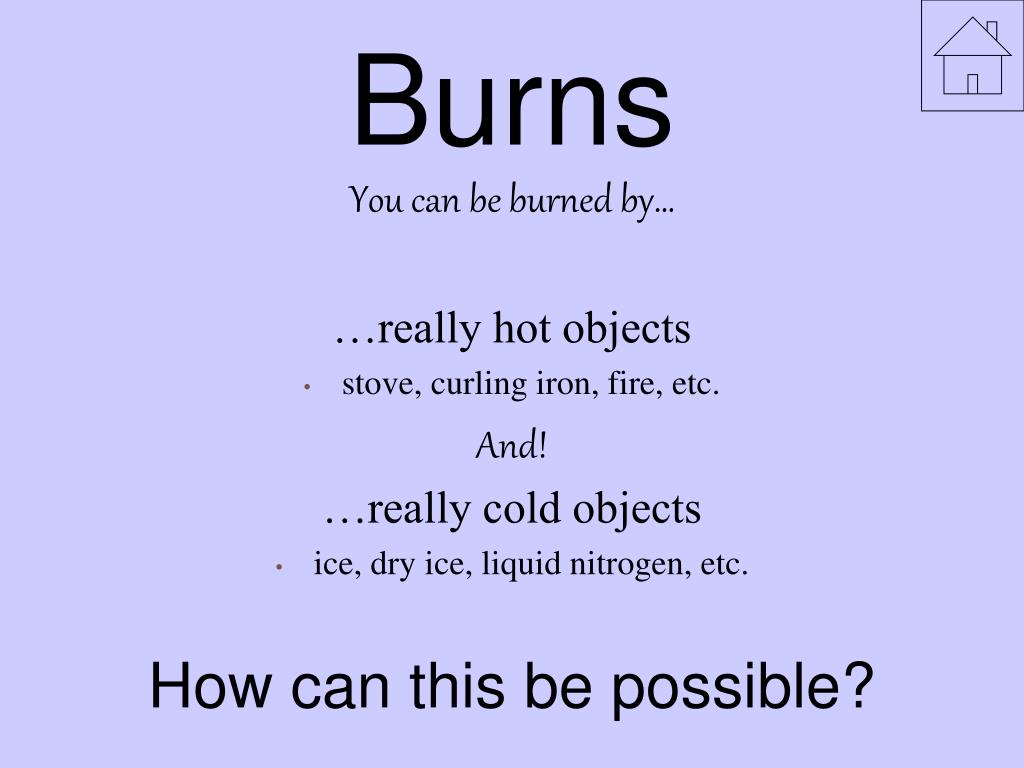

  21. Burns You can be burned by… …really hot objects • stove, curling iron, fire, etc. And! …really cold objects • ice, dry ice, liquid nitrogen, etc. How can this be possible?
