This chapter explores the concept of sampling distributions using the heights of women globally, modeled by the normal distribution N(64.5, 2.5). It covers techniques such as drawing histograms and boxplots from samples, applying the Empirical Rule to analyze data, and using statistical software for random sampling. We examine how sample statistics relate to population parameters, emphasizing the importance of sample size on variability. Through hands-on exercises, we discuss the characteristics of different distributions and the implications of bias and variability in statistical sampling.

Understanding Sampling Distributions Through Women's Heights in AP Statistics - slide 1
01 / 19Understanding Sampling Distributions Through Women's Heights in AP Statistics
1 / 17

Télécharger la présentation

Understanding Sampling Distributions Through Women's Heights in AP Statistics
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Chapter 9.1: Sampling Distributions Mr. Lynch AP Statistics

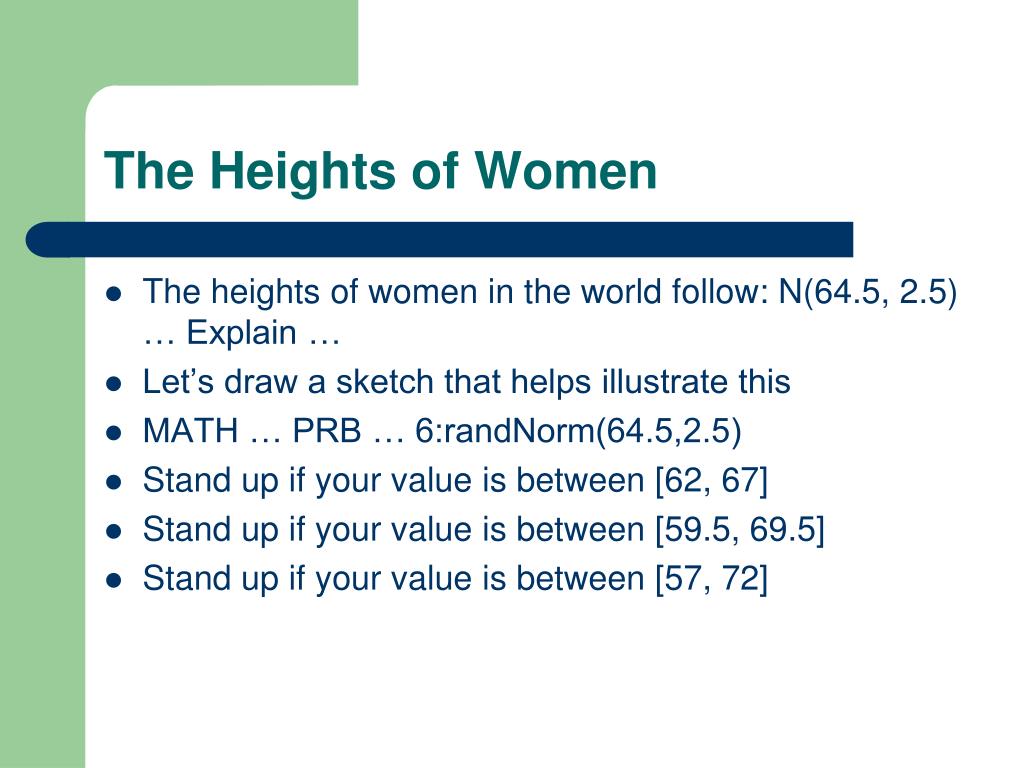

  2. The Heights of Women • The heights of women in the world follow: N(64.5, 2.5) … Explain … • Let’s draw a sketch that helps illustrate this • MATH … PRB … 6:randNorm(64.5,2.5) • Stand up if your value is between [62, 67] • Stand up if your value is between [59.5, 69.5] • Stand up if your value is between [57, 72]

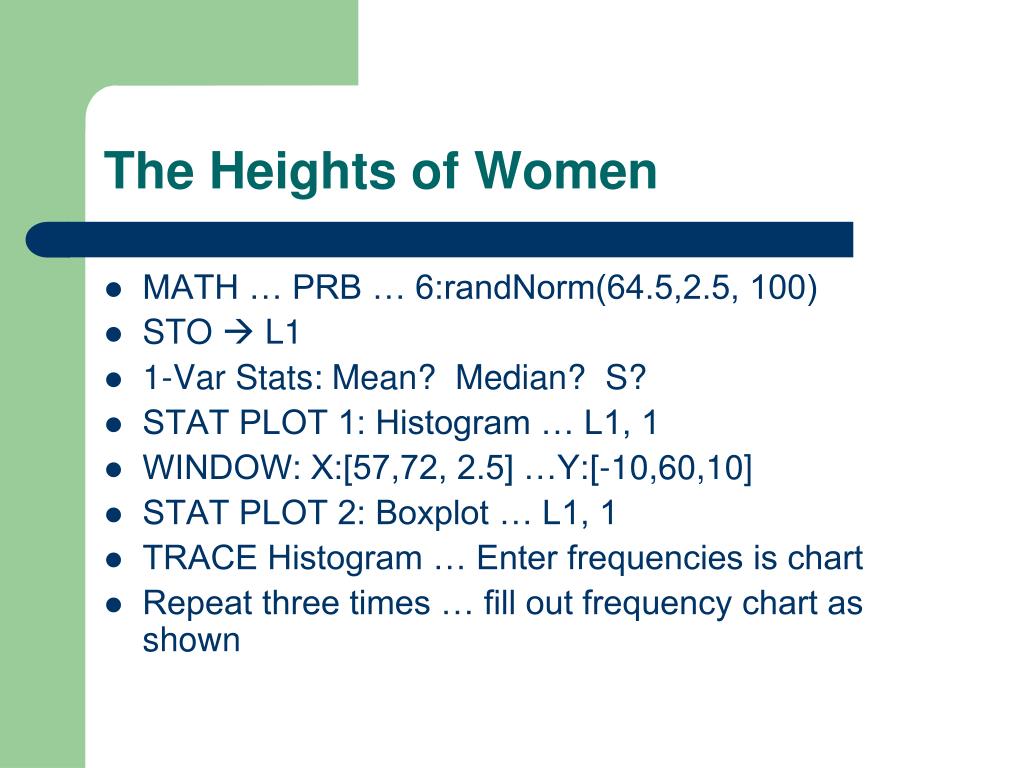

  3. The Heights of Women • MATH … PRB … 6:randNorm(64.5,2.5, 100) • STO  L1 • 1-Var Stats: Mean? Median? S? • STAT PLOT 1: Histogram … L1, 1 • WINDOW: X:[57,72, 2.5] …Y:[-10,60,10] • STAT PLOT 2: Boxplot … L1, 1 • TRACE Histogram … Enter frequencies is chart • Repeat three times … fill out frequency chart as shown

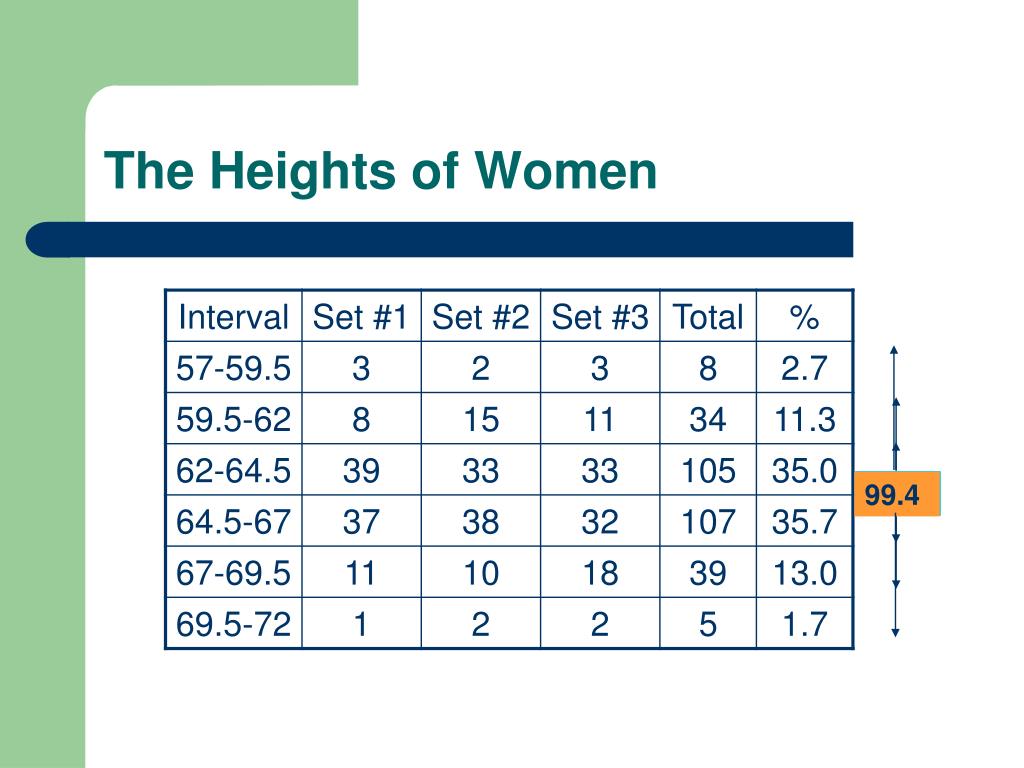

  4. 70.7 95.0 99.4 The Heights of Women

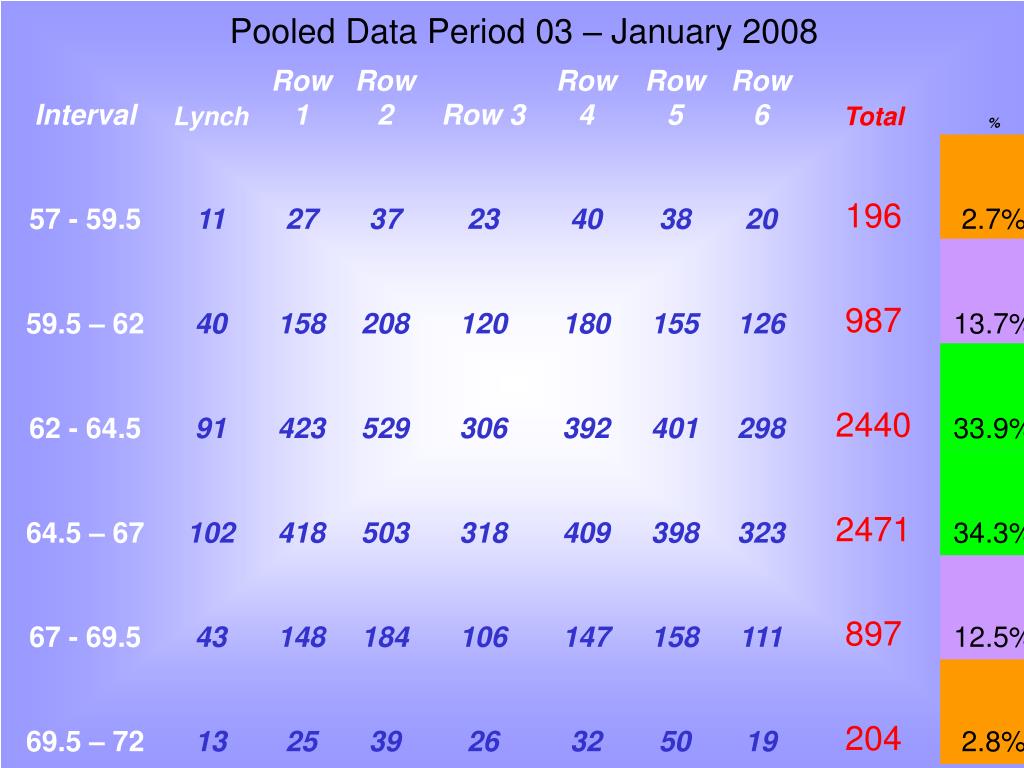

  5. Pooled Data Period 03 – January 2008

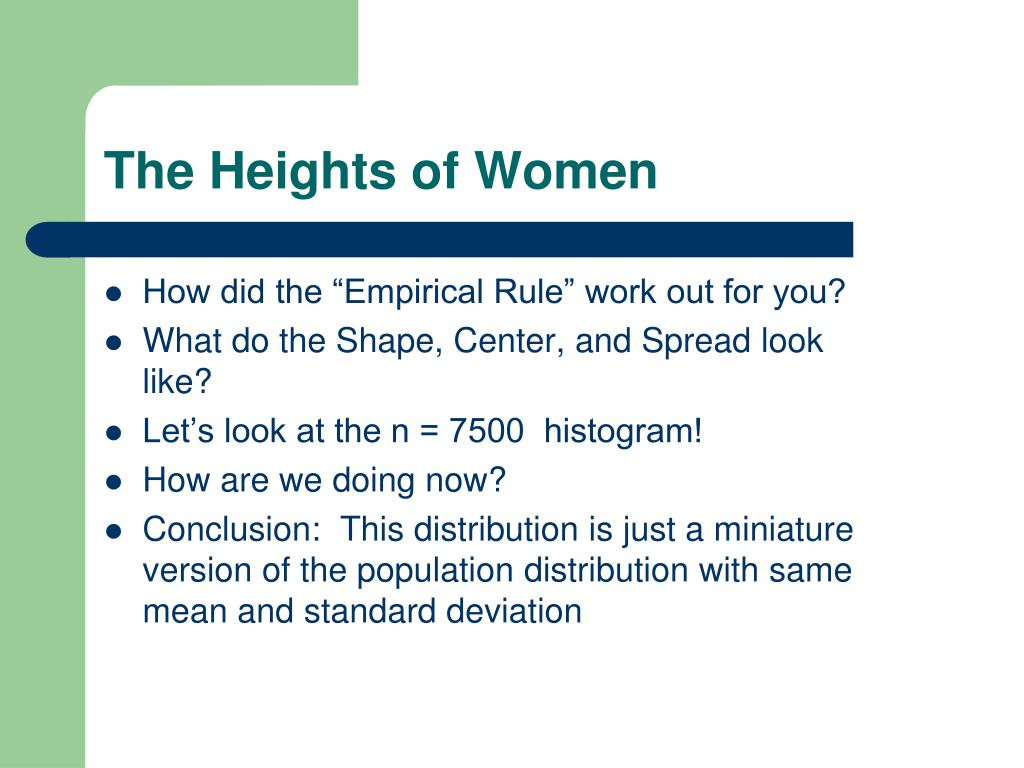

  6. The Heights of Women • How did the “Empirical Rule” work out for you? • What do the Shape, Center, and Spread look like? • Let’s look at the n = 7500 histogram! • How are we doing now? • Conclusion: This distribution is just a miniature version of the population distribution with same mean and standard deviation

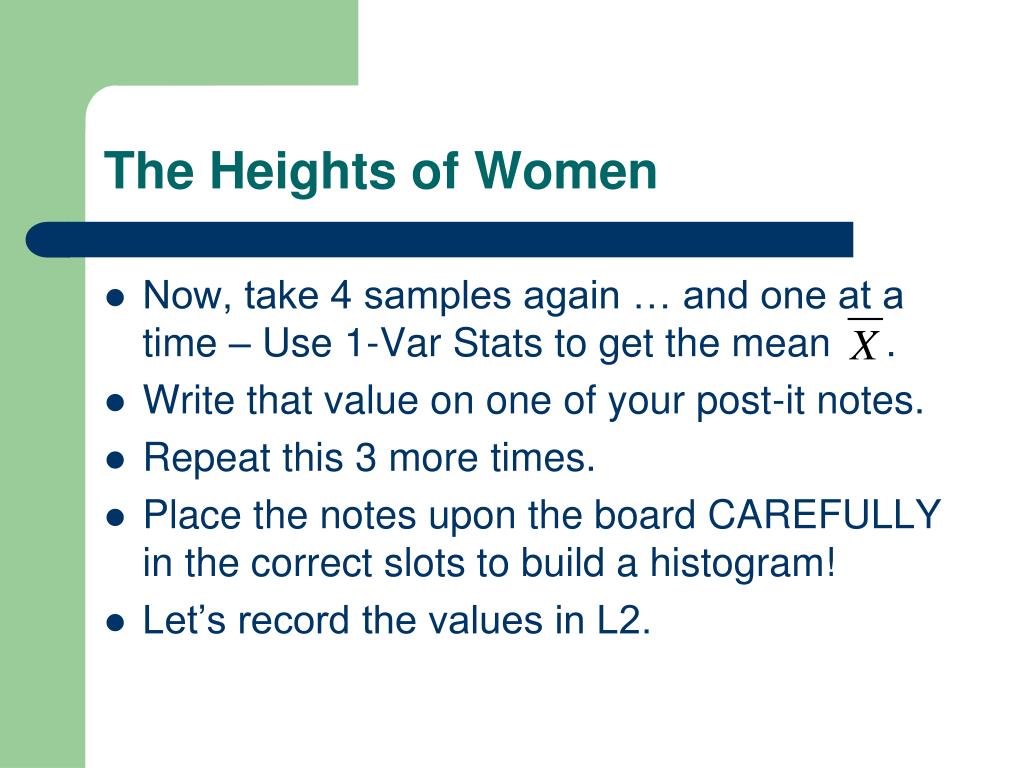

  7. The Heights of Women • Now, take 4 samples again … and one at a time – Use 1-Var Stats to get the mean . • Write that value on one of your post-it notes. • Repeat this 3 more times. • Place the notes upon the board CAREFULLY in the correct slots to build a histogram! • Let’s record the values in L2.

  8. The Heights of Women • How did the “Empirical Rule” work out here? • Compare a Boxplot for L2 in PLOT 3 – to the one we did in PLOT 2 for the population. • What do the Shape, Center, and Spread look like for THIS NEW distribution? • Let’s look at the new SAMPLING DISTRIBUTION of Sample means of n = 100 histogram! • Conclusion: What is the relationship between the mean of the population and the mean of the X bars? What about the standard deviation of the population and that of the X-bars?

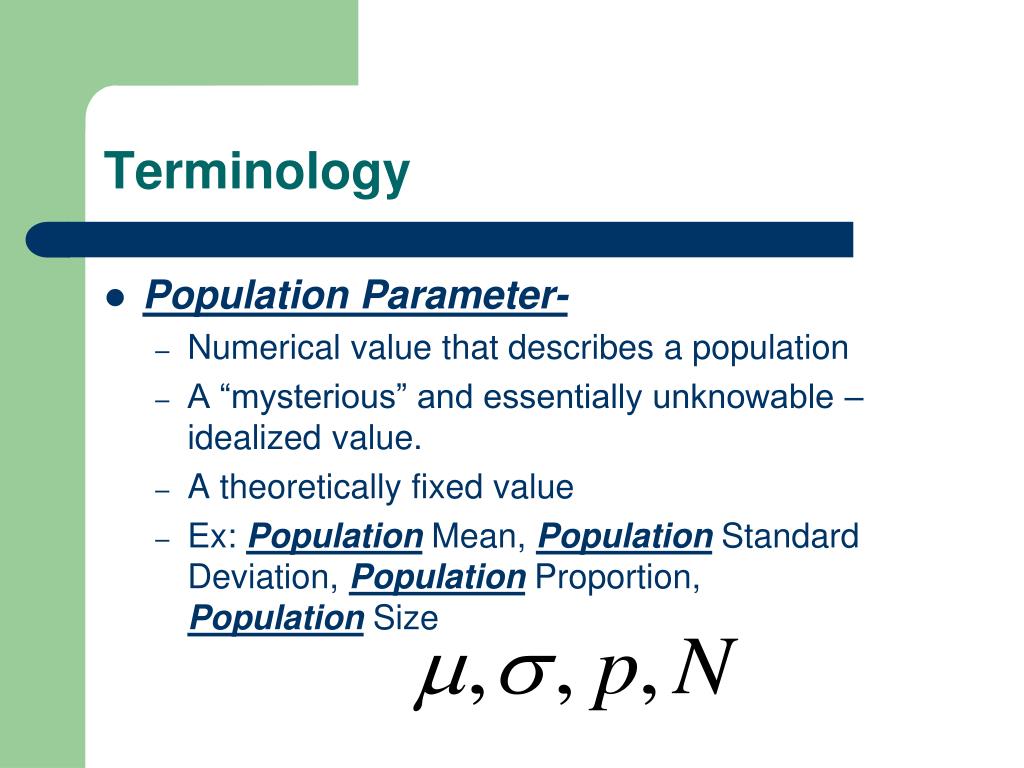

  9. Terminology • Population Parameter- • Numerical value that describes a population • A “mysterious” and essentially unknowable – idealized value. • A theoretically fixed value • Ex: Population Mean, Population Standard Deviation, Population Proportion, Population Size

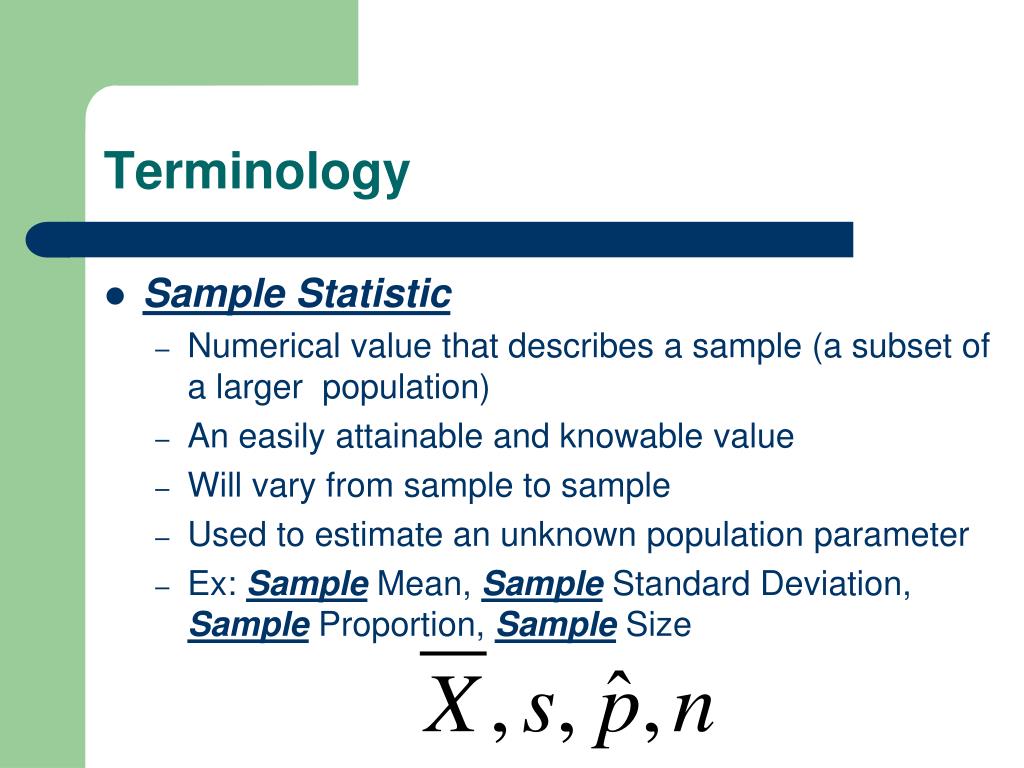

  10. Terminology • Sample Statistic • Numerical value that describes a sample (a subset of a larger population) • An easily attainable and knowable value • Will vary from sample to sample • Used to estimate an unknown population parameter • Ex: Sample Mean, Sample Standard Deviation, Sample Proportion, Sample Size

  11. Example and Exercises EXAMPLE 9.2: DO YOU BELIEVE IN GHOSTS? EXERCISE 9.4: WELL-FED RATS • EXAMPLE 9.1: MAKING MONEY EXERCISE 9.2: UNEMPLOYMENT

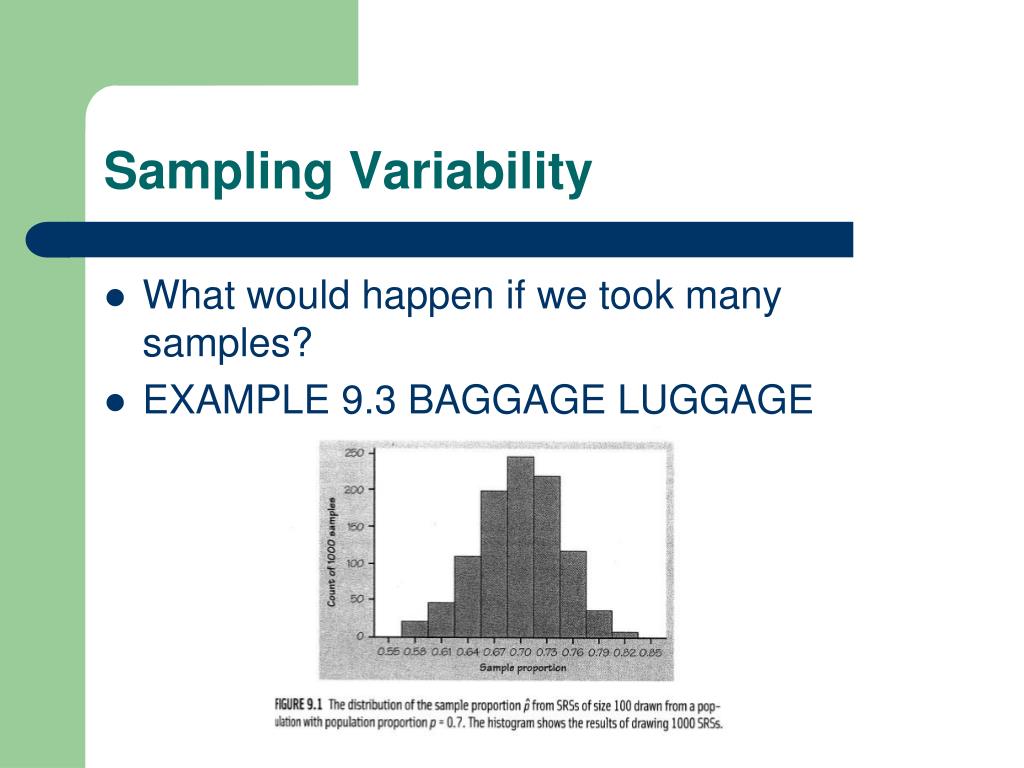

  12. Sampling Variability • What would happen if we took many samples? • EXAMPLE 9.3 BAGGAGE LUGGAGE

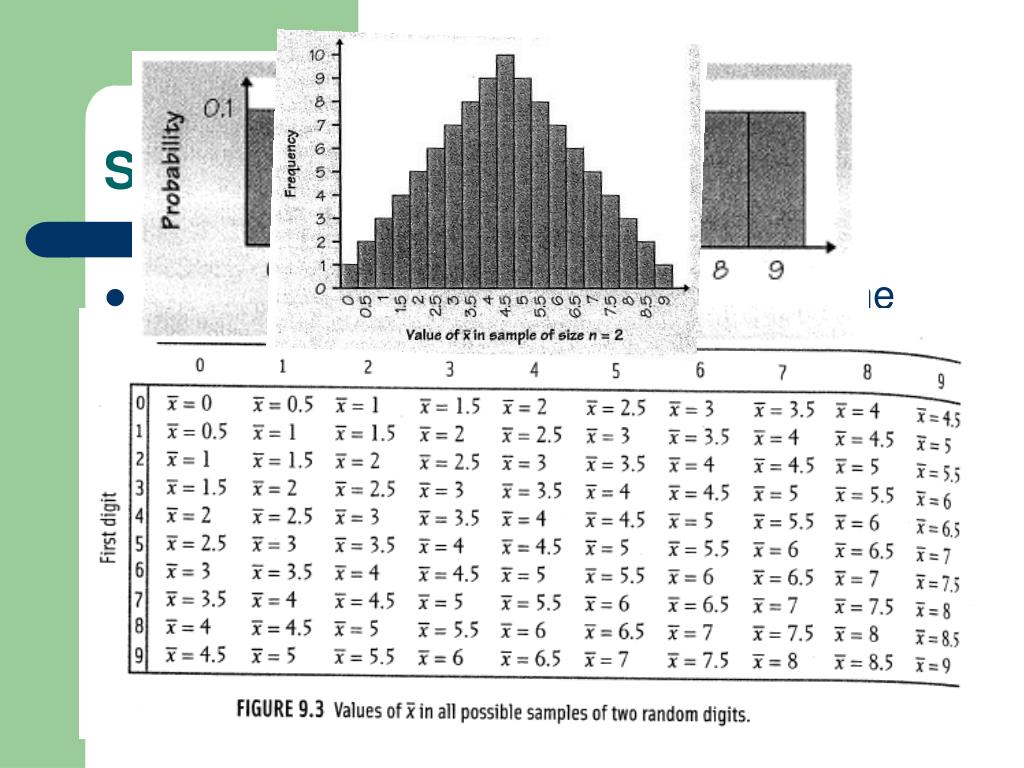

  13. Sampling Variability • Sampling Distribution: of a statistic is the distribution of values in ALL POSSIBLE samples of the same size • EXAMPLE 9.4 RANDOM DIGITS

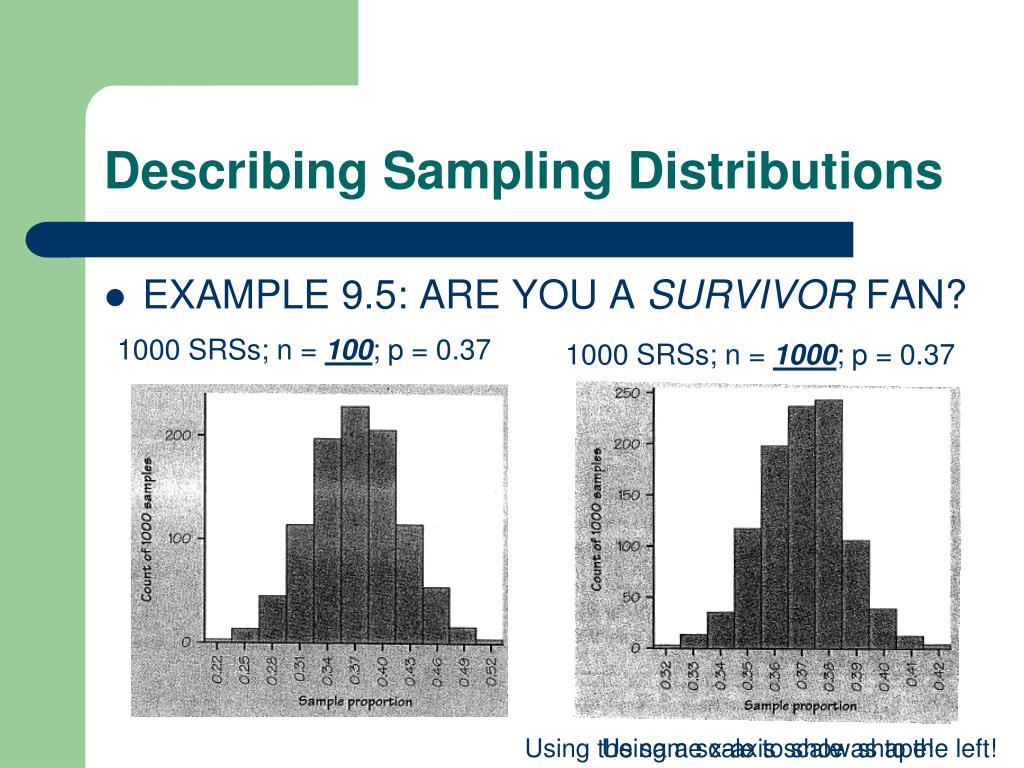

  14. Describing Sampling Distributions • EXAMPLE 9.5: ARE YOU A SURVIVOR FAN? 1000 SRSs; n = 100; p = 0.37 1000 SRSs; n = 1000; p = 0.37 Using the same x-axis scale as to the left! Using a scale to show shape!

  15. UNBIASED vs. BIASED • A Statistic is said to be UNBIASED if the mean of the sampling distribution is equal to the true parameter being estimated • When finding the value of a sampling statistic, it is just as likely to fall above the population parameter as it is to fall below it.

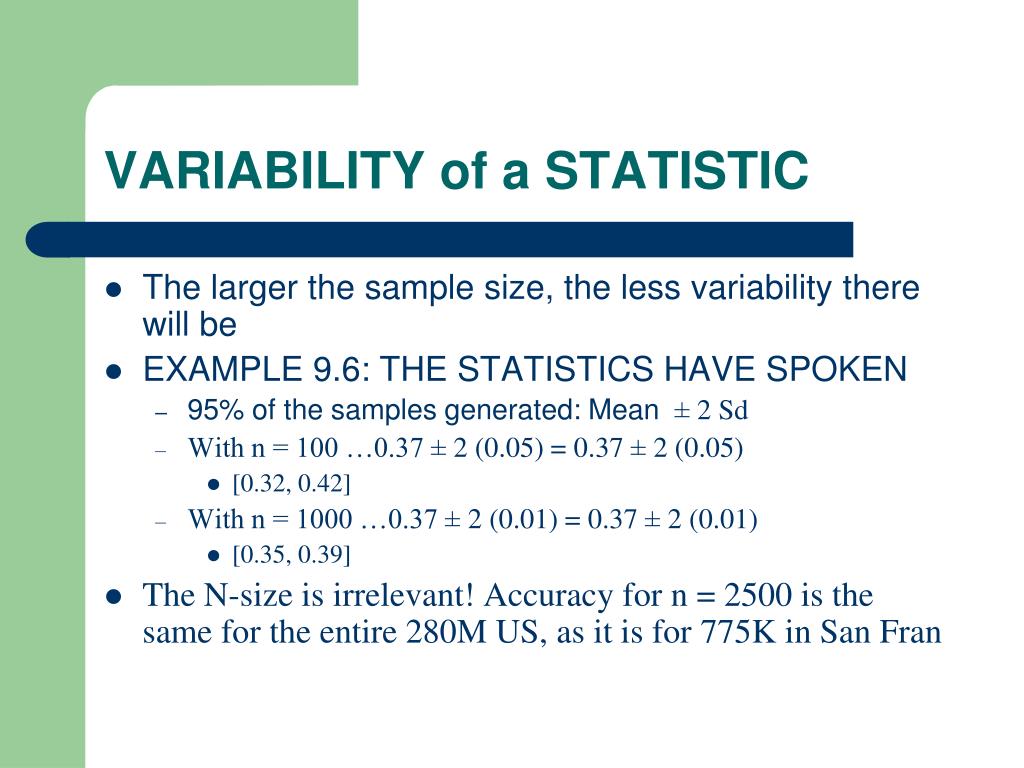

  16. VARIABILITY of a STATISTIC • The larger the sample size, the less variability there will be • EXAMPLE 9.6: THE STATISTICS HAVE SPOKEN • 95% of the samples generated: Mean ± 2 Sd • With n = 100 …0.37 ± 2 (0.05) = 0.37 ± 2 (0.05) • [0.32, 0.42] • With n = 1000 …0.37 ± 2 (0.01) = 0.37 ± 2 (0.01) • [0.35, 0.39] • The N-size is irrelevant! Accuracy for n = 2500 is the same for the entire 280M US, as it is for 775K in San Fran

  17. BIAS & VARIABILITY (Revisited) Precision versus Accuracy

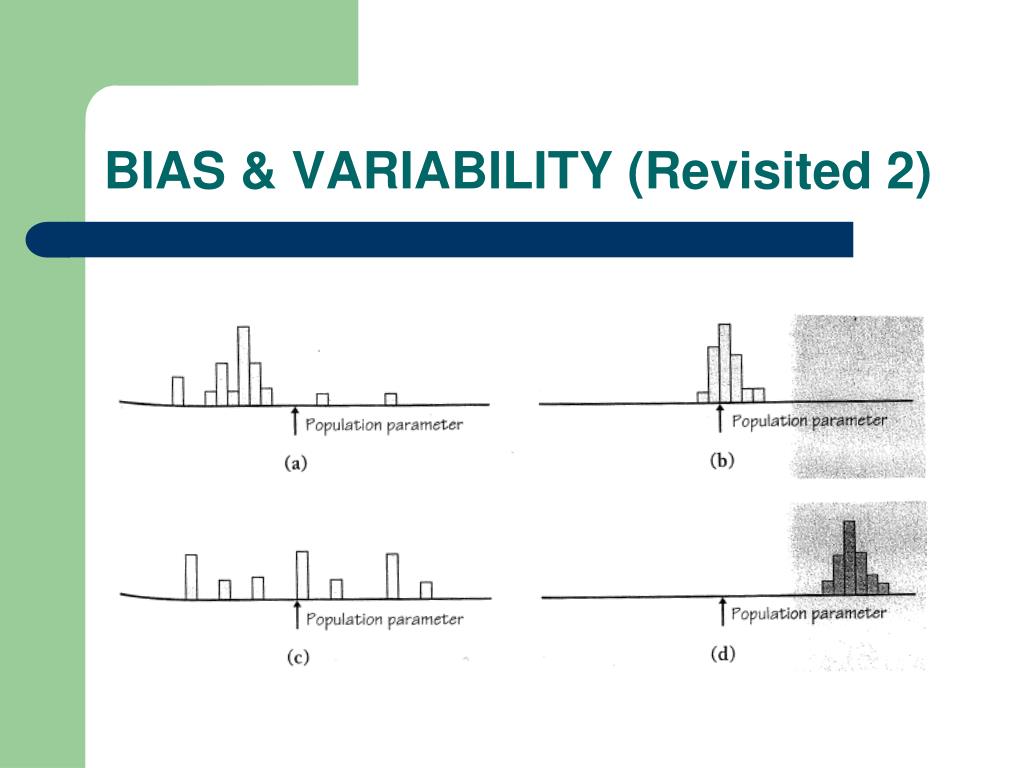

  18. BIAS & VARIABILITY (Revisited 2)

  19. Homework Example • EXERCISE 9.9: BEARING DOWN • p = 0.1; 100 SRSs of size n = 200 • Non-conforming ball bearings out of 200 are shown: (e) What is we repeated this exercise, but instead used SRSs of size 1000 instead of 200? What would the mean of this be? Would the spread be larger, smaller or about the same as the histogram from part (a)? (c) Find the mean of the distribution of p-hat; mark it on the histogram. Any evidence of bias in the sample? (d) What is the mean of “the sampling distribution” of all possible samples of size 200? (b) Describe the shape of the distribution. • Make a table that shows the frequency of each count! Draw a histogram of the p-hat values.
