  1. Seam Types

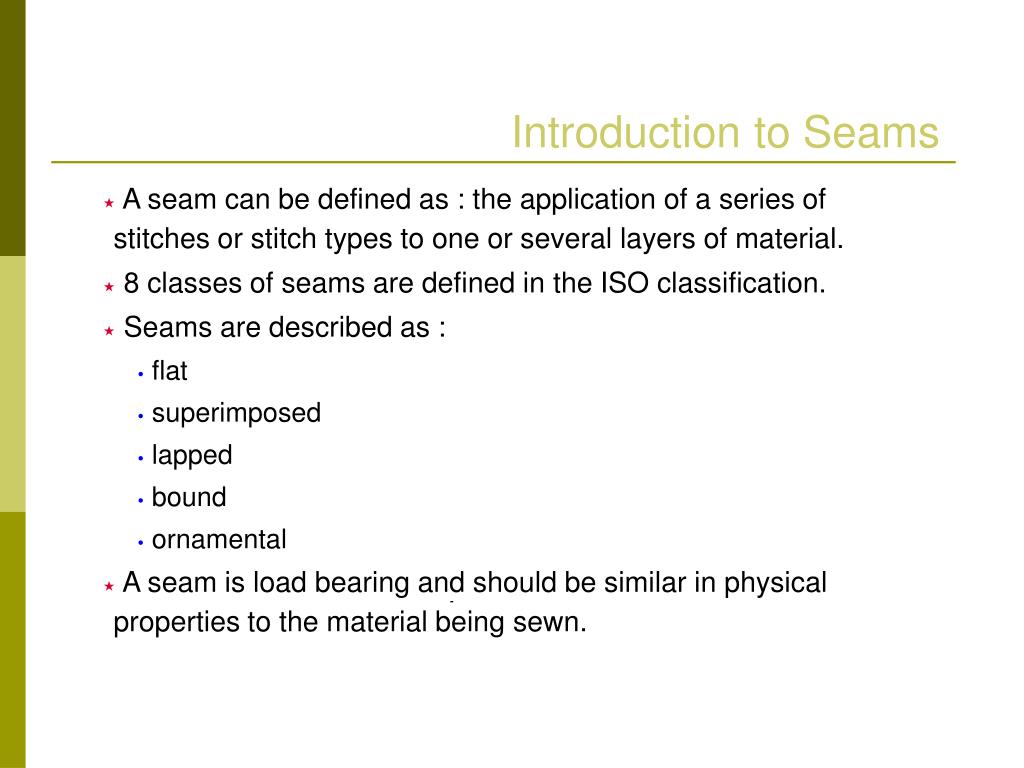

  2. Introduction to Seams • A seam can be defined as : the application of a series of stitches or stitch types to one or several layers of material. • 8 classes of seams are defined in the ISO classification. • Seams are described as : • flat • superimposed • lapped • bound • ornamental • A seam is load bearing and should be similar in physical properties to the material being sewn.

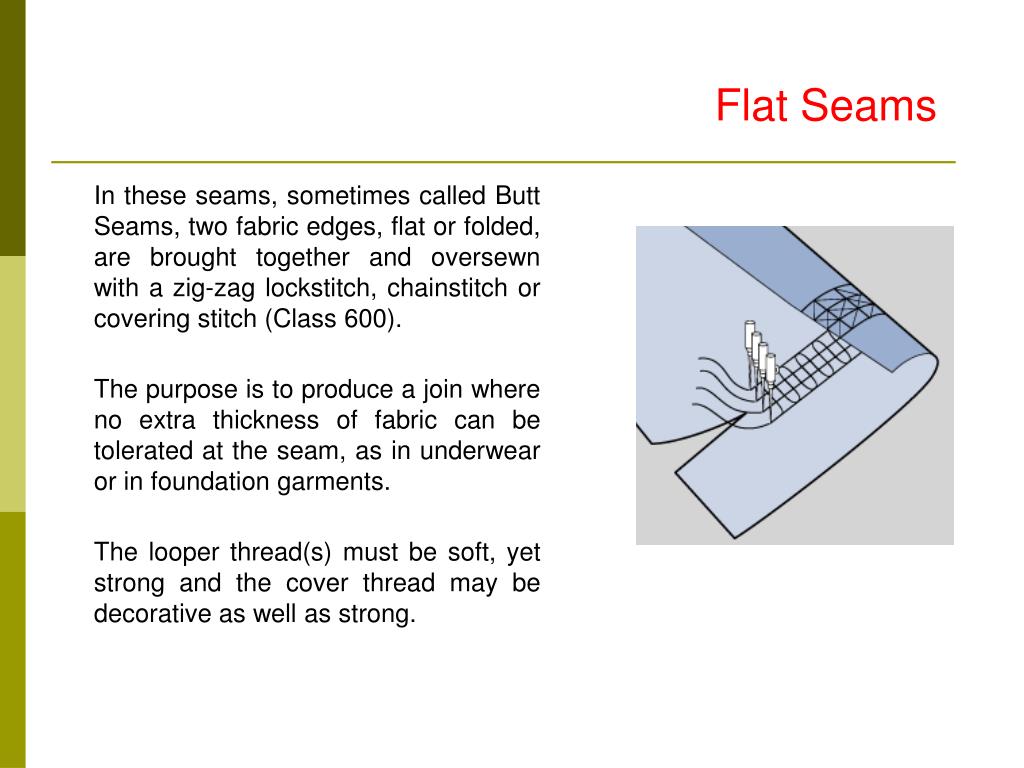

  3. Flat Seams In these seams, sometimes called Butt Seams, two fabric edges, flat or folded, are brought together and oversewn with a zig-zag lockstitch, chainstitch or covering stitch (Class 600). The purpose is to produce a join where no extra thickness of fabric can be tolerated at the seam, as in underwear or in foundation garments. The looper thread(s) must be soft, yet strong and the cover thread may be decorative as well as strong.

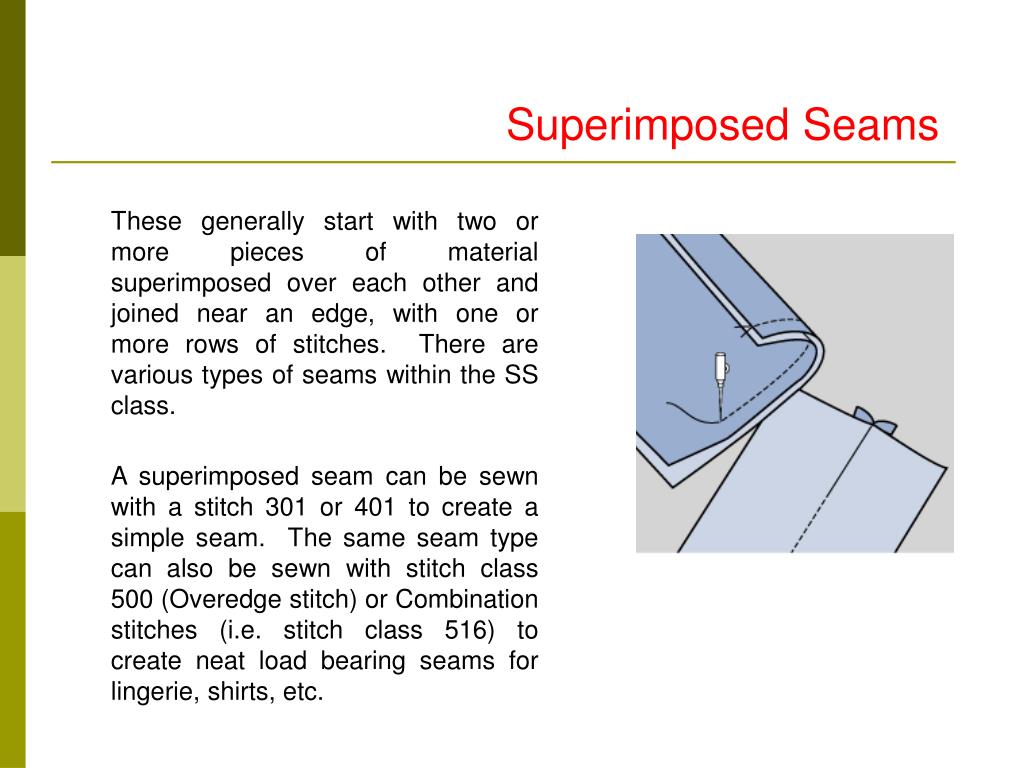

  4. Superimposed Seams These generally start with two or more pieces of material superimposed over each other and joined near an edge, with one or more rows of stitches. There are various types of seams within the SS class. A superimposed seam can be sewn with a stitch 301 or 401 to create a simple seam. The same seam type can also be sewn with stitch class 500 (Overedge stitch) or Combination stitches (i.e. stitch class 516) to create neat load bearing seams for lingerie, shirts, etc.

  5. Lapped Seams • Two or more plies of material are lapped (i.e. with edges overlapped, plain, or folded) and joined with one or more rows of stitches. • French seaming involves 2 stitching operations with an intervening folding operation - a flat, folded seam with only one row of stitching visible on the top surface, commonly used for rainwear.

  6. Lapped Seams • The Lap Felled type, involves only one stitching operation - a strong seam with fabric edges protected from fraying. • Commonly used for making up jeans or similar garments.

  7. Bound Seams These are formed by folding a binding strip over the edge of the plies of material and joining both edges of the binding to the material with one or more rows of stitching. This produces a neat edge on a seam exposed to view or to wear.

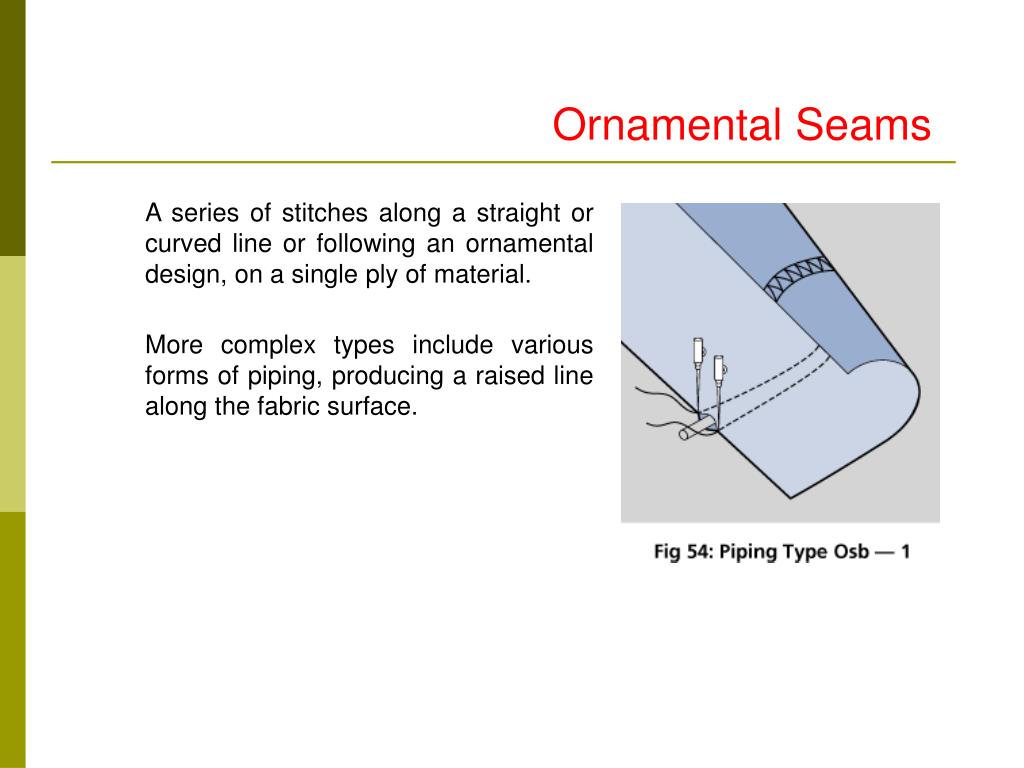

  8. Ornamental Seams A series of stitches along a straight or curved line or following an ornamental design, on a single ply of material. More complex types include various forms of piping, producing a raised line along the fabric surface.

  9. Edge Finishing Stitching Finishing the edge of a single ply of material by folding it or covering it with a stitch. The simplest of these operations is Serging, Type 6.01.01, in which a cut edge of a single ply is reinforced by overedge stitching to neaten and prevent fraying Includes other popular methods of producing a neat edge like hemming and Blind Stitch hemming.

  10. Quality issues & Solutions

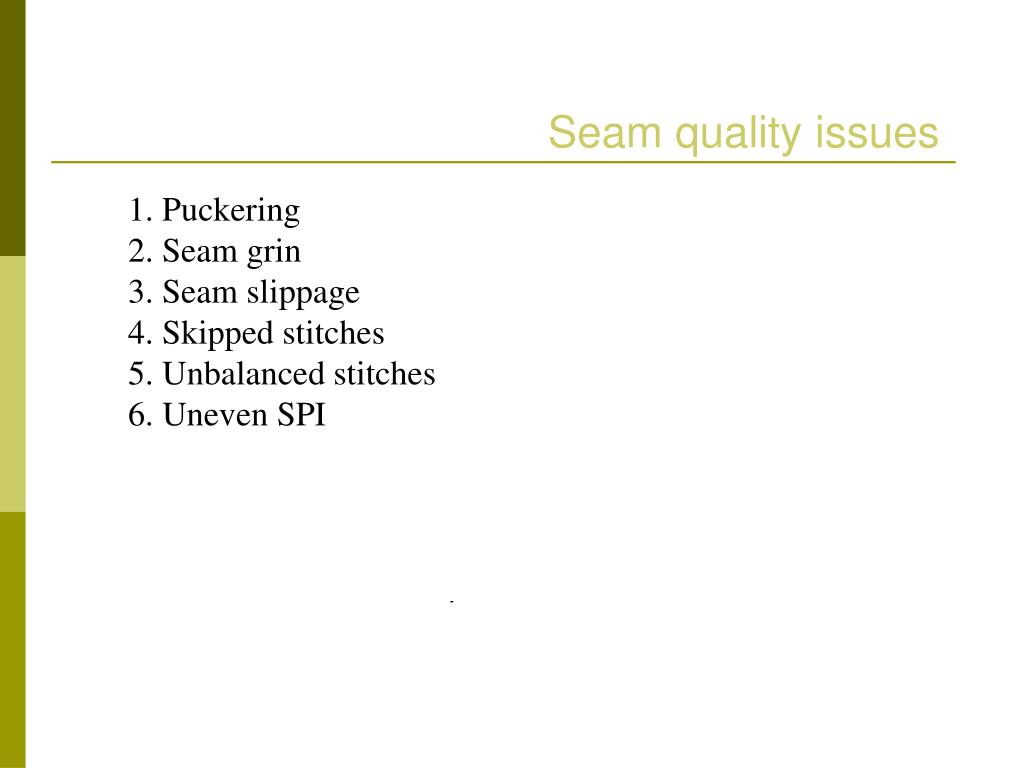

  11. Seam quality issues 1. Puckering 2. Seam grin 3. Seam slippage 4. Skipped stitches 5. Unbalanced stitches 6. Uneven SPI

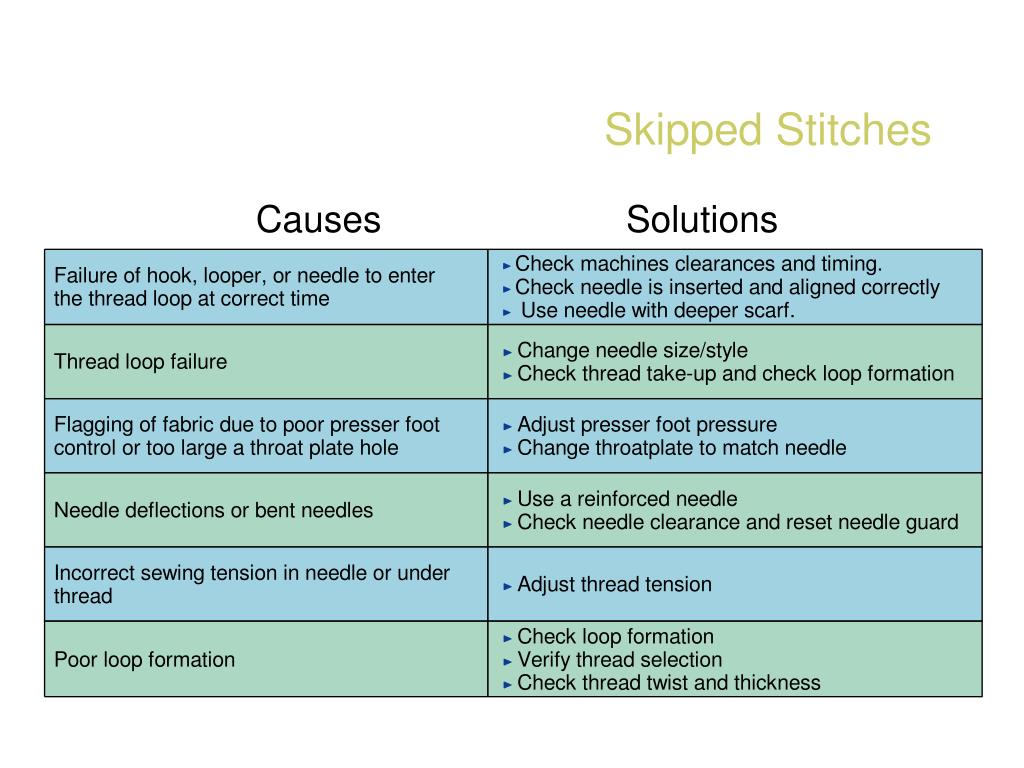

  12. Skipped Stitches Causes Solutions

  13. Staggered Stitches Causes Solutions

  14. Unbalanced or Variable Stitches Causes Solutions

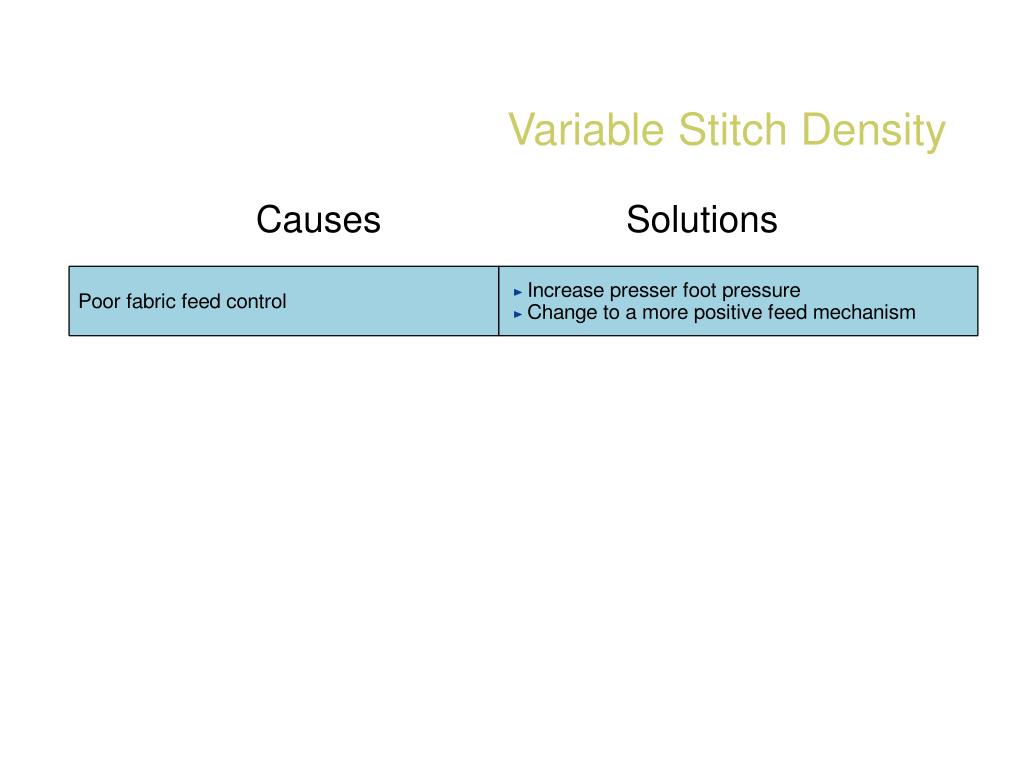

  15. Variable Stitch Density Causes Solutions

  16. Seam Grin • When two pieces of fabric are pulled at right angles to the seam, a gap is revealed between the two pieces of fabric revealing the thread in this gap. • Corrective actions • Increase stitching tensions • Use a higher stitch rating

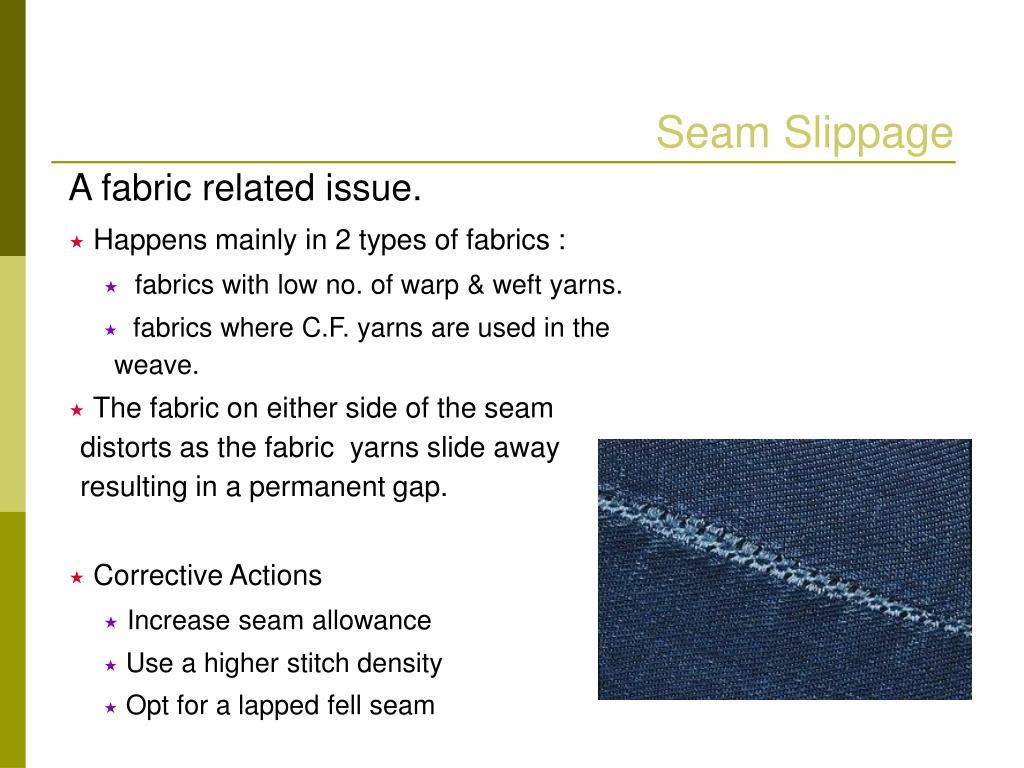

  17. Seam Slippage • A fabric related issue. • Happens mainly in 2 types of fabrics : • fabrics with low no. of warp & weft yarns. • fabrics where C.F. yarns are used in the weave. • The fabric on either side of the seam distorts as the fabric yarns slide away resulting in a permanent gap. • Corrective Actions • Increase seam allowance • Use a higher stitch density • Opt for a lapped fell seam

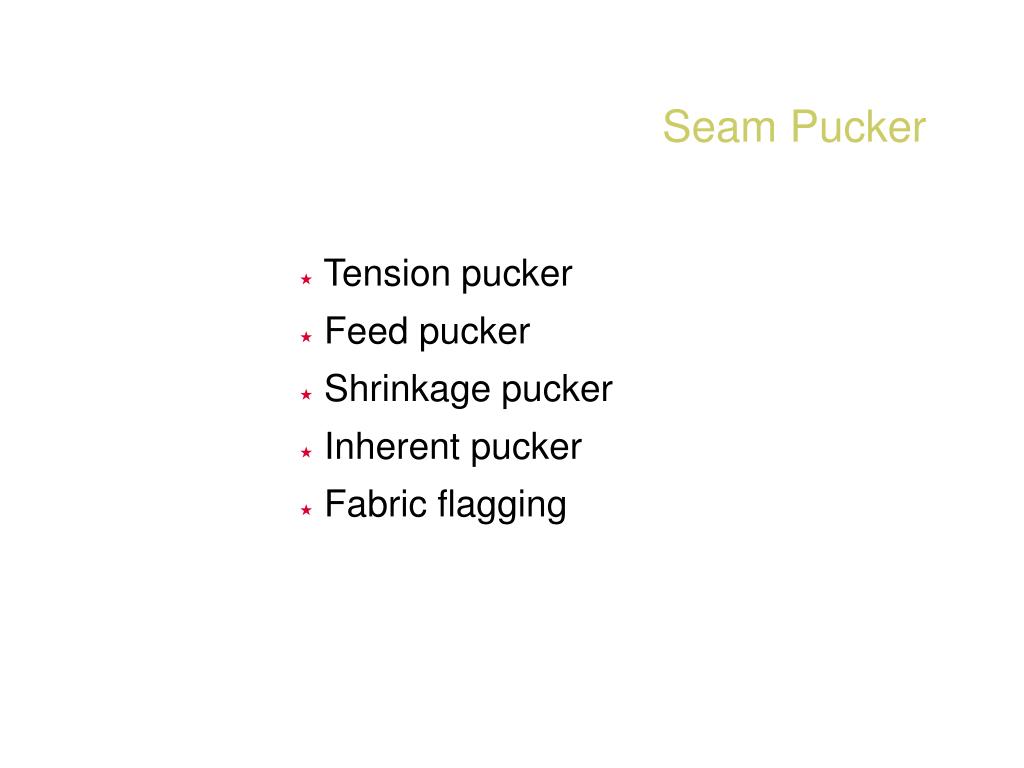

  18. Seam Pucker • Tension pucker • Feed pucker • Shrinkage pucker • Inherent pucker • Fabric flagging

  19. Tension Pucker • Caused by high thread tension during sewing. • More pronounced when synthetic threads are used. • These threads on account of high stretch properties elongate more during sewing. • After sewing the threads recover from the stretched state pulling the fabric with it. Remedy: Thread tensions have to be kept as low as possible.

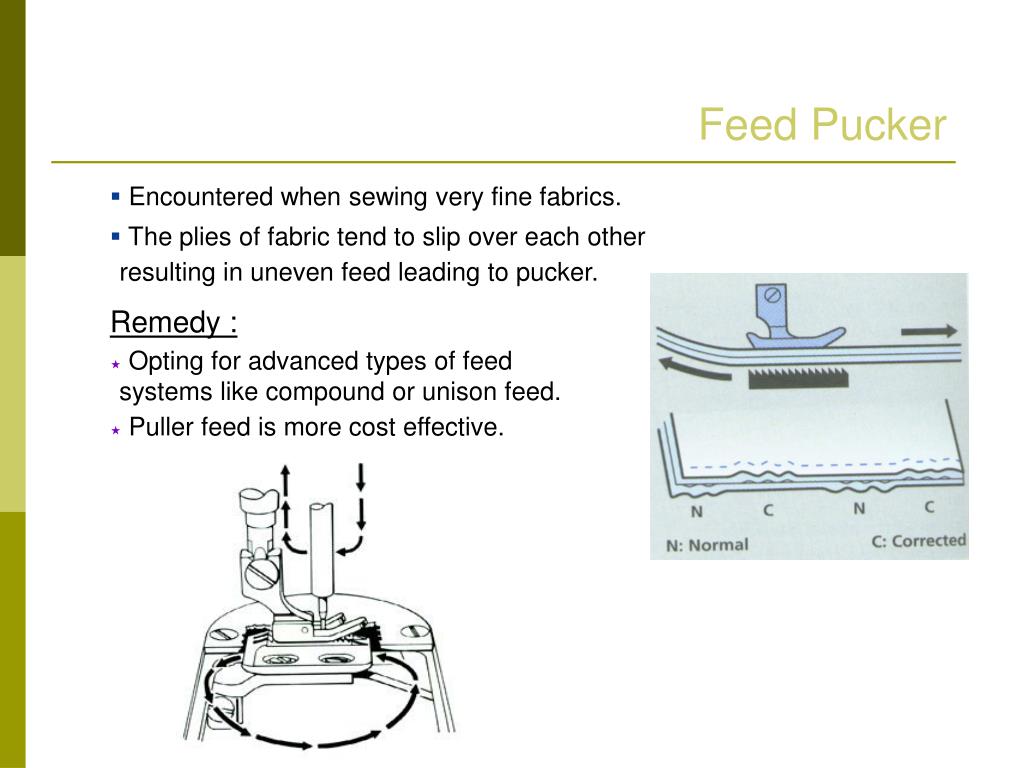

  20. Feed Pucker • Encountered when sewing very fine fabrics. • The plies of fabric tend to slip over each other resulting in uneven feed leading to pucker. • Remedy : • Opting for advanced types of feed systems like compound or unison feed. • Puller feed is more cost effective.

  21. Shrinkage Pucker • Wash pucker - during the wash process the thread in the seam shrinks, pulling the fabric with it. More so when using cotton threads. • Ironing pucker - normally happens when synthetic threads are used. The heat destabilizes the molecular structure of the thread causing it to contract. • Remedy • Choosing threads with low shrinkage properties.

  22. Inherent Pucker • Normally seen when sewing densely woven materials. • This occurs because the needle forcibly displaces the warp & weft ends of the dense weave to a significant extent. • These displaced ends are pushed upwards to the surface of the fabric and appear as pucker. • This is also know as 'STRUCTURAL JAMMING' • Remedy • Opting for finer needles & threads • Opt for a chain stitch in place of a lock stitch • Reduce stitch density • Biased stitching

  23. Fabric Flagging • A machine related issue • the throat plate aperture enlarges due to wear & tear • while sewing the needle pushes the fabric through the aperture before penetrating the fabric • this can also happen when the needle size (thickness) is changed and if the throat plate is not changed accordingly. • Remedy • throat plates must be changed at regular intervals after checking for wear & tear • throat plates must be changed in accordance with the needle size even if there are no signs of wear & tear. Needle Size - Nm 60 65 70 80 90 100 110 120 Throat plate - Nm 100 120 120 140 160 160 200 200 aperture size

  24. Garment / Seam properties

  25. Seam Engineering A garment is made up using a series of different seams. Therefore, a thread should be chosen for specific seams to ensure maximum benefits. • Seam appearance • Is the seam attractive, consistent, and neat? • Seam strength • Have the correct seam type and thread selections been made for the item being sewn? • Seam stretch • Does the seam allow stretch especially in high elongation fabrics viz : knits, lycra blends • Seam durability • Do the properties of the seam, thread, and fabric lend themselve to the desired length of use for the item sewn?

  26. Seam Strength • Critical factors : • Thread strength • Stitch type • Stitch rating • Seam type • Fabric type • Needle size & point The seam is sewn at right angles to the direction of load. Seam strength = SPI X STS X 1.5 - lockstitch SPI X STS X 1.7 - chainstitch e.g. for a seam with a density of 16 spi & a thread with a 1100 gms STS seam strength for lockstitch = 16 X 1100 X 1.5 = 26,400 gms. = 26. 4 kgs seam strength for chainstitch = 16 X 1100 X 1.7 = 29,920 gms. = 29. 9 kgs

  27. Seam Strength • Seam Type • A lap felled seam is the strongest of all seam types because the fabric is lapped upon itself and shares the stress load along with the thread. However, the lap felled seam makes a bulky seam. • A butt seam is designed to maintain a flat profile, but in this type seam the thread bears the entire load of stress in the seam. • Stitch Type • The lockstitch is the most common stitch used, but the most easily damaged. • Chain and overedge stitches offer more extensibility, which leads to more resistance to stress. • Stitch Density • Seam strength is usually proportional to stitch density. • Increasing stitches per inch gives a stronger seam up to a point. Sometimes it is more economical to use a stronger thread.
