This presentation by Jared Beland explores the various types of weatherproofing techniques, including gaskets, adhesives, overmolding, and ultrasonic welding, for reinforcing structures and preventing fluid or gas leaks. Learn about the applications, materials used, and advantages of each method.

selena
Télécharger la présentation

Weatherproofing

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Weatherproofing Vermont Technical College 2003 Senior Projects I Technical Topic Presentation Created By: Jared Beland

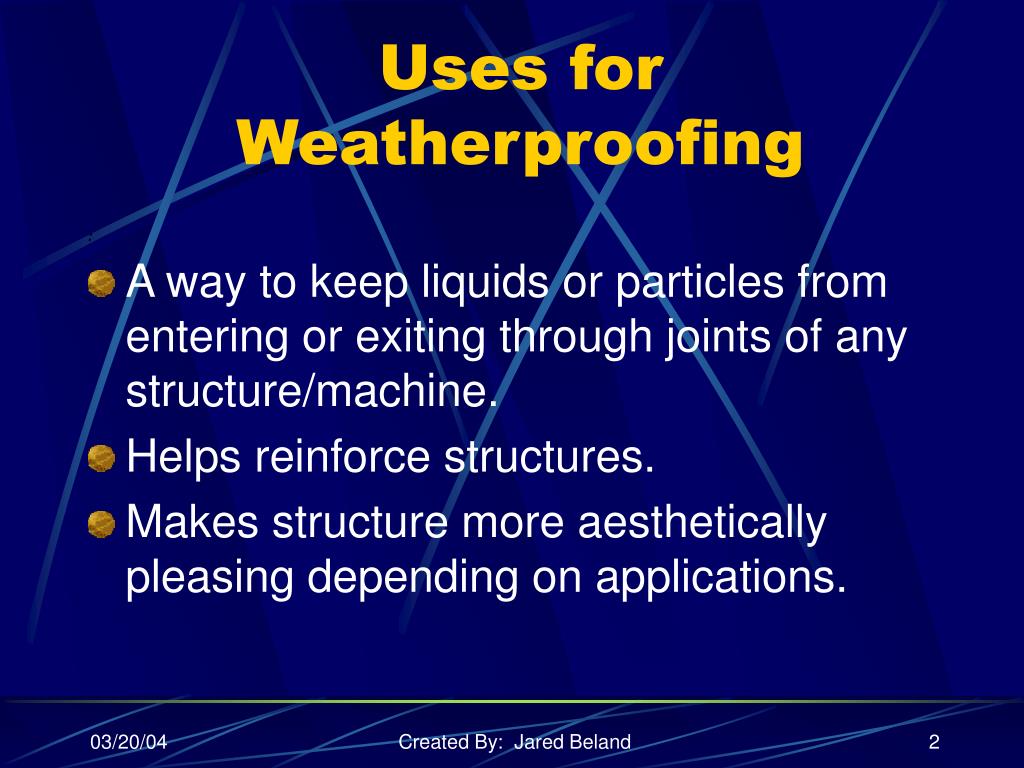

  2. Uses for Weatherproofing • A way to keep liquids or particles from entering or exiting through joints of any structure/machine. • Helps reinforce structures. • Makes structure more aesthetically pleasing depending on applications. : Created By: Jared Beland

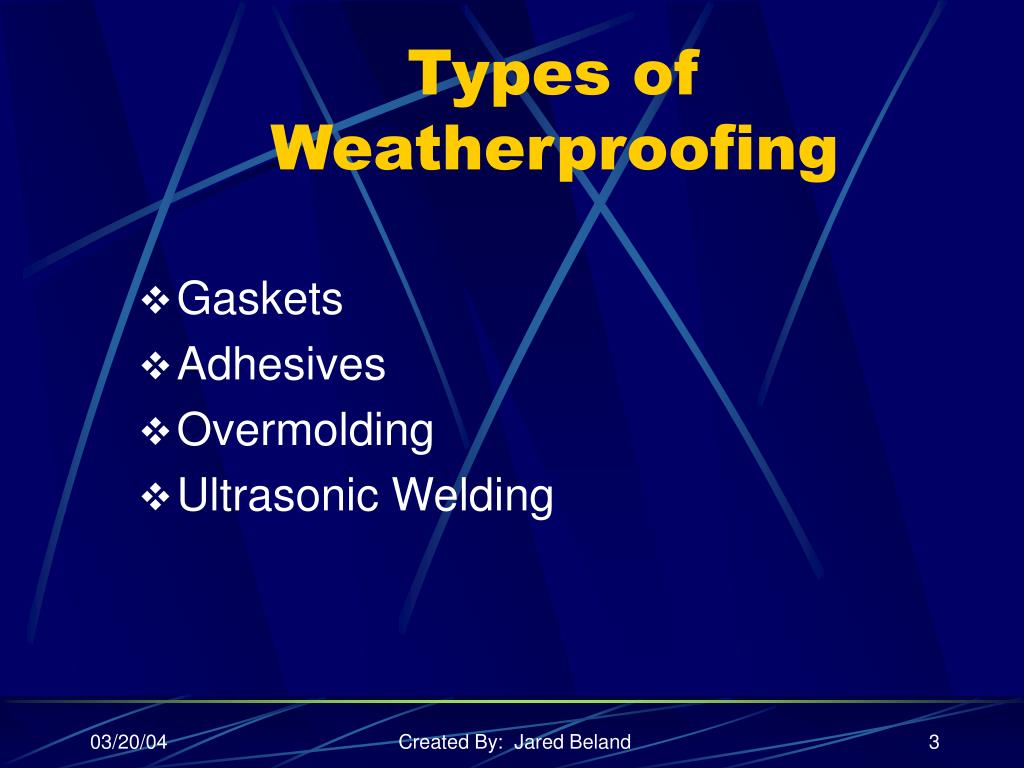

  3. Types of Weatherproofing • Gaskets • Adhesives • Overmolding • Ultrasonic Welding Created By: Jared Beland

  4. Gasket Description • Mainly used for engine applications. • Very cost effective. • Used to prevent fluid or gas leaks by providing a barrier between two mating surfaces. • Common materials: Rubber, Graphite, Teflon, Copper, and Silicone. • Can withstand high temperatures and pressure. Created By: Jared Beland

  5. Gaskets Created By: Jared Beland

  6. Adhesive Description • Works like a gasket but starts in a liquid form. • Cheap and easy to use. • Protective coating that seals porous surfaces, fine cracks and voids. • Self curing and hardens to a ceramic like, non porous, impermeable film. • Can withstand tons of hydrostatic pressure. Created By: Jared Beland

  7. Adhesives Created By: Jared Beland

  8. Overmolding Description • Aprocess whereby two different plastic materials are molded together to produce a unique part. • Allows designers to create a strong structural product with a weather protective cover. • More often used if large quantities are being produced. (costly) • Seamlessly integrated and joined. Created By: Jared Beland

  9. Overmolding Created By: Jared Beland

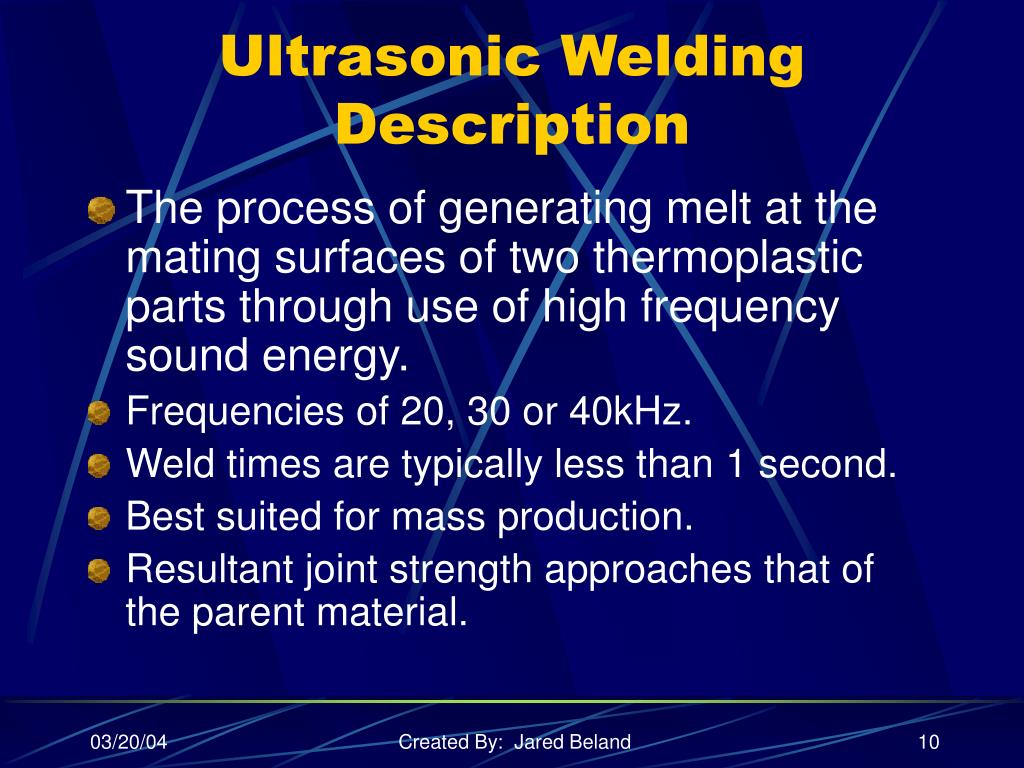

  10. Ultrasonic Welding Description • The process of generating melt at the mating surfaces of two thermoplastic parts through use of high frequency sound energy. • Frequencies of 20, 30 or 40kHz. • Weld times are typically less than 1 second. • Best suited for mass production. • Resultant joint strength approaches that of the parent material. Created By: Jared Beland

  11. Ultrasonic Welding Created By: Jared Beland

  12. Pros and Cons Matrix Created By: Jared Beland
