Deceleration and trapping

Deceleration and trapping. Production. Deceleration. Trapping. Cooling. Electric / magnetic / light. Sympathetic Cooling. Supersonic Expansion. Switched Fields. 1K, ~600m/s. 100 mK, 0m/s. 100 mK, 0m/s. <1mK, 0m/s. A route to ultracold molecules. Supersonic expansion.

Télécharger la présentation

Deceleration and trapping

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.


Presentation Transcript

  1. Deceleration and trapping

  2. Production Deceleration Trapping Cooling Electric / magnetic / light Sympathetic Cooling Supersonic Expansion Switched Fields 1K, ~600m/s 100 mK, 0m/s 100 mK, 0m/s <1mK, 0m/s A route to ultracold molecules

  3. Supersonic expansion Thermal energy of gas converted into forward kinetic energy For details, see: “Atomic and molecular beam methods”, edited G.Scoles et. al, Oxford University Press (1988)

  4. Seeding a supersonic expansion Ca Target Pulsed CaF beam Skimmer Pulsed Valve Pulsed YAG (10mJ, 10ns) 2% SF6 in 4 bar Ar • Direct seeding for molecules with high vapour pressure • Laser ablation • Electric discharge • Photo-dissociation

  5. An electric field gradient exerts a force At high fields, the Stark shift becomes linear in E and meff is then a constant

  6. Using the Stark shift to decelerate molecules

  7. Stark deceleration

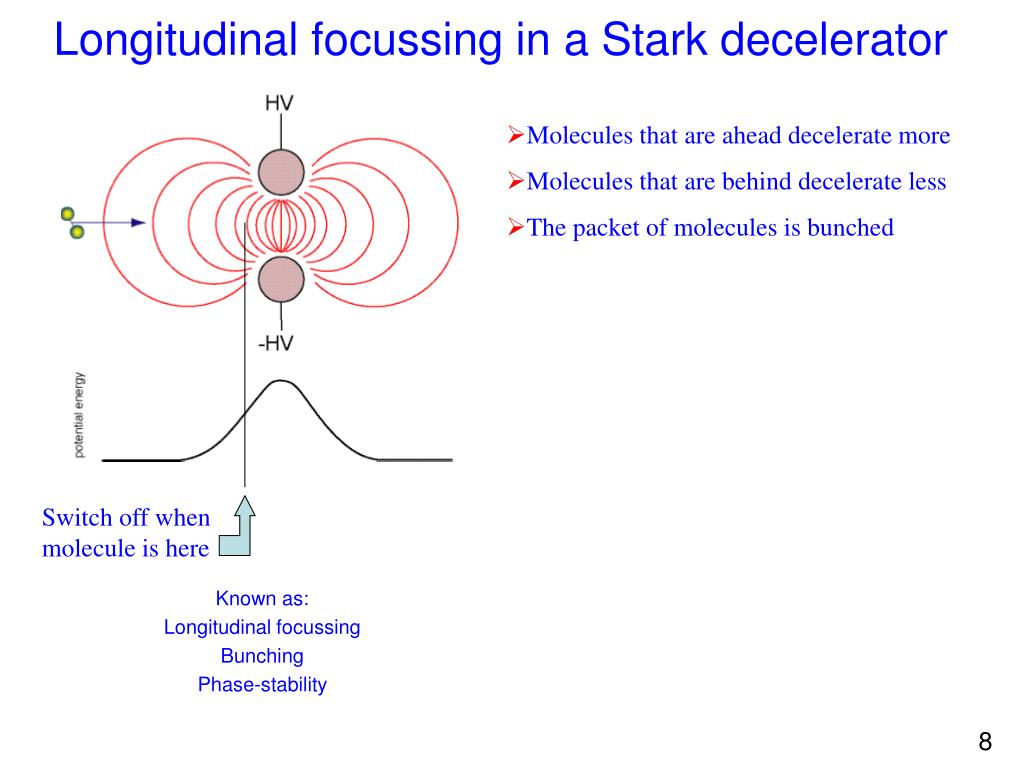

  8. Longitudinal focussing in a Stark decelerator Switch off when molecule is here • Molecules that are ahead decelerate more • Molecules that are behind decelerate less • The packet of molecules is bunched Known as: Longitudinal focussing Bunching Phase-stability

  9. Stark deceleration and phase-stability Zero deceleration – maximum phase-space acceptance Maximum deceleration – zero phase-space acceptance

  10. Strong-field seekers Weak-field seekers , but Transverse focussing The beam blows up in the transverse direction The beam is focussed in the transverse direction Use a weak-field seeking state if possible (good for OH, NH3, CO, LiH…)

  11. Decelerator for weak-field-seekers

  12. A deceleration experiment Detector Decelerator Skimmer Supersonic source

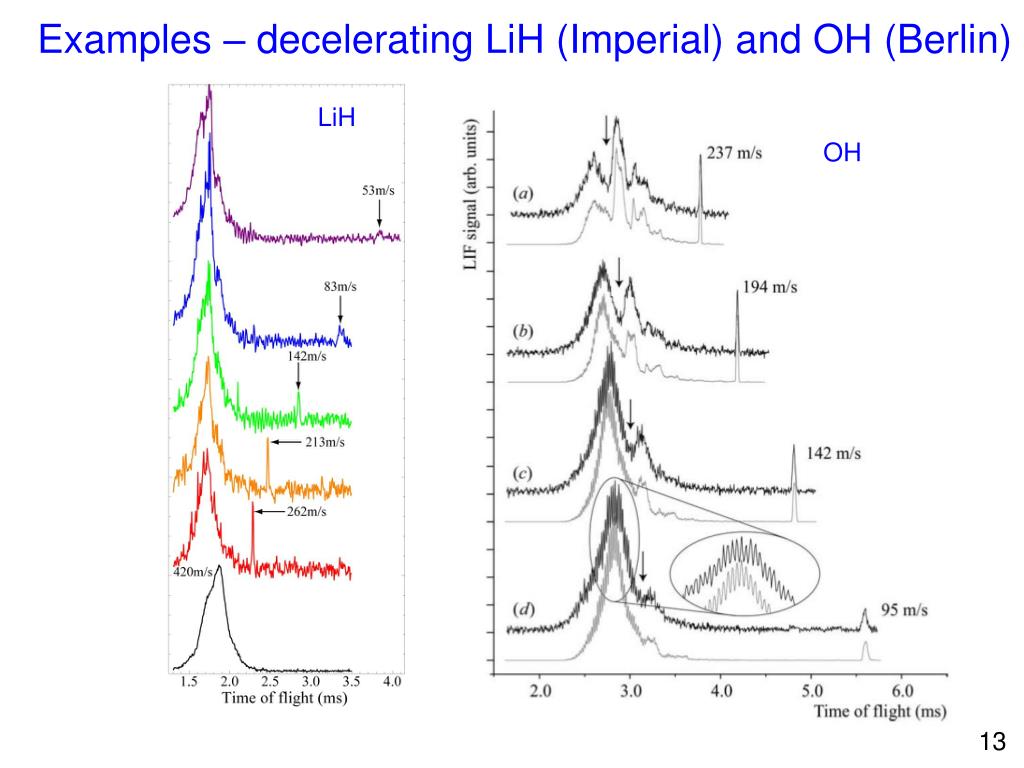

  13. Examples – decelerating LiH (Imperial) and OH (Berlin) LiH OH

  14. Trapping weak-field seekers

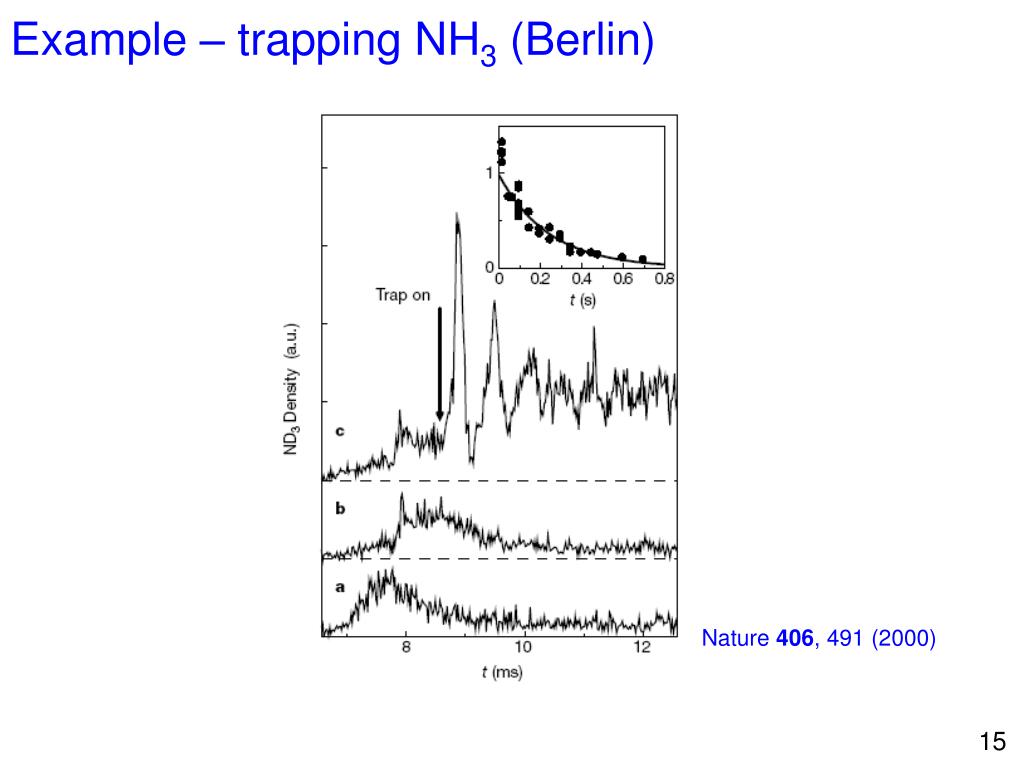

  15. Example – trapping NH3 (Berlin) Nature 406, 491 (2000)

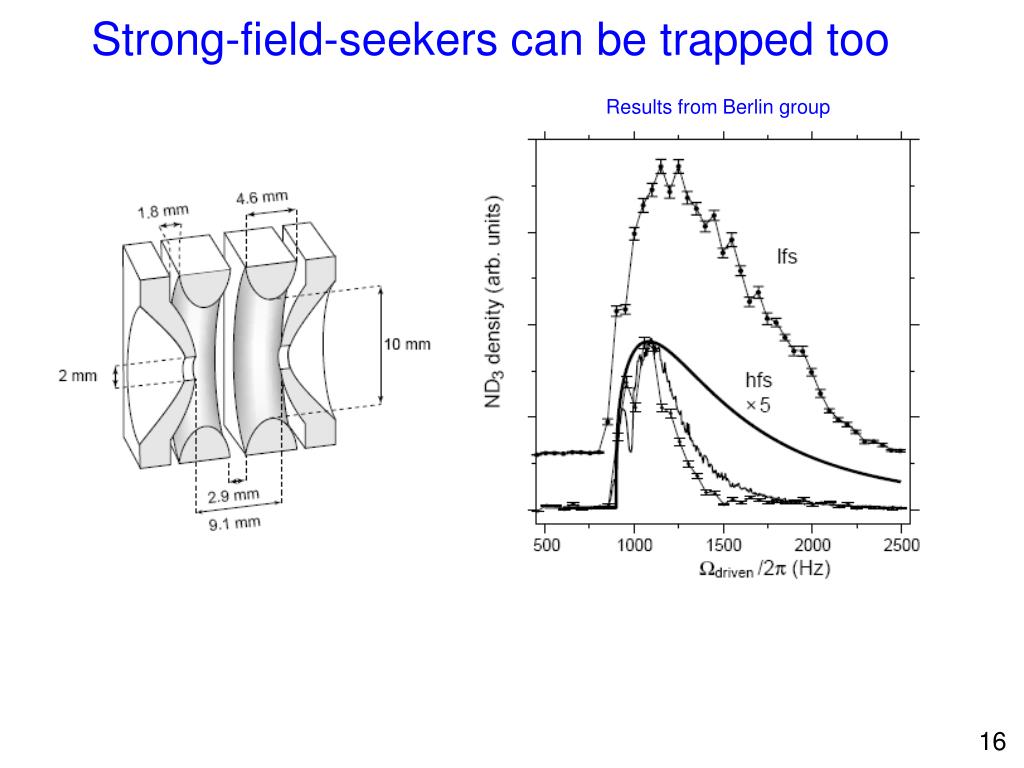

  16. Strong-field-seekers can be trapped too Results from Berlin group

  17. A storage ring for molecules Nature 411, 174 (2001)

  18. An even better storage ring for molecules Results from Berlin group – storing ammonia in a ring

  19. Decelerating and trapping on a chip Results from Berlin group – deceleration and trapping of metastable CO on a chip S.A. Meek, H. Conrad and G. Meijer, Science 324, 1699 (2009)

  20. Decelerating using Rydberg states... Phys. Rev. Lett. 103, 123001 (2009)

  21. Decelerating molecular oxygen Phys. Rev. A 77, 051401 (R) (2008) Decelerating using pulsed magnetic fields…

  22. Decelerating using light fields Idea : Conceptually similar to electrostatic deceleration – use light forces instead To avoid spontaneous emission, light is far-off-resonance Need high intensity pulsed lasers Counter-propagating pulsed laser beams – form an optical lattice Introduce small frequency difference between the two beams – the lattice moves Molecules can ‘surf’ the waves of the lattice – either accelerated or decelerated Chirp the frequency difference to keep the lattice speed the same as the molecule speed

  23. Optical Stark decelerator – results from UCL Benzene Nature Physics 2, 465 (2006) J. Phys. B 39, S1097 (2006) Phys. Chem. Chem. Phys. 8, 2985 (2006)

  24. Deceleration - Advantages and limitations • Widely applicable (though considerable development still needed) • Results in cold POLAR molecules – good for most experiments • Molecules are in the ground state – good for most experiments • Need a favourable dipole-moment to mass ratio • Molecules are cold, but not ultracold (second stage cooling schemes…)

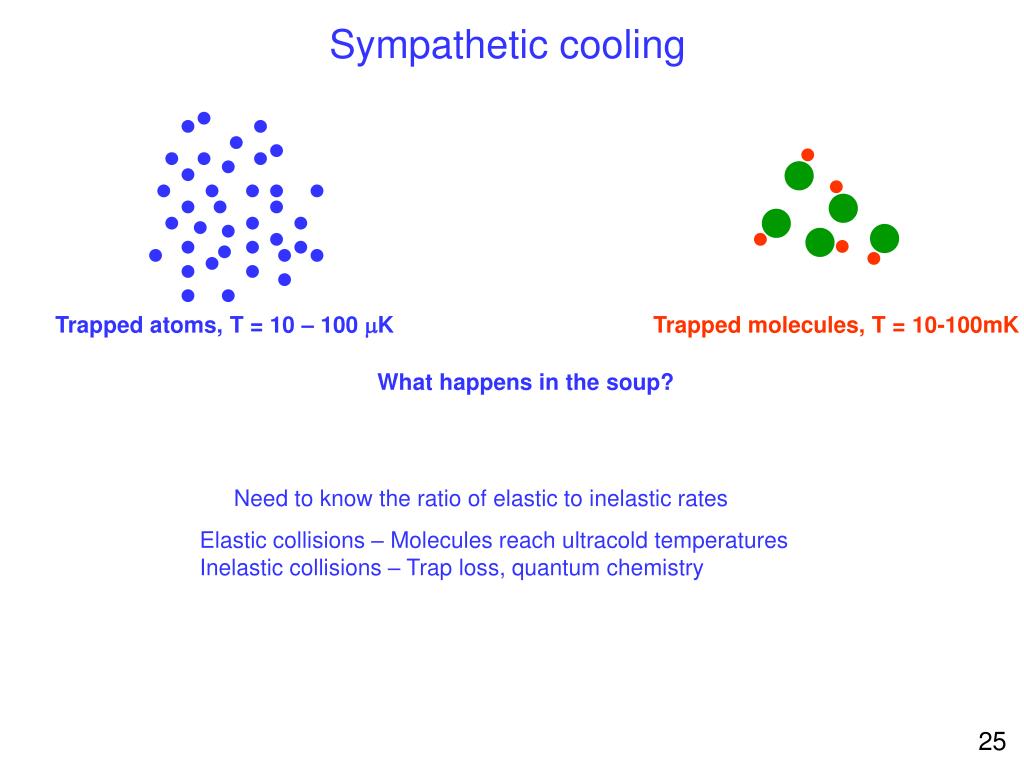

  25. Sympathetic cooling Trapped atoms, T = 10 – 100 mK Trapped molecules, T = 10-100mK What happens in the soup? Need to know the ratio of elastic to inelastic rates Elastic collisions – Molecules reach ultracold temperatures Inelastic collisions – Trap loss, quantum chemistry
