  1. Hg TMDL Approval Process Howard Markus, Ph.D., P.E. Research Scientist Environmental Assessment and Outcomes

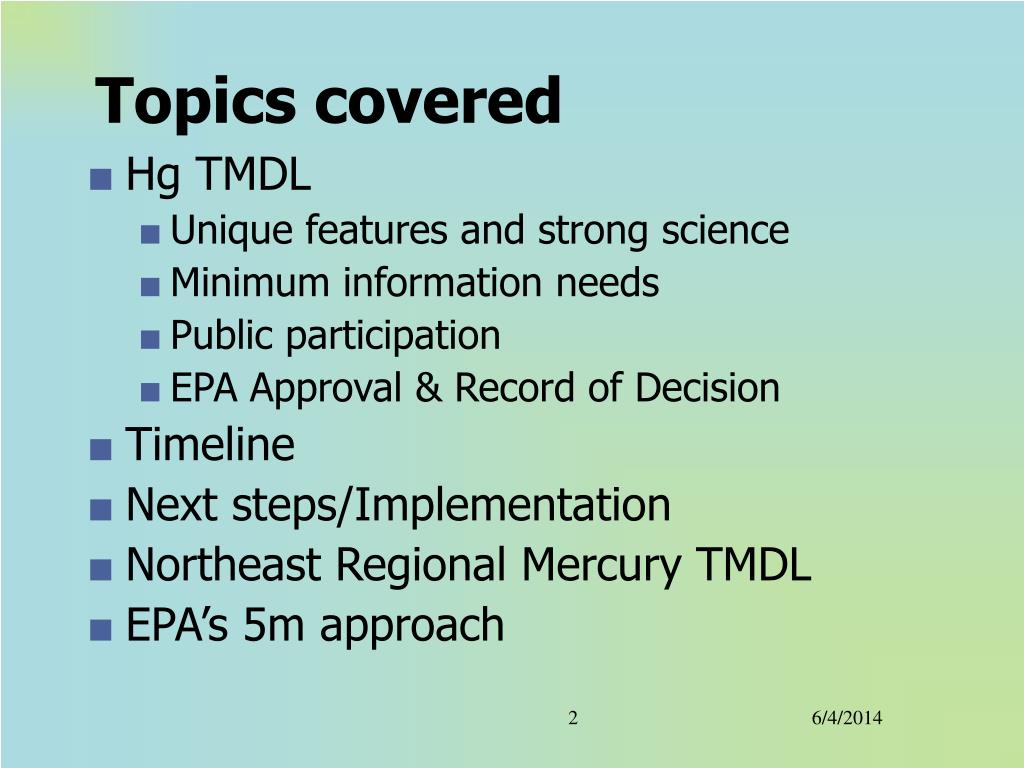

  2. Topics covered • Hg TMDL • Unique features and strong science • Minimum information needs • Public participation • EPA Approval & Record of Decision • Timeline • Next steps/Implementation • Northeast Regional Mercury TMDL • EPA’s 5m approach

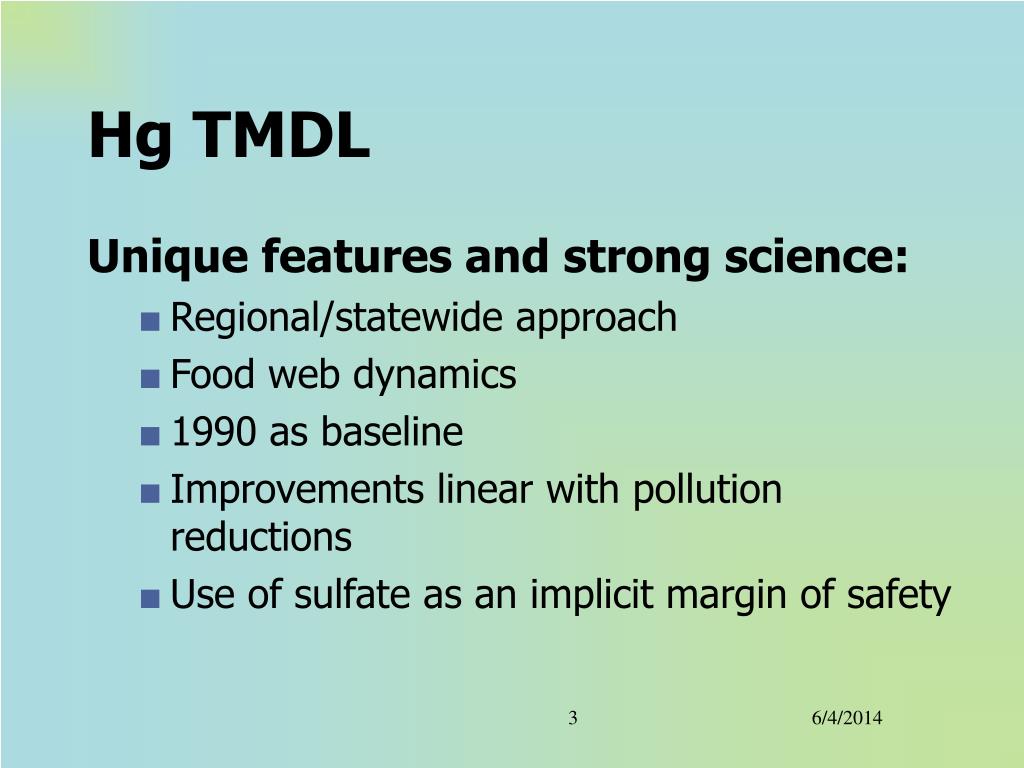

  3. Hg TMDL Unique features and strong science: • Regional/statewide approach • Food web dynamics • 1990 as baseline • Improvements linear with pollution reductions • Use of sulfate as an implicit margin of safety

  4. Hg TMDL - continued Unique features and strong science [continued]: • Bio-P [biological phosphorus removal] • Stormwater as WLA & LA • 90% non-State [the Decision Document claims this is an implementation issue, which means they are not accepting that split or rejecting it] Bottom line – numbers have Power

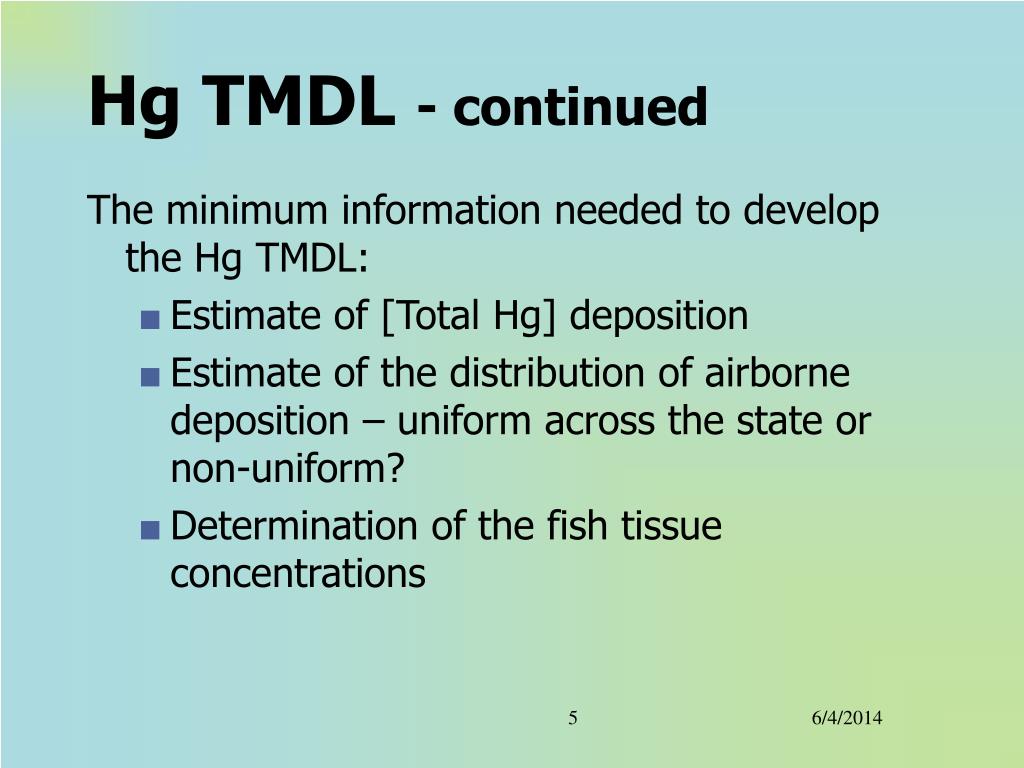

  5. Hg TMDL - continued The minimum information needed to develop the Hg TMDL: • Estimate of [Total Hg] deposition • Estimate of the distribution of airborne deposition – uniform across the state or non-uniform? • Determination of the fish tissue concentrations

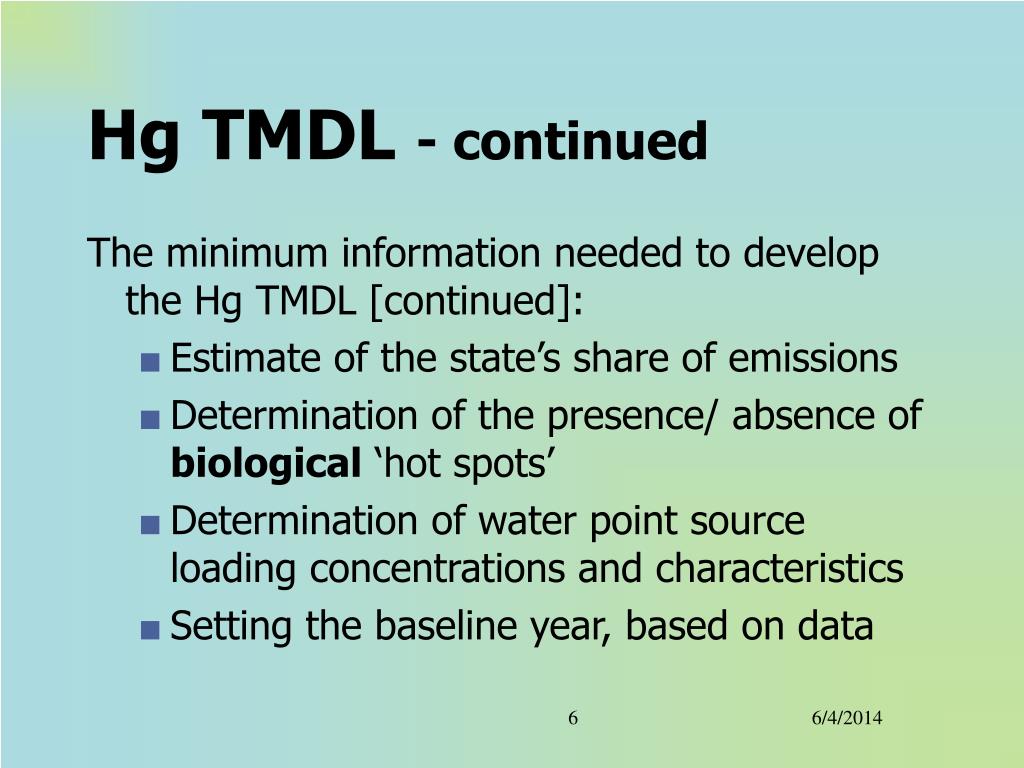

  6. Hg TMDL - continued The minimum information needed to develop the Hg TMDL [continued]: • Estimate of the state’s share of emissions • Determination of the presence/ absence of biological ‘hot spots’ • Determination of water point source loading concentrations and characteristics • Setting the baseline year, based on data

  7. Mercury TMDL

  8. Hg TMDL Public participation: • Many informal meetings with various partners • Formal public comment period extended from 30 to 60 to 90 days • over 900 comments received, either by letter, e-mail, petition, or e-petition • Newspaper challenges, esp. the editorial board • EPA’s Record of Decision noted numerous places where the draft Hg TMDL was modified based on comments received

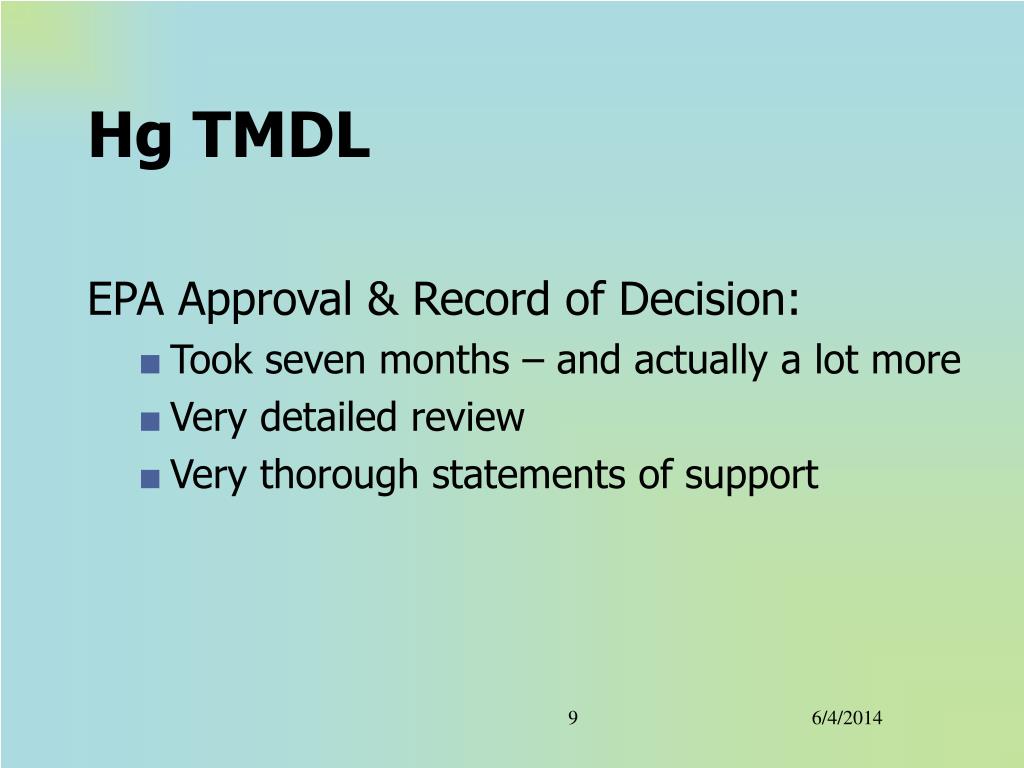

  9. Hg TMDL EPA Approval & Record of Decision: • Took seven months – and actually a lot more • Very detailed review • Very thorough statements of support

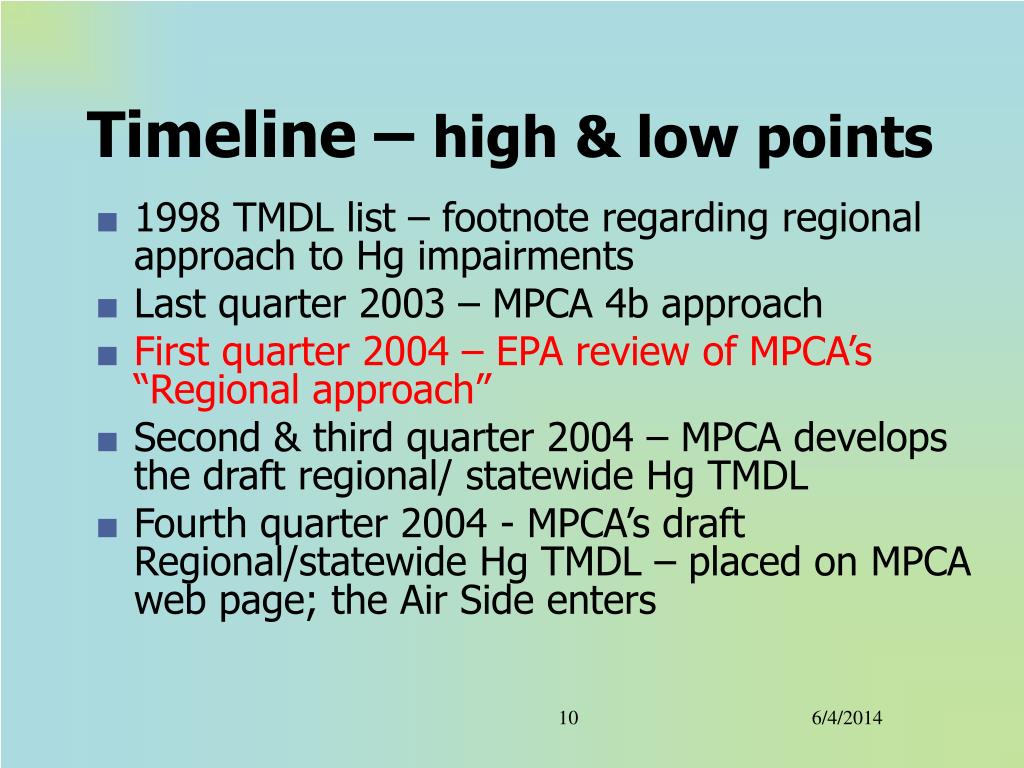

  10. Timeline – high & low points • 1998 TMDL list – footnote regarding regional approach to Hg impairments • Last quarter 2003 – MPCA 4b approach • First quarter 2004 – EPA review of MPCA’s “Regional approach” • Second & third quarter 2004 – MPCA develops the draft regional/ statewide Hg TMDL • Fourth quarter 2004 - MPCA’s draft Regional/statewide Hg TMDL – placed on MPCA web page; the Air Side enters

  11. Timeline (continued) • Fourth quarter 2004 & First quarter 2005 - EPA reviews initial draft regional/ statewide Hg TMDL; MPCA responds to comments • Second quarter 2005 - Revised draft provided to US EPA • Second & third quarter 2005 - MPCA formal “90-day” public notice

  12. July 31, 2005, Front Page

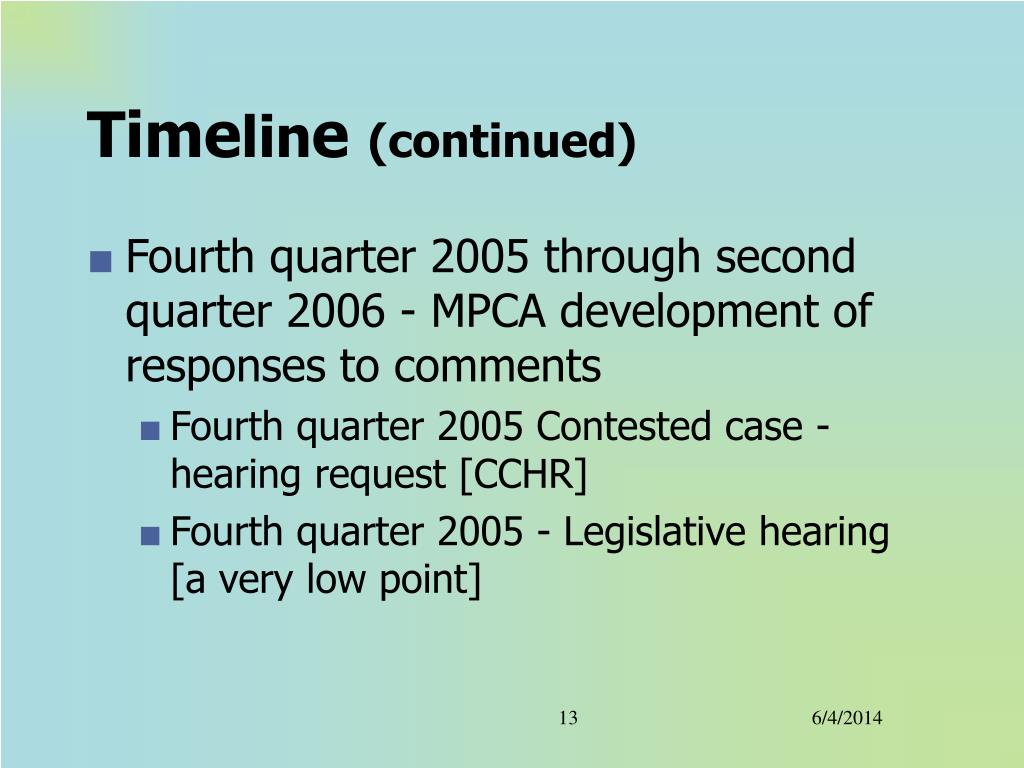

  13. Timeline (continued) • Fourth quarter 2005 through second quarter 2006 - MPCA development of responses to comments • Fourth quarter 2005 Contested case -hearing request [CCHR] • Fourth quarter 2005 - Legislative hearing [a very low point]

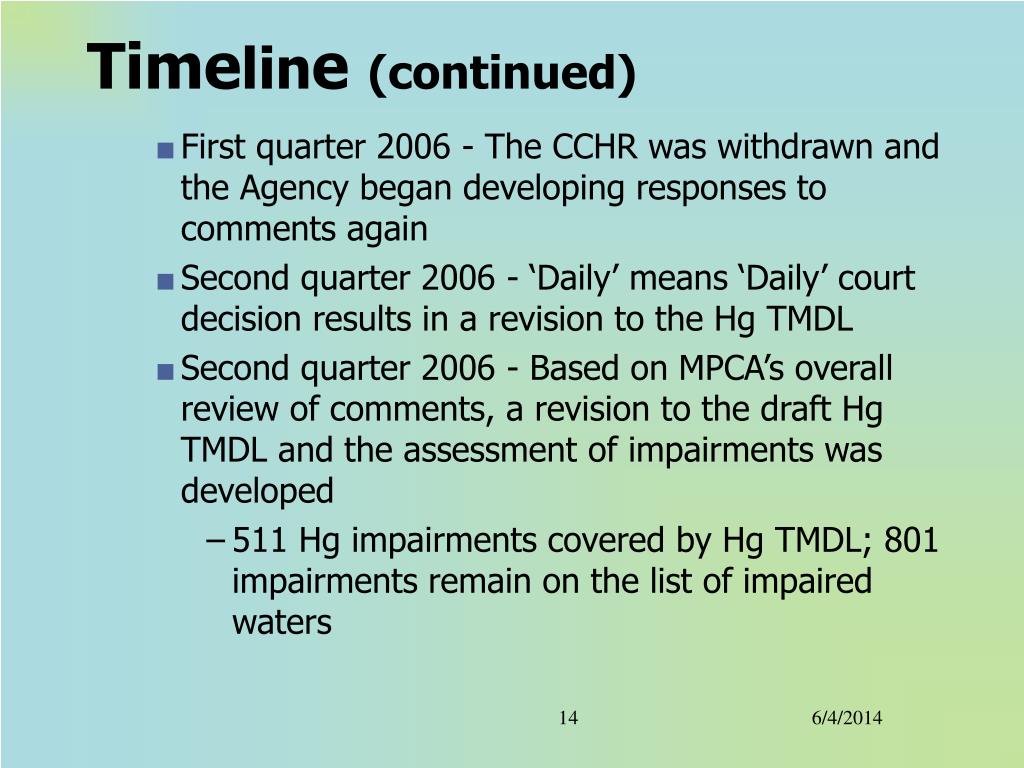

  14. Timeline (continued) • First quarter 2006 - The CCHR was withdrawn and the Agency began developing responses to comments again • Second quarter 2006 - ‘Daily’ means ‘Daily’ court decision results in a revision to the Hg TMDL • Second quarter 2006 - Based on MPCA’s overall review of comments, a revision to the draft Hg TMDL and the assessment of impairments was developed • 511 Hg impairments covered by Hg TMDL; 801 impairments remain on the list of impaired waters

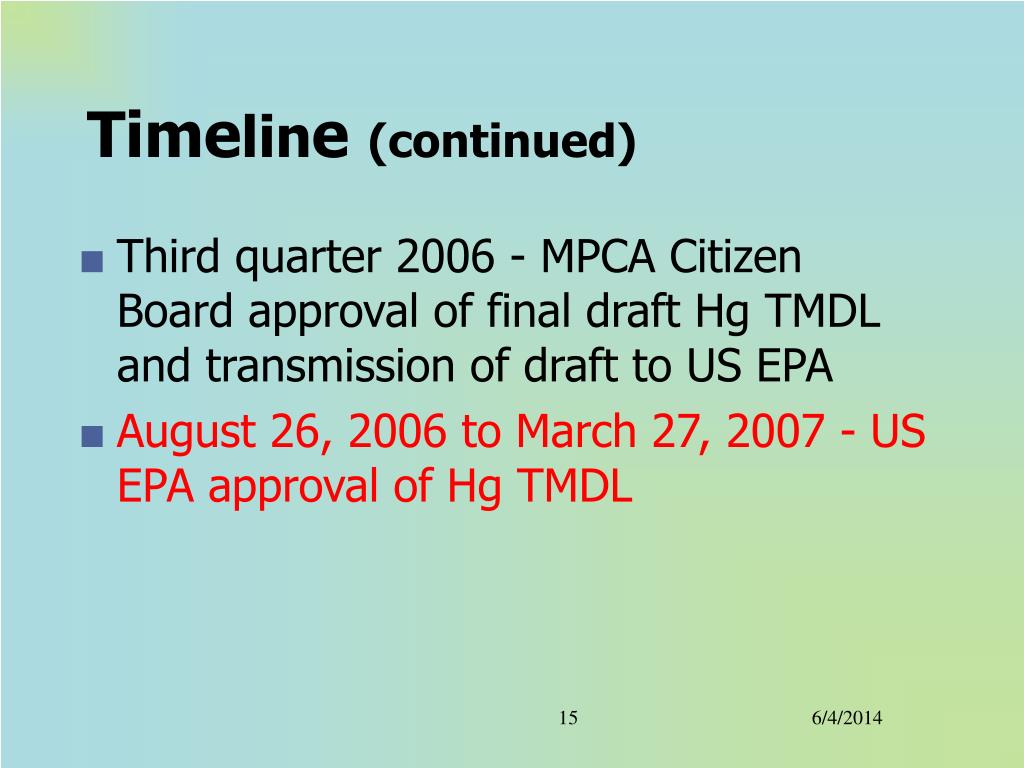

  15. Timeline (continued) • Third quarter 2006 - MPCA Citizen Board approval of final draft Hg TMDL and transmission of draft to US EPA • August 26, 2006 to March 27, 2007 - US EPA approval of Hg TMDL

  16. Implementation • Develop strategies to meet Hg TMDL goals • Air: 789 #/yr emission cap from Mn sources • Water: 24.2 #/yr water point source cap • Stakeholders will recommend comprehensive strategies and target dates • Third party will convene stakeholders and facilitate strategy development • 1-year process starting Spring 2007

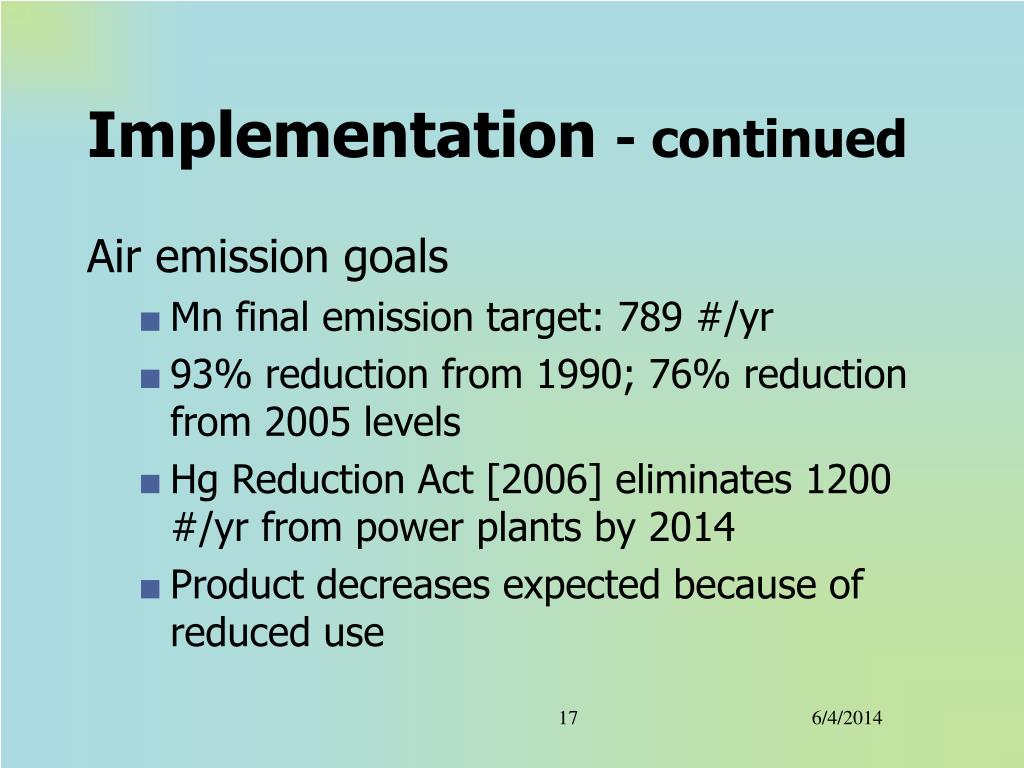

  17. Implementation - continued Air emission goals • Mn final emission target: 789 #/yr • 93% reduction from 1990; 76% reduction from 2005 levels • Hg Reduction Act [2006] eliminates 1200 #/yr from power plants by 2014 • Product decreases expected because of reduced use

  18. Implementation - continued Air emission goals - continued • Taconite sources expected to increase slightly unless reduction implemented • Meeting goal will require additional reductions from all sources • All other anthropogenic sources [national & international] that deposit in Mn must also decrease by the same percentage

  19. Northeast Regional Hg TMDL Comparing Minnesota :: NER Hg TMDL • 1990 :: 1998 as the baseline • 0.2 :: 0.3 ppm criterion [except ME & CT] • 0.572 :: 1.14 ppm [Hg] in fish as baseline • 65% :: 74% Deposition reduction factor • 93% :: 98% anthropogenic emission reduction factor

  20. NER Hg TMDL - continued NER anthropogenic reduction goals @ 90th percentile [MN: 93%] This range nicely brackets fish tissue criteria

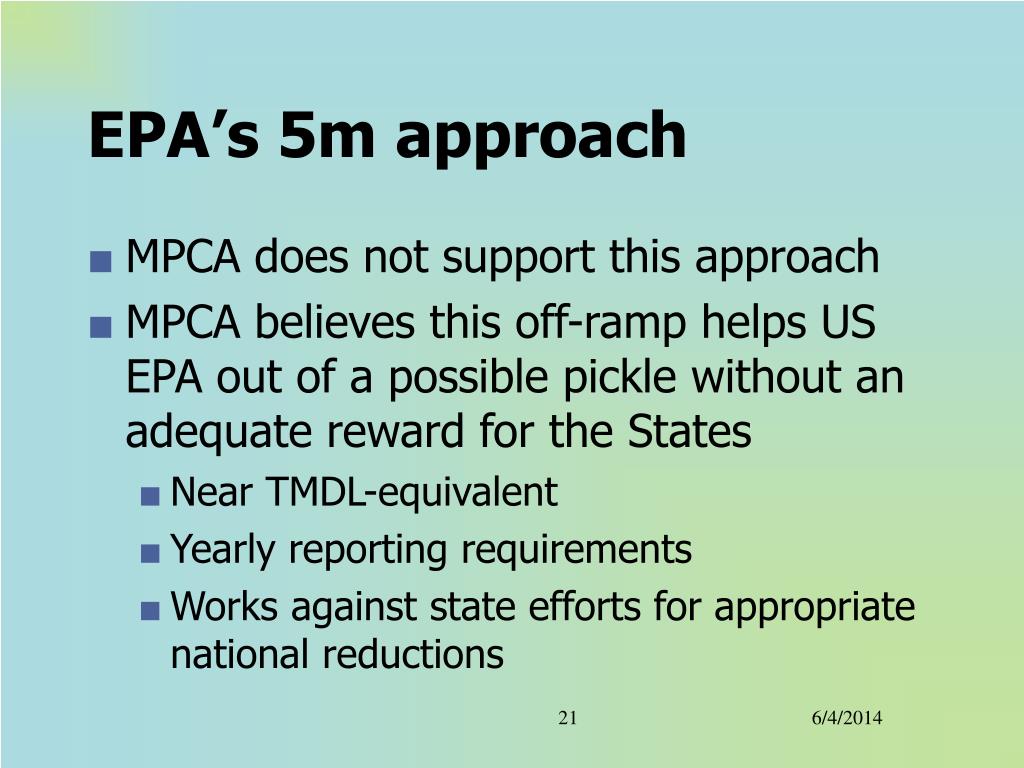

  21. EPA’s 5m approach • MPCA does not support this approach • MPCA believes this off-ramp helps US EPA out of a possible pickle without an adequate reward for the States • Near TMDL-equivalent • Yearly reporting requirements • Works against state efforts for appropriate national reductions
