  1. Additional Conceptsand Communication January 24rd, 2013

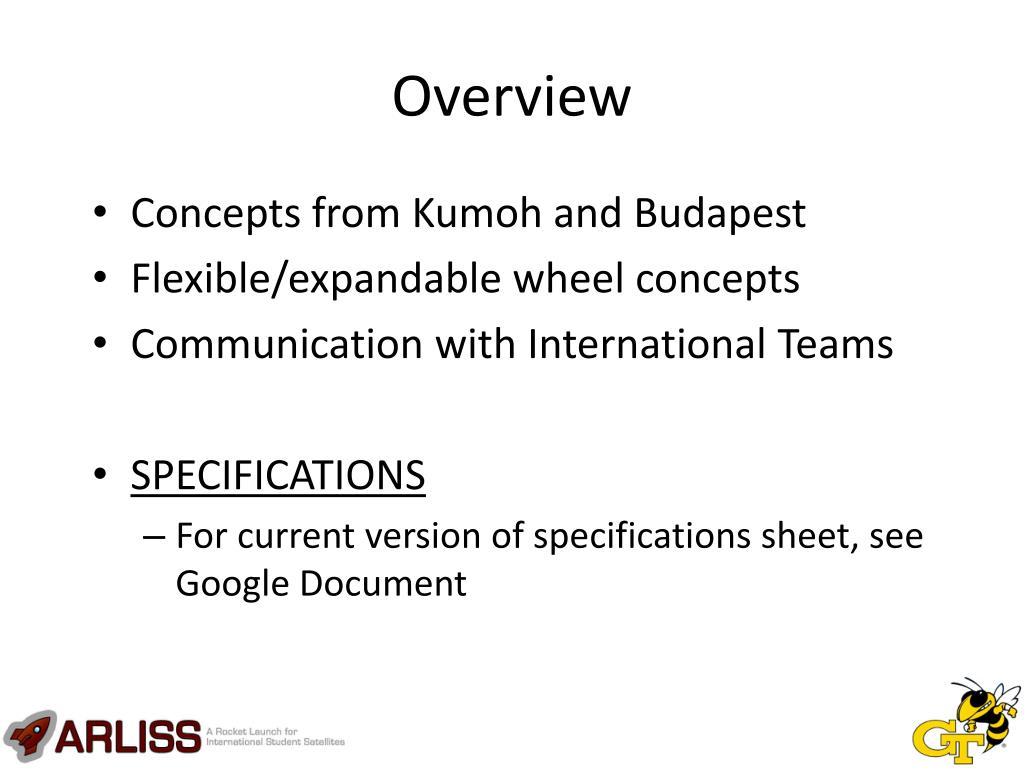

  2. Overview • Concepts from Kumoh and Budapest • Flexible/expandable wheel concepts • Communication with International Teams • SPECIFICATIONS • For current version of specifications sheet, see Google Document

  3. Concepts from Kumoh and Budapest

  4. Quadrotor with Solar Charger • Solar cell in center of quadrotor (enough current to power microprocessor?) • Arms fold up to protect during landing

  5. Rolling Concept • Motor powers inner ball, which rolls on inside of outer ball

  6. Guiding Principles #1 • In order to avoid double effort on control design: we should navigate on the ground or in the air but not both • If we want to navigate in the air, wings are better than helicopter (rotor/propellers providing downward thrust) concept from the viewpoint of energy efficiency

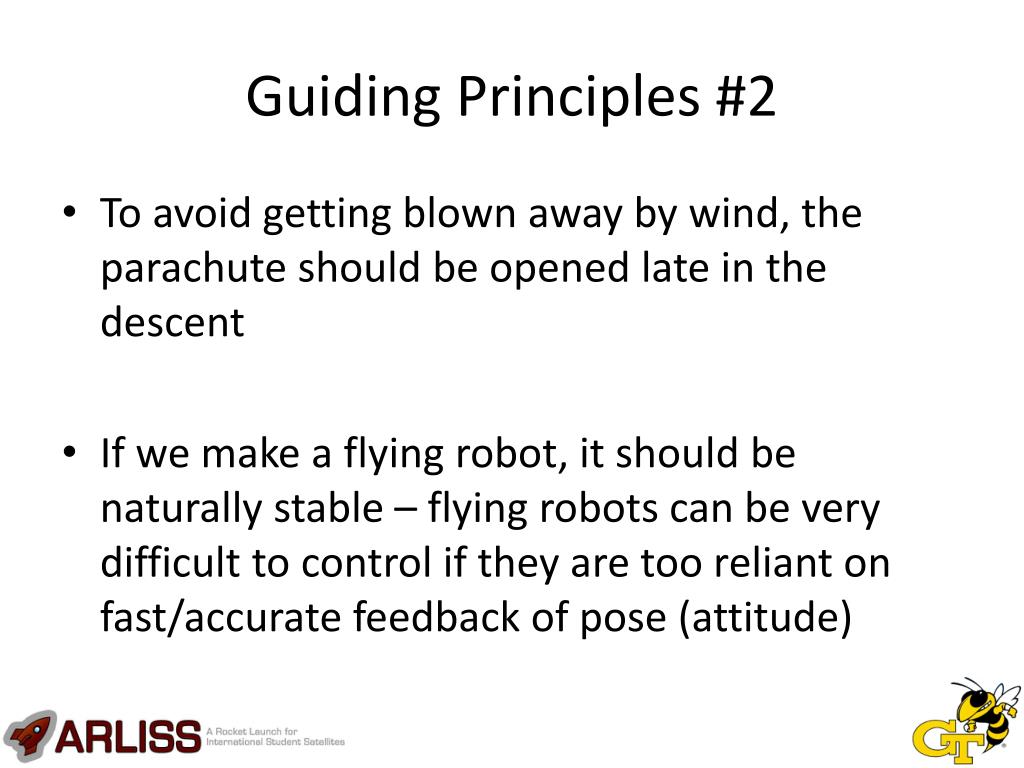

  7. Guiding Principles #2 • To avoid getting blown away by wind, the parachute should be opened late in the descent • If we make a flying robot, it should be naturally stable – flying robots can be very difficult to control if they are too reliant on fast/accurate feedback of pose (attitude)

  8. Rover with Inflatable Wheels

  9. Ornithopter http://youtu.be/nn69_9X3aZ4

  10. Rover with Compressed Air Propulsion

  11. Falling Propeller-Driven Robot

  12. Flexible/Expanding Wheel Concepts

  13. One-Piece Wheel/Suspension System http://www.societyofrobots.com/mechanics_robot_suspension_system.shtml

  14. Flapped Grinding Wheel

  15. Dual Pod Transport http://www.tuvie.com/dual-pod-transport-is-a-two-wheeler-with-off-road-capabilities/

  16. Segmented Wheel http://www.apparatusgame.com/level.php?id=18366

  17. Flexible Tape http://www.qrbiz.com/product/384464/flexible-tape-and-sprocket-wheel.html

  18. Beartex Polishing Wheel http://www.jewelerstoystore.com/Beartex_Wheels_p/w556.htm

  19. Team Communication

  20. Time Differences (Relative to Atlanta) • Budapest, Hungary: • Patras, Greece: • Madras, India: • Gumi City, South Korea: + 6 hours + 7 hours + 11 hours + 14 hours

  21. Communication • RescueBot website • Online meeting software • Weekly meeting (Skype? Phone? Other?) • Assuming one country at a time • Split each team of Tech students into two groups?

  22. File Sharing • RescueBot Website • Dropbox account • Google account (use Drive)

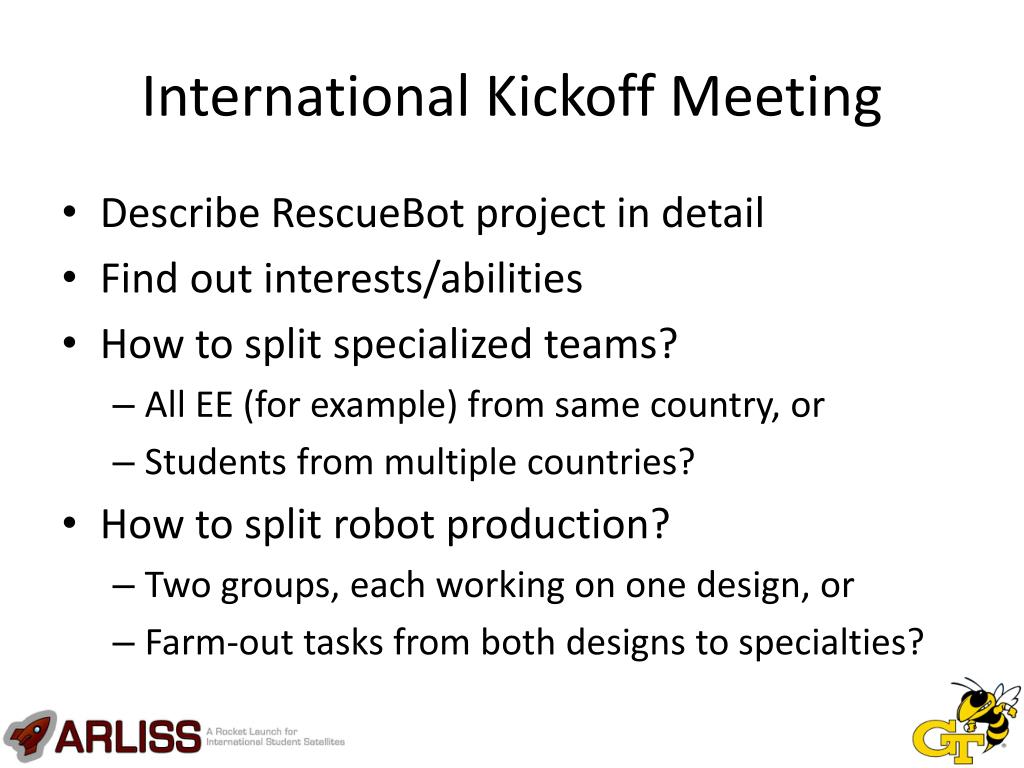

  23. International Kickoff Meeting • Describe RescueBot project in detail • Find out interests/abilities • How to split specialized teams? • All EE (for example) from same country, or • Students from multiple countries? • How to split robot production? • Two groups, each working on one design, or • Farm-out tasks from both designs to specialties?
