  1. Distributed Object Computing using XML-SOAP Kevin White James Kebinger Fall 2000

  2. Introduction to XML • XML it s a text-based markup language that is becoming a standard to store data • XML tags tell you what the data means, rather than how to display it. • Elements are the holding blocks for data in an XML object.

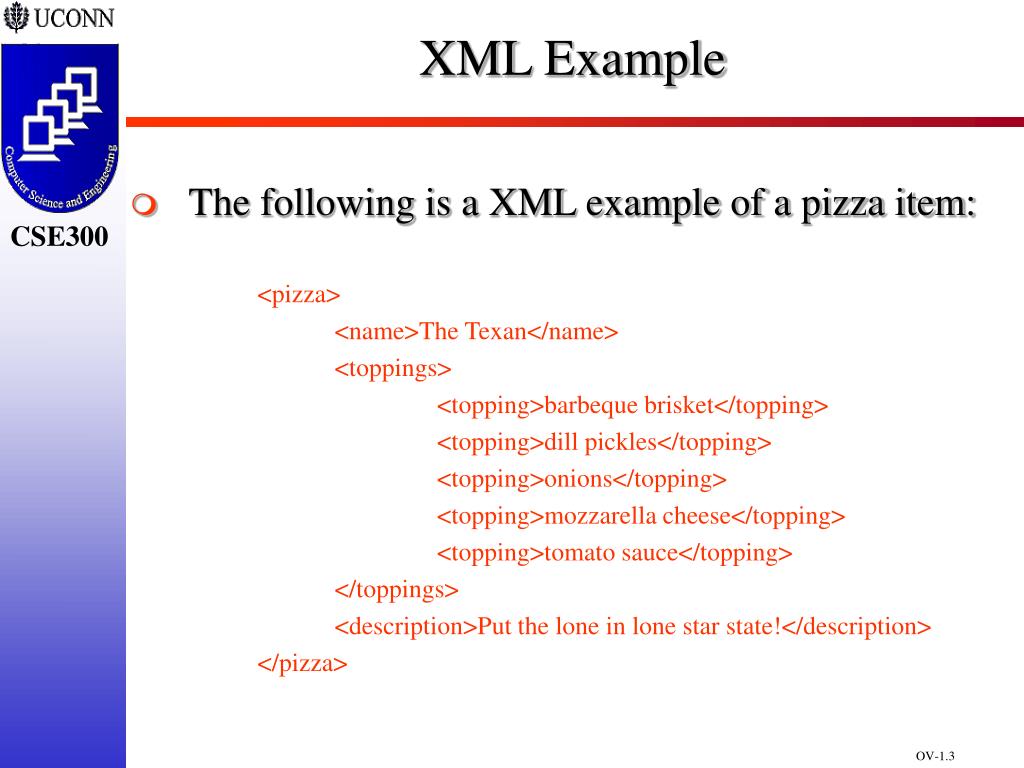

  3. XML Example • The following is a XML example of a pizza item: <pizza> <name>The Texan</name> <toppings> <topping>barbeque brisket</topping> <topping>dill pickles</topping> <topping>onions</topping> <topping>mozzarella cheese</topping> <topping>tomato sauce</topping> </toppings> <description>Put the lone in lone star state!</description> </pizza>

  4. What is XML? • XML objects can also consist of the following items: • Elements: holding blocks for data • Attributes: Name-value pairs that occur inside start-tags after the element name. • Entity references: Created to allow entity to be created and used in places where multiple instances of the same text will be use in many places. • Processing instructions: used to provide information specific to applications. • Comments: User comments • CDATA: A section of character data that will not be interpreted by the XML parser.

  5. Why is XML important? • Plain Text • XML is it stored as plain ASCII text • Allows for viewing and editing the XML data with any text editor • Data Identification • Tag names relate to the data it holds • Produces easily parable data with reference to tag names

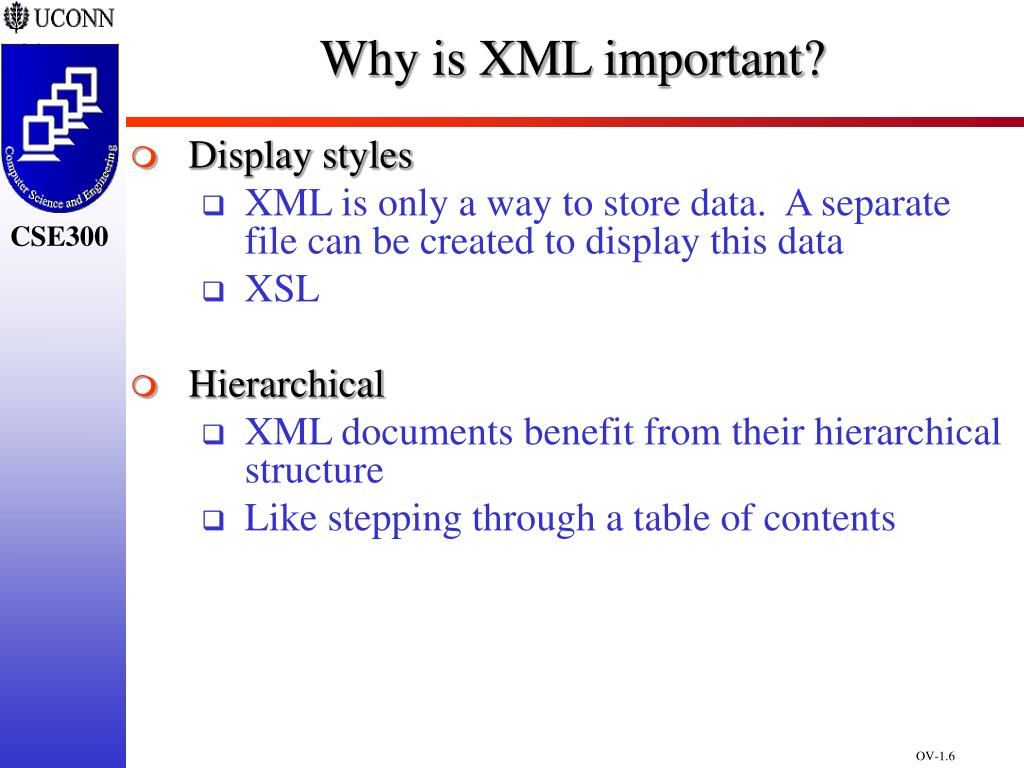

  6. Why is XML important? • Display styles • XML is only a way to store data. A separate file can be created to display this data • XSL • Hierarchical • XML documents benefit from their hierarchical structure • Like stepping through a table of contents

  7. Present Distributed Object Models • Java RMI for Java applications • DCOM for Windows applications • CORBA for cross platform applications • Each have overhead and large scale interoperability issues • Answer: SOAP = Simple Object Access Protocol

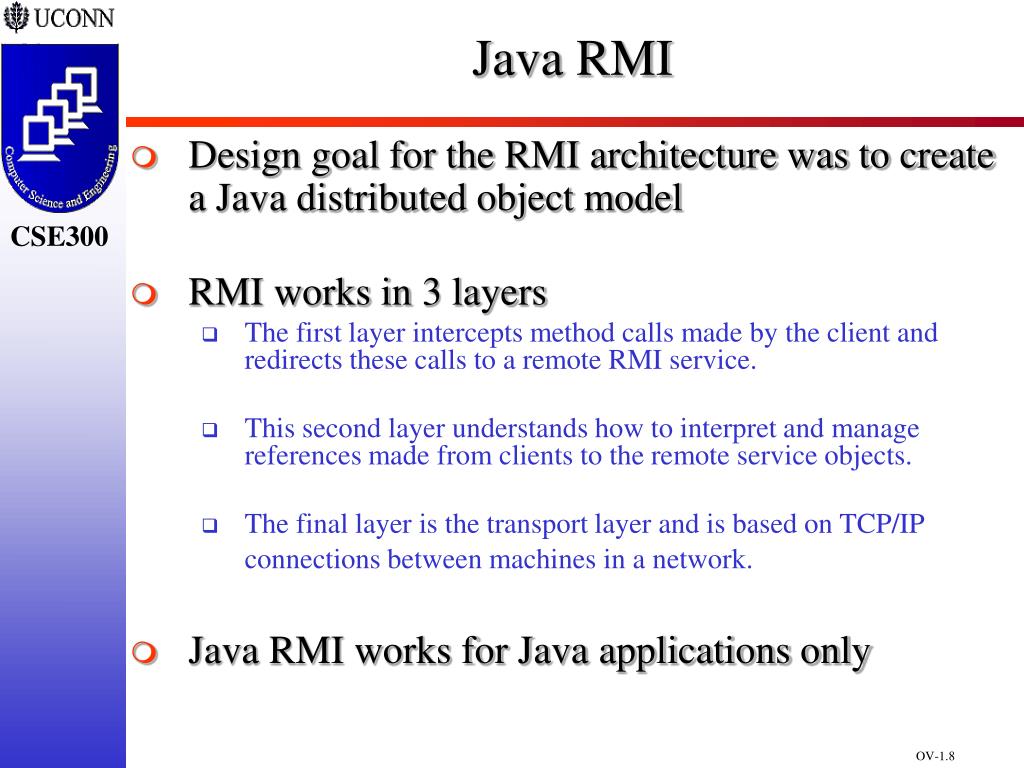

  8. Java RMI • Design goal for the RMI architecture was to create a Java distributed object model • RMI works in 3 layers • The first layer intercepts method calls made by the client and redirects these calls to a remote RMI service. • This second layer understands how to interpret and manage references made from clients to the remote service objects. • The final layer is the transport layer and is based on TCP/IP connections between machines in a network. • Java RMI works for Java applications only

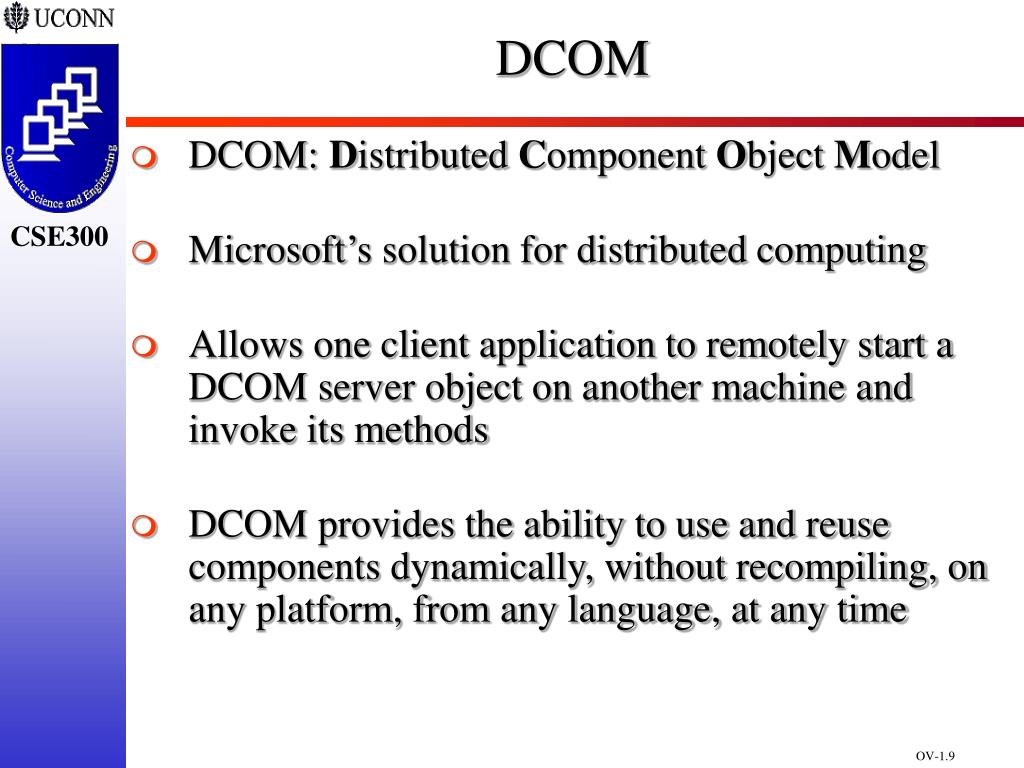

  9. DCOM • DCOM: Distributed Component Object Model • Microsoft’s solution for distributed computing • Allows one client application to remotely start a DCOM server object on another machine and invoke its methods • DCOM provides the ability to use and reuse components dynamically, without recompiling, on any platform, from any language, at any time

  10. CORBA • CORBA: Common Object Request Broker Architecture • CORBA is platform and language independents • CORBA Object Request Broker (ORB) provides a way to connect a client application with an object that it needs • When creating CORBA applications, two main classes, a stub and a skeleton, are created along with several helper classes • The ORB is the glue that connects the stubs and skeletons.

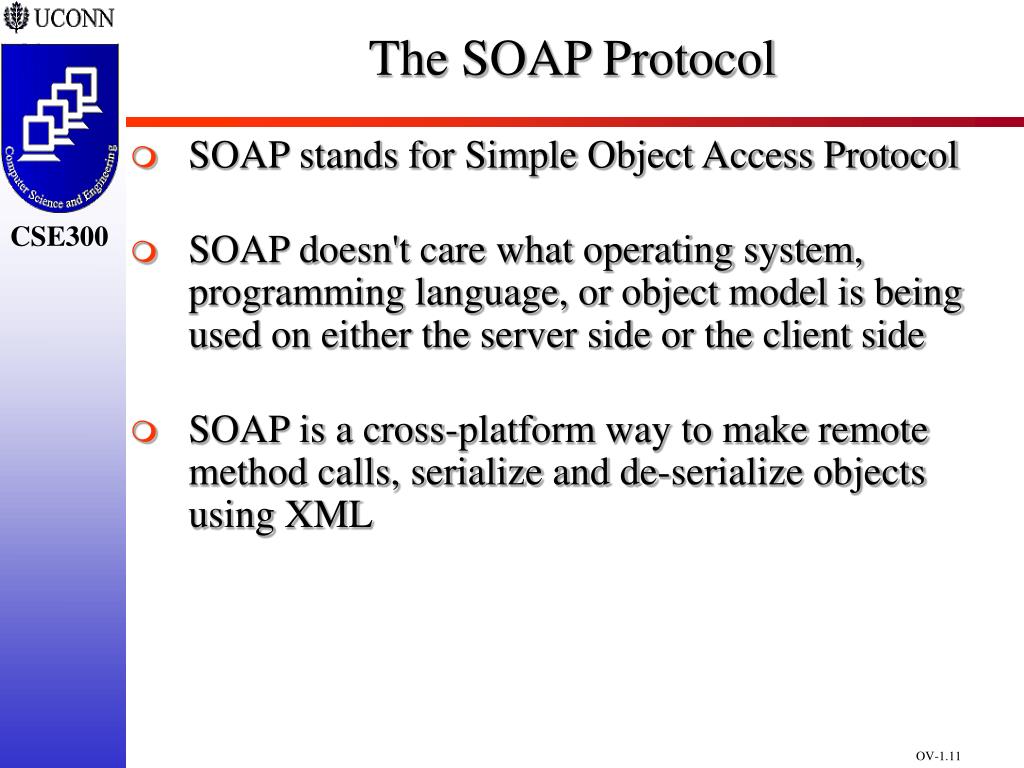

  11. The SOAP Protocol • SOAP stands for Simple Object Access Protocol • SOAP doesn't care what operating system, programming language, or object model is being used on either the server side or the client side • SOAP is a cross-platform way to make remote method calls, serialize and de-serialize objects using XML

  12. The SOAP Protocol • For a protocol it commonly uses HTTP, which is simple to implement and used universally • SOAP works over many protocols, not limited to HTTP • Using HTTP for transport gives SOAP an advantage over other previous middleware solutions because it does not require changes be made to network routers and proxy servers • An inherent advantage of SOAP being able to use HTTP is that it is a universally deployed protocol

  13. SOAP Process • SOAP request would be processed in the following steps: 1. Get a request on the listen port. 2. Parse the request for the method id to call. 3. Consult a configuration file for what class/function to call to handle the request. 4. De-serialize the parameters for the method call. 5. Call the function with the given de-serialized parameters 6. Serialize the return value from the function and send it back to the requestor • SOAP is not rocket-science. SOAP is simple to understand, implement and deploy.

  14. Basic SOAP Sample • Here is a SOAP request: POST /StockQuote HTTP/1.1Host: www.stockquoteserver.comContent-Type: text/xml; charset="utf-8"Content-Length: nnnnSOAPAction: "Some-URI"<SOAP-ENV:Envelope  xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/"  SOAP-ENV:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/">   <SOAP-ENV:Body>       <m:GetLastTradePrice xmlns:m="Some-URI">           <symbol>DIS</symbol>       </m:GetLastTradePrice>   </SOAP-ENV:Body></SOAP-ENV:Envelope>

  15. Basic SOAP Sample • And the matching response is: HTTP/1.1 200 OKContent-Type: text/xml; charset="utf-8"Content-Length: nnnn<SOAP-ENV:Envelope  xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/"  SOAP-ENV:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"/>   <SOAP-ENV:Body>       <m:GetLastTradePriceResponse xmlns:m="Some-URI">           <Price>34.5</Price>       </m:GetLastTradePriceResponse>   </SOAP-ENV:Body></SOAP-ENV:Envelope>

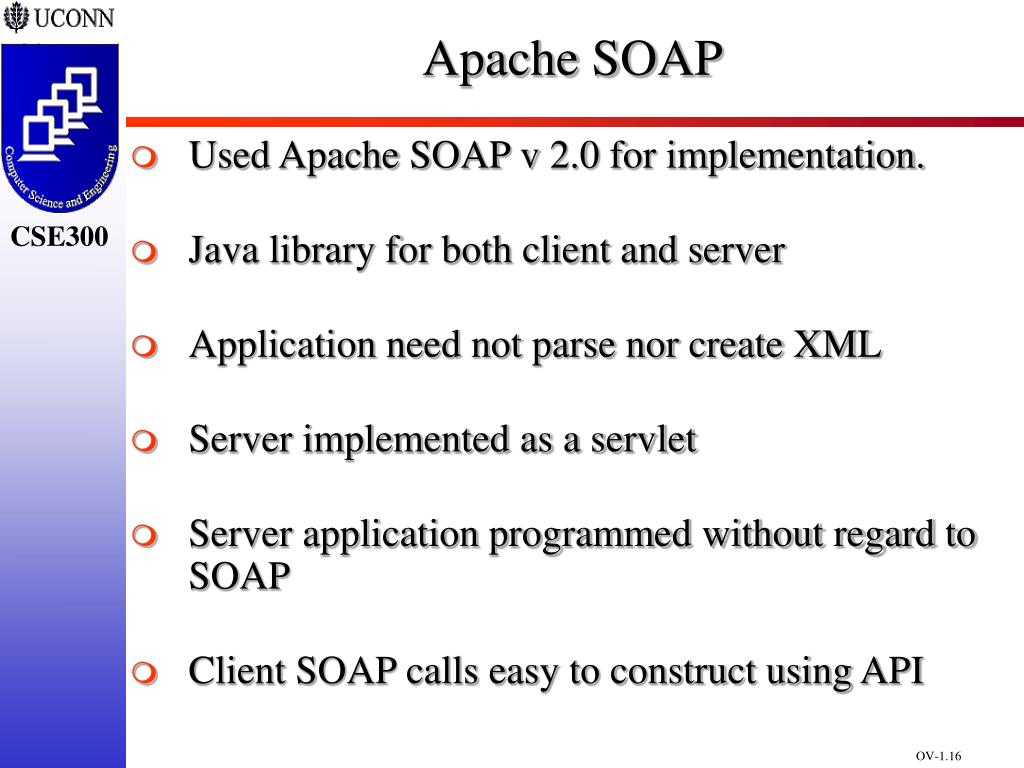

  16. Apache SOAP • Used Apache SOAP v 2.0 for implementation. • Java library for both client and server • Application need not parse nor create XML • Server implemented as a servlet • Server application programmed without regard to SOAP • Client SOAP calls easy to construct using API

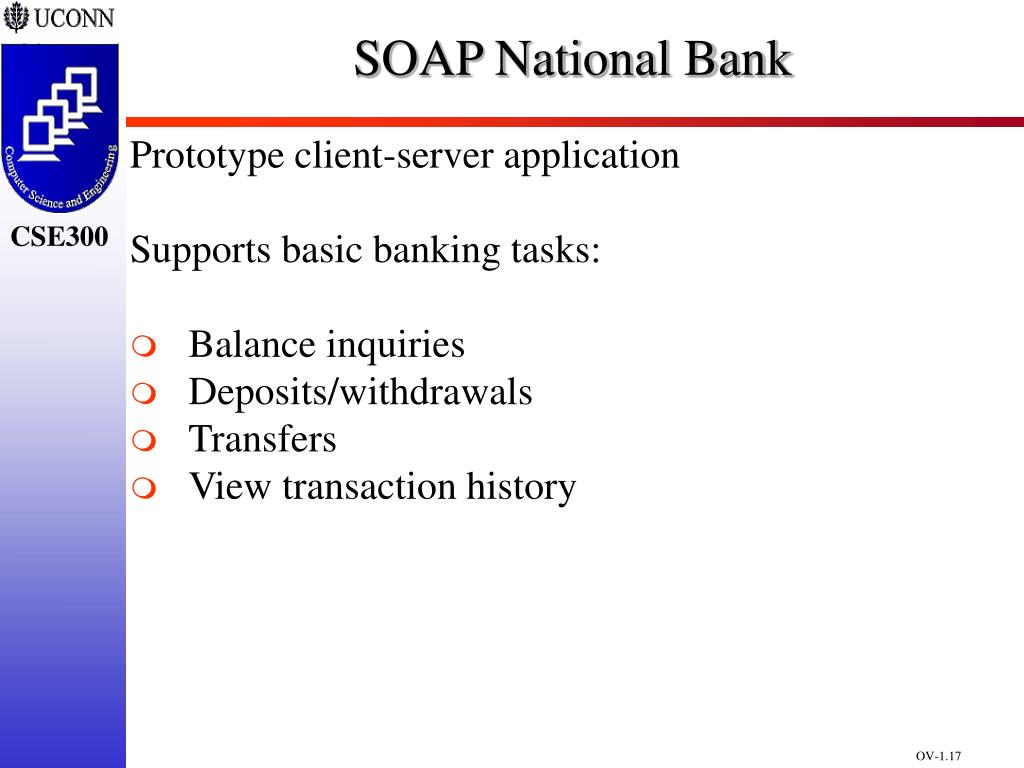

  17. SOAP National Bank Prototype client-server application Supports basic banking tasks: • Balance inquiries • Deposits/withdrawals • Transfers • View transaction history

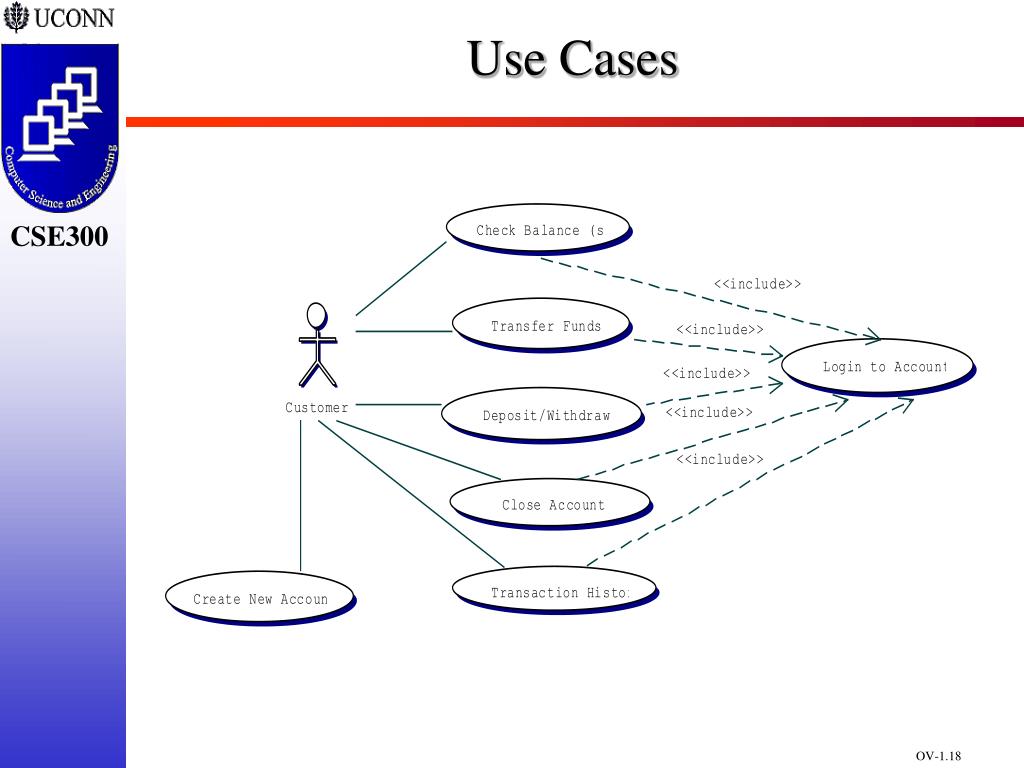

  18. Use Cases

  19. Class Diagram

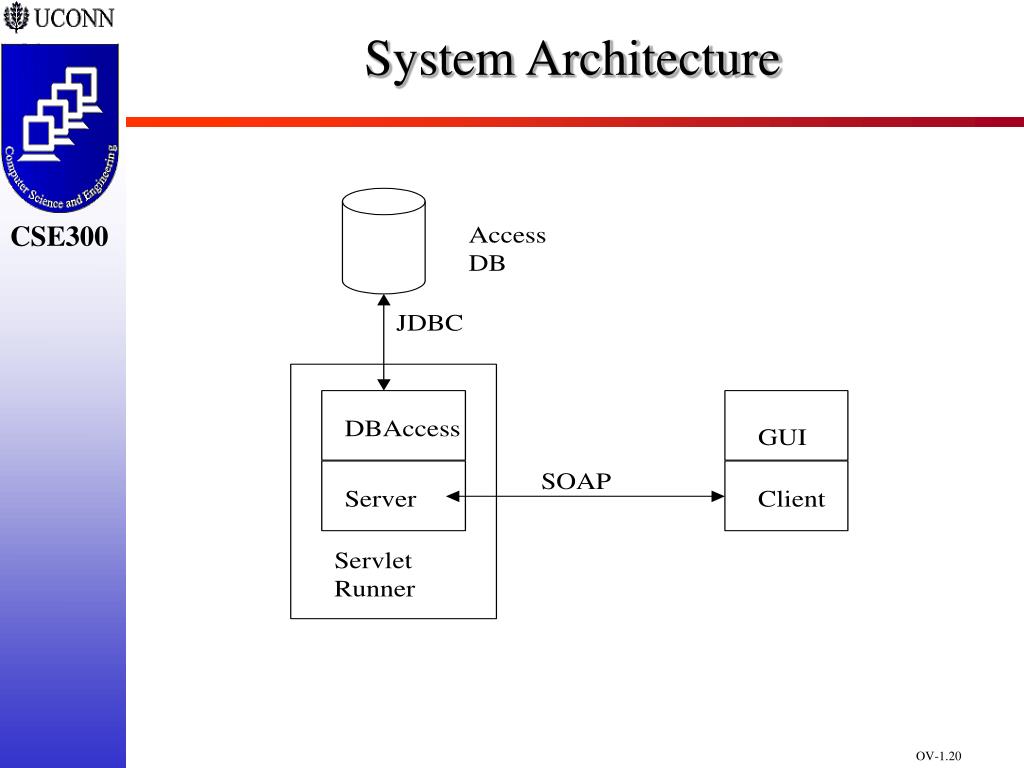

  20. System Architecture

  21. System Implementation • Client and Server written in Java v 1.22 • Client GUI uses Java Swing API • Server uses JDBC to connect to MS Access DB • Client and Server communicate using Apache’s Java SOAP library

  22. Screenshot

  23. Bank System Conclusions • System successful, all functions work • Implementation fairly painless once we learned SOAP API • Only major snag was learning how to configure the SOAP servlet • Application rather slow: what causes slowness? • MS Access calls • SOAP itself

  24. SOAP Benchmarking • Compare RMI to SOAP • Build a small client-server system to exchange the current data and time • As a java.util.Date object • As a java.lang.String object • Different objects will compare efficiency and scalability of serialization

  25. String <return xsi:type="xsd:string">Thu Nov 23 17:24:46 EST 2000 </return> Date <return xsi:type="ns1:date"> <time xsi:type="xsd:long">975013920065</time> <minutes xsi:type="xsd:int">12</minutes> <seconds xsi:type="xsd:int">0</seconds> <date xsi:type="xsd:int">23</date> <day xsi:type="xsd:int">4</day> <hours xsi:type="xsd:int">16</hours> <year xsi:type="xsd:int">100</year> <timezoneOffset xsi:type="xsd:int">300</timezoneOffset> <month xsi:type="xsd:int">10</month> </return> SOAP Serialization Example

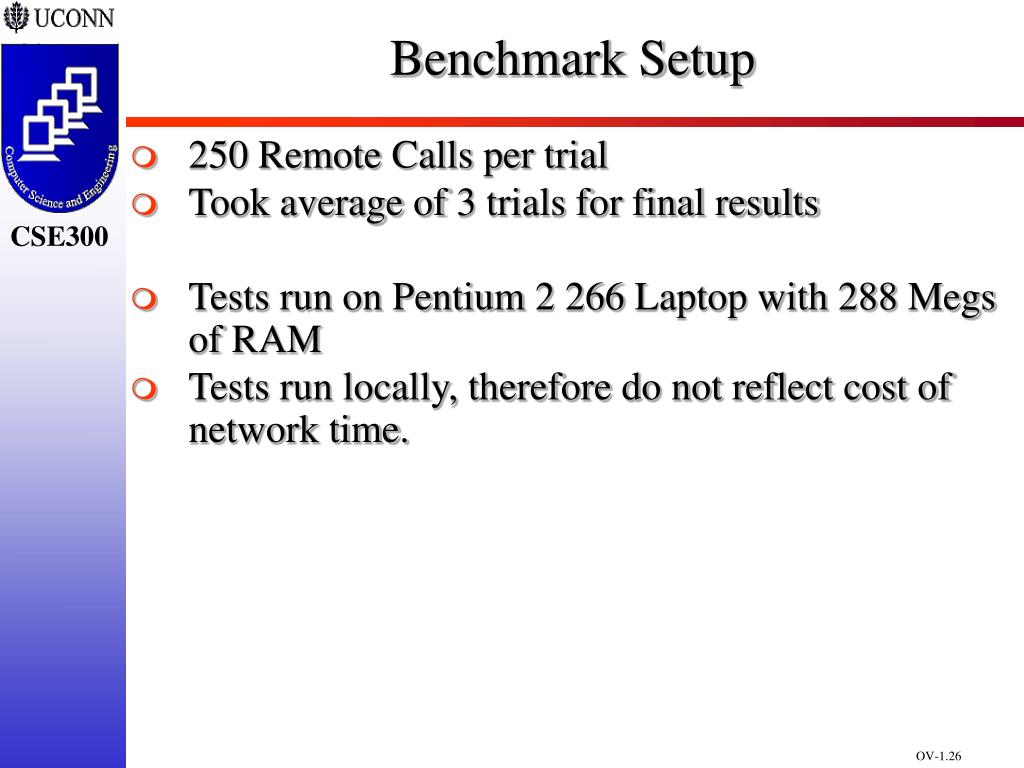

  26. Benchmark Setup • 250 Remote Calls per trial • Took average of 3 trials for final results • Tests run on Pentium 2 266 Laptop with 288 Megs of RAM • Tests run locally, therefore do not reflect cost of network time.

  27. SOAP Serialization

  28. RMI Serialization

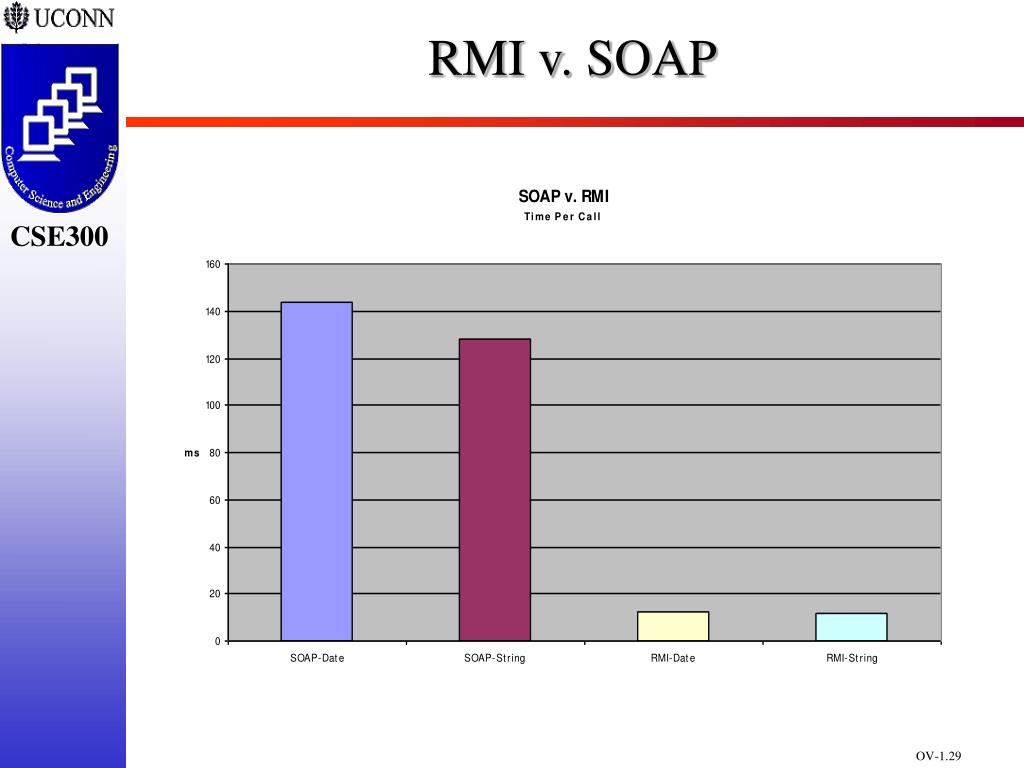

  29. RMI v. SOAP

  30. Benchmark Conclusions • RMI about ten times faster than SOAP • Agrees with published results from Indiana University • RMI Serialization may scale better than SOAP • SOAP using possibly inefficient generic serializer in test

  31. SOAP Conclusions • SOAP could use an automatic stub generator like RMI • Would have sped up development greatly • Lots of people using SOAP • IBM, Microsoft, Compaq etc. • SOAP not a standard yet • Could change a lot before settling down

  32. SOAP Conclusions • SOAP very usable today • Some questions concerning interoperability between SOAP implementation • SLOW • May be OK for some web apps • Not for high performance computing • Would recommend use for small systems
