  1. Phoneline Networking PLANET xDSL Solution

  2. DSL Overview • PLANET ADSL Solution • PLANET G.SHDSL Solution • PLANET VDSL Solution

  3. DSL Overview • What is DSL • Digital Subscriber Line • Traditional telephone line utilize only 0~4kHz frequency spectrum • DSL utilize the unused frequency spectrum (25kHz to 30MHz) • IDSL, SDSL, HDSL, ADSL, VDSL, G.SHDSL

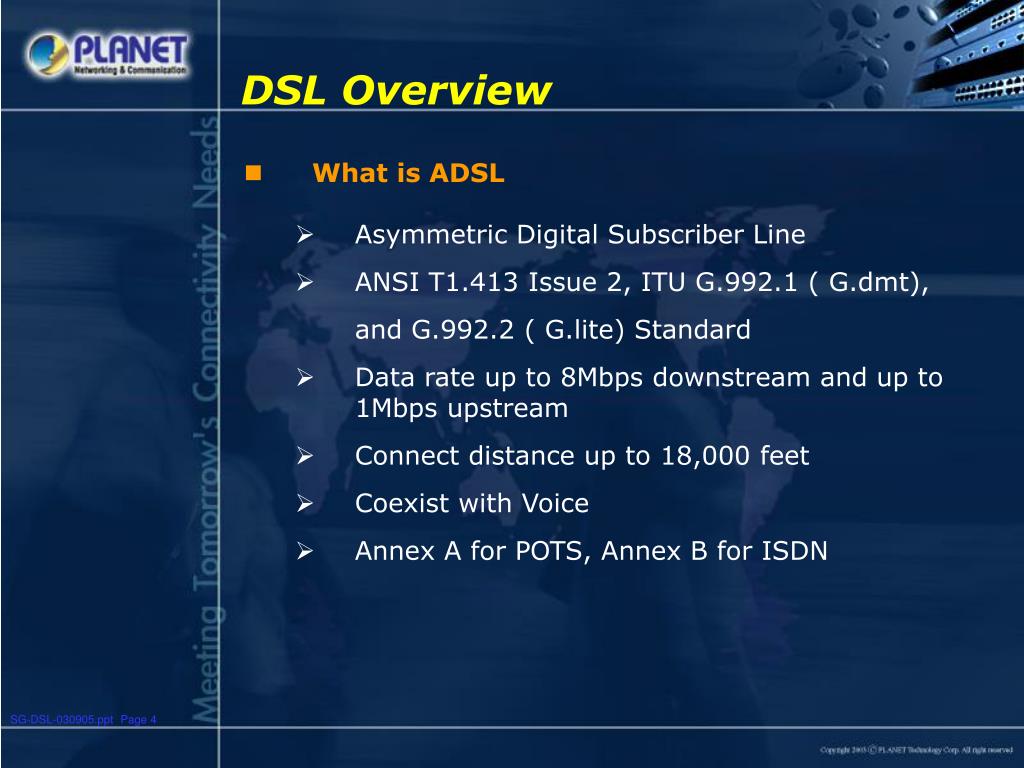

  4. DSL Overview • What is ADSL • Asymmetric Digital Subscriber Line • ANSI T1.413 Issue 2, ITU G.992.1 ( G.dmt), and G.992.2 ( G.lite) Standard • Data rate up to 8Mbps downstream and up to 1Mbps upstream • Connect distance up to 18,000 feet • Coexist with Voice • Annex A for POTS, Annex B for ISDN

  5. DSL Overview • What is G.SHDSL • Symmetric High-Bitrate Digital Subscriber Loop • With single-pair operation, SHDSL offers 192 kbps to 2.3 Mbps symmetric speed • With dual-pair operation, SHDSL offers 384 kbps to 4.6 Mbps symmetric speed • Maximum 6.7km • Can not coexist with voice

  6. DSL Overview • What is VDSL • Highest-rate DSL technology • Symmetric and Asymmetric • Up to 52Mbps over single twisted-pair copper loop • Coexist with Voice

  7. Comparison DSL Overview

  8. PLANET ADSL Solution • PLANET ADSL Series products • ADE-4000/-4100/-4120/-4200 – ADSL Ethernet Modem Router with 4-port Switch • ADE-3000/-3100 – ADSL Ethernet Modem Router • ADU-2000/-2100A/-2100B – USB ADSL Modem • ADP-8301 – PCI ADSL Modem • ADW-4100/-4200 – ADSL Wireless Modem Router with 4-port Switch

  9. PLANET ADSL Solution • ADE-4000/ADE-4000B • Comply Annex A or Annex B • 4 x 10/100Mbps LAN ports • 1 x USB port for Internet accessing • DHCP server & client • IP Sharing • Configuration, management & firmware update via web browser • NAT and NAPT, DHCP server, DMZ, Virtual servers

  10. PLANET ADSL Solution • ADE-4100A/ADE-4100B • Comply Annex A or Annex B • 4 x 10/100Mbps LAN ports • DHCP server & client • IP Sharing • Configuration, management & firmware update via web browser • NAT and NAPT, DHCP server, DMZ, Virtual servers

  11. PLANET ADSL Solution • ADE-4120A/ADE-4120B • Comply Annex A or Annex B • 4 x 10/100Mbps LAN ports • DHCP server & client • IP Sharing • Configuration, management & firmware update via web browser • NAT and NAPT, DHCP server, DMZ, Virtual servers • Support DDNS • Provide Firewall with DoS Prevention

  12. PLANET ADSL Solution • ADE-4200A/ADE-4200B • Comply Annex A or Annex B • 4 x 10/100Mbps LAN ports • Support DDNS and UPnP • Provide SPI Firewall with DoS Prevention • Embedded PPTP Client/Server and IPSec VPN

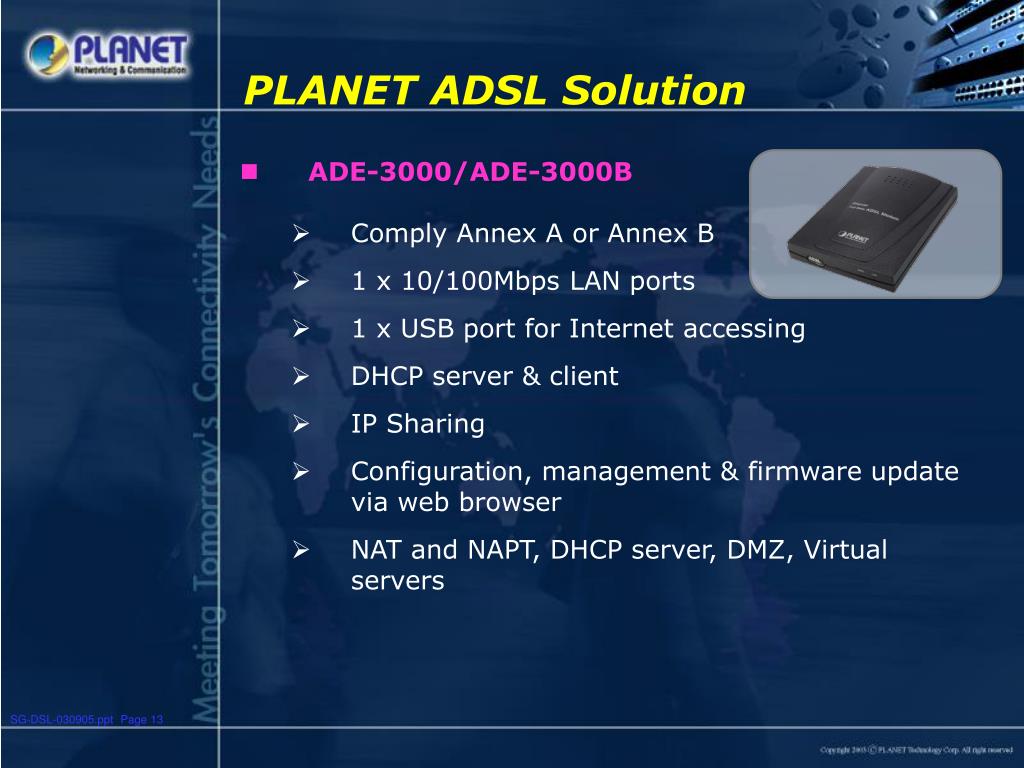

  13. PLANET ADSL Solution • ADE-3000/ADE-3000B • Comply Annex A or Annex B • 1 x 10/100Mbps LAN ports • 1 x USB port for Internet accessing • DHCP server & client • IP Sharing • Configuration, management & firmware update via web browser • NAT and NAPT, DHCP server, DMZ, Virtual servers

  14. PLANET ADSL Solution • ADE-3100A/ADE-3100B • Comply Annex A or Annex B • 1 x 10/100Mbps LAN ports • DHCP server & client • IP Sharing • Configuration, management & firmware update via web browser • NAT and NAPT, DHCP server, DMZ, Virtual servers

  15. PLANET ADSL Solution • ADU-2000 • Annex A  • Support for RFC 1577 (now part of RFC 2225 Classic IP over ATM), and RFC 2225/1483 (now part of RFC 2684 Bridged IP/ATM Encapsulation) • Plug & Play • Standard USB 1.1 interface • Support Windows 98SE, Me, 2000 and XP

  16. PLANET ADSL Solution • ADU-2100A/ADU-2120B • Annex A or Annex B   • Support for RFC 1577 (now part of RFC 2225 Classic IP over ATM), and RFC 2225/1483 (now part of RFC 2684 Bridged IP/ATM Encapsulation) • Plug & Play • Standard USB 1.1 interface • Support Windows 98SE, Me, 2000 and XP

  17. PLANET ADSL Solution • ADP-8301 • Annex A • Support for RFC 1577 (now part of RFC 2225 Classic IP over ATM), and RFC 2225/1483 (now part of RFC 2684 Bridged IP/ATM Encapsulation) • Plug & Play • Support Windows 98SE, Me, 2000 and XP

  18. PLANET ADSL Solution • ADW-4100A / ADW-4100B • Comply Annex A or Annex B • 802.11b WLAN support • 4 x 10/100Mbps LAN ports • DHCP server & client • IP Sharing • Configuration, management & firmware update via web browser • NAT and NAPT, DHCP server, DMZ, Virtual servers

  19. PLANET ADSL Solution • ADW-4200A/ADW-4200B • Comply Annex A or Annex B • 4 x 10/100Mbps LAN ports • 802.11b WLAN support • Support DDNS and UPnP • Provide SPI Firewall with DoS Prevention • Embedded PPTP Client/Server and IPSec VPN

  20. PLANET G.SHDSL Solution • PLANET’s G.SHDSL series Products • GRT-101 - G.SHDSL Bridge / Router GRT-401 G.SHDSL Bridge / Router with 4-port Switch

  21. PLANET G.SHDSL Solution • GRT-101 • Up to 2.3Mbps(3.3km), max 6.7km • PPPoA and PPPoE with PAP/ CHAP/MS-CHAP • Web, console, telnet, SNMP management • NAT, NAPT, Virtual Server, DMZ • CO or CPE mode

  22. PLANET G.SHDSL Solution • GRT- 401 • Up to 2.3Mbps(3.3km), max 6.7km • PPPoA and PPPoE with PAP/ CHAP/MS-CHAP • Web, console, telnet, SNMP management • NAT, NAPT, Virtual Server, DMZ • CO or CPE mode • Built-in 4-port Switch with VLAN Support

  23. PLANET VDSL Solution • PLANET’s VDSL series Products • EV-401M/S - Symmetric 10Mbps downstream and upstream (totally 20Mbps) on POTS line • VC-1602, 102M/S – Adjustable data rate (4/15, 4/11, 5/5, 11/11, 17/15 upstream/downstream speed) on POTS and ISDN line

  24. PLANET VDSL Solution • EV-401M / EV-401S • 4 x Fast Ethernet + 1 VDSL converter – Master/Slave • Internal Power • Built-in POTS Spliter • Broadcom Chipset • Symmetric 10Mbps

  25. PLANET VDSL Solution • VC-1602 • 2x Gigabit slot + 16x VDSL – Master • RJ-21 connector for POTS/ ISDN Splitter • Infineon chipset • Adjustable data rate (ANSI / ETSI / 5 / 11 / 15Mbps) by management interface • Stackable up to 8 devices and management by single IP • Manage by Console, Web, telnet and SNMP • Support 802.1Q VLAN, rate control (10%, 20% to 100%), 802.1p QoS, Port mirroring, IGMP Snooping

  26. PLANET VDSL Solution • VC-102M / VC-102S • 1x Fast Ethernet + 1x VDSL – Master • 1x Fast Ethernet + 1x VDSL – Slave • Built-in POTS/ISDN Splitter • External Power • Infineon chipset • Adjustable data rate (ANSI / ETSI / 5 / 11 / 15Mbps) by DIP switch on VC-102M • Compatible with Cisco LRE switch / modem

  27. Thank you! PLANET Technology Corp.
