Comprehensive Z Specification for Birthday Book System

The Birthday Book system effectively manages and tracks individuals' birth dates by allowing users to add, search for, and receive reminders about birthdays. This document outlines the Z specification necessary for the system's development. Key components include Given Sets, State Schema, Initial State, and Operations, which encompass adding birthdays, finding specific birthdays, and issuing reminders. The specification captures the necessary formal definitions and examples for each operation, ensuring clarity and functionality for users managing their birthday information.

september-middleton
Télécharger la présentation

Comprehensive Z Specification for Birthday Book System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Introduction to the ZExample Two

  2. Write Z specifications for the Birthday Book Problem • The Birthday Book system keeps track of people’s birthdays. It allows you to add and search for birthdays. Also, it issues reminders.

  3. The Z specification should include: • Given Sets • State Schema • Initial State • Operations

  4. The Birthday Book Z Specification 1. Given Sets [NAME,DATE]

  5. The Birthday Book Z Specification • State definition • BirthDayBook • known: ℙ NAME • Birthday: NAME ⇸DATE • known = dombirthday • Notation: D⇸ R • ⇸ ↦ Ξ ∀  × → Δ ≠ ∧ ∨ ∉ ∈ ∅ ∃ ℤ ℕ ℙ ℝ ≙ • 

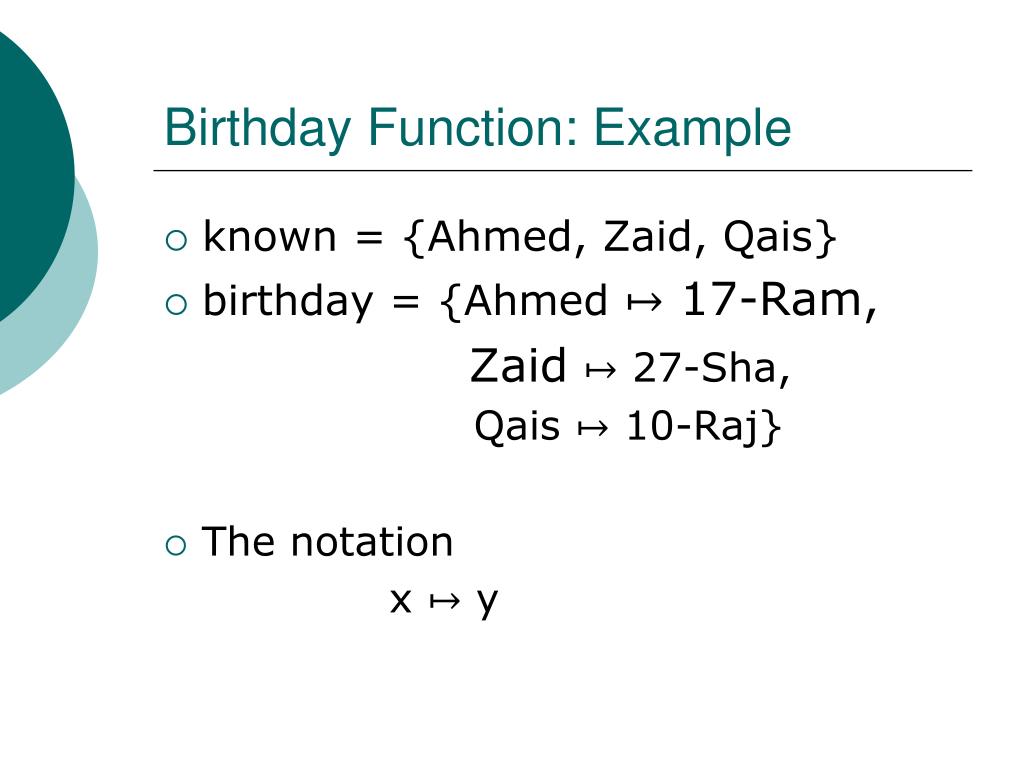

  6. Birthday Function: Example • known = {Ahmed, Zaid, Qais} • birthday = {Ahmed ↦ 17-Ram, Zaid↦ 27-Sha, Qais↦ 10-Raj} • The notation x ↦ y

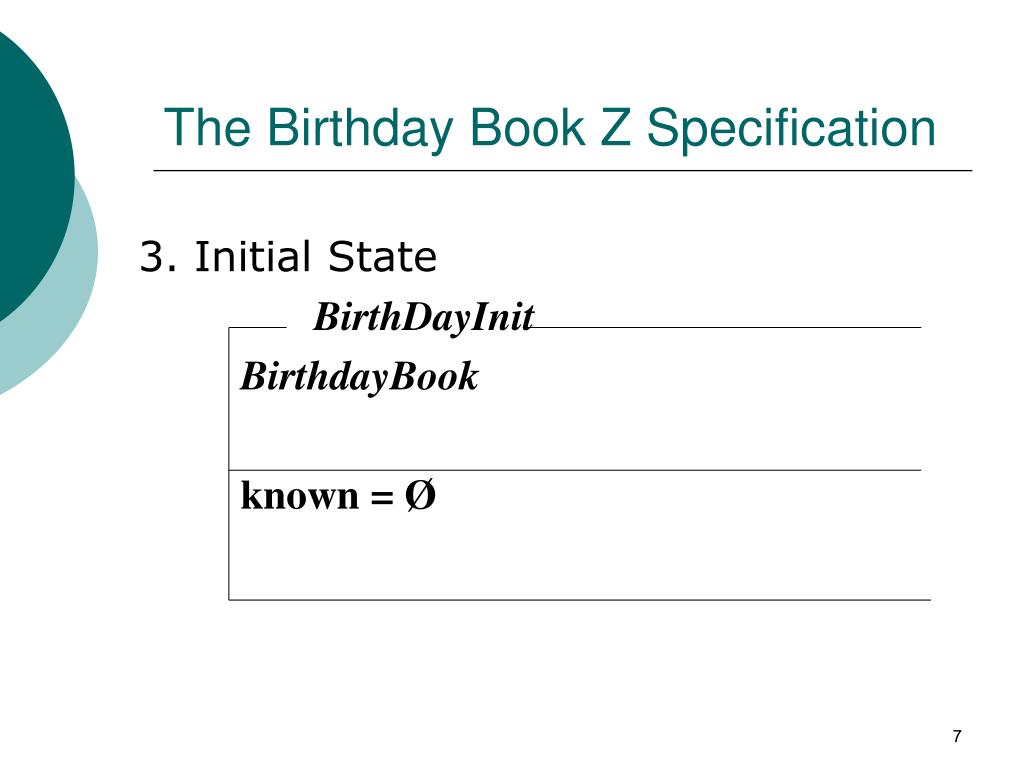

  7. The Birthday Book Z Specification 3. Initial State BirthDayInit BirthdayBook known = Ø

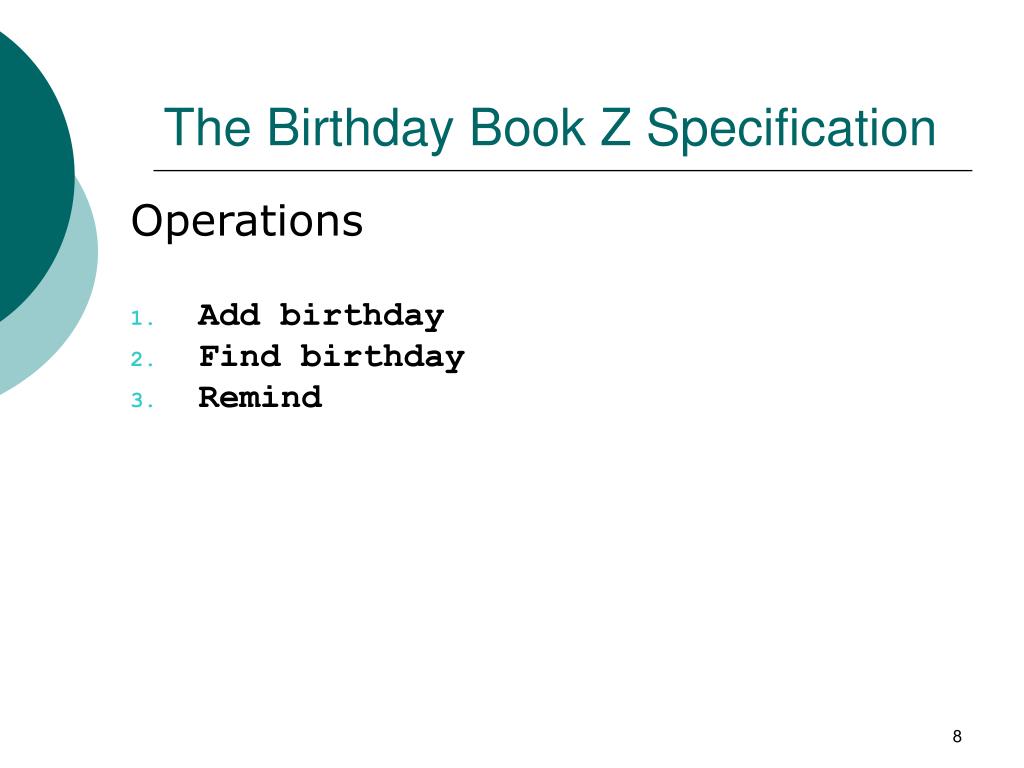

  8. The Birthday Book Z Specification Operations Add birthday Find birthday Remind

  9. The Birthday Book Z Specification Operations (AddBirthday) AddBirthday  BirthdayBook name? : NAME date?: DATE name? known known’= known {name?} birthday’ = birthday {name? ↦ date?}

  10. The Birthday Book Z Specification Operations (FindBirthday) FindBirthday BirthdayBook name? : NAME date!: DATE name?  known date! = birthday(name?) X

  11. The Birthday Book Z Specification Operations (Remind) Remind BirthdayBook cards! : ℙ NAME today?: DATE cards!= {n: known | birthday (n) = today!} X
