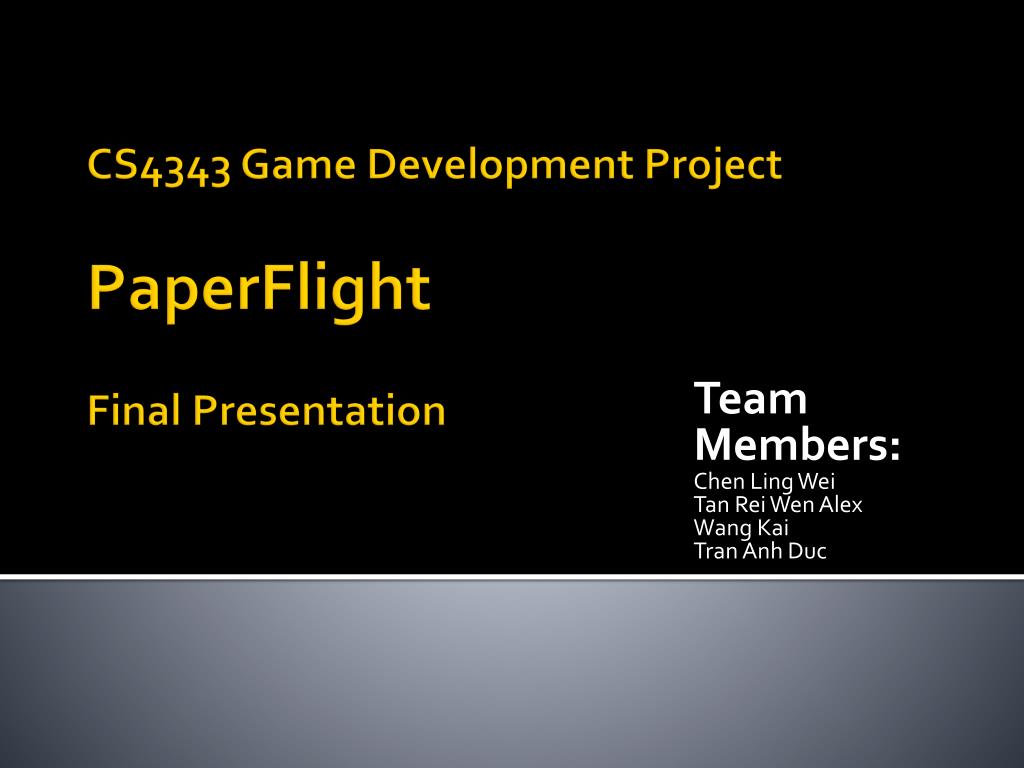

  1. Team Members: Chen Ling Wei Tan Rei Wen Alex Wang Kai Tran Anh Duc CS4343 Game Development ProjectPaperFlightFinal Presentation

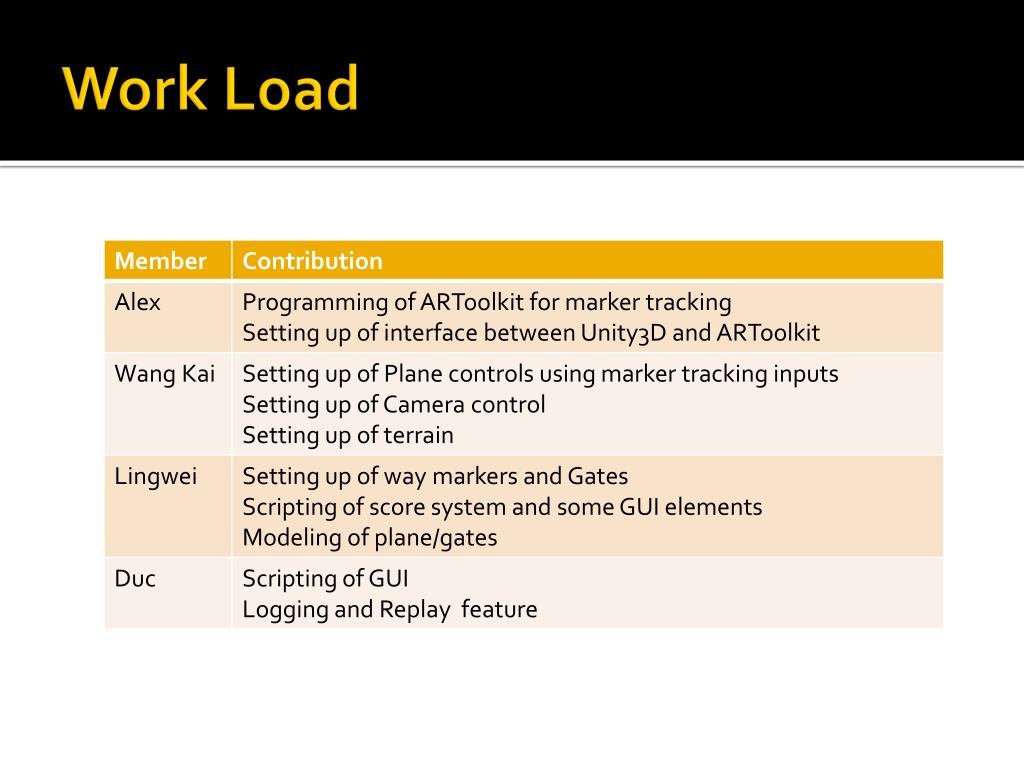

  2. Work Load

  3. Game Design • Plane racing game • Similar to Red Bull Air Race • Go through “gates” to score points/extend time limit • Obstacles to avoid

  4. Technical Achievement Marker Tracking • Using marker tracking to control plane instead of traditional keyboard/mouse/joystick. • Unity3D for the game engine • ARToolKit library to detect markers using webcams • Covered by Alex later in the presentation

  5. Technical Achievement Plane Controls and Gestures • Convert raw positional and rotational data of marker into plane control • Covered by Wang Kai later in the presentation

  6. Why? • Marker Tracking technology has been in development for some time • Applications include: - Augmented Reality -> For advertising (Nissan, Best Buy etc) - Film Production -> Motion Tracking • Why not games?

  7. Wiimote • USD $39.99 (amazon) • Support rotation • Support displacement • Displacement function needs IR LEDs • Displacement not so accurate (calculate the relative displacement)

  8. SIXAXIS • USD 39.99 (amazon) • Did not support real 6 axis • Only support rotation

  9. Marker • USD 0.1 – 20 (if you don’t have the webcam) • 6 axis fully supported • Support multiple markers

  10. Existing AR Games • Existing AR Games are closer to demonstrations that full fledged games http://gamesalfresco.com/2008/03/03/top-10-augmented-reality-demos-that-will-revolutionize-video-games/ • We want to introduce marker tracking used in AR applications as a new form of interaction • However, we want to maintain a familiar form of game play for users

  11. Objectives of our Game • Use marker tracking instead of traditional controls -> Intuitive, Innovative, Interesting controls • Sense of familiarity -> Common game concept -> Widely available and cheap equipment (webcam, laptop, paper markers)

  12. Game Development • Three stage of game development • Phase 1: • Development of Marker tracking capabilities for Unity3D, and converting raw data into plane control

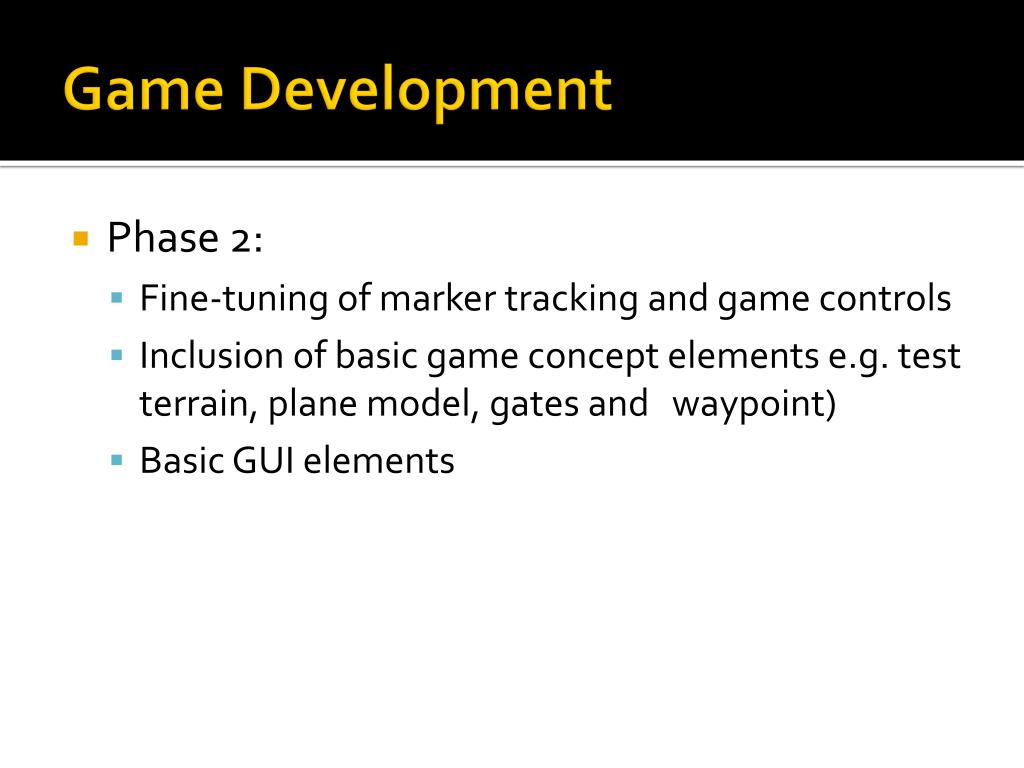

  13. Game Development • Phase 2: • Fine-tuning of marker tracking and game controls • Inclusion of basic game concept elements e.g. test terrain, plane model, gates and waypoint) • Basic GUI elements

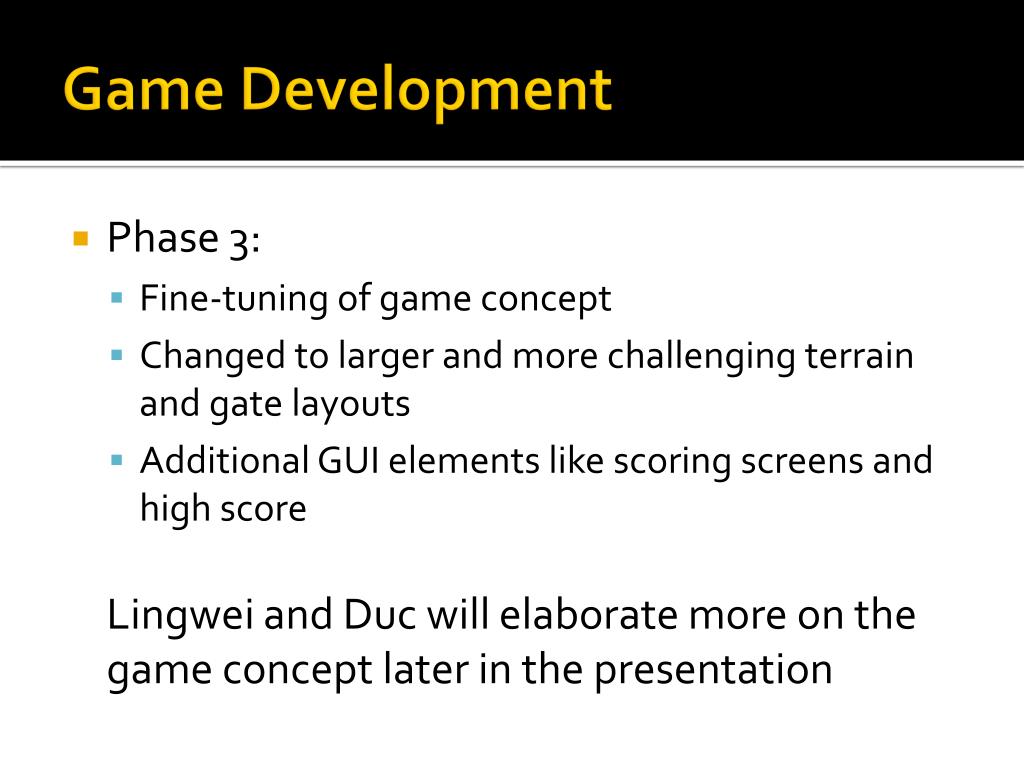

  14. Game Development • Phase 3: • Fine-tuning of game concept • Changed to larger and more challenging terrain and gate layouts • Additional GUI elements like scoring screens and high score Lingwei and Duc will elaborate more on the game concept later in the presentation

  15. Presentation of Individual Components • Alex – ARToolkit-Unity3D Interface • Wang Kai – Gesture Recognition • Lingwei – Assets and Level • Duc – GUI and replay

  16. Alex – ARToolkit-Unity3D Interface

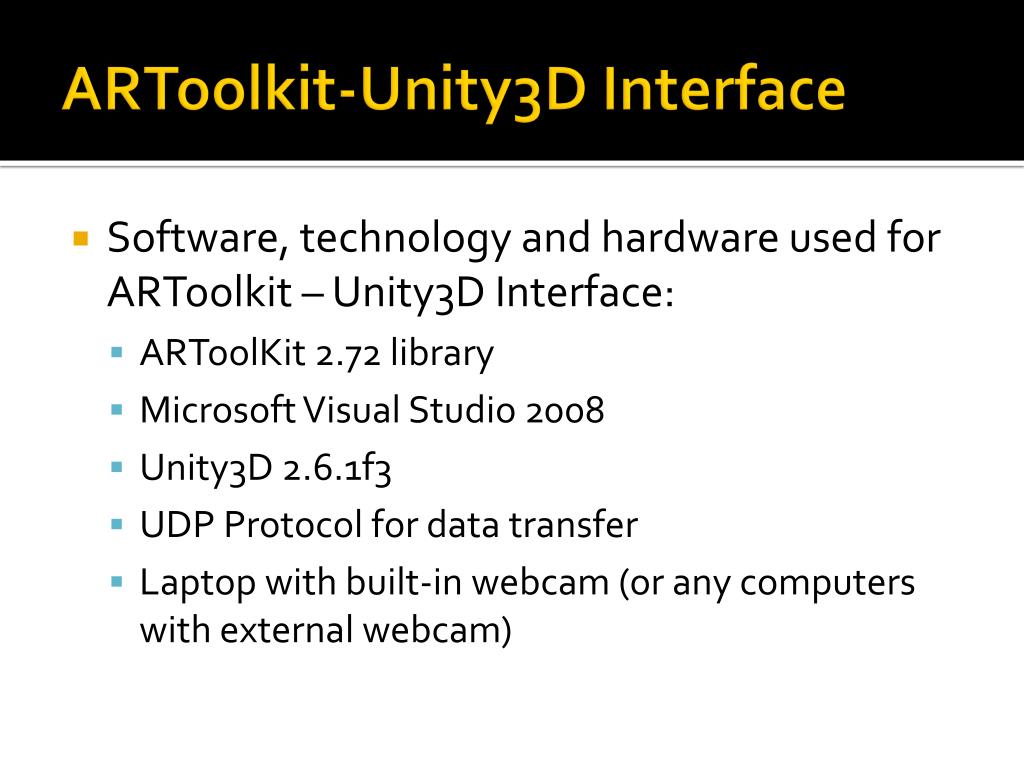

  17. ARToolkit-Unity3D Interface • Software, technology and hardware used for ARToolkit – Unity3D Interface: • ARToolKit 2.72 library • Microsoft Visual Studio 2008 • Unity3D 2.6.1f3 • UDP Protocol for data transfer • Laptop with built-in webcam (or any computers with external webcam)

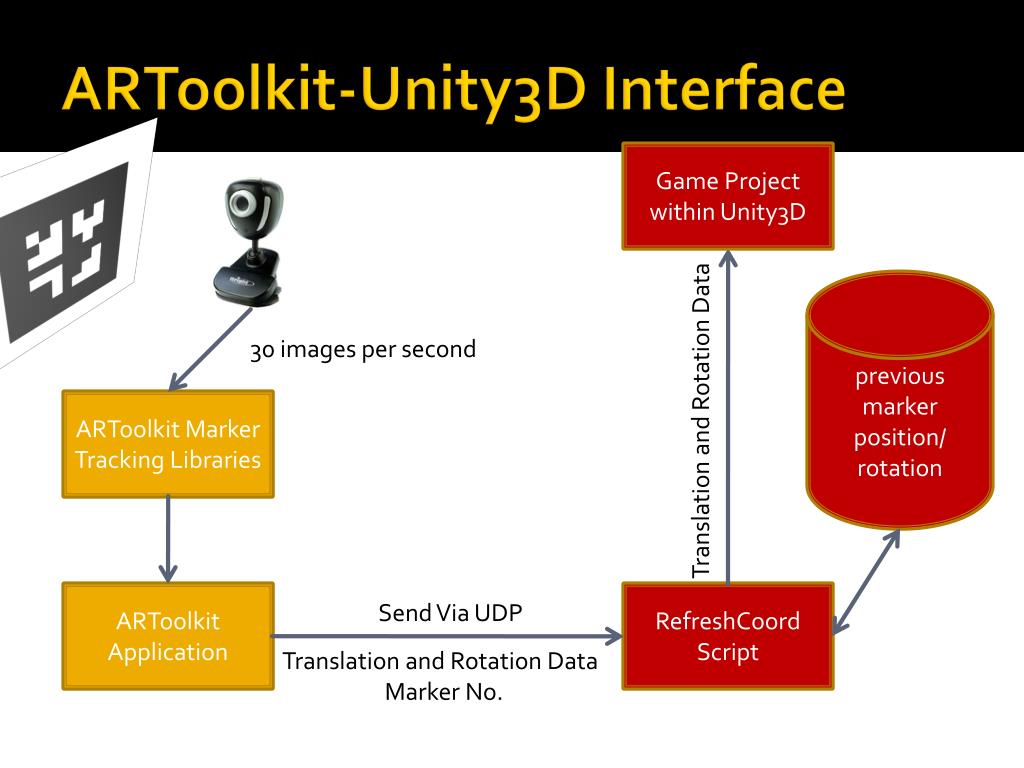

  18. ARToolkit-Unity3D Interface Game Project within Unity3D previous marker position/ rotation 30 images per second Translation and Rotation Data ARToolkit Marker Tracking Libraries ARToolkit Application RefreshCoord Script Send Via UDP Translation and Rotation Data Marker No.

  19. Difficulties and Constrains • Incompatibility between ARToolkit library and Unity3D • ARToolkit last updated on 2007, runs on C programming, whereas Unity3D uses C# and Javascript • Unity3D free version does not accept plug-ins • Incompatibility between ARToolkit library and Unity3D • Solved by sending data between both applications via UDP instead of trying to integrate them completely

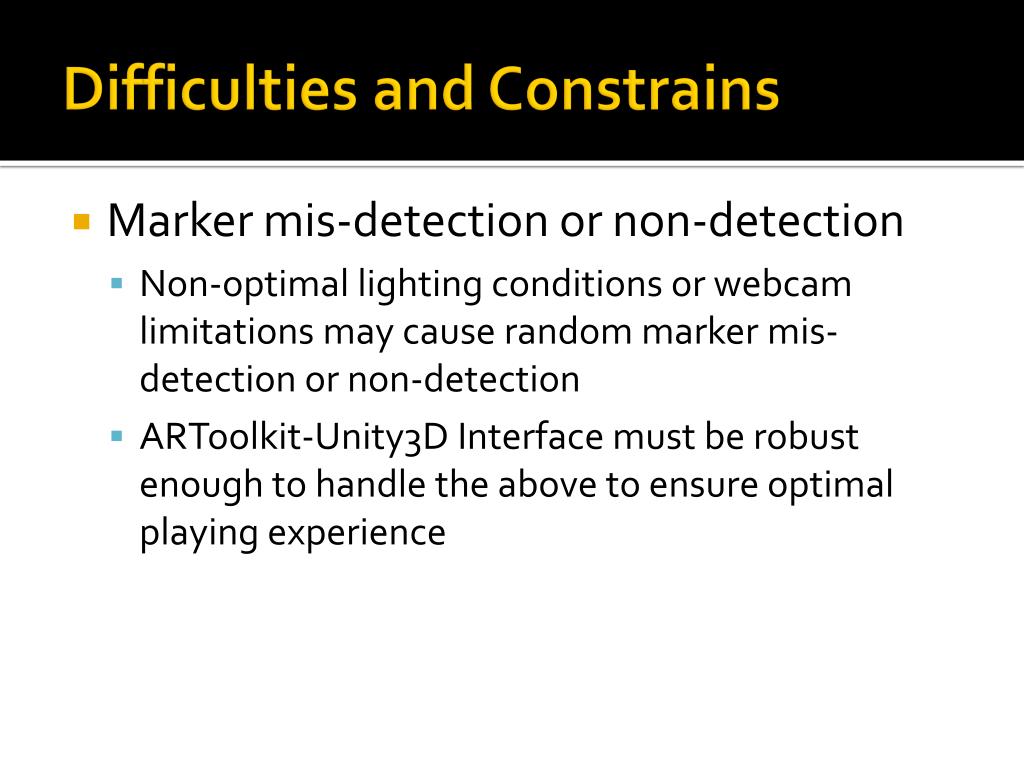

  20. Difficulties and Constrains • Marker mis-detection or non-detection • Non-optimal lighting conditions or webcam limitations may cause random marker mis-detection or non-detection • ARToolkit-Unity3D Interface must be robust enough to handle the above to ensure optimal playing experience

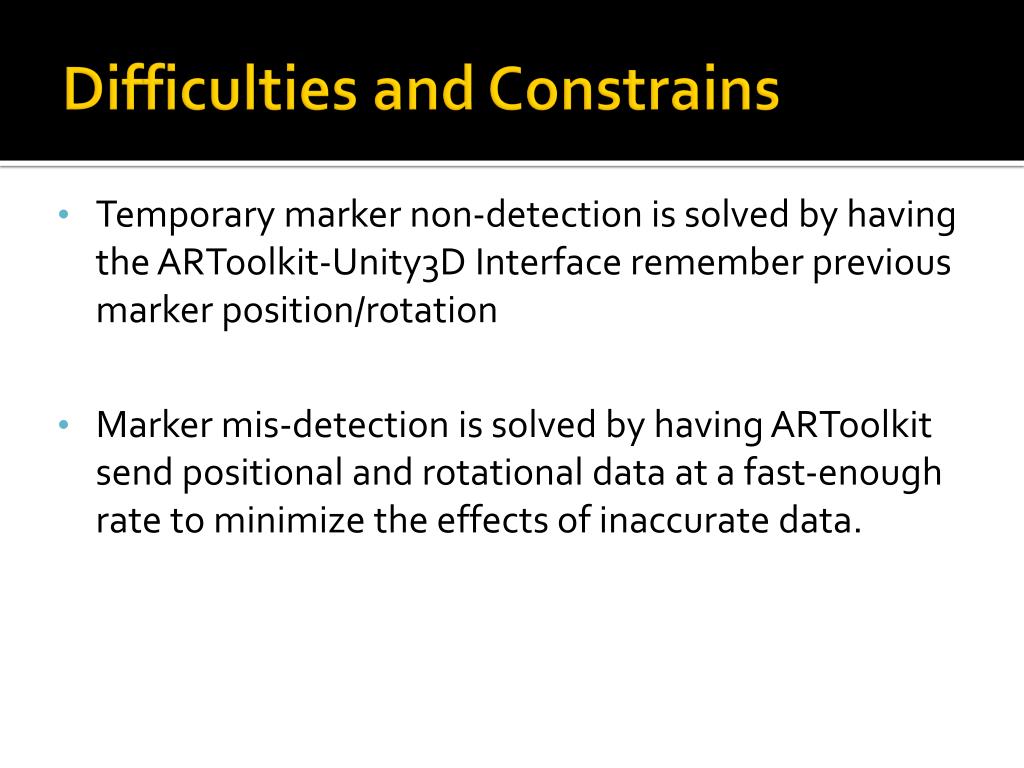

  21. Difficulties and Constrains • Temporary marker non-detection is solved by having the ARToolkit-Unity3D Interface remember previous marker position/rotation • Marker mis-detection is solved by having ARToolkit send positional and rotational data at a fast-enough rate to minimize the effects of inaccurate data.

  22. Difficulties and Constrain • Time Constrain • Operation of ARToolkit with Unity3D is the foundation of our project • Critical to get Unity3D communicating with ARToolkit as soon as possible so the rest of the game project can proceed

  23. Decisions & Justifications • Using ARToolkit for marker detection • Although ARToolkit’s primary purpose is for augmented reality applications, its marker detection library is robust and fast. • It is also free, and uses C which we are familiar with • Support tracking of multiple markers • Alternatives such as FLARToolkit and OpenCV were considered, but were not used as ARToolkit is faster and more efficient.

  24. Decisions & Justifications • Using UDP to transfer positional and rotational data from ARToolkit library to Unity3D. • Other methods were considered, including TCP, developing our own protocol, or converting ARToolkit into C# and integrate it into Unity3D • UDP packets was chosen as it is faster than TCP, and TCP’s reliability not needed here • Due to time constrain and complexity of ARToolkit’s library, we decided not to integrate it directly or develop our own protocol.

  25. Wang Kai – Gesture Recognition

  26. Marker: The problem • Where are the buttons? • We don’t have the buttons to provide extra information. However we can abstract enough information from the marker through the space and time. • If the camera can not see the marker? • Interpolate • Enable user do the error correction

  27. Space Camera View

  28. Space - the main control • Use only XYZ rotations, map to plane’s rotation. • Use Marker’s Z displacement to control the speed.

  29. Space • We divide the camera space into 9 region. • Different region can perform different functions. • Region = Buttons ! • Why separate the region into only 9 region? • Why keep the centre region big?

  30. Rotation • From ergonomics’ point of view, hands have certain limit to perform the rotation • We add the function that when user reaching ergonomics limit, the plane will keep rotating • The rotation speed proportional to user’s rotation of the marker

  31. Banking • We link the flight banking function to the left and right region of the camera. • By moving the marker to the right/left, user can trigger the flight to do the banking. • User don’t need to rotate and move the marker to control the plane perform banking

  32. Time • Use certain gesture to control the game • Can not perform time critical control • Should not be easily triggered or miss-detected

  33. Gesture for Rewind • Idea from iPhone lock screen • Step: • Turn the marker/ Cover the marker • Move the marker right/left • Turn the marker to original rotation

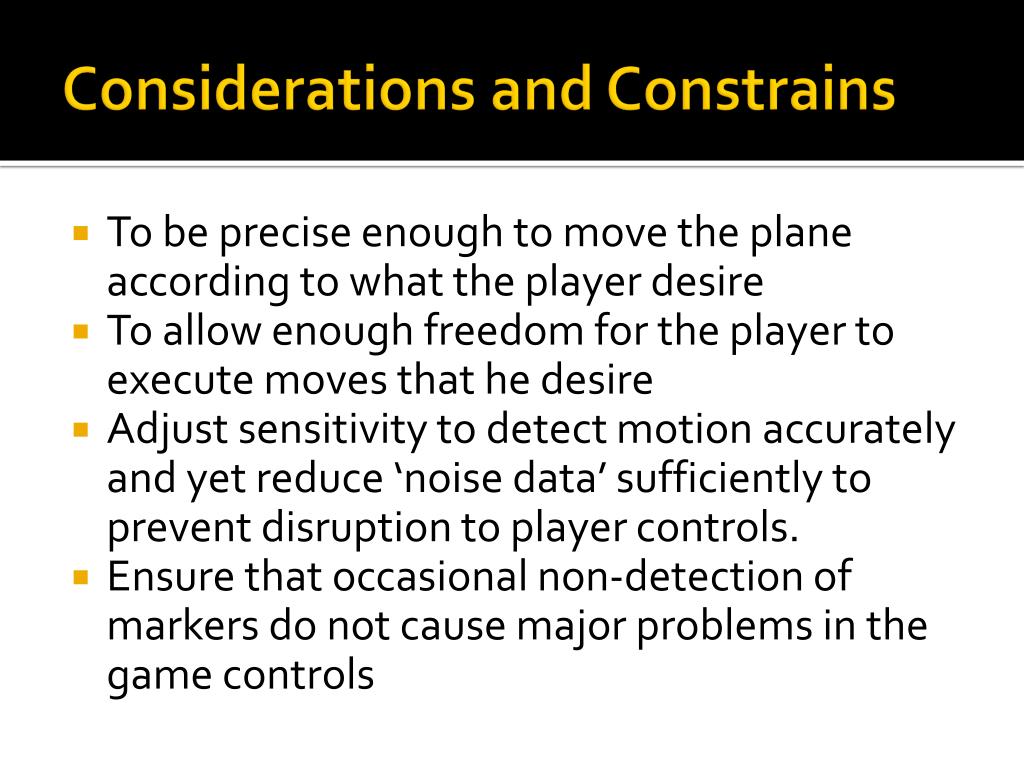

  34. Considerations and Constrains • To be precise enough to move the plane according to what the player desire • To allow enough freedom for the player to execute moves that he desire • Adjust sensitivity to detect motion accurately and yet reduce ‘noise data’ sufficiently to prevent disruption to player controls. • Ensure that occasional non-detection of markers do not cause major problems in the game controls

  35. Lingwei – Assets and Level

  36. Summary of work • Creation of Assets (Plane model, Gate model, Menu Elements) • Level Design • Scoring System • Pointing System

  37. Creation of Assets • Create the plane model and texture. • Add in simple scripts to drive the propeller to rotate • Add in smoking effects at the tip of the wing • Add in engine sound • Create the Gate model • Waymarkers attached to the Gates to updates score and add extra time

  38. Creation of Assets • Design and Create the Game menu in Photoshop

  39. Level Design • Creation of the Terrain • Design the flying course

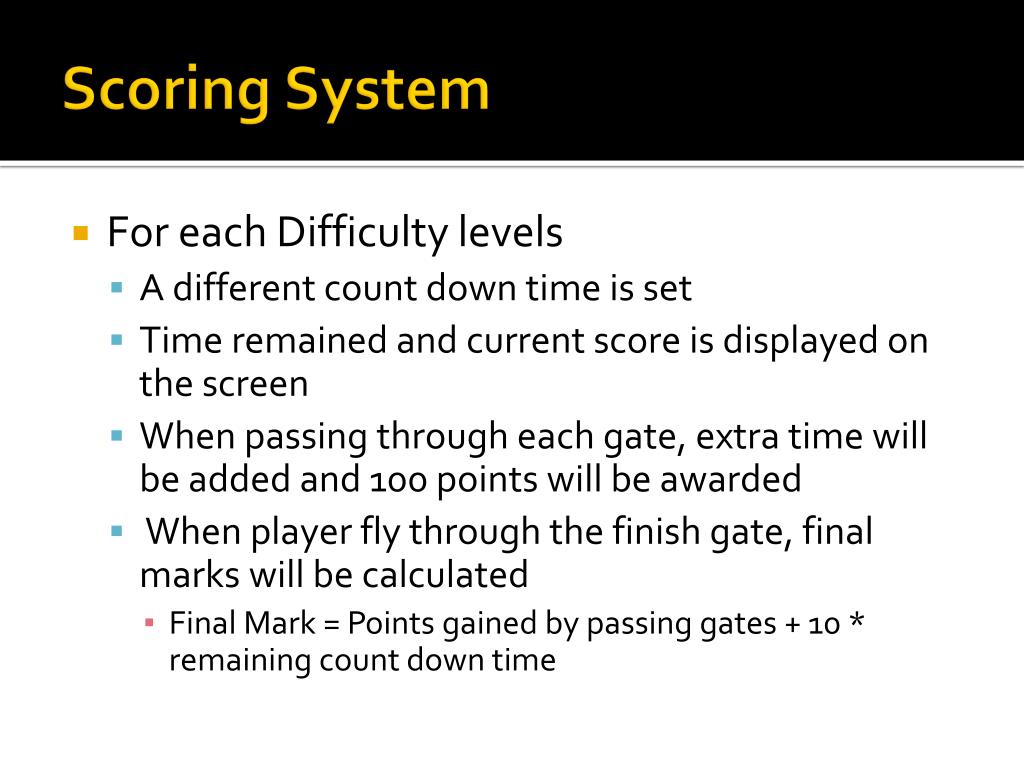

  40. Scoring System • For each Difficulty levels • A different count down time is set • Time remained and current score is displayed on the screen • When passing through each gate, extra time will be added and 100 points will be awarded • When player fly through the finish gate, final marks will be calculated • Final Mark = Points gained by passing gates + 10 * remaining count down time

  41. Pointing System • Arrow above the plane to lead the player to the next gate • Got the way marker location information at the beginning of the game • When passing through one gate, change the direction of the arrow to the next gate

  42. Duc – GUI and replay

  43. Summary of work • Integrate scenes • Menu system • GUI components • Replay feature

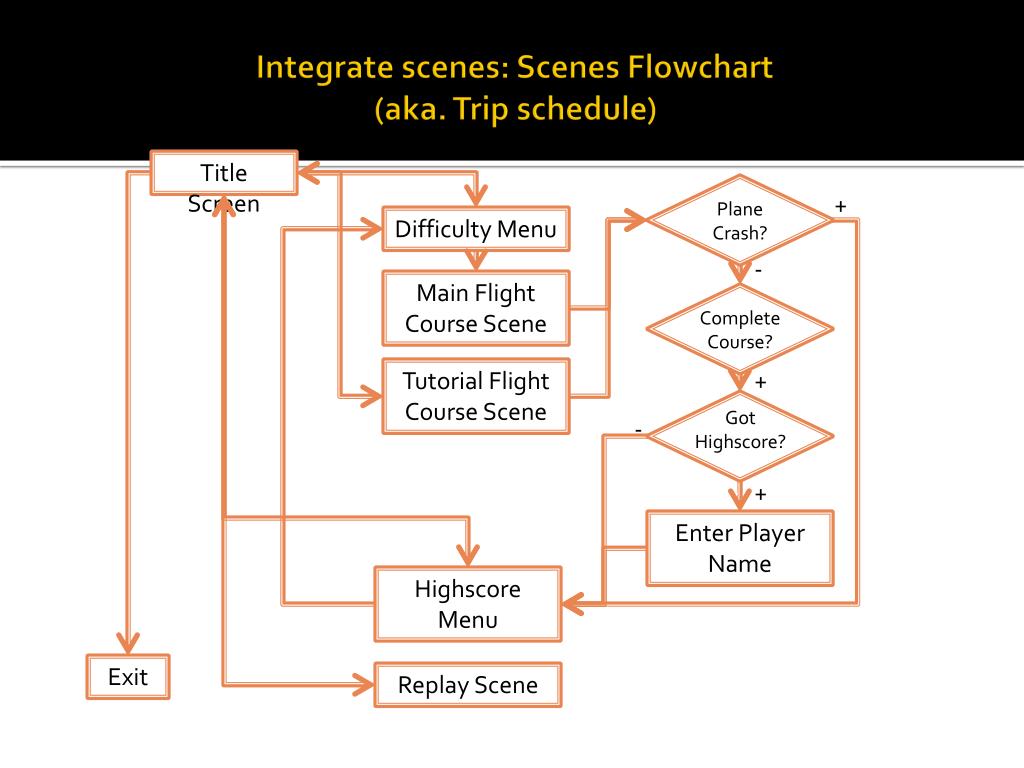

  44. Integrate scenes: Scenes Flowchart(aka. Trip schedule) Title Screen + Difficulty Menu - Main Flight Course Scene Tutorial Flight Course Scene + - + Enter Player Name Got Highscore? Plane Crash? Complete Course? Highscore Menu Exit Replay Scene

  45. Integrate scenes: For a safe and smooth trip(aka. Safety procedure) • Close any opened UDP network socket when exiting the scene • Otherwise, memory hogging and crashes happen! • Close any opened file stream when exiting the scene • Otherwise error replay file created!

  46. Menu System (aka. The Tour guide) • Menu Types • Static Menu with button only: • Title menu • Difficulty menu • Highscore screen menu: • Name entry form • Highscore list menu • Save and load the highscores • Ingame Popup: • Victory/Crash/End of Replay confirmation

  47. Menu System (aka. The Tour guide) • The menu is built with Unity3D GUI system which basically: • Provide functions to create buttons, labels, and entry field • Need to set the parameters to control the position, texture and appearance • Need to code the hierarchy and scene redirection

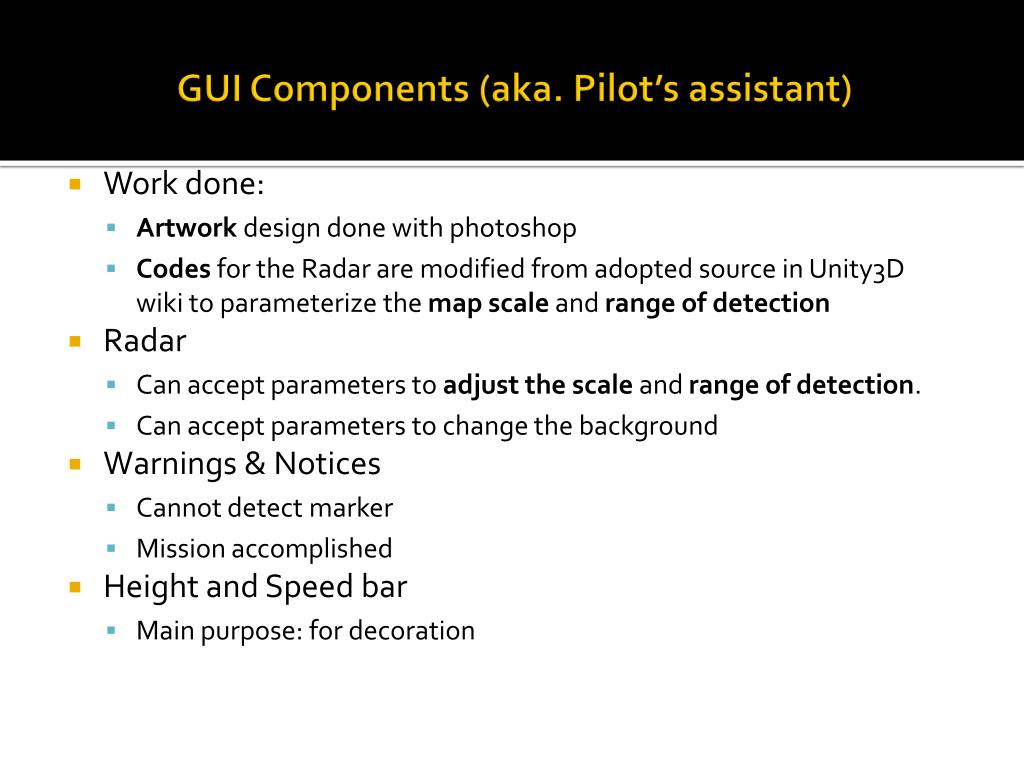

  48. GUI Components (aka. Pilot’s assistant) • Work done: • Artwork design done with photoshop • Codes for the Radar are modified from adopted source in Unity3D wiki to parameterize the map scale and range of detection • Radar • Can accept parameters to adjust the scale and range of detection. • Can accept parameters to change the background • Warnings & Notices • Cannot detect marker • Mission accomplished • Height and Speed bar • Main purpose: for decoration

  49. Replay feature (Aka. The Black Box)The use • During development phase • Record player’s flight for further analysis • Find common/repetitive mistakes of testing players • Was the turning angle too limited if the player under-steered • Was the control too sensitive if the player over-steered • Are the mistakes are just because the player had not been familiar with the control • Can the users carry out advanced flight maneuver : • Loop / Roll / Loop through the gates / Roll through the gates • Did they successfully carry out the move • Did they feel lost of control and cancel the move • In published game • Let the player view their most recent flight • Extended by Wang Kai to make Rewind function

  50. Replay feature (Aka. The Black Box)The mechanics • Recording phase • Record the plane coordinate and orientation during the game • Data size is about 50kByte/minute • Replaying phase • Load the plane coordinate and orientation to simulate the flight
