SLOT CONFIGURATION

SLOT CONFIGURATION. Slot Numbering. Basic Numbering Rule Extension board -> CO board or WTIB board -> Others BKSU -> EKSU. VOIU. 4. 8. EKSU EKSUS. 3. 7. 10. VOIB. 2. 6. BKSU. 1. 5. 9. VMIU, AAFU. 2. CO or WTIB. 1. Extension. 3. Others.

sevilen-osman
Télécharger la présentation

SLOT CONFIGURATION

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. SLOT CONFIGURATION

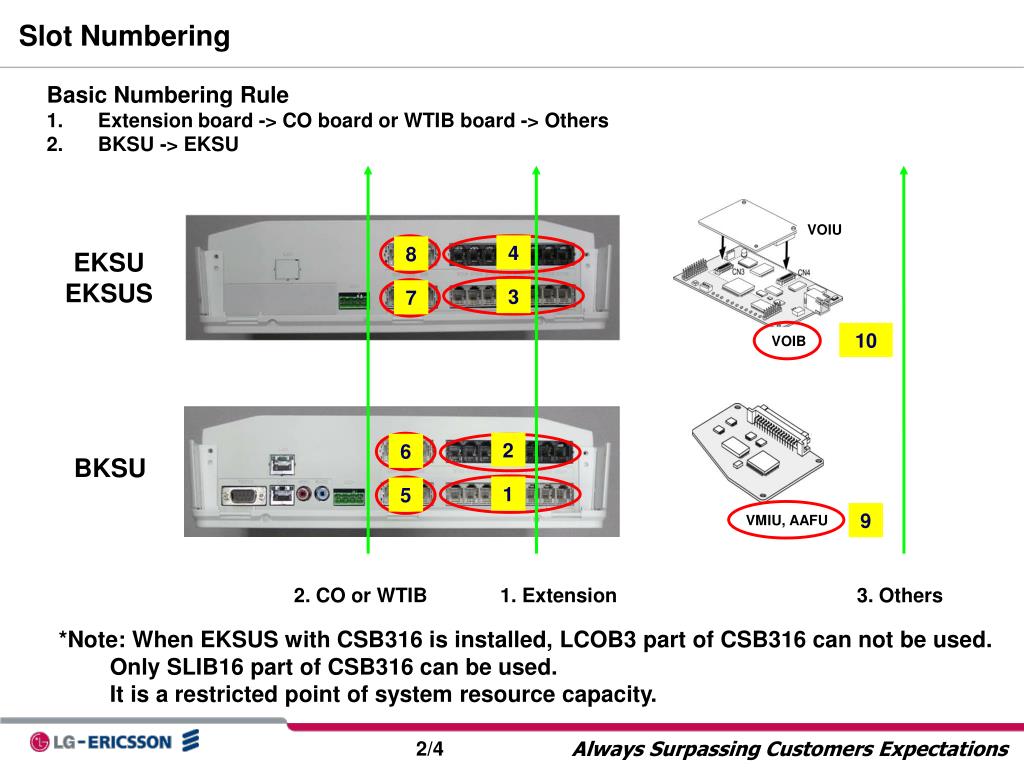

  2. Slot Numbering • Basic Numbering Rule • Extension board -> CO board or WTIBboard -> Others • BKSU -> EKSU VOIU 4 8 EKSU EKSUS 3 7 10 VOIB 2 6 BKSU 1 5 9 VMIU, AAFU 2. CO or WTIB 1. Extension 3. Others *Note: When EKSUS with CSB316 is installed, LCOB3 part of CSB316 can not be used. Only SLIB16 part of CSB316 can be used. It is a restricted point of system resource capacity.

  3. Slot Numbers for WDIB4 1. This is available from 3.8D version. 2. WDIB4 can be installed in BKSU or EKSU to use DECT terminals. 3. Only one WDIB4 can be used in a system. 4. WDIB4 board has 4 GDC-400B base stations ports and 4 DKTU stations ports. GDC-400B is common to other ipLDK WTIBE. 5. Max 16 DECT terminals can be subscribed. DTIB4 WTIB 4 8 EKSU EKSUS 3 7 or DTIB4 WTIB 2 6 BKSU 1 5

  4. SLOT Number Board Position Board Types to be installed 01 Extension Basic on BKSU HYBRID (fixed) 02 Extension Optional on BKSU HYBRID, SLIB8, SLIB16, DTIB4 03 Extension Basic on EKSU/EKSUS HYBRID,SLIB16 (fixed) 04 Extension Optional on EKSU/EKSUS HYBRID, SLIB8, SLIB16, DTIB4 05 CO Basic on BKSU LCOB3 (fixed) 06 CO or WTIB Optional on BKSU LCOB3, DCOB, PRIB, WTIB 07 CO Basic on EKSU LCOB3 (fixed) 08 CO or WTIB Optional on EKSU LCOB3, WTIB 09 VMIU/AAFU VMIU, AAFU 10 VOIB VOIB Board Installation
