MULTI NEEDLE INJECTOR

The MNI-11 Multi-Needle Injector features 11 moving needles designed for efficient meat injection, with or without bones. Made of stainless steel, it includes a self-priming brine pump flaunting a neoprene rotor. The injector allows manual adjustment of pressure via a specialty valve and boasts a dual-speed injection head. With a capacity of 100 kg/h and powered by 220/380V at 60Hz (1.5 kW), this machine is ideal for high-demand meat processing applications. Compact dimensions (280x210 mm) and quality construction ensure lasting performance.

shaman
Télécharger la présentation

MULTI NEEDLE INJECTOR

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

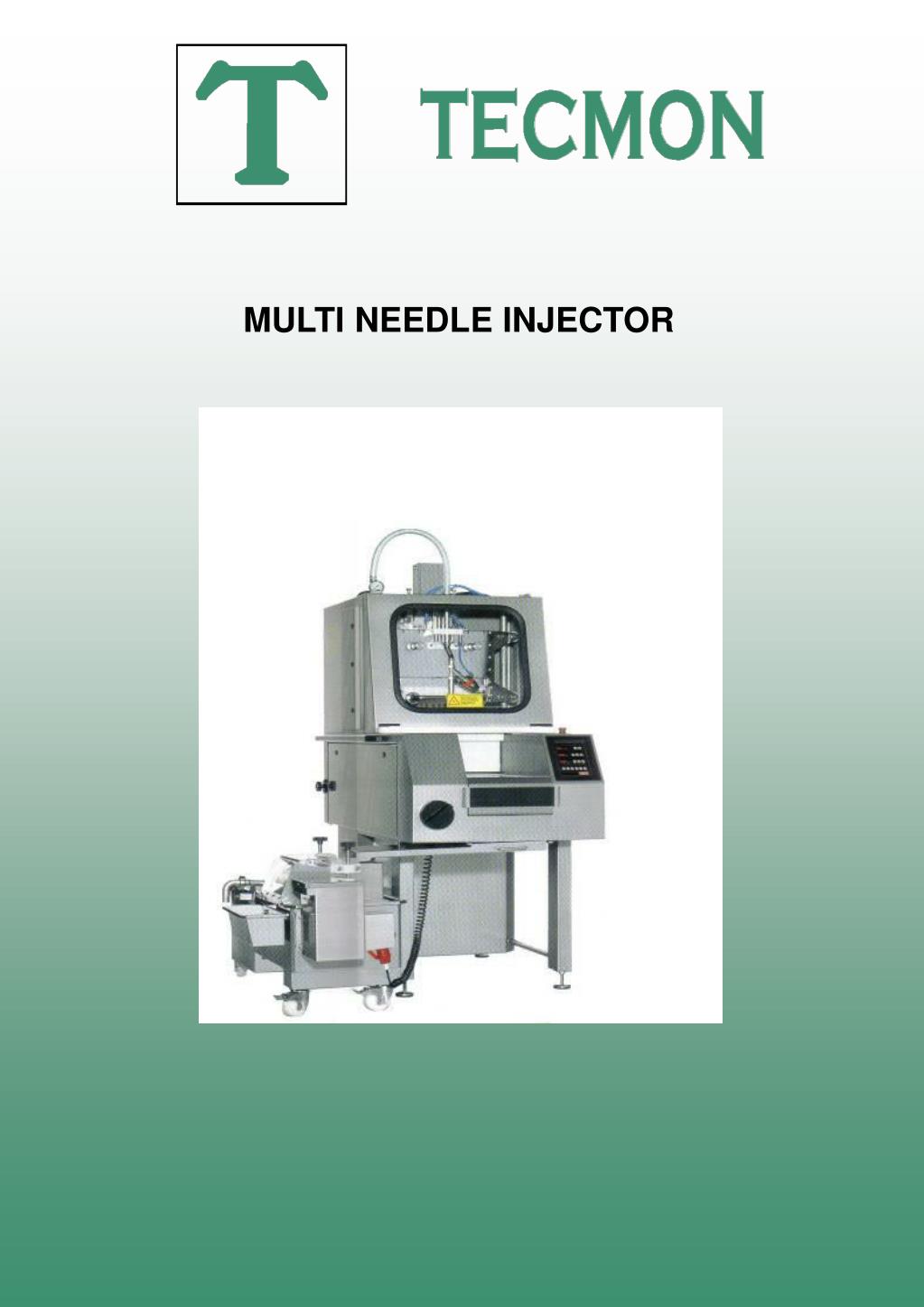

  1. MULTI NEEDLE INJECTOR

  2. MULTI NEEDLE INJECTOR Multi-needle injector mod MNI-11 with 11 needles for meat with or without bones The machine is equipped with moving needles to inject meat complete with self priming brine pump made in stainless steel with neoprene rotor and injector pressure could be adjusted manually by means of a special valve . Two speed injection head Manufactured in stainless steel and plastic Capacity 100 kg/h Electric power: 220/380V 60 Hz – installed power: 1,5 kw Width free passage: 280x210h mm Needles length: 150 mm TECMON S.R.L. P.IVA 00791710965 VIA LEONARDO DA VINCI, 11/B COD.FISC. 04821200153 20060 CASSINA DE’ PECCHI (MI) TEL. +39 0295299106 CAP. SOC. € 83.000,00 INT. VERS. FAX +39 0295299315 ISCR. TRIB. DI MONZA REG. SOC. 17929 E-MAIL : tecmon@tin.it C.C.I.A.A. MONZA E BRIANZA 1041916 E-MAIL : info@tecmon.it http:// www.tecmon.it
