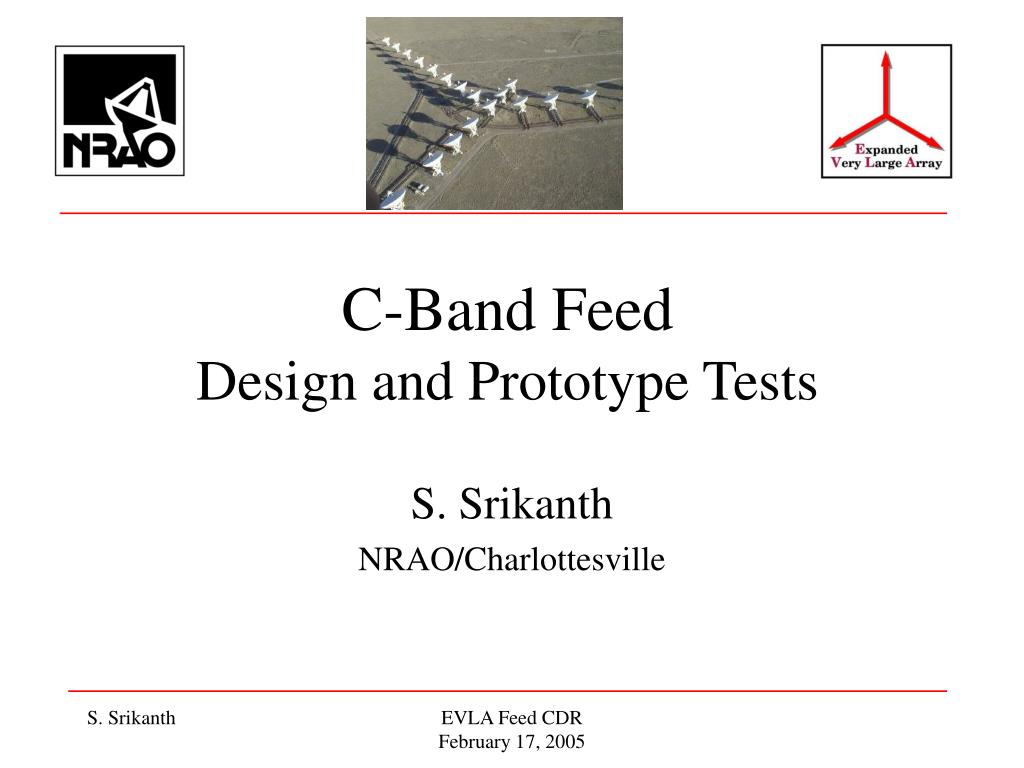

  1. C-Band FeedDesign and Prototype Tests S. Srikanth NRAO/Charlottesville EVLA Feed CDR February 17, 2005

  2. EVLA Receiver Bands EVLA Feed CDR February 17, 2005

  3. C-Band Feed Details Aperture ID = 22.118 (11.2 λ) Aperture OD = 24.25 Length = 66 (33.5λ) Input Dia. = 1.875 Ө input = 8° Ө max = 12° (all dimensions = inches) Corrugations Total = 132 Ring-loaded = 7 Pitch = 0.563 Flange width = 0.090 Corrug. width = 0.473 No. per λ = 3.5

  4. C-Band Prototype Work in Progress EVLA Feed CDR February 17, 2005

  5. Range: 400 MHz – 100 GHz Chamber: 66′ L x 44′ W x 38′ H 36″ pyramids – feed to reflector 36″ – 44″ wedge – feed to back wall 36″ – 44″ pyramids – back wall Temperature: 68° - 72° F Reflector: Rolled–edge; Aperture – 24′ x 24′ Parabolic Section – 10′ x 10′; rms < 0.0015″ Focal length – 24′ Quiet Zone: 12′ x 12′ x 12′; 19′ center Isolated concrete slab MIT Lincoln Laboratory Compact Range Target Gantry 24 ft. x 24 ft. Rolled-Edge reflector Chebyshev Absorber TargetSupport Frequency coverage: 400 MHz - 100 GHz Quiet zone size: 12 ft. Max target weight: 2,000 lb EVLA Feed CDR February 17, 2005

  6. EVLA Feed Horn Under Test in the New Lincoln Laboratory Compact Range (11 August 2004) EVLA Feed Horn (4 to 8 GHz) Polarization over Elevation Positioner EVLA Feed Horn Compact Range Feed Horn (2 to 18 GHz) Slide over Azimuth over Elevation Positioner

  7. Test Adapters • 3.95 to 5.85 GHz Need: 1.875 dia. to WR–187 (1.872 x 0.872) Built: 1.875 dia. to WR–187 stepped transition; 12 sections; 11″ long; S11< - 20dB • 5.85 to 8.20 GHz Need: 1.875 dia. to WR–137 (1.37 x 0.622) Available: 1.75 dia. to WR–187 Built: (a) 1.875 dia. to 1.75 linear transition (b) WR–187 to WR–137 stepped transition; 9 sections; 5″ long EVLA Feed CDR February 17, 2005

  8. Theory & Measured 4.0 GHz EVLA Feed CDR February 17, 2005

  9. Theory & Measured 6.0 GHz EVLA Feed CDR February 17, 2005

  10. Theory & Measured 8.0 GHz EVLA Feed CDR February 17, 2005

  11. Co- & X-Polarized Field Patterns - Measured EVLA Feed CDR February 17, 2005

  12. Co- & X-Polarized Field Patterns - Measured EVLA Feed CDR February 17, 2005

  13. Measured E- & H- Plane Patterns - 6.0 GHz EVLA Feed CDR February 17, 2005

  14. Computed Return Loss EVLA Feed CDR February 17, 2005

  15. Return Loss of C-Band S/N 2 While Installed on Antenna 14 EVLA Feed CDR February 17, 2005

  16. Feed As Installed On the Antenna EVLA Feed CDR February 17, 2005

  17. C-Band Feed Summary EVLA Feed CDR February 17, 2005
