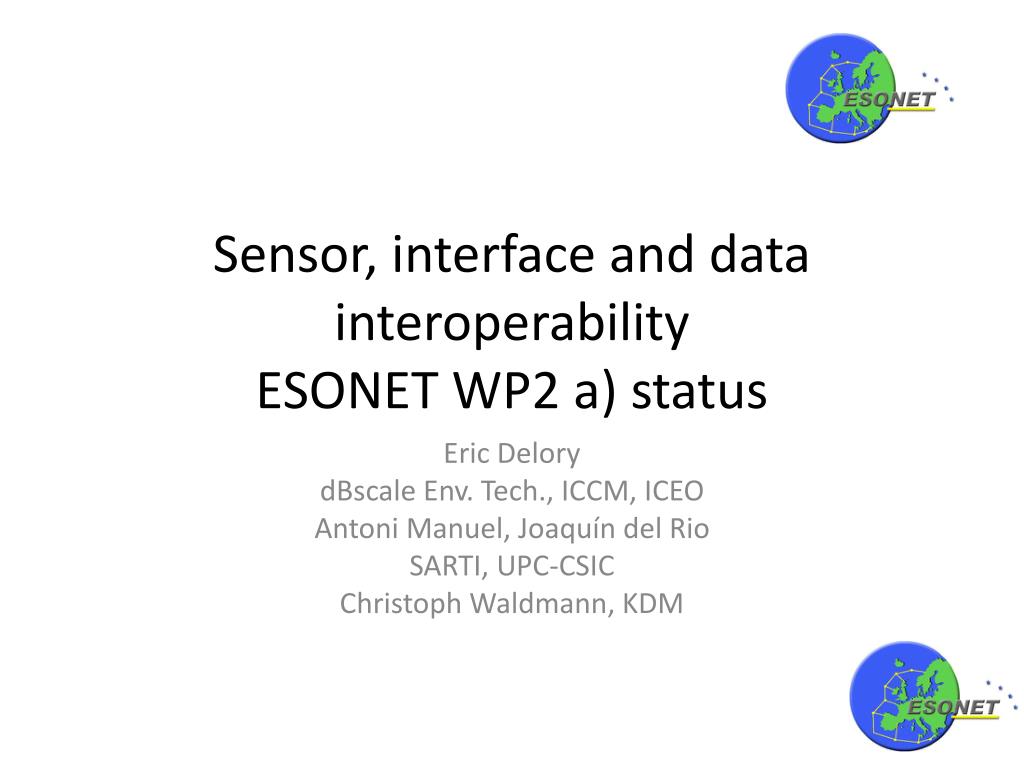

  1. Sensor, interface and data interoperabilityESONET WP2 a) status Eric Delory dBscaleEnv. Tech., ICCM, ICEO Antoni Manuel, Joaquín del Rio SARTI, UPC-CSIC ChristophWaldmann, KDM

  2. Outline • Interoperability initiatives • ESONET statement and WP2 a) work items • Where we are: inventory of standards and interoperability initiatives • sketch of the application of standards to a generic sensor system • Where we are going: existing systems, to map necessities and drawing recommendations

  3. ESONET statement <<The ESONET federation will oversee standards, data management and co-ordinate observatory deployment. Data will be interfaced to national and international data centres.>>

  4. WP2 Standardization and interoperability a) workitems • Inventory of existing interoperability concepts as possible candidates for future observatory systems • Inventory of existing sensors and interfaces • Recommendations and roadmap for possible realisation schemes

  5. Inventory of standards and interoperabilityinitiatives • Identification and mapping of existing standards • Sensing systems • Communication • Data management • Identification of relevant interoperability initiatives (INSPIRE, GMES, IOOS, GEOSS)

  6. Interoperability initiatives • INSPIRE: InfrastructureforSpatialInformation in Europe • GMES: Global monitoringforEnvironment and Security • EuroGOOS, IOOS Data Management and Communications • IEEE Committee on Earth Observations • GEOSS Global Earth Observation System of Systems

  7. GEOSS SBAs and Systems

  8. Component and servicesRegistrationProcess Done N Component has interface? ESONET or Component Register Component Register Service Y N Uses registered standard? Solution Accepted? SIF recommends solution Work with SIF N Y Y Enter solution in registry Reference registered standard

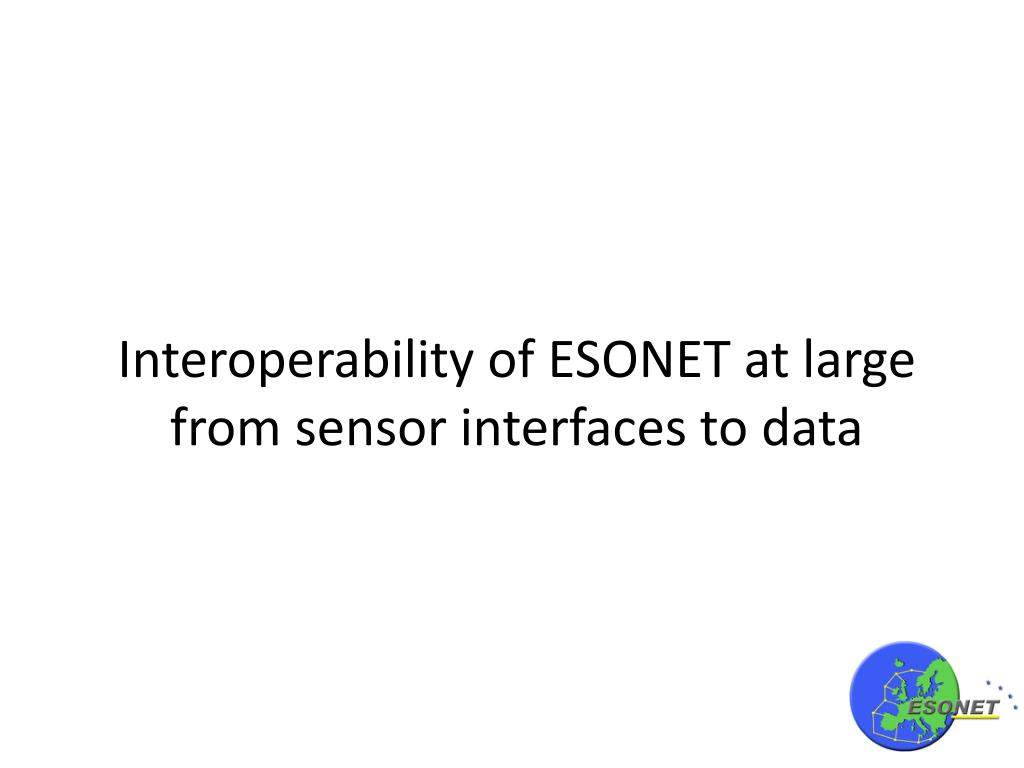

  9. Interoperability of ESONET at largefrom sensor interfaces to data

  10. Interoperability & Standards What should be standardised ? Interoperability What can be standardised ? “What few things must be the same so that everything else can be different” Eliot Christian, lead of GEO task AR 06-03

  11. Inventory of standards • Sensingsystemsfunctionalgroups • Networks topologies • Power • Data Storage/Memory • Clock • Interface • System Engineering • Languages • Cables • Connectors • Signal Modulation • Other features

  12. Inventory of standards

  13. Inventory of standards

  14. Inventory of standards

  15. Inventory of standards • Communication • Within the same system: Communications between electronic circuits. • Parallel Bus communications : Backplane • Serial Bus communications (same board) • Communication between different systems • Parallel Communication • Serial Communication • Serial Multimedia Communications • Home Automation communications • Telephone Communications • Wireless Communications • Radio Frequency Communications. Free Band • Light Communications. IRDA • Acoustic communications • Optical fiber Communications

  16. Inventory of standards

  17. Inventory of standards Parallel Bus Physical Hierarchy

  18. Inventory of standards Serial Bus Communication between different systems: Wired

  19. Inventory of standards IEEE inside!

  20. Inventory of standards • Data managementtowardsinteroperability • Metadata (content) • Data Format • Catalog/RegistryService • Data Access • StreamingProtocols • Semantics • Portrayal and DisplayService • Data TransformationServices • Quality/Assurance, Quality Control • Schema • Modeling, Simulation, or Analytic Processing Service • Archival • Communications and Telecommunications • Data Acquisition • EngineeringProcess • Development Environments and Software Languages • TechnicalDocumentation

  21. Inventory of standards • Data management towards interoperability

  22. Inventory of standards • Data management towards interoperability

  23. Inventory of standards • Data management towards interoperability

  24. Inventory of standards • Data management towards interoperability

  25. Inventory of standards • Data management towards interoperability

  26. Practical example • Many standards were formulated by the industry to define some or all of the following sensor attributes: - Metadata - Calibration methods - Definition - Identification - Means of interaction

  27. Sensor 1Hydrophone Sensor 2Accelerometers Sensor 3Compass Sensor System Example UW Scientific Package Sound Pressure Digital Numbers 3D Wave Bearing Particle Velocity Magnetic field 3-axis System tilt information

  28. Sensor 1Hydrophone Calibration Inversion Subsystem 2 Accelerometers Processing Sensor 3Compass Detector Sensor System Example UW Scientific Package Sound pressure Acoustic pressure Particle Velocity Bearing 3D Magnetic field 3-axis System tilt information Boolean/Digital Numbers

  29. Sensors and Arrays

  30. Web enablement for this sensor • SensorML, TransducerML (OGC web enablement, SOS, SPS, SAS) • IEEE 1451 (TEDS + STIM + NCAP, smart sensors)

  31. drawing recommendations • Surveying ESONET data management systems • Surveying ESONET physical interfaces • Match needs and existing standards in a pragmatic fashion and recommend

  32. Relevant Portals • ISWG Survey for GEO: www.dbscale.com/ISWGSurvey • IEEE EO Standards Registry (seabass.ieee.org) • GEO Components and services registry portal http://uddi.csiss.gmu.edu/geosspub/login.jsp • www.geoportal.org (ESA) • www.earthobservations.org (geo)

  33. References of interest • [1] L. Bermudez, P. Bogden, E. Bridger, G. Creager, D. Forrest, and J. Graybeal, "Toward an Ocean Observing System of Systems," in OCEANS 2006, 2006, pp. 1-4. • [2] A. D. Chave, B. St Arnaud, M. Abbott, J. R. Delaney, R. Johnson, E. Lazowska, A. R. Maffei, J. A. Orcutt, and L. Smarr, "A management concept for ocean observatories based on Web services," in OCEANS '04. MTS/IEEE TECHNO-OCEAN '04, 2004, pp. 2187-2193 Vol.4. • [3] D. Chayes, A. Maffei, and G. Myers, "SeaNet Lite: on demand Internet connectivity at sea," in OCEANS '97. MTS/IEEE Conference Proceedings, 1997, pp. 45-50 vol.1. • [4] P. Cornillon, J. Caron, T. Burk, and D. Holloway, "Data access interoperability within IOOS," in OCEANS, 2005. Proceedings of MTS/IEEE, 2005, pp. 1790-1792 Vol. 2. • [5] R. E. Duane, D. Daniel, and C. O. R. Thomas, "Ocean Observing System Instrument Network Infrastructure," in OCEANS 2006, 2006, pp. 1-4. • [6] J. Graybeal, K. Gomes, M. McCann, B. Schlining, R. Schramm, and D. Wilkin, "MBARI's SSDS: operational, extensible data management for ocean observatories," in Scientific Use of Submarine Cables and Related Technologies, 2003. The 3rd International Workshop on, 2003, pp. 288-292. • [7] J. B. Graybeal and K. J. Gomes, "Technical advances in comprehensive oceanographic data management," in Oceans 2005 - Europe, 2005, pp. 1357-1361 Vol. 2. • [8] D. H. Rodgers, A. Maffei, P. M. Beauchamp, G. Massion, A. D. Chave, T. M. McGinnis, S. Gaudet, W. S. D. Wilcock, and H. Kirkham, "NEPTUNE regional observatory system design," in OCEANS, 2001. MTS/IEEE Conference and Exhibition, 2001, pp. 1356-1365 vol.3. • [9] S. M. Smith, S. McPhail, A. Healey, and R. Russell, "LONTalk as a standard protocol for underwater sensor platforms," in OCEANS '97. MTS/IEEE Conference Proceedings, 1997, p. 267 vol.1. • [10] F. Sonnichsen, A. Maffei, K. Asakawa, and X. Garcia, "Basic requirements and options for communication systems in scientific underwater cable networks," in OCEANS '04. MTS/IEEE TECHNO-OCEAN '04, 2004, pp. 2211-2218 Vol.4. • [11] G. Waterworth, "Industrial solutions for regional cabled ocean observatories," in Oceans 2005 - Europe, 2005, pp. 1033-1037 Vol. 2.
