  1. Research On Sensor Nets 伍民友 上海交通大学计算机科学与工程系

  2. Outline • An Introduction • Surveillance and Coverage • Mobile Sensors • Reality and Terrain • Scalability and Heterogeneous Sensor Nets • Multiple Sensor Nets and InterSensorNets • Semantic Sensor Nets • Detection and Anti-detection • Future works

  3. Outline • An Introduction • Surveillance and Coverage • Mobile Sensors • Reality and Terrain • Scalability and Heterogeneous Sensor Nets • Multiple Sensor Nets and InterSensorNets • Semantic Sensor Nets • Detection and Anti-detection • Future works

  4. Trend of Computers • Mainframes • PCs • Laptops • PDAs • What is next?

  5. Ubiquitous Computing • Mark Weiser: The most profound technologies are those that disappear. They weave themselves into the fabric of everyday life until they are indistinguishable from it.

  6. Sensory Computing • Sensor network (sensor net) that monitors the earth • 千里眼，顺风耳 • Establishing a connection between virtual world and physical world

  7. What is a Sensor Net • A collection of many wirelesssensors • Sensory • Wireless communication • Ad hoc

  8. gateway query ？ ！ result Sensor Nets Sensory data Sensory data Sensory data Sensory data Sensory data

  9. Enabling Technology • Sensors • Wireless • Micro-fabrication and integration • Embedded systems

  10. What a Sensor Net Can Do • Monitoring • People • Vehicles • Animals • Environment • Fabs • Supply chains • …

  11. Psend(Nr) Psend(r) … Preceive r Nr Advantages of Sensornet • Energy advantage • Short-range communication • Trade-off: # of hops

  12. Advantages of Sensor Net • Detection advantage • More sensors, shorter distance to the target • Better signal-to-noise ratio (SNR)

  13. Advantages of Sensor Net • Structure advantage • Robustness due to redundancy • In-network processing

  14. Disadvantage • Small sensors • Limited on: • Power • Communication range & bandwidth • Computation power • Memory

  15. Power • Short-range communication • On-demand sensory • Short duty cycle • More computing, less communication • Field charging

  16. Communication, Computation and Memory • Scalability • In-network processing or aggregation • Efficient algorithms • Less computing cycles • Less storage requirement

  17. Satellite and Sensor Net • Satellite • Global view • Sensor net • Detailed view

  18. Applications • Military battlefield awareness • Rapid deployment • Monitoring battlefield or bases

  19. Military Affairs Sensor systems Deployment Information gathering Enemy detection

  20. Applications • Disaster situations • Fire • Chemical leakage • Nuclear plant • …

  21. Disaster and Security National key project- Sanxia embankment inspection

  22. Applications • Environmental monitoring • Pollution • Water level • …

  23. Huaihe River valley surroundings supervising Environmental Monitoring Mine explosion accident scene Sensor communication detecting in miner

  24. Applications • Agriculture • Monitor • Temperature • humidity • plant disease • insect pests

  25. Agriculture Water resource management

  26. Applications • Asset and warehouse management • Tracking assets • With RFID

  27. Applications • Industrial process control • Monitoring manufacturing processes • Monitoring equipments, such as motors, pipes • Monitoring servers • Monitoring any irregular situations and failures

  28. Applications • Building monitoring and control • Low wiring cost • Cut down energy cost • Air control • Biological agents or chemical pollutants

  29. Applications • Security and surveillance • Airports • Subways • Nuclear power plants

  30. Applications • Health care • Monitoring vital signs of patients • In-home elder care: monitoring subtler behaviors of an elders

  31. Applications • Automotive • Vehicle-centric sensor net • Robot with sensors • Non-traditional • Mobile • Possible long distance

  32. Examples • Great Duck Island • 190 sensors monitor the nesting petrels • Avoid to disturb the bird

  33. Examples • BP, an oil and gas giant • Losing track of 900 railcars in 2003 • Solution: to fit each railcar with a network of sensors --- that not only track where the railcars is at all times, but can monitor weight, internal temperature, etc.

  34. Examples • BP • Monitoring customers’ liquefied petroleum gas fuel tanks • 25% improvement in efficiency • The tanks have gauges but customer would forget to look at them until it was too late

  35. Examples • BP • Tracking lone workers • To avoid hazardous areas where they may be at risk

  36. Examples • Intel • Now, all equipments are manually inspected once a quarter, found 80% of problems • With sensor net, 95% of the problems can be found

  37. Vineyards BC Examples • In Pickberry vineyard, a sensor net monitors: • soil moisture • rainfall • wind velocity and direction

  38. Trend of Sensor Net Research • Application-driven • Most basics are researched • New topics from real-world applications

  39. Outline • An Introduction • Surveillance and Coverage • Mobile Sensors • Reality and Terrain • Scalability and Heterogeneous Sensor Nets • Multiple Sensor Nets and InterSensorNets • Semantic Sensor Nets • Detection and Anti-detection • Future works

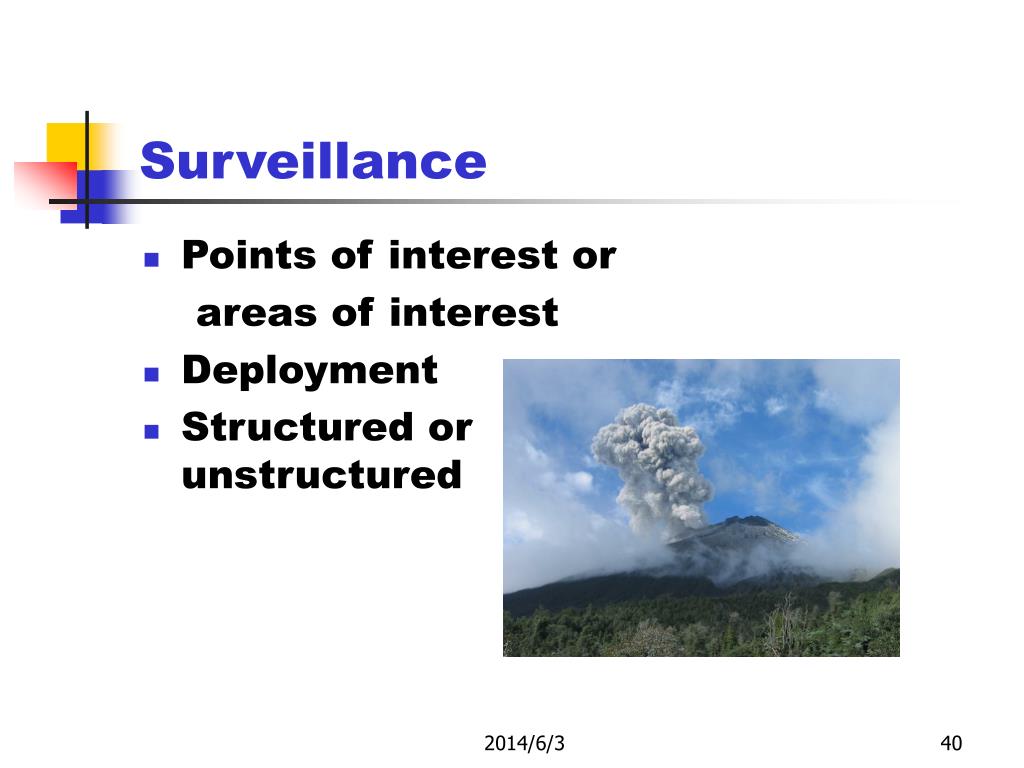

  40. Surveillance • Points of interest or areas of interest • Deployment • Structured or unstructured

  41. 2 1.732 Coverage and Connection • Communication-to-Coverage Ratio (CCR) • Equivalence: 2 or 1.732?

  42. Coverage and Connection Sensing range Communication

  43. Coverage and Connection Connected Disjoint Connected Disjoint

  44. Coverage • 0-1 coverage • Coverage percentage • Average walking distance • Probability coverage • Detection probability

  45. Coverage • 0-1 coverage Average walking distance

  46. Coverage • Probability coverage

  47. Exposure • Path-based metrics • a start point and a destination • Best path and worst path • A probabilityapproach with Voronoi diagram

  48. Voronoi Diagram

  49. Sparse Sensor Nets • Point surveillance • Low CCR • How to communication • Communicators? • Long range communication? • Mobile collectors?

  50. Holes and Islands • Definition of holes and islands • The effect of a hole in communication and coverage • Communication island • Use mobile sensors • fill holes • connect islands
