  1. Welcome to the Today’s 1-Hour Solution: Panasonic® SIP Extensions and VPN Tunnels 2008

  2. Presenters • David Baker – East Shore • Technical Services Specialist/Panasonic Certified Instructor • 25 Years Telecommunications experience • 3 years with Jenne • Certified on all Panasonic SMBS Products • Jim Karaffa – West Shore • Director, Training and Technical Support • 27 Years Telecommunications experience • Specialist/Panasonic Certified Instructor

  3. Panasonic SIP Stations & Trunks Feature Installation Programming Operation Q&A Today’s Agenda

  4. Networking provides… Lower Operational Cost (Centralized Resources) Quicker Response Time (Customer Satisfaction) Ease of Deployment (User Name & Password Login) Features

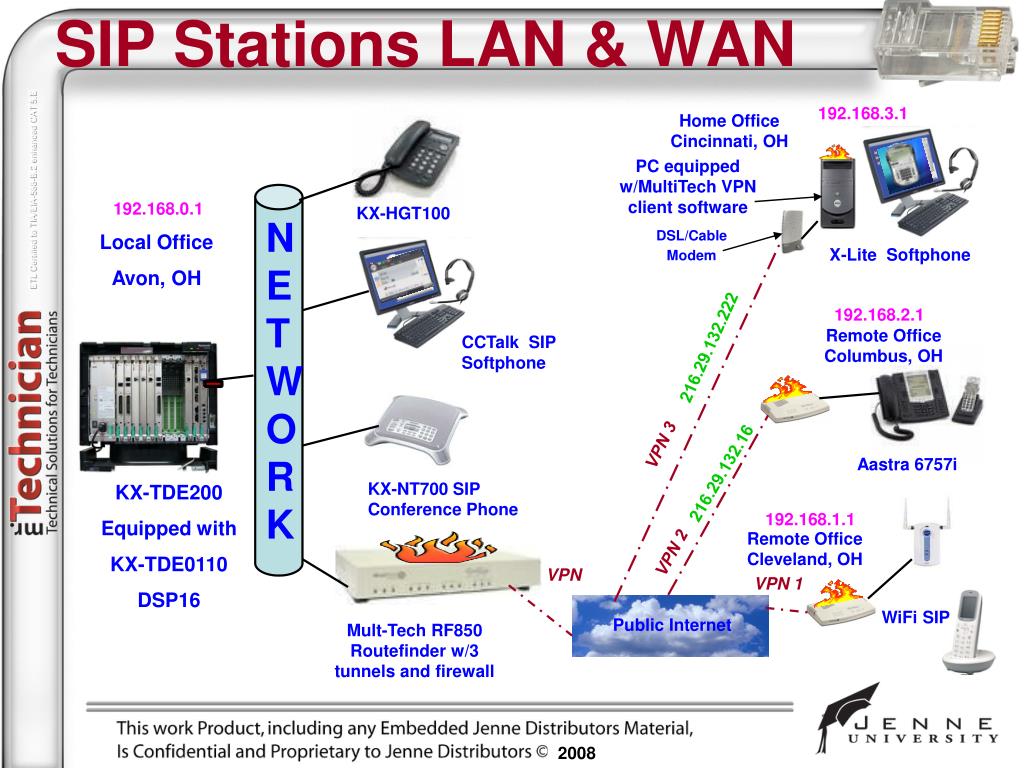

  5. SIP Stations LAN & WAN 192.168.3.1 Home Office Cincinnati, OH PC equipped w/MultiTech VPN client software 192.168.0.1 KX-HGT100 NETWORK DSL/Cable Modem Local Office Avon, OH X-Lite Softphone 192.168.2.1 Remote Office Columbus, OH CCTalk SIP Softphone 216.29.132.222 VPN 3 Aastra 6757i 216.29.132.16 KX-NT700 SIP Conference Phone KX-TDE200 Equipped with KX-TDE0110 DSP16 192.168.1.1 Remote Office Cleveland, OH VPN 2 VPN VPN 1 WiFi SIP Public Internet Mult-Tech RF850 Routefinder w/3 tunnels and firewall

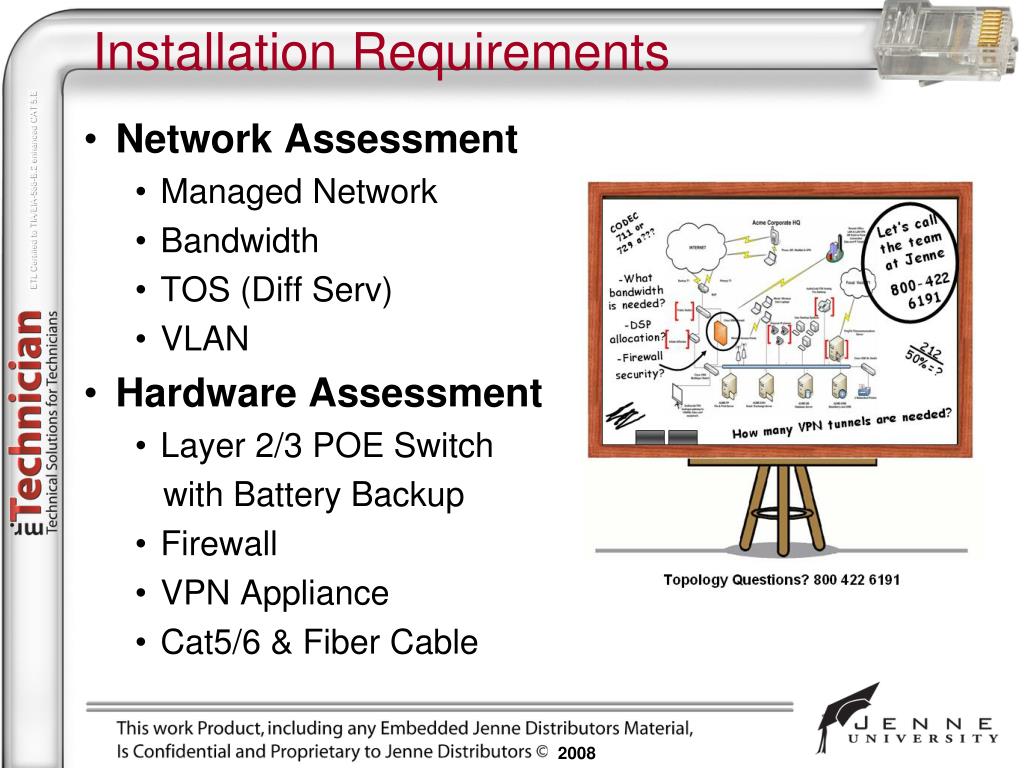

  6. Network Assessment Managed Network Bandwidth TOS (Diff Serv) VLAN Hardware Assessment Layer 2/3 POE Switch with Battery Backup Firewall VPN Appliance Cat5/6 & Fiber Cable Installation Requirements

  7. VPN Appliance Netgear Multi-Tech ZyXel Adtran

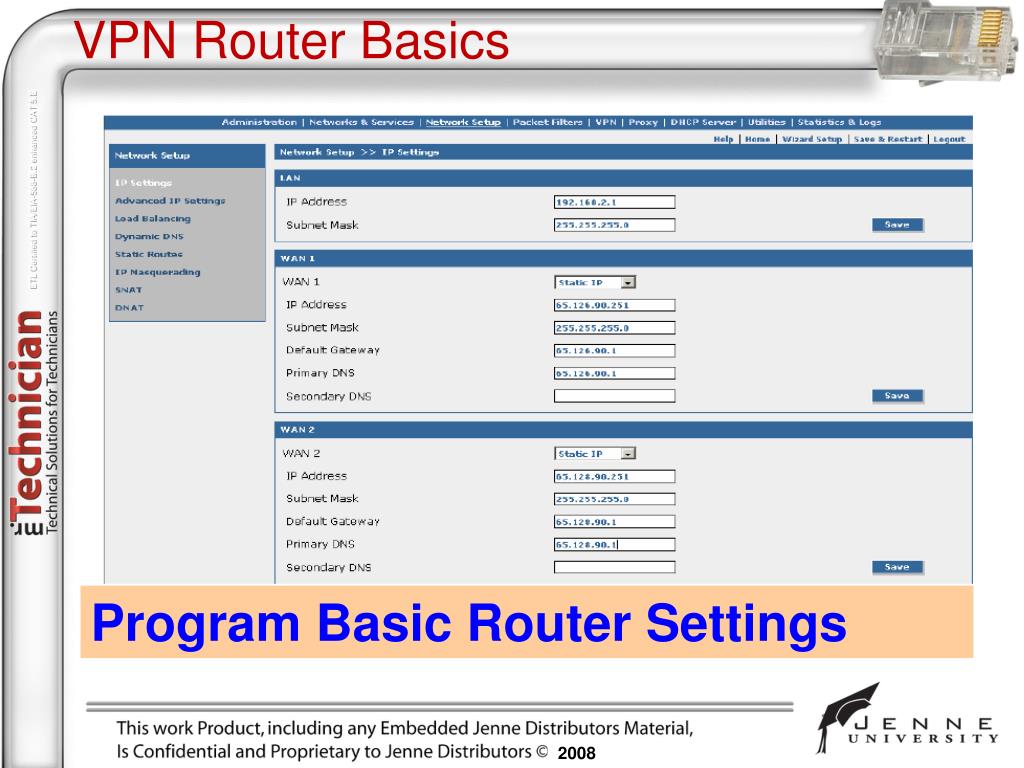

  8. VPN Router Basics Program Basic Router Settings

  9. Program VPN Tunnel Each Remote Site will need to be programmed

  10. KX-TDE100/200/600 KX-TDE0110 DSP16 KX-TDE0111 DSP64 Activation Key KX-NCS4701 SIP Station KX-NCS4704 SIP Station KX-NCS4708 SIP Station KX-NCS4716 SIP Station Panasonic Requirements

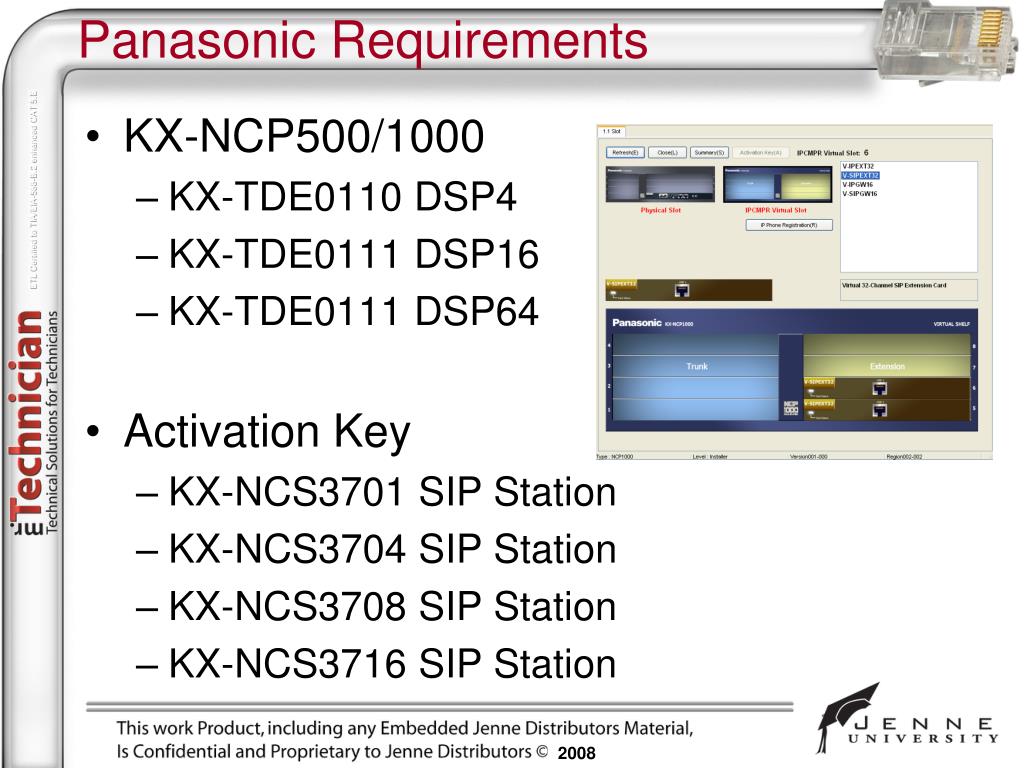

  11. Panasonic Requirements • KX-NCP500/1000 • KX-TDE0110 DSP4 • KX-TDE0111 DSP16 • KX-TDE0111 DSP64 • Activation Key • KX-NCS3701 SIP Station • KX-NCS3704 SIP Station • KX-NCS3708 SIP Station • KX-NCS3716 SIP Station

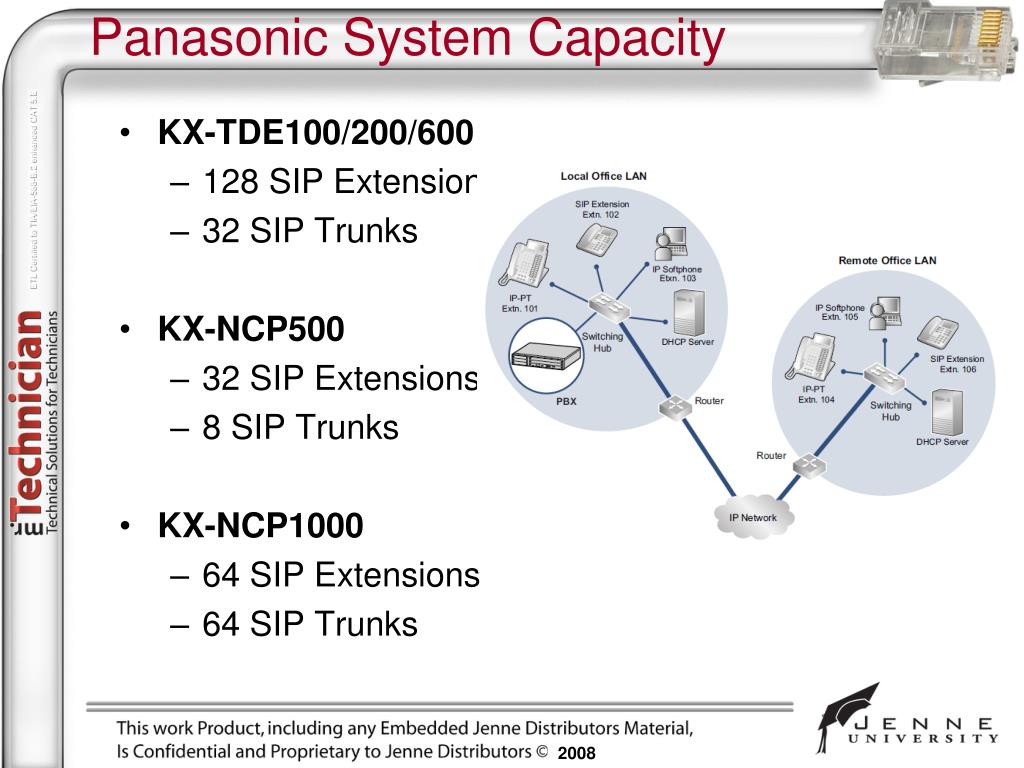

  12. KX-TDE100/200/600 128 SIP Extensions 32 SIP Trunks KX-NCP500 32 SIP Extensions 8 SIP Trunks KX-NCP1000 64 SIP Extensions 64 SIP Trunks Panasonic System Capacity

  13. http://tde.panacare.com Required Information Dealer ID Dealership ID Tech ID

  14. Download Perm AK Required Information MPR/SYSTEM ID Activation Key Registration ID

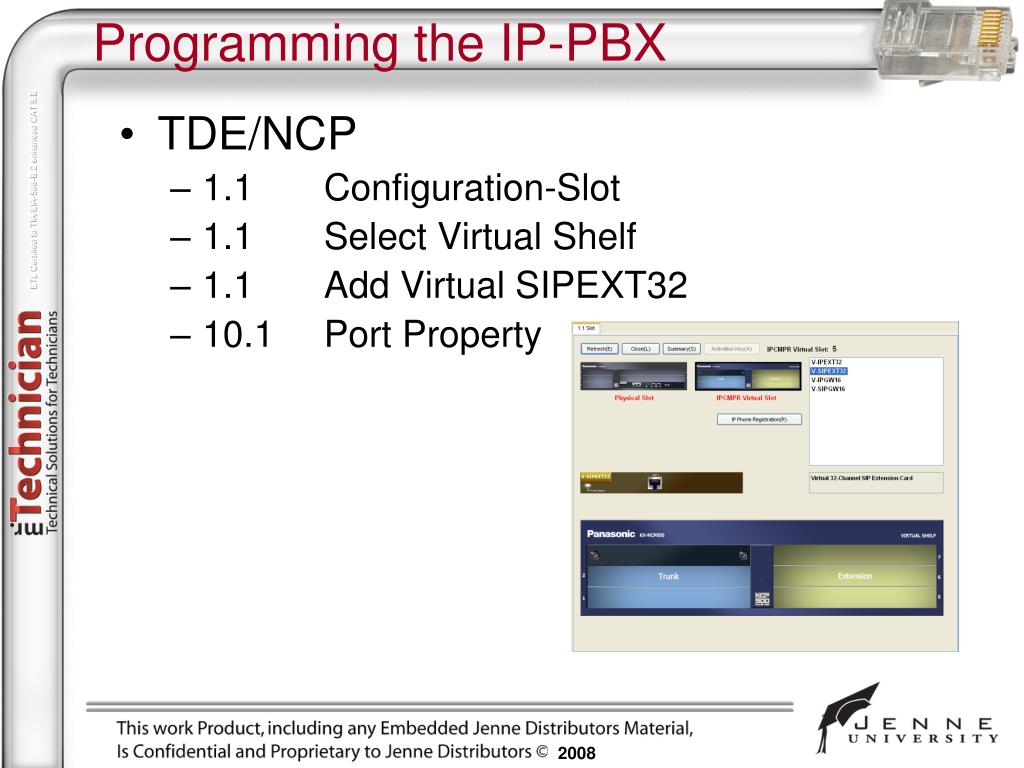

  15. TDE/NCP 1.1 Configuration-Slot 1.1 Select Virtual Shelf 1.1 Add Virtual SIPEXT32 10.1 Port Property Programming the IP-PBX

  16. 1.1 Slot Program V-SIPEXT32 in Extension Slot.

  17. Card Property Program the SIP UDP Port.

  18. Port Property Program Area for Extension Number and Password.

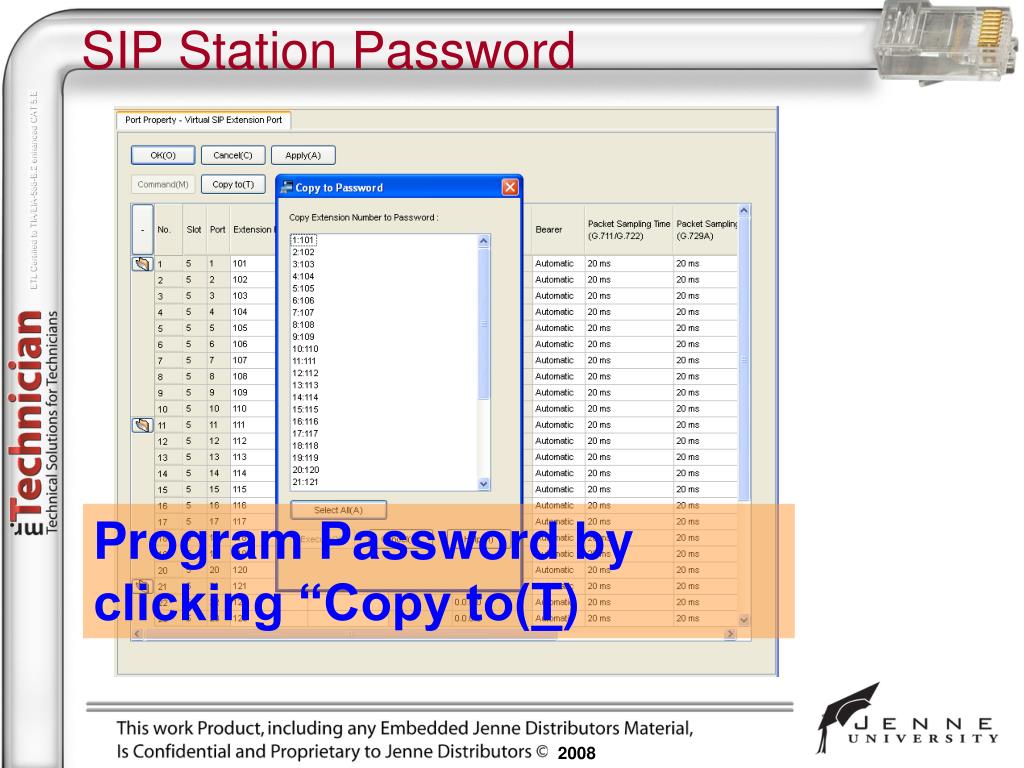

  19. SIP Station Password Program Password by clicking “Copy to(T)

  20. Assigning Passwords Click Select All and then Execute

  21. KX-HGT100 SIP-Phone • SIP Speakerphone • 2 Line x 16 Character LCD with 4-level Contrast • 2 Ethernet Ports (10/100 Base-T) for PC and LAN • Optional AC Adaptor or POE • Headset Jack • Buttons includes: Mute, Speaker Phone, Program , Info. Hold , Transfer , Message Key , Speed dial , and Redial

  22. KX-NT700 IP Conferencing • Connect to both IP and PSTN • True Full Duplex • Background Noise Reduction • Wideband High Quality Voice • Real Time Slow-Talk • Optional 2 External Microphone • Telephone call recording to SD • Connect to PC with USB and the main unit can be operated by the application program (bundled) on the PC screen

  23. 57iCT 57i 55i 53i Aastra SIP Telephones 4 Models To Start Programmable XML Application Buttons

  24. SIP Station Interoperability

  25. SIP Gateway Card Click and Drag a V-SIPGW16 into Trunk Slot

  26. Activation Key Trunks not assigned here can be used for SIP Trunks. SIP Trunks use the same Activation Key as IP-GW Trunks

  27. Shelf Property-Virtual SIP Gateway Customers Static WAN IP Address

  28. Card Property- Virtual SIP Gateway Enter the Preferred and Alternate DNS Server IP

  29. Port Property- Main Tab Change the Channel Attribute on the first Slot/Port to Basic Channel. Each Additional Channel for Ch1 will be marked as such.

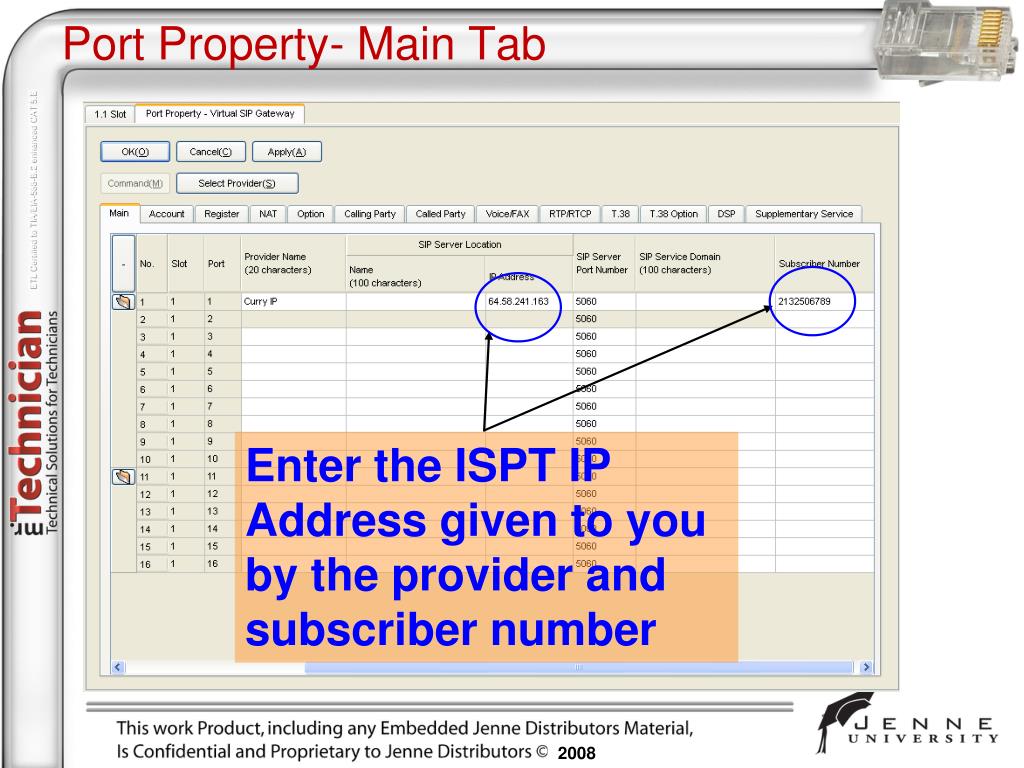

  30. Port Property- Main Tab Enter the ISPT IP Address given to you by the provider and subscriber number

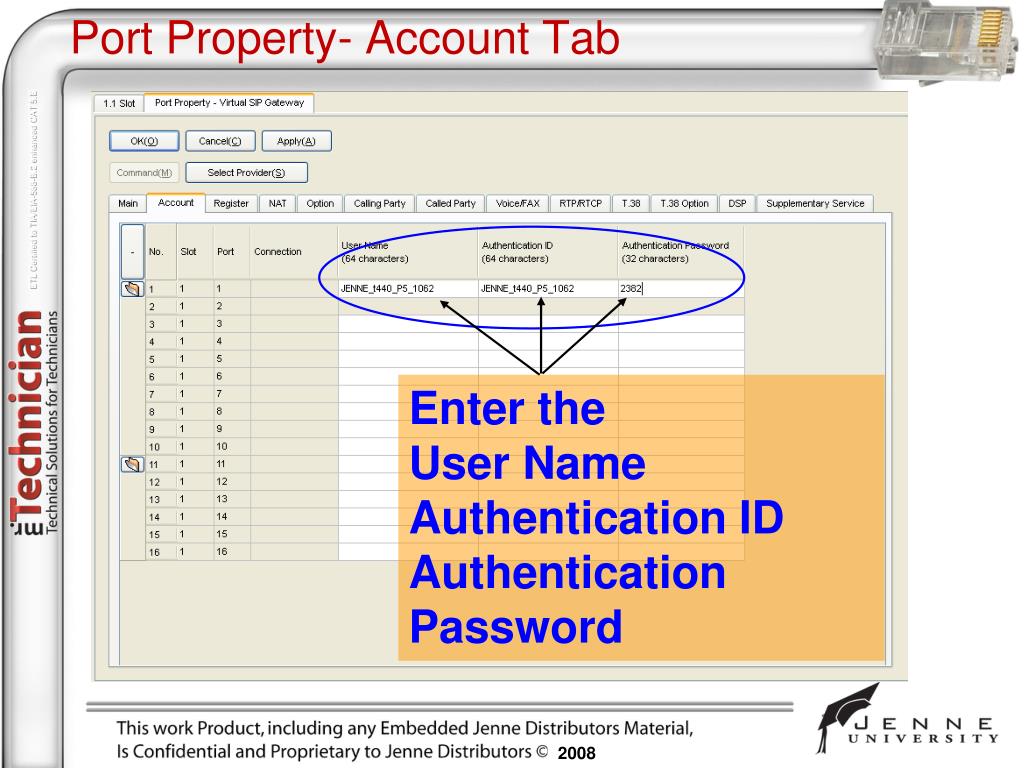

  31. Port Property- Account Tab Enter the User Name Authentication ID Authentication Password

  32. Port Property- Register Enter the Registrar Server IP Address

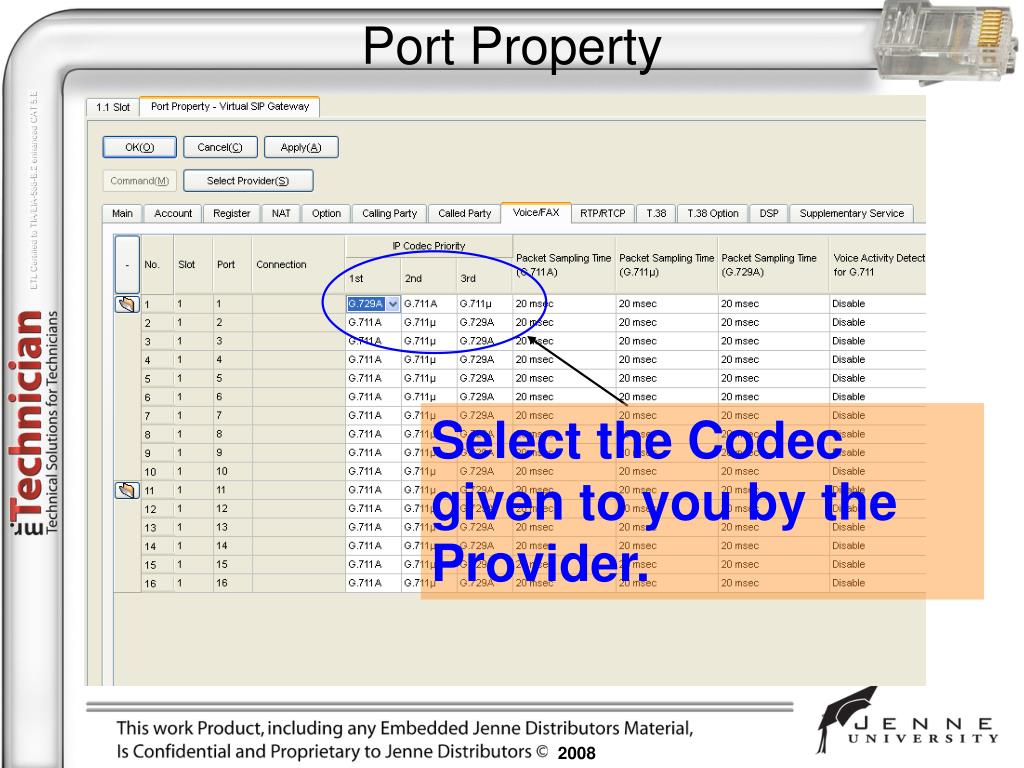

  33. Port Property Select the Codec given to you by the Provider.

  34. 10.1 CO Line Settings Create Trunk Group for SIP Channels

  35. 10.2 CO DIL Table Change Distribution Method to match service.

  36. Start Making Calls! SIP? SIP Network

  37. In Summary… TDE/NCP Systems with SIP Stations and Trunks is a solution for the customer who wants connect to multiple offices via the corporate LAN/WAN! If the customer selects the SIP Station Networking Solution they can present a seamless operation across time zones and countries!! If the customer selects the SIP Trunking Solution they can have the same presence as a Larger Corporation and have a business with a national Presence!!!

  38. What Questions do you have? (800) 422-6191 Press 4+2 ? ? ? ? ? ? ? ? ? ? ? ? ? ?

  39. Topic suggestions? Email topic suggestions to ebutler@jenne.com for future Mr. Technician webinars and, if selected you’ll receive Jenne’s Promo Package.

  40. Thank You! Jenne appreciates you taking the time to participate in our Mr. Technician webinar
